Produksi & Pengiriman
Waktu Produksi 15-30 Hari
867 Pandangan Mencari Produk Ini

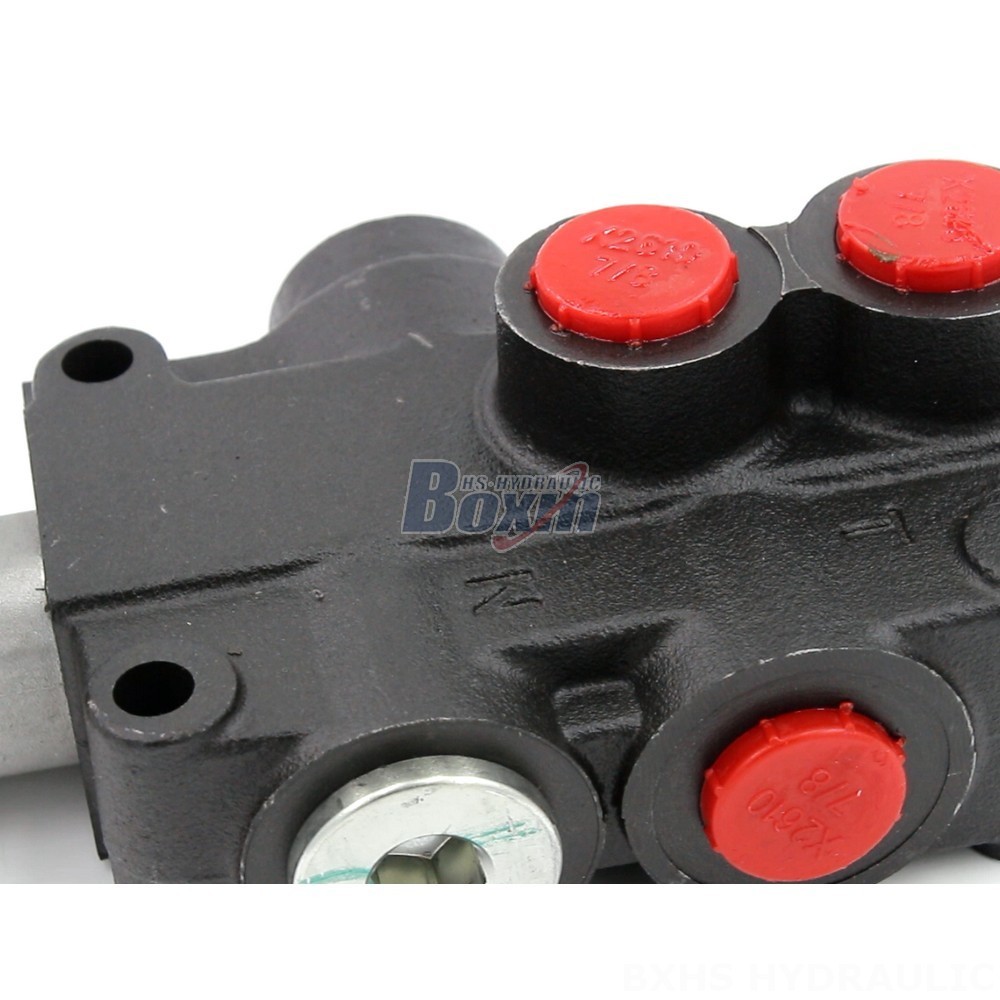

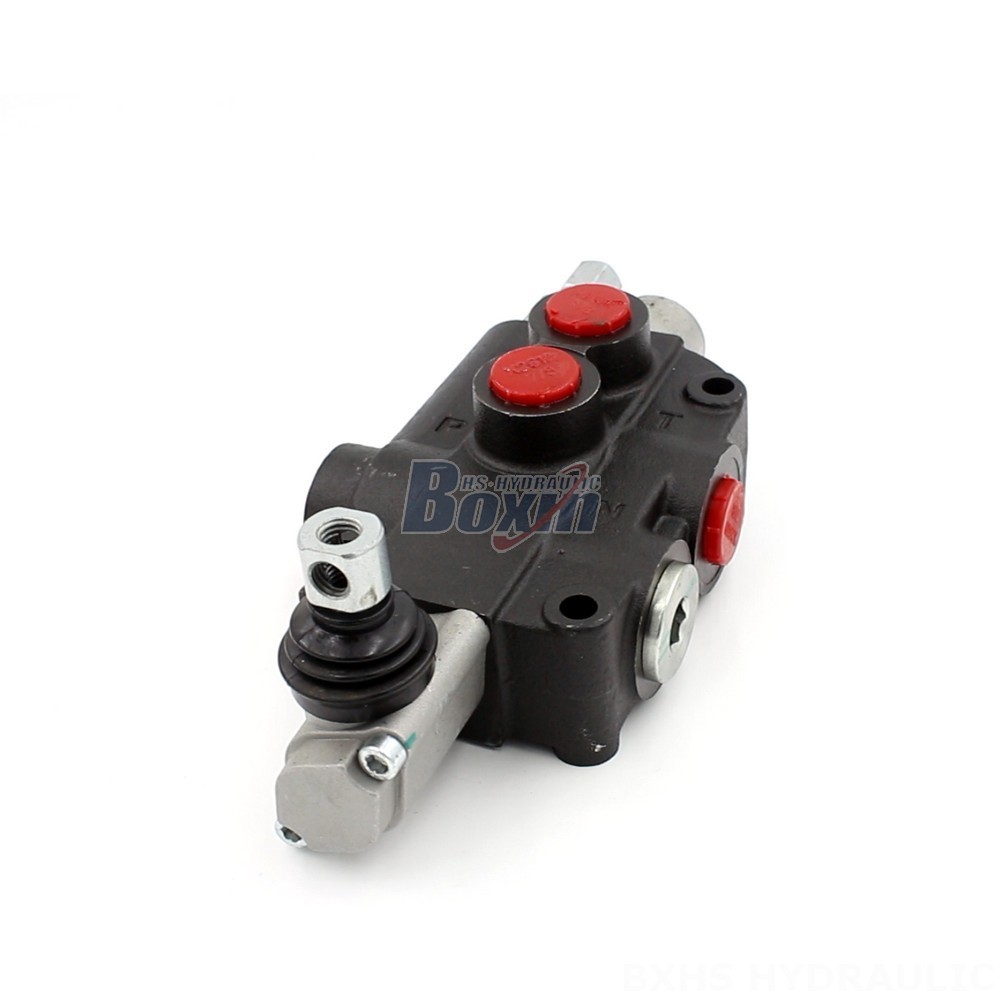

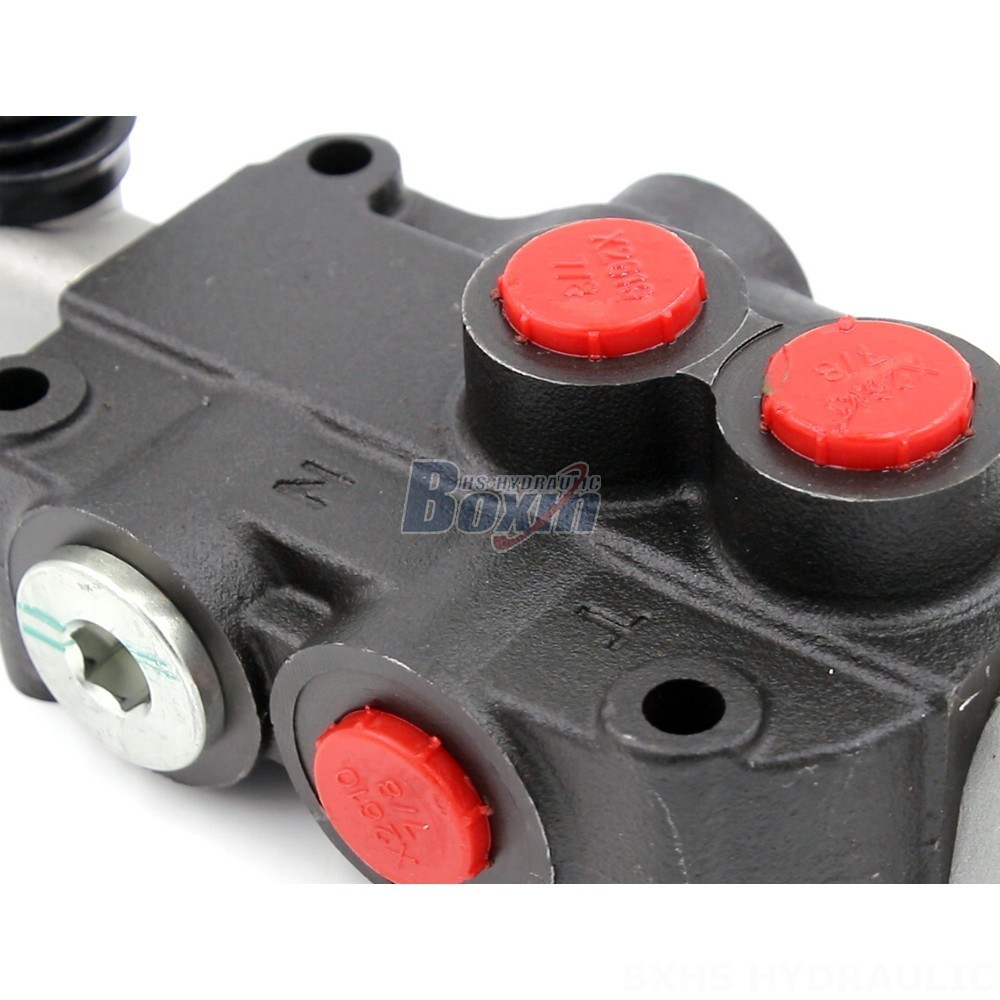

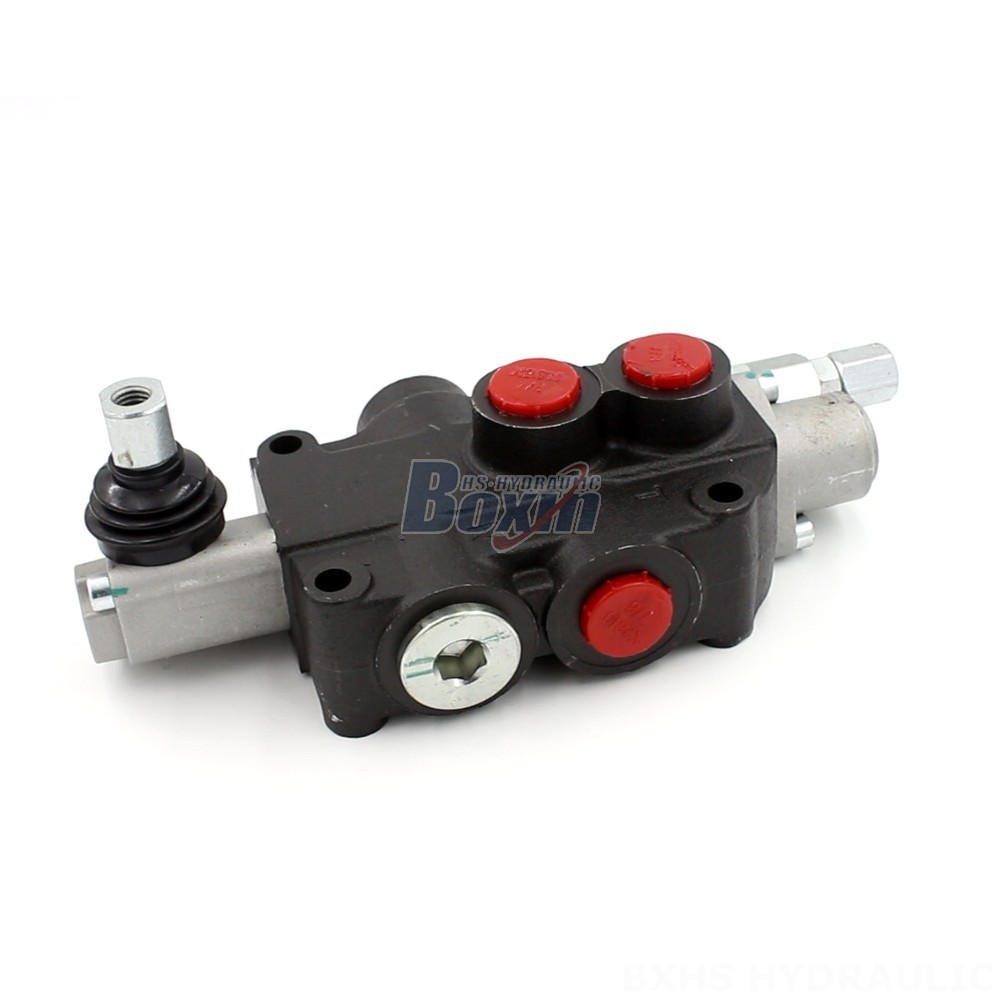

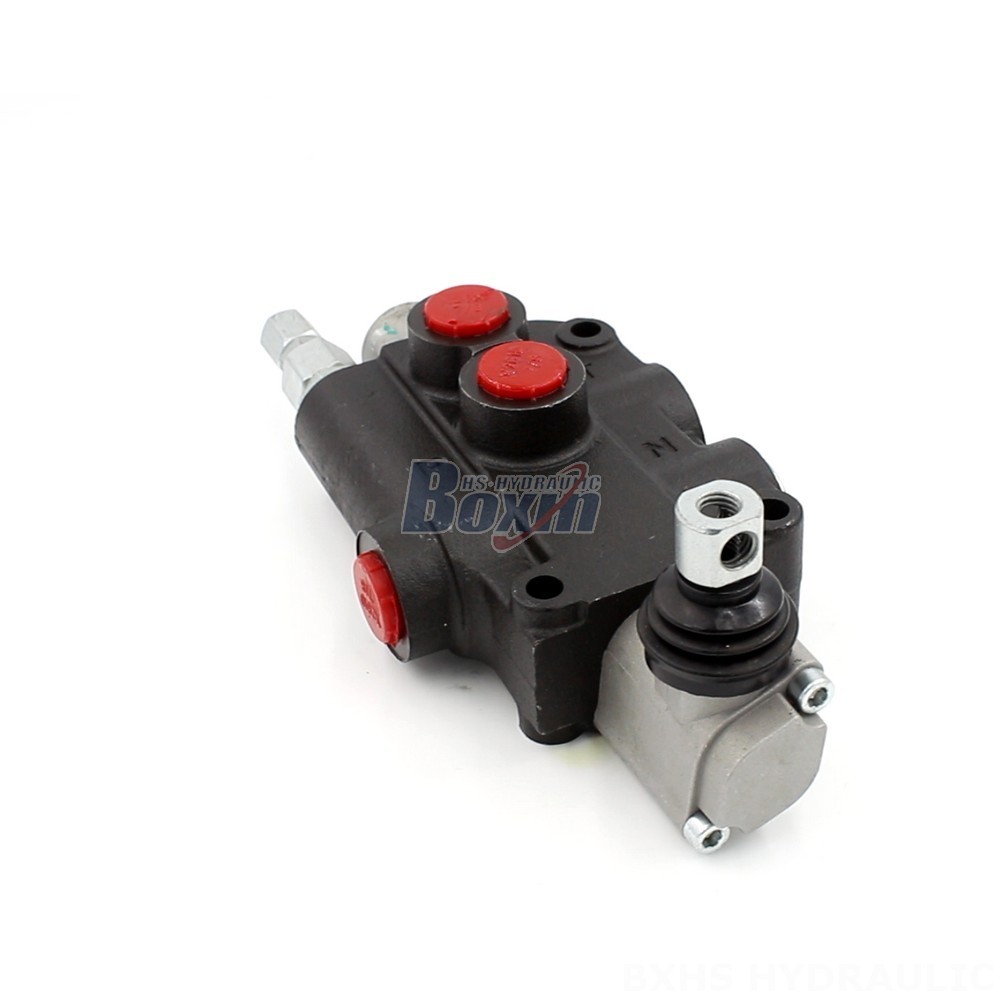

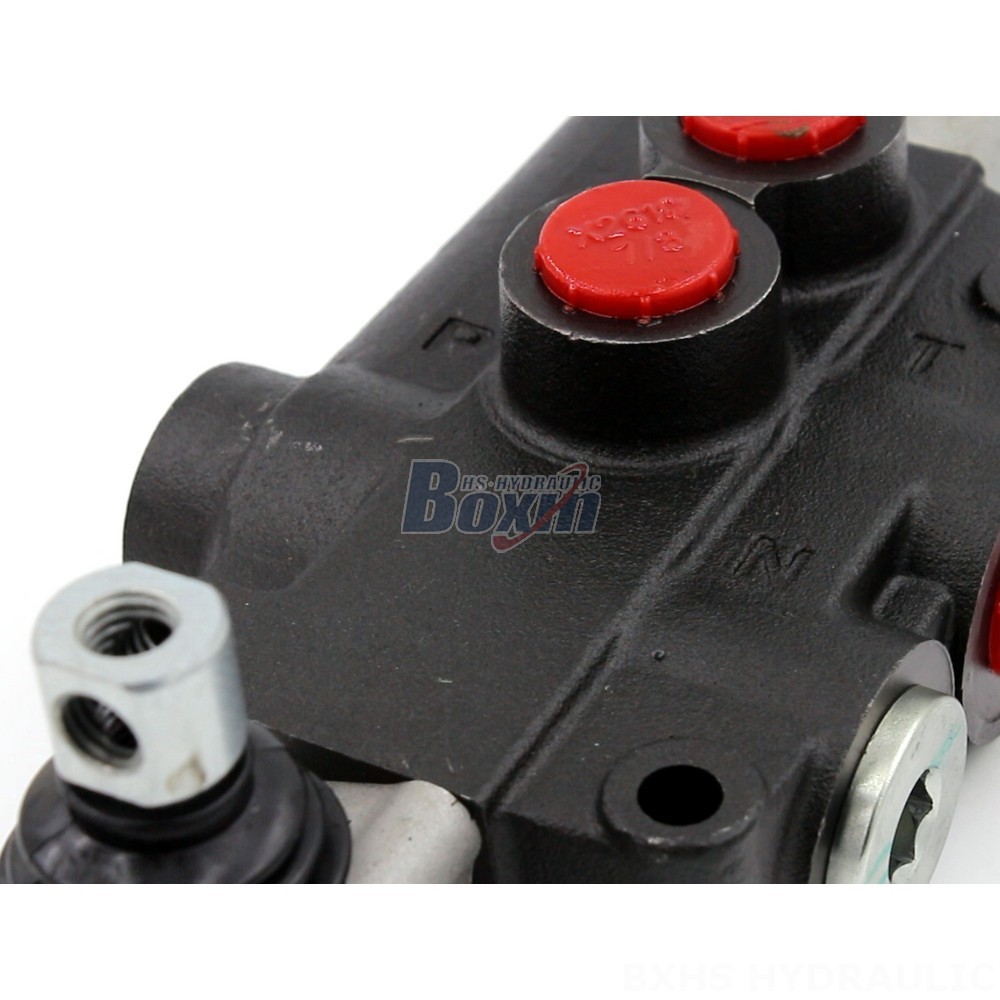

The Custom Hydraulic Valve Solutions: P80-U78 Valve offers customized hydraulic valve solutions tailored to specific requirements. Suitable for various applications such as material handling, construction, earth moving, agriculture, and industrial vehicles, this monoblock valve provides precise control with a rated flow rate of 80 L/min and a maximum pressure of 250 bar.
| Seri P80 Katup Arah Monoblok Parameter | |
|---|---|
| Metode Kontrol | Buku Panduan, Pneumatik, Elektro-pneumatik, Elektro-hidraulik, Selenoid, Hidraulis, Hidraulik dan Manual, Kabel, Stik Kontrol, Manual dan Joystick |
| Spul | 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool |
| Kisaran Suhu Sekitar | -40°C hingga +80°C (-40°F hingga +176°F) |
| Tipe Struktur | Katup monoblok |
| Bagian | 1 Bagian, 2 Bagian, 3 Bagian, 4 Bagian, 5 Bagian, 6 Bagian, 7 Bagian |
| Kisaran Viskositas Operasional | 15 - 75 mm²/dt (15 cSt hingga 75 cSt) |
| Aliran Terukur | 80 L/menit (21,2 US gpm) |
| Tekanan Maksimum | 315 bar (4600 psi) |
| Port Masuk | G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Port Keluar | G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Ukuran Port | G1/2, G3/4, M22×1.5, M27×2.0, SAE 10, 1/2 NPT, 3/4 NPT |
The P80-U78 Valve features a manual control method and a single spool design. Its operating viscosity range spans from 15 to 75 mm²/s, ensuring compatibility with different fluid viscosities. The valve operates within an ambient temperature range of -40°C to +80°C, making it suitable for diverse operating conditions. Ideal for applications in telehandlers, forklifts, all-terrain cranes, stackers, aerial platforms, and motor graders, this custom hydraulic valve solution enhances system efficiency and control.
