Produksi & Pengiriman
Waktu Produksi 15-30 Hari
1010 Pandangan Mencari Produk Ini

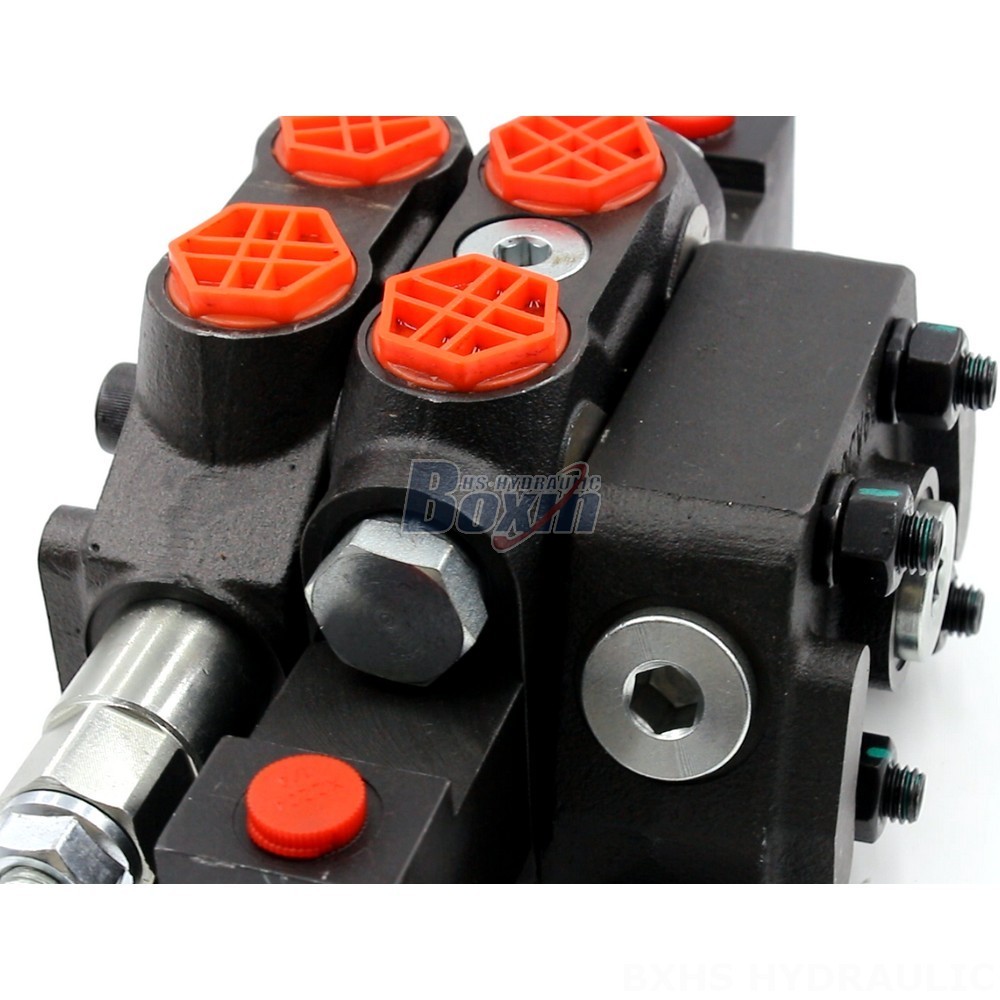

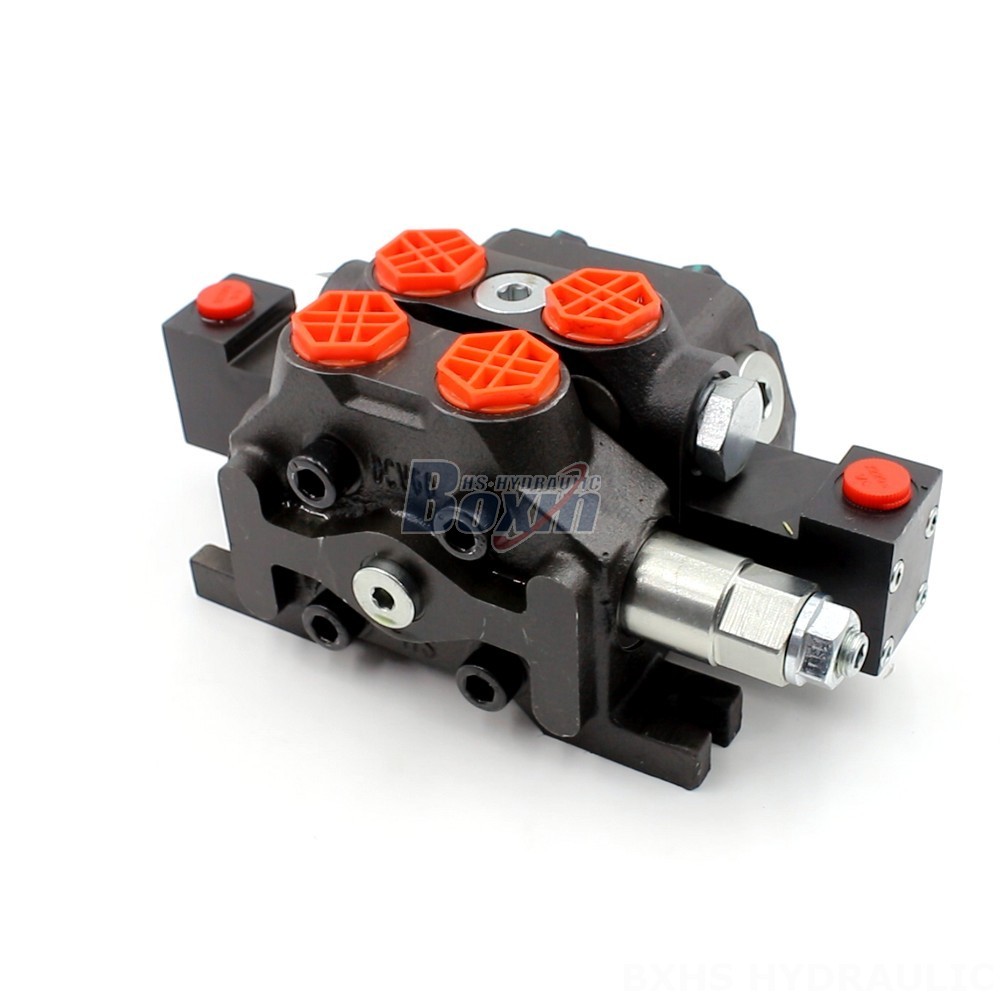

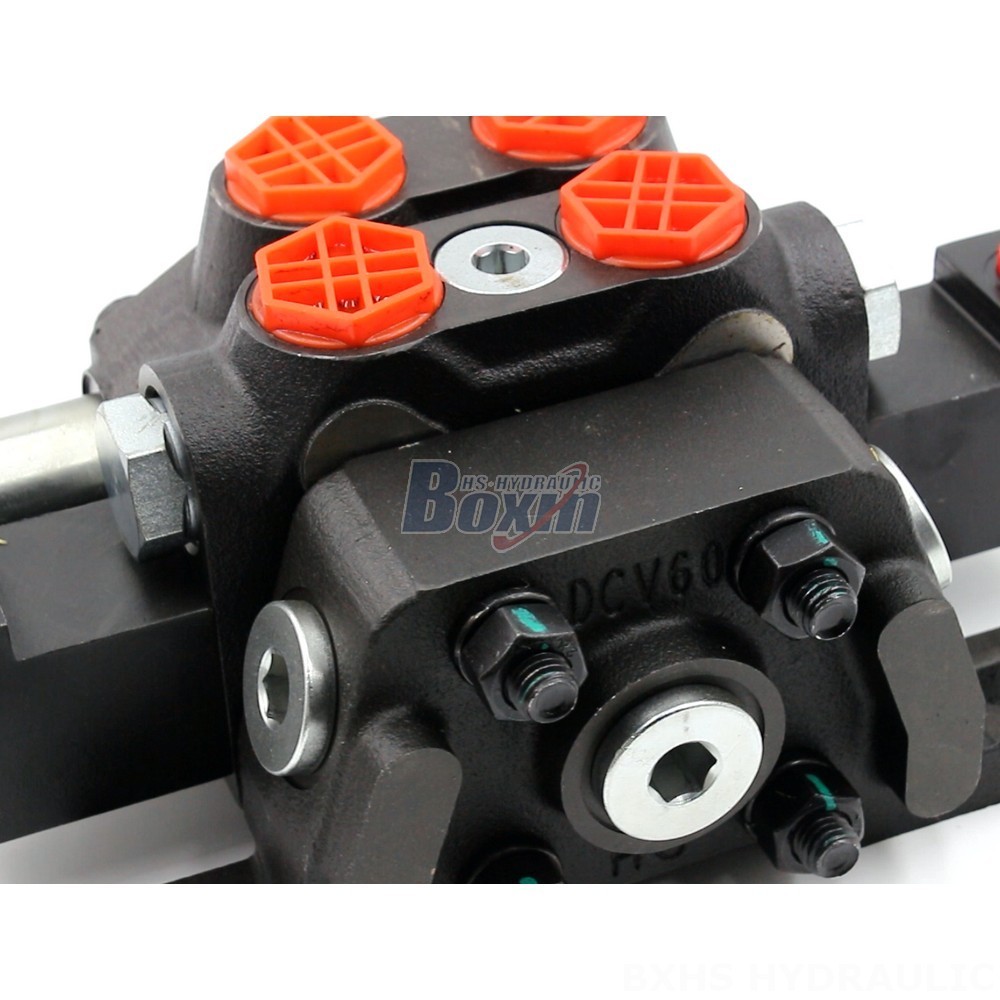

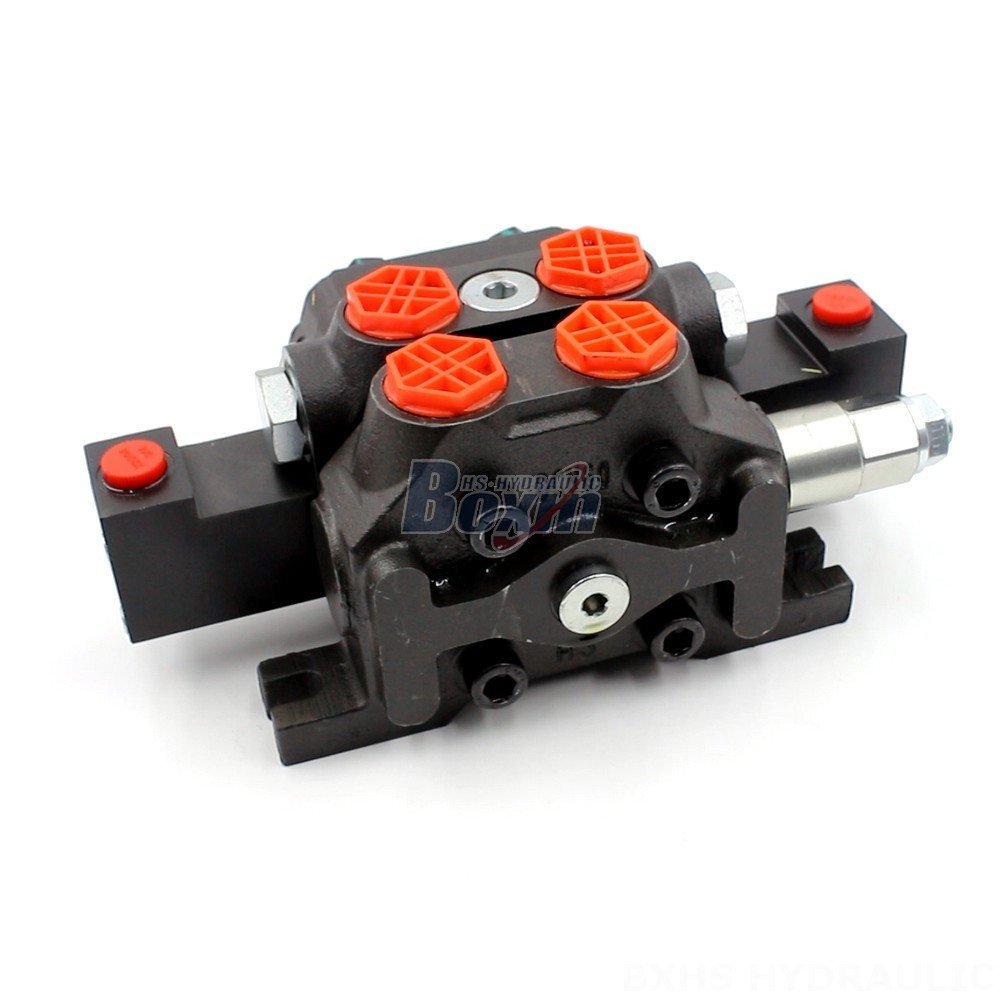

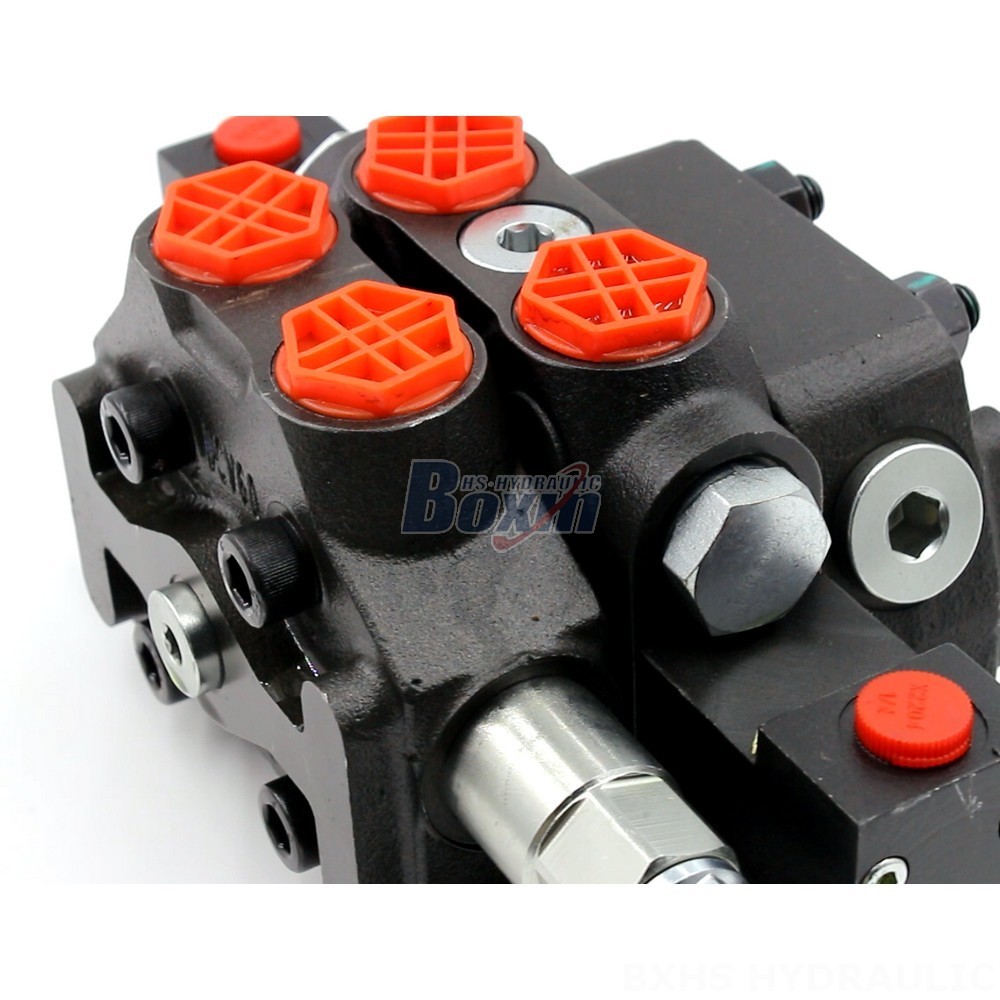

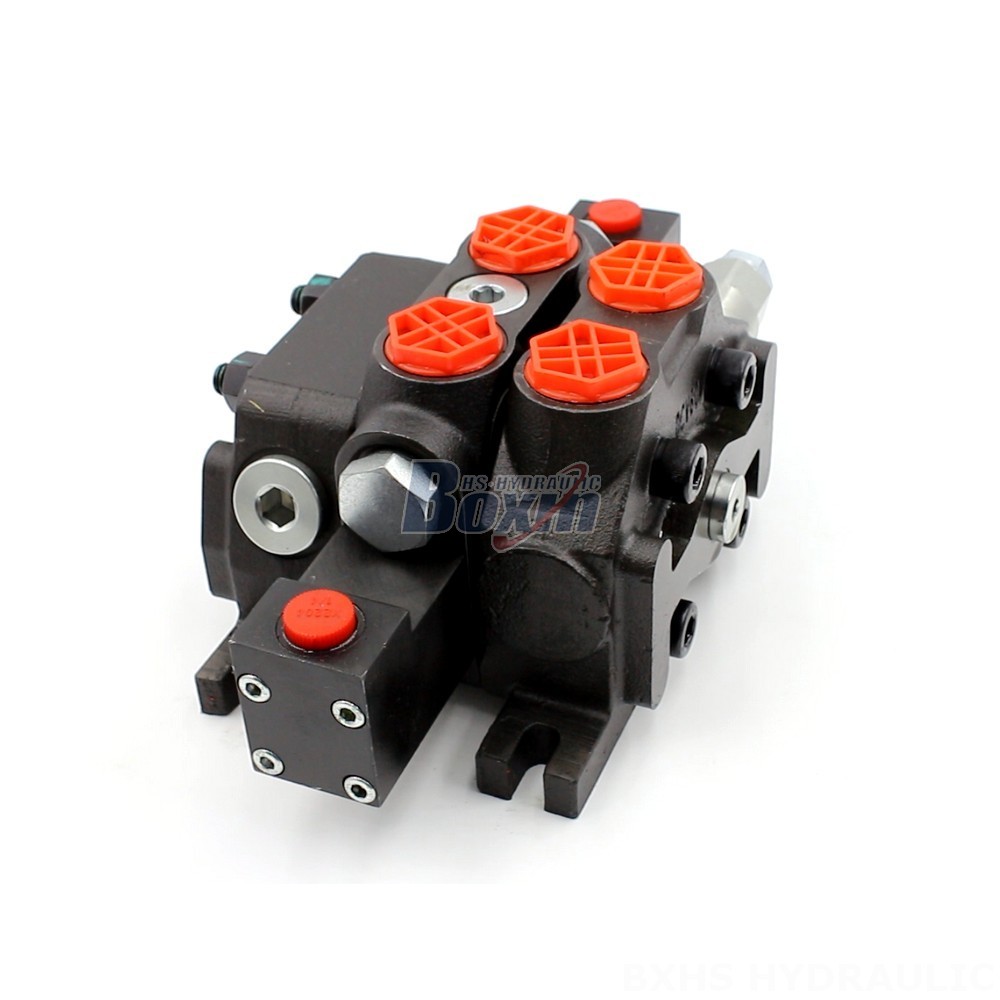

The DCV60-G34 Series 3 Way Valve is a customizable hydraulic valve designed for various applications in construction, agriculture, material handling, and industrial vehicles. It offers OEM and ODM services, providing tailored solutions for your specific needs.
| Seri DCV60 Kran Arah Bagian Parameter | |
|---|---|
| Metode Kontrol | Buku Panduan, Pneumatik, Elektro-pneumatik, Elektro-hidraulik, Hidraulis, Hidraulik dan Manual, Kabel, Stik Kontrol, Solenoid dan Manual, Selenoid dan Joystick, Manual dan Joystick, Motor listrik |
| Spul | 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool, 8 Spool, 9 Spool, 10 Spool, 11 Spool, 12 Spool |
| Kisaran Suhu Sekitar | -40°C hingga +80°C (-40°F hingga +176°F) |
| Tipe Struktur | Katup penampang |
| Bagian | 1 Bagian, 2 Bagian, 3 Bagian, 4 Bagian, 5 Bagian, 6 Bagian, 7 Bagian, 8 Bagian, 9 Bagian, 10 Bagian, 11 Bagian, 12 Bagian |
| Kisaran Viskositas Operasional | 15 - 75 mm²/dt (15 cSt hingga 75 cSt) |
| Aliran Terukur | 60 L/menit (15,8 US gpm) |
| Tekanan Maksimum | 315 bar (4600 psi), 350 bar (5100 psi) |
| Port Masuk | G1/2, G3/4, M22×1.5, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Port Keluar | G1/2, G3/4, M22×1.5, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Ukuran Port | G1/2, G3/4, M22×1.5, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
The DCV60-G34 Series is a high-performance 3 way valve designed for demanding applications in material handling, construction, agriculture, and industrial vehicles. With a rated flow of 60 L/min and a max pressure of 350 bar, this valve provides reliable operation in a wide range of environments. This valve features a sectional structure and offers customization options through OEM and ODM services, allowing you to tailor it to your specific requirements. The DCV60-G34 Series is compatible with various machines, including telehandlers, forklifts, motor graders, mini excavators, skid steer loaders, compact wheel loaders, harvesters, seeding machines, forestry trailers, and balers. Its robust design and high-quality materials ensure long-lasting performance and reliability. Contact us today to discuss your specific requirements and explore the customization possibilities offered by the DCV60-G34 Series.
