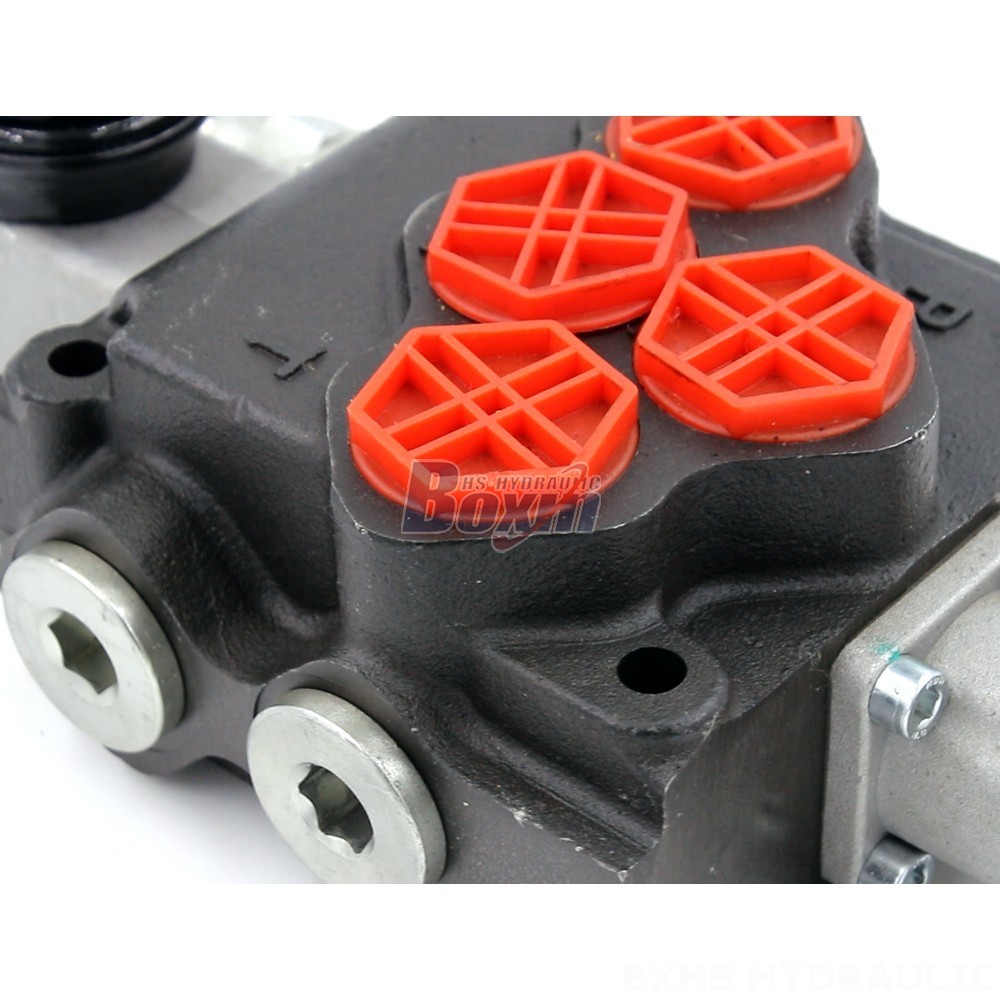

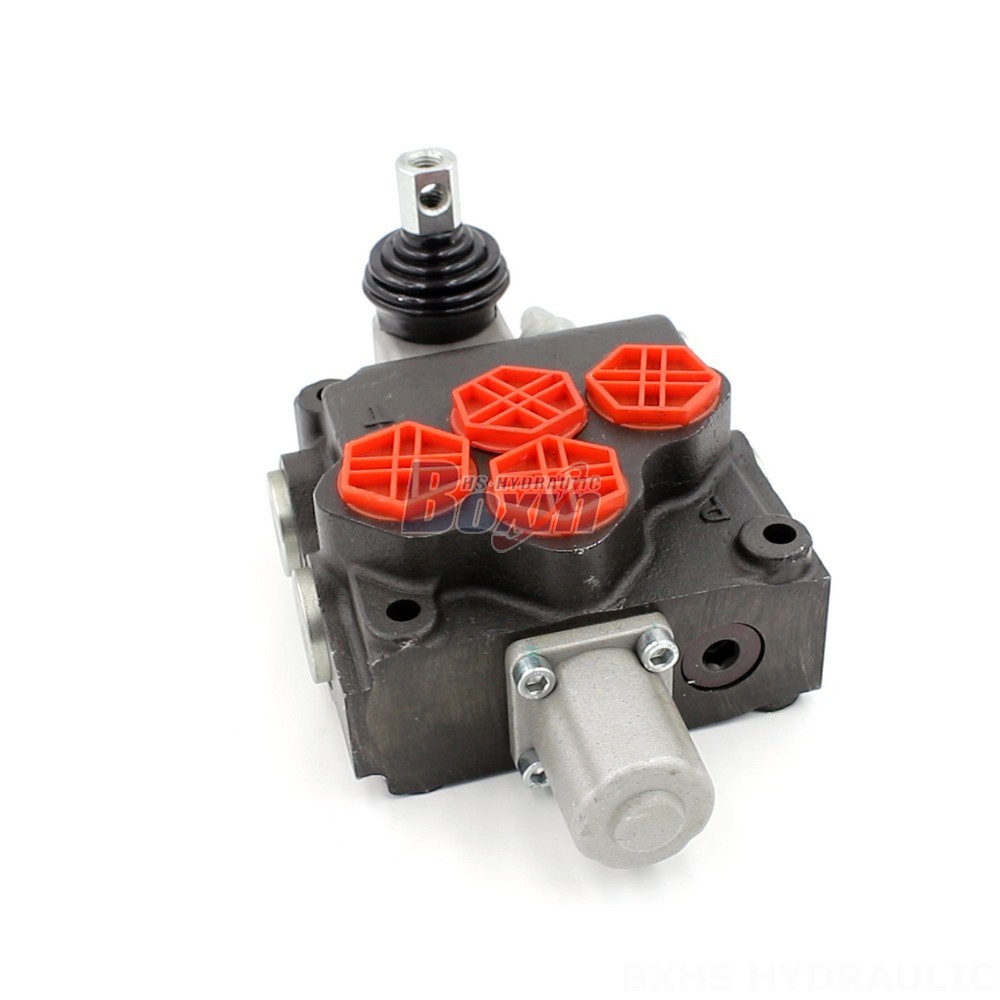

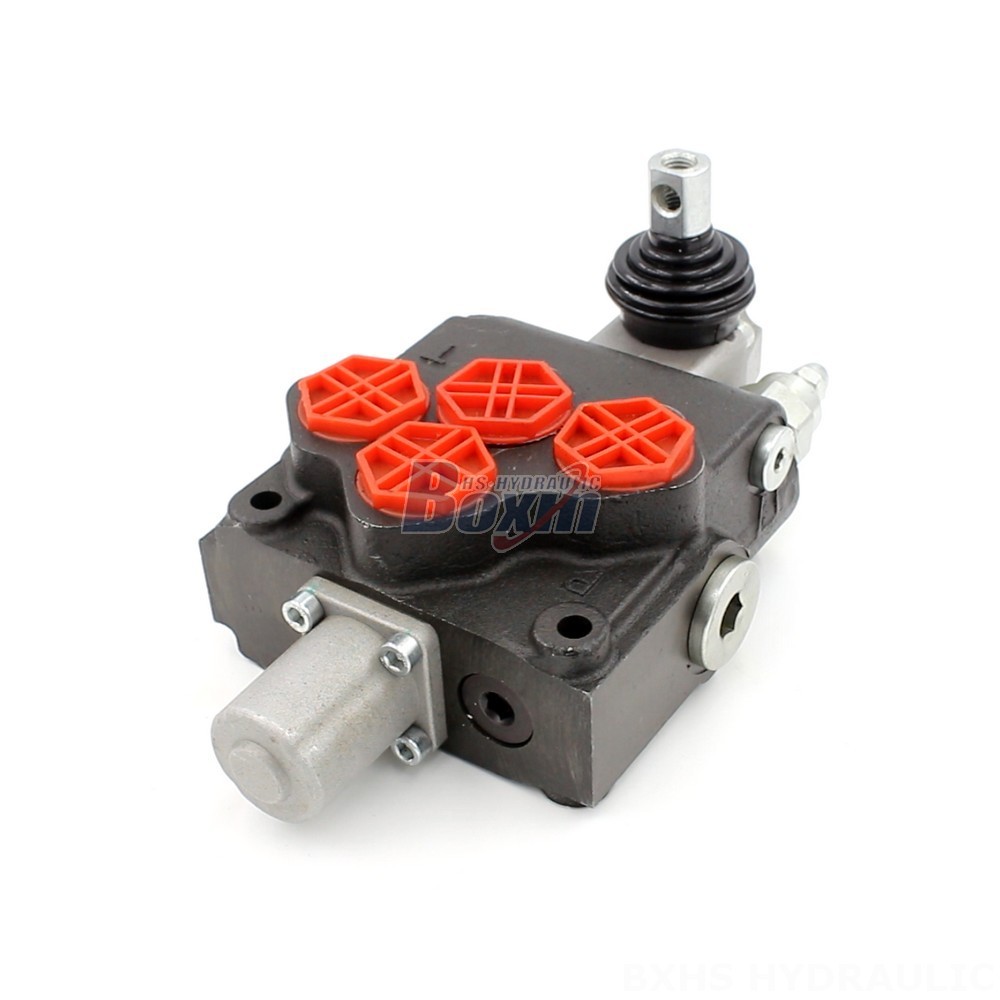

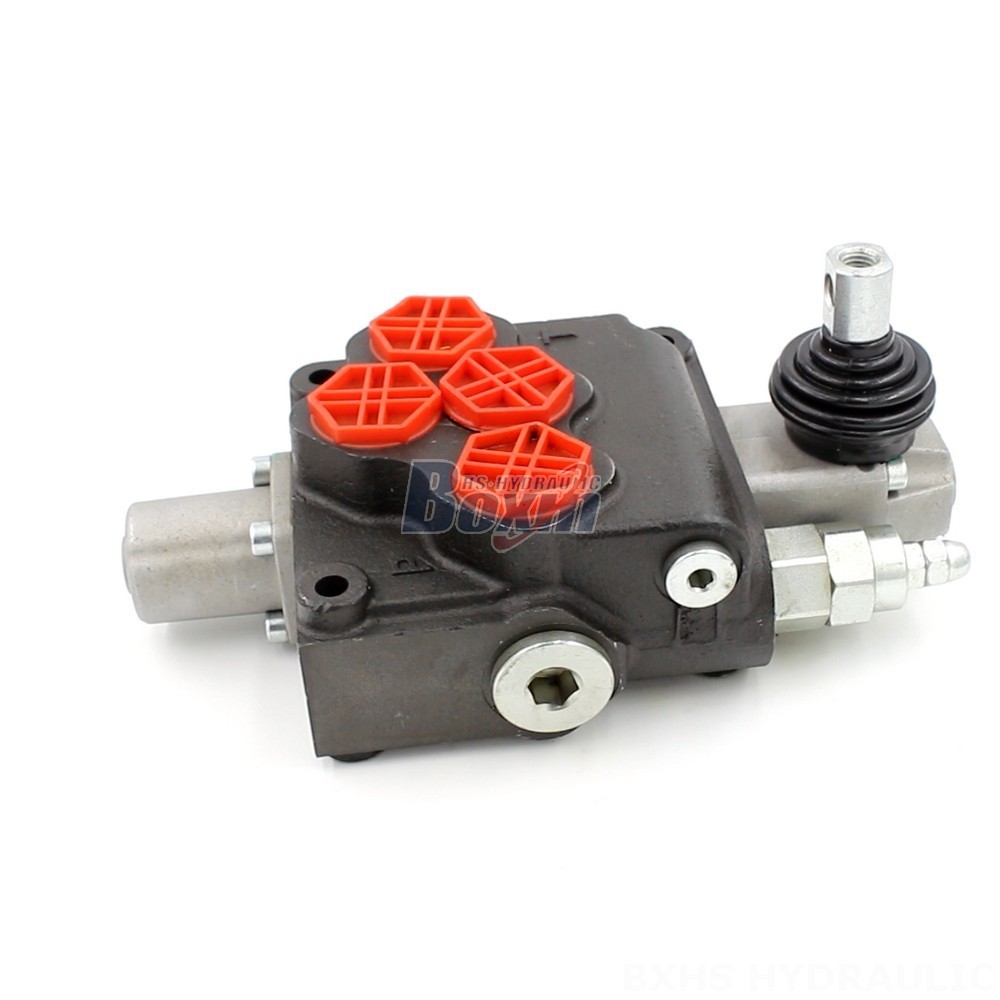

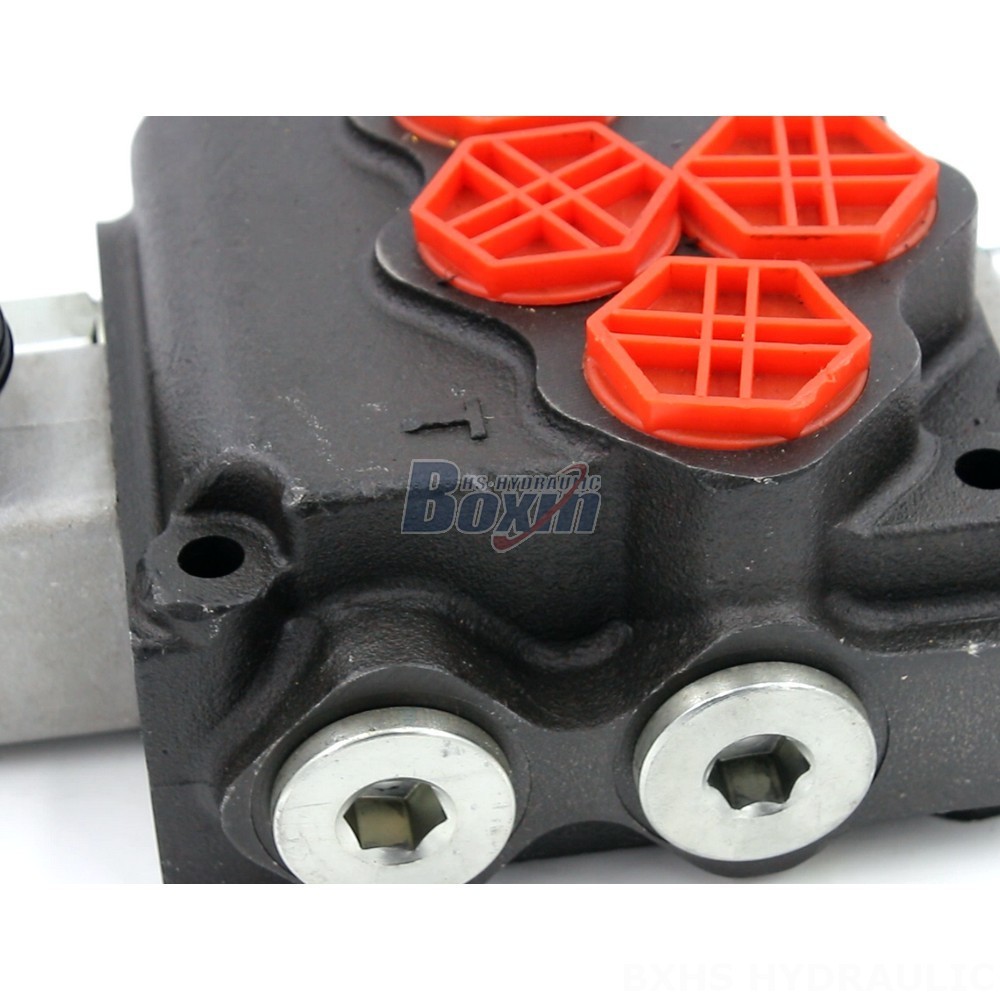

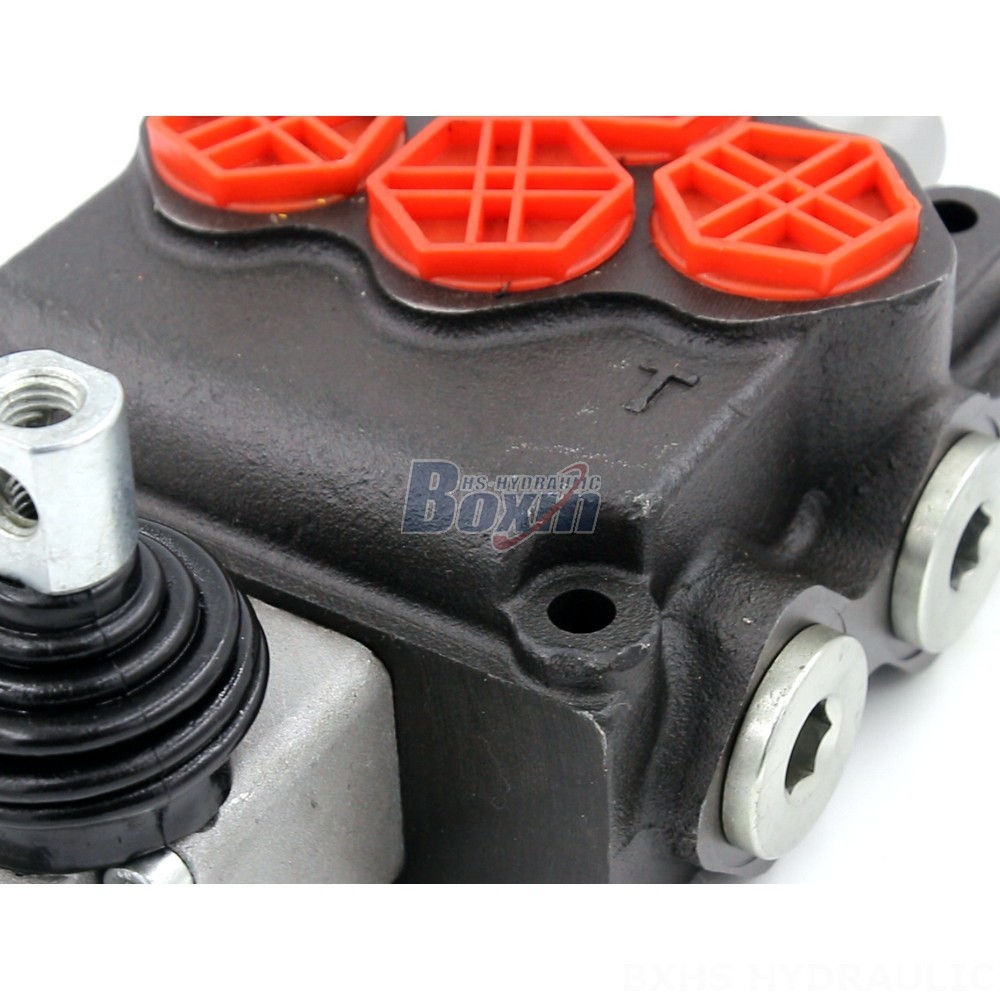

The P120-G1 Monoblock Valve is a customizable 3 position 4 way hydraulic control valve designed for a variety of applications, including material handling, construction, and agriculture. This valve is rated for a flow rate of 120 L/min and a maximum pressure of 250 bar.
| Seri P120 Katup Arah Monoblok Parameter | |
|---|---|
| Metode Kontrol | Buku Panduan, Kabel, Stik Kontrol, Manual dan Joystick |
| Spul | 1 Spool, 2 Spool, 3 Spool, 4 Spool |
| Aliran Terukur | 120 L/min (31,7 US gpm) |
| Tekanan Maksimum | 250 bar (3600 psi) |
| Port Masuk | G3/4, G1, M27×2.0, SAE 14, SAE 16, 3/4 NPT, 1 NPT, M36×2 |
| Port Keluar | G1, SAE 16, 1 NPT, M36×2 |
| Ukuran Port | G3/4, G1, M27×2.0, SAE 14, SAE 16, 1 NPT, M36×2 |
| Bagian | 1 Bagian, 2 Bagian, 3 Bagian, 4 Bagian |
| Tipe Struktur | Katup monoblok |
| Kisaran Suhu Sekitar | -40°C hingga +80°C (-40°F hingga +176°F) |
| Kisaran Viskositas Operasional | 15 - 75 mm²/dt (15 cSt hingga 75 cSt) |
The P120-G1 is a robust and reliable hydraulic control valve, featuring a monoblock design and a 120 L/min flow rate. It operates at a maximum pressure of 250 bar and is suitable for use in a wide range of temperatures, from -40°C to +80°C. This valve is ideal for applications in material handling, construction, agriculture, and industrial vehicles, such as telehandlers, forklifts, all terrain cranes, stackers, aerial platforms, motor graders, midi excavators, mini excavators, skid steer loaders, and compact wheel loaders. The P120-G1 is customizable to meet specific application needs, making it a versatile and valuable component for your hydraulic system.
