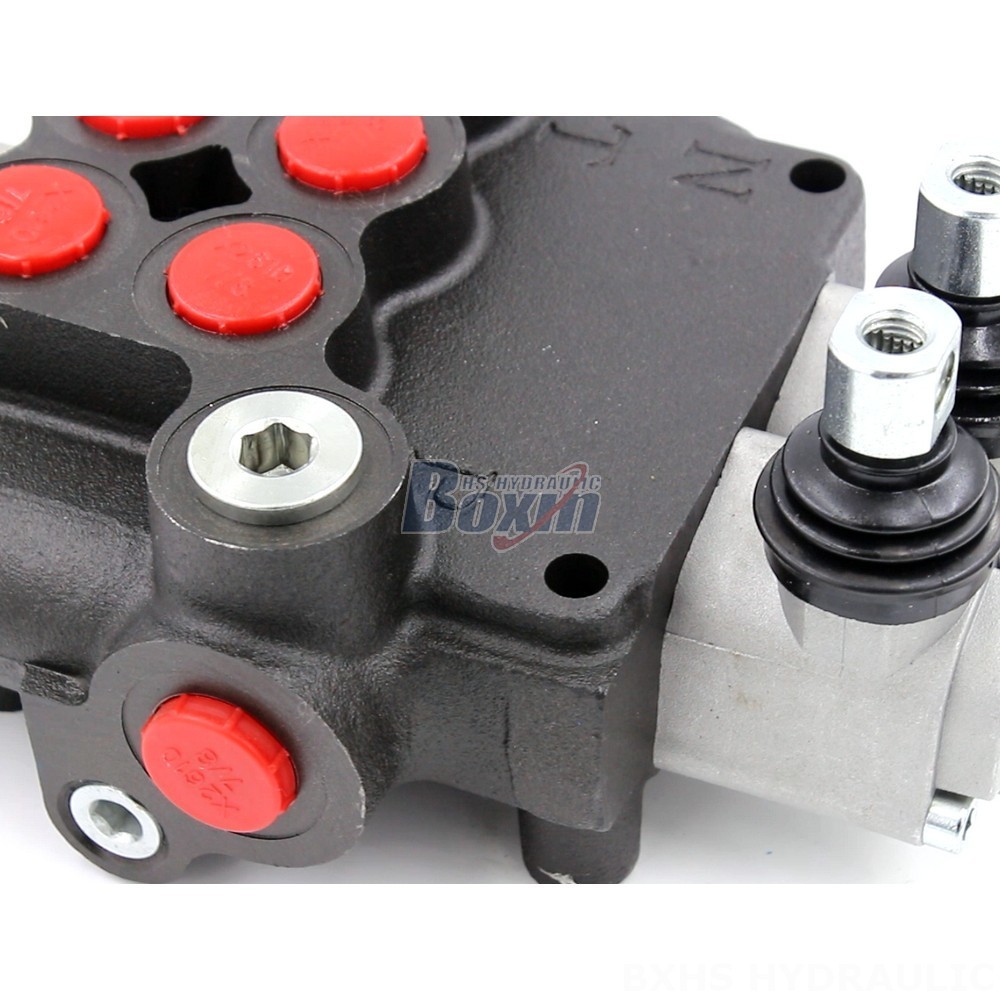

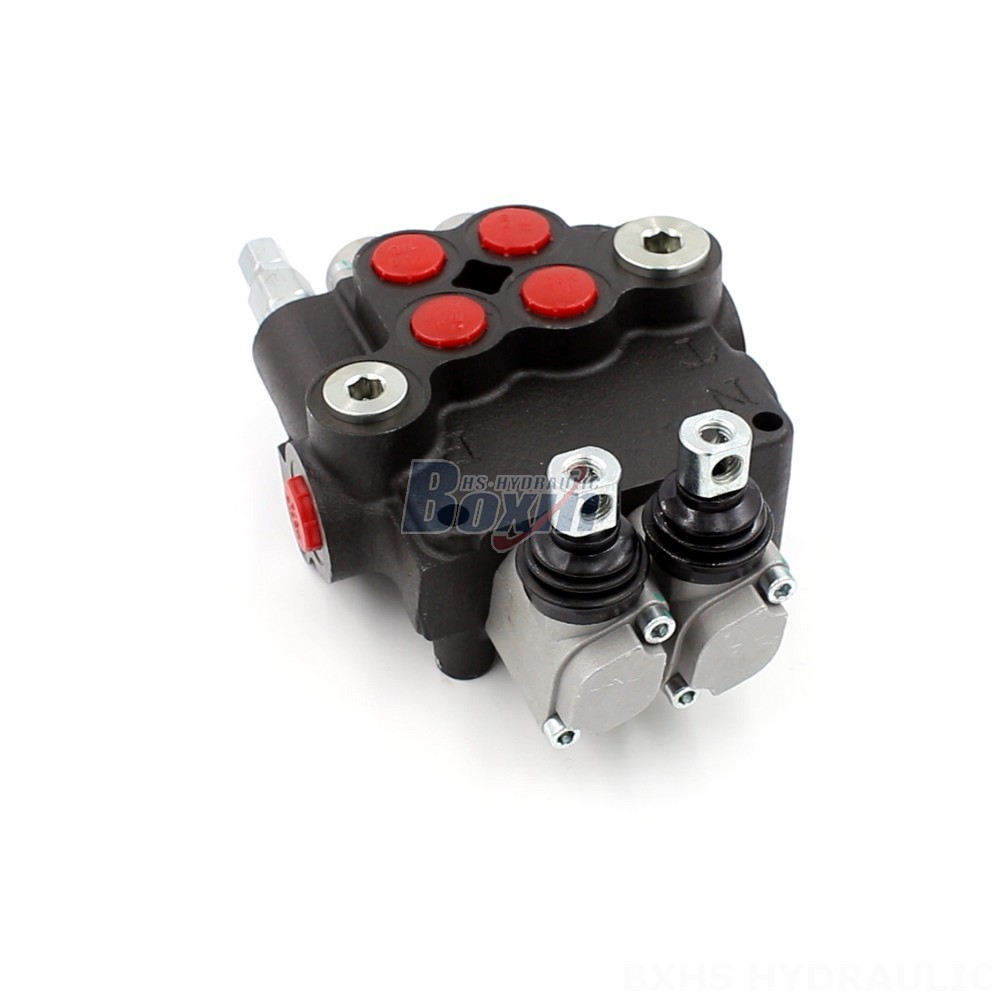

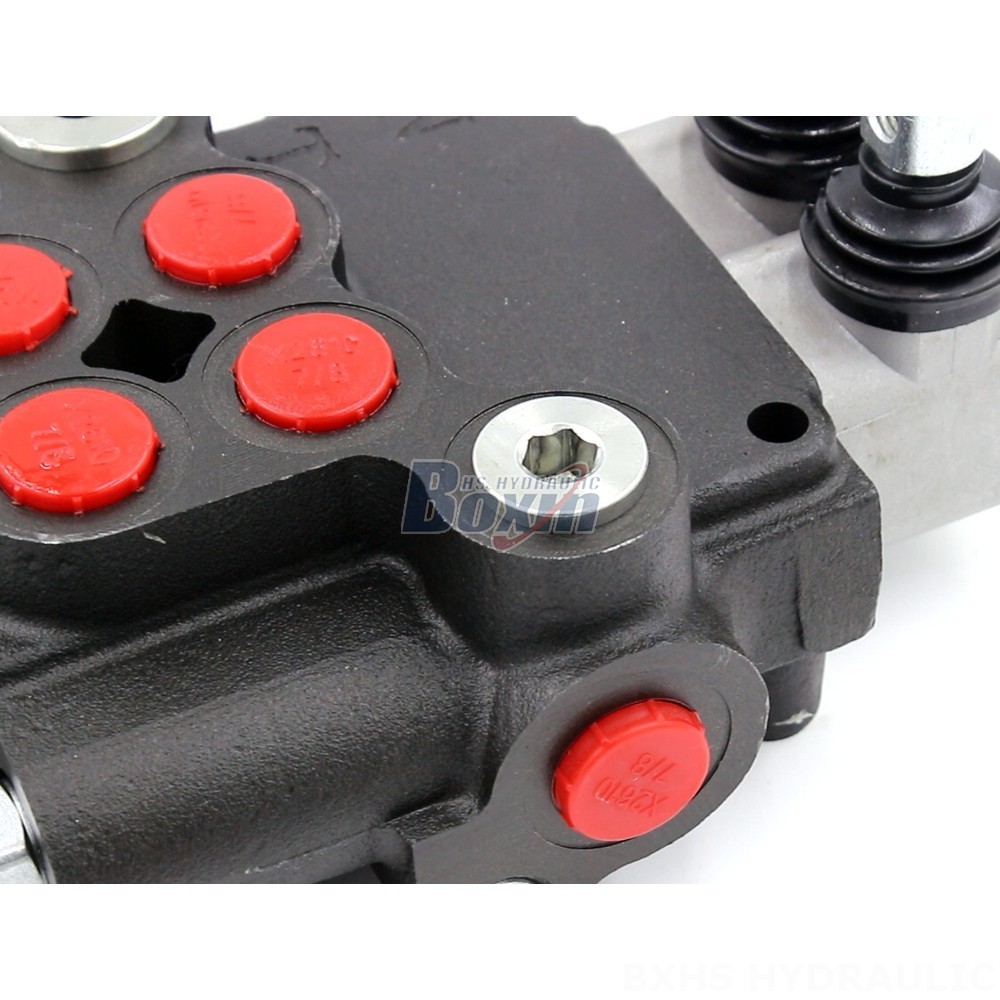

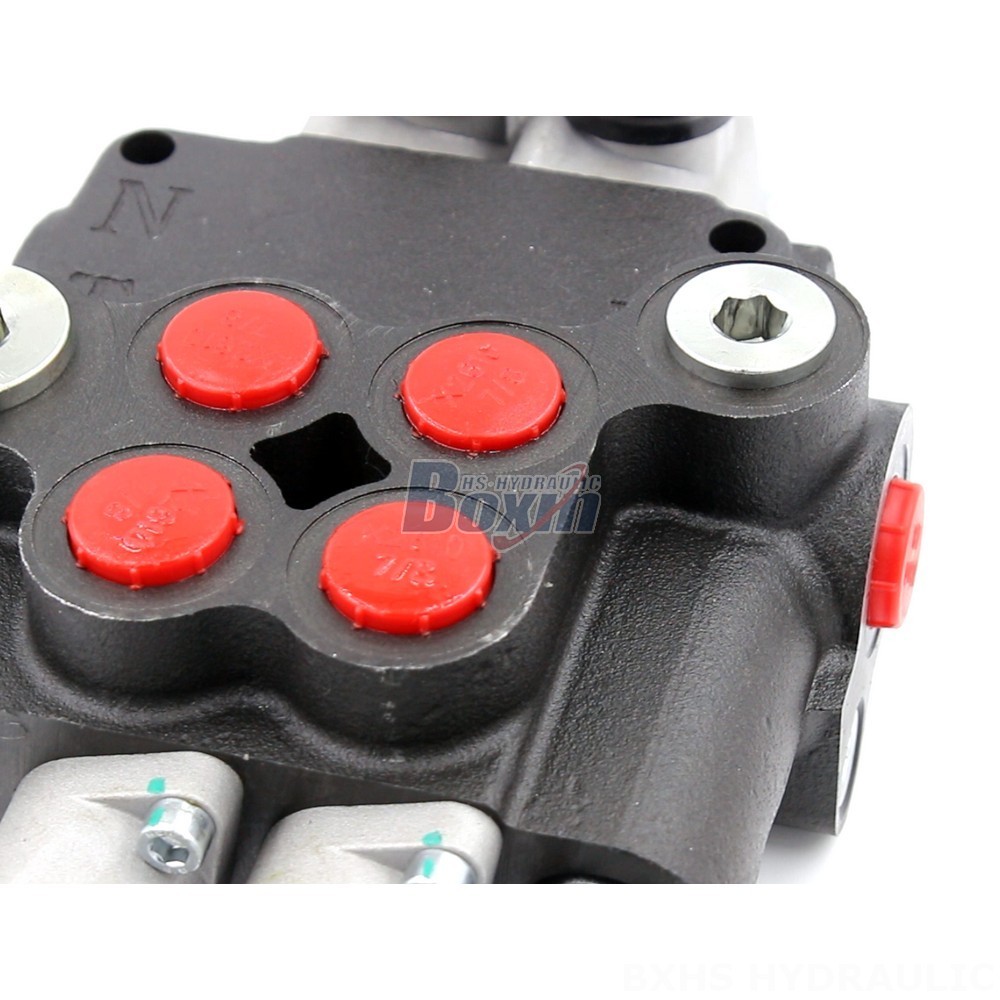

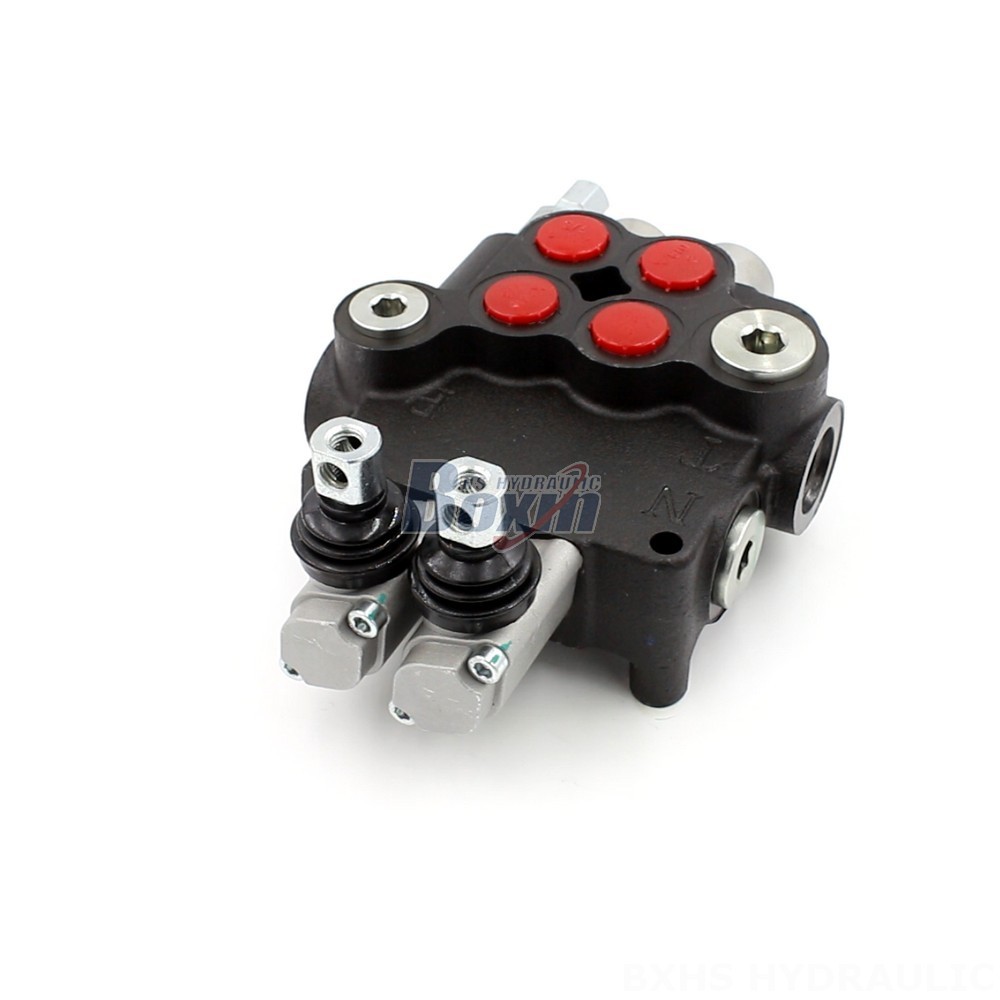

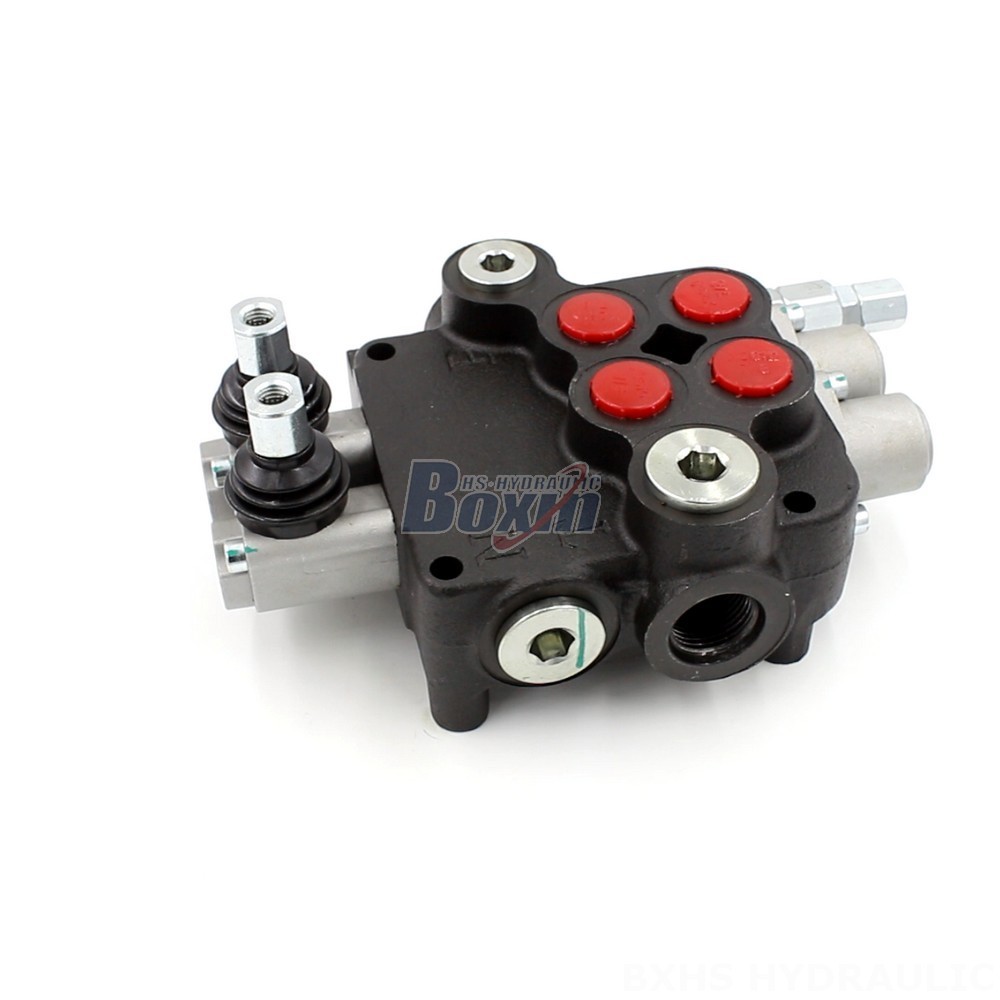

Our Customizable Hydraulic Valves: P80 Monoblock Series are designed for various applications in material handling, construction, agriculture, and industrial vehicles. These valves offer precise control, reliability, and durability, meeting the specific requirements of your hydraulic systems.
| Seri P80 Katup Arah Monoblok Parameter | |
|---|---|
| Metode Kontrol | Buku Panduan, Pneumatik, Elektro-pneumatik, Elektro-hidraulik, Selenoid, Hidraulis, Hidraulik dan Manual, Kabel, Stik Kontrol, Manual dan Joystick |
| Spul | 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool |
| Kisaran Suhu Sekitar | -40°C hingga +80°C (-40°F hingga +176°F) |
| Tipe Struktur | Katup monoblok |
| Bagian | 1 Bagian, 2 Bagian, 3 Bagian, 4 Bagian, 5 Bagian, 6 Bagian, 7 Bagian |
| Kisaran Viskositas Operasional | 15 - 75 mm²/dt (15 cSt hingga 75 cSt) |
| Aliran Terukur | 80 L/menit (21,2 US gpm) |
| Tekanan Maksimum | 315 bar (4600 psi) |
| Port Masuk | G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Port Keluar | G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Ukuran Port | G1/2, G3/4, M22×1.5, M27×2.0, SAE 10, 1/2 NPT, 3/4 NPT |
**Key Features**:
- Customizable design to meet specific application requirements
- Manual control for precise operation
- 2 section design for efficient flow management
- Monoblock valve construction for compactness and reduced leakage
- 80 L/min rated flow for high-performance applications
- 250 bar max pressure for demanding hydraulic systems
- 15 - 75 mm²/s operating viscosity range for compatibility with various fluids
- -40°C to +80°C ambient temperature range for harsh operating conditions
- 2 spool design for increased control options
- P80 Series for proven reliability and durability
