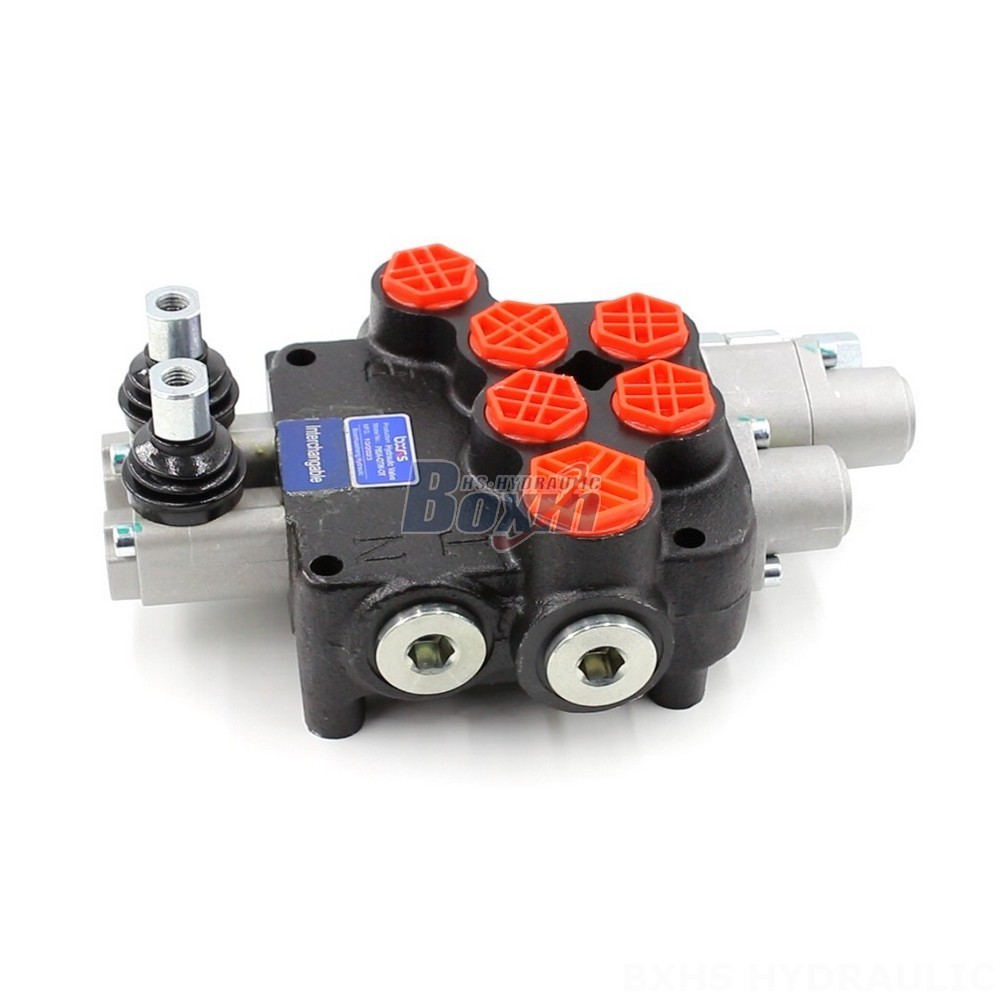

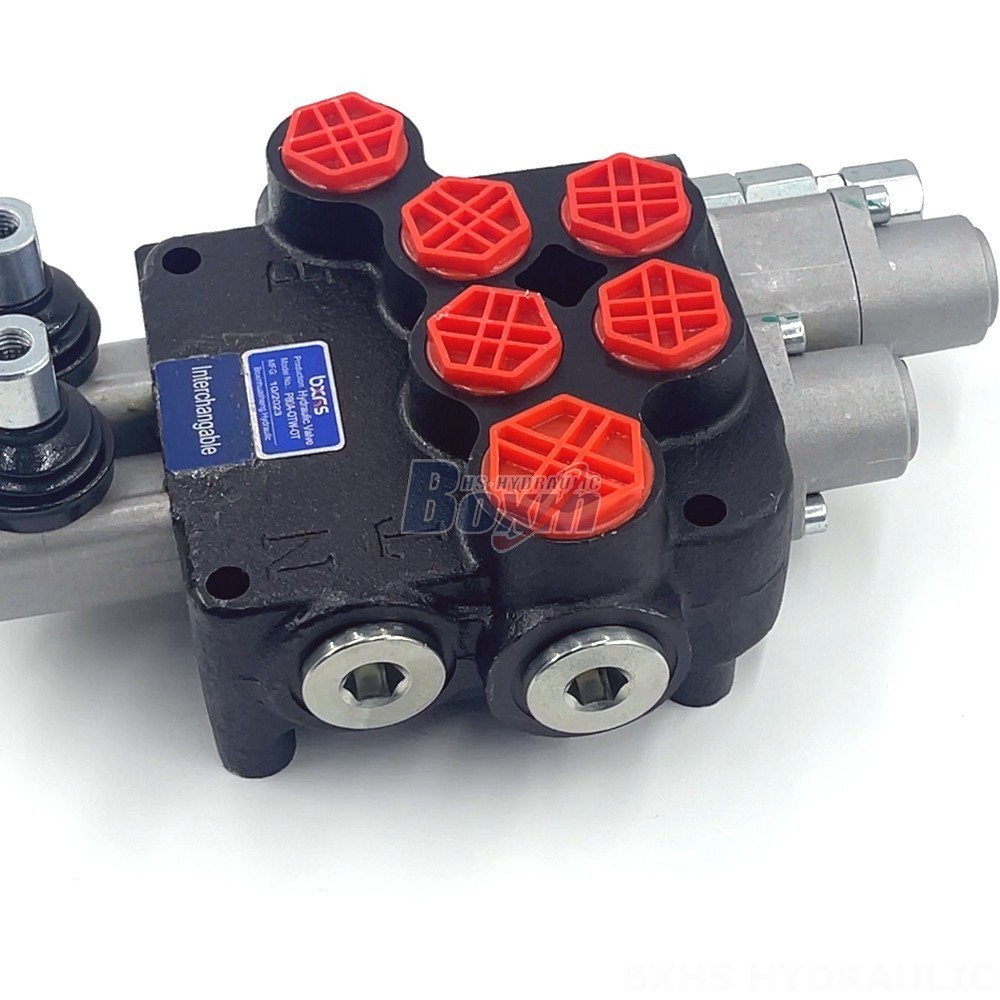

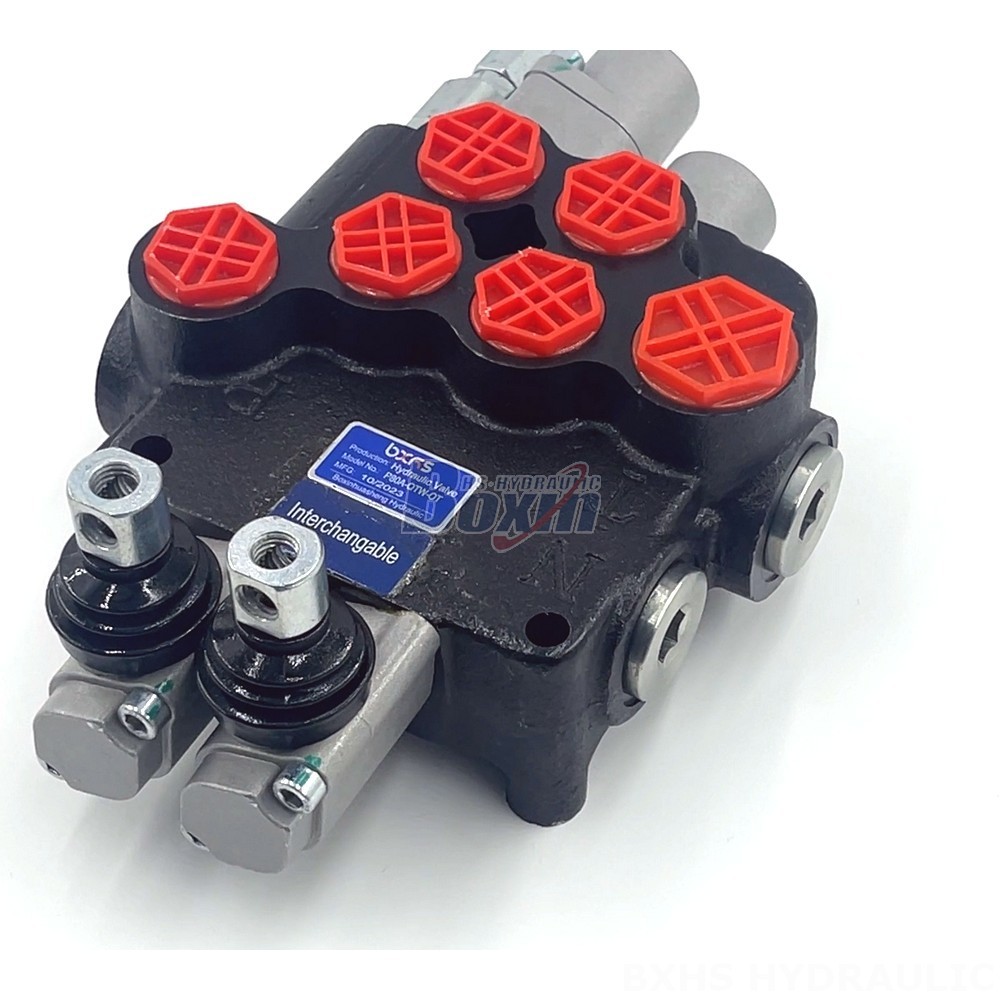

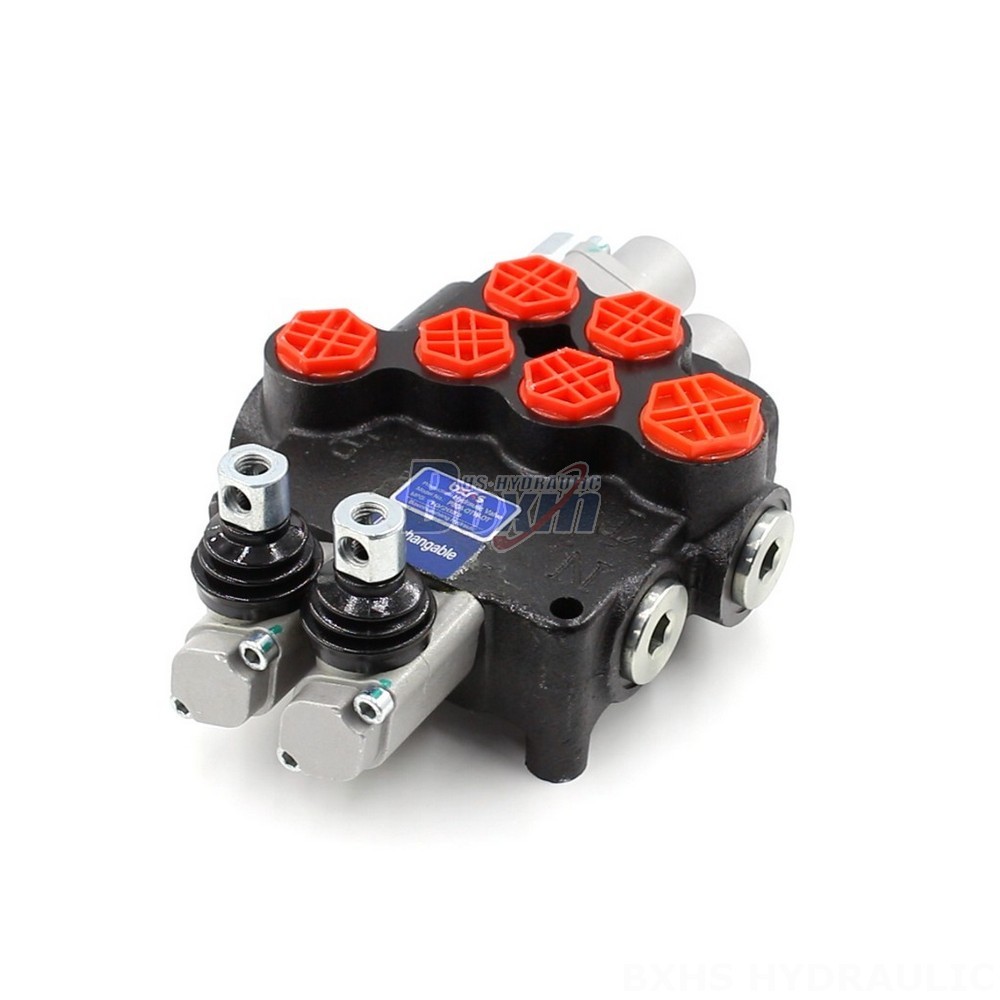

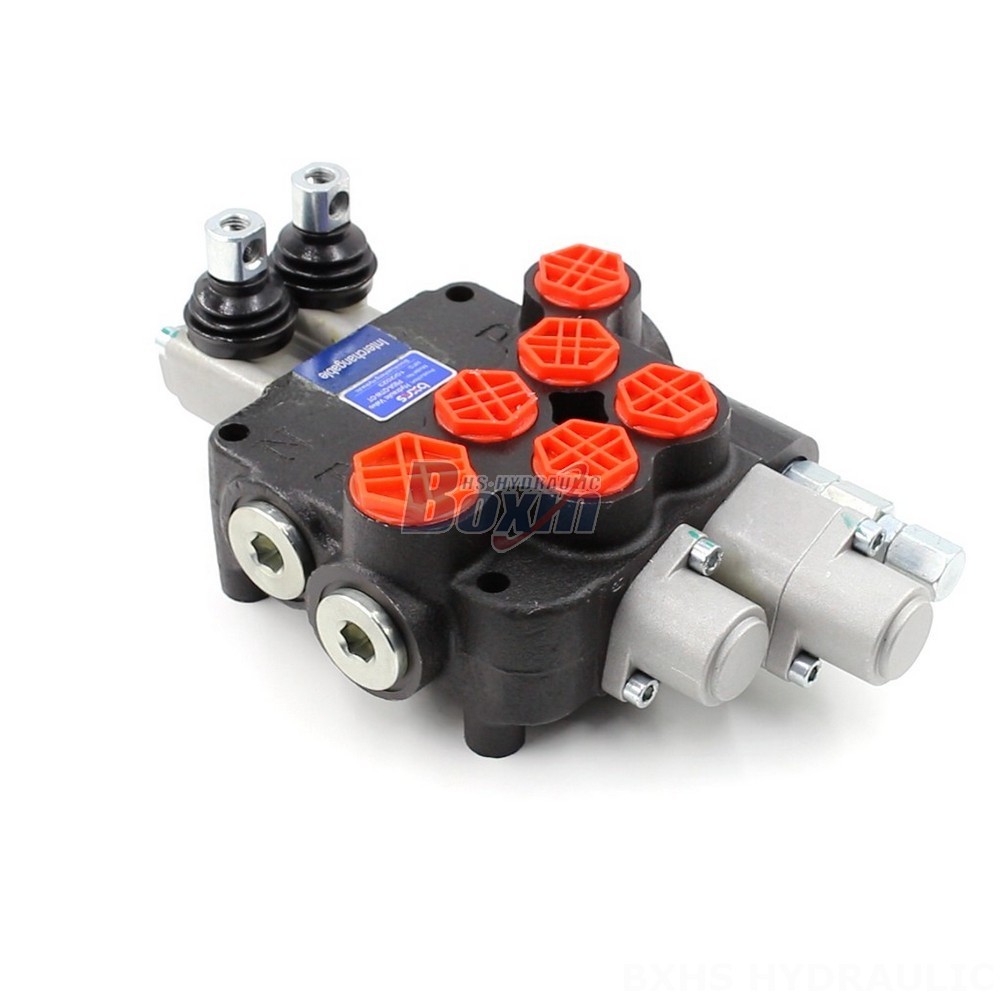

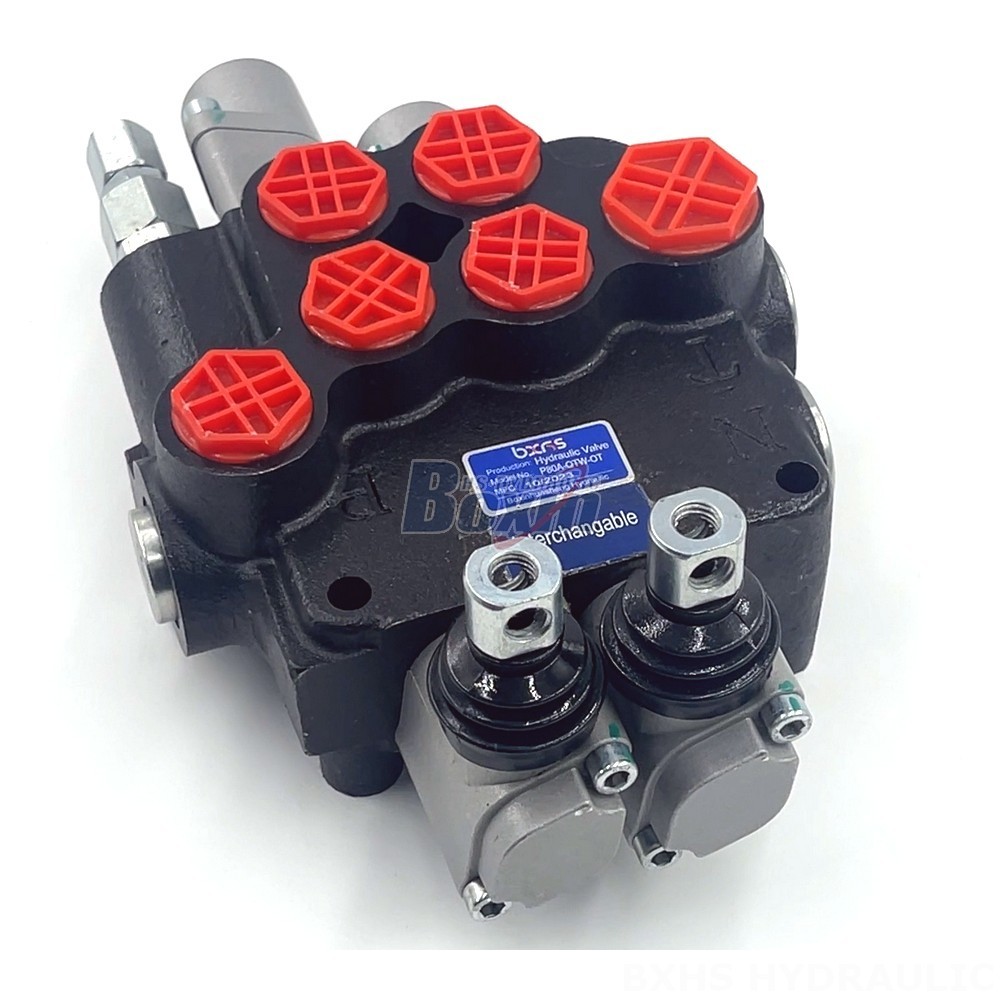

The P80A Series Directional Control Valve is a high-performance hydraulic valve designed for use in front end loaders and other construction equipment. It features a 2-section monoblock design, a rated flow of 80 L/min, and a maximum pressure of 250 bar. This valve is perfect for applications requiring reliable and efficient hydraulic control.
| Seri P80A Katup Arah Monoblok Parameter | |
|---|---|
| Metode Kontrol | Buku Panduan, Pneumatik, Elektro-pneumatik, Elektro-hidraulik, Selenoid, Hidraulis, Hidraulik dan Manual, Kabel, Stik Kontrol, Listrik, Solenoid dan Manual, Selenoid dan Joystick, Manual dan Joystick |
| Spul | 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool |
| Kisaran Suhu Sekitar | -40°C hingga +80°C (-40°F hingga +176°F) |
| Tipe Struktur | Katup monoblok |
| Bagian | 1 Bagian, 2 Bagian, 3 Bagian, 4 Bagian, 5 Bagian, 6 Bagian, 7 Bagian |
| Kisaran Viskositas Operasional | 15 - 75 mm²/dt (15 cSt hingga 75 cSt) |
| Aliran Terukur | 80 L/menit (21,2 US gpm) |
| Tekanan Maksimum | 315 bar (4600 psi) |
| Port Masuk | G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Port Keluar | G1/2, G3/4, M27×2.0, SAE 12, 1/2 NPT, 3/4 NPT |
| Ukuran Port | G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
This customizable P80A Directional Control Valve is a high-quality, durable hydraulic component designed for use in various construction and material handling equipment. It features manual control, a 2-section monoblock valve construction, and a rated flow of 80 L/min (21.2 US gpm). The valve is capable of handling a maximum pressure of 250 bar (3600 psi) and incorporates a 2-spool system. Its versatility makes it suitable for use in a range of applications, including telehandlers, forklifts, all-terrain cranes, stackers, aerial platforms, motor graders, midi-excavators, and mini-excavators. This valve is built for reliability and performance, ensuring smooth and efficient operation in demanding environments.
