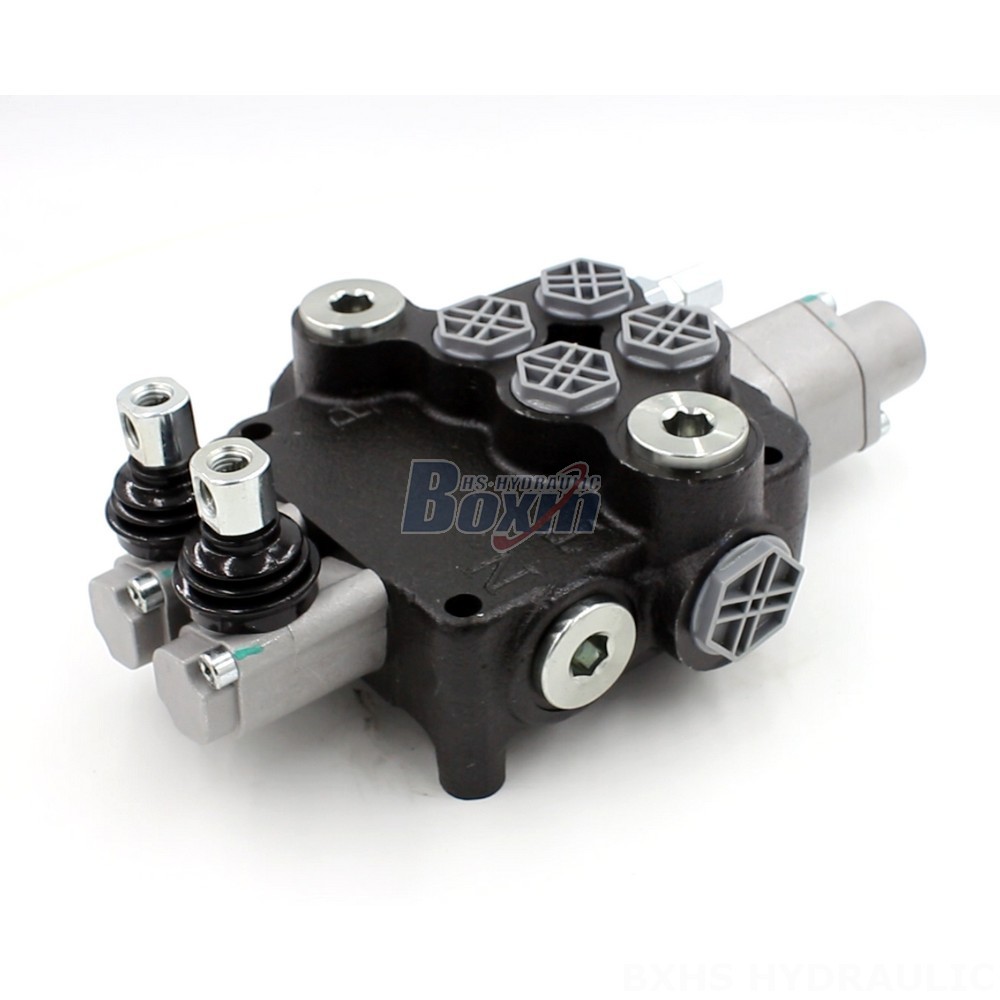

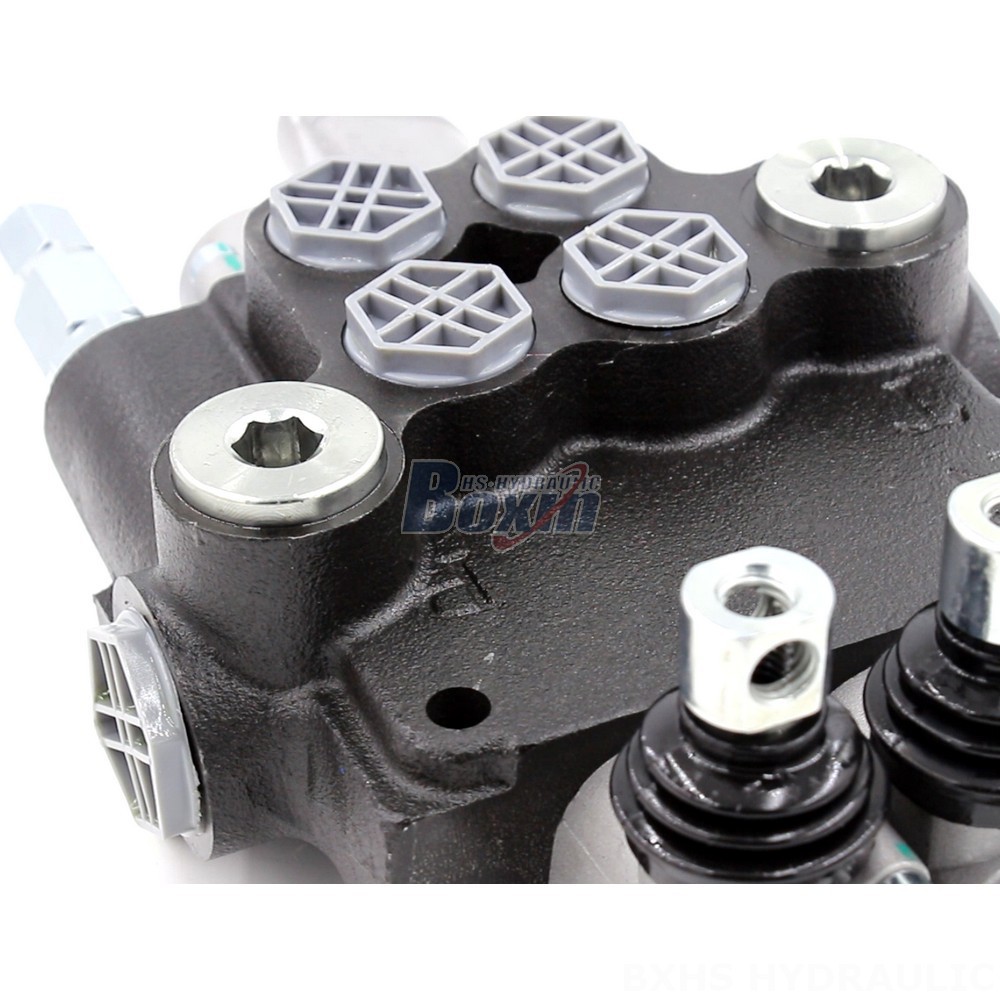

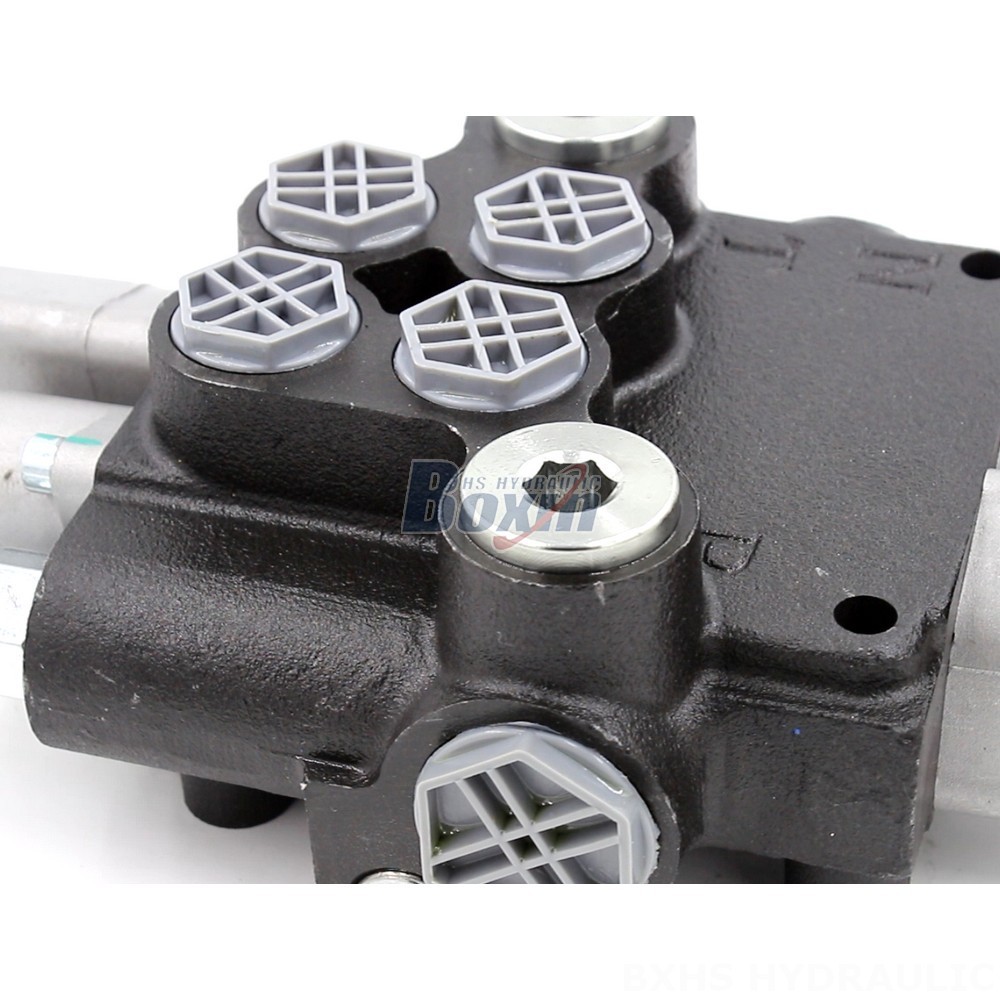

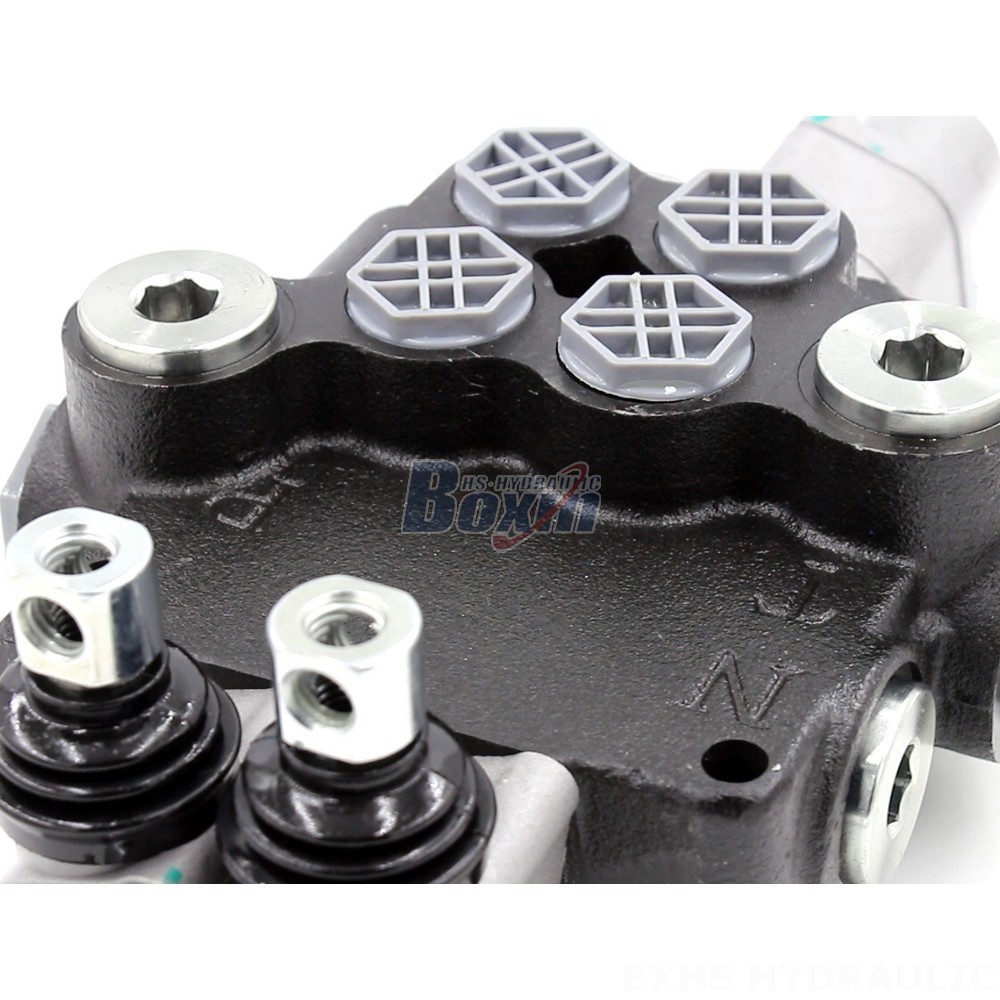

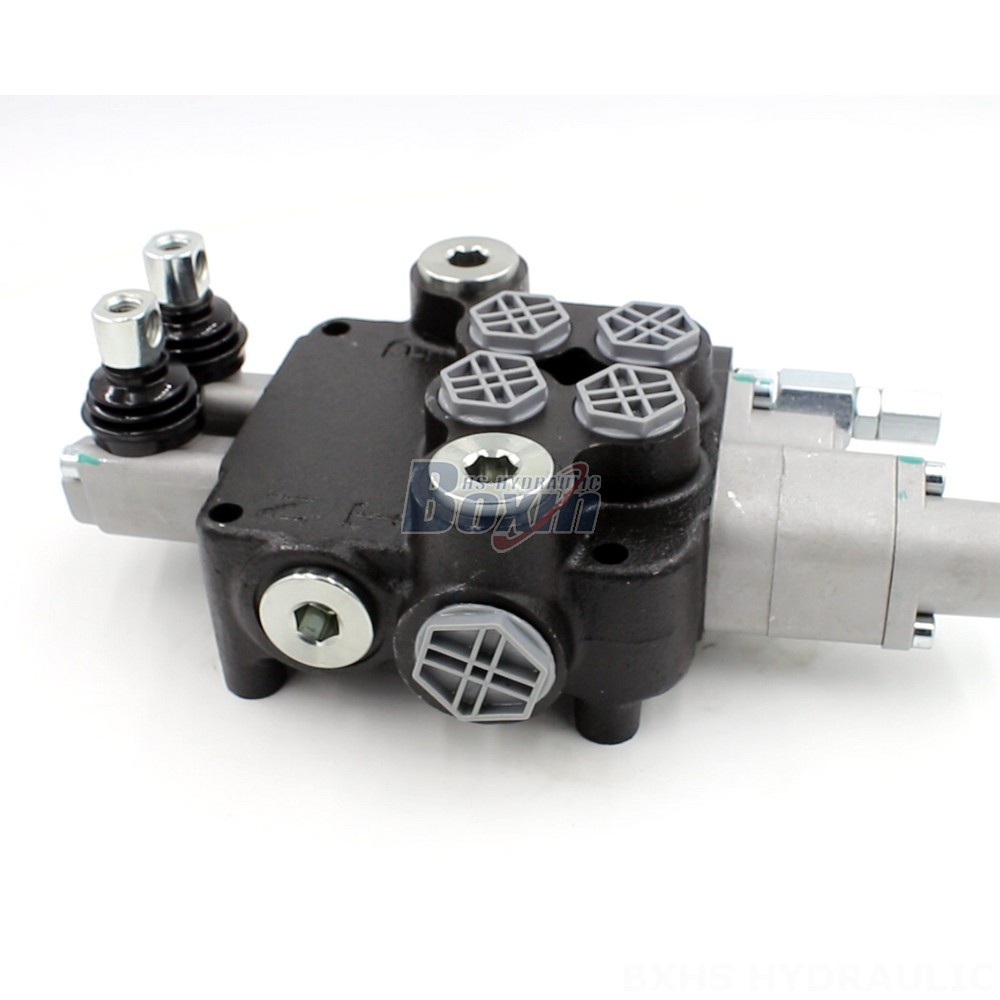

Our P80 Series Electric Spool Valve is a high-performance directional control valve designed for use in demanding applications such as material handling, construction, and agriculture. This 2-section monoblock valve offers a rated flow of 80 L/min and a maximum pressure of 250 bar. We offer customizable solutions, including OEM and ODM services, to meet your specific needs.
| Seri P80 Katup Arah Monoblok Parameter | |
|---|---|
| Metode Kontrol | Buku Panduan, Pneumatik, Elektro-pneumatik, Elektro-hidraulik, Selenoid, Hidraulis, Hidraulik dan Manual, Kabel, Stik Kontrol, Manual dan Joystick |
| Spul | 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool |
| Kisaran Suhu Sekitar | -40°C hingga +80°C (-40°F hingga +176°F) |
| Tipe Struktur | Katup monoblok |
| Bagian | 1 Bagian, 2 Bagian, 3 Bagian, 4 Bagian, 5 Bagian, 6 Bagian, 7 Bagian |
| Kisaran Viskositas Operasional | 15 - 75 mm²/dt (15 cSt hingga 75 cSt) |
| Aliran Terukur | 80 L/menit (21,2 US gpm) |
| Tekanan Maksimum | 315 bar (4600 psi) |
| Port Masuk | G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Port Keluar | G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Ukuran Port | G1/2, G3/4, M22×1.5, M27×2.0, SAE 10, 1/2 NPT, 3/4 NPT |
The P80 Series Electric Spool Valve is a robust and reliable hydraulic valve designed for demanding applications. Featuring a manual control method and a 2-section monoblock structure, this valve delivers a rated flow of 80 L/min and a maximum pressure of 250 bar. Its operating viscosity range is 15-75 mm²/s, and it can withstand ambient temperatures from -40°C to +80°C. This versatile valve is ideal for use in various applications, including material handling, construction, and agriculture. We offer customized solutions to meet your unique requirements, including OEM and ODM services. Our team can work with you to design and manufacture a valve that meets your exact specifications.
