Produksi & Pengiriman
Waktu Produksi 15-30 Hari
981 Pandangan Mencari Produk Ini
DCV100 2-Spool Sectional Directional Valve is a hydraulic valve designed for controlling the direction of fluid flow. It is characterized by manual control, 100 L/min rated flow, and 350 bar max pressure. The valve is suitable for operating in temperatures ranging from -40°C to +60°C and finds applications in material handling, construction, agriculture, and industrial vehicles.
| Seri DCV100 Kran Arah Bagian Parameter | |
|---|---|
| Metode Kontrol | Buku Panduan, Pneumatik, Elektro-pneumatik, Elektro-hidraulik, Selenoid, Hidraulis, Kabel, Stik Kontrol, Manual dan Joystick, Manual dan Elektro-hidraulik, Motor listrik, Elektro-hidrolik dan Solenoid |
| Spul | 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool, 8 Spool, 9 Spool, 10 Spool, 11 Spool, 12 Spool |
| Kisaran Suhu Sekitar | -40°C hingga +80°C (-40°F hingga +176°F) |
| Tipe Struktur | Katup penampang |
| Bagian | 1 Bagian, 2 Bagian, 3 Bagian, 4 Bagian, 5 Bagian, 6 Bagian, 7 Bagian, 8 Bagian, 9 Bagian, 10 Bagian, 11 Bagian, 12 Bagian |
| Kisaran Viskositas Operasional | 15 - 75 mm²/dt (15 cSt hingga 75 cSt) |
| Aliran Terukur | 100 L/menit (26,5 US gpm) |
| Tekanan Maksimum | 315 bar (4600 psi) |
| Port Masuk | G3/4, M22×1.5, M27×2.0, SAE 10, SAE 12, 3/4 NPT |
| Port Keluar | G3/4, M22×1.5, M27×2.0, SAE 10, SAE 12, 3/4 NPT |
| Ukuran Port | G3/4, M22×1.5, M27×2.0, SAE 10, SAE 12, 3/4 NPT |

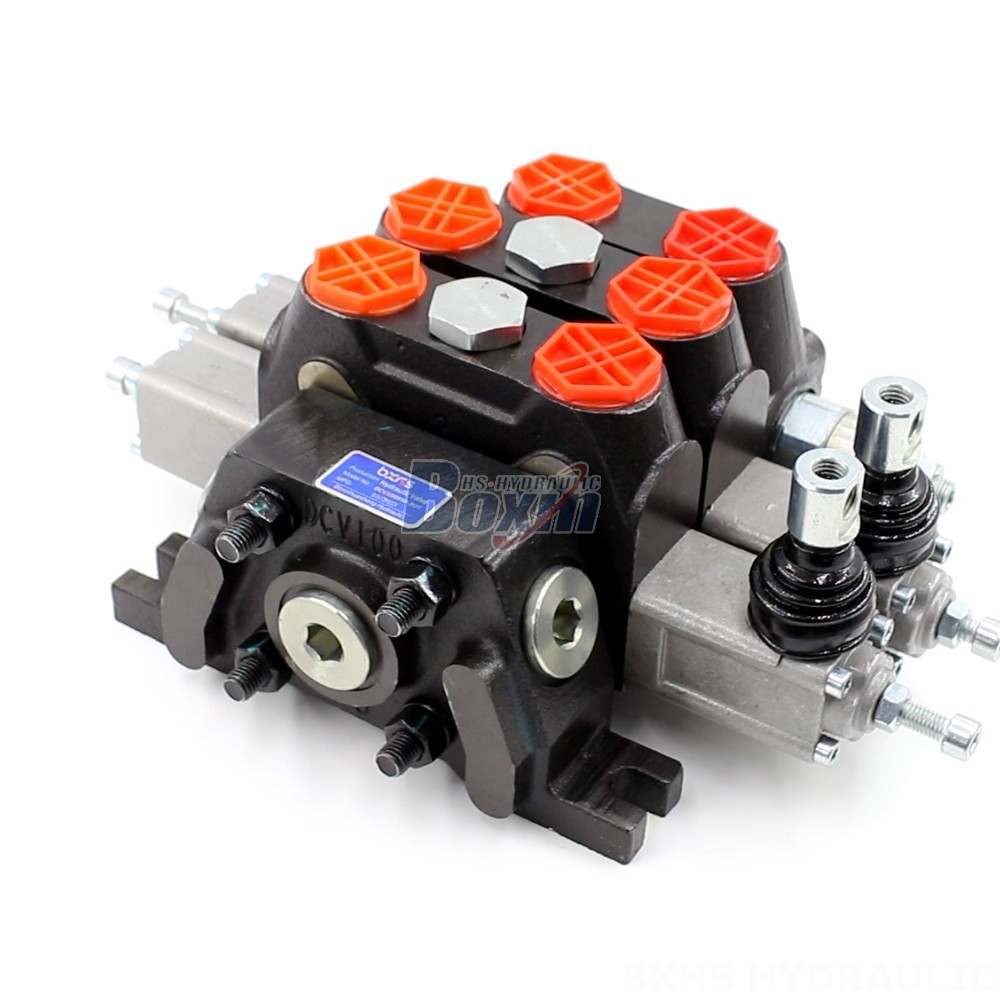

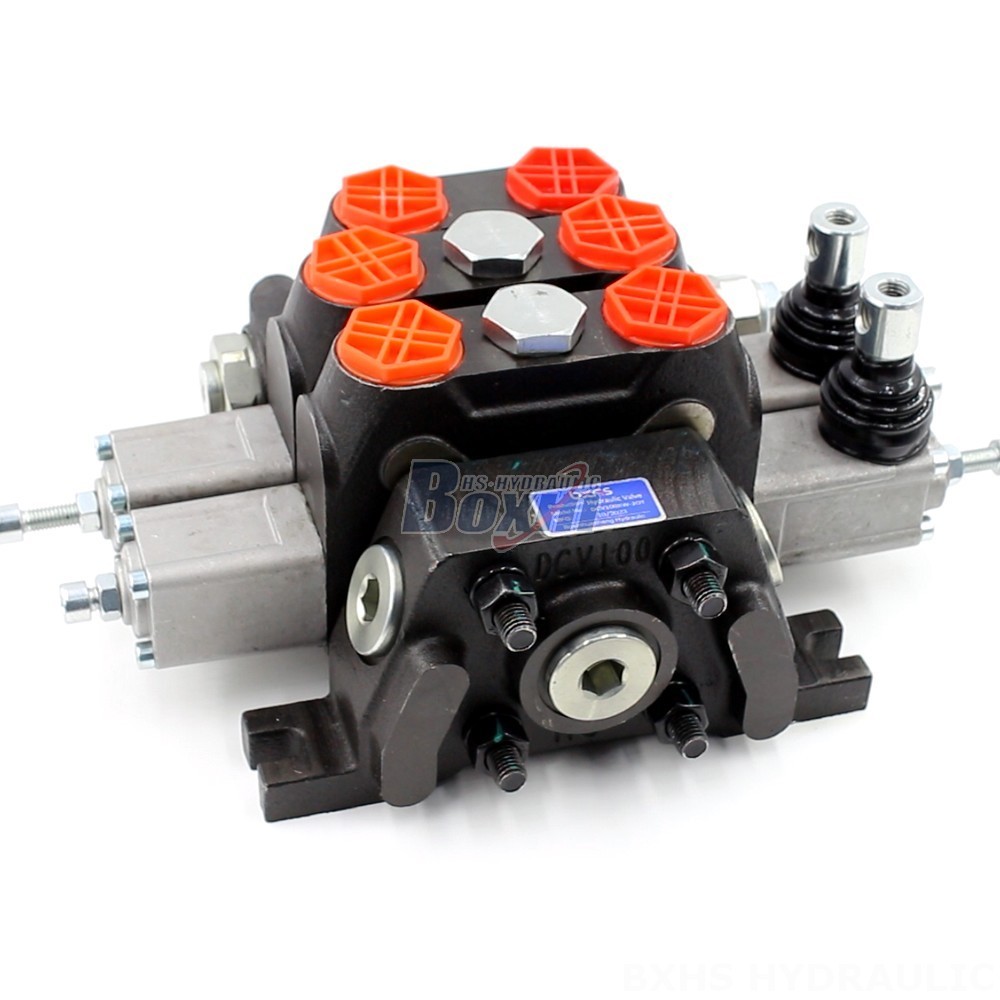

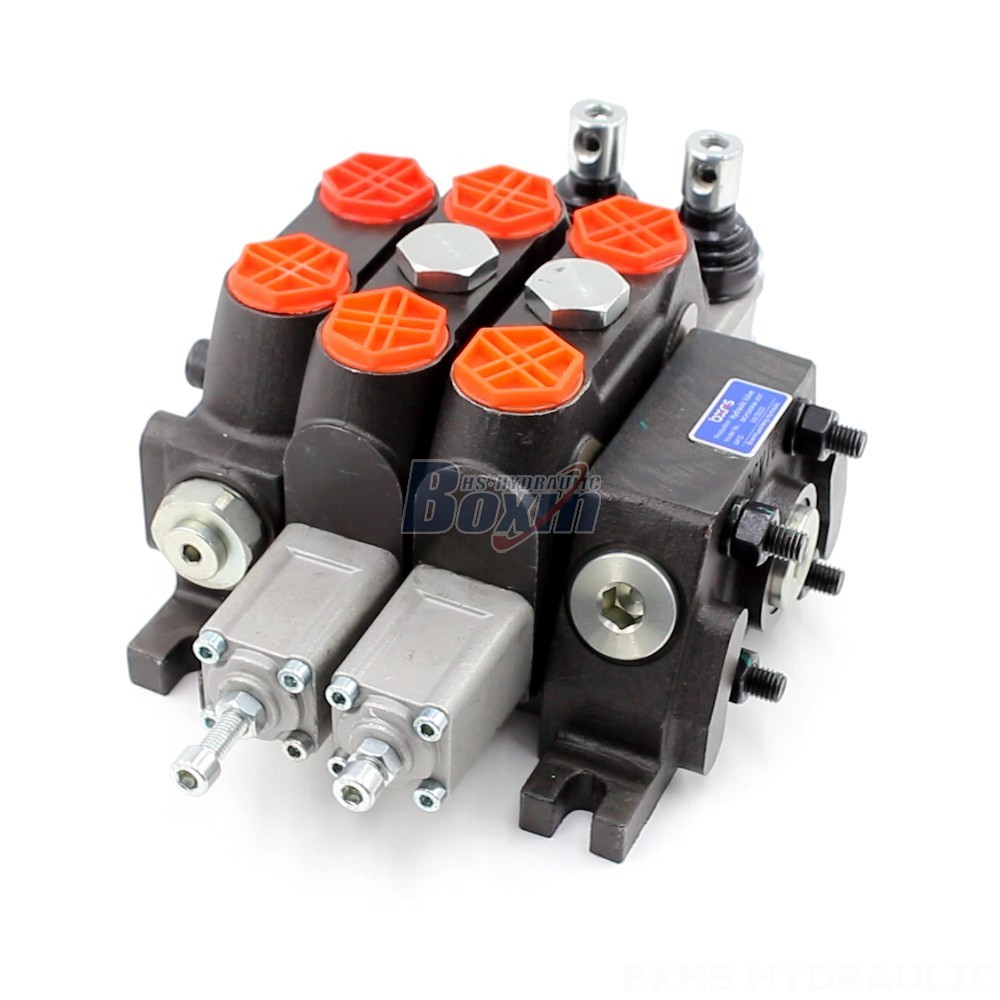

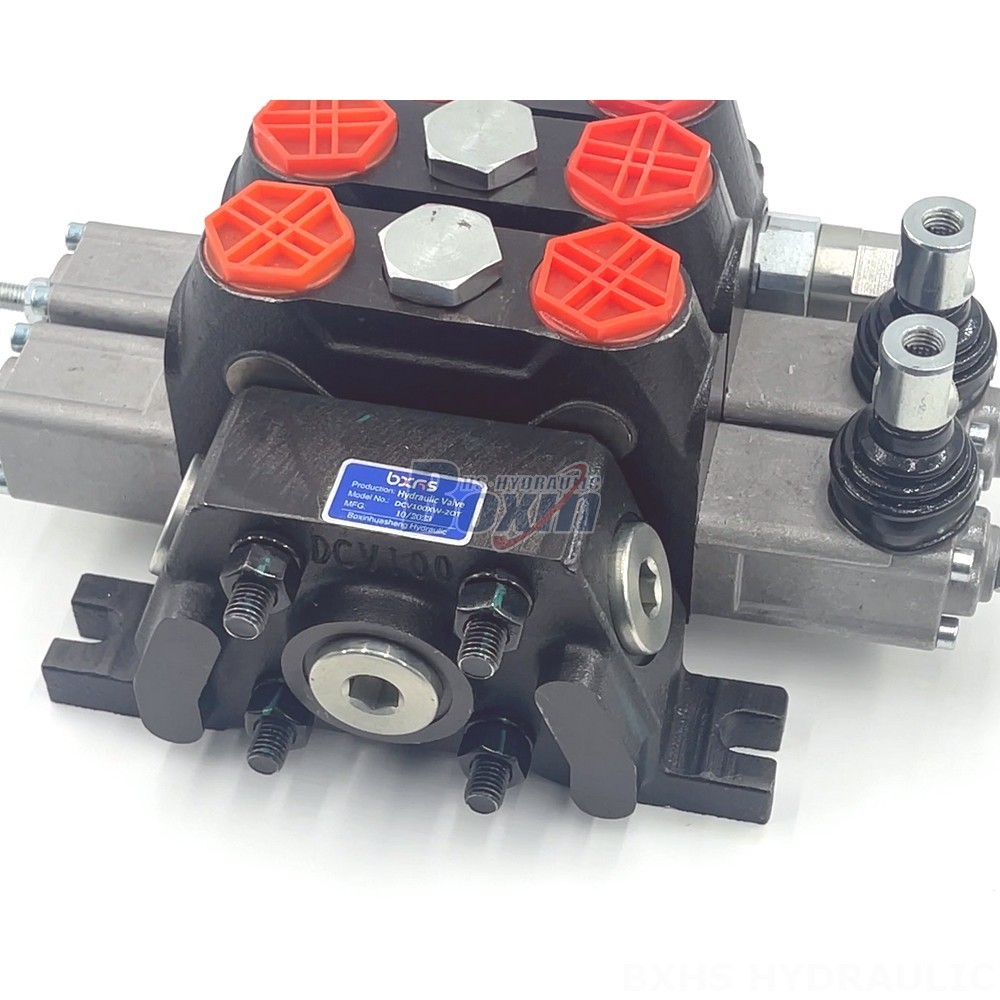

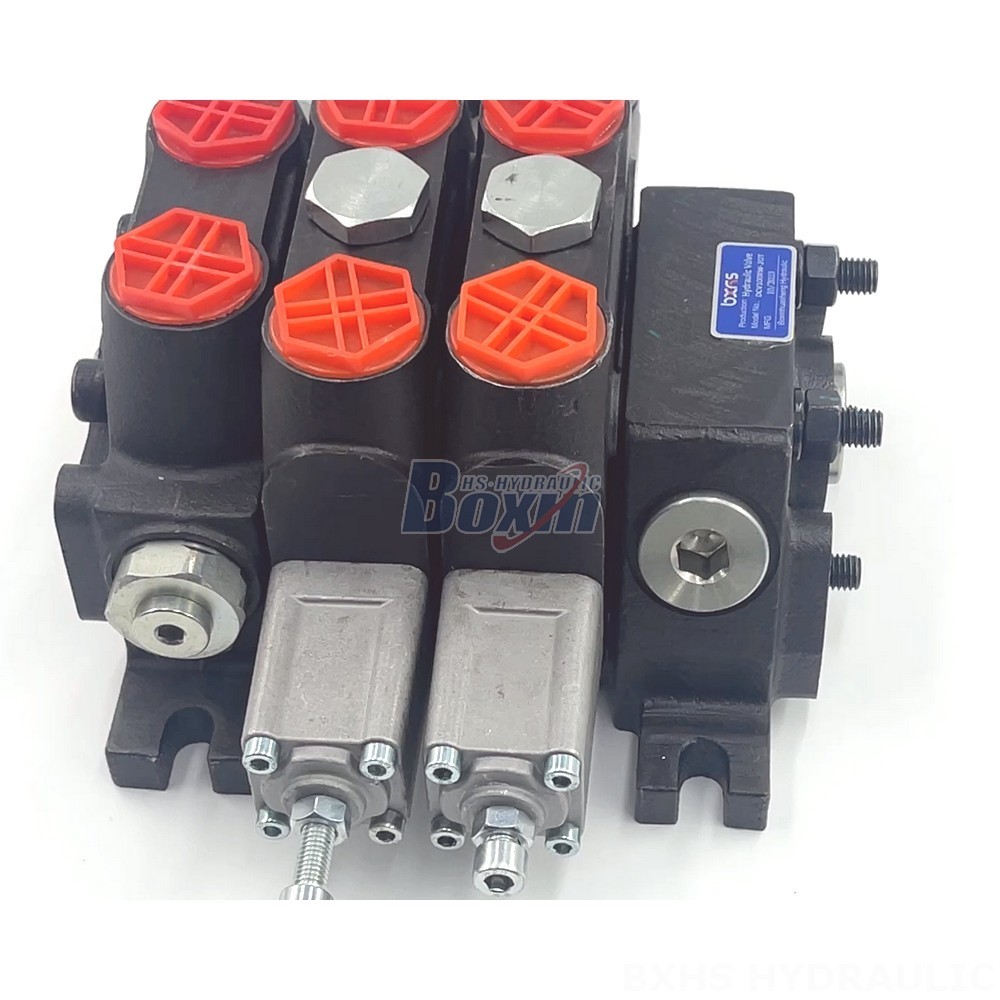

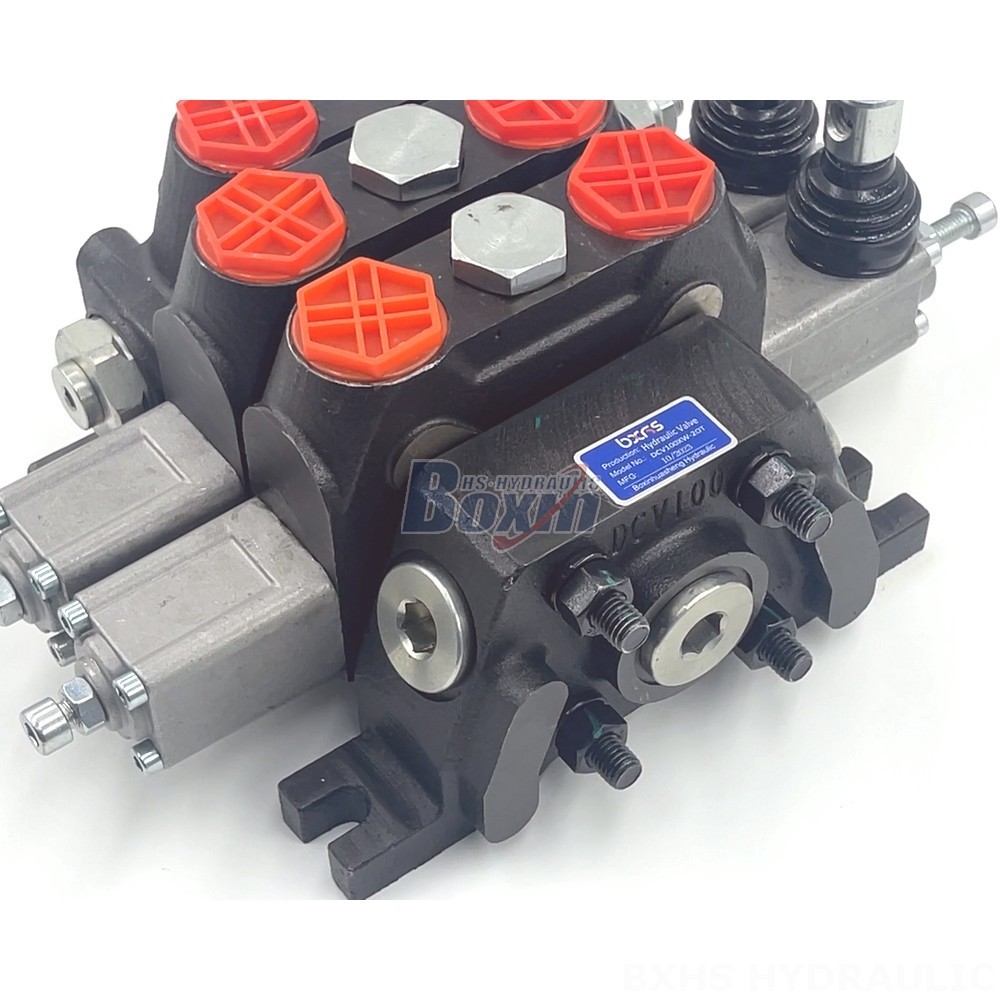

**DCV100 2-Spool Sectional Directional Valve**
The DCV100 2-Spool Sectional Directional Valve is a hydraulic valve that provides precise control over the direction of fluid flow. With manual control, this valve offers reliable and efficient operation. Its 100 L/min rated flow capacity and 350 bar max pressure make it suitable for a wide range of applications.
This valve maintains consistent performance in temperatures ranging from -40°C to +60°C, ensuring reliable operation in various environmental conditions. It is commonly used in material handling, construction, agriculture, and industrial vehicles. Specifically, it finds applications in TELEHANDLER, FORKLIFT, ALL TERRAIN CRANE, STACKER, AERIAL PLATFORM, and MOTOR GRADER.
**Key Features:**
* Manual control for precise operation
* 100 L/min rated flow for efficient fluid handling
* 350 bar max pressure for demanding applications
* -40°C to +60°C operating temperature range for versatility
* Suitable for material handling, construction, agriculture, and industrial vehicles
