The DCV100 series 2 Spool Hydraulic Valve is a high-quality, reliable, and high-performance directional control valve designed for a variety of applications including material handling, construction, and agriculture. With a rated flow of 100 L/min and a maximum pressure of 350 bar, this valve is suitable for demanding applications in industrial vehicles.
| Seri DCV100 Kran Arah Bagian Parameter | |
|---|---|
| Metode Kontrol | Buku Panduan, Pneumatik, Elektro-pneumatik, Elektro-hidraulik, Selenoid, Hidraulis, Kabel, Stik Kontrol, Manual dan Joystick, Manual dan Elektro-hidraulik, Motor listrik, Elektro-hidrolik dan Solenoid |
| Spul | 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool, 8 Spool, 9 Spool, 10 Spool, 11 Spool, 12 Spool |
| Kisaran Suhu Sekitar | -40°C hingga +80°C (-40°F hingga +176°F) |
| Tipe Struktur | Katup penampang |
| Bagian | 1 Bagian, 2 Bagian, 3 Bagian, 4 Bagian, 5 Bagian, 6 Bagian, 7 Bagian, 8 Bagian, 9 Bagian, 10 Bagian, 11 Bagian, 12 Bagian |
| Kisaran Viskositas Operasional | 15 - 75 mm²/dt (15 cSt hingga 75 cSt) |
| Aliran Terukur | 100 L/menit (26,5 US gpm) |
| Tekanan Maksimum | 315 bar (4600 psi) |
| Port Masuk | G3/4, M22×1.5, M27×2.0, SAE 10, SAE 12, 3/4 NPT |
| Port Keluar | G3/4, M22×1.5, M27×2.0, SAE 10, SAE 12, 3/4 NPT |
| Ukuran Port | G3/4, M22×1.5, M27×2.0, SAE 10, SAE 12, 3/4 NPT |

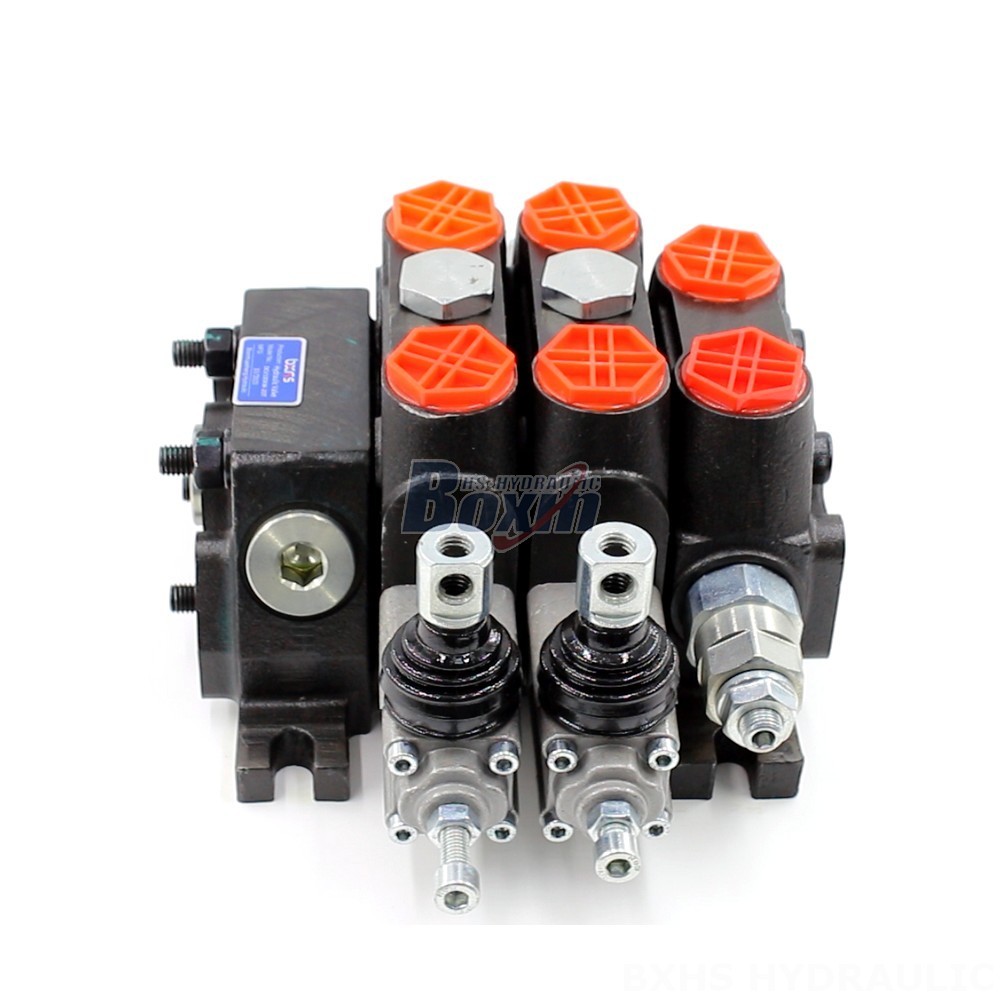

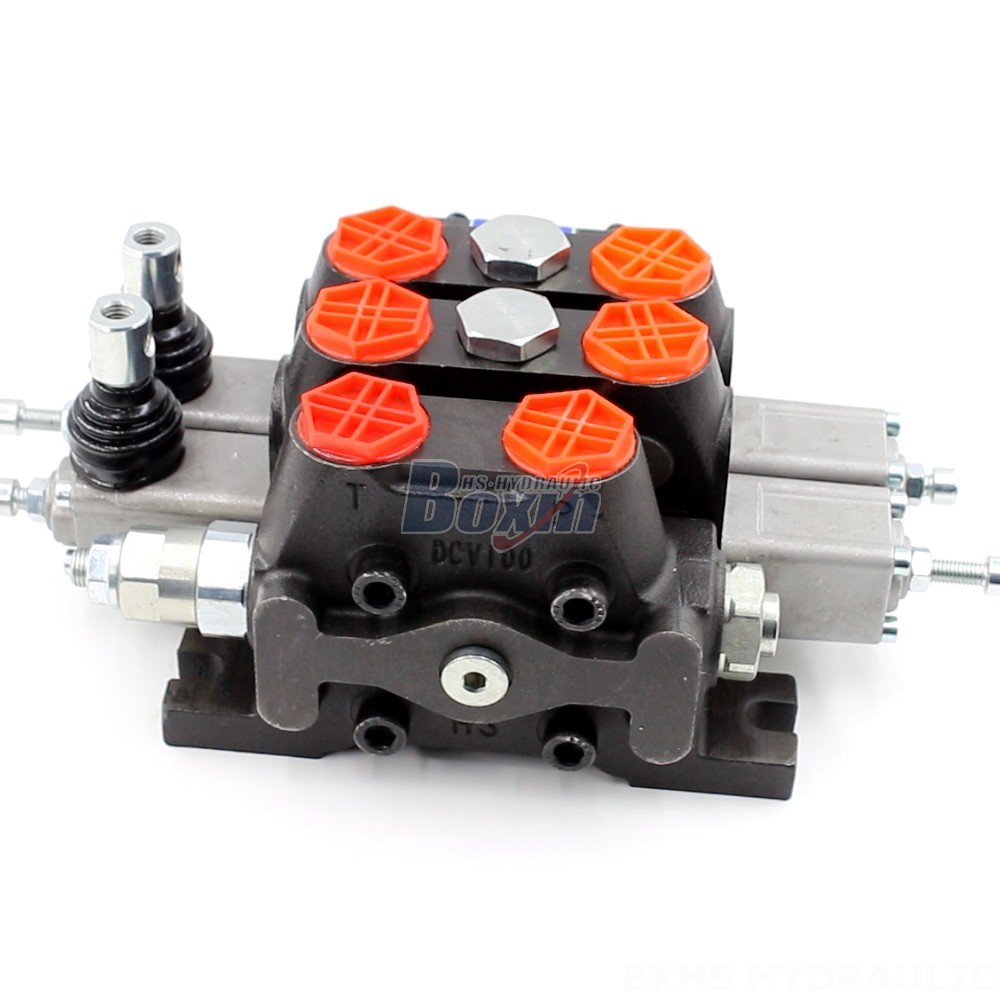

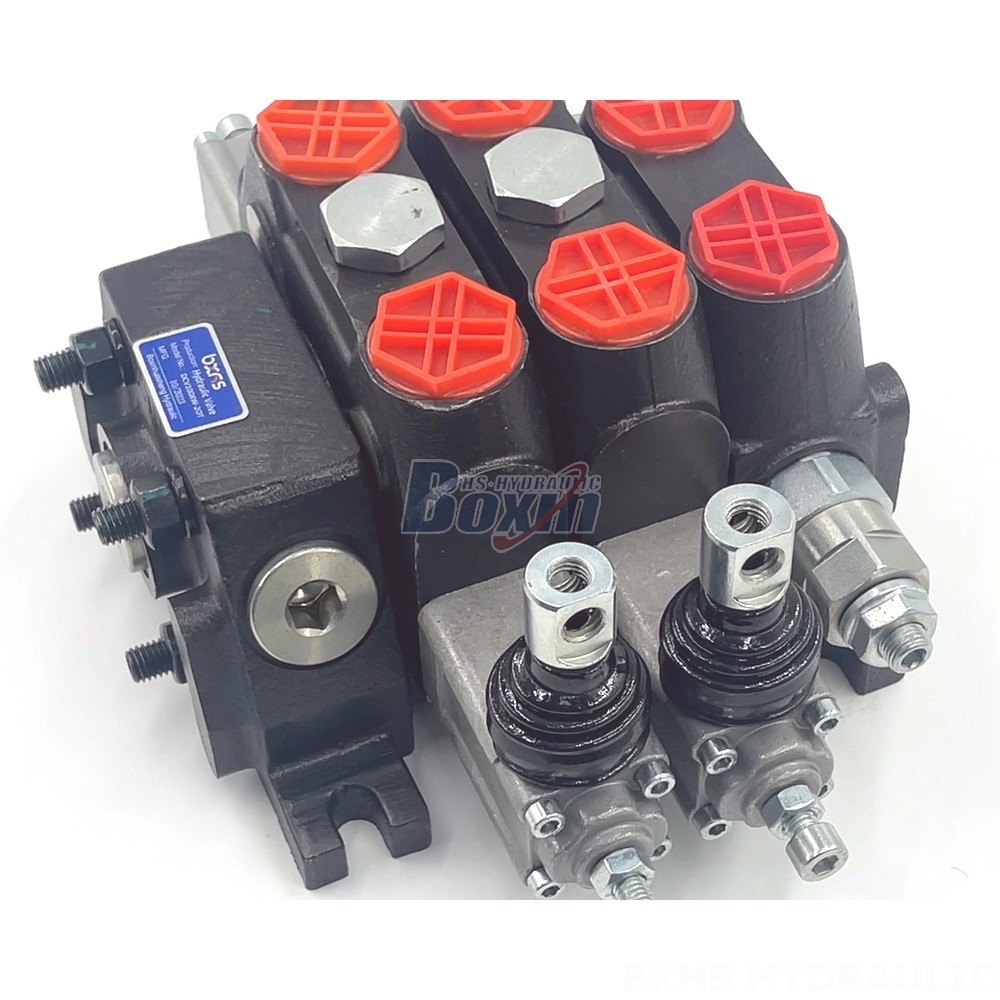

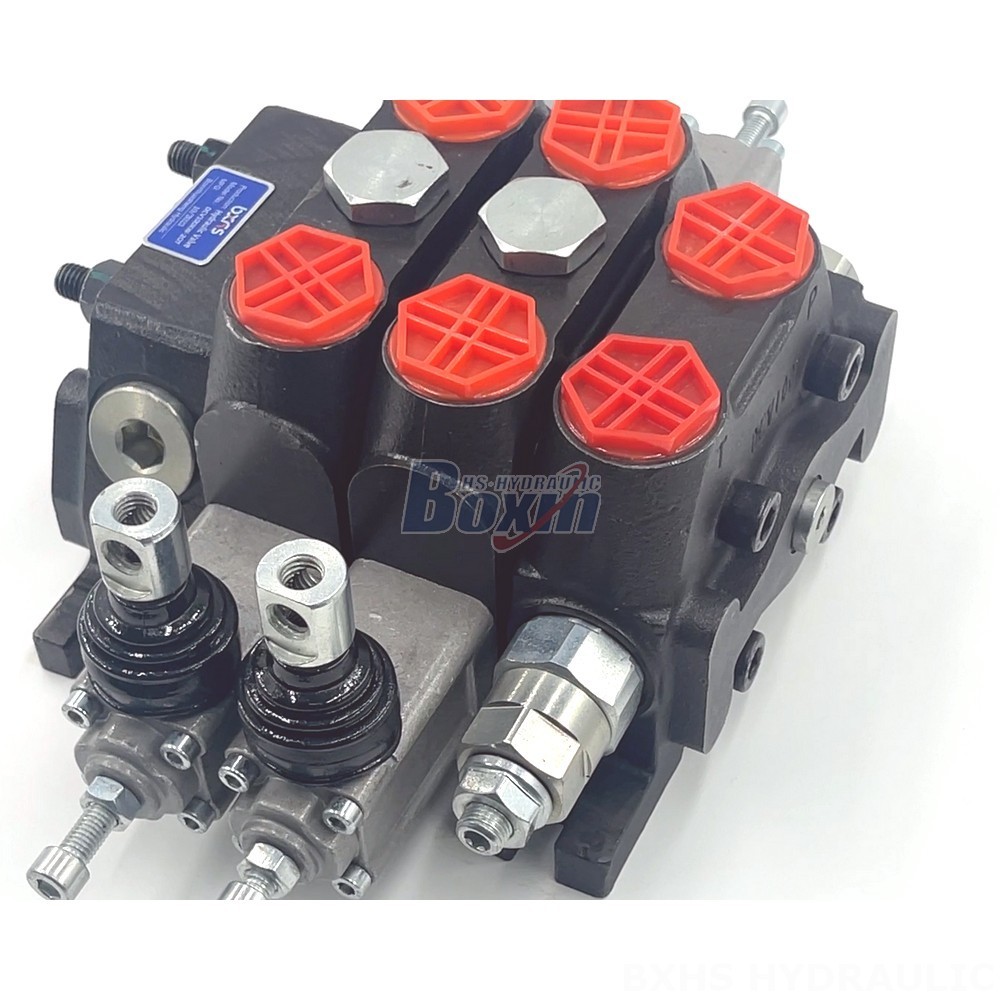

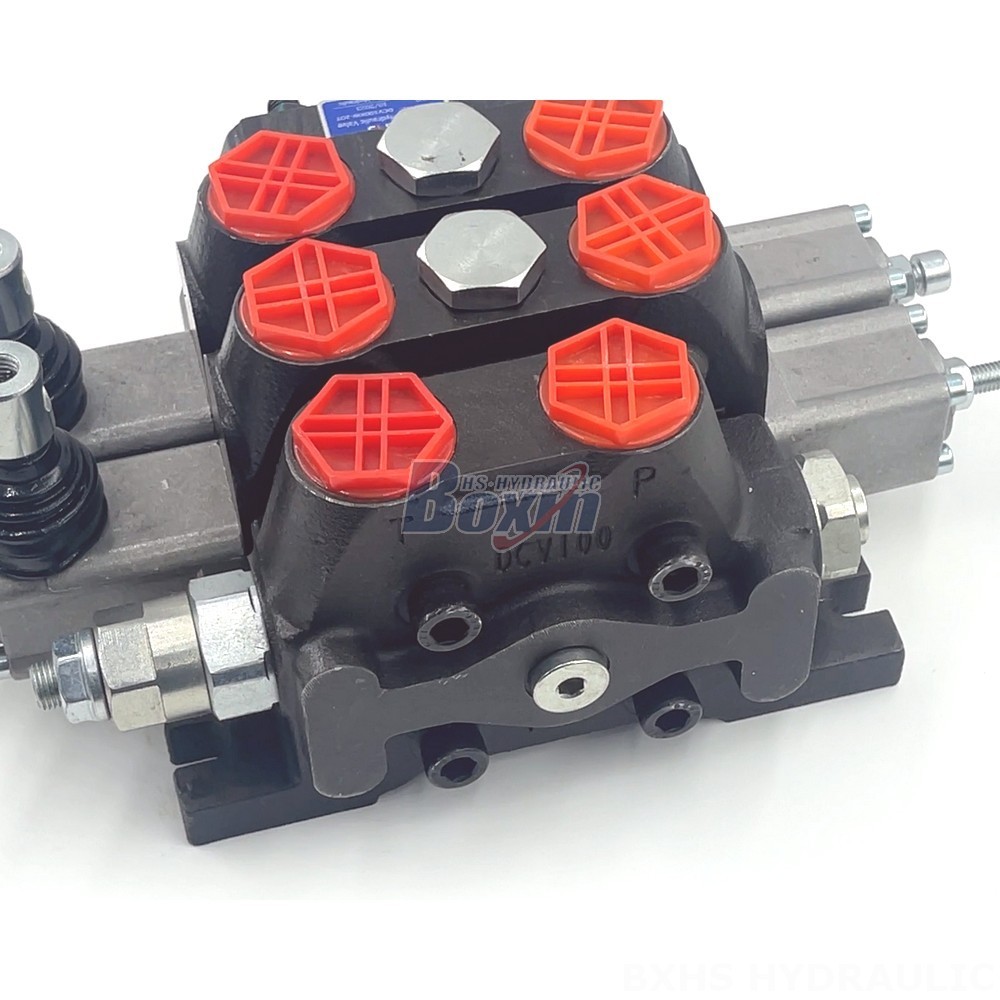

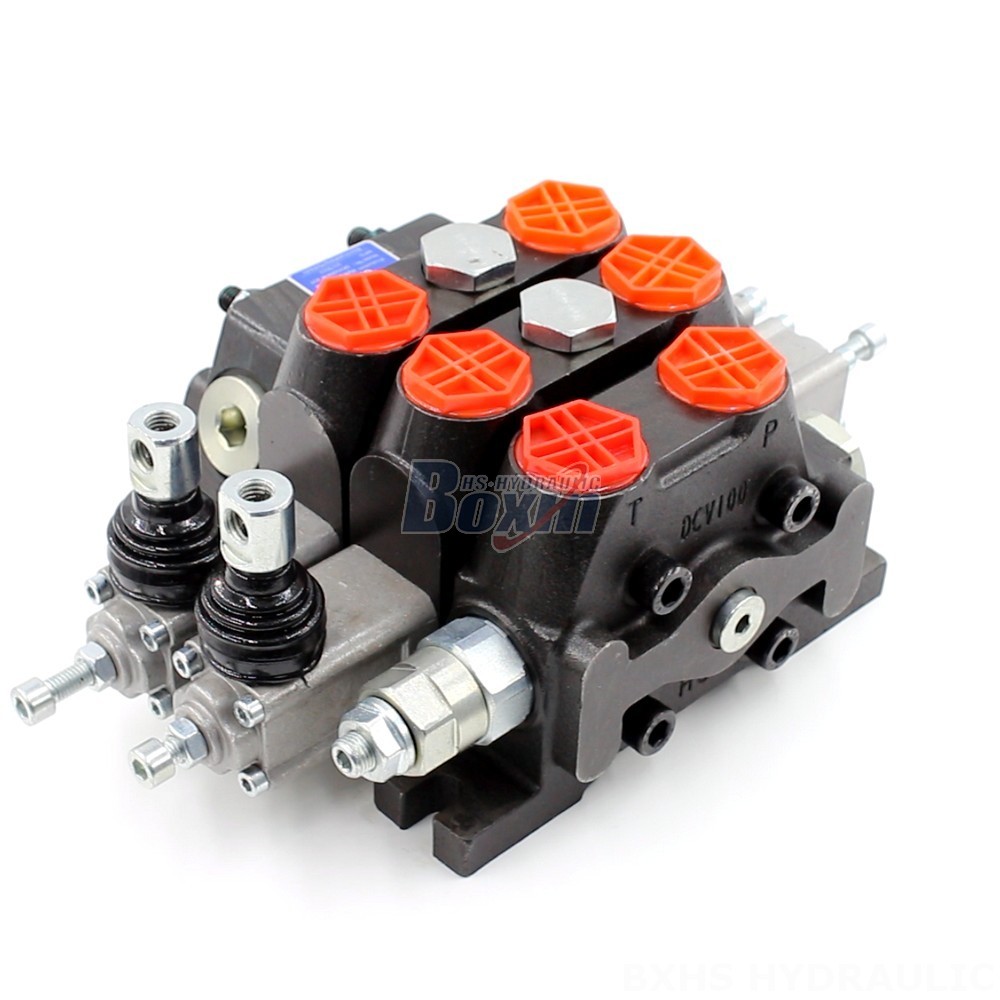

This 2 Spool Hydraulic Valve with Detent (DCV100) is a manual, sectional valve featuring a robust design for reliable performance. It is ideal for controlling hydraulic systems in various applications including material handling, construction, and agriculture. Key features include:
* **Rated Flow:** 100 L/min (26.5 US gpm)
* **Max Pressure:** 350 bar (5100 psi)
* **Operating Viscosity Range:** 15 - 75 mm²/s (15 cSt to 75 cSt)
* **Ambient Temperature Range:** -40°C to +60°C (-40°F to +140°F)
* **2 Spool Design:** Offers precise control for multiple hydraulic functions.
* **Sectional Valve:** Allows for easy maintenance and repair.
* **Detent Function:** Provides secure position holding.
* **Wide Application Area:** Suitable for telehandlers, forklifts, all terrain cranes, stackers, aerial platforms, and motor graders.
The DCV100 series hydraulic valve is designed for reliability and durability, making it a reliable choice for demanding applications.
