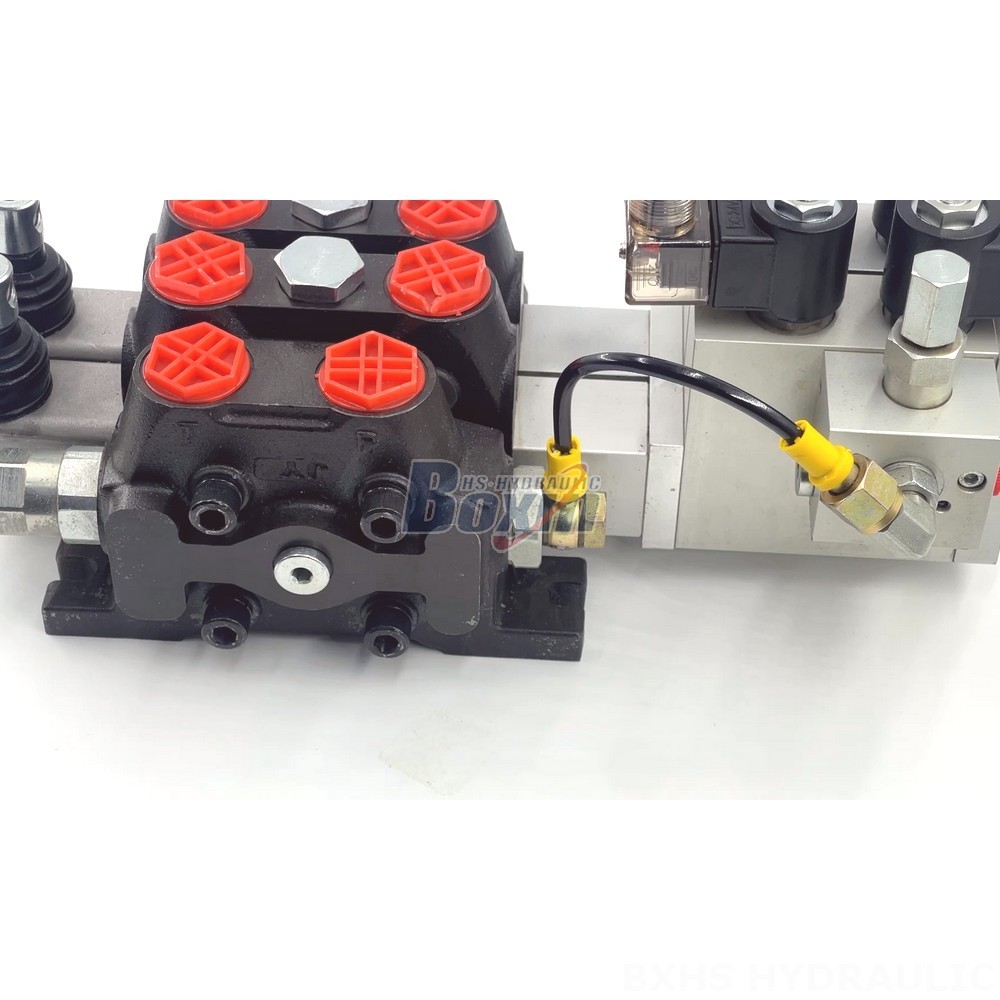

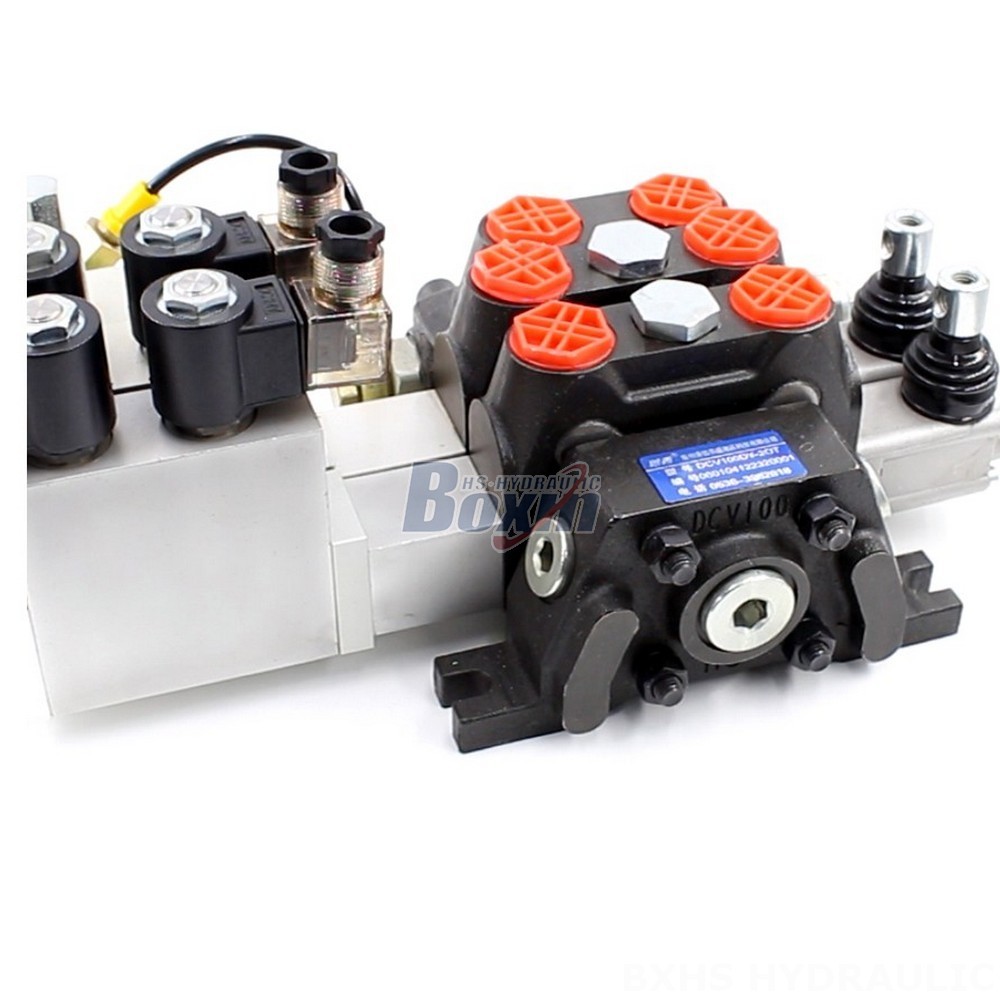

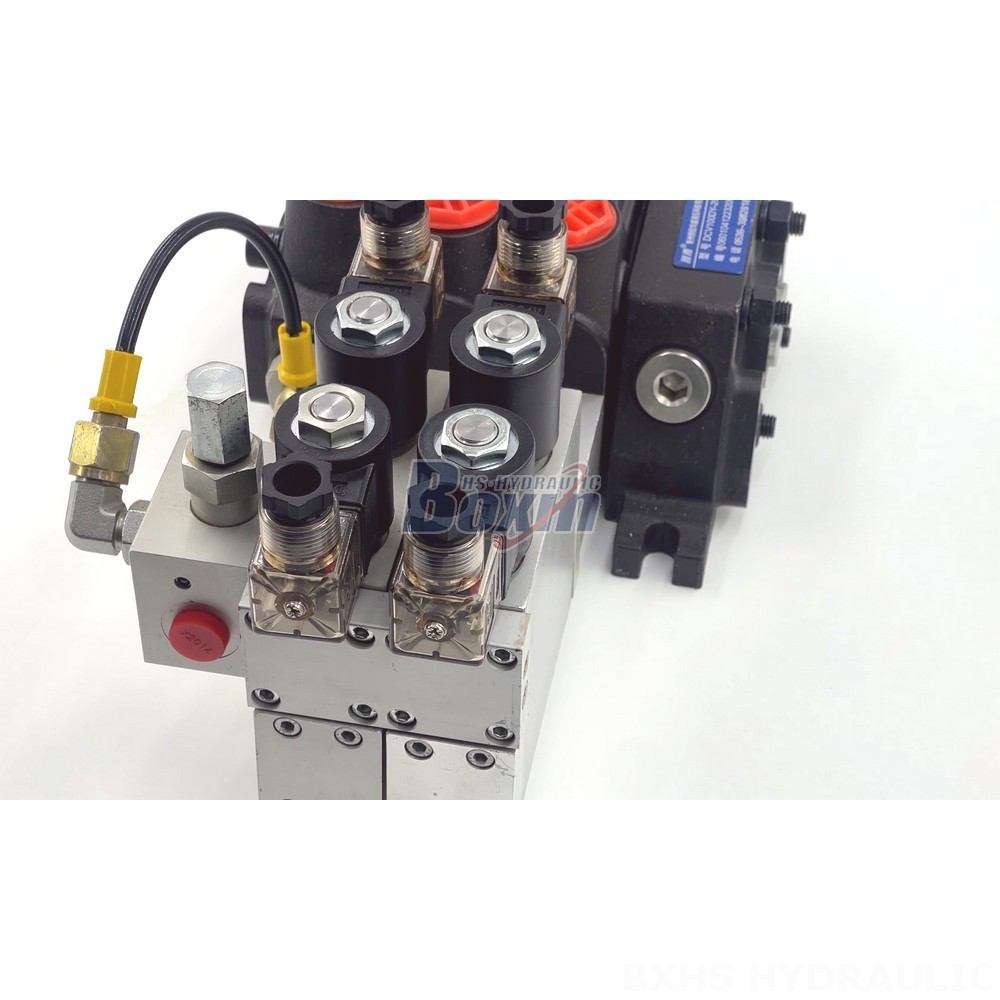

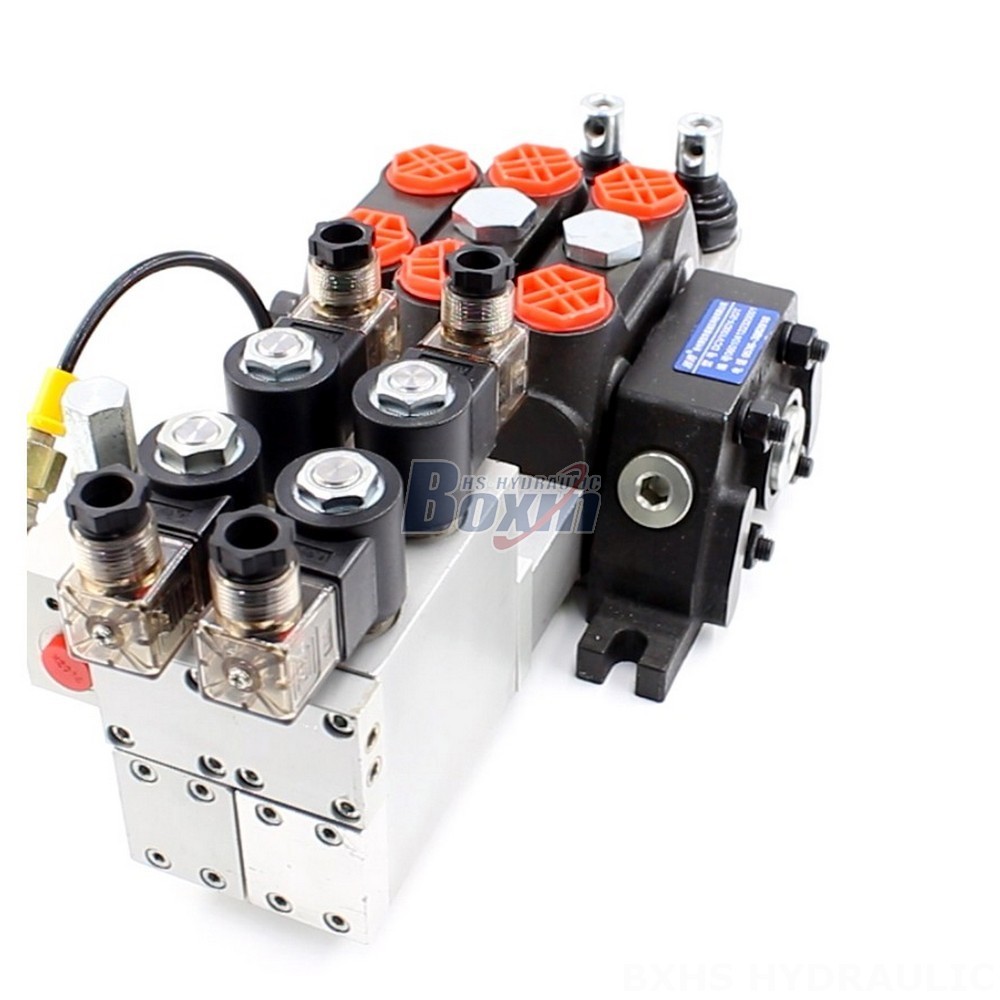

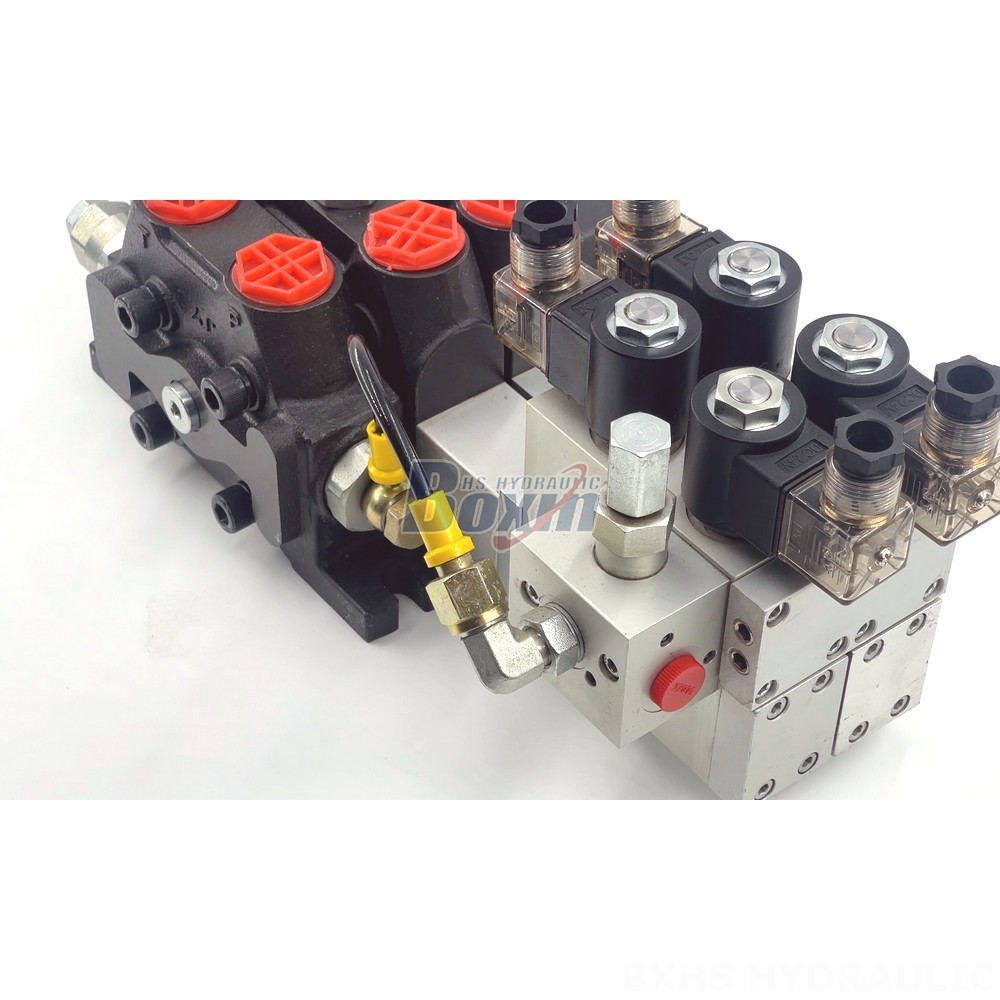

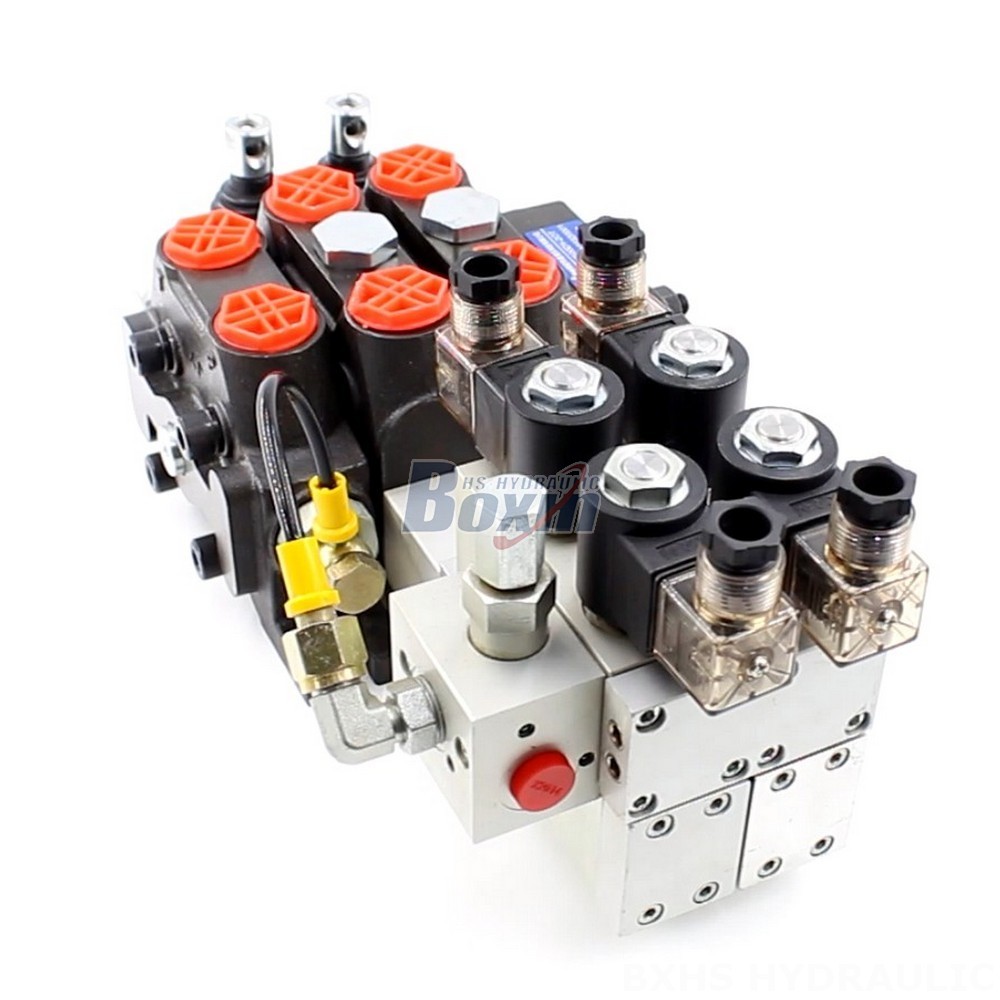

The DCV100 Electro-hydraulic 2 Spool Sectional Directional Valve is a versatile and high-performing valve designed for demanding hydraulic applications in various industries. With its robust construction, electro-hydraulic control, and high flow and pressure capabilities, this valve offers precise and reliable operation in challenging conditions.
| Seri DCV100 Kran Arah Bagian Parameter | |
|---|---|
| Metode Kontrol | Buku Panduan, Pneumatik, Elektro-pneumatik, Elektro-hidraulik, Selenoid, Hidraulis, Kabel, Stik Kontrol, Manual dan Joystick, Manual dan Elektro-hidraulik, Motor listrik, Elektro-hidrolik dan Solenoid |
| Spul | 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool, 8 Spool, 9 Spool, 10 Spool, 11 Spool, 12 Spool |
| Kisaran Suhu Sekitar | -40°C hingga +80°C (-40°F hingga +176°F) |
| Tipe Struktur | Katup penampang |
| Bagian | 1 Bagian, 2 Bagian, 3 Bagian, 4 Bagian, 5 Bagian, 6 Bagian, 7 Bagian, 8 Bagian, 9 Bagian, 10 Bagian, 11 Bagian, 12 Bagian |
| Kisaran Viskositas Operasional | 15 - 75 mm²/dt (15 cSt hingga 75 cSt) |
| Aliran Terukur | 100 L/menit (26,5 US gpm) |
| Tekanan Maksimum | 315 bar (4600 psi) |
| Port Masuk | G3/4, M22×1.5, M27×2.0, SAE 10, SAE 12, 3/4 NPT |
| Port Keluar | G3/4, M22×1.5, M27×2.0, SAE 10, SAE 12, 3/4 NPT |
| Ukuran Port | G3/4, M22×1.5, M27×2.0, SAE 10, SAE 12, 3/4 NPT |
**Key Features:**
- Electro-hydraulic control for precise and responsive operation
- Sectional design allows for easy customization and integration
- 2 spool configuration for versatile flow control
- High flow rate of 100 L/min (26.5 US gpm) for efficient operation
- Maximum pressure of 350 bar (5100 psi) for demanding applications
- Wide operating viscosity range of 15 - 75 mm²/s (15 cSt to 75 cSt) for adaptability to various fluids
- Ambient temperature range of -40°C to +60°C (-40°F to +140°F) for operation in harsh environments
**Applications:**
The DCV100 Electro-hydraulic 2 Spool Sectional Directional Valve finds application in a wide range of industries, including:
- Material Handling: Telehandlers, Forklifts, Stackers, Aerial Platforms
- Construction and Earth Moving: Excavators, Skid Steer Loaders, Motor Graders
- Agriculture: Tractors, Harvesters, Sprayers
- Industrial Vehicles: Cranes, Loaders, Sweepers
