DCV100 Series 2 Spool Sectional Valve for Hydraulic Systems

Metode Kontrol:Motor listrik

Spul:2 Spool

Aliran Terukur:100 L/menit (26,5 US gpm)

Tekanan Maksimum:315 bar (4600 psi)

Port Masuk:G3/4

Port Keluar:G3/4

Ukuran Port:G3/4

Merek:BXHS

Tipe Produk:Kran Arah Bagian

Seri Produk:Seri DCV100 Kran Arah Bagian

Ukuran kemasan:43*35*22

Kelas kotor:25.00 kg

Ketersediaan: Tersedia

107 Pandangan Mencari Produk Ini

DCV100 Series 2 Spool Sectional Valve for Hydraulic Systems

DCV100 Series 2 Spool Sectional Valve for Hydraulic Systems

DCV100 Series 2 Spool Sectional Valve for Hydraulic Systems drawing image

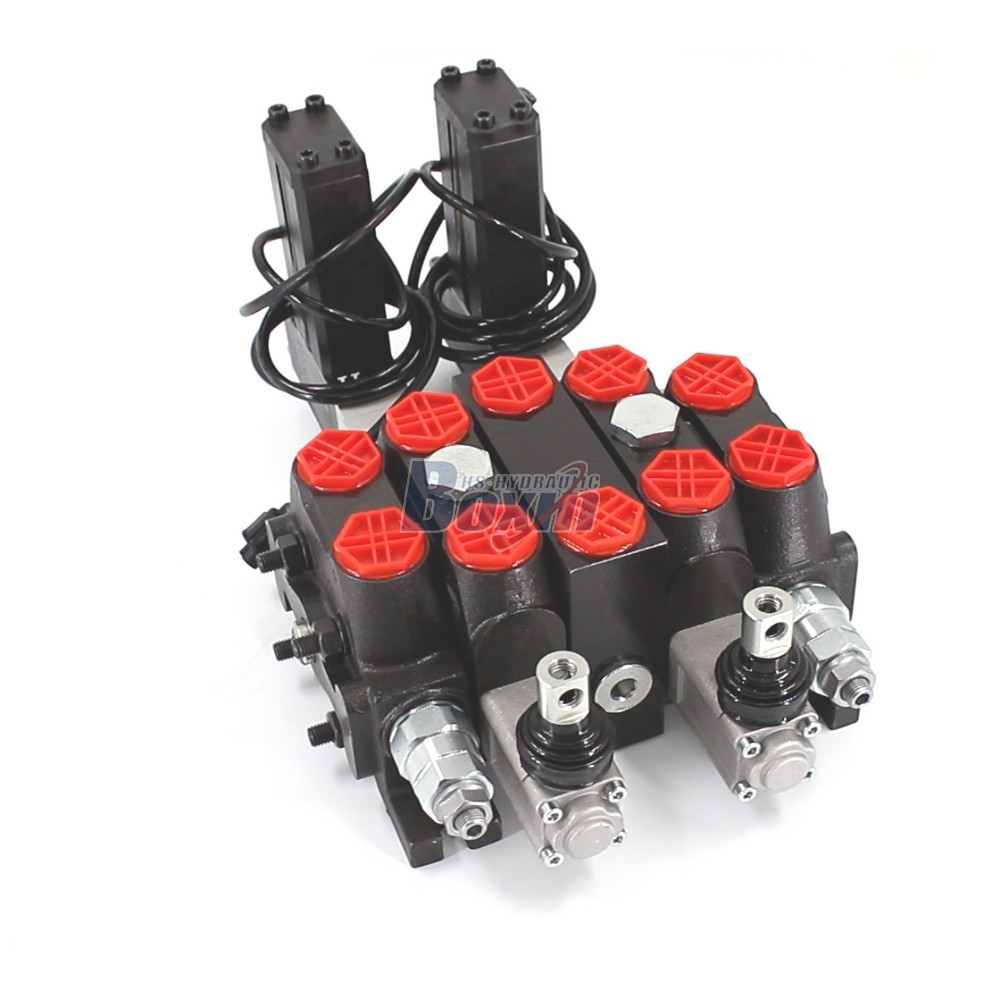

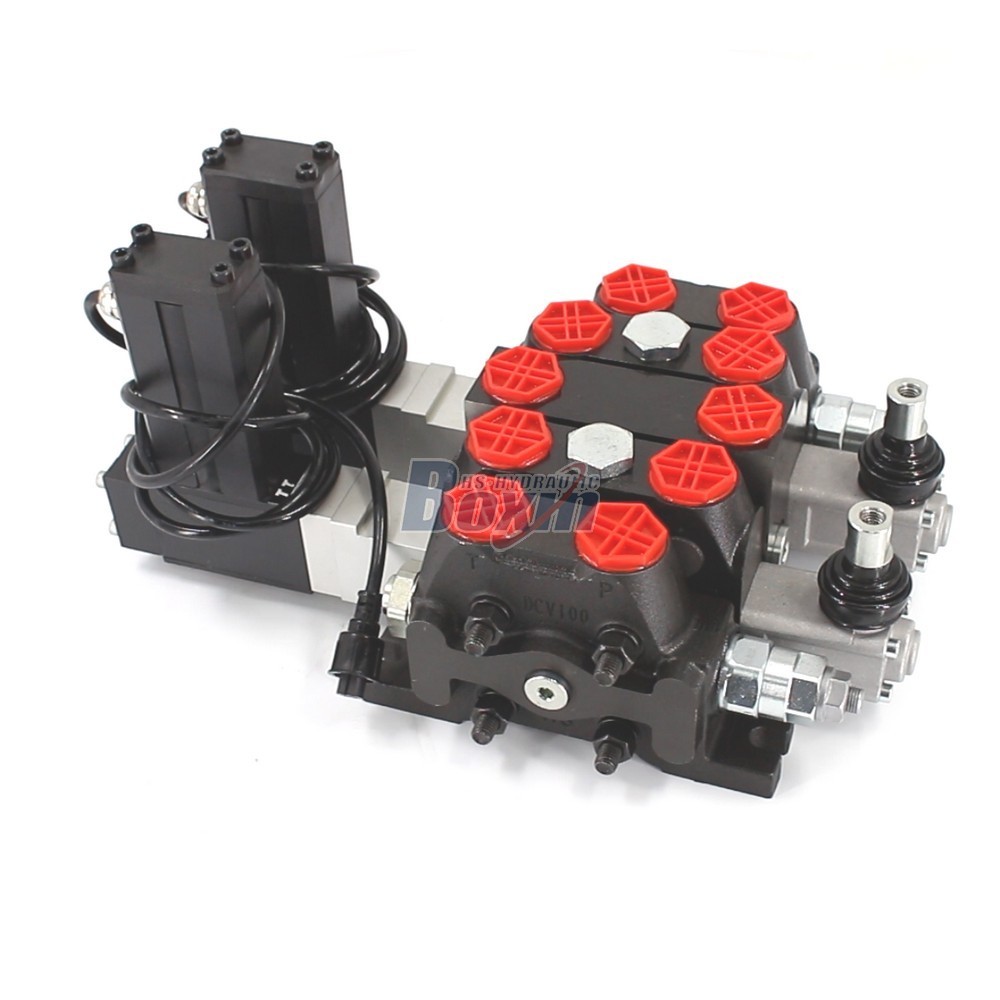

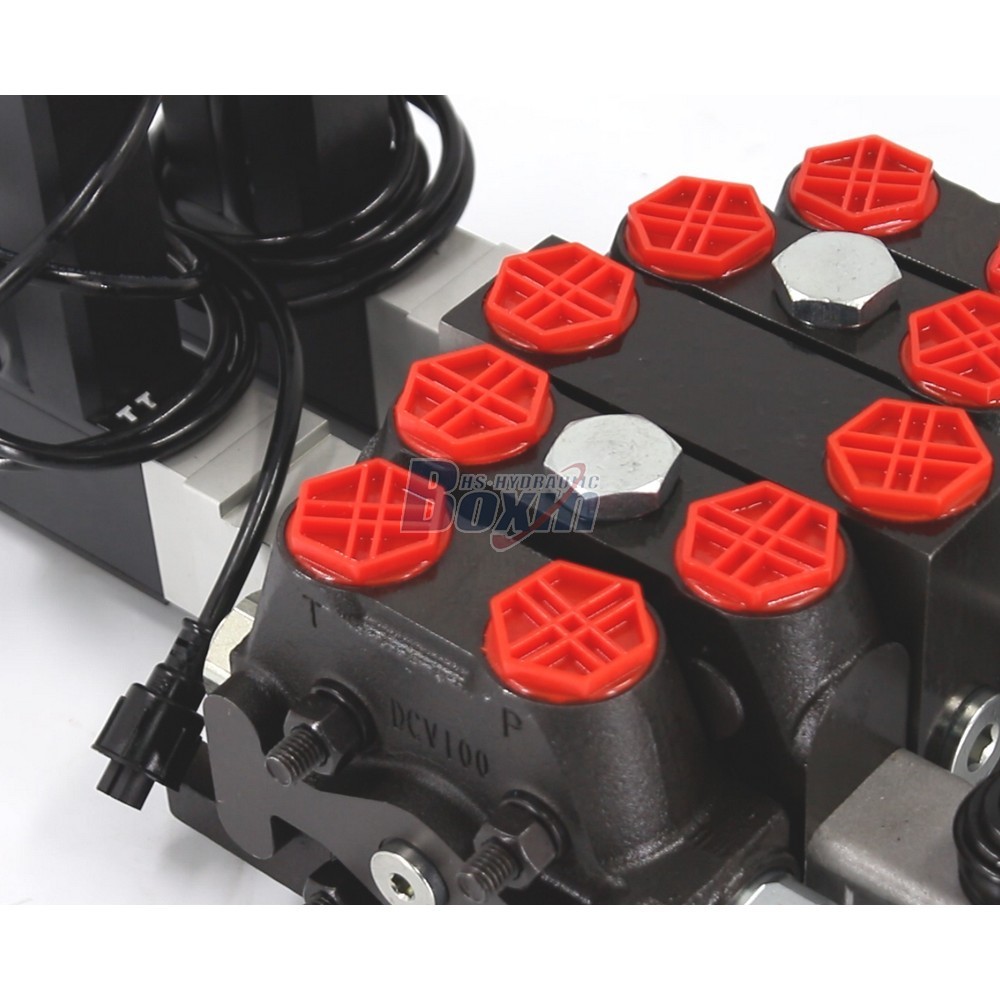

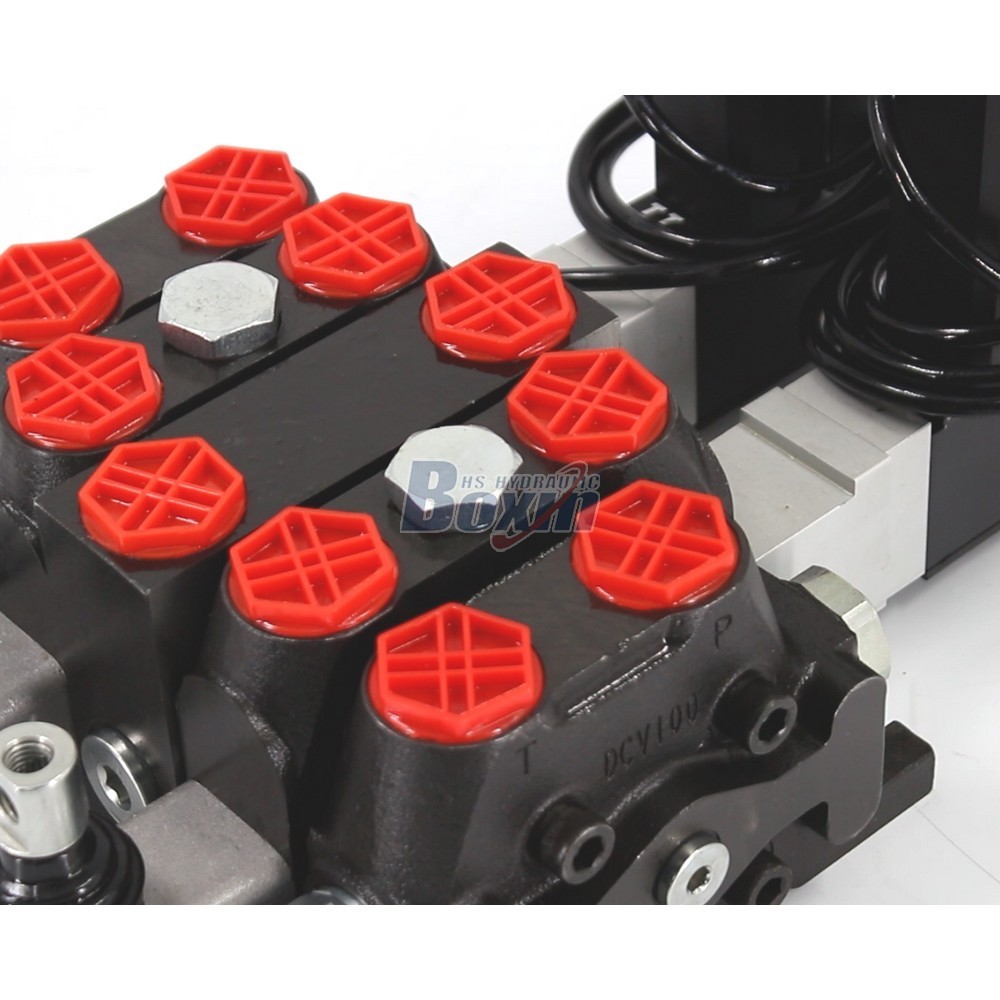

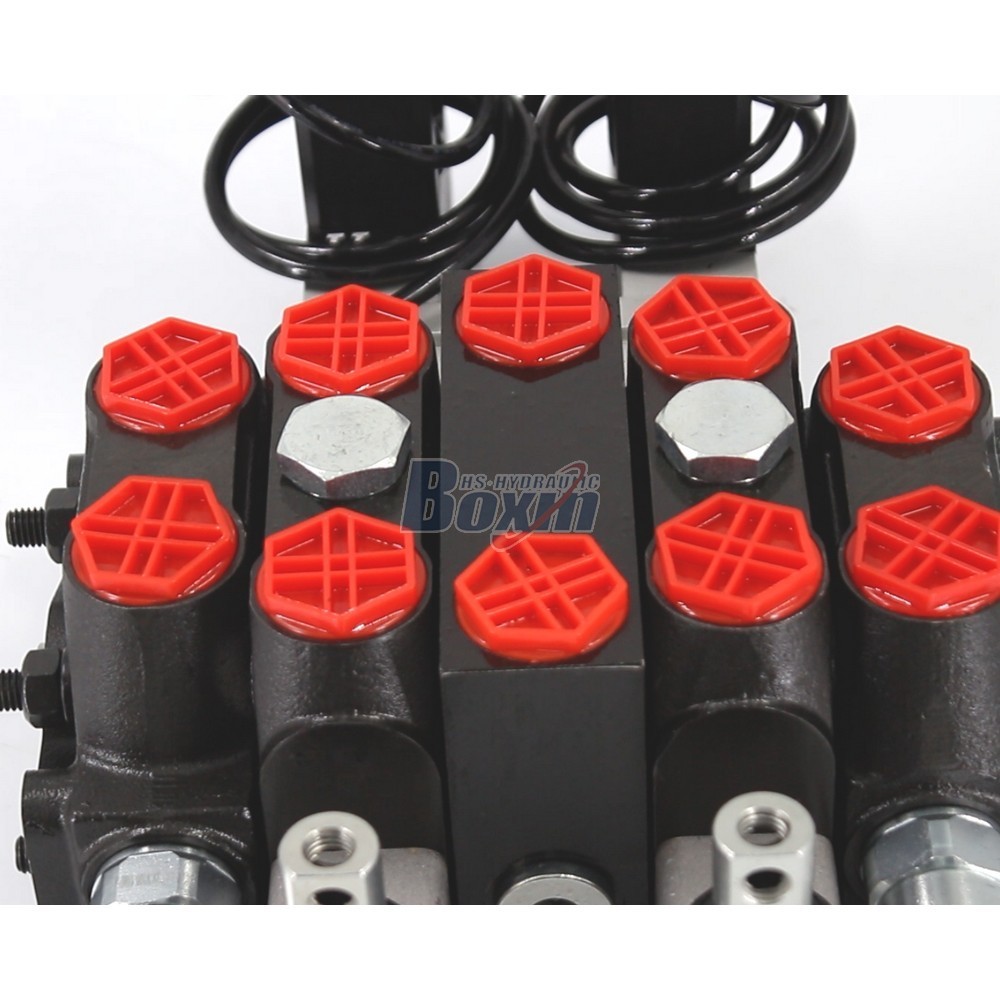

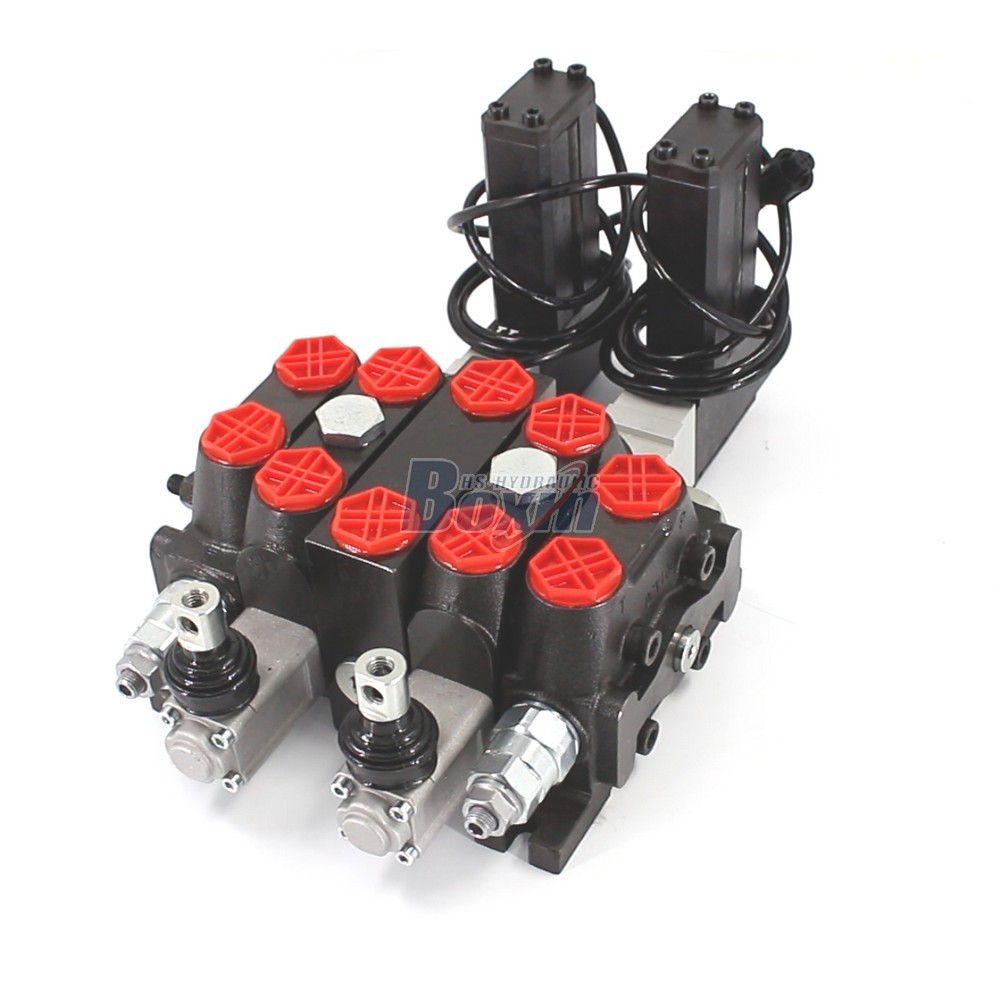

The DCV100 Series is a high-performance 2-spool sectional directional control valve designed for demanding hydraulic applications, offering a 100 L/min flow rate and up to 315 bar pressure capacity to ensure precise control in heavy-duty machinery.

Seri DCV100 Kran Arah Bagian Parameter
Metode Kontrol Buku Panduan, Pneumatik, Elektro-pneumatik, Elektro-hidraulik, Selenoid, Hidraulis, Kabel, Stik Kontrol, Manual dan Joystick, Manual dan Elektro-hidraulik, Motor listrik, Elektro-hidrolik dan Solenoid
Spul 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool, 8 Spool, 9 Spool, 10 Spool, 11 Spool, 12 Spool
Kisaran Suhu Sekitar -40°C hingga +80°C (-40°F hingga +176°F)
Tipe Struktur Katup penampang
Bagian 1 Bagian, 2 Bagian, 3 Bagian, 4 Bagian, 5 Bagian, 6 Bagian, 7 Bagian, 8 Bagian, 9 Bagian, 10 Bagian, 11 Bagian, 12 Bagian
Kisaran Viskositas Operasional 15 - 75 mm²/dt (15 cSt hingga 75 cSt)
Aliran Terukur 100 L/menit (26,5 US gpm)
Tekanan Maksimum 315 bar (4600 psi)
Port Masuk G3/4, M22×1.5, M27×2.0, SAE 10, SAE 12, 3/4 NPT
Port Keluar G3/4, M22×1.5, M27×2.0, SAE 10, SAE 12, 3/4 NPT
Ukuran Port G3/4, M22×1.5, M27×2.0, SAE 10, SAE 12, 3/4 NPT

Engineered for versatility and durability, our DCV100 Series sectional valves provide reliable flow regulation for a wide range of mobile and industrial equipment, including skid steer loaders, tractors, forklifts, and aerial platforms. As a professional manufacturer, we specialize in high-quality hydraulic solutions, supporting OEM, ODM, and customized production requirements to meet specific operational needs. Our state-of-the-art factory maintains rigorous quality standards, ensuring every unit delivers consistent performance under high-pressure conditions. We are actively seeking global partnerships with distributors, wholesalers, and trade companies. We provide flexible wholesale options, private labeling services, and bespoke customization packages to help you expand your product portfolio. Benefit from our direct factory pricing and professional manufacturing support. Contact us today to discuss how our hydraulic valve solutions can enhance your supply chain and business growth.
