The DCV200 Electro-hydraulic Directional Control Valve is a high-performance valve designed for use in a wide range of applications, including material handling, construction and earth moving, agriculture, and industrial vehicles. With its compact size and lightweight design, the DCV200 is easy to install and maintain.
| Seri DCV200 Kran Arah Bagian Parameter | |
|---|---|
| Metode Kontrol | Buku Panduan, Pneumatik, Elektro-pneumatik, Elektro-hidraulik, Hidraulis, Hidraulik dan Manual, Kabel, Stik Kontrol, Manual dan Joystick, Manual dan Elektro-hidraulik, Motor listrik |
| Spul | 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool, 8 Spool, 9 Spool, 10 Spool, 11 Spool, 12 Spool |
| Kisaran Suhu Sekitar | -40°C hingga +80°C (-40°F hingga +176°F) |
| Tipe Struktur | Katup penampang |
| Bagian | 1 Bagian, 2 Bagian, 3 Bagian, 4 Bagian, 5 Bagian, 6 Bagian, 7 Bagian, 8 Bagian, 9 Bagian, 10 Bagian, 11 Bagian, 12 Bagian |
| Kisaran Viskositas Operasional | 15 - 75 mm²/dt (15 cSt hingga 75 cSt) |
| Aliran Terukur | 200 L/menit (52 US gpm) |
| Tekanan Maksimum | 315 bar (4600 psi) |
| Port Masuk | G3/4, G1, M33×2.0, SAE 16, 3/4 NPT, 1 NPT |
| Port Keluar | G1, M33×2.0, SAE 16, 1 NPT |
| Ukuran Port | G3/4, G1, M33×2.0, SAE 16, 3/4 NPT, 1 NPT |

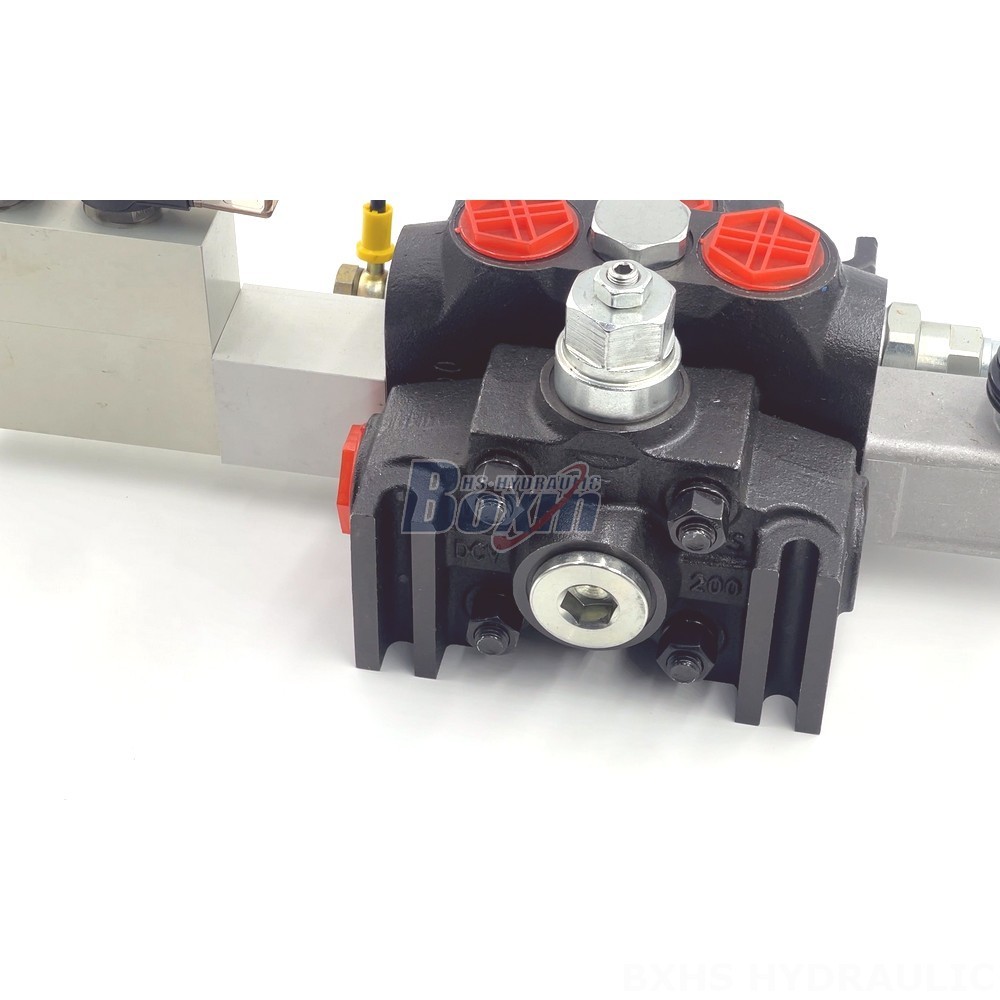

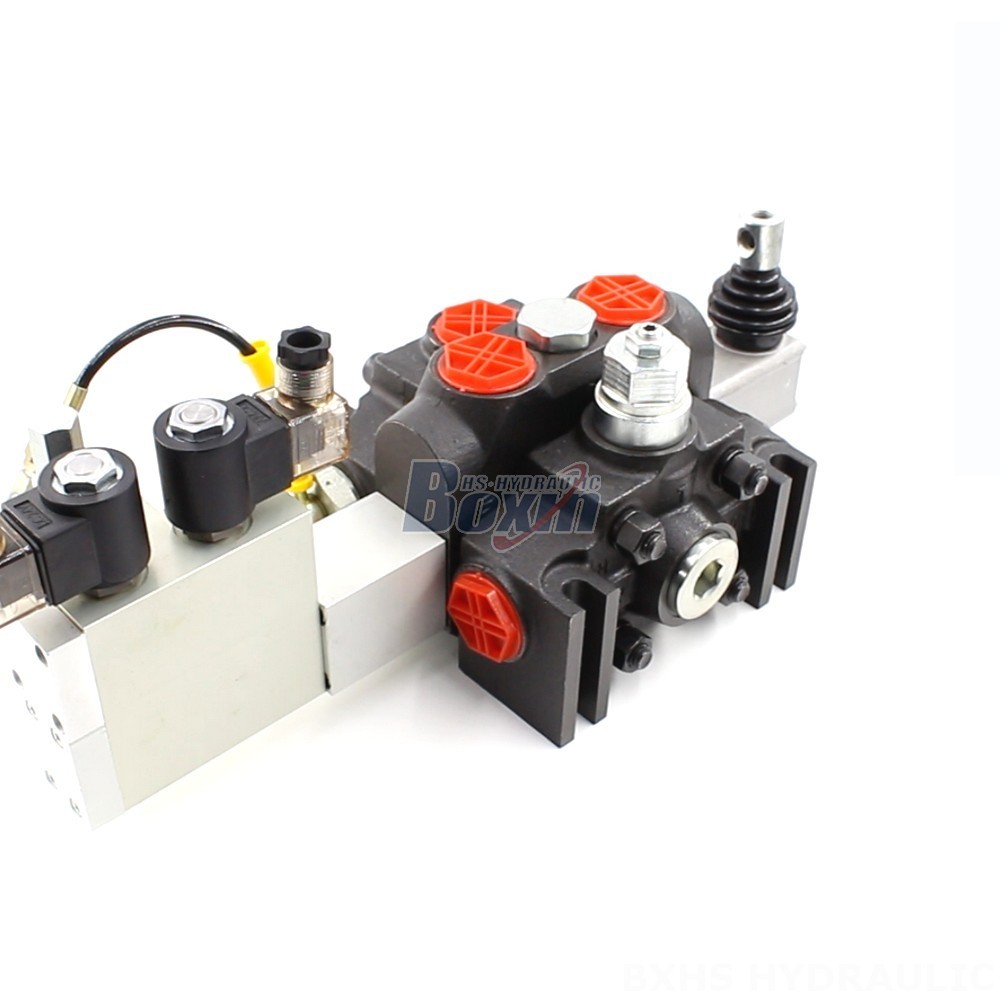

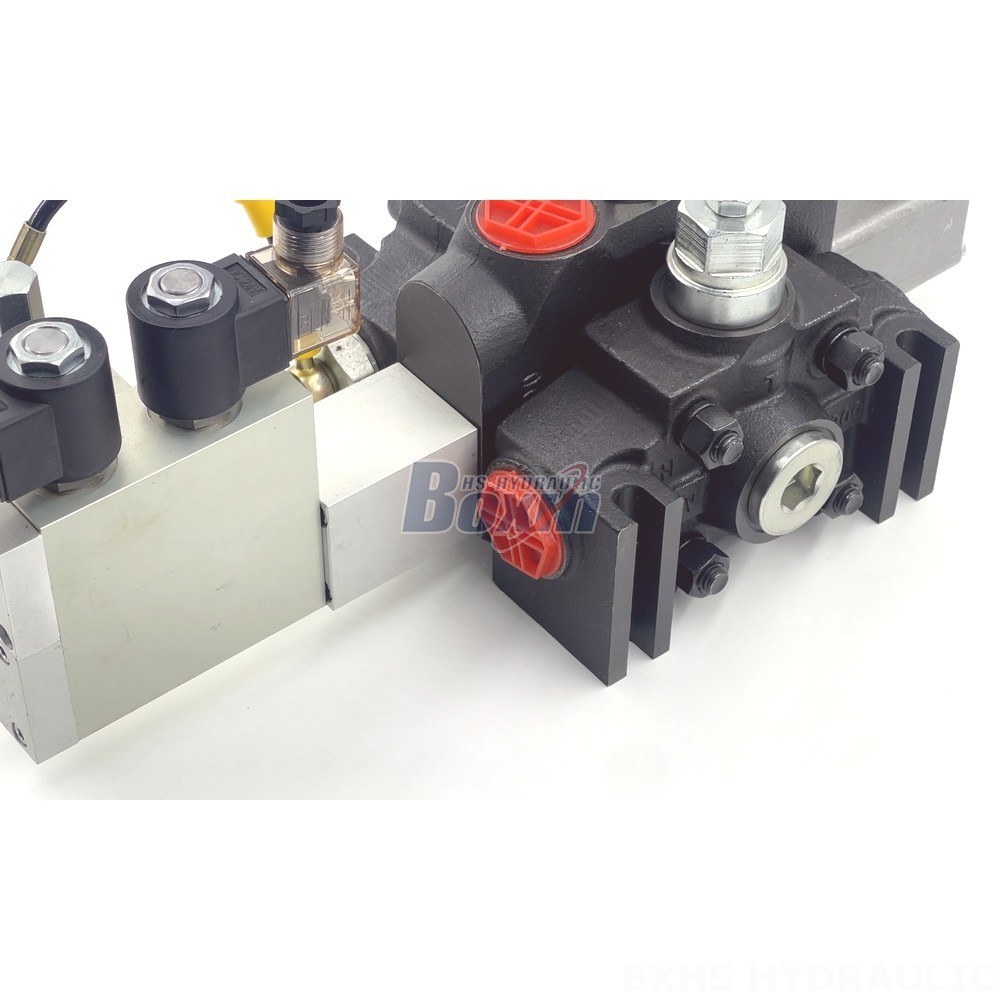

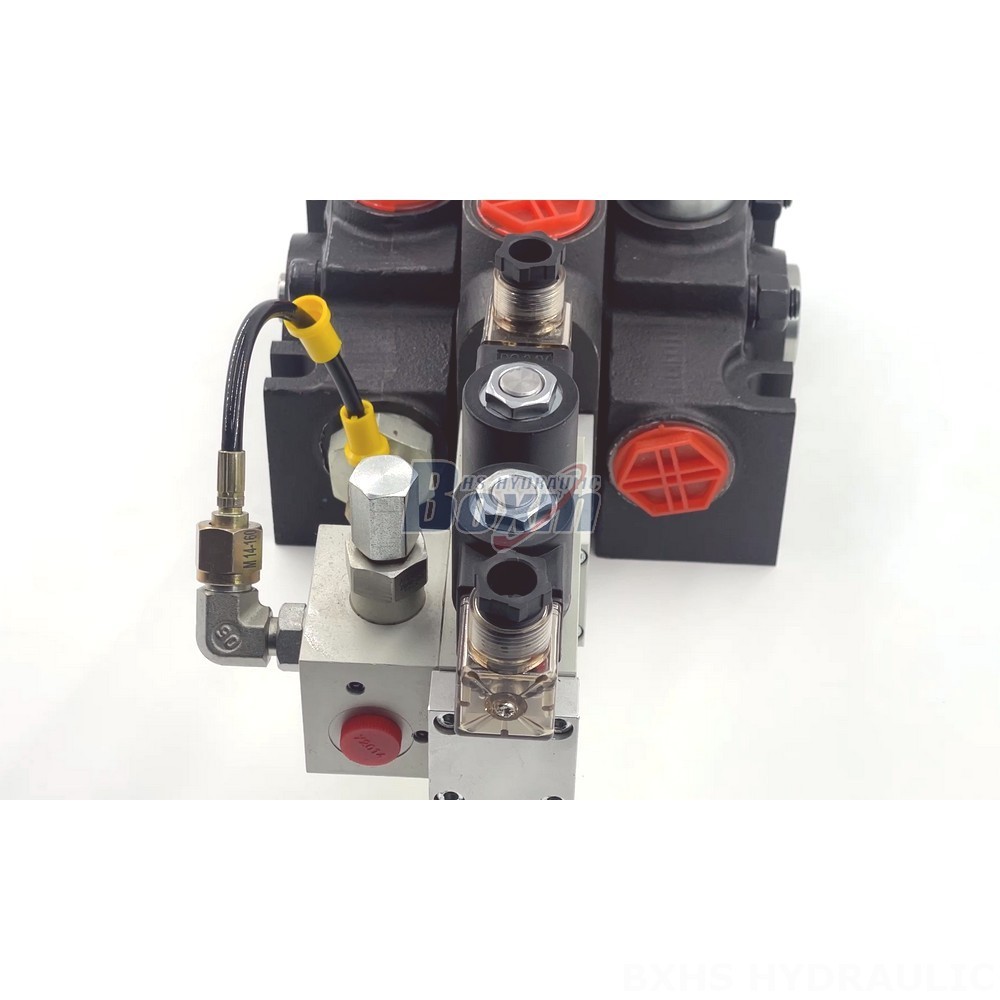

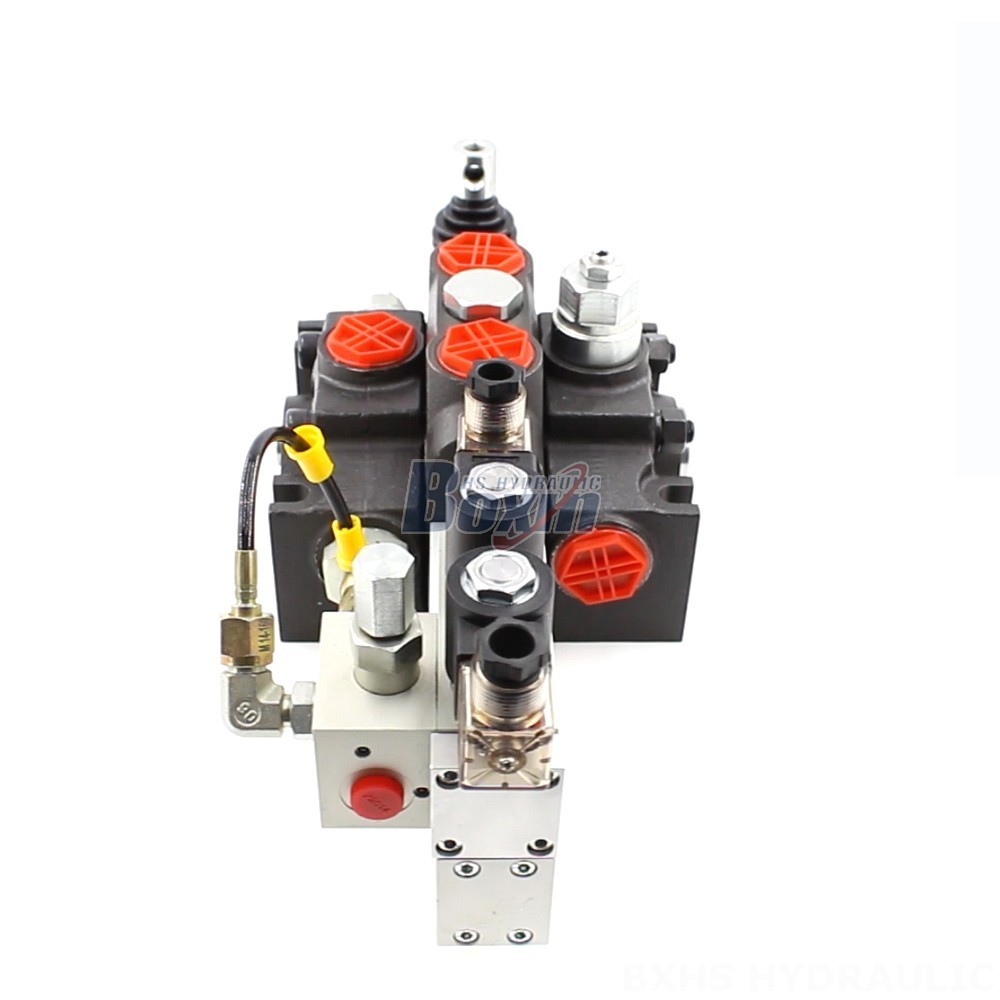

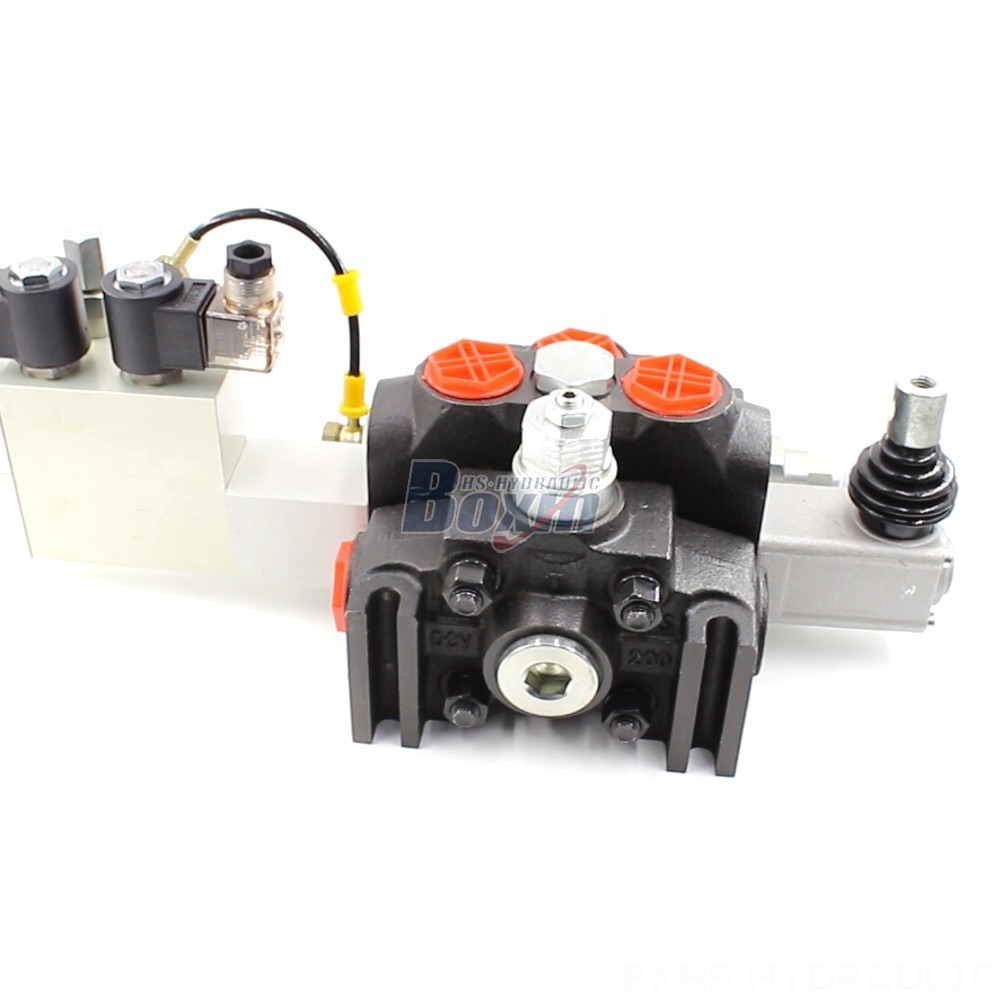

**DCV200 Electro-hydraulic Directional Control Valve**
The DCV200 Electro-hydraulic Directional Control Valve is a 1 section valve with a maximum pressure of 350 bar (5100 psi) and an operating viscosity range of 15 - 75 mm²/s (15 cSt to 75 cSt). It has an ambient temperature range of -40°C to +80°C (-40°F to +176°F) and is available with 1 spool. The DCV200 is designed for use in a wide range of applications, including:
* Material handling
* Construction and earth moving
* Agriculture
* Industrial vehicles
The DCV200 is also available in a variety of configurations to meet the specific needs of your application. Please contact us for more information.
