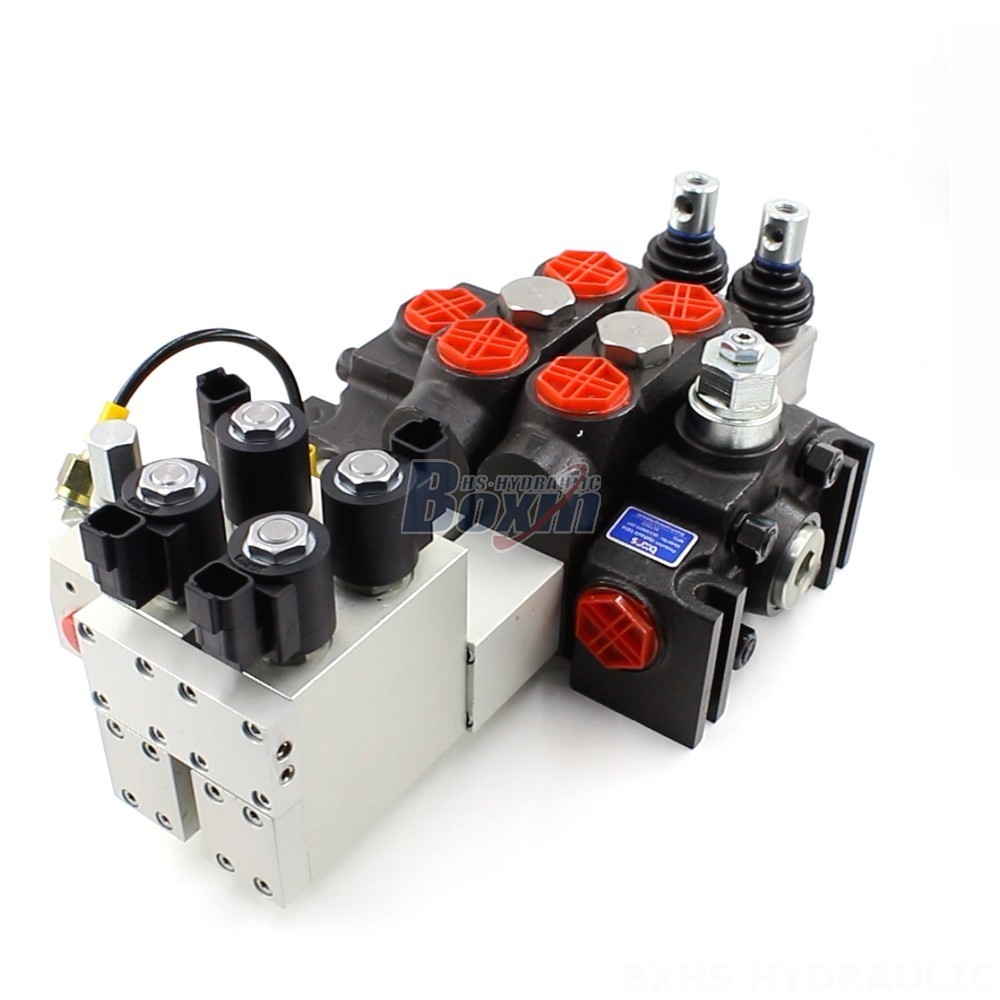

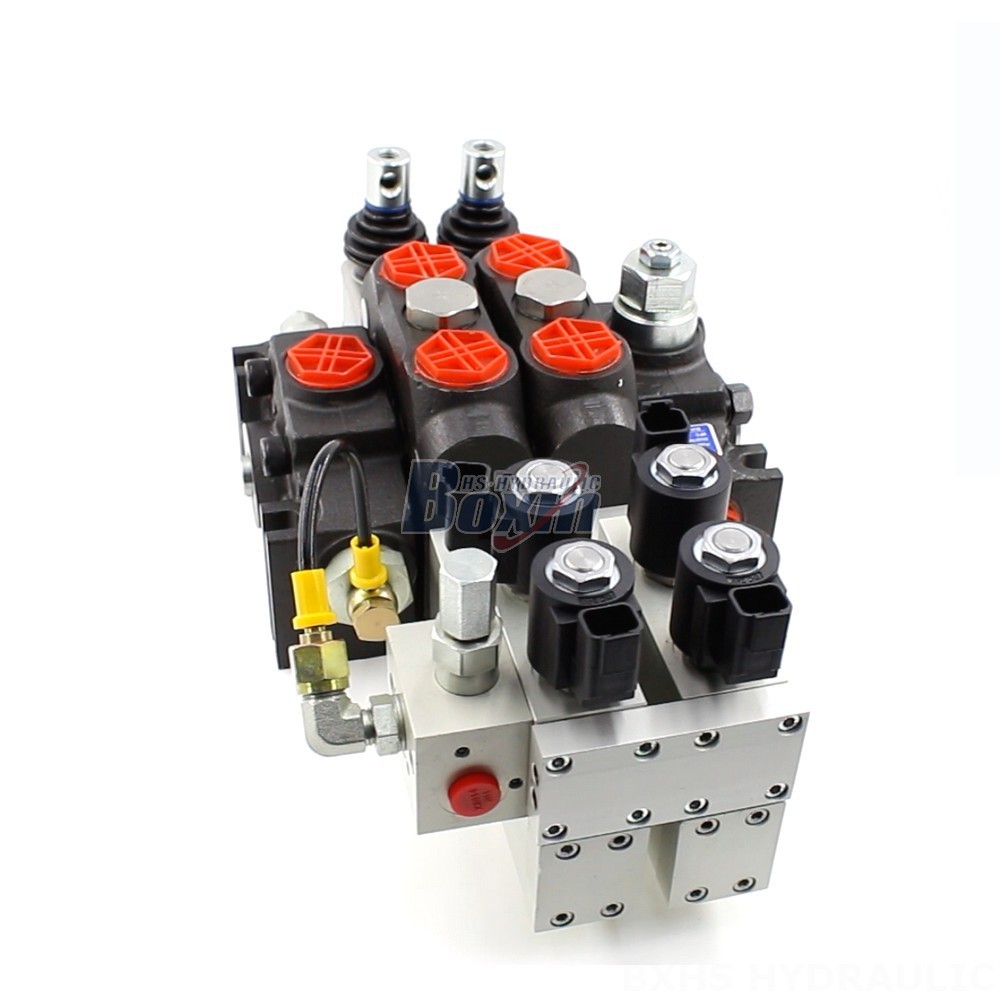

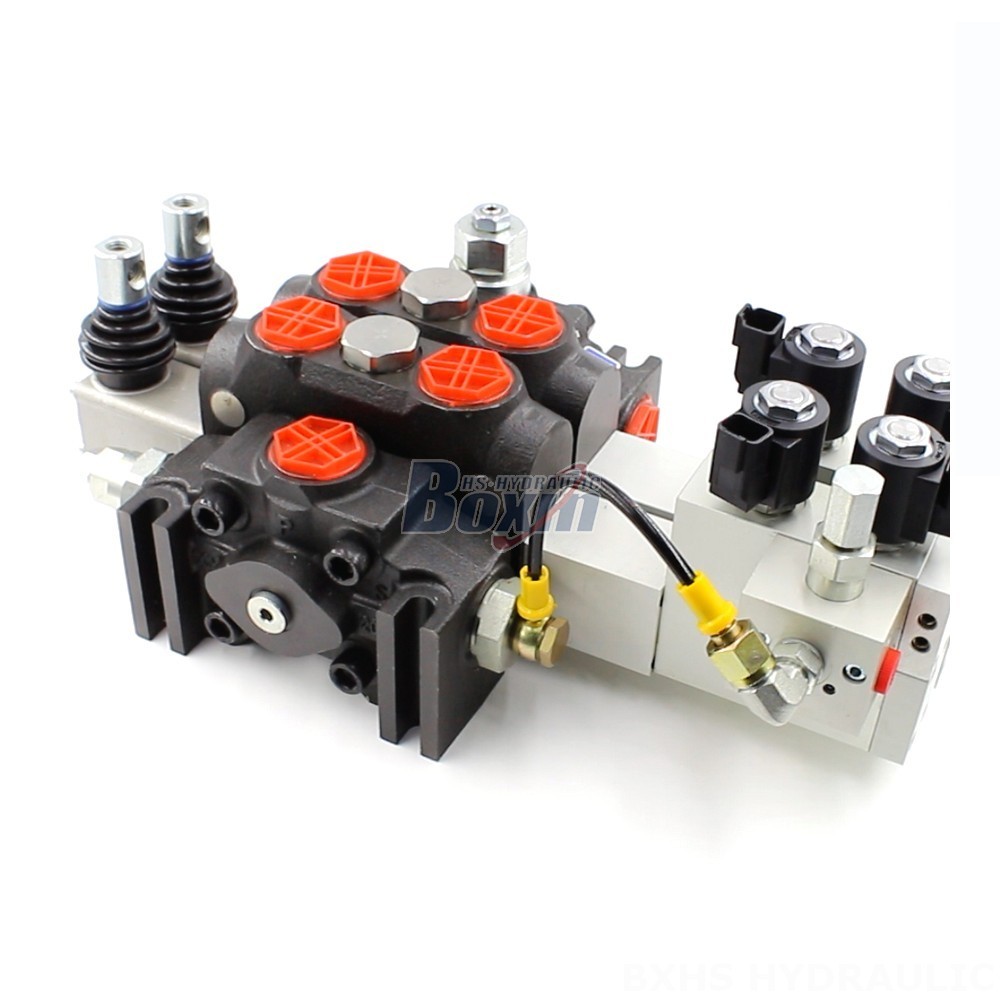

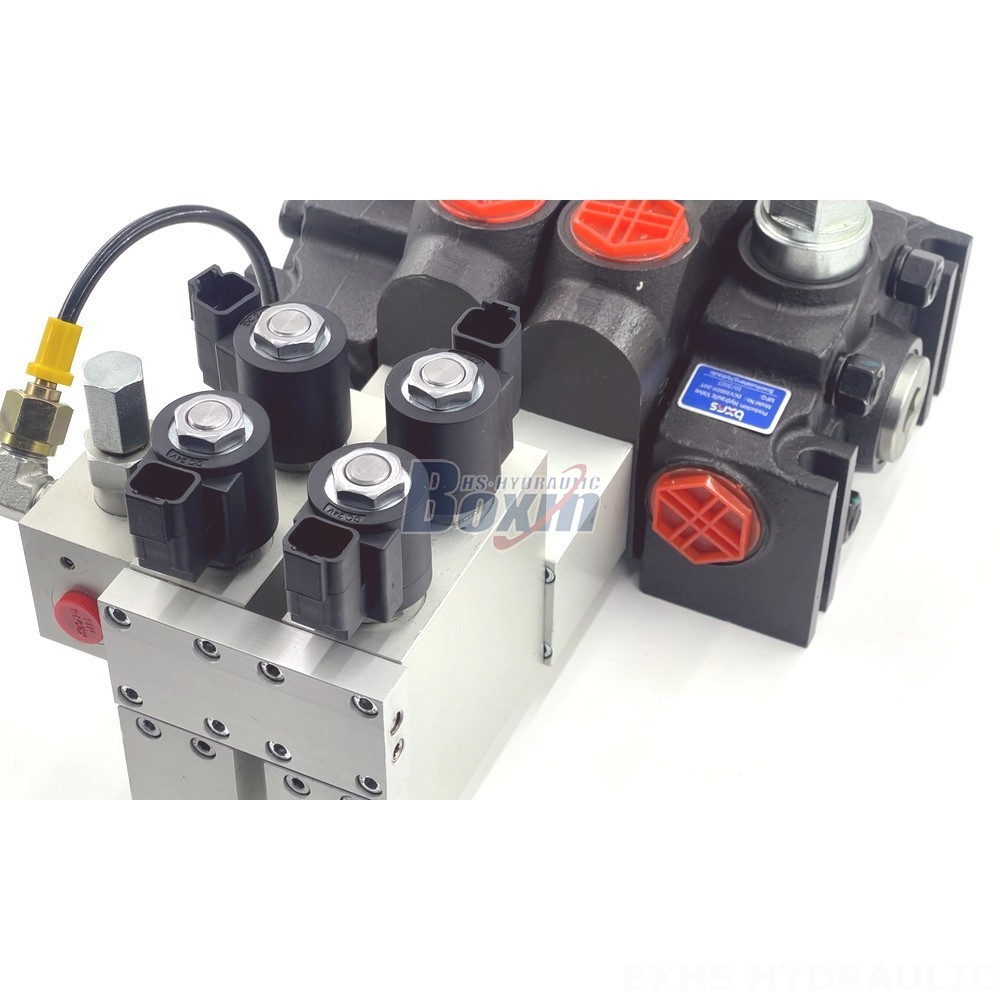

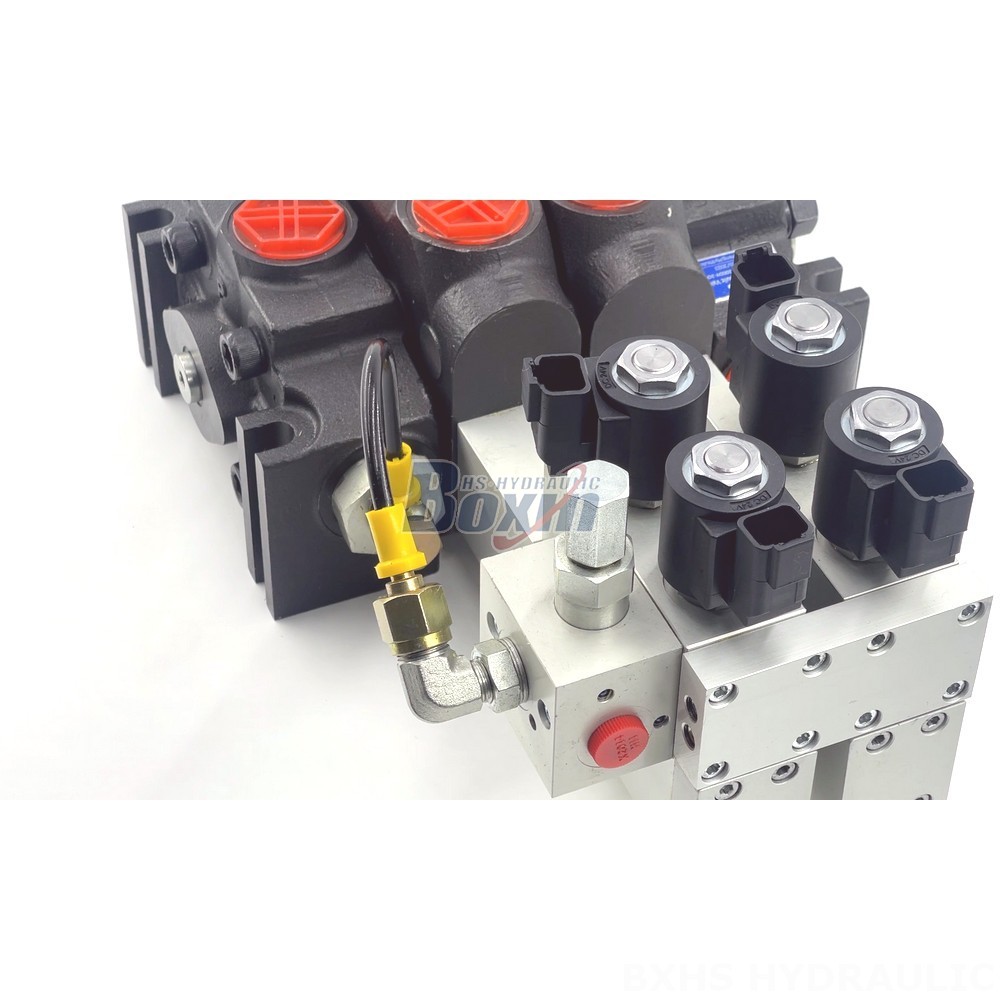

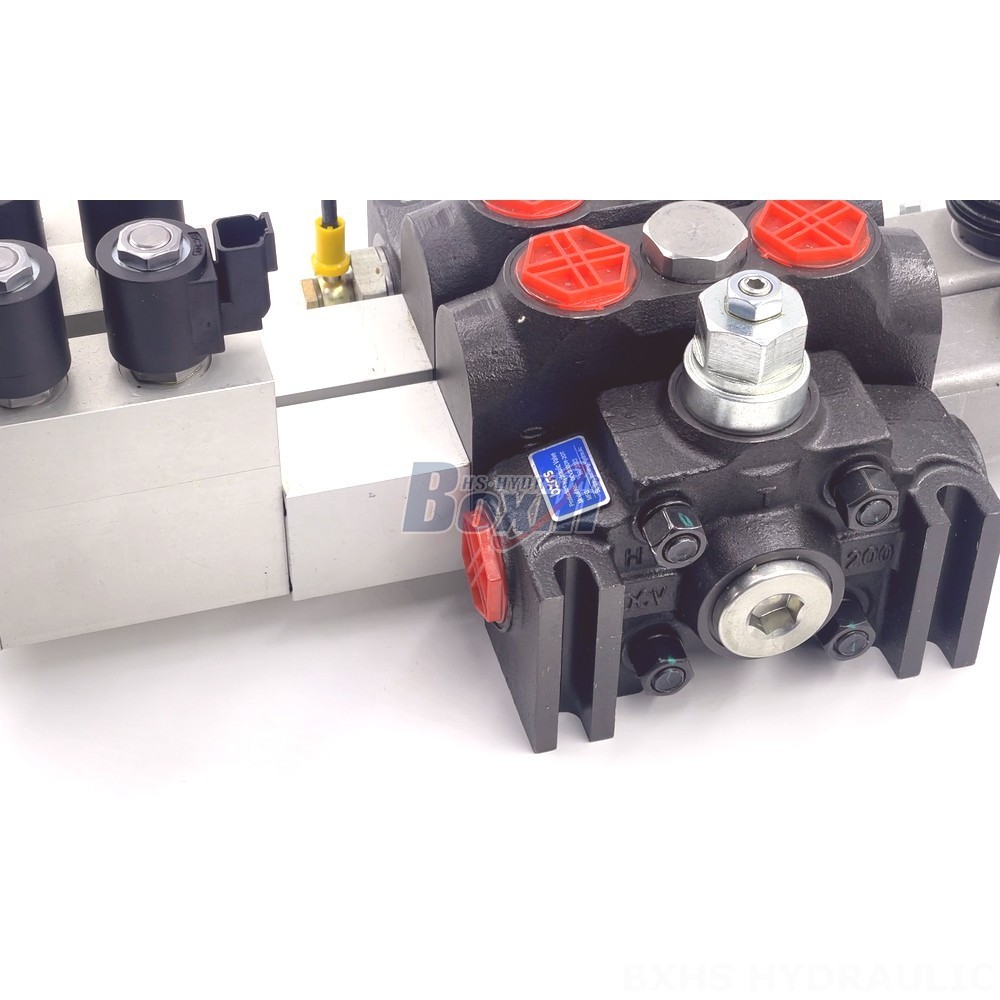

The DCV200 Series Electro-hydraulic Valve is designed for a wide range of applications in material handling, construction, earth moving, and agriculture. It features a 2-section design, 2-spool configuration, and a maximum pressure of 350 bar (5100 psi). With an operating viscosity range of 15 - 75 mm²/s (15 cSt to 75 cSt) and an ambient temperature range of -40°C to +80°C (-40°F to +176°F), it is suitable for demanding environments.
| Seri DCV200 Kran Arah Bagian Parameter | |
|---|---|
| Metode Kontrol | Buku Panduan, Pneumatik, Elektro-pneumatik, Elektro-hidraulik, Hidraulis, Hidraulik dan Manual, Kabel, Stik Kontrol, Manual dan Joystick, Manual dan Elektro-hidraulik, Motor listrik |
| Spul | 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool, 8 Spool, 9 Spool, 10 Spool, 11 Spool, 12 Spool |
| Kisaran Suhu Sekitar | -40°C hingga +80°C (-40°F hingga +176°F) |
| Tipe Struktur | Katup penampang |
| Bagian | 1 Bagian, 2 Bagian, 3 Bagian, 4 Bagian, 5 Bagian, 6 Bagian, 7 Bagian, 8 Bagian, 9 Bagian, 10 Bagian, 11 Bagian, 12 Bagian |
| Kisaran Viskositas Operasional | 15 - 75 mm²/dt (15 cSt hingga 75 cSt) |
| Aliran Terukur | 200 L/menit (52 US gpm) |
| Tekanan Maksimum | 315 bar (4600 psi) |
| Port Masuk | G3/4, G1, M33×2.0, SAE 16, 3/4 NPT, 1 NPT |
| Port Keluar | G1, M33×2.0, SAE 16, 1 NPT |
| Ukuran Port | G3/4, G1, M33×2.0, SAE 16, 3/4 NPT, 1 NPT |
The DCV200 Series Electro-hydraulic Valve is manufactured by our company, a leading provider of hydraulic products. We offer factory direct supply and global distribution, ensuring competitive pricing and timely delivery. Our valves are known for their reliability, durability, and high performance. We also provide OEM, ODM, and private label services to meet your specific requirements. Whether you are a distributor, wholesaler, agent, or trader, we invite you to explore our product offerings and partner with us for your hydraulic valve needs.
