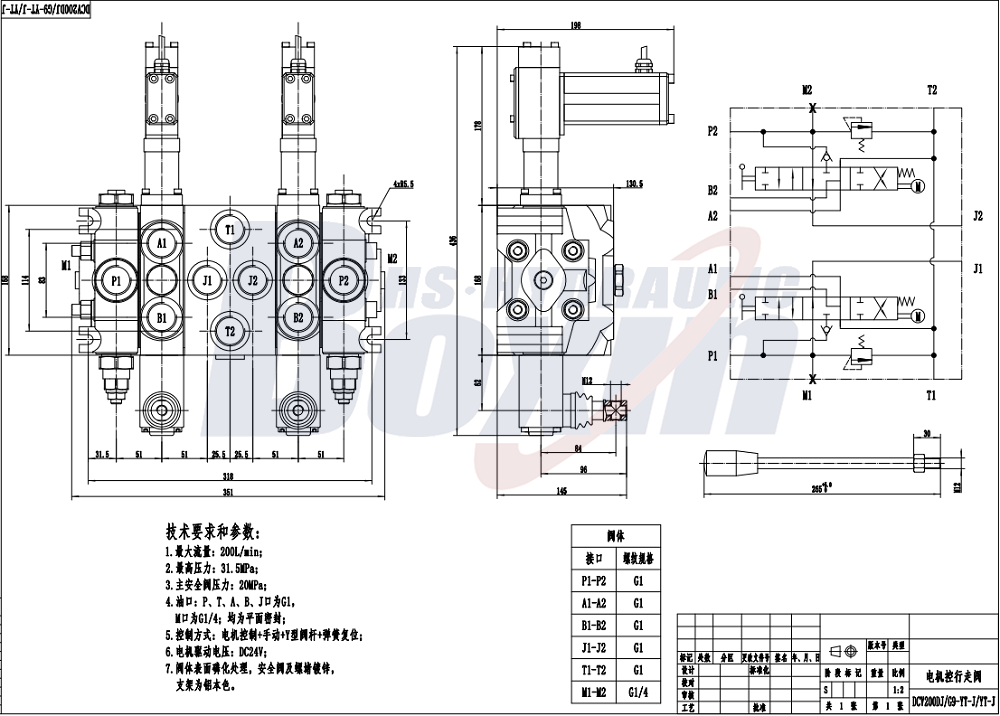

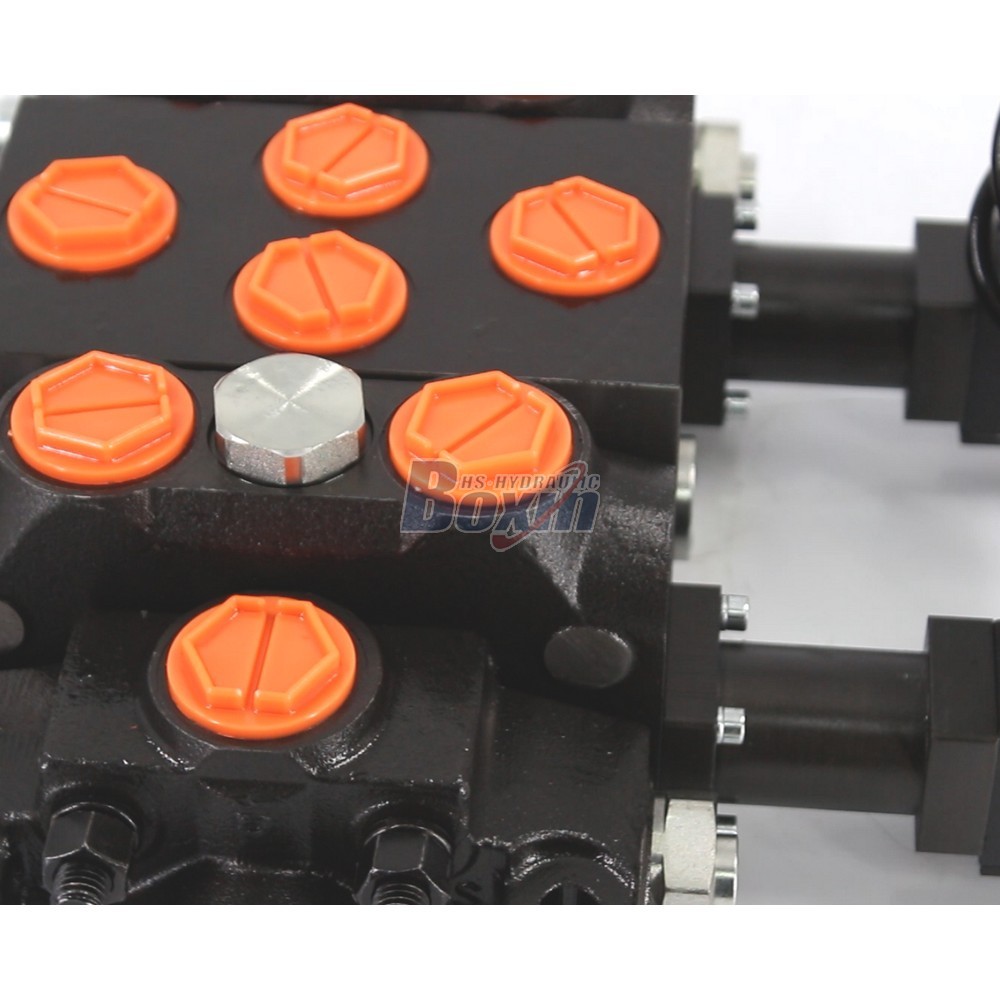

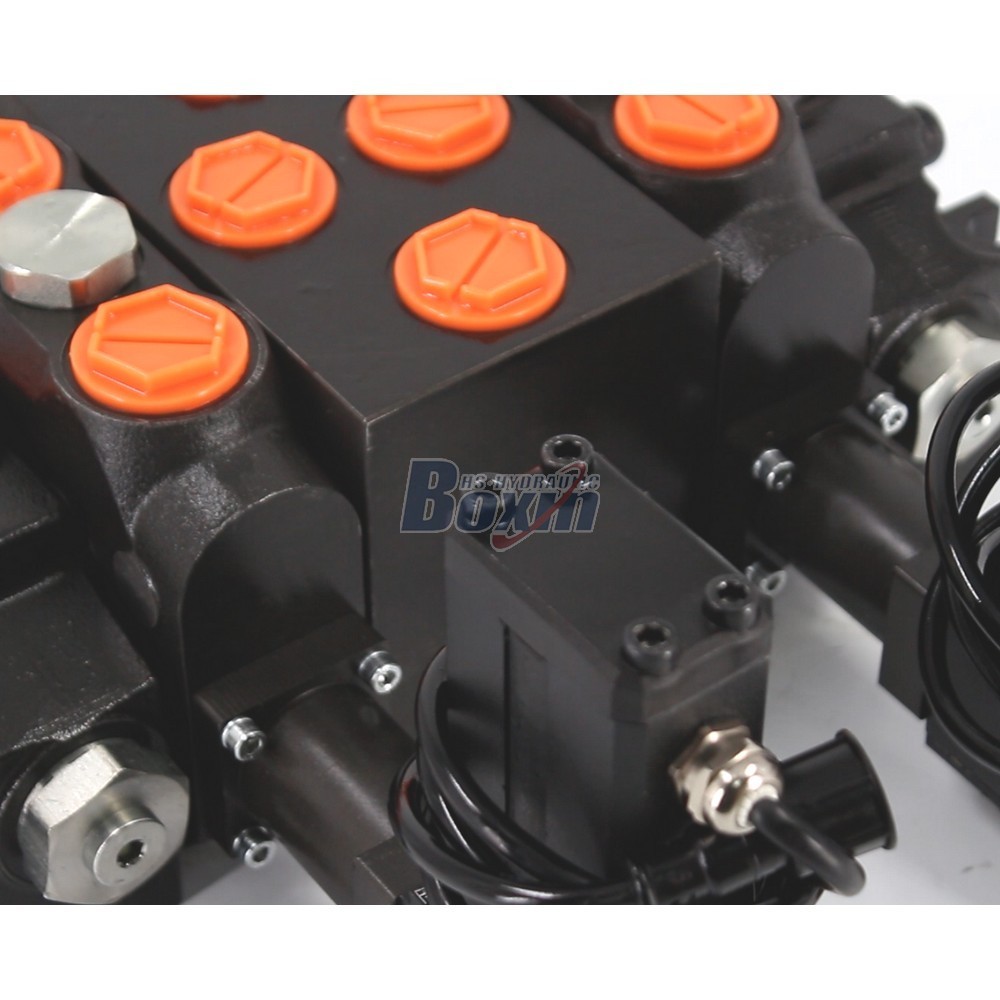

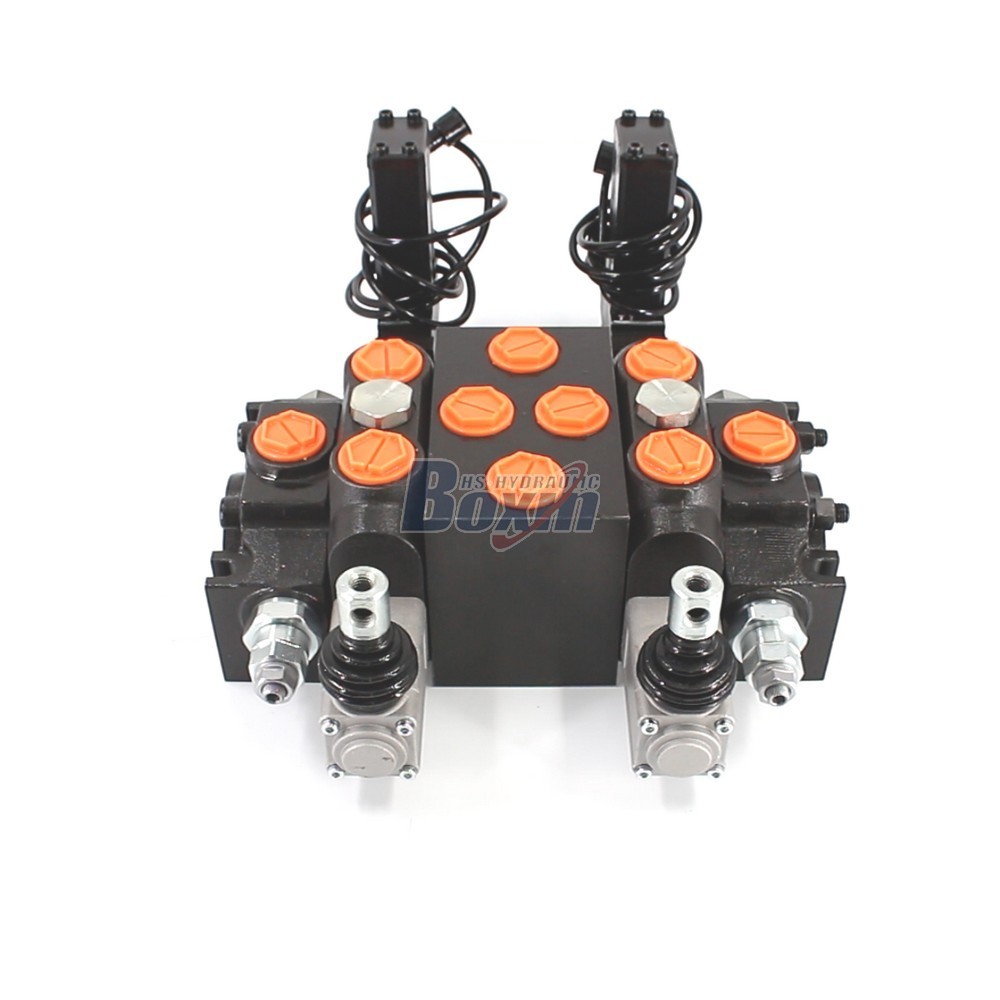

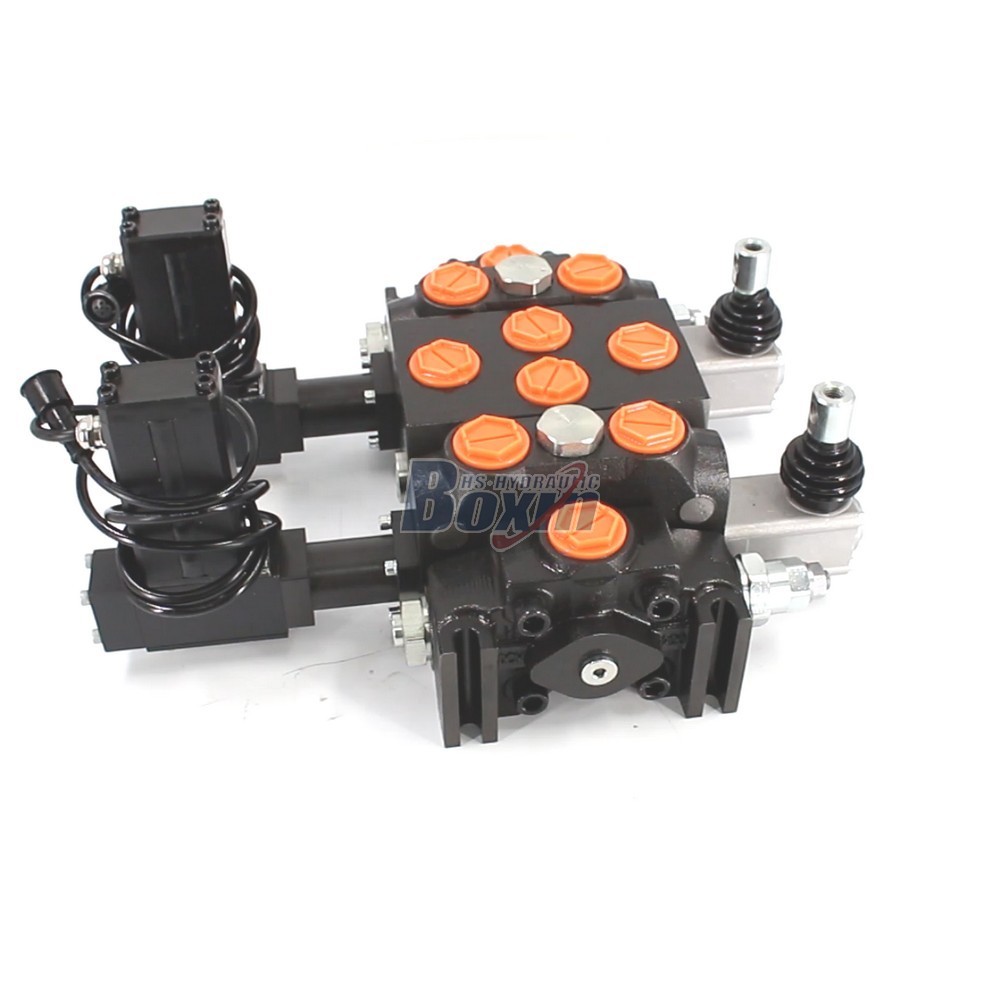

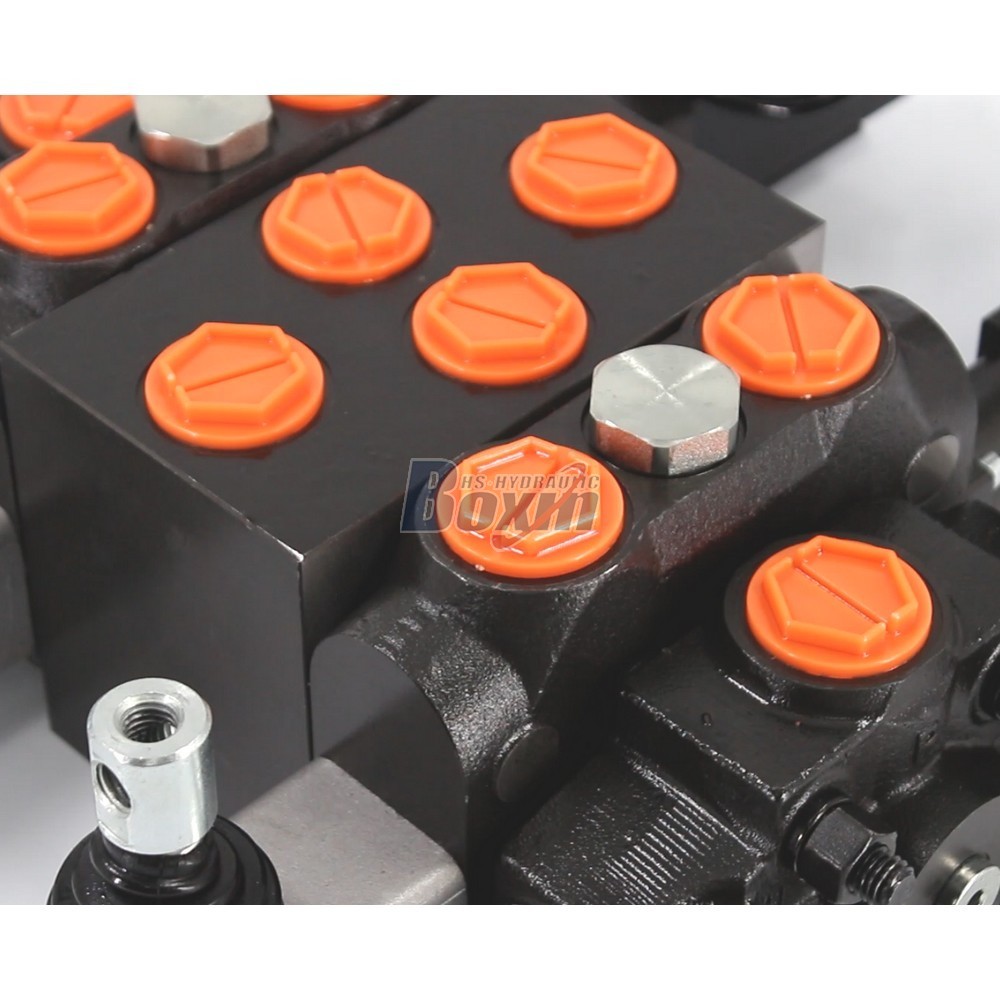

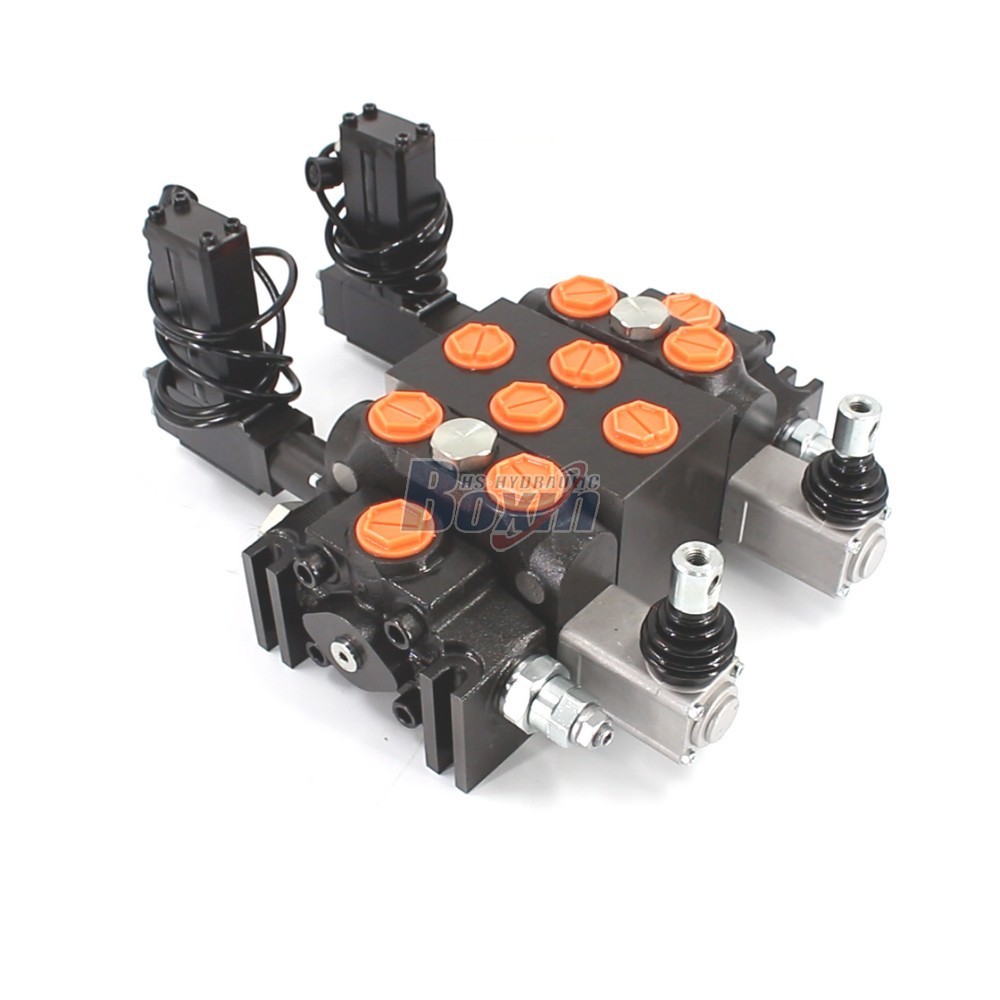

The DCV200 Series is a high-performance, 2-spool sectional hydraulic valve featuring electric motor control. Designed for demanding applications with a rated flow of 200 L/min and pressure handling up to 315 bar, it provides precise fluid power management for construction, material handling, and agricultural machinery.
| Seri DCV200 Kran Arah Bagian Parameter | |
|---|---|
| Metode Kontrol | Buku Panduan, Pneumatik, Elektro-pneumatik, Elektro-hidraulik, Hidraulis, Hidraulik dan Manual, Kabel, Stik Kontrol, Manual dan Joystick, Manual dan Elektro-hidraulik, Motor listrik |
| Spul | 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool, 8 Spool, 9 Spool, 10 Spool, 11 Spool, 12 Spool |
| Kisaran Suhu Sekitar | -40°C hingga +80°C (-40°F hingga +176°F) |
| Tipe Struktur | Katup penampang |
| Bagian | 1 Bagian, 2 Bagian, 3 Bagian, 4 Bagian, 5 Bagian, 6 Bagian, 7 Bagian, 8 Bagian, 9 Bagian, 10 Bagian, 11 Bagian, 12 Bagian |
| Kisaran Viskositas Operasional | 15 - 75 mm²/dt (15 cSt hingga 75 cSt) |
| Aliran Terukur | 200 L/menit (52 US gpm) |
| Tekanan Maksimum | 315 bar (4600 psi) |
| Port Masuk | G3/4, G1, M33×2.0, SAE 16, 3/4 NPT, 1 NPT |
| Port Keluar | G1, M33×2.0, SAE 16, 1 NPT |
| Ukuran Port | G3/4, G1, M33×2.0, SAE 16, 3/4 NPT, 1 NPT |
As a professional hydraulic manufacturer, we specialize in the production of high-quality DCV200 Series sectional hydraulic valves. This valve is engineered for efficiency in heavy-duty machinery, including wheel loaders, backhoes, and forklifts. We offer comprehensive manufacturing services, including OEM, ODM, and private labeling, tailored to meet your specific technical requirements. Our state-of-the-art facility supports large-scale wholesale production, ensuring consistent quality and reliable lead times. We are actively seeking partnerships with global distributors, wholesalers, trade companies, and agents looking for durable, factory-direct hydraulic components. Whether you need customized configurations or bulk supply for large-scale projects, our team provides technical expertise and flexible cooperation models. Contact us to discuss your wholesale requirements, private label opportunities, or custom engineering needs, and discover how our factory-direct hydraulic solutions can enhance your product line.
