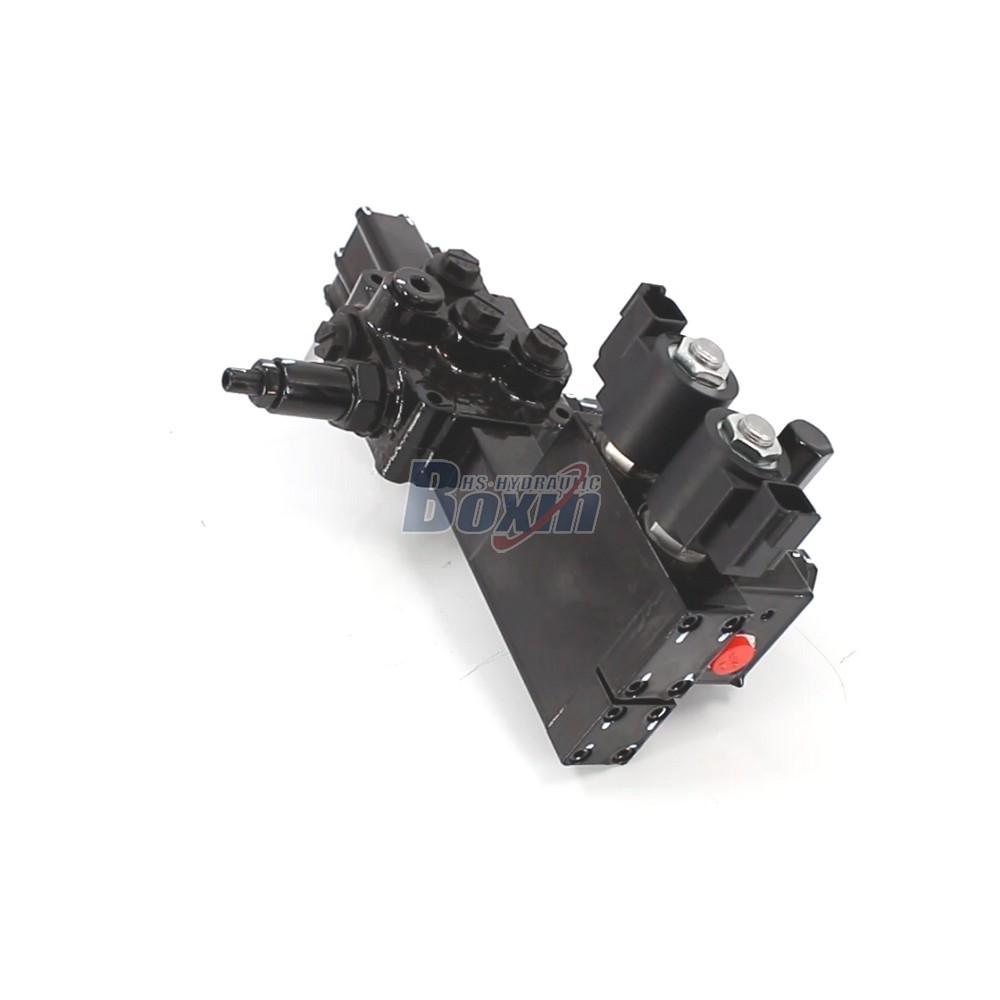

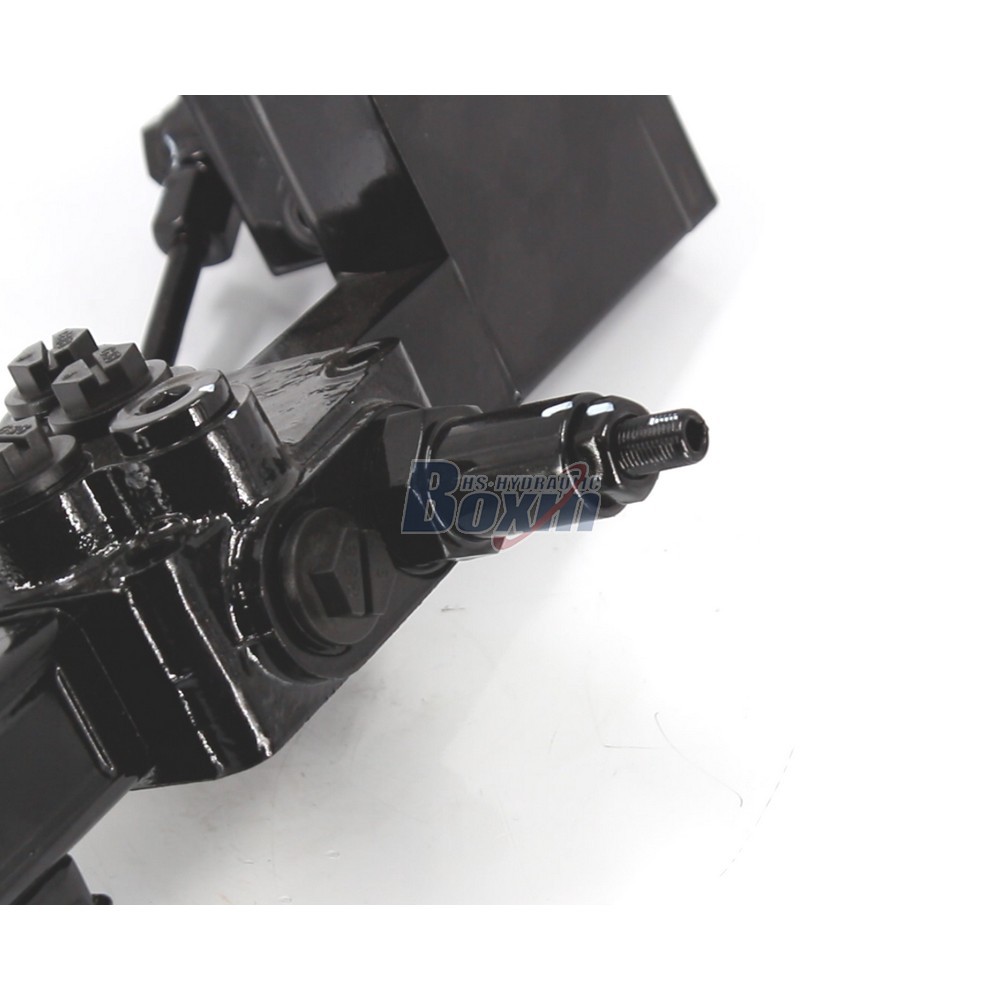

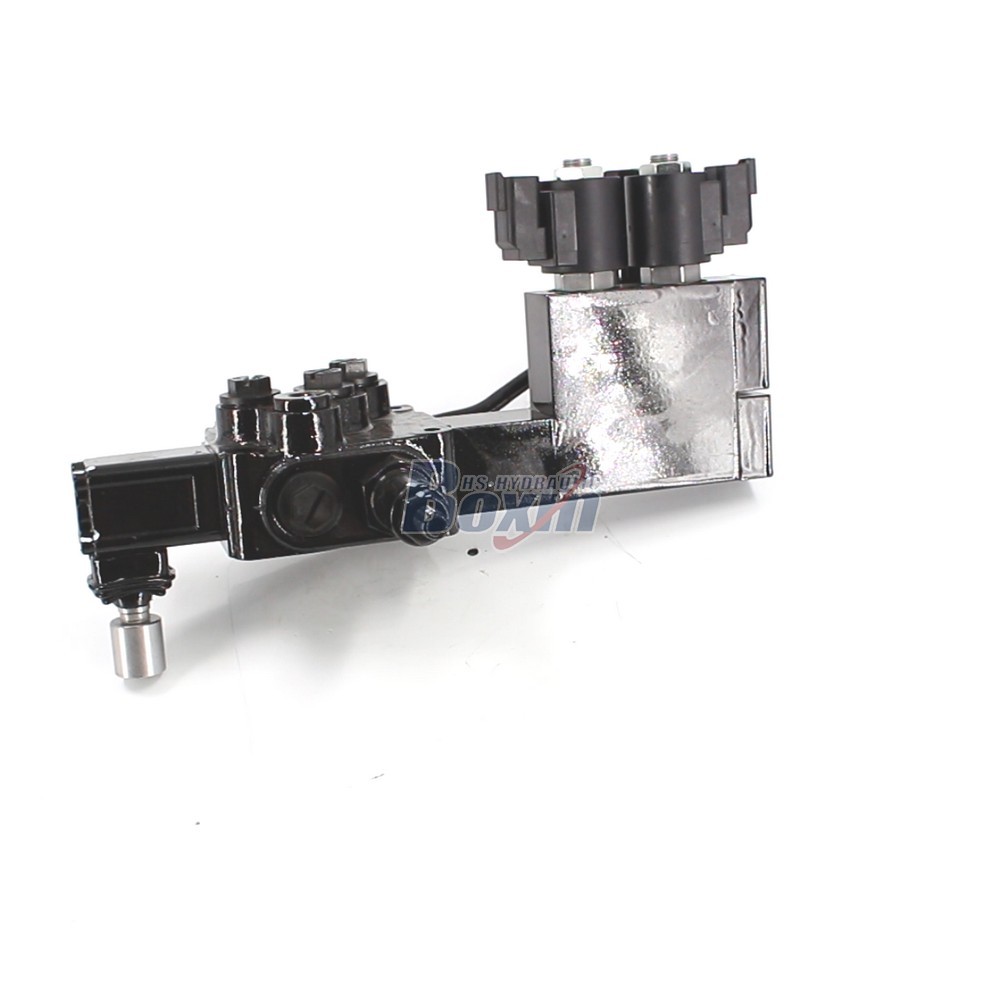

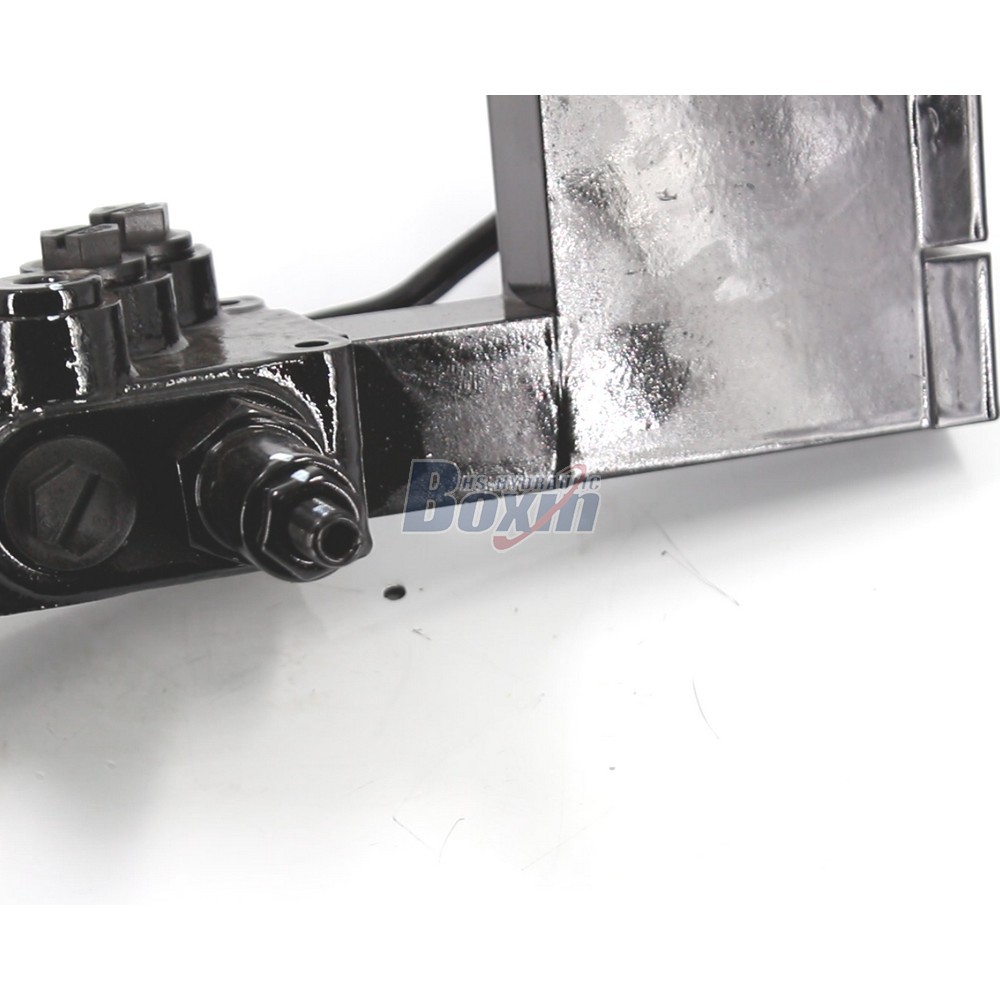

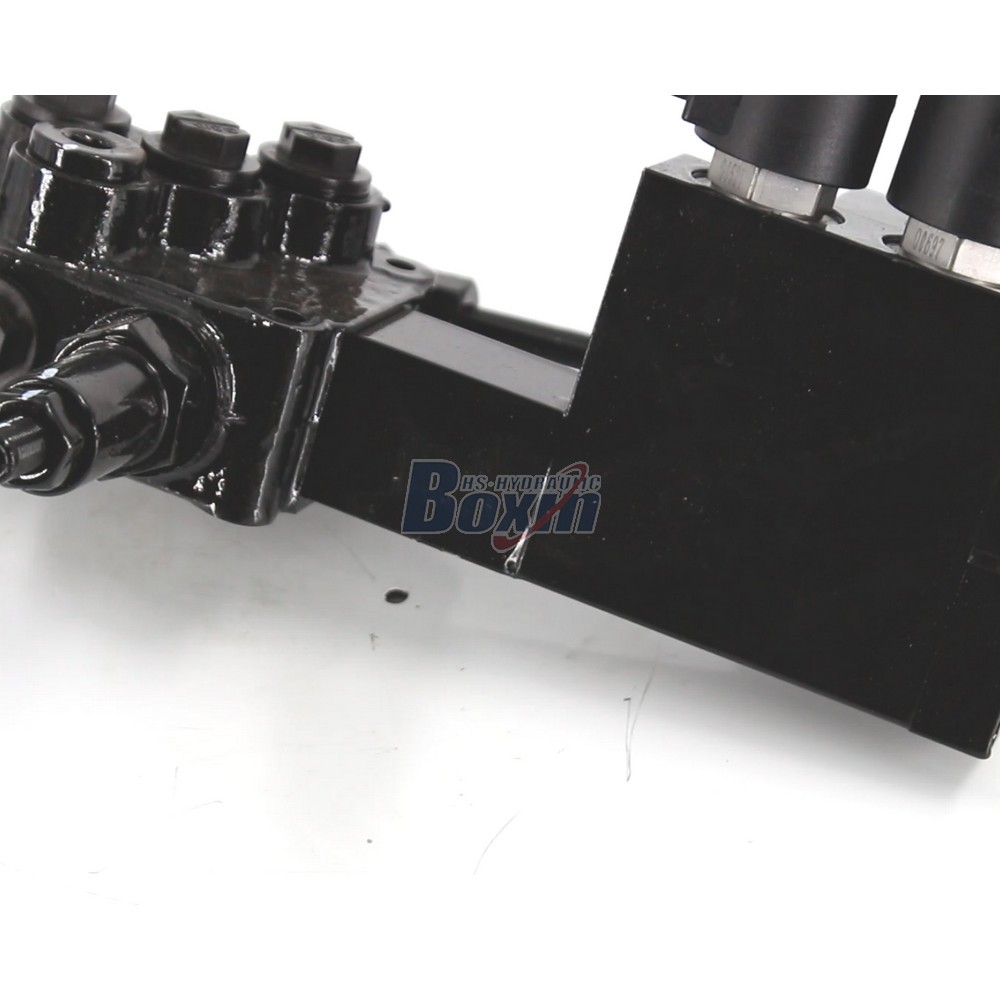

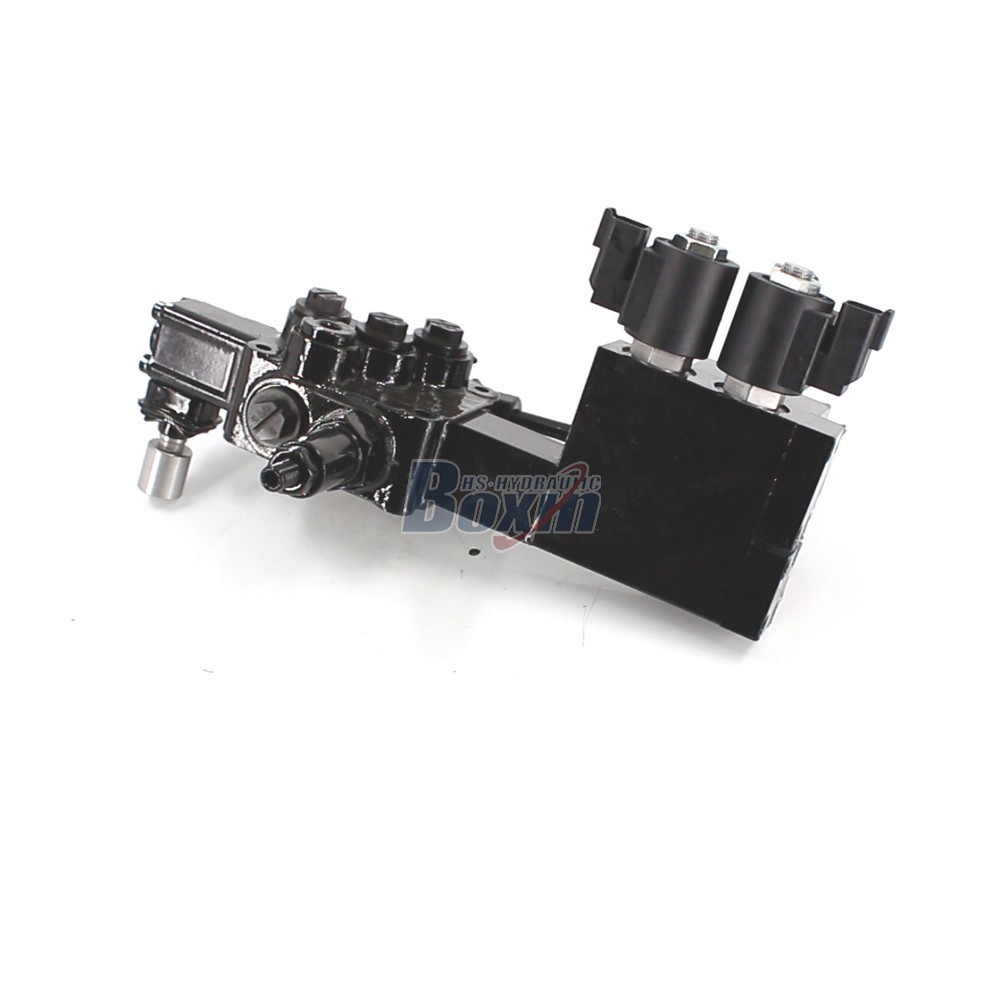

DCV20DY-OT Electro-hydraulic 1 Spool Monoblock Directional Valve

Metode Kontrol:Elektro-hidraulik

Spul:1 Spool

Aliran Terukur:20 L/menit (5,2 US gpm)

Tekanan Maksimum:315 bar (4600 psi)

Port Masuk:G3/8

Port Keluar:G1/2

Ukuran Port:G3/8

Merek:BXHS

Tipe Produk:Katup Arah Monoblok

Seri Produk:Seri DCV20 Katup Arah Monoblok

Ukuran kemasan:32*18*20

Kelas kotor:3.40 kg

Ketersediaan: Tersedia

72 Pandangan Mencari Produk Ini

DCV20DY-OT Electro-hydraulic 1 Spool Monoblock Directional Valve

DCV20DY-OT Electro-hydraulic 1 Spool Monoblock Directional Valve

DCV20DY-OT Electro-hydraulic 1 Spool Monoblock Directional Valve drawing image

The DCV20DY-OT is a high-performance 1-spool electro-hydraulic monoblock directional control valve designed for compact applications requiring precise fluid management. With a rated flow of 20 L/min and a maximum pressure capacity of 350 bar, it is ideal for modern agricultural, construction, and material handling equipment.

Seri DCV20 Katup Arah Monoblok Parameter
Metode Kontrol Buku Panduan, Elektro-hidraulik, Stik Kontrol, Manual dan Joystick
Spul 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool
Kisaran Suhu Sekitar -40°C hingga +80°C (-40°F hingga +176°F)
Tipe Struktur Katup monoblok
Bagian 1 Bagian, 2 Bagian, 3 Bagian, 4 Bagian, 5 Bagian, 6 Bagian
Kisaran Viskositas Operasional 15 - 75 mm²/dt (15 cSt hingga 75 cSt)
Aliran Terukur 20 L/menit (5,2 US gpm)
Tekanan Maksimum 350 bar (5100 psi)
Port Masuk G3/8, M18×1.5, SAE 8, 3/8 NPT
Port Keluar G3/8, M18×1.5, SAE 8, 3/8 NPT
Ukuran Port G3/8, M18×1.5, SAE 8, 3/8 NPT

As a leading manufacturer of premium hydraulic products, we provide the DCV20DY-OT Electro-hydraulic Monoblock Valve engineered for demanding industrial environments. This 1-spool valve offers a compact footprint and high efficiency for machinery such as forklifts, mini-excavators, and aerial platforms. Our factory specializes in large-scale manufacturing, offering flexible OEM, ODM, and private labeling services to meet your specific technical requirements. We provide reliable factory wholesale supply and customization options for port sizes and spool configurations. We are actively seeking global partners, including professional distributors, wholesalers, agents, and traders, to expand our international market presence. By sourcing directly from our facility, you benefit from competitive factory pricing, consistent quality control, and robust supply chain support. Whether you need bulk wholesale orders or customized branding for your local market, our manufacturing team is equipped to deliver high-pressure hydraulic solutions that satisfy industrial standards worldwide.
