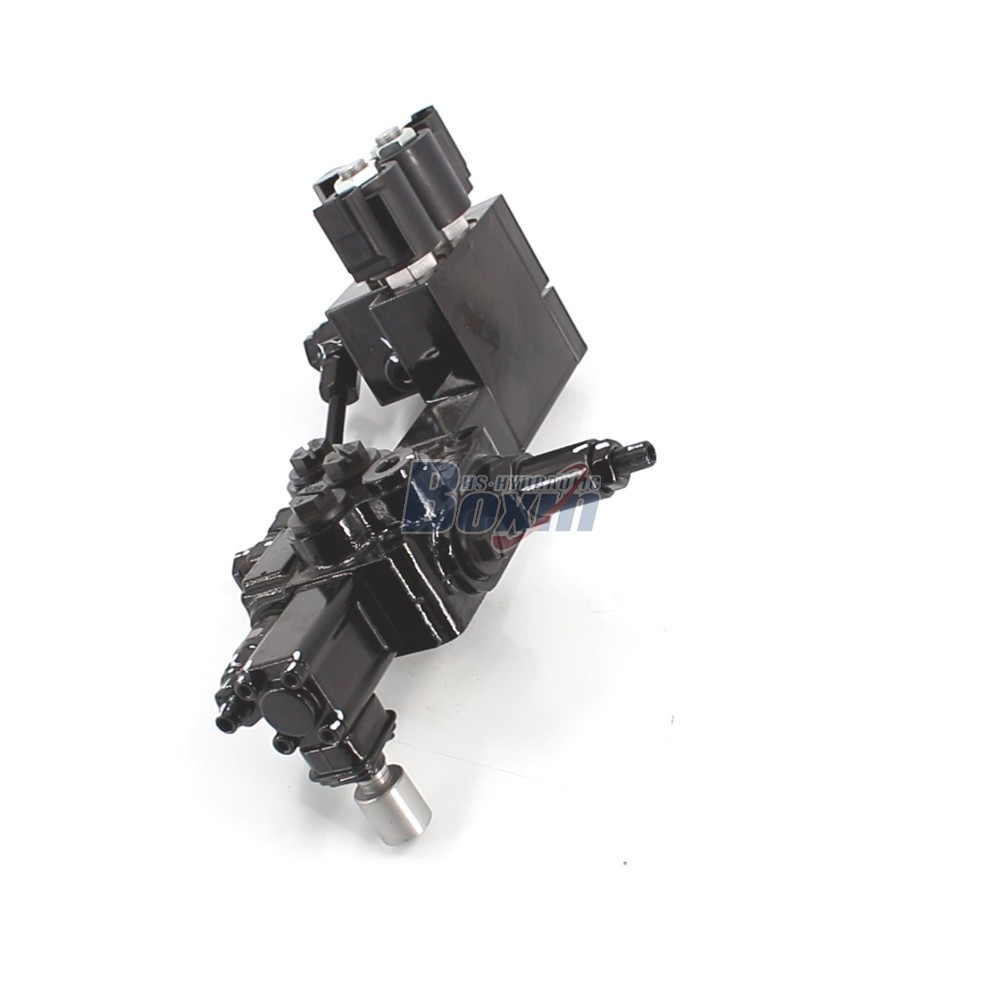

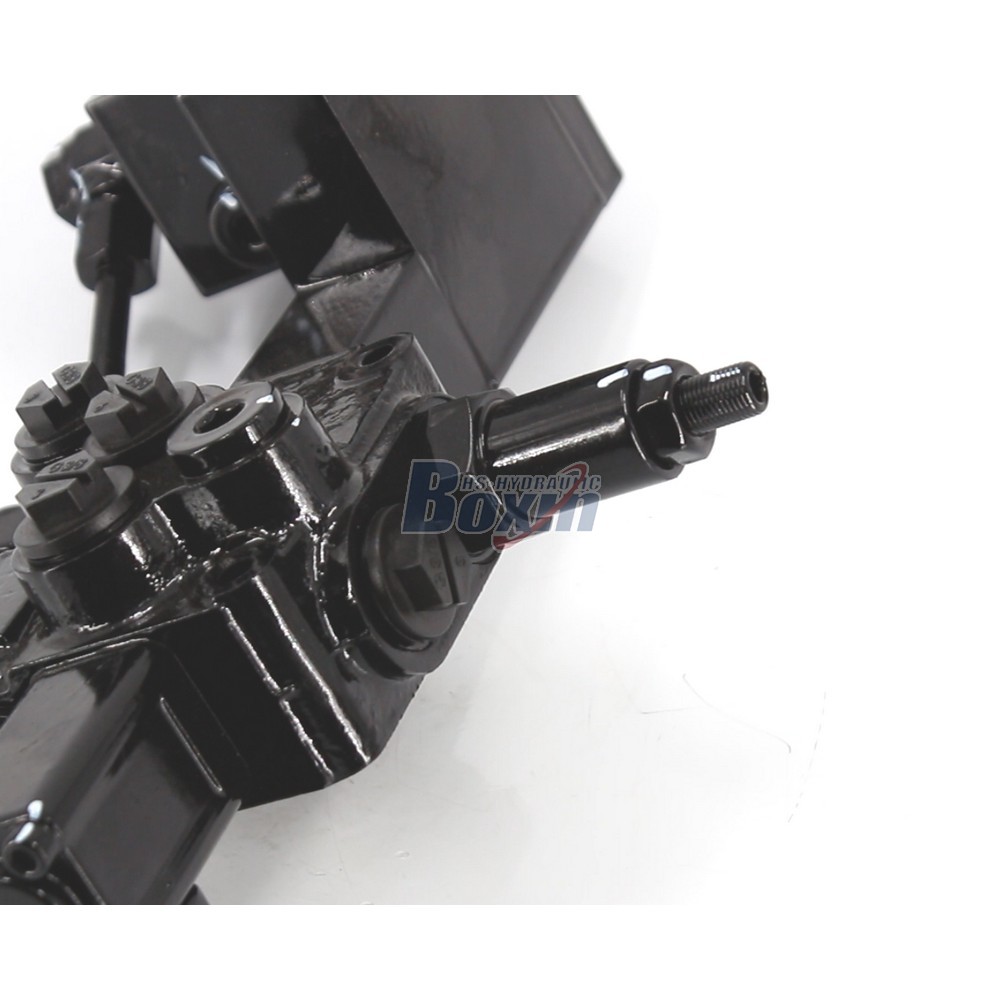

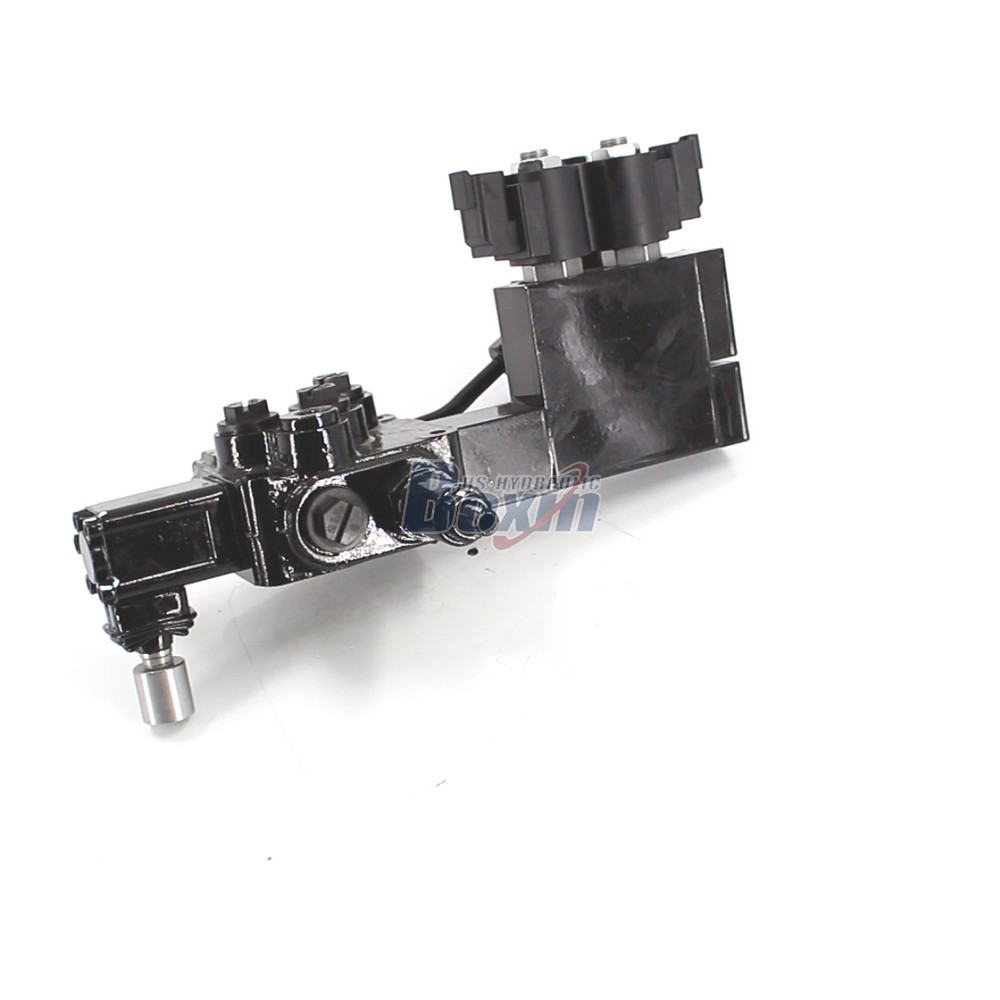

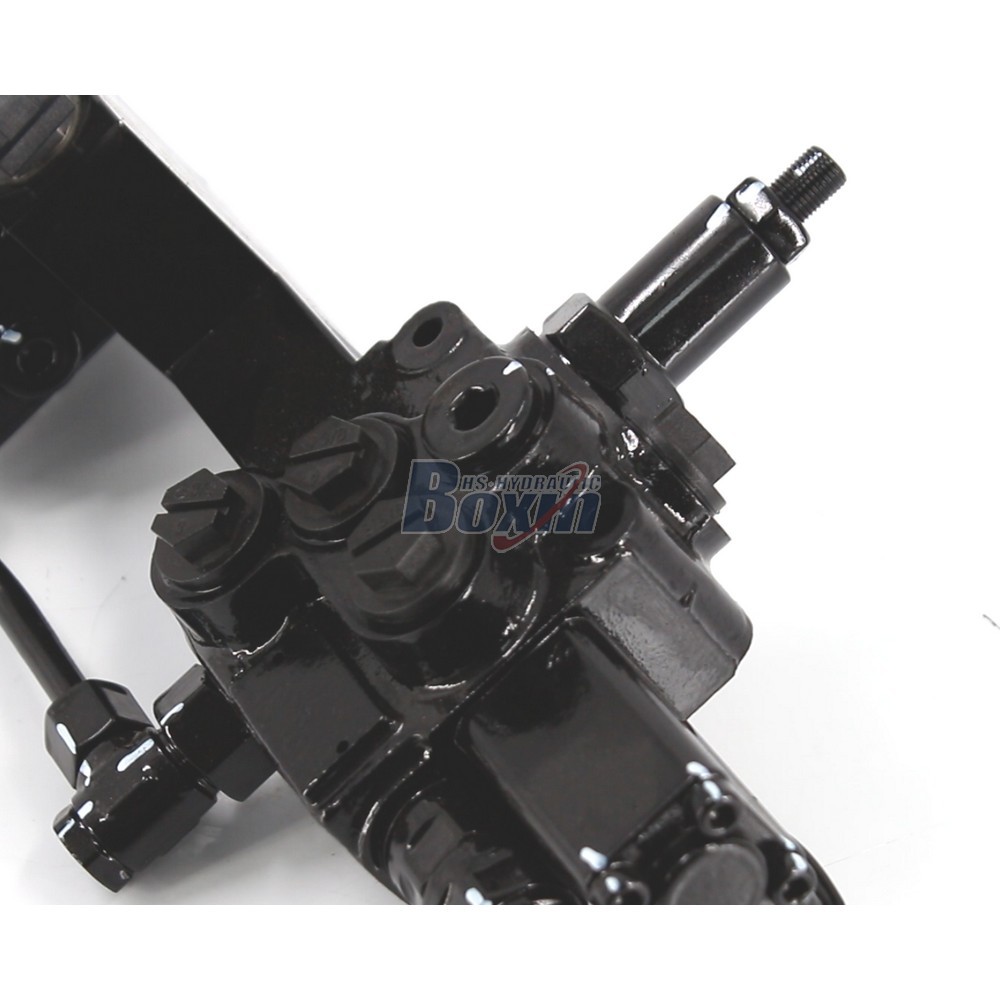

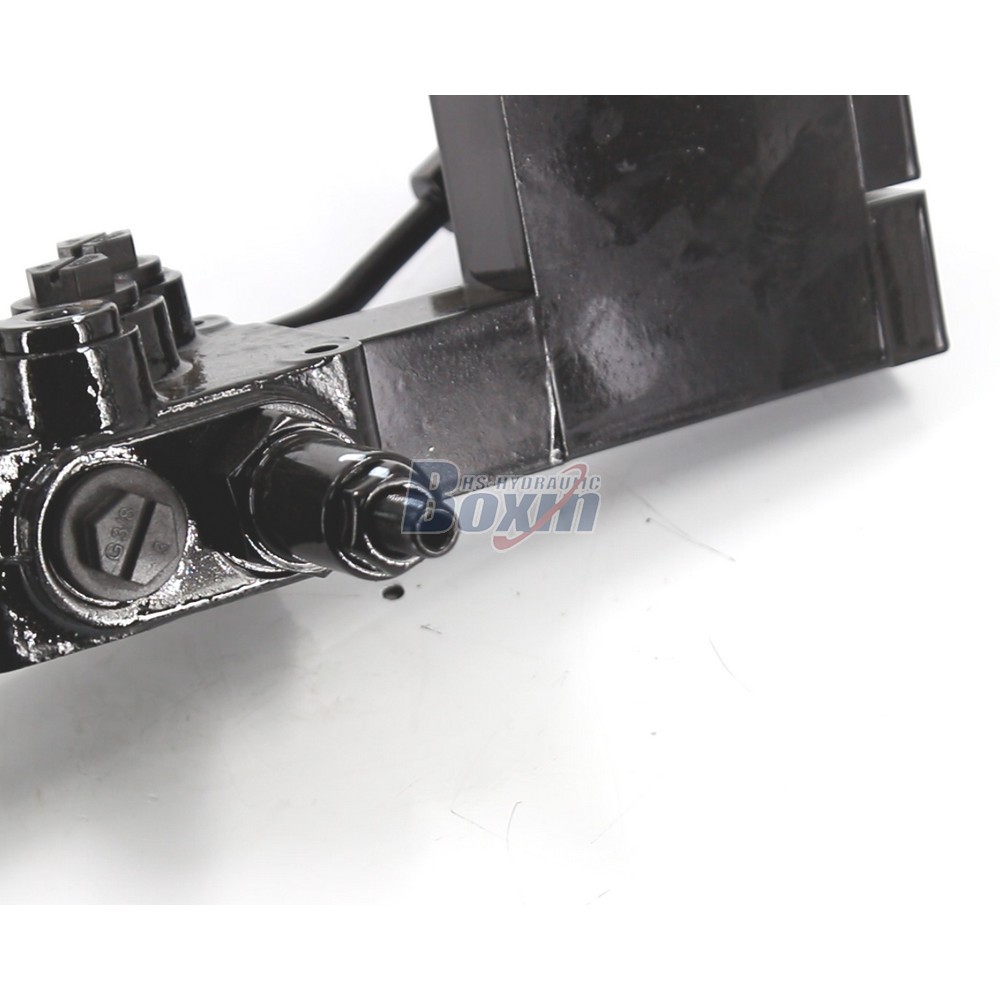

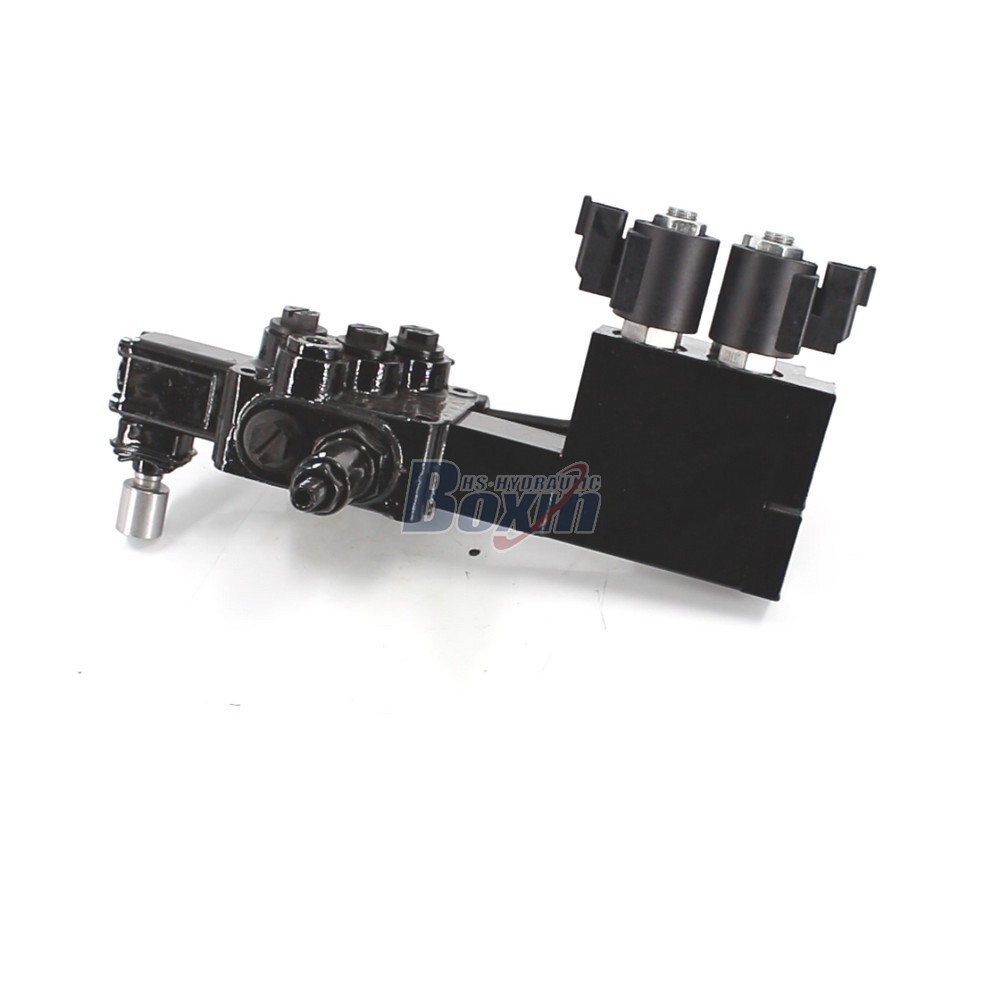

The DCV20DY-OT Series is a high-performance 1-spool electro-hydraulic monoblock valve designed for compact and medium-duty applications. Offering a rated flow of 20 L/min and capable of handling pressures up to 350 bar, this valve provides precise control for construction, agriculture, and material handling equipment.
| Seri DCV20 Katup Arah Monoblok Parameter | |
|---|---|
| Metode Kontrol | Buku Panduan, Elektro-hidraulik, Stik Kontrol, Manual dan Joystick |
| Spul | 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool |
| Kisaran Suhu Sekitar | -40°C hingga +80°C (-40°F hingga +176°F) |
| Tipe Struktur | Katup monoblok |
| Bagian | 1 Bagian, 2 Bagian, 3 Bagian, 4 Bagian, 5 Bagian, 6 Bagian |
| Kisaran Viskositas Operasional | 15 - 75 mm²/dt (15 cSt hingga 75 cSt) |
| Aliran Terukur | 20 L/menit (5,2 US gpm) |
| Tekanan Maksimum | 350 bar (5100 psi) |
| Port Masuk | G3/8, M18×1.5, SAE 8, 3/8 NPT |
| Port Keluar | G3/8, M18×1.5, SAE 8, 3/8 NPT |
| Ukuran Port | G3/8, M18×1.5, SAE 8, 3/8 NPT |
As a leading manufacturer of hydraulic solutions, we provide the DCV20DY-OT Series 1 Spool Electro-hydraulic Monoblock Valve for the global market. This series is engineered for durability and precision, featuring a compact design ideal for forklifts, mini-excavators, and tractors. We offer comprehensive services including OEM, private labeling, and custom manufacturing to meet specific technical requirements. Our factory provides stable supply and competitive wholesale pricing for large-scale procurement. We are actively seeking long-term cooperation with distributors, wholesalers, agents, and international traders. Whether you need reliable components for material handling or industrial vehicles, our factory-direct supply ensures quality and performance. Join our global distribution network for professional hydraulic products and manufacturing support.
