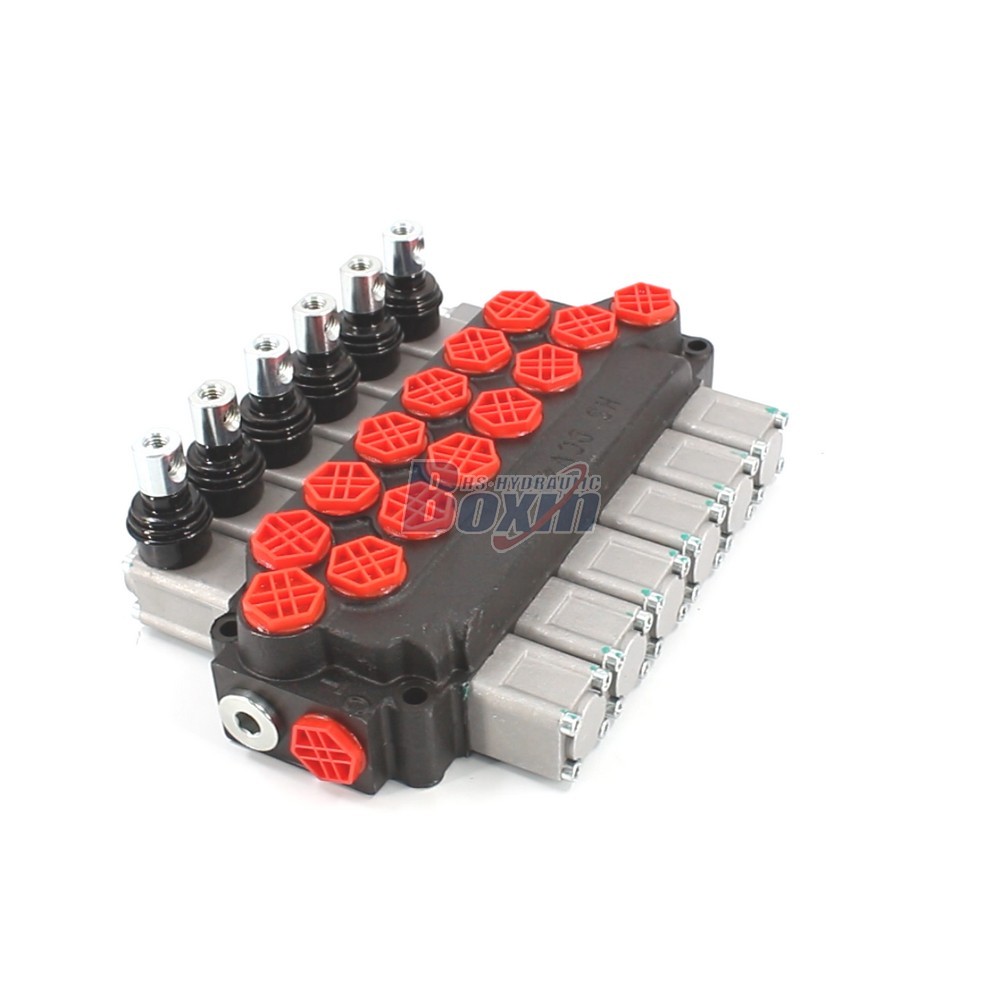

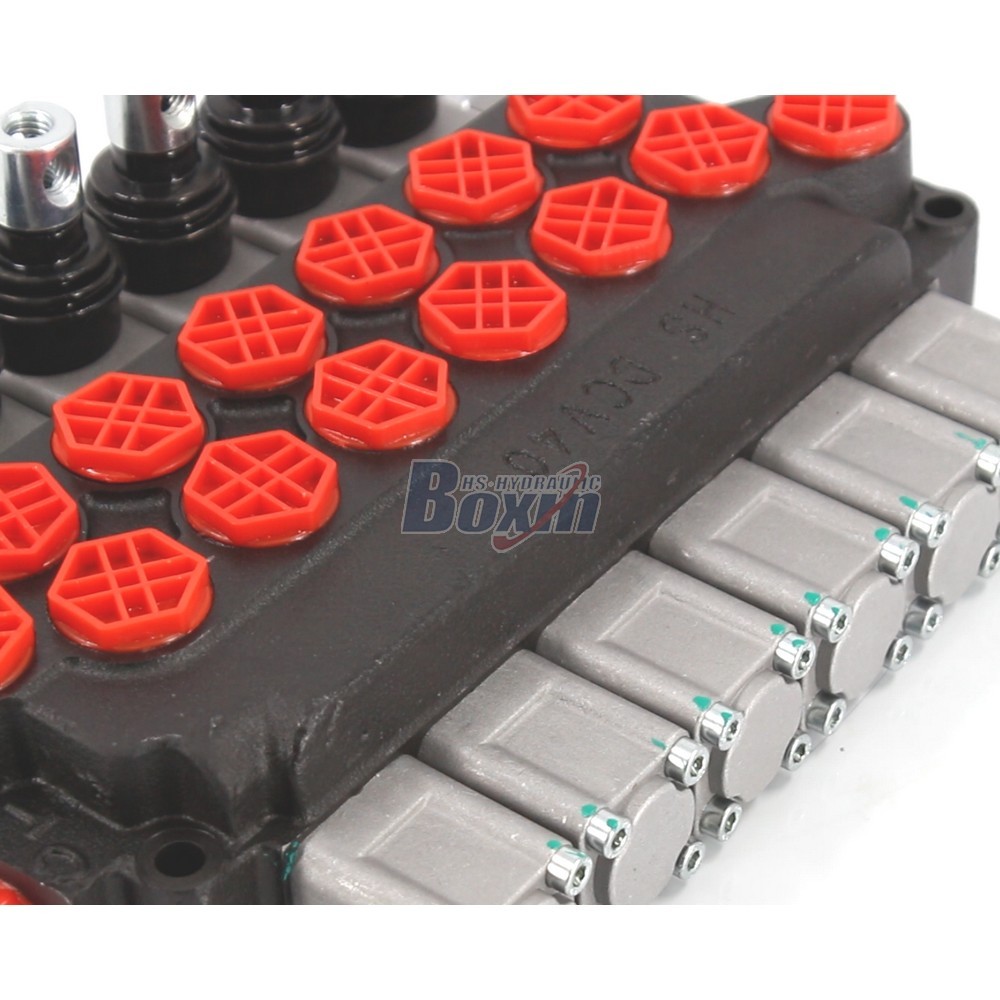

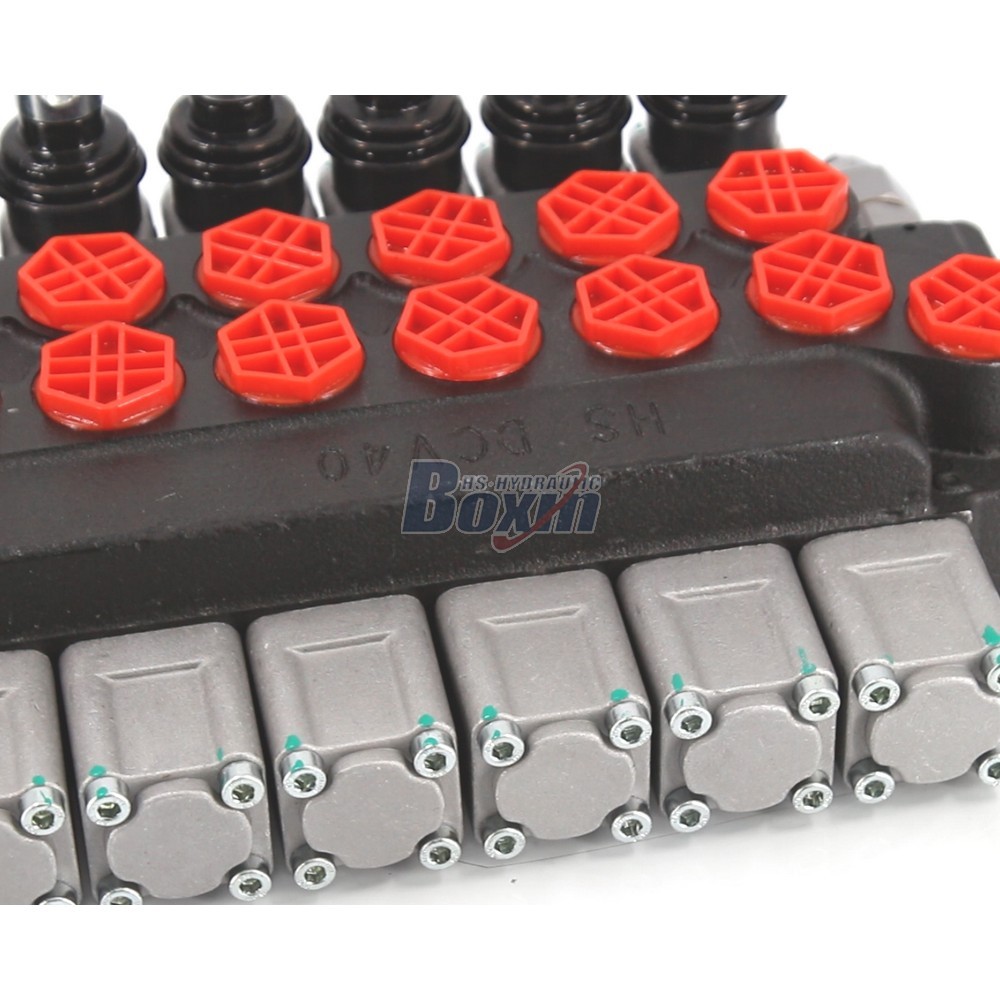

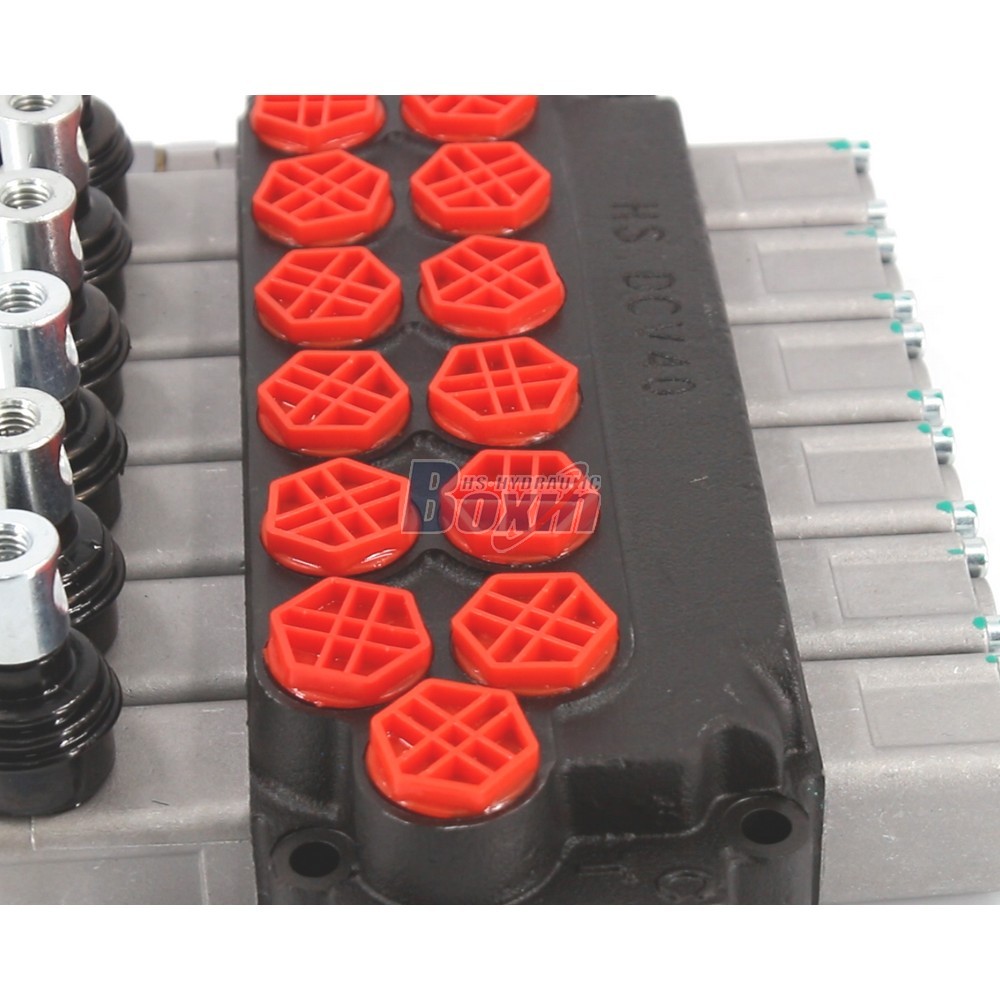

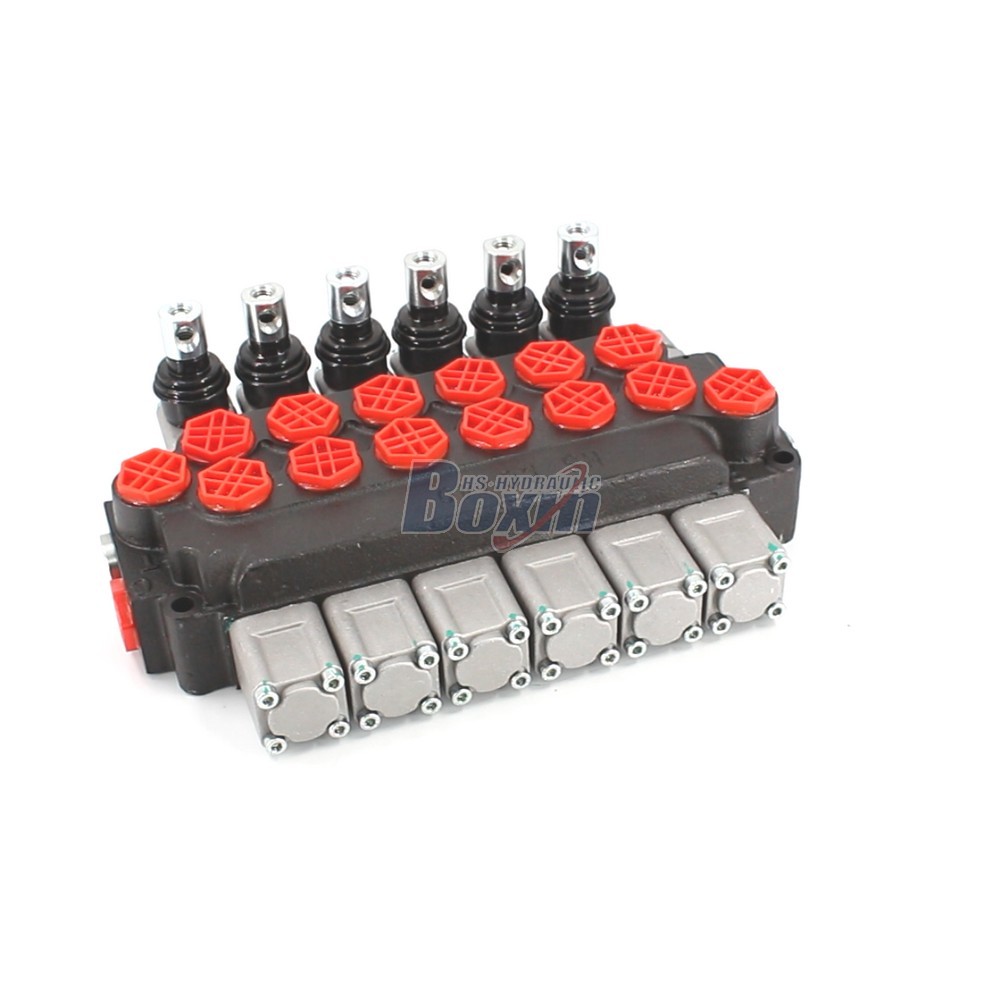

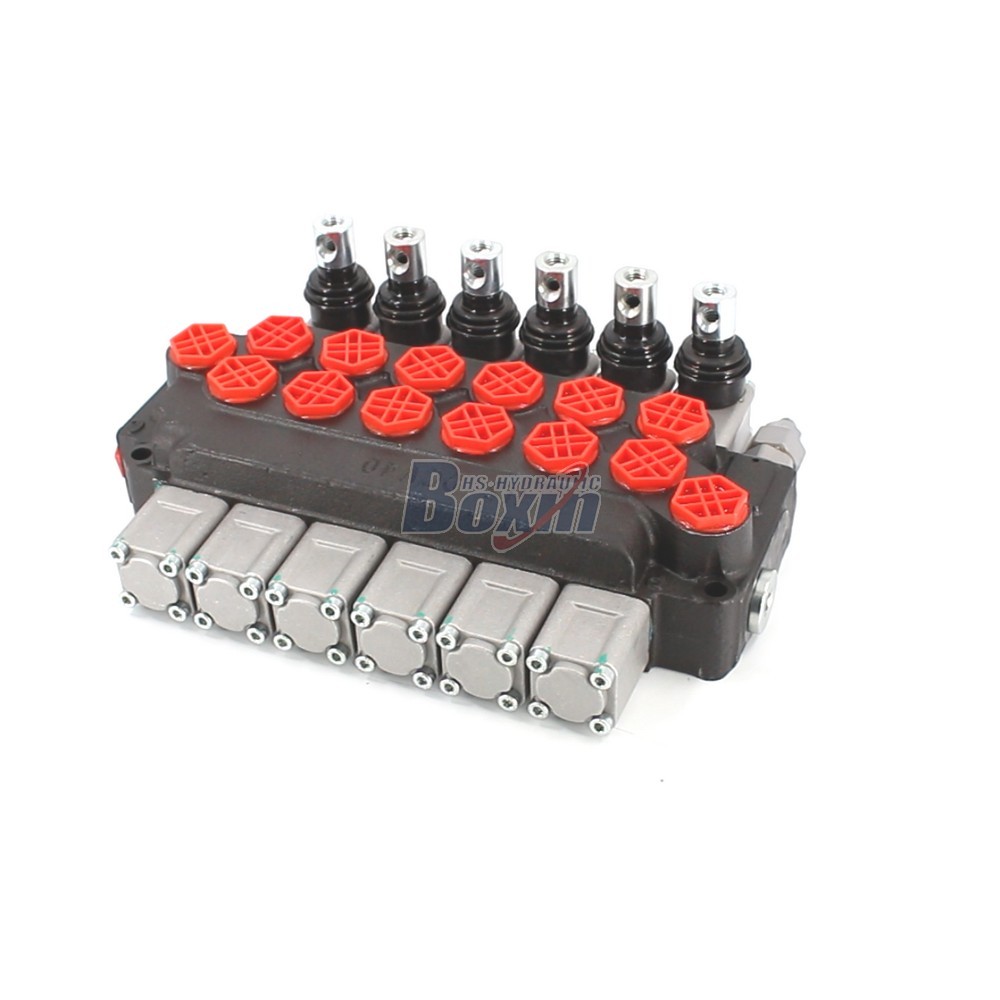

DCV40 Hydraulic Directional Valve 6 Spool Monoblock Type

Metode Kontrol:Buku Panduan

Spul:6 Spool

Aliran Terukur:40 L/menit (10,5 US gpm)

Tekanan Maksimum:315 bar (4600 psi)

Port Masuk:G1/2

Port Keluar:G1/2

Ukuran Port:G1/2

Merek:BXHS

Tipe Produk:Katup Arah Monoblok

Seri Produk:Seri DCV40 Katup Arah Monoblok

Ukuran kemasan:34*26*15

Kelas kotor:13.60 kg

Ketersediaan: Tersedia

97 Pandangan Mencari Produk Ini

DCV40 Hydraulic Directional Valve 6 Spool Monoblock Type

DCV40 Hydraulic Directional Valve 6 Spool Monoblock Type

DCV40 Hydraulic Directional Valve 6 Spool Monoblock Type drawing image

The DCV40 Series is a high-performance 6-spool manual directional control valve designed for flow rates up to 40 L/min and pressures up to 350 bar. Engineered for versatility, this monoblock valve is ideal for diverse applications including construction machinery, agricultural equipment, and industrial vehicles, providing reliable fluid power control in a compact design.

Seri DCV40 Katup Arah Monoblok Parameter
Metode Kontrol Buku Panduan, Pneumatik, Elektro-pneumatik, Elektro-hidraulik, Selenoid, Hidraulis, Hidraulik dan Manual, Kabel, Stik Kontrol, Solenoid dan Manual, Manual dan Joystick
Spul 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool
Aliran Terukur 40 L/menit (10,5 US gpm)
Tekanan Maksimum 350 bar (5100 psi)
Port Masuk G3/8, G1/2, SAE 8, SAE 14, 3/8 NPT, 1/2 NPT
Port Keluar G1/2, M18×1.5, M22×1.5, SAE 8, SAE 14, 1/2 NPT
Ukuran Port G1/2, M18×1.5, M22×1.5, SAE 8, SAE 14, 3/8 NPT, 1/2 NPT
Bagian 1 Bagian, 2 Bagian, 3 Bagian, 4 Bagian, 5 Bagian, 6 Bagian, 7 Bagian
Tipe Struktur Katup monoblok
Kisaran Suhu Sekitar -40°C hingga +80°C (-40°F hingga +176°F)
Kisaran Viskositas Operasional 15 - 75 mm²/dt (15 cSt hingga 75 cSt)

As a leading manufacturer of hydraulic solutions, we offer the DCV40 Series 6-Spool Monoblock Directional Valve, specifically designed for mobile and industrial applications. This manual control valve supports a rated flow of 40 L/min (10.5 US gpm) and handles operating pressures up to 350 bar (5100 psi). It features G1/2 inlet and outlet ports, making it a versatile fit for mini-excavators, skid steer loaders, tractors, wood splitters, and forklifts. We provide comprehensive manufacturing services including OEM, private labeling (ODM), and custom configurations to meet specific technical requirements. Our factory-direct supply ensures competitive wholesale pricing for large-scale orders. We are actively seeking global partners, including distributors, wholesalers, regional agents, and international traders, to expand our market reach. Whether you need a reliable factory supplier for your brand or bulk stock for distribution, our DCV40 series offers the durability and precision required for demanding hydraulic systems in agriculture and earthmoving sectors.
