DCV40Z-FZJ Manual 5 Spool Outrigger Control Valve for Hydraulic Systems

Metode Kontrol:Buku Panduan

Spul:5 Spool

Aliran Terukur:40 L/menit (10,5 US gpm)

Tekanan Maksimum:315 bar (4600 psi)

Port Masuk:G1/2

Port Keluar:G1/2

Ukuran Port:G1/2

Merek:BXHS

Tipe Produk: 23 Katup Pengendali Outrigger

Seri Produk:Seri DCV40Z 23 Katup Pengendali Outrigger

Ukuran kemasan:39*39*20

Kelas kotor:12.00 kg

Ketersediaan: Tersedia

81 Pandangan Mencari Produk Ini

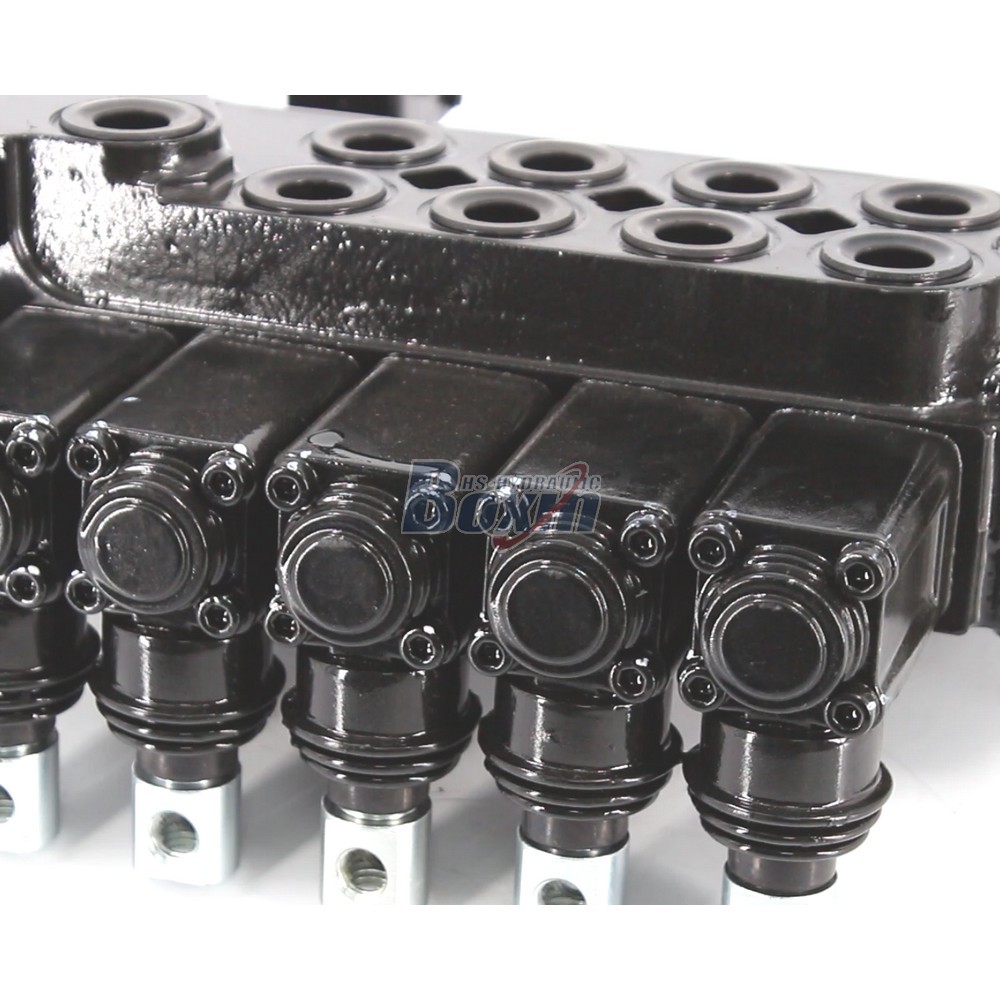

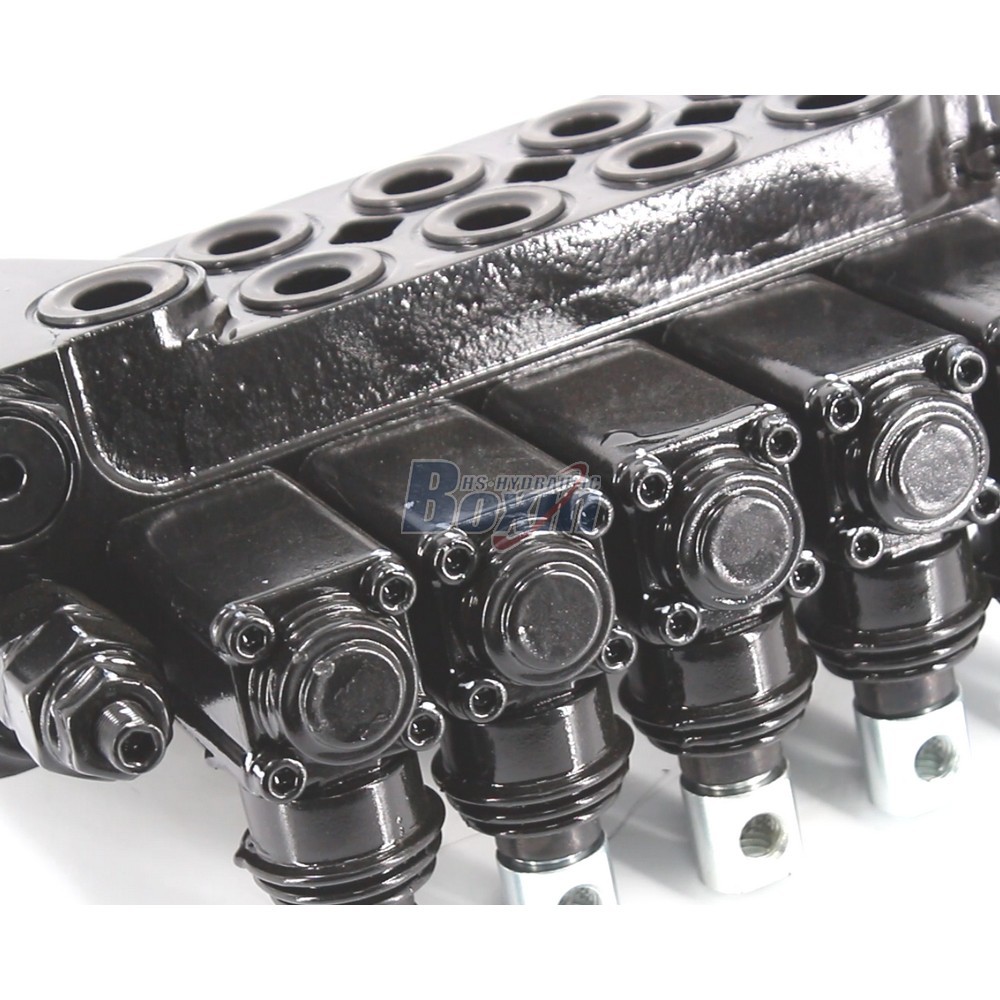

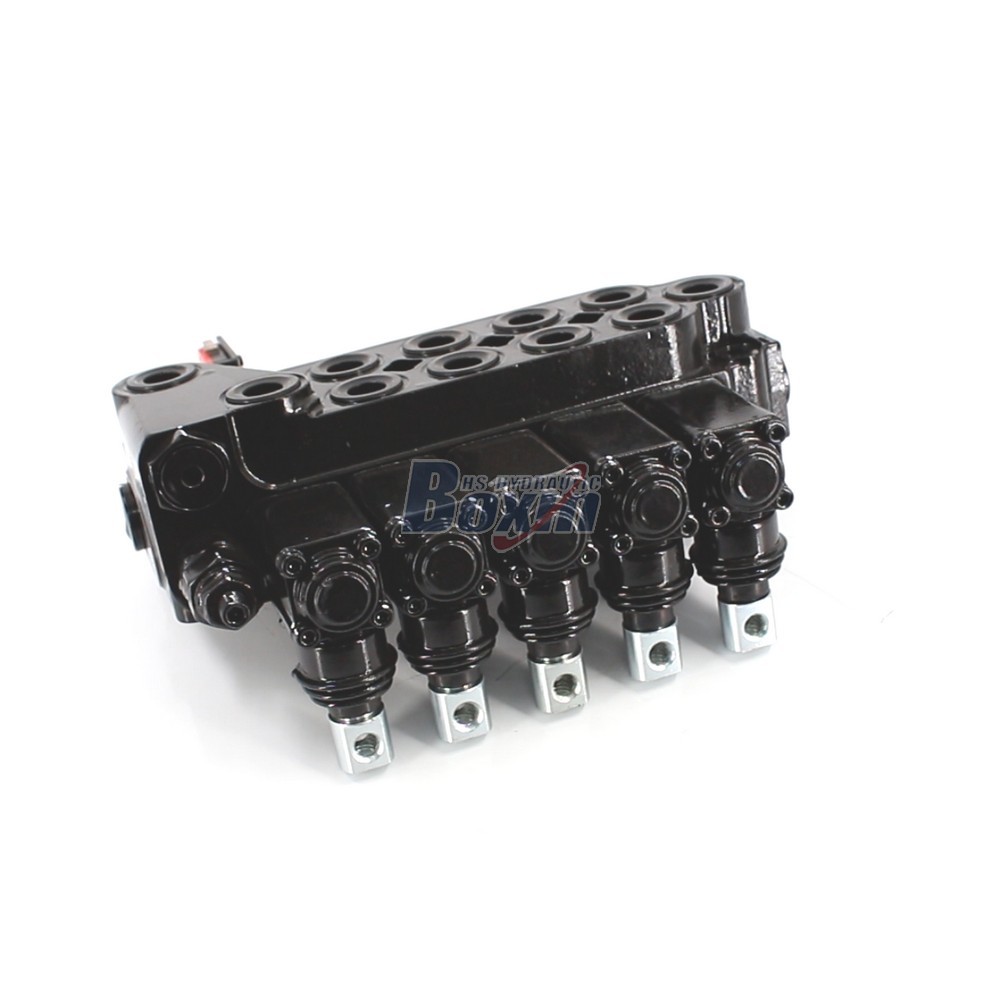

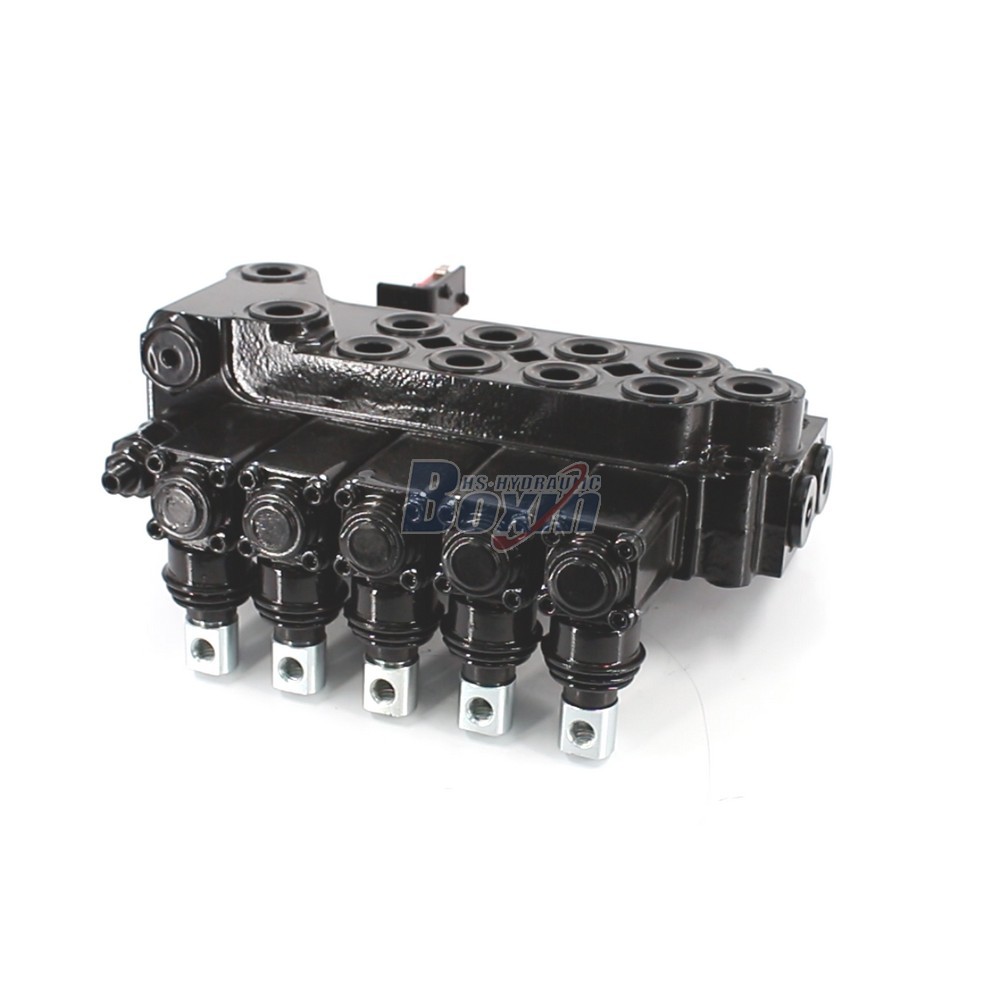

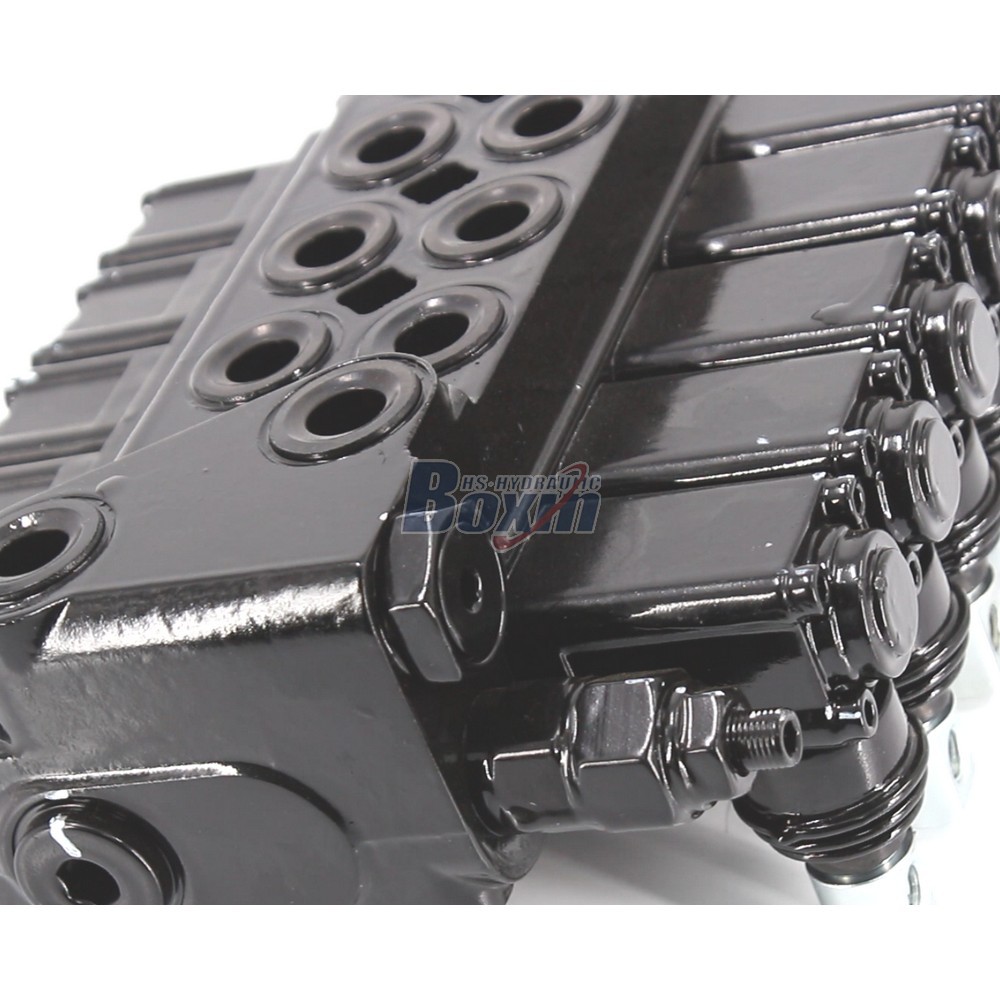

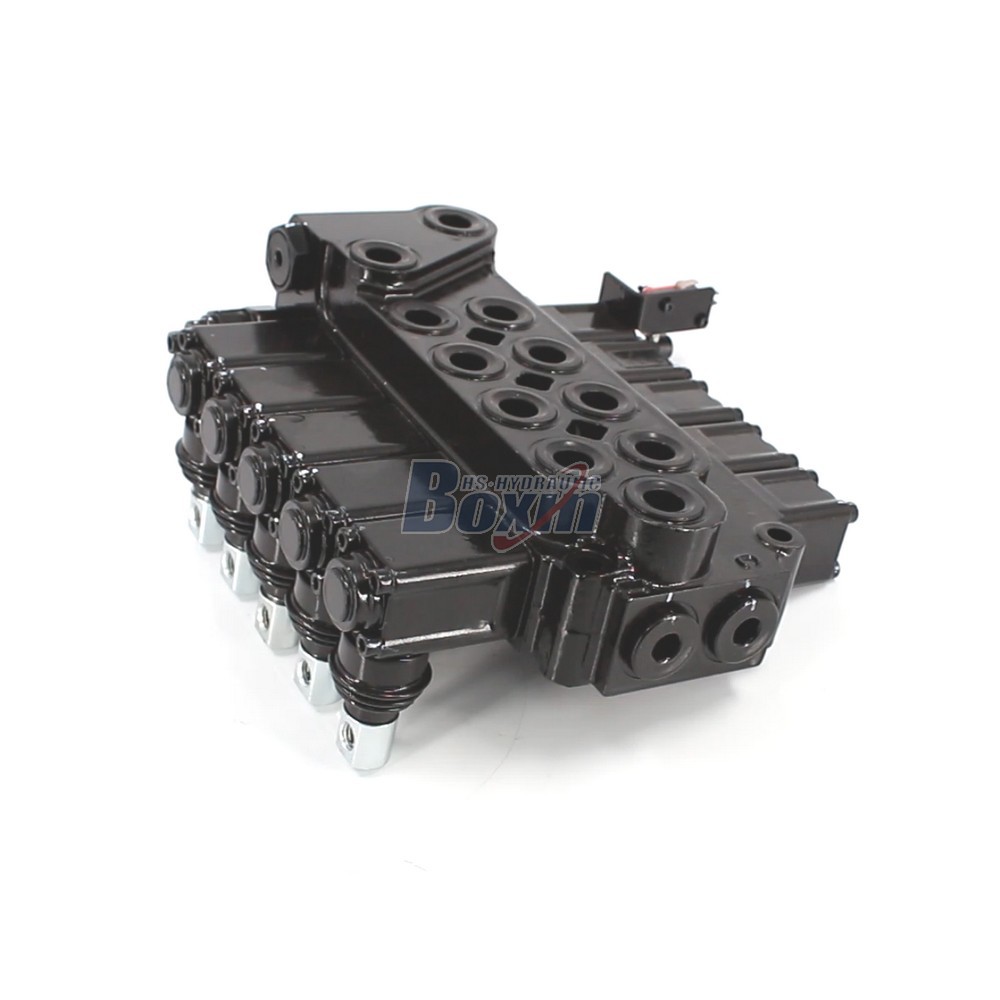

DCV40Z-FZJ Manual 5 Spool Outrigger Control Valve for Hydraulic Systems

DCV40Z-FZJ Manual 5 Spool Outrigger Control Valve for Hydraulic Systems

DCV40Z-FZJ Manual 5 Spool Outrigger Control Valve for Hydraulic Systems drawing image

The DCV40Z-FZJ is a high-performance 5-spool manual directional control valve designed for precise multi-circuit hydraulic management in material handling and construction machinery.

Seri DCV40Z 23 Katup Pengendali Outrigger Parameter
Metode Kontrol Buku Panduan, Elektro-hidraulik, Stik Kontrol, Manual dan Joystick
Spul 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool
Kisaran Suhu Sekitar -40°C hingga +80°C (-40°F hingga +176°F)
Tipe Struktur Katup monoblok
Bagian 1 Bagian, 2 Bagian, 3 Bagian, 4 Bagian, 5 Bagian, 6 Bagian, 7 Bagian
Kisaran Viskositas Operasional 15 - 75 mm²/dt (15 cSt hingga 75 cSt)
Aliran Terukur 40 L/menit (10,5 US gpm)
Tekanan Maksimum 350 bar (5100 psi)
Port Masuk G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT
Port Keluar G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT
Ukuran Port G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT

Our factory specializes in the manufacture of high-pressure hydraulic solutions, presenting the DCV40Z-FZJ 5-Spool Manual Outrigger Control Valve. Engineered for robustness, it supports a rated flow of 40 L/min and pressures up to 350 bar, making it ideal for mini-excavators, skid steer loaders, cranes, and tractors. We offer comprehensive services including OEM, private labeling, and custom manufacturing to meet specific technical requirements. As a leading manufacturer with a global supply chain, we provide factory wholesale pricing and are actively seeking strategic partnerships with international distributors, wholesalers, and traders. Our facility ensures reliable production capacity for bulk orders. This series features G1/2 porting, ensuring seamless integration into diverse hydraulic systems for aerial platforms, wood splitters, and forestry trailers. Partner with us for professional hydraulic supply and localized brand support.
