The DCV40Z series electric hydraulic distributor is a high-performance monoblock valve designed for demanding applications in construction equipment, material handling, and industrial vehicles. With a 40 L/min flow rate and 350 bar pressure rating, it offers reliable control and durability for heavy-duty operations.
| Seri DCV40Z 23 Katup Pengendali Outrigger Parameter | |
|---|---|
| Metode Kontrol | Buku Panduan, Elektro-hidraulik, Stik Kontrol, Manual dan Joystick |
| Spul | 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool |
| Kisaran Suhu Sekitar | -40°C hingga +80°C (-40°F hingga +176°F) |
| Tipe Struktur | Katup monoblok |
| Bagian | 1 Bagian, 2 Bagian, 3 Bagian, 4 Bagian, 5 Bagian, 6 Bagian, 7 Bagian |
| Kisaran Viskositas Operasional | 15 - 75 mm²/dt (15 cSt hingga 75 cSt) |
| Aliran Terukur | 40 L/menit (10,5 US gpm) |
| Tekanan Maksimum | 350 bar (5100 psi) |
| Port Masuk | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Port Keluar | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Ukuran Port | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |

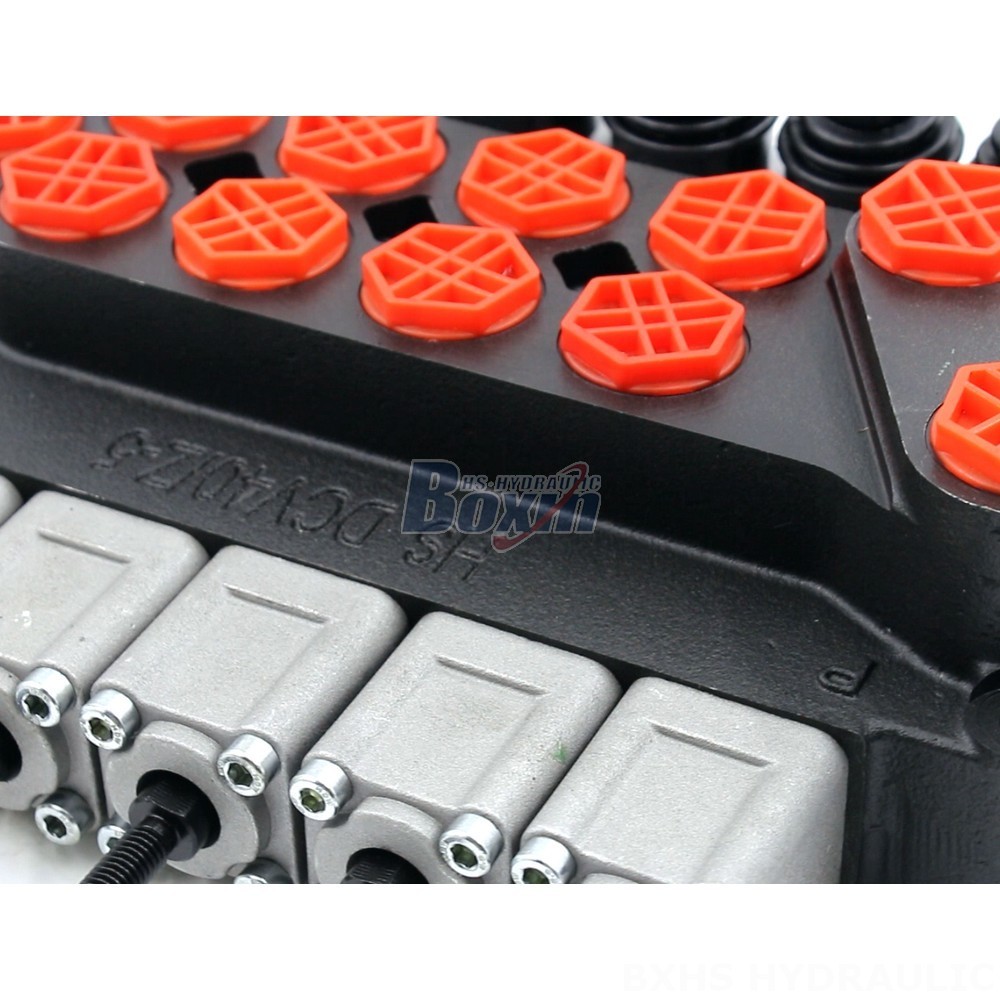

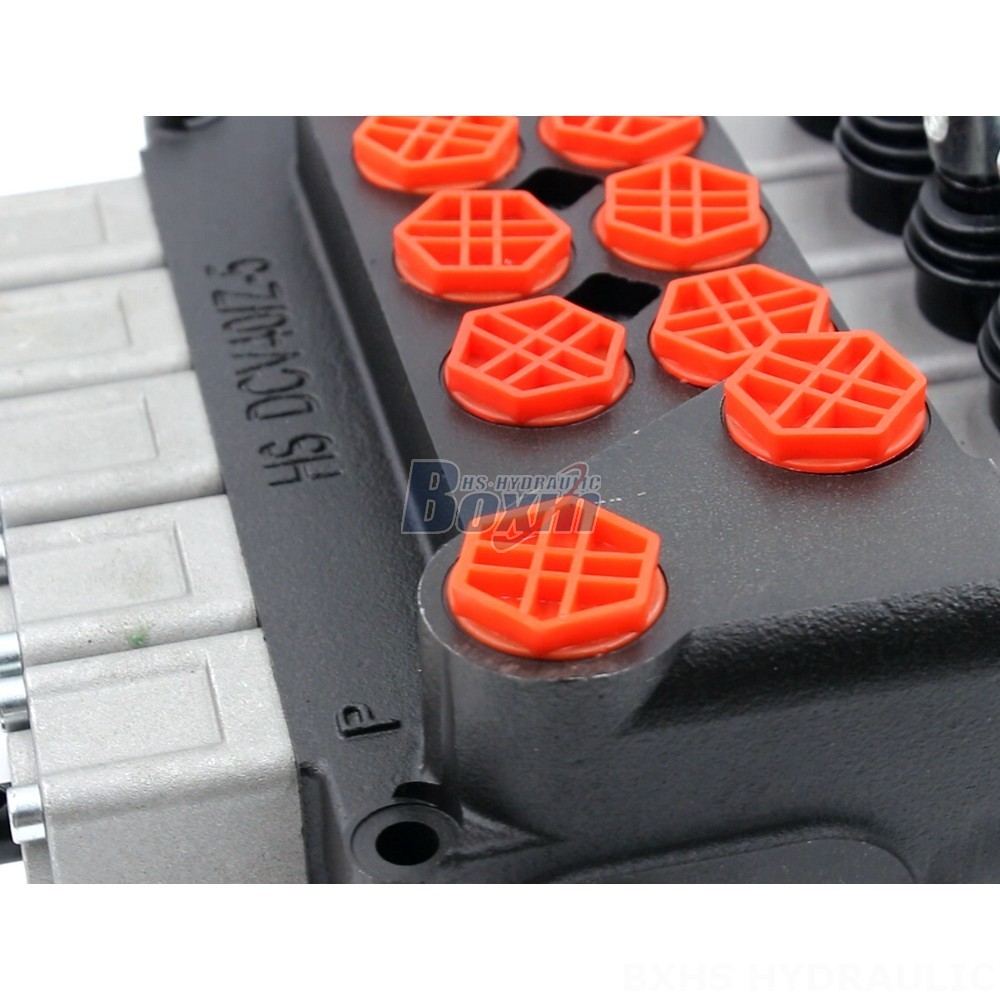

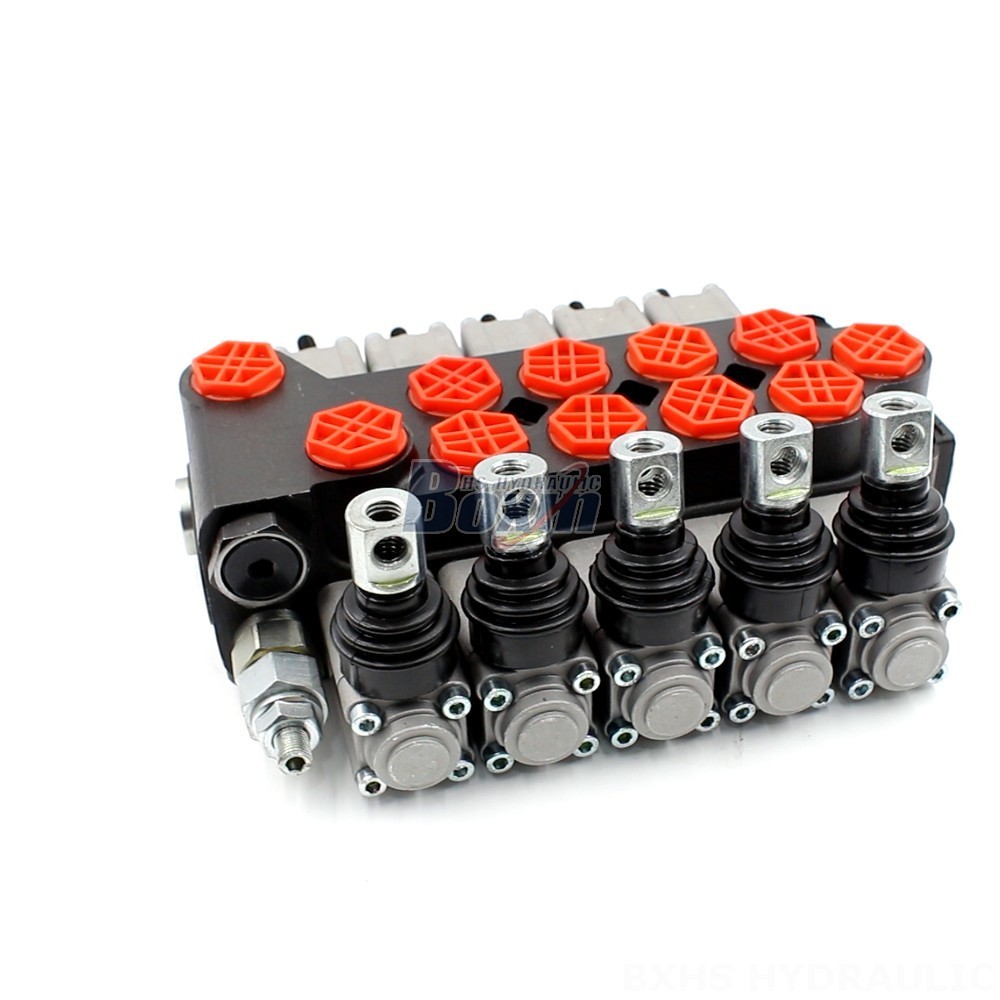

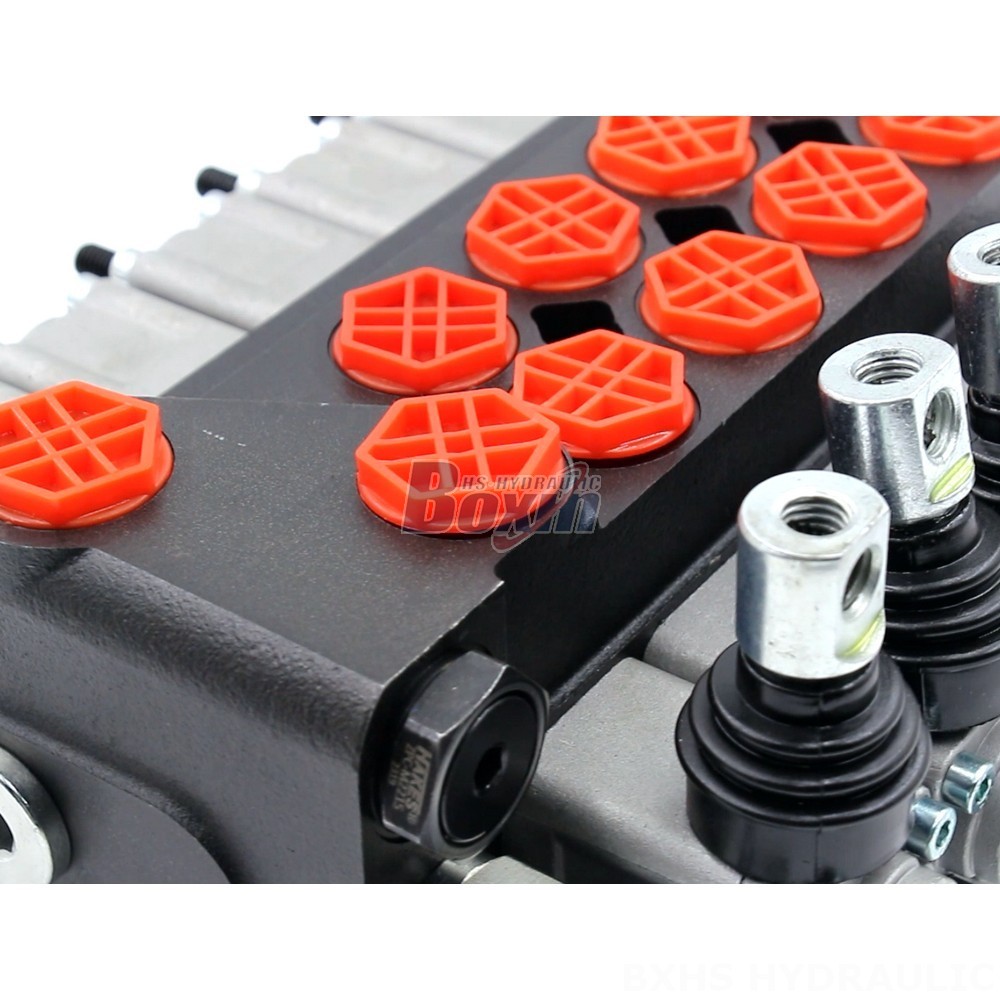

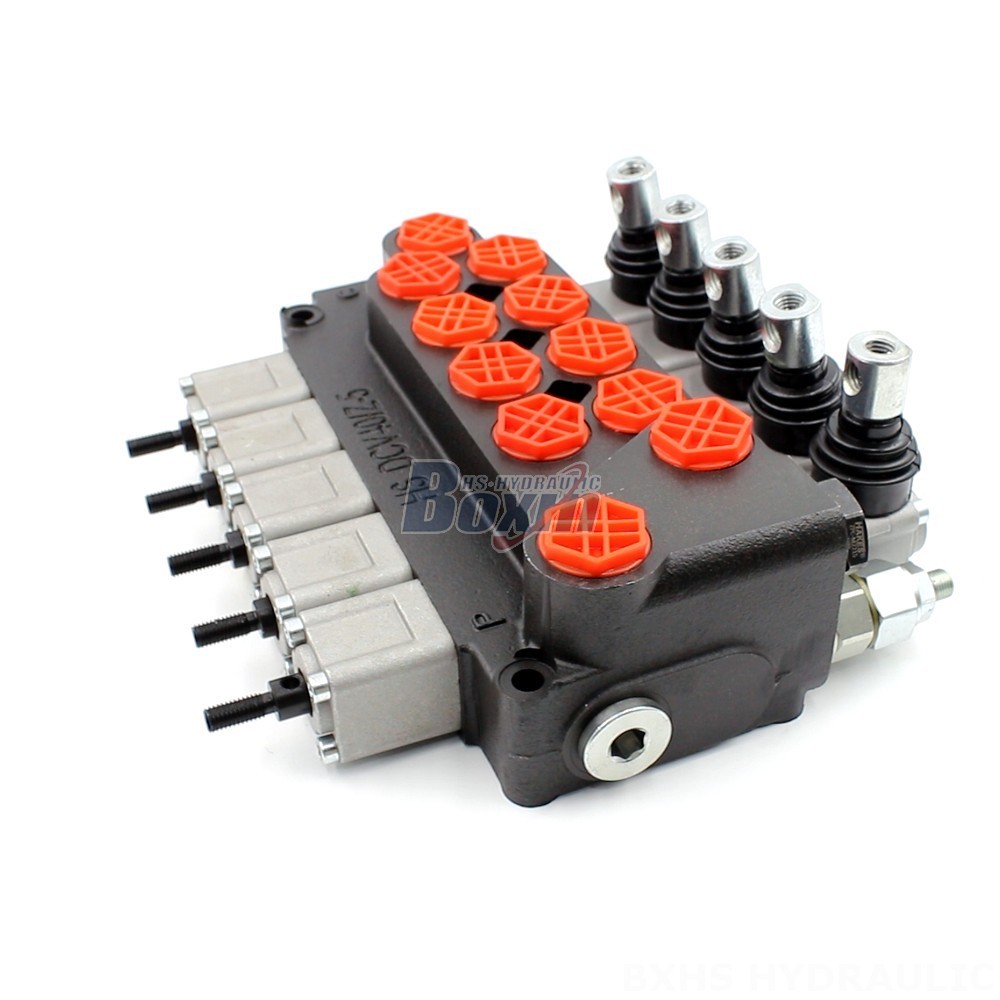

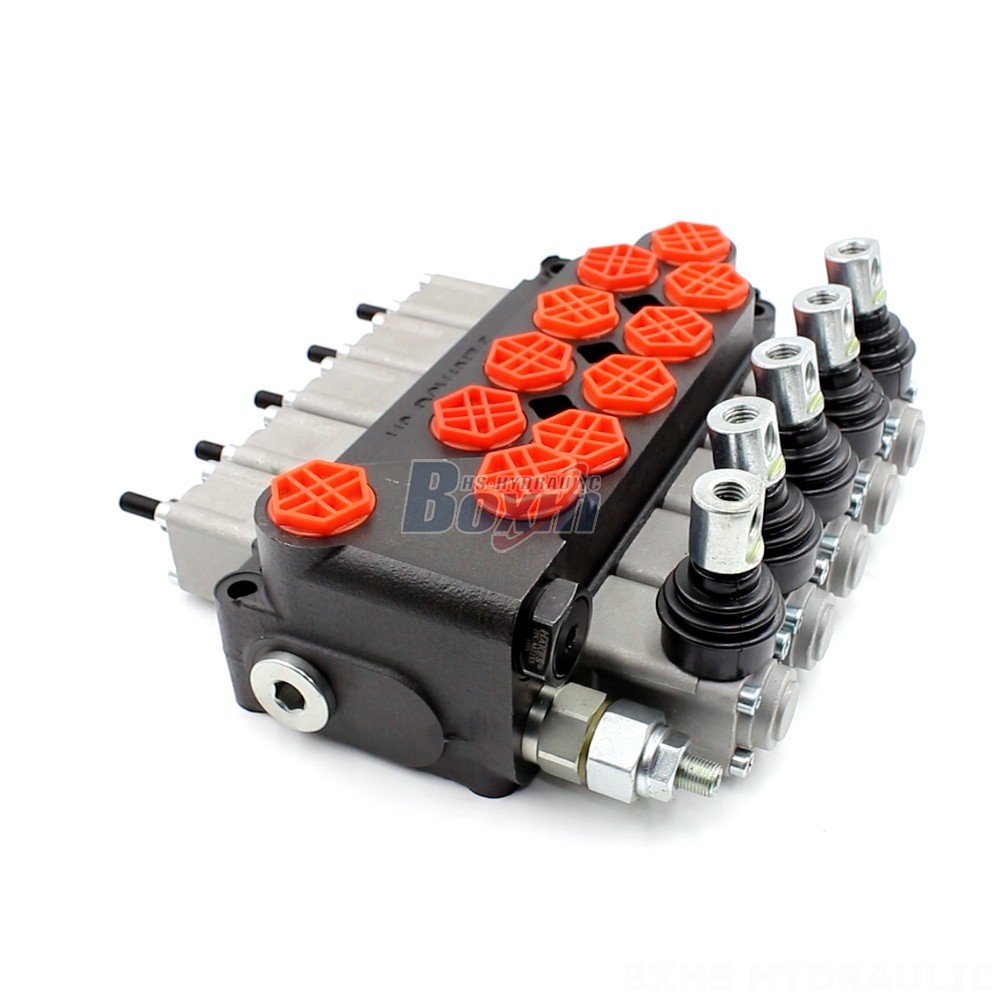

The DCV40Z electric hydraulic distributor is a 5-section monoblock valve featuring a manual control method. It is capable of handling flow rates up to 40 L/min and pressures up to 350 bar. This valve is designed for a wide range of applications, including telehandlers, forklifts, all-terrain cranes, stackers, aerial platforms, motor graders, midi-excavators, mini-excavators, skid steer loaders, and compact wheel loaders. The DCV40Z is known for its durability, reliability, and customizable options. Manufactured with high-quality materials, it offers excellent performance in demanding environments. Available directly from the manufacturer, this valve provides a cost-effective solution for various hydraulic system requirements.
