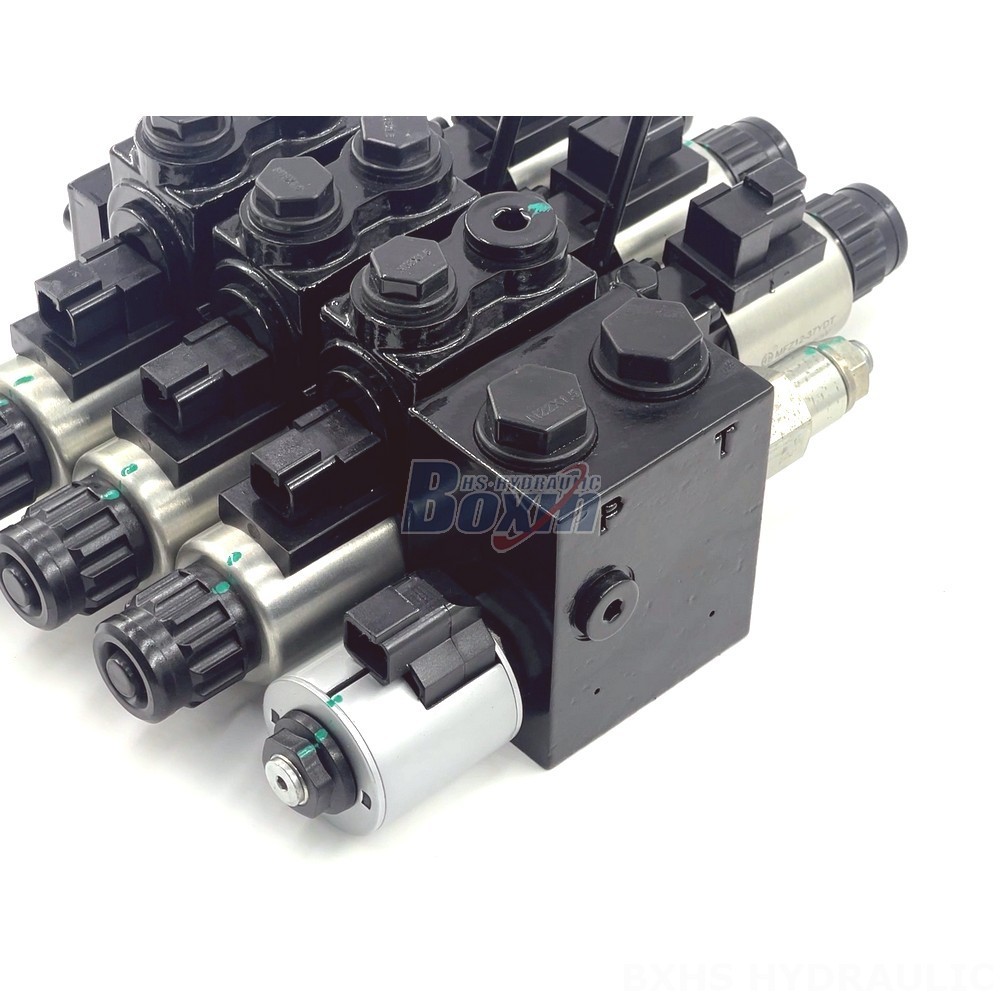

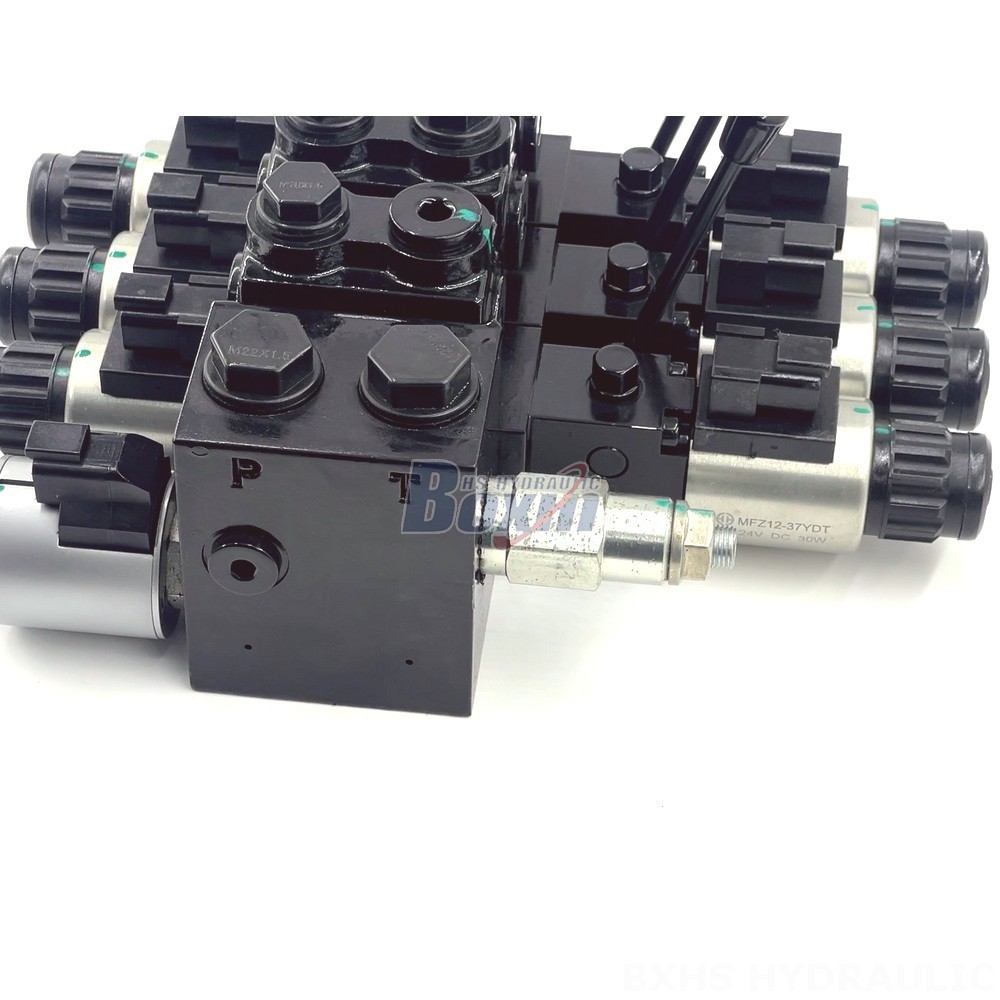

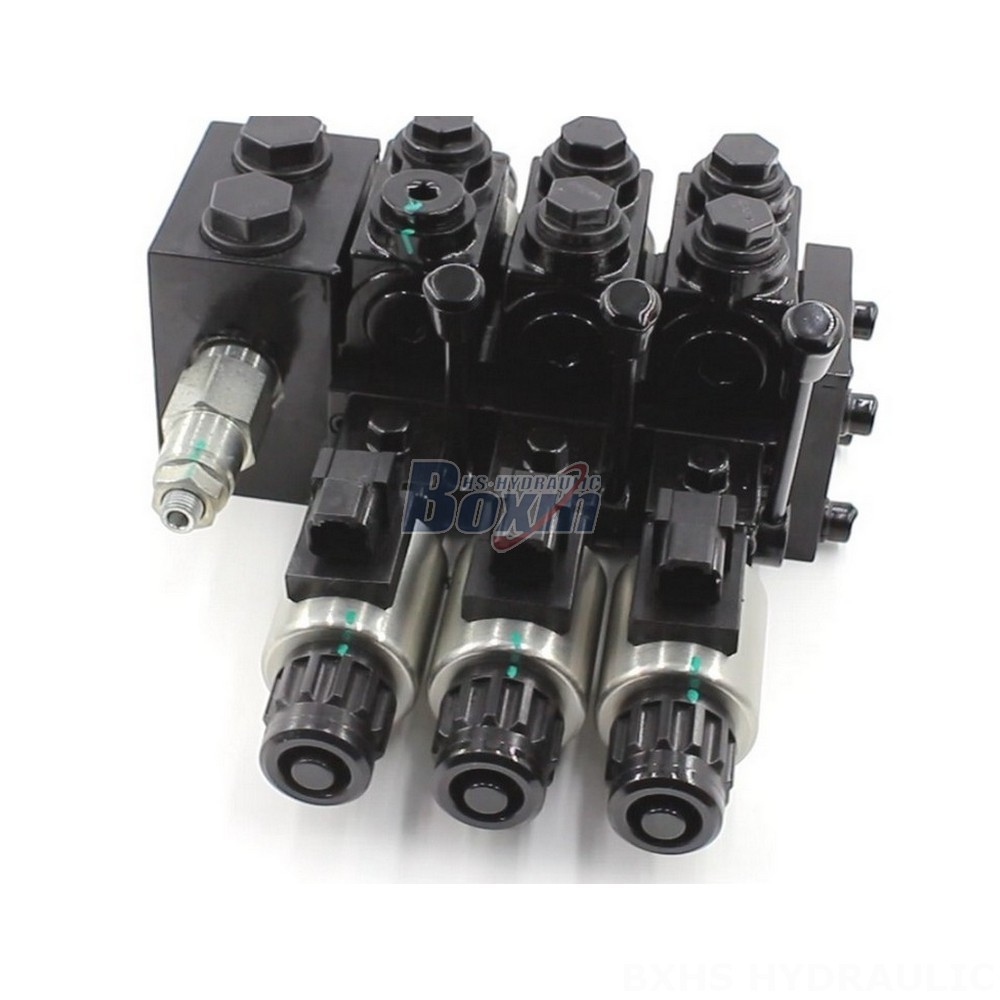

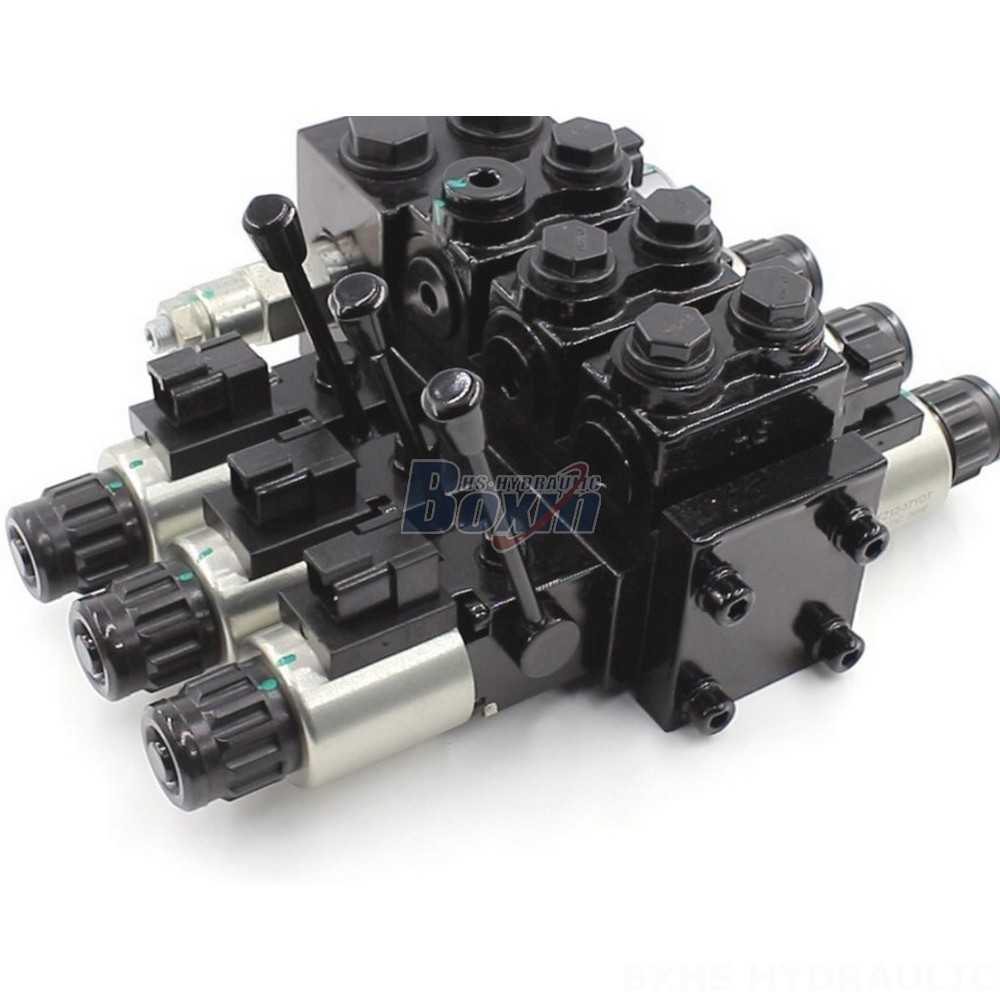

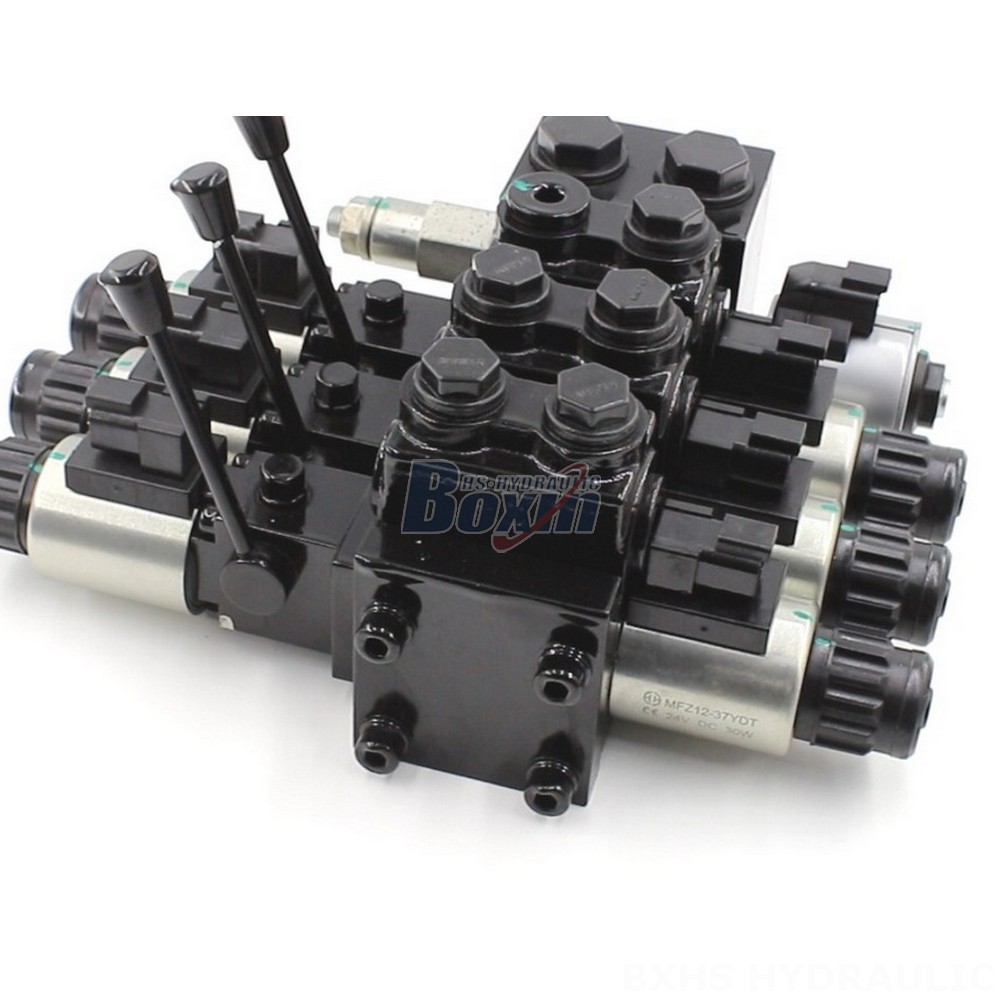

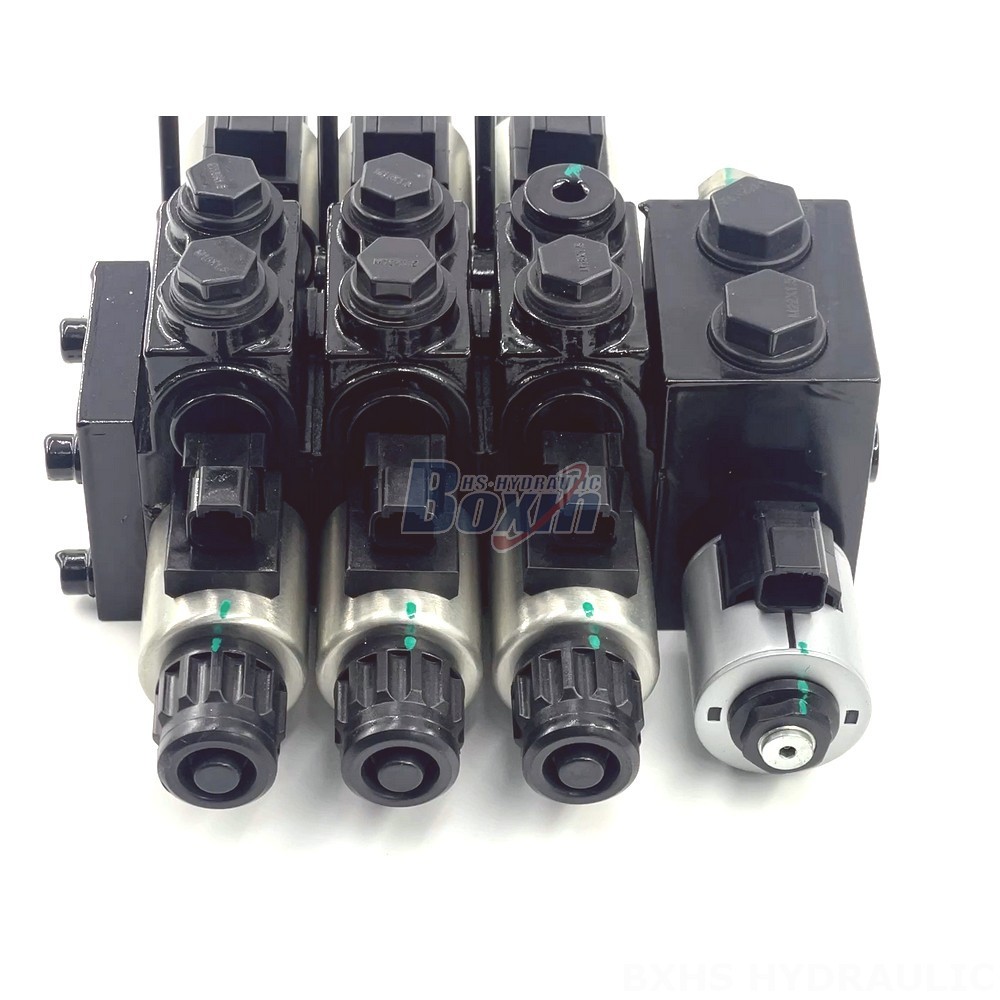

The DCV58 Hydraulic Directional Control Valve is a high-performance and reliable valve designed for use in demanding hydraulic systems. It features a solenoid and manual control mechanism, a 3-section design, and a rated flow of 60 L/min. The valve is constructed from durable materials and is designed to withstand high pressures and temperatures.
| Seri DCV58 Kran Arah Bagian Parameter | |
|---|---|
| Metode Kontrol | Selenoid, Solenoid dan Manual |
| Spul | 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool, 8 Spool, 9 Spool, 10 Spool, 11 Spool, 12 Spool |
| Kisaran Suhu Sekitar | -40°C hingga +80°C (-40°F hingga +176°F) |
| Tipe Struktur | Katup penampang |
| Bagian | 1 Bagian, 2 Bagian, 3 Bagian, 4 Bagian, 5 Bagian, 6 Bagian, 7 Bagian, 8 Bagian, 9 Bagian, 10 Bagian, 11 Bagian, 12 Bagian |
| Kisaran Viskositas Operasional | 15 - 75 mm²/dt (15 cSt hingga 75 cSt) |
| Aliran Terukur | 40 L/menit (10,5 US gpm) |
| Tekanan Maksimum | 350 bar (5100 psi) |
| Port Masuk | G1/2, M22×1.5, SAE 10, 1/2 NPT |
| Port Keluar | G1/2, M22×1.5, SAE 10, 1/2 NPT |
| Ukuran Port | G1/2, M22×1.5, SAE 10, 1/2 NPT |
The DCV58 Hydraulic Directional Control Valve has a maximum pressure of 350 bar and an operating viscosity range of 15 - 75 mm²/s. It has an ambient temperature range of -40°C to +80°C and is available with 3 spools. The valve is suitable for use in a wide range of applications, including material handling, construction and earth moving, agriculture, and industrial vehicles.
