The DCV58 Solenoid 9 Spool Sectional Directional Valve is a high-performance hydraulic valve designed for demanding applications in various industries. With its solenoid control method, 9-section design, and robust construction, this valve offers precise flow control and reliability in harsh operating conditions.
| Seri DCV58 Kran Arah Bagian Parameter | |
|---|---|
| Metode Kontrol | Selenoid, Solenoid dan Manual |
| Spul | 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool, 8 Spool, 9 Spool, 10 Spool, 11 Spool, 12 Spool |
| Kisaran Suhu Sekitar | -40°C hingga +80°C (-40°F hingga +176°F) |
| Tipe Struktur | Katup penampang |
| Bagian | 1 Bagian, 2 Bagian, 3 Bagian, 4 Bagian, 5 Bagian, 6 Bagian, 7 Bagian, 8 Bagian, 9 Bagian, 10 Bagian, 11 Bagian, 12 Bagian |
| Kisaran Viskositas Operasional | 15 - 75 mm²/dt (15 cSt hingga 75 cSt) |
| Aliran Terukur | 40 L/menit (10,5 US gpm) |
| Tekanan Maksimum | 350 bar (5100 psi) |
| Port Masuk | G1/2, M22×1.5, SAE 10, 1/2 NPT |
| Port Keluar | G1/2, M22×1.5, SAE 10, 1/2 NPT |
| Ukuran Port | G1/2, M22×1.5, SAE 10, 1/2 NPT |

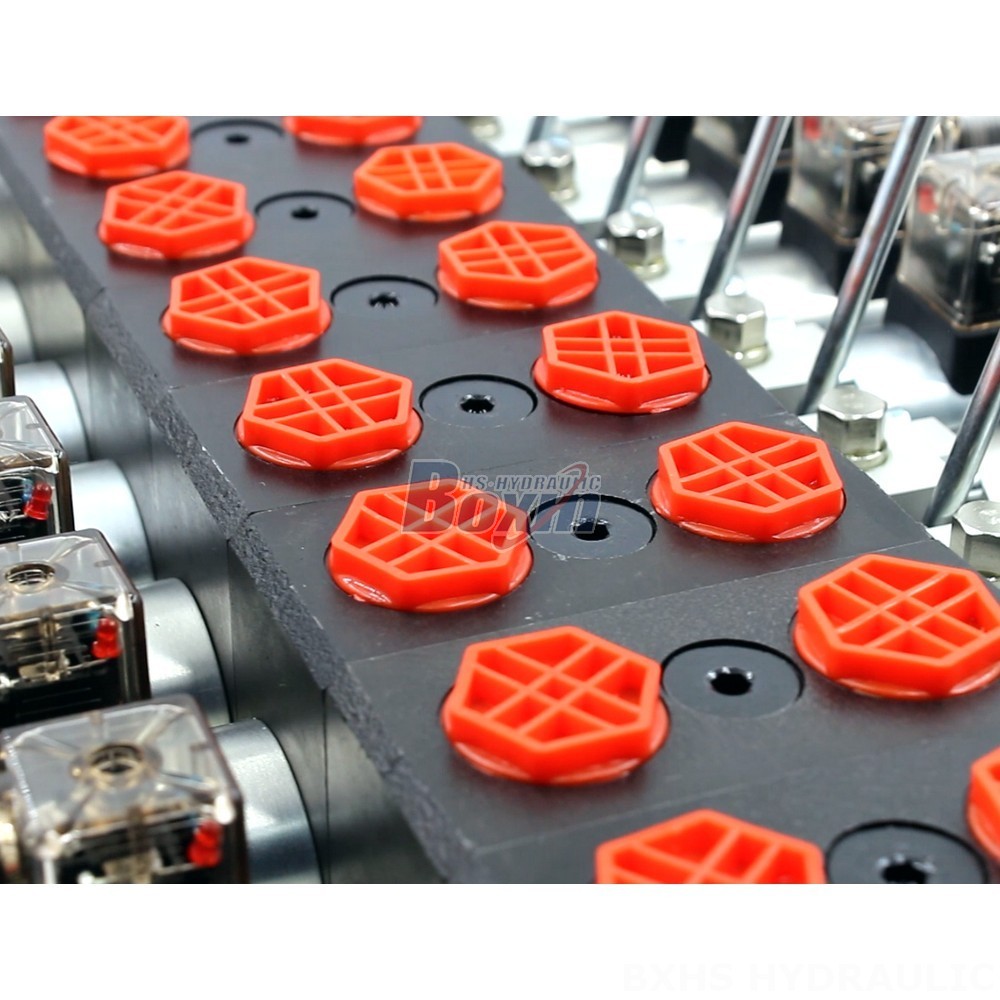

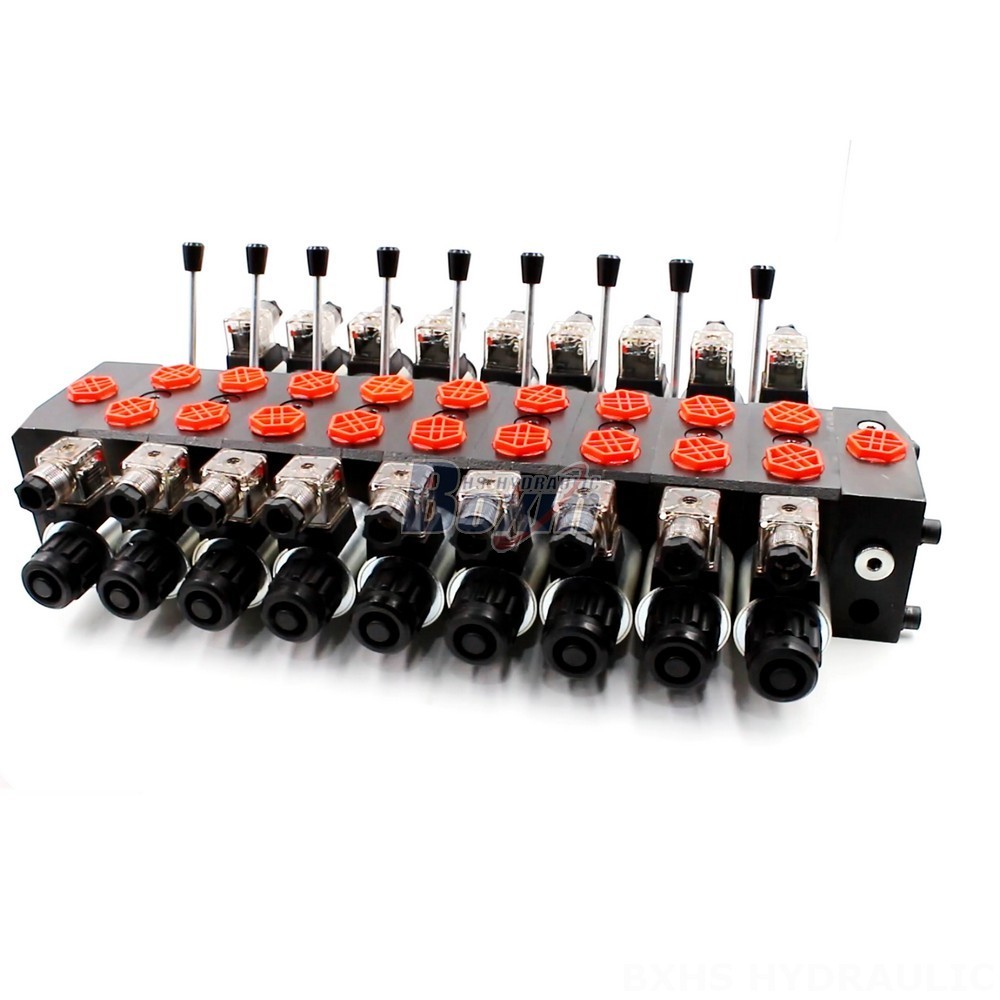

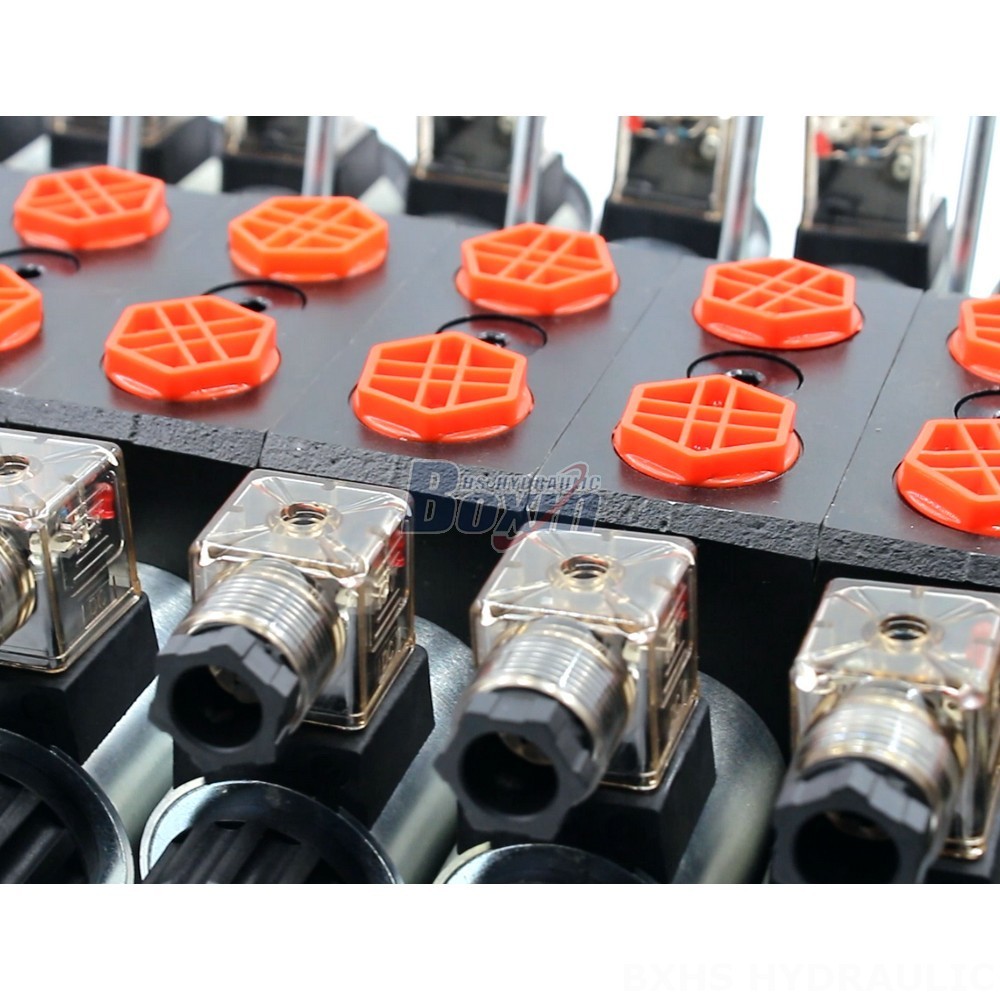

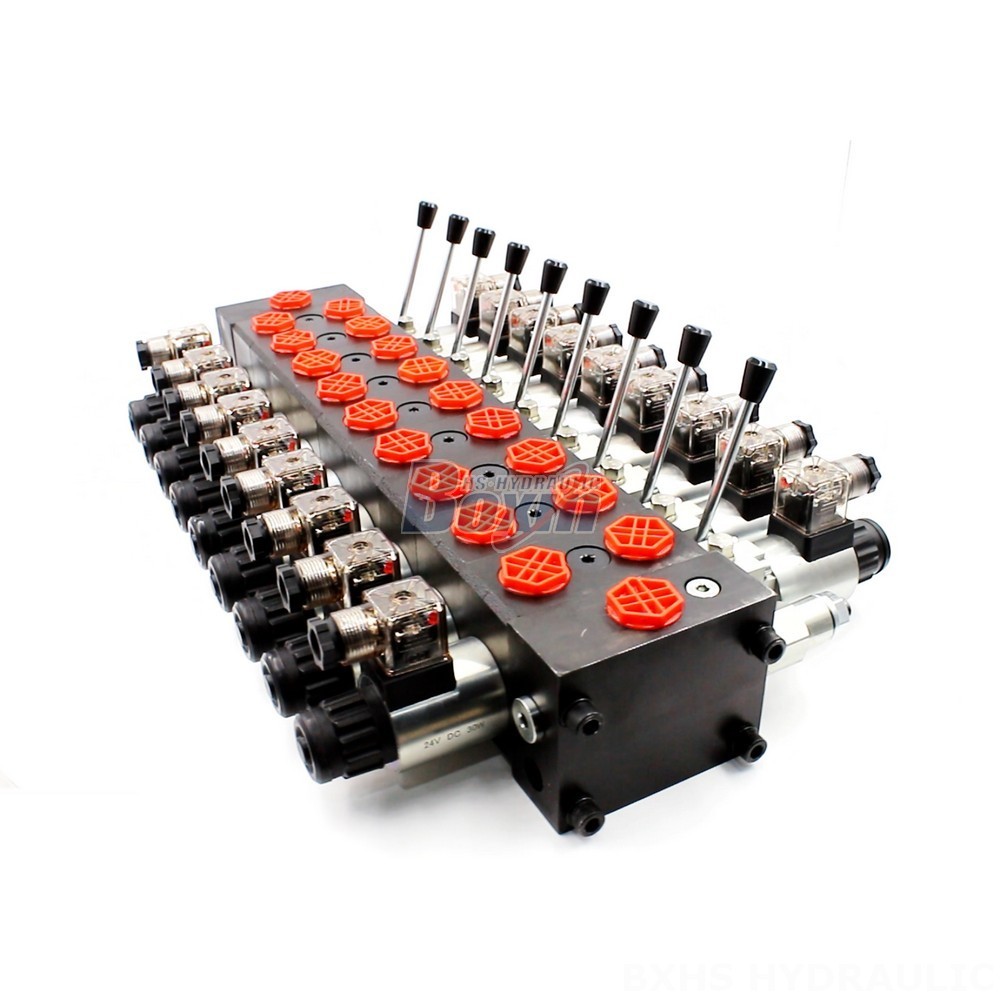

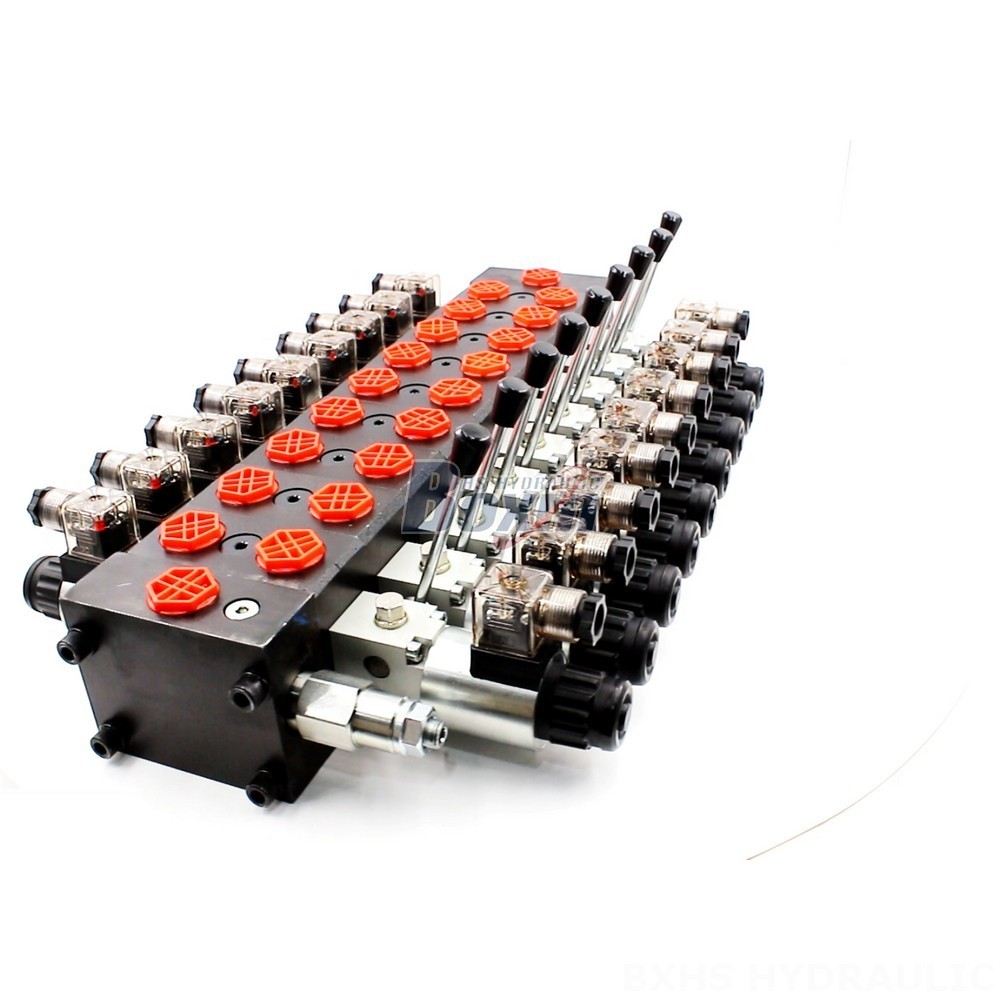

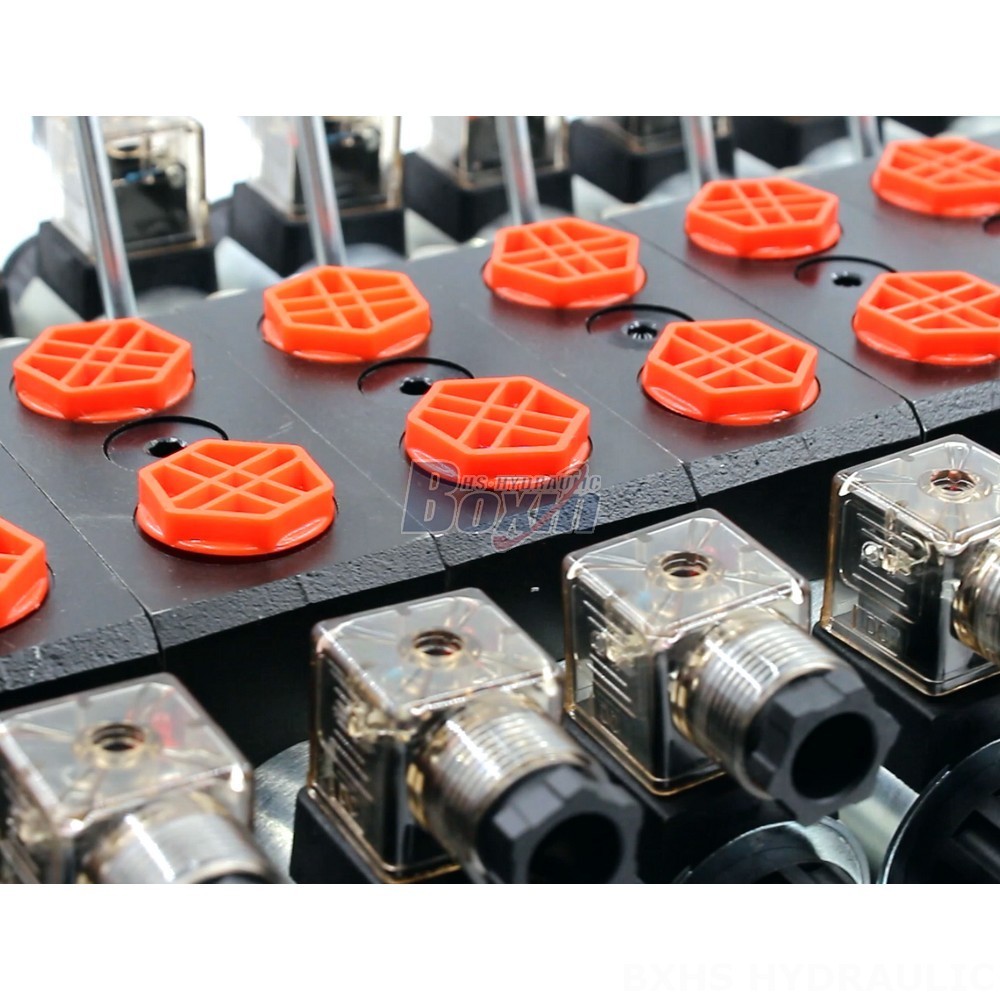

**DCV58 Solenoid 9 Spool Sectional Directional Valve**
**Control Method:** Solenoid
**Section:** 9 Section
**Structure Type:** Sectional valve
**Rated Flow:** 60 L/min (15.8 US gpm)
**Max Pressure:** 350 bar (5100 psi)
**Operating Viscosity Range:** 15 - 75 mm²/s (15 cSt to 75 cSt)
**Ambient Temperature Range:** -40°C to +80°C (-40°F to +176°F)
**Spool:** 9 Spool
**Series:** DCV58 Series
**Application Area:**
* Material Handling
* Construction and Earth Moving
* Agriculture
* Industrial Vehicles
**Applicable Model:**
* Telehandler
* Forklift
* All Terrain Crane
* Stacker
* Aerial Platform
* Motor Grader
* Midi-Excavator
* Mini-Excavator
* Skid Steer Loader
* Compact Wheel Loader
