Produksi & Pengiriman
Waktu Produksi 15-30 Hari
887 Pandangan Mencari Produk Ini
The DCV58F 2-Spool Hydraulic Directional Valve is a high-performance valve designed for use in a wide range of hydraulic systems. It features solenoid control, 2 sections, a rated flow of 60 L/min, and a maximum pressure of 350 bar. The valve is suitable for use in various applications, including material handling, construction, agriculture, and industrial vehicles.
| Seri DCV58F Kran Arah Bagian Parameter | |
|---|---|
| Metode Kontrol | Selenoid, Solenoid dan Manual |
| Spul | 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool, 8 Spool, 9 Spool, 10 Spool, 11 Spool, 12 Spool |
| Aliran Terukur | 60 L/menit (15,8 US gpm) |
| Tekanan Maksimum | 350 bar (5100 psi) |
| Port Masuk | G1/2, M22×1.5, SAE 10, 1/2 NPT |
| Port Keluar | G1/2, M22×1.5, SAE 10, 1/2 NPT |
| Ukuran Port | G1/2, M22×1.5, SAE 10, 1/2 NPT |
| Bagian | 1 Bagian, 2 Bagian, 3 Bagian, 4 Bagian, 5 Bagian, 6 Bagian, 7 Bagian, 8 Bagian, 9 Bagian, 10 Bagian, 11 Bagian, 12 Bagian |
| Tipe Struktur | Katup penampang |
| Kisaran Suhu Sekitar | -40°C hingga +80°C (-40°F hingga +176°F) |
| Kisaran Viskositas Operasional | 15 - 75 mm²/dt (15 cSt hingga 75 cSt) |

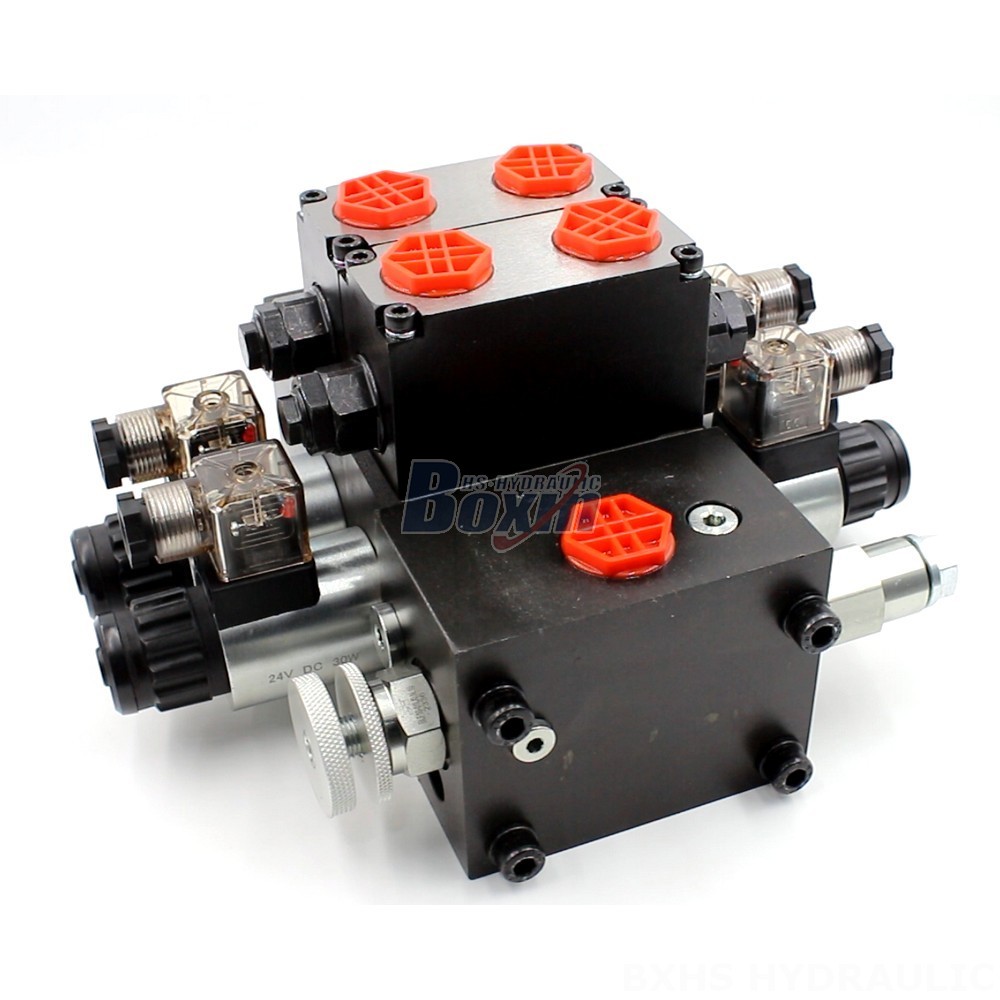

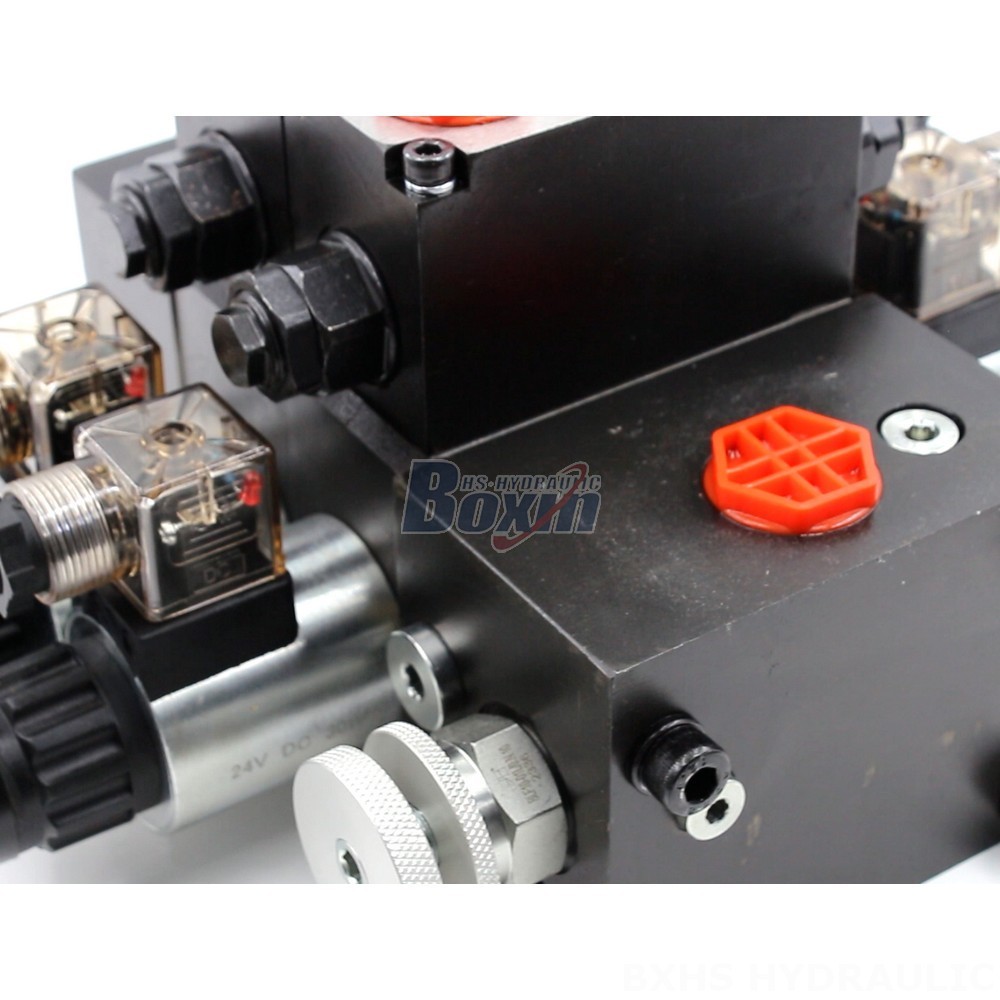

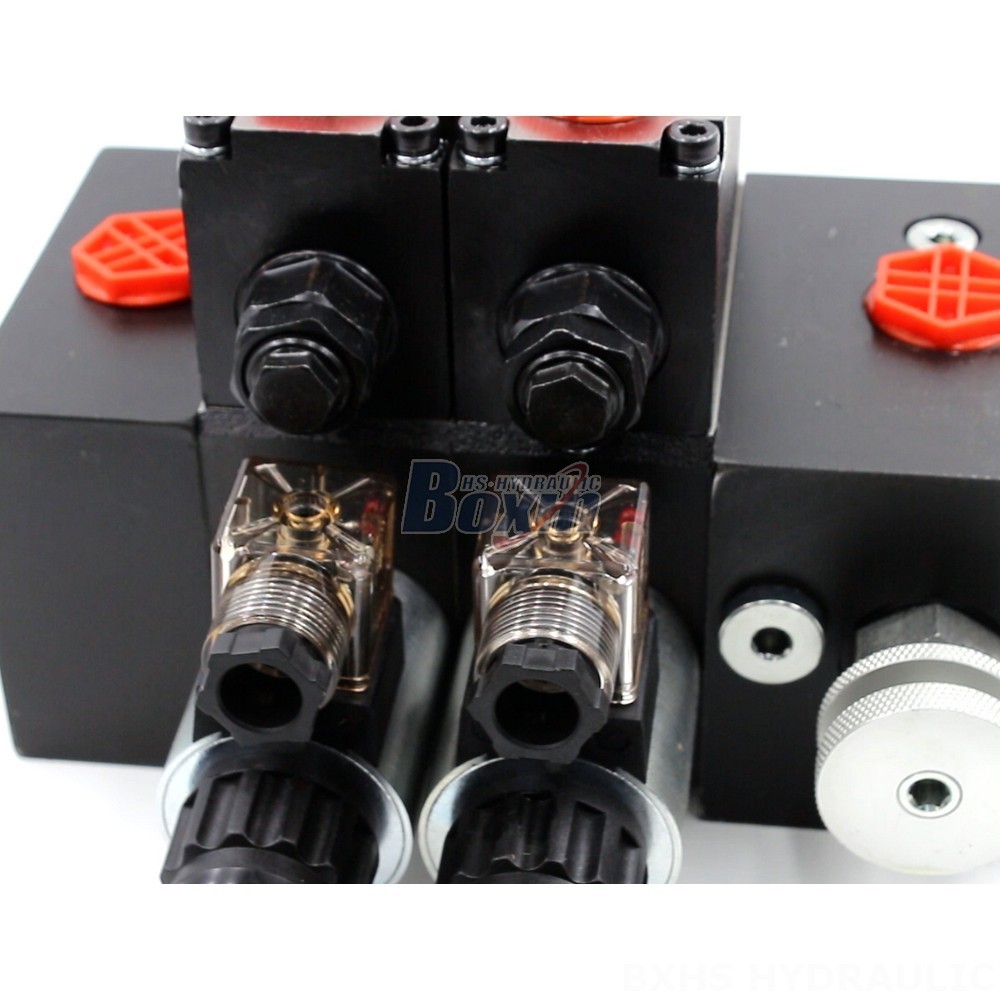

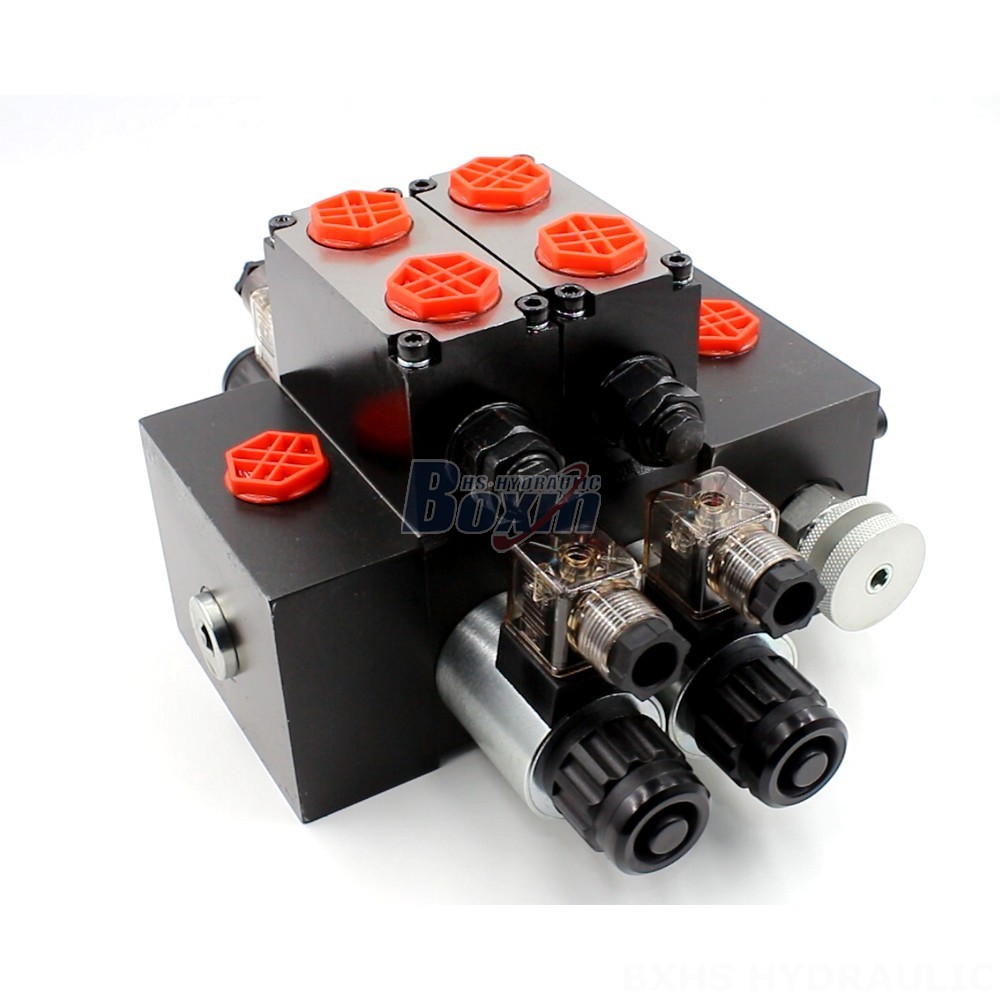

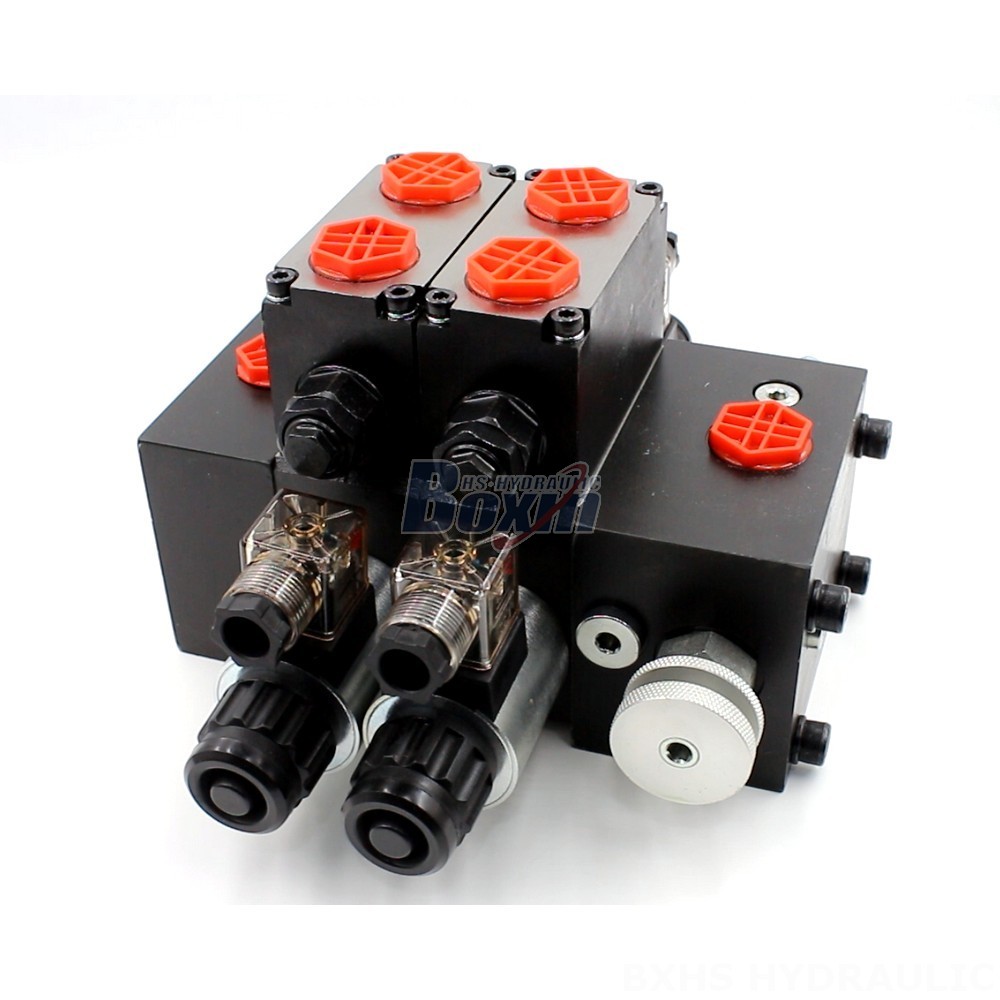

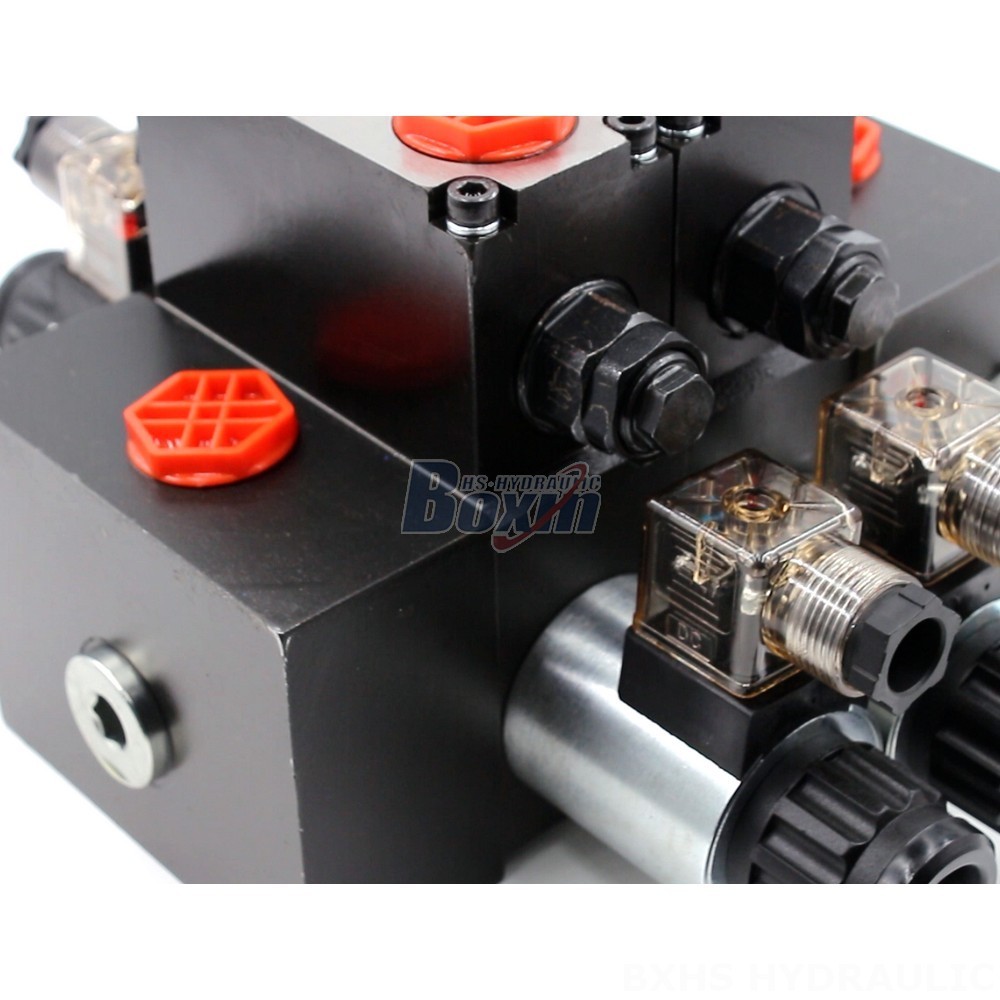

**Product Name:** DCV58F 2-Spool Hydraulic Directional Valve
**Control Method:** Solenoid
**Section:** 2 Section
**Structure Type:** Sectional valve
**Rated Flow:** 60 L/min (15.8 US gpm)
**Max Pressure:** 350 bar (5100 psi)
**Operating Viscosity Range:** 15 - 75 mm²/s (15 cSt to 75 cSt)
**Ambient Temperature Range:** -40°C to +80°C (-40°F to +176°F)
**Spool:** 2 Spool
**Series:** DCV58F Series
**Application Area:** MATERIAL HANDLING,CONSTRUCTION AND EARTH MOVING,AGRICULTURE,INDUSTRIAL VEHICLES
**Applicable Model:** TELEHANDLER,FORKLIFT,ALL TERRAIN CRANE,STACKER,AERIAL PLATFORM,MOTOR GRADER,TELEHANDLER,MIDI-EXCAVATOR,MINI-EXCAVATOR,SKID STEER LOADER
