The DCV60 2-Spool Electro-hydraulic Directional Valve is a high-performance valve designed for various industrial applications. With a rated flow of 60 L/min and a maximum pressure of 350 bar, it ensures efficient and precise control of hydraulic systems in demanding conditions.
| Seri DCV60 Kran Arah Bagian Parameter | |
|---|---|
| Metode Kontrol | Buku Panduan, Pneumatik, Elektro-pneumatik, Elektro-hidraulik, Hidraulis, Hidraulik dan Manual, Kabel, Stik Kontrol, Solenoid dan Manual, Selenoid dan Joystick, Manual dan Joystick, Motor listrik |
| Spul | 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool, 8 Spool, 9 Spool, 10 Spool, 11 Spool, 12 Spool |
| Kisaran Suhu Sekitar | -40°C hingga +80°C (-40°F hingga +176°F) |
| Tipe Struktur | Katup penampang |
| Bagian | 1 Bagian, 2 Bagian, 3 Bagian, 4 Bagian, 5 Bagian, 6 Bagian, 7 Bagian, 8 Bagian, 9 Bagian, 10 Bagian, 11 Bagian, 12 Bagian |
| Kisaran Viskositas Operasional | 15 - 75 mm²/dt (15 cSt hingga 75 cSt) |
| Aliran Terukur | 60 L/menit (15,8 US gpm) |
| Tekanan Maksimum | 315 bar (4600 psi), 350 bar (5100 psi) |
| Port Masuk | G1/2, G3/4, M22×1.5, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Port Keluar | G1/2, G3/4, M22×1.5, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Ukuran Port | G1/2, G3/4, M22×1.5, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |

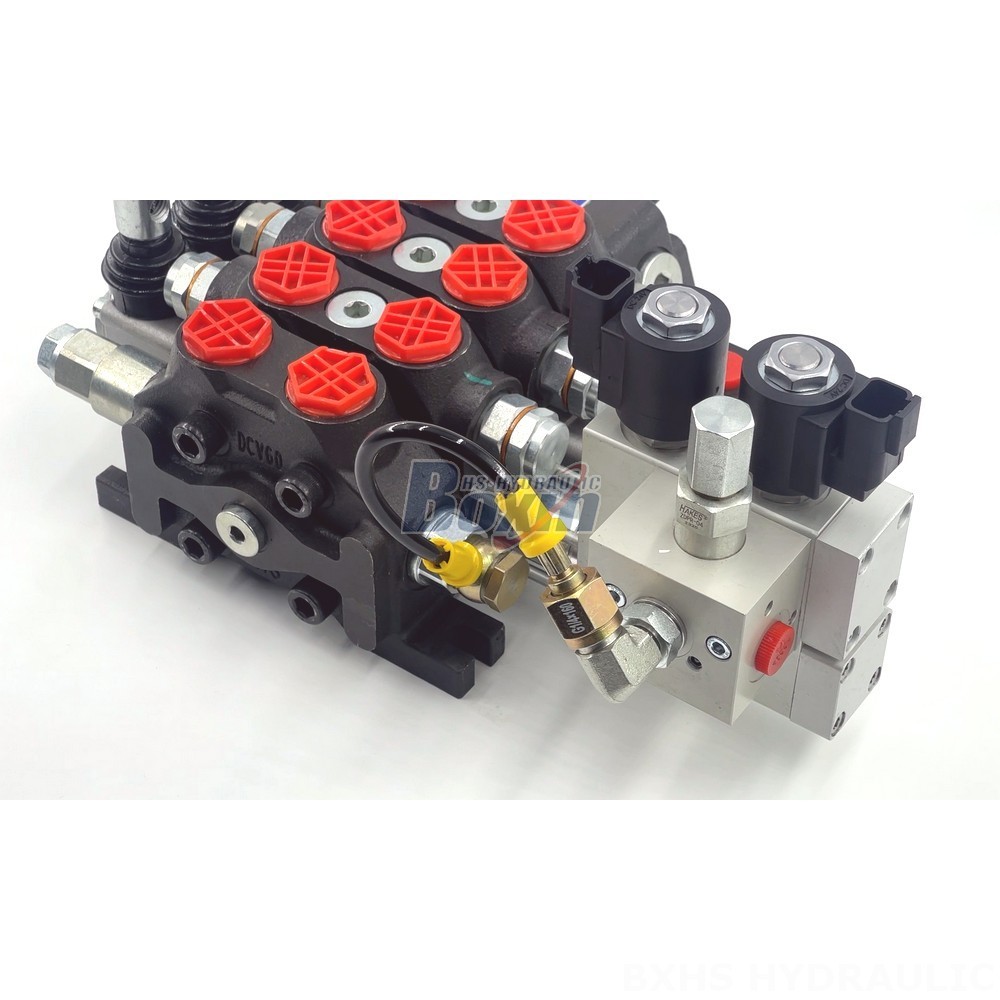

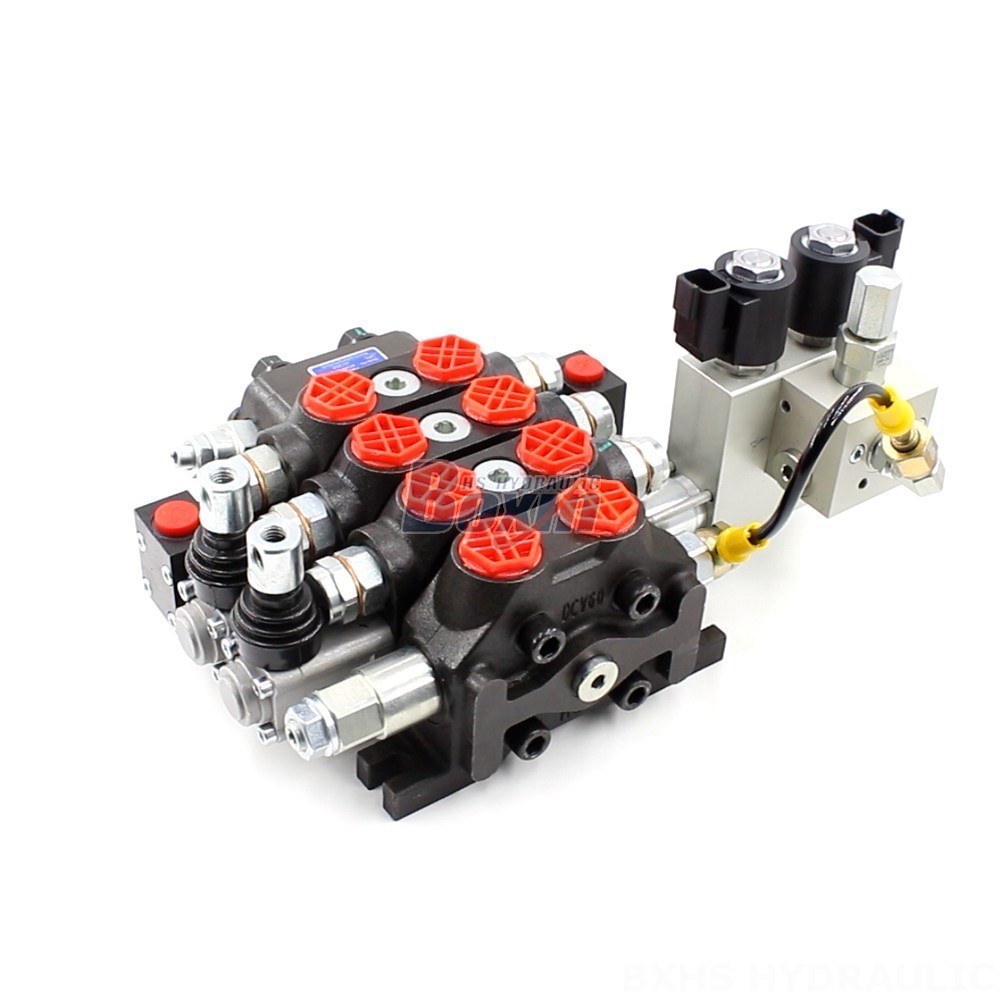

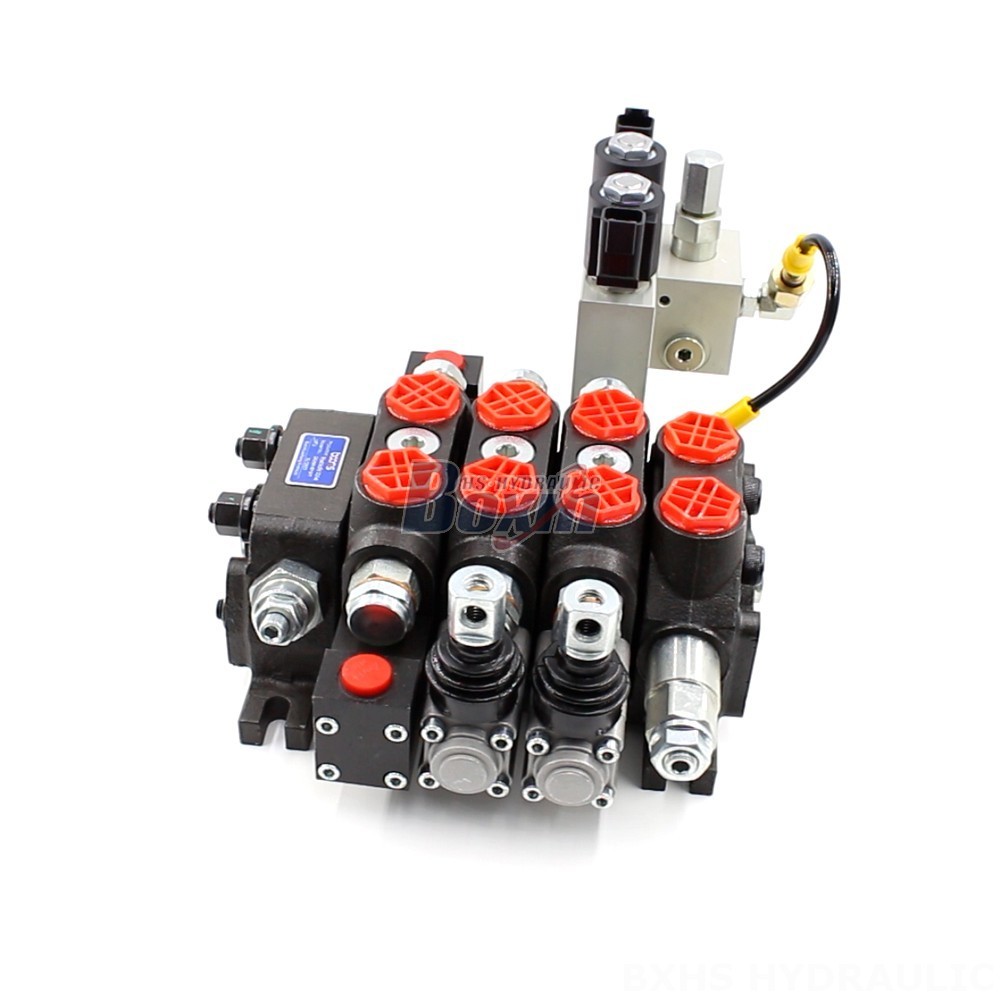

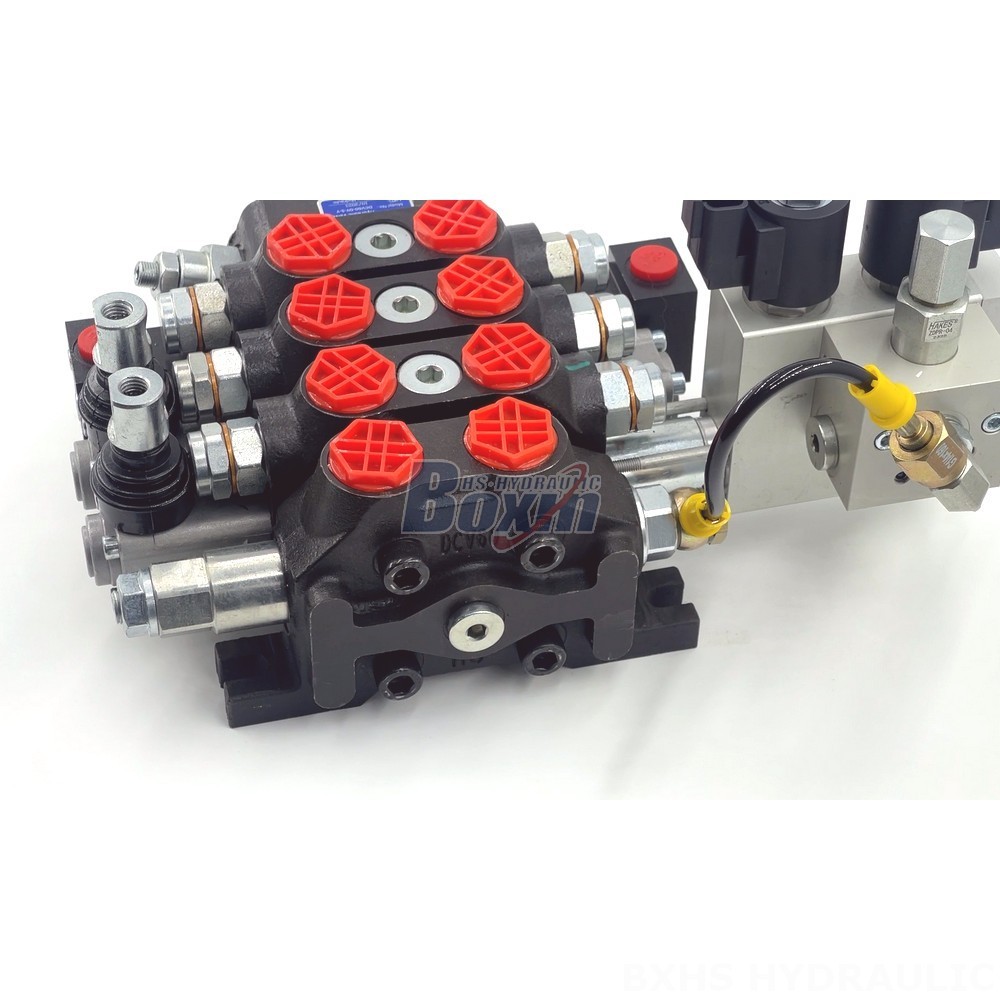

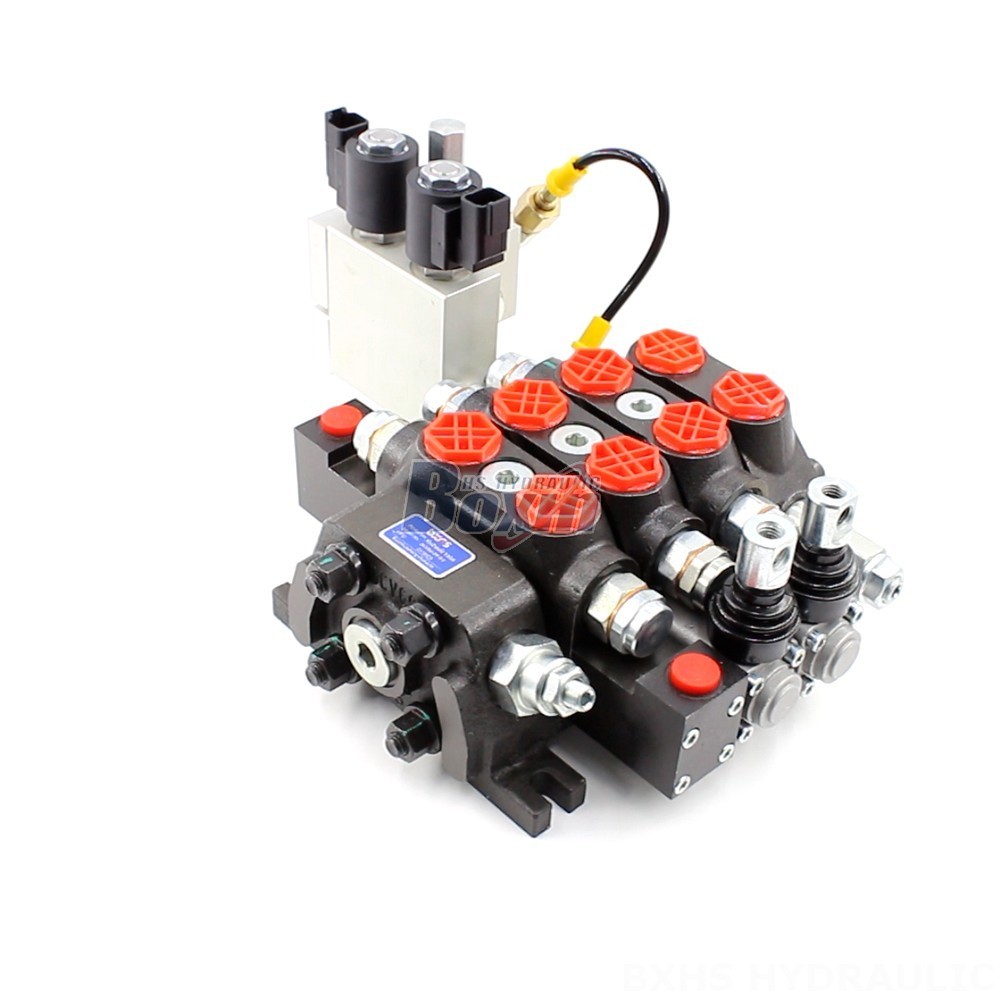

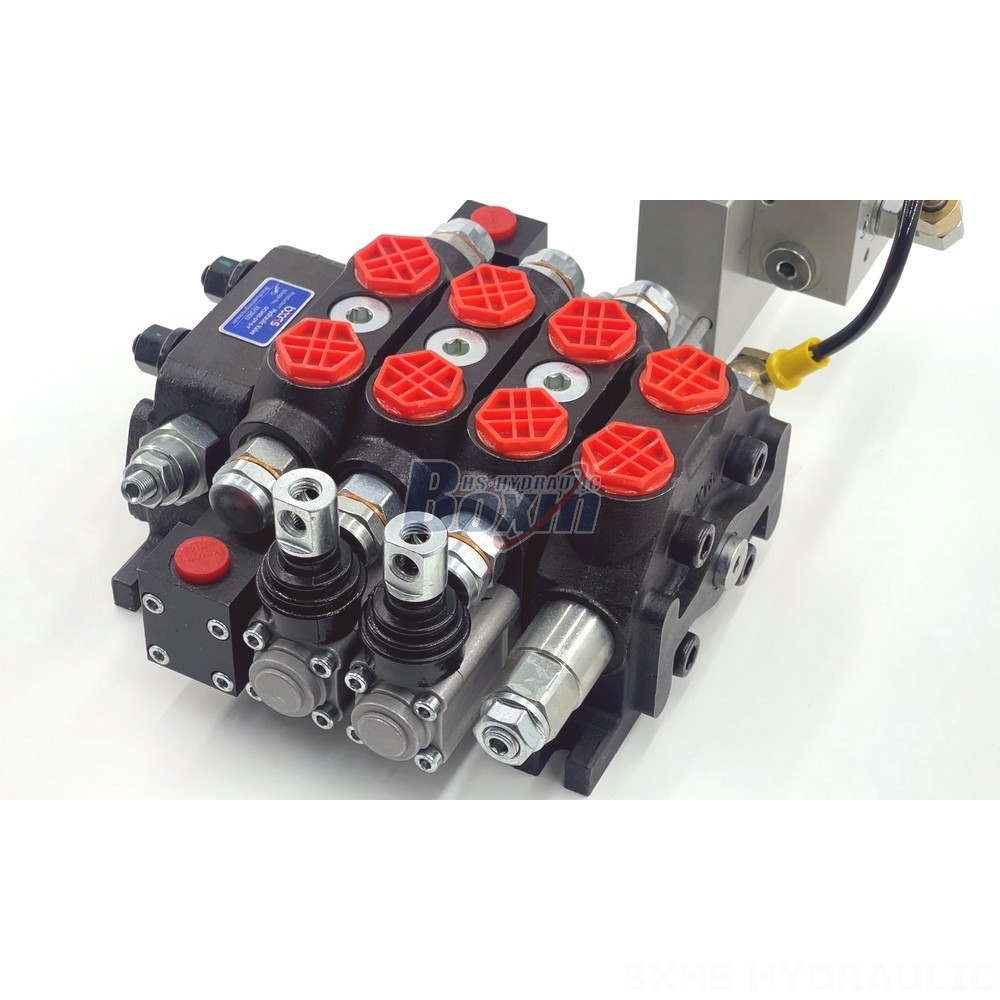

**DCV60 2-Spool Electro-hydraulic Directional Valve**
**Product Description:**
The DCV60 2-Spool Electro-hydraulic Directional Valve is a compact and reliable valve that offers precise control of hydraulic systems. It features a sectional valve structure, allowing for easy customization and integration into various applications. The valve is designed to operate within a wide viscosity range (15 - 75 mm²/s) and ambient temperature range (-40°C to +80°C), ensuring optimal performance in diverse operating conditions.
**Key Features:**
- Electro-hydraulic control for precise and responsive operation
- 2-spool design for versatile flow control
- Sectional valve structure for easy customization
- Rated flow of 60 L/min for efficient system operation
- Maximum pressure of 350 bar for demanding applications
- Wide operating viscosity and temperature ranges for adaptability
- Compact design for space optimization
- Suitable for various industrial applications, including material handling, construction, agriculture, and industrial vehicles
**Applications:**
The DCV60 2-Spool Electro-hydraulic Directional Valve is widely used in hydraulic systems of:
- Telehandlers
- Forklifts
- All-terrain cranes
- Stackers
- Aerial platforms
- Motor graders
- Midi-excavators
- Mini-excavators
- Skid steer loaders
- Compact wheel loaders
