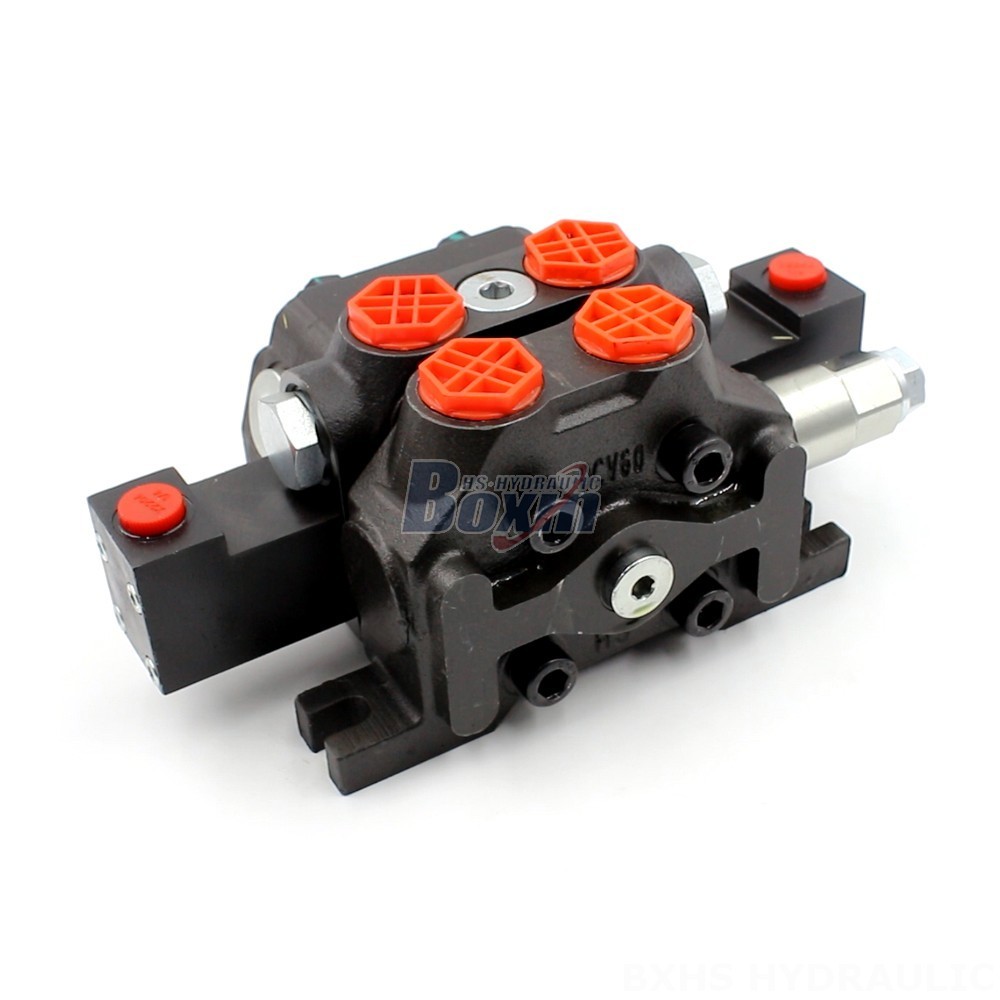

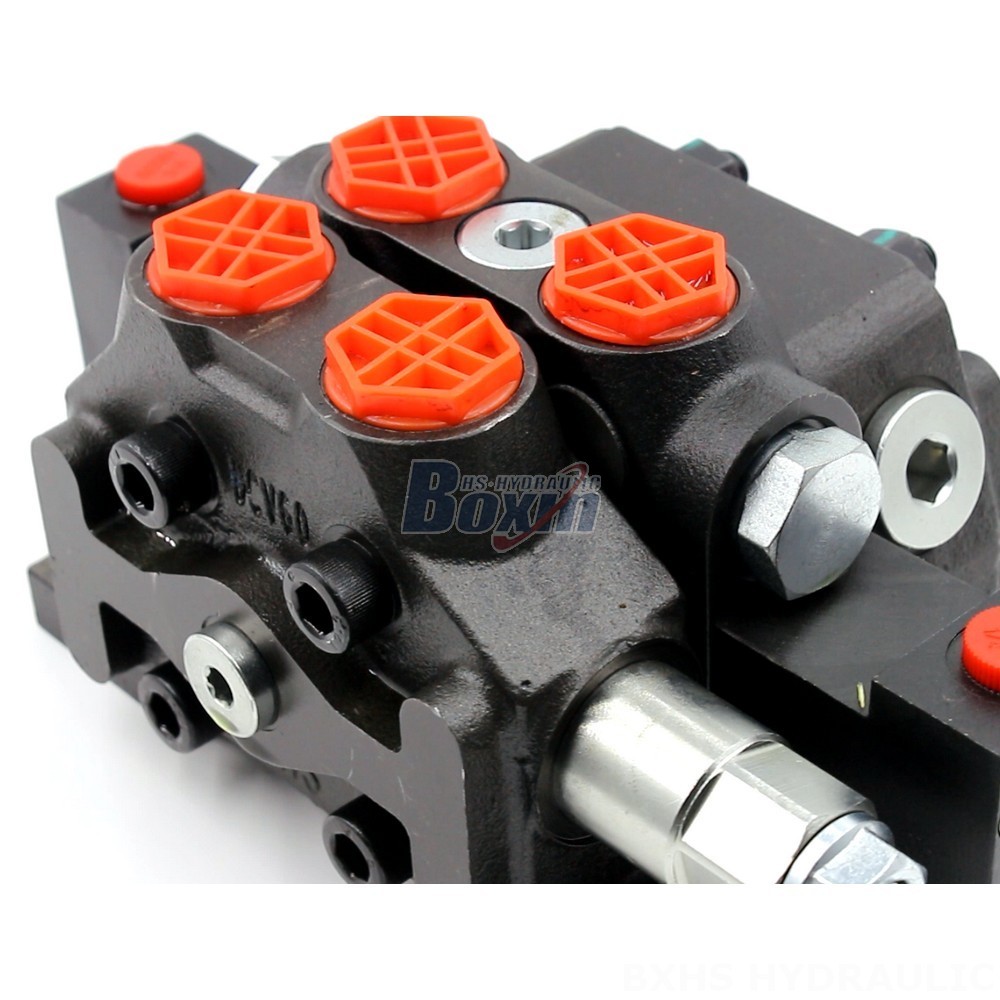

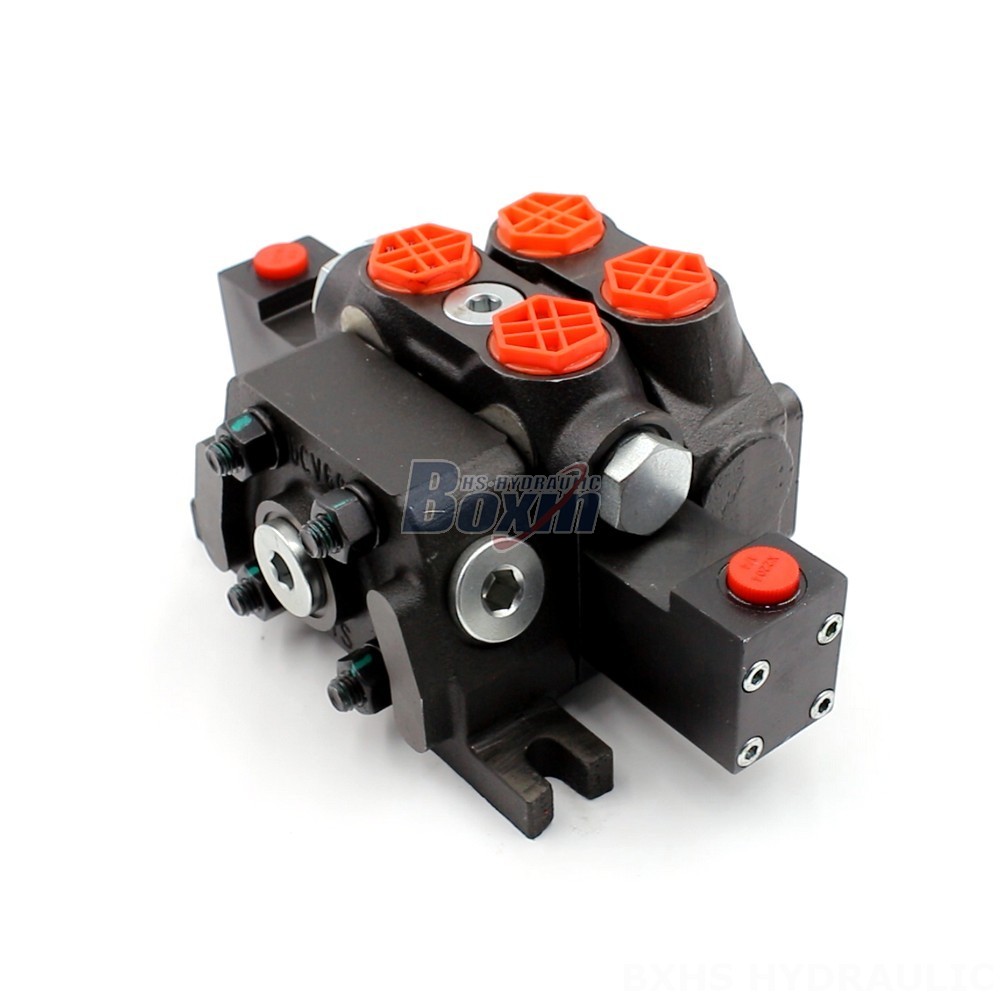

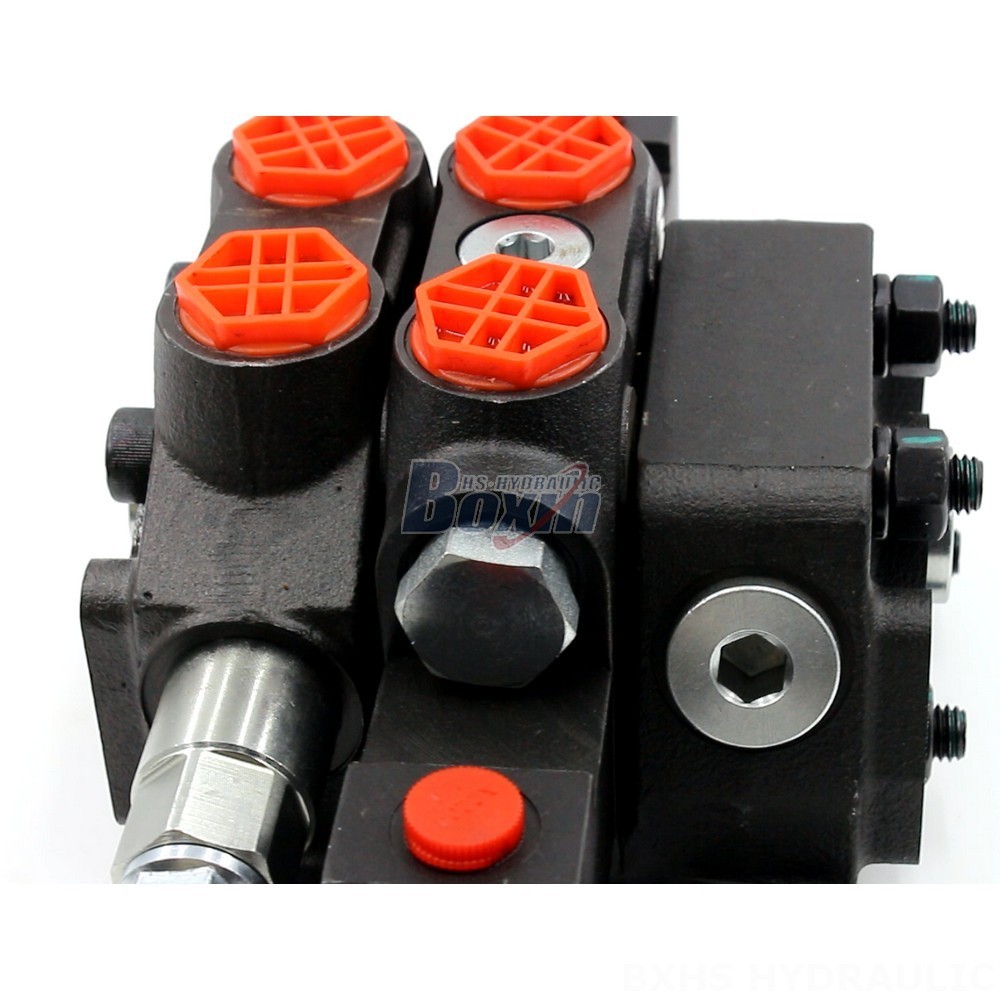

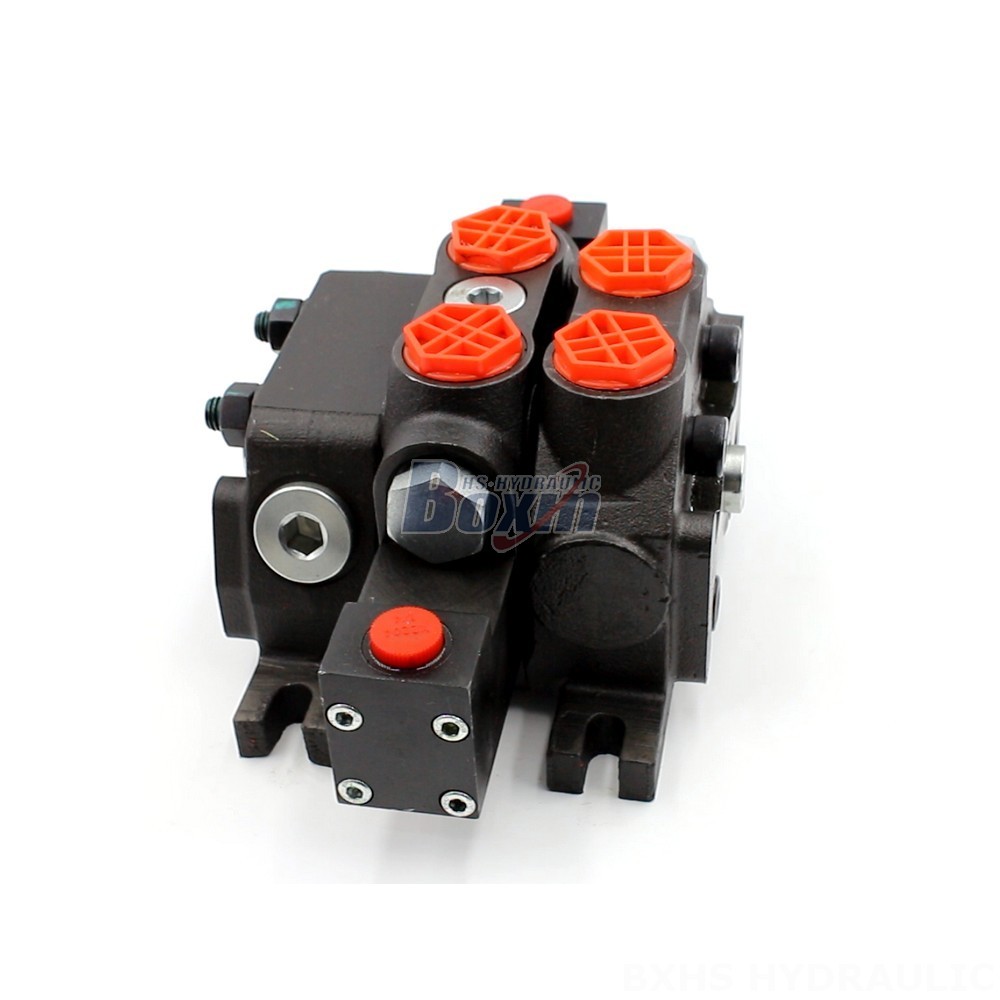

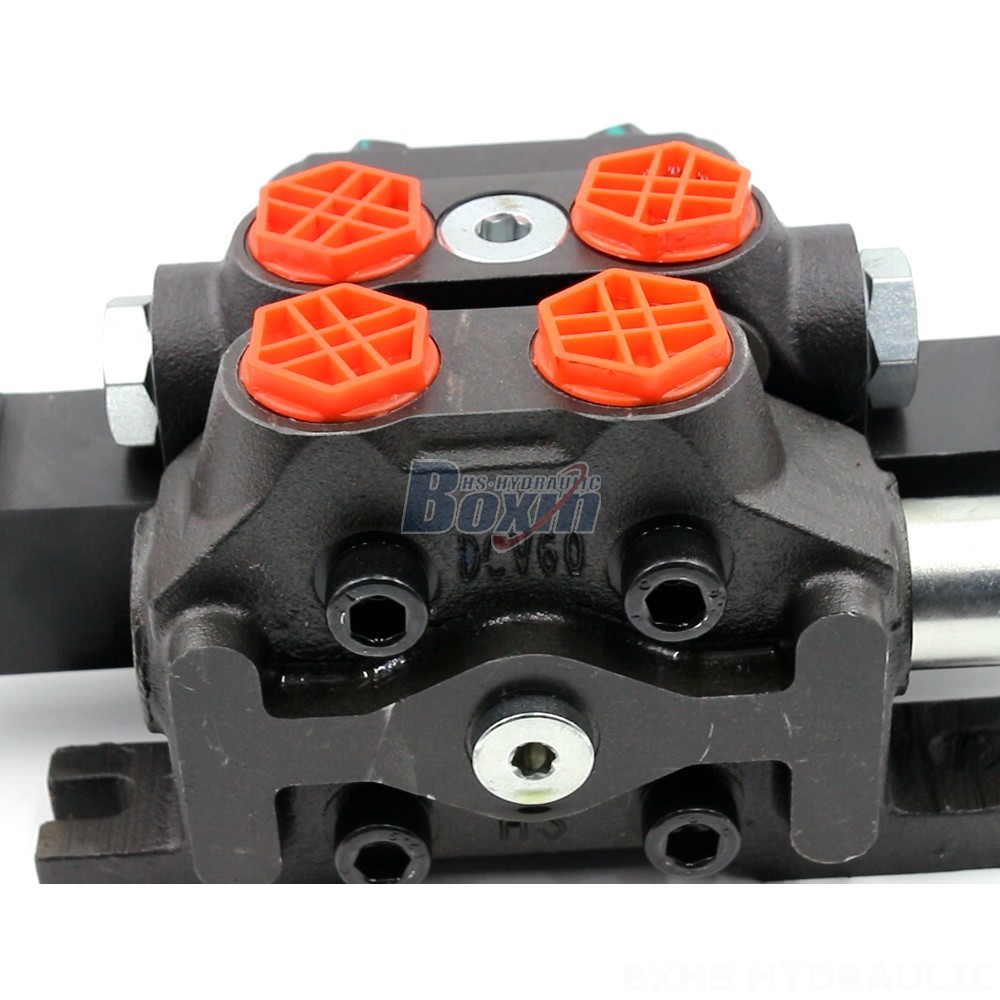

The DCV60-G34 is a high-performance hydraulic directional control valve designed for use in a wide range of applications, including material handling, construction and earth moving, agriculture, and industrial vehicles. This 1-section sectional valve features a rated flow of 60 L/min, a maximum pressure of 350 bar, and an operating viscosity range of 15-75 mm²/s. It is suitable for use in telehandlers, forklifts, motor graders, mini-excavators, skid steer loaders, compact wheel loaders, harvesters, seeding machines, forestry trailers, and balers.
| Seri DCV60 Kran Arah Bagian Parameter | |
|---|---|
| Metode Kontrol | Buku Panduan, Pneumatik, Elektro-pneumatik, Elektro-hidraulik, Hidraulis, Hidraulik dan Manual, Kabel, Stik Kontrol, Solenoid dan Manual, Selenoid dan Joystick, Manual dan Joystick, Motor listrik |
| Spul | 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool, 8 Spool, 9 Spool, 10 Spool, 11 Spool, 12 Spool |
| Kisaran Suhu Sekitar | -40°C hingga +80°C (-40°F hingga +176°F) |
| Tipe Struktur | Katup penampang |
| Bagian | 1 Bagian, 2 Bagian, 3 Bagian, 4 Bagian, 5 Bagian, 6 Bagian, 7 Bagian, 8 Bagian, 9 Bagian, 10 Bagian, 11 Bagian, 12 Bagian |
| Kisaran Viskositas Operasional | 15 - 75 mm²/dt (15 cSt hingga 75 cSt) |
| Aliran Terukur | 60 L/menit (15,8 US gpm) |
| Tekanan Maksimum | 315 bar (4600 psi), 350 bar (5100 psi) |
| Port Masuk | G1/2, G3/4, M22×1.5, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Port Keluar | G1/2, G3/4, M22×1.5, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Ukuran Port | G1/2, G3/4, M22×1.5, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
The DCV60-G34 is a robust and reliable hydraulic directional control valve designed for demanding applications. It features a compact design and a high flow rate, making it ideal for use in heavy-duty equipment. The valve's sectional construction allows for easy maintenance and repair. It is designed to operate in a wide range of ambient temperatures and is compatible with a variety of hydraulic fluids. The DCV60-G34 is available in a variety of configurations to meet the specific needs of your application.
