DCV60 Hydraulic Sectional Valve 1 Spool with Electric Motor Operator

Metode Kontrol:Motor listrik

Spul:1 Spool

Aliran Terukur:60 L/menit (15,8 US gpm)

Tekanan Maksimum:315 bar (4600 psi)

Port Masuk:G1/2

Port Keluar:G1/2

Ukuran Port:G1/2

Merek:BXHS

Tipe Produk:Kran Arah Bagian

Seri Produk:Seri DCV60 Kran Arah Bagian

Ukuran kemasan:20*39*23

Kelas kotor:12.60 kg

Ketersediaan: Tersedia

113 Pandangan Mencari Produk Ini

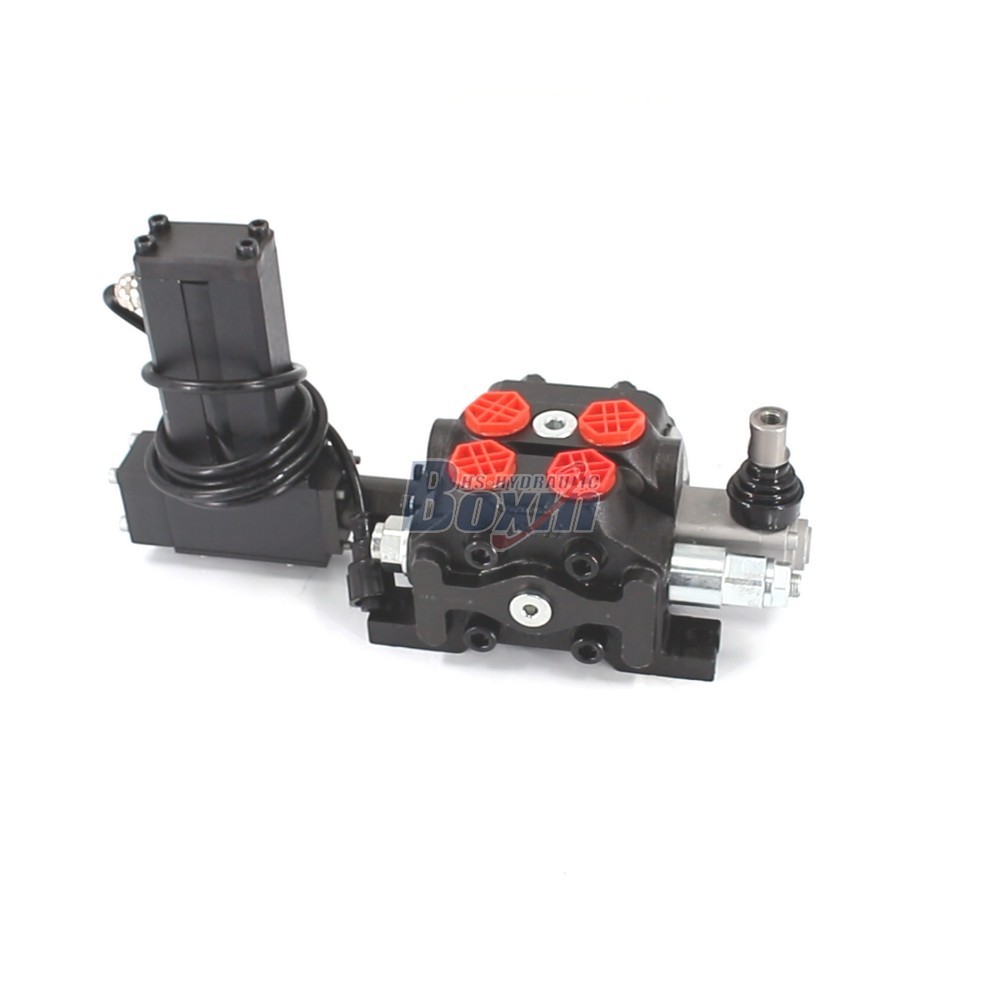

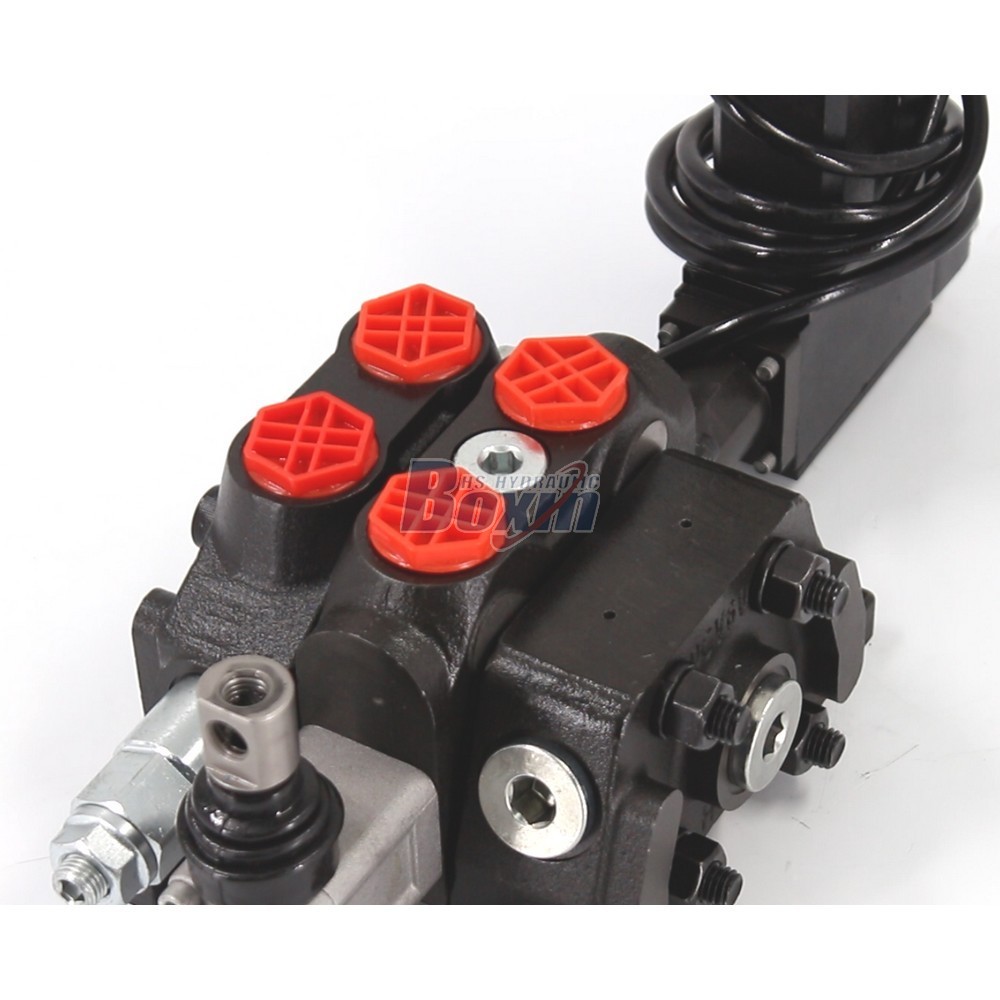

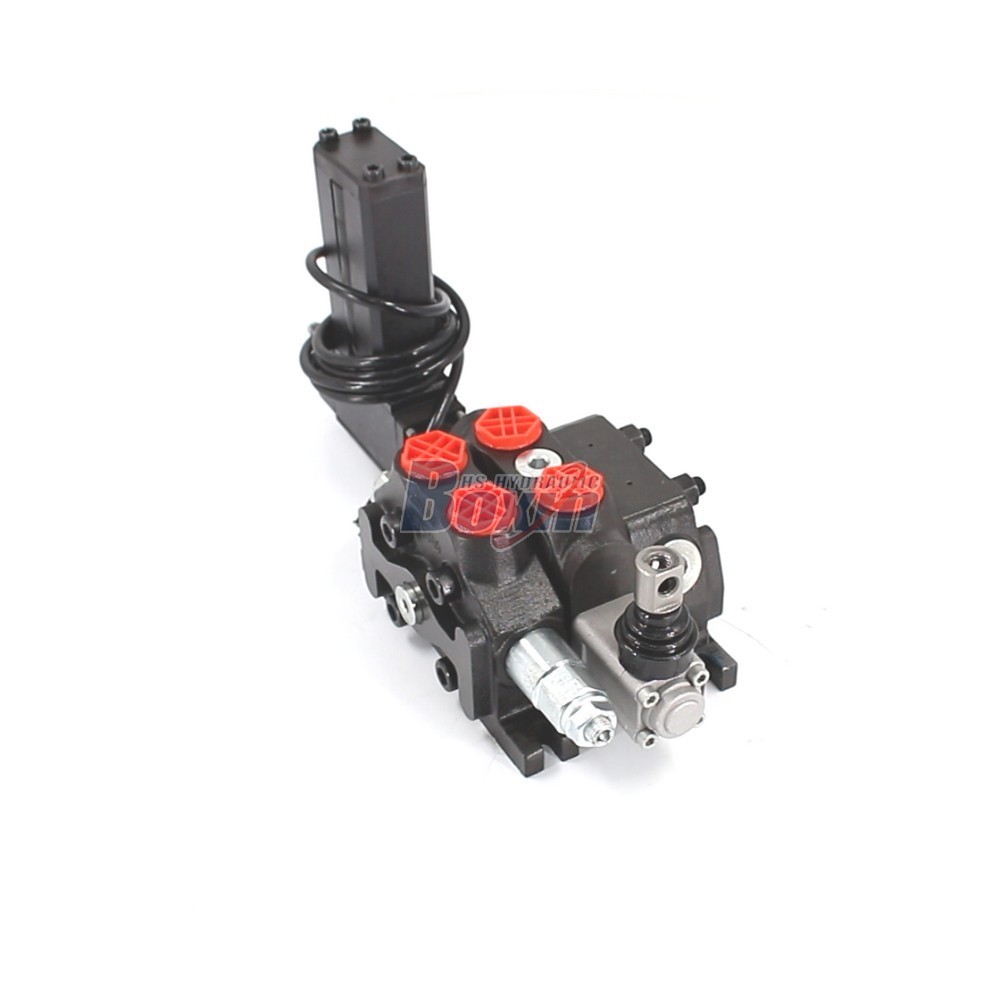

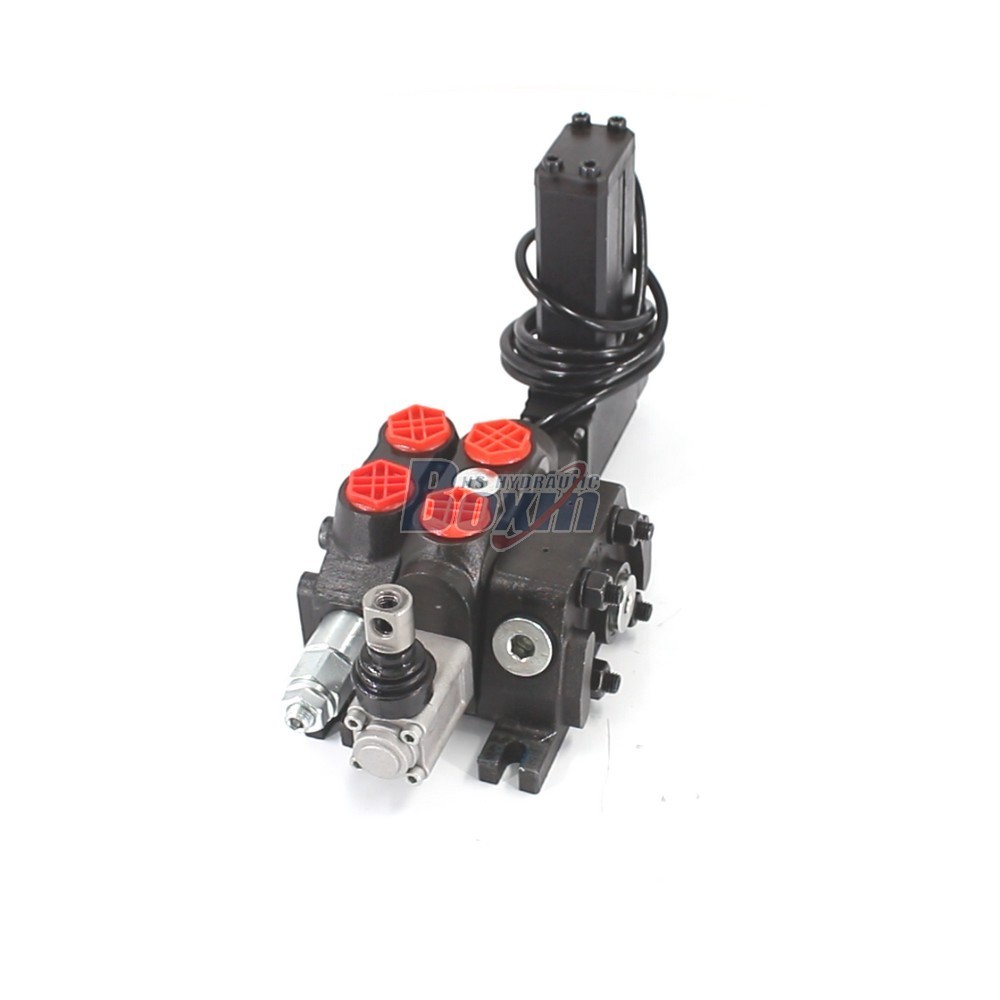

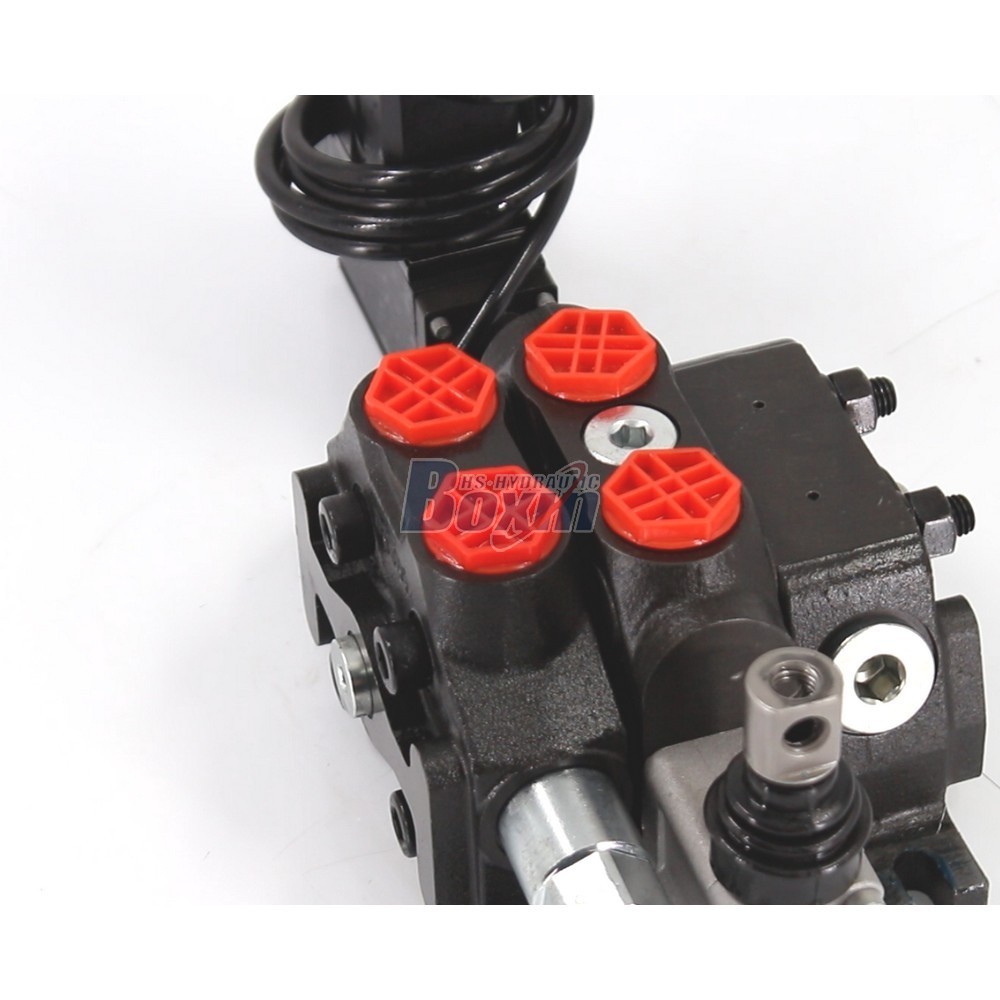

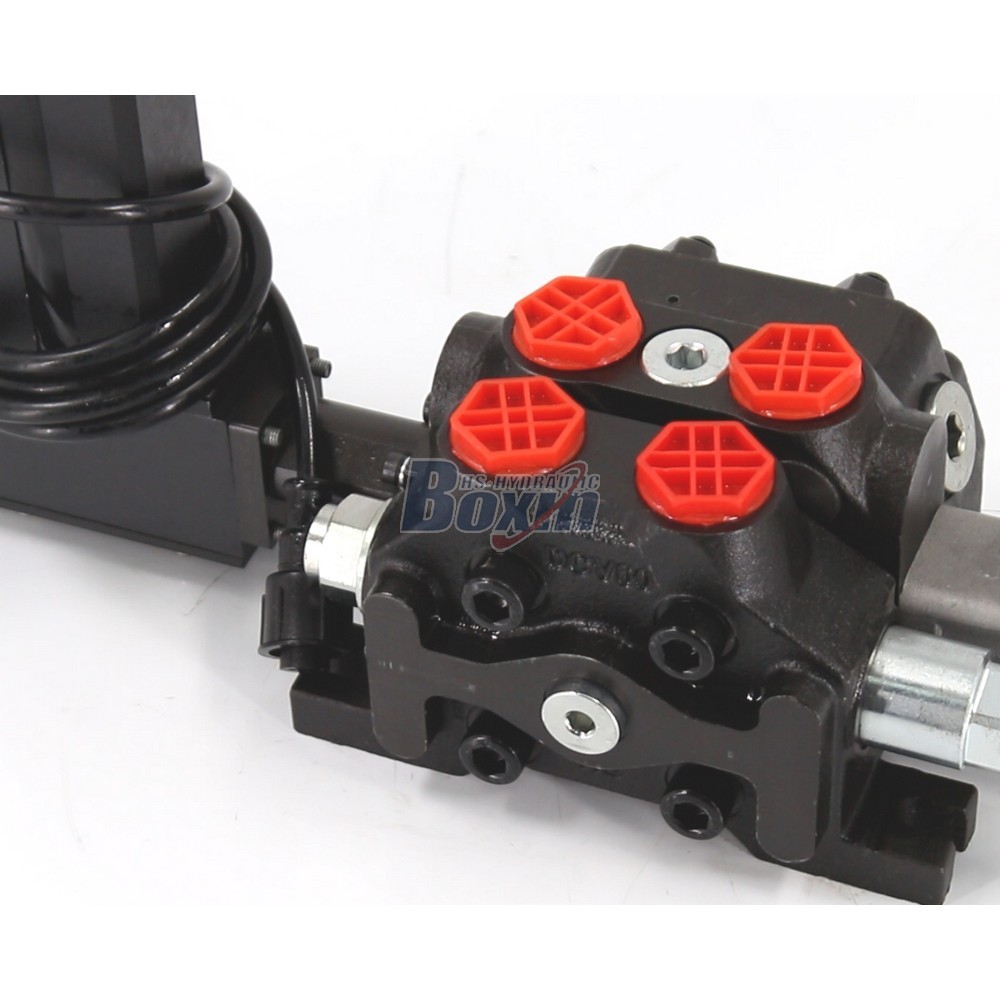

DCV60 Hydraulic Sectional Valve 1 Spool with Electric Motor Operator

DCV60 Hydraulic Sectional Valve 1 Spool with Electric Motor Operator

DCV60 Hydraulic Sectional Valve 1 Spool with Electric Motor Operator drawing image

The DCV60 series 1-spool hydraulic sectional valve features an advanced electric motor operator, delivering a rated flow of 60 L/min and handling pressures up to 315 bar. Designed for precision control in construction, agriculture, and material handling, this motorized valve offers reliable performance for tractors, mini-excavators, and aerial platforms.

Seri DCV60 Kran Arah Bagian Parameter
Metode Kontrol Buku Panduan, Pneumatik, Elektro-pneumatik, Elektro-hidraulik, Hidraulis, Hidraulik dan Manual, Kabel, Stik Kontrol, Solenoid dan Manual, Selenoid dan Joystick, Manual dan Joystick, Motor listrik
Spul 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool, 8 Spool, 9 Spool, 10 Spool, 11 Spool, 12 Spool
Kisaran Suhu Sekitar -40°C hingga +80°C (-40°F hingga +176°F)
Tipe Struktur Katup penampang
Bagian 1 Bagian, 2 Bagian, 3 Bagian, 4 Bagian, 5 Bagian, 6 Bagian, 7 Bagian, 8 Bagian, 9 Bagian, 10 Bagian, 11 Bagian, 12 Bagian
Kisaran Viskositas Operasional 15 - 75 mm²/dt (15 cSt hingga 75 cSt)
Aliran Terukur 60 L/menit (15,8 US gpm)
Tekanan Maksimum 315 bar (4600 psi), 350 bar (5100 psi)
Port Masuk G1/2, G3/4, M22×1.5, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT
Port Keluar G1/2, G3/4, M22×1.5, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT
Ukuran Port G1/2, G3/4, M22×1.5, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT

As a leading manufacturer of high-performance hydraulic components, we offer the DCV60 series 1-spool hydraulic sectional valve with electric motor operation. This robust valve supports a max pressure of 4600 psi and a flow rate of 15.8 US gpm, making it ideal for heavy-duty applications such as telehandlers, skid steer loaders, and bale wrappers. Our factory provides comprehensive manufacturing, OEM, and private labeling services to meet your specific technical requirements. We specialize in custom configurations and bulk wholesale supply for global markets. We are actively seeking long-term cooperation with distributors, wholesalers, regional agents, and international traders. By partnering with our factory, you gain access to direct manufacturer pricing, consistent quality control, and scalable production capabilities for industrial and mobile hydraulic systems. Our DCV60 valves feature G1/2 porting for easy integration into existing tractor and front-end loader circuits, ensuring efficient operation across diverse industrial vehicles.
