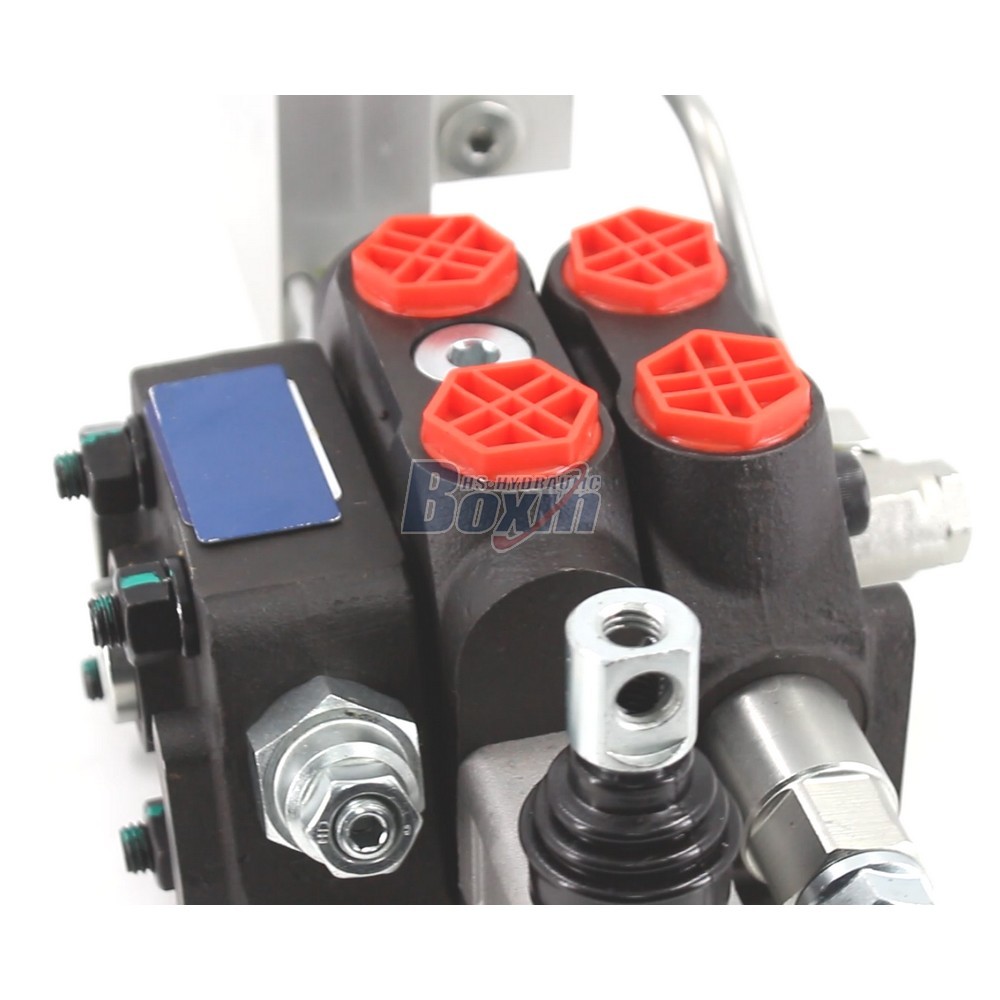

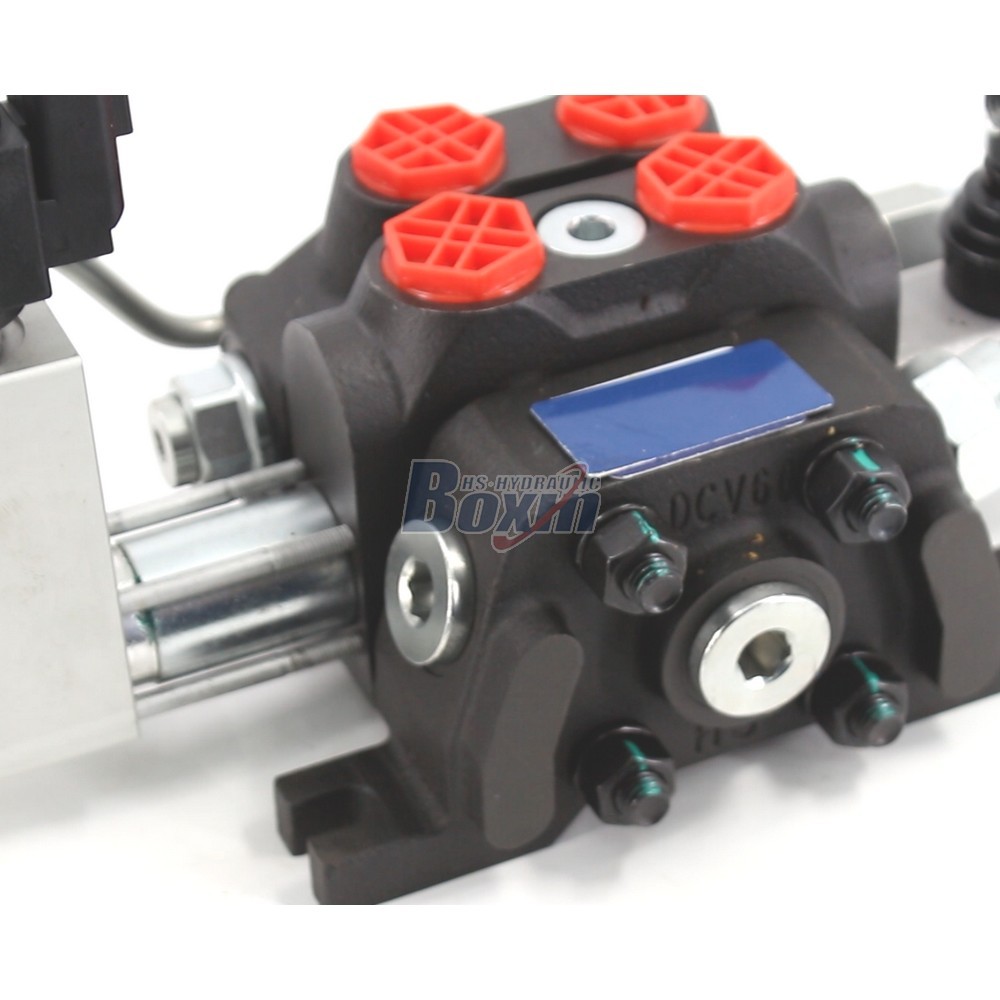

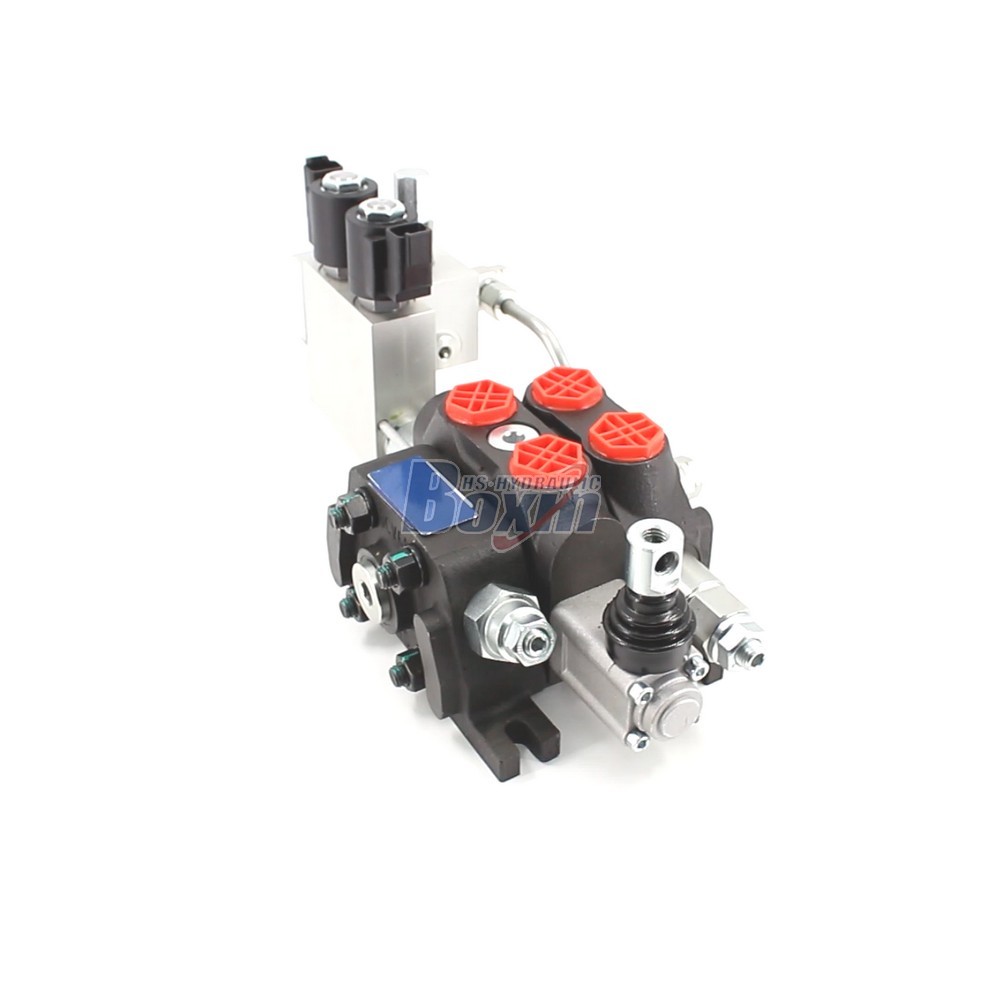

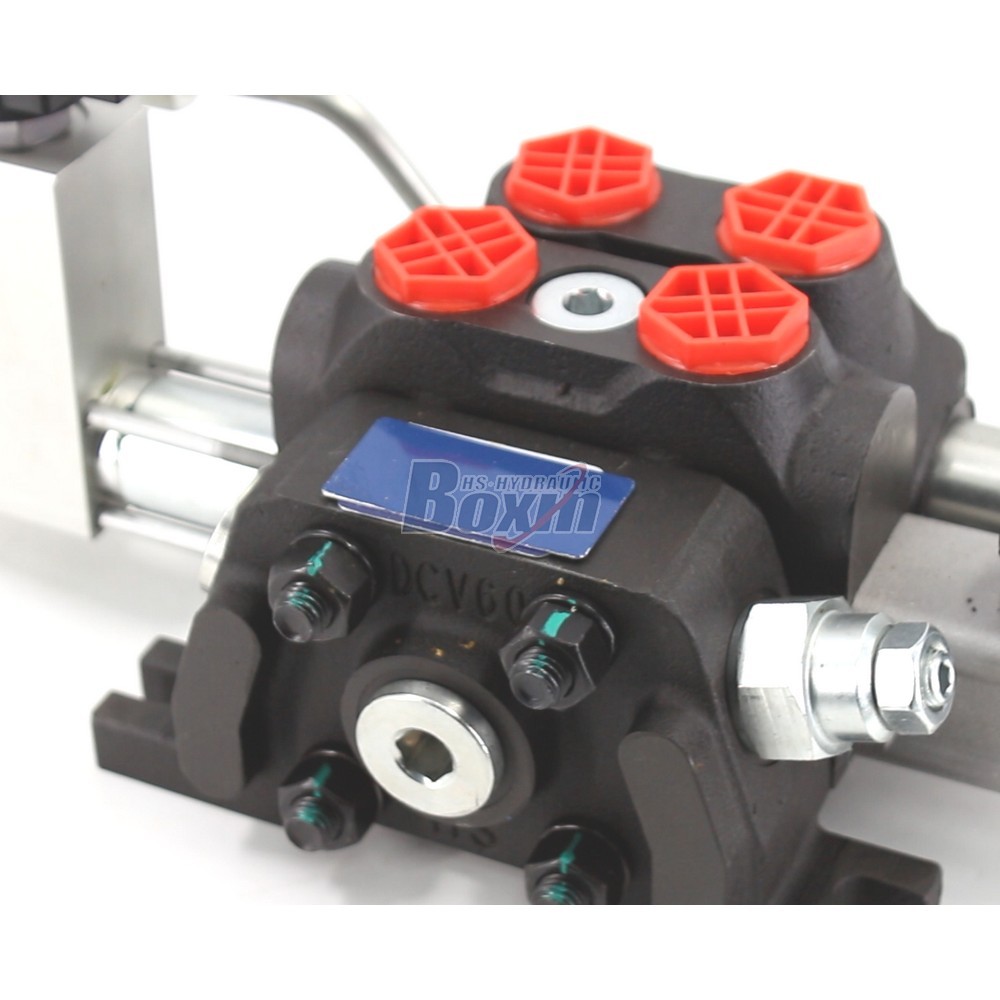

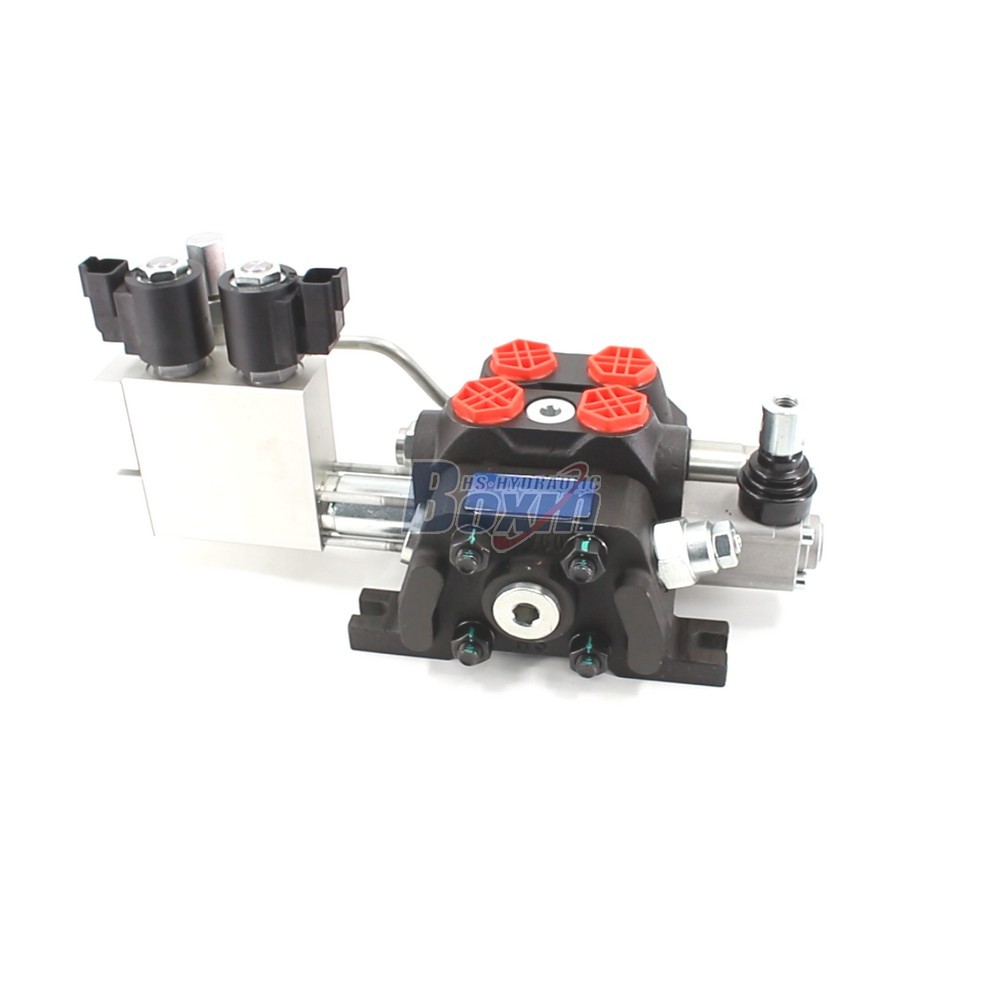

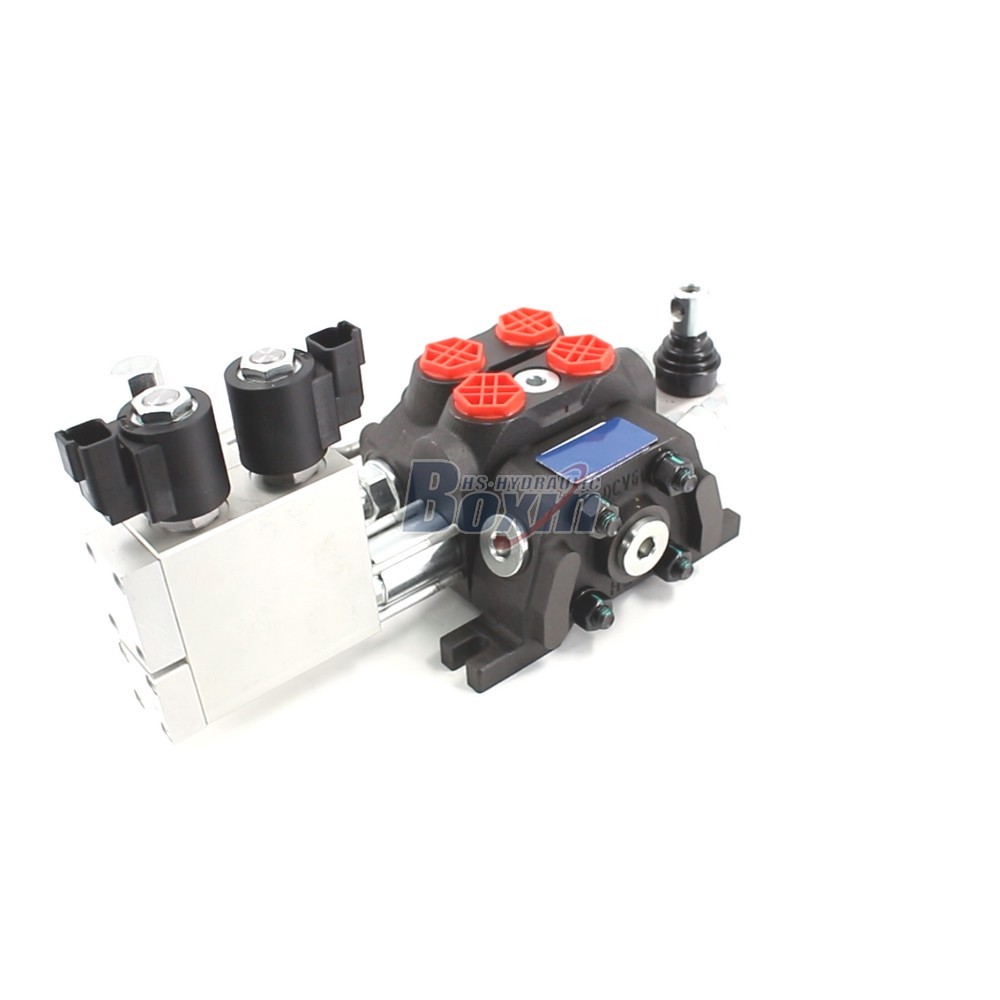

The DCV60 Series is a high-performance, single-spool electro-hydraulic directional control valve engineered for heavy-duty mobile applications. Featuring a 60 L/min flow rate and 350 bar pressure capacity, it offers precise control for construction, agricultural, and material handling equipment.
| Seri DCV60 Kran Arah Bagian Parameter | |
|---|---|
| Metode Kontrol | Buku Panduan, Pneumatik, Elektro-pneumatik, Elektro-hidraulik, Hidraulis, Hidraulik dan Manual, Kabel, Stik Kontrol, Solenoid dan Manual, Selenoid dan Joystick, Manual dan Joystick, Motor listrik |
| Spul | 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool, 8 Spool, 9 Spool, 10 Spool, 11 Spool, 12 Spool |
| Kisaran Suhu Sekitar | -40°C hingga +80°C (-40°F hingga +176°F) |
| Tipe Struktur | Katup penampang |
| Bagian | 1 Bagian, 2 Bagian, 3 Bagian, 4 Bagian, 5 Bagian, 6 Bagian, 7 Bagian, 8 Bagian, 9 Bagian, 10 Bagian, 11 Bagian, 12 Bagian |
| Kisaran Viskositas Operasional | 15 - 75 mm²/dt (15 cSt hingga 75 cSt) |
| Aliran Terukur | 60 L/menit (15,8 US gpm) |
| Tekanan Maksimum | 315 bar (4600 psi), 350 bar (5100 psi) |
| Port Masuk | G1/2, G3/4, M22×1.5, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Port Keluar | G1/2, G3/4, M22×1.5, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Ukuran Port | G1/2, G3/4, M22×1.5, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
As a leading manufacturer of hydraulic components, we specialize in high-precision directional control valves designed for demanding operational environments. Our DCV60 Series provides reliable performance for various machinery, including tractors, mini-excavators, and material handling vehicles. We are committed to supporting global partners through flexible cooperation models, including OEM, ODM, private labeling, and custom engineering services. Our factory-direct supply chain ensures consistent quality and competitive wholesale pricing for global distributors, wholesalers, and international traders. Whether you require standard inventory or specialized, application-specific configurations, our production team is equipped to meet your technical specifications with efficiency and professional support. We are actively seeking long-term partnerships with distributors, wholesalers, and trade companies worldwide to expand our market reach and deliver high-value hydraulic solutions to the construction and agricultural sectors.
