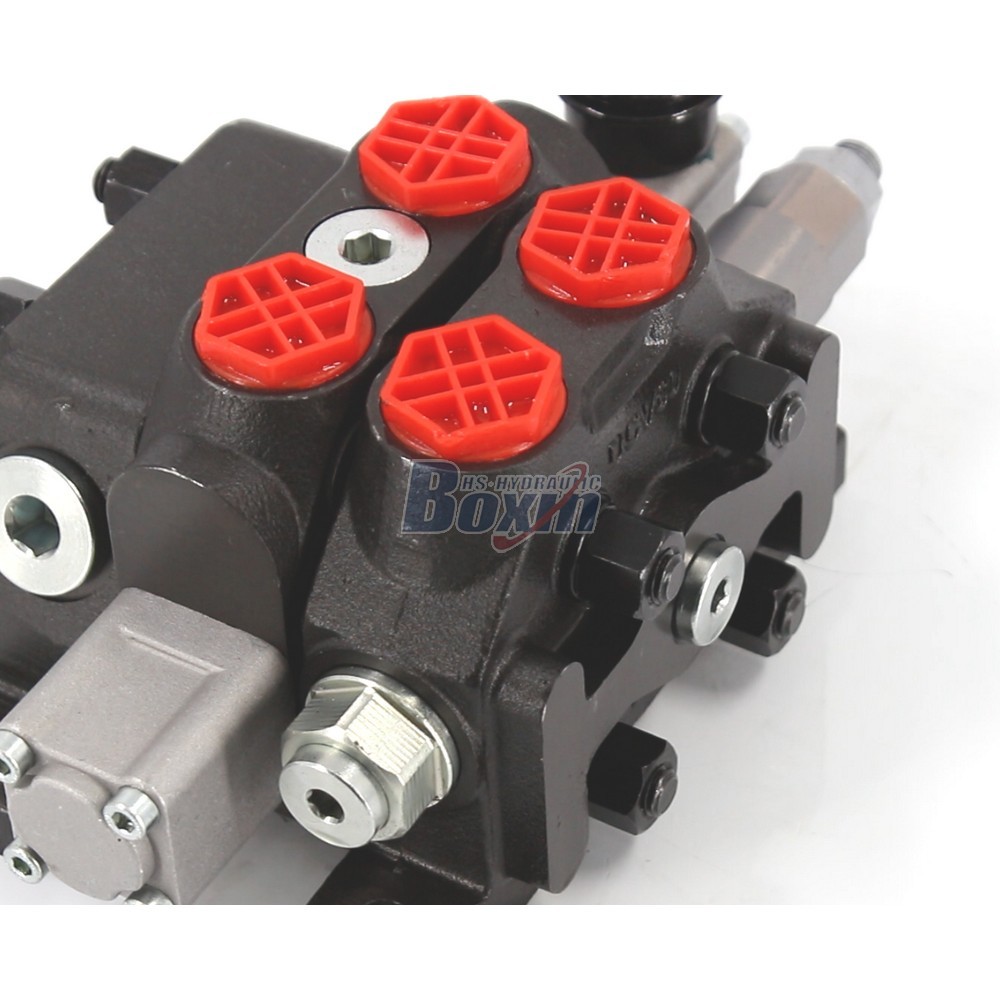

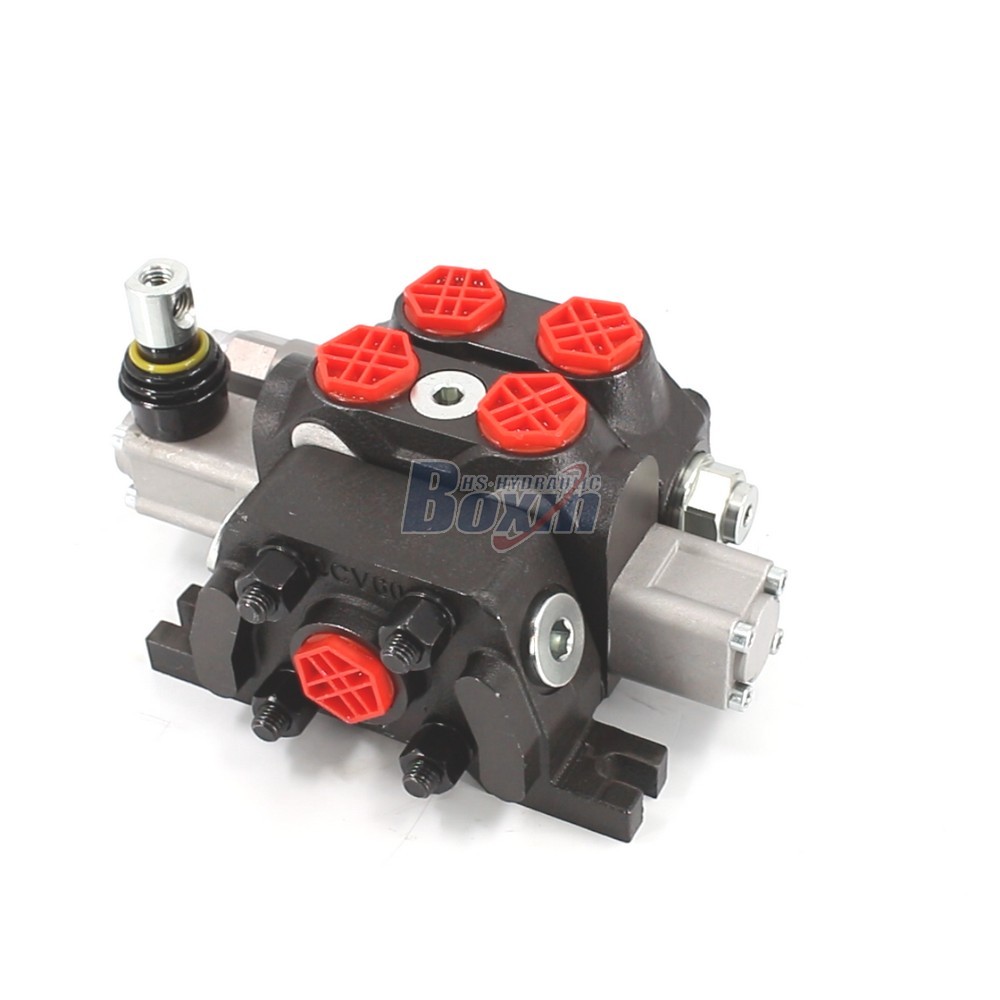

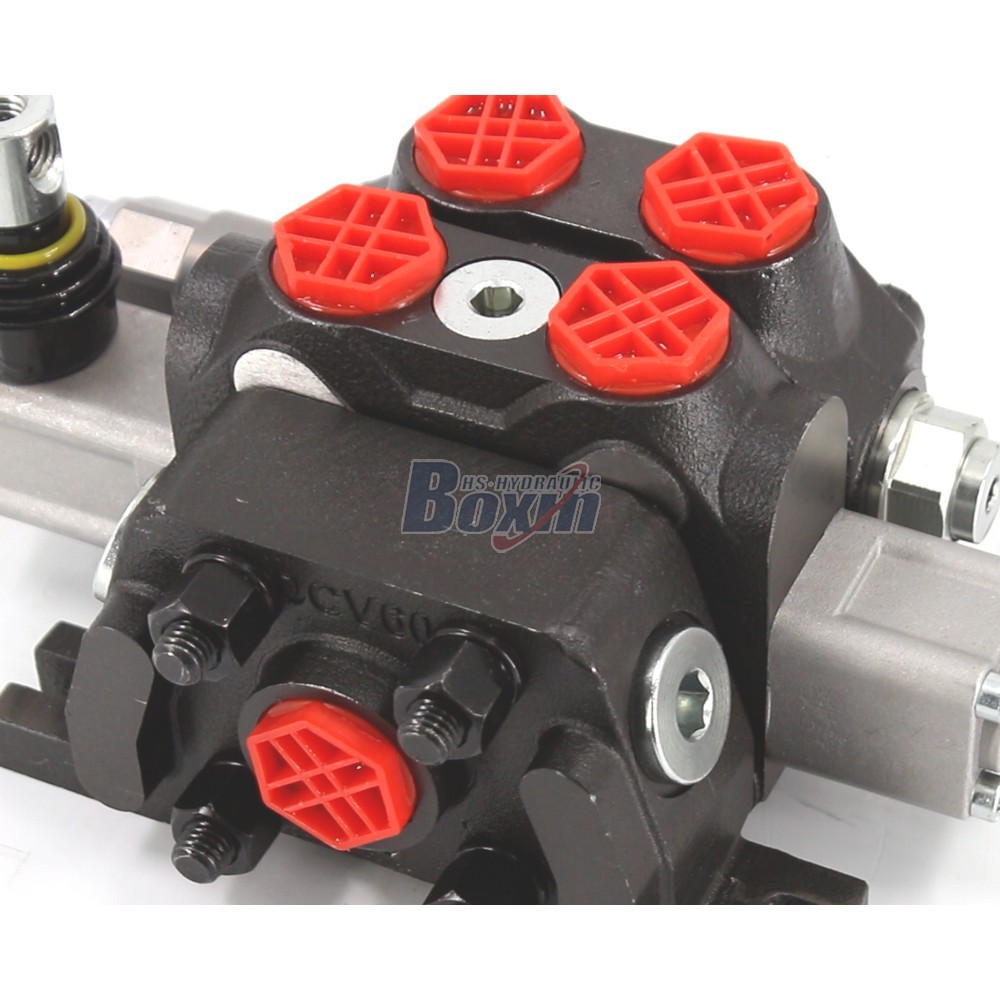

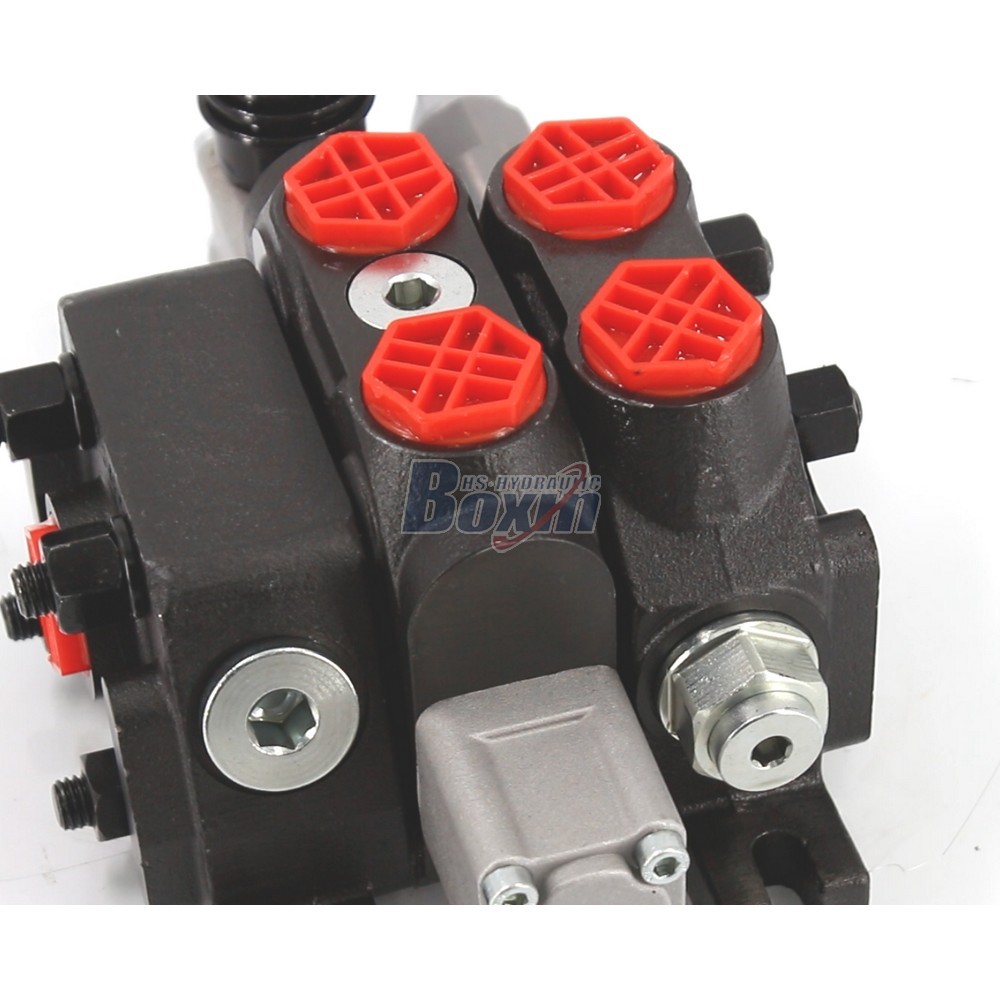

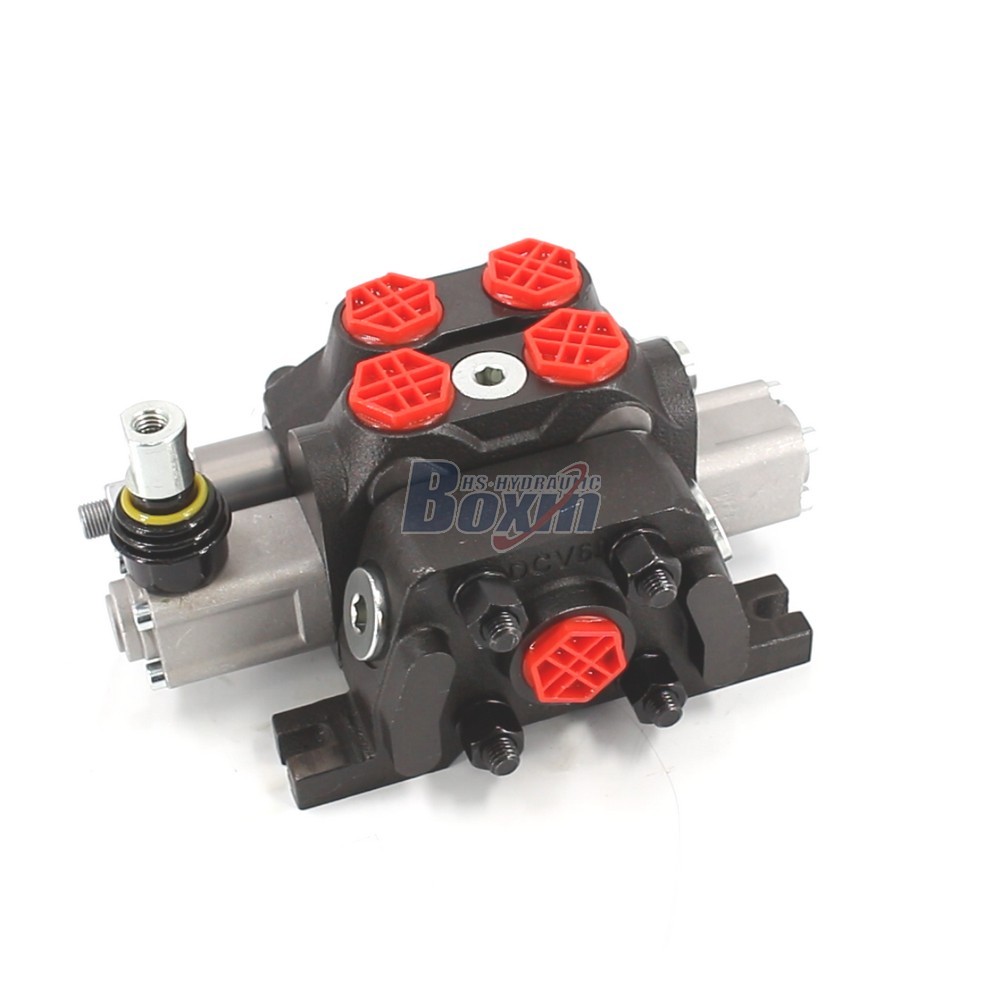

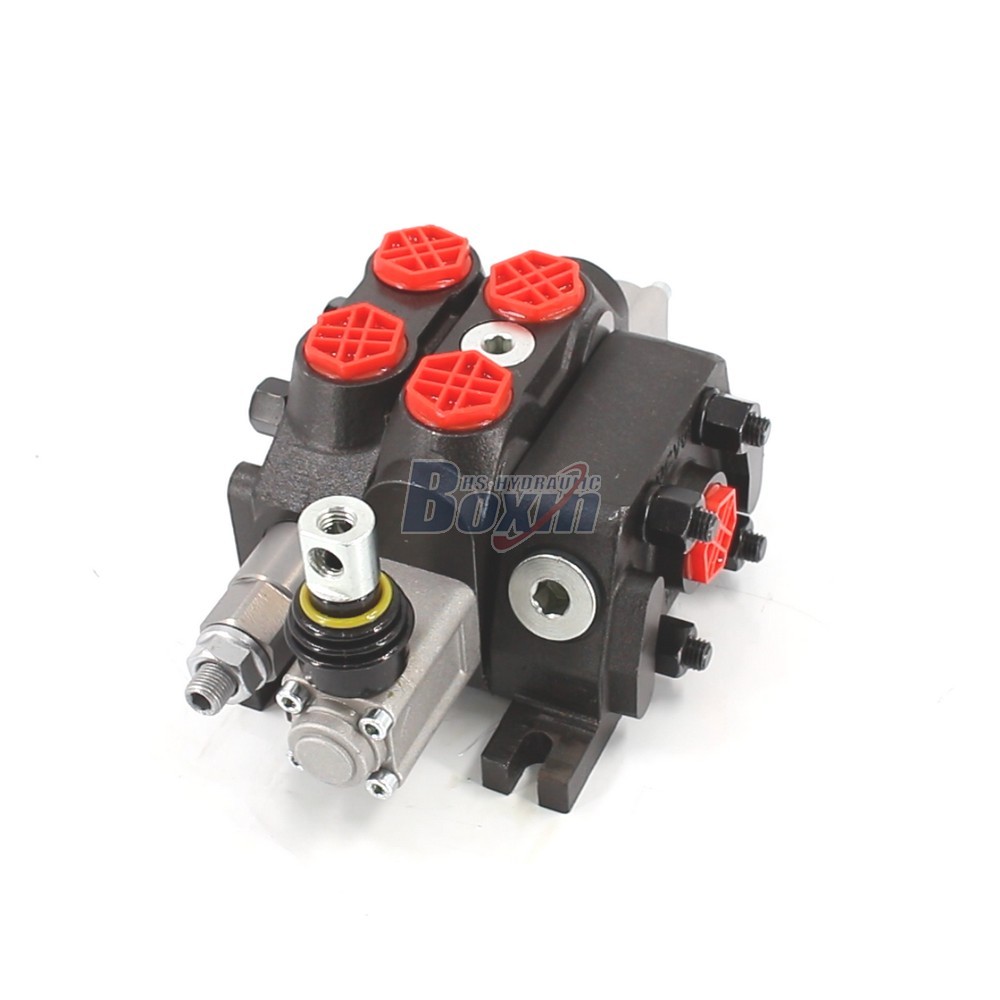

The DCV60 Series is a high-performance 1-spool sectional manual directional control valve designed for versatile hydraulic systems, offering a rated flow of 60 L/min and operating pressures up to 350 bar. It is ideal for material handling, construction, and agricultural machinery, providing precise manual control and robust durability.
| Seri DCV60 Kran Arah Bagian Parameter | |
|---|---|
| Metode Kontrol | Buku Panduan, Pneumatik, Elektro-pneumatik, Elektro-hidraulik, Hidraulis, Hidraulik dan Manual, Kabel, Stik Kontrol, Solenoid dan Manual, Selenoid dan Joystick, Manual dan Joystick, Motor listrik |
| Spul | 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool, 8 Spool, 9 Spool, 10 Spool, 11 Spool, 12 Spool |
| Kisaran Suhu Sekitar | -40°C hingga +80°C (-40°F hingga +176°F) |
| Tipe Struktur | Katup penampang |
| Bagian | 1 Bagian, 2 Bagian, 3 Bagian, 4 Bagian, 5 Bagian, 6 Bagian, 7 Bagian, 8 Bagian, 9 Bagian, 10 Bagian, 11 Bagian, 12 Bagian |
| Kisaran Viskositas Operasional | 15 - 75 mm²/dt (15 cSt hingga 75 cSt) |
| Aliran Terukur | 60 L/menit (15,8 US gpm) |
| Tekanan Maksimum | 315 bar (4600 psi), 350 bar (5100 psi) |
| Port Masuk | G1/2, G3/4, M22×1.5, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Port Keluar | G1/2, G3/4, M22×1.5, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Ukuran Port | G1/2, G3/4, M22×1.5, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
As a leading manufacturer of hydraulic solutions, we present the DCV60 Series Manual Directional Control Valve. This 1-spool sectional type valve is engineered for high-pressure applications, reaching up to 350 bar (5100 psi) with a stable flow rate of 60 L/min (15.8 US gpm). Featuring G1/2 inlet and outlet ports, it is perfectly suited for equipment such as mini-excavators, skid steer loaders, tractors, and forklifts.
Our factory provides comprehensive services including OEM, private labeling (ODM), and tailored customization to meet specific technical requirements. We specialize in factory-direct wholesale and large-scale manufacturing, ensuring reliable supply chains and professional quality. We are actively seeking global partners, including distributors, wholesalers, regional agents, and international traders to expand our global market presence. Partner with us for competitive factory pricing and superior technical support in the hydraulic components sector.
