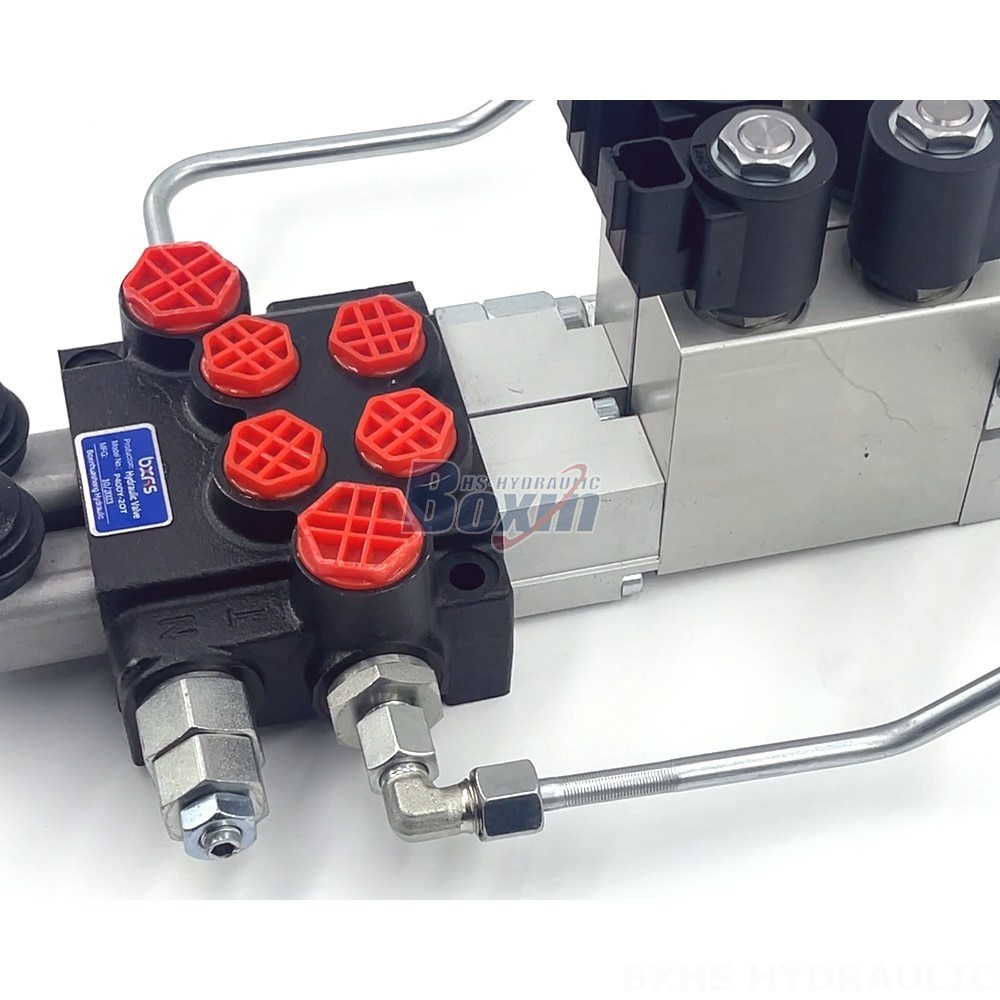

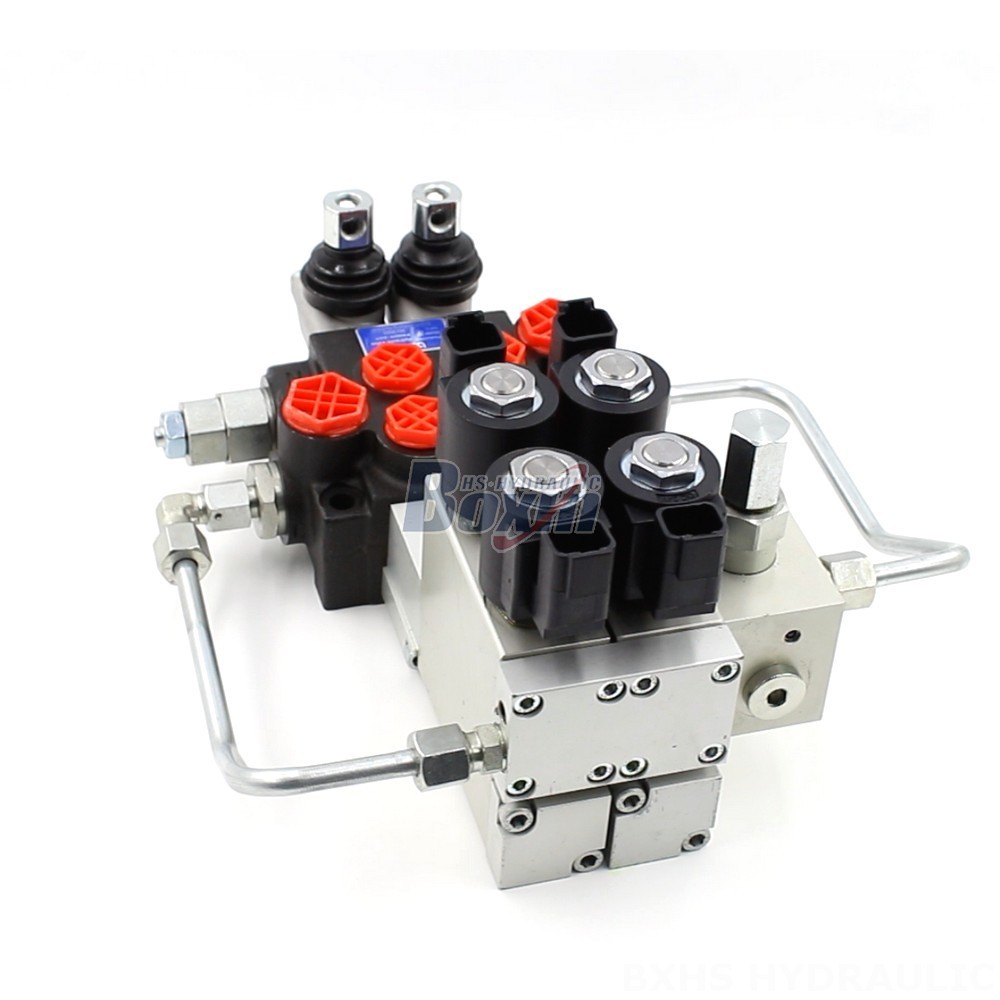

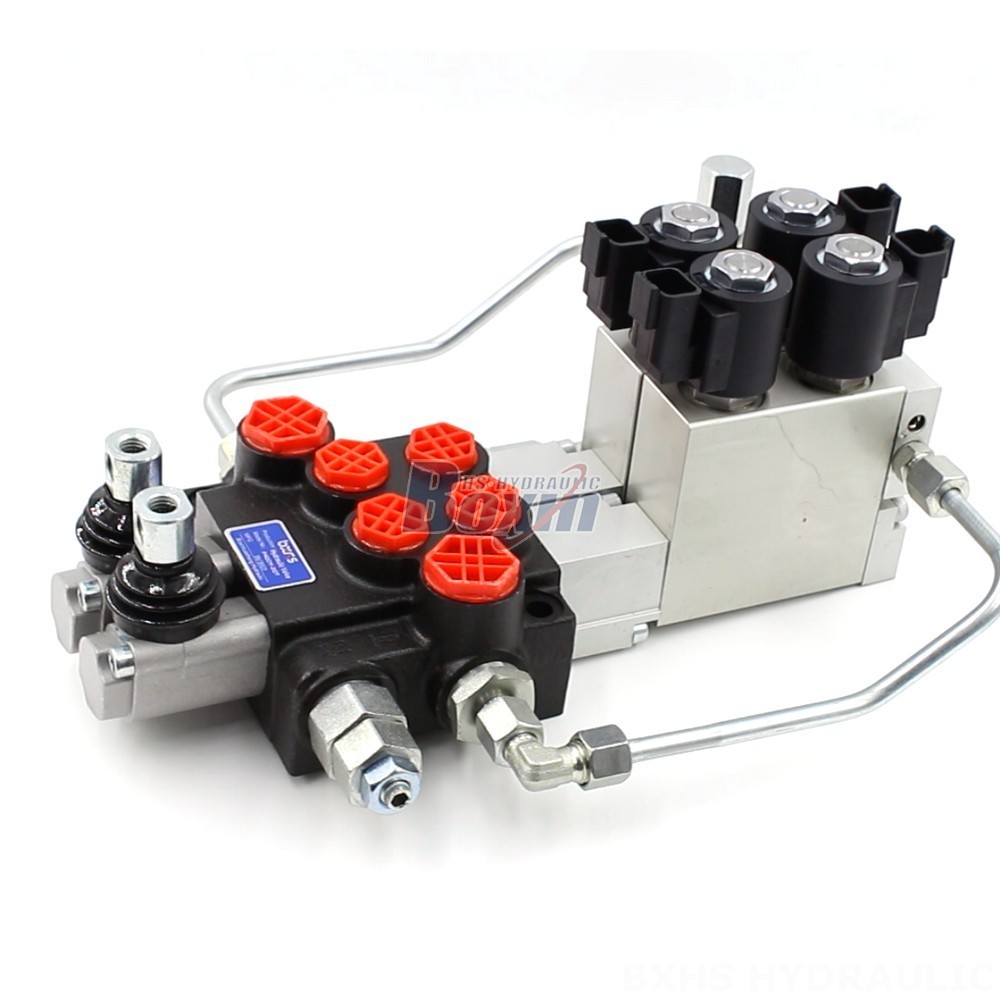

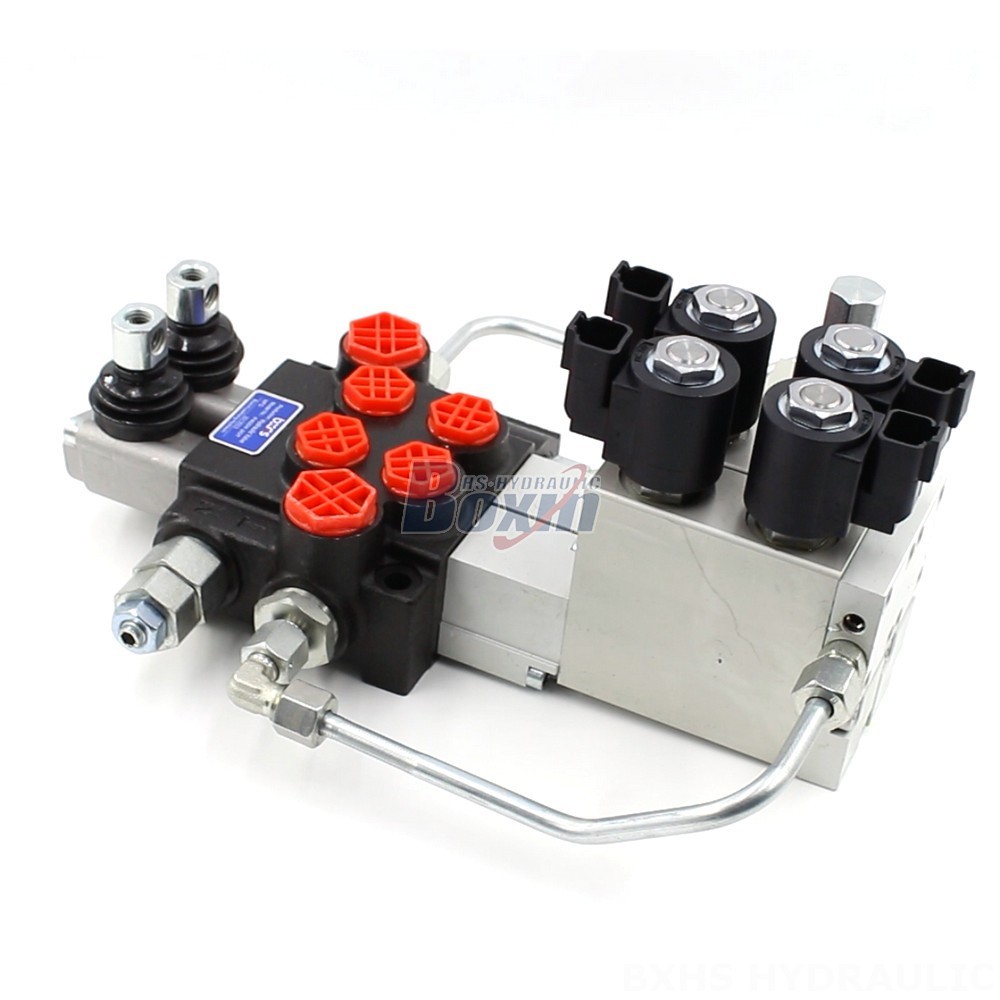

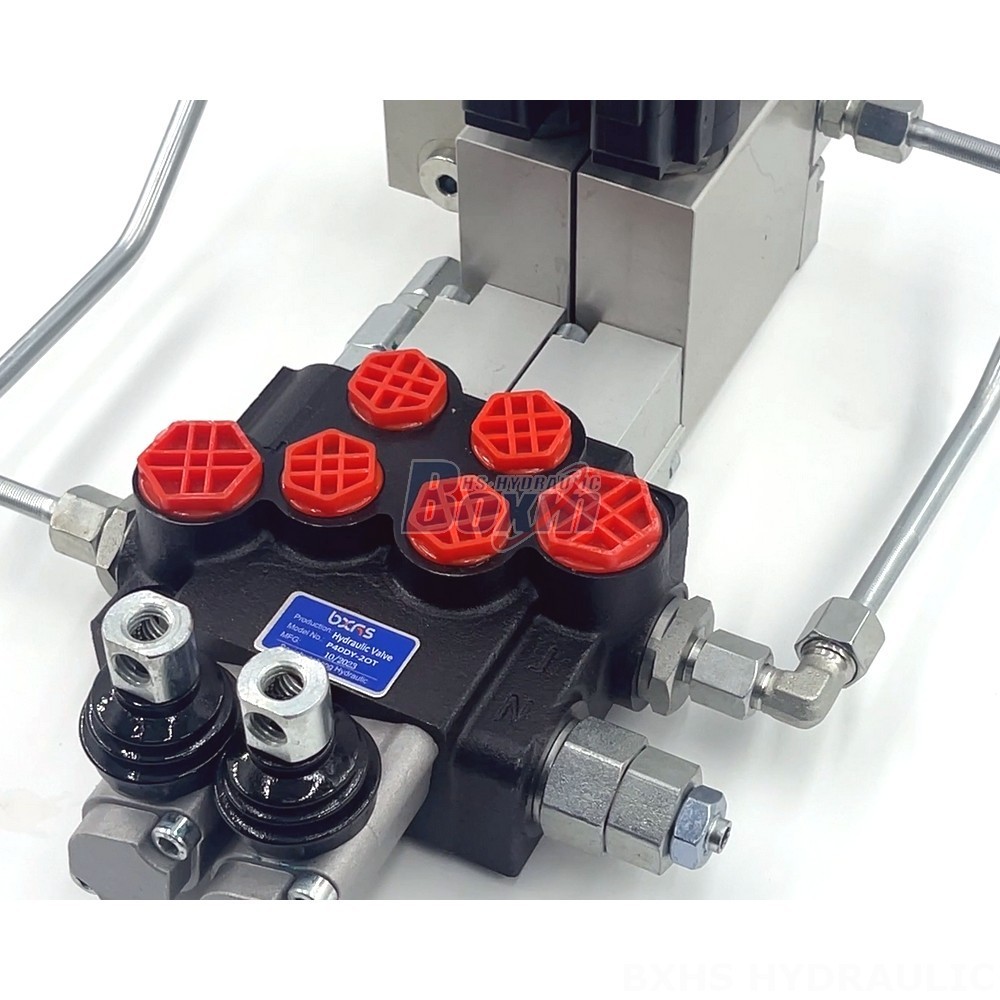

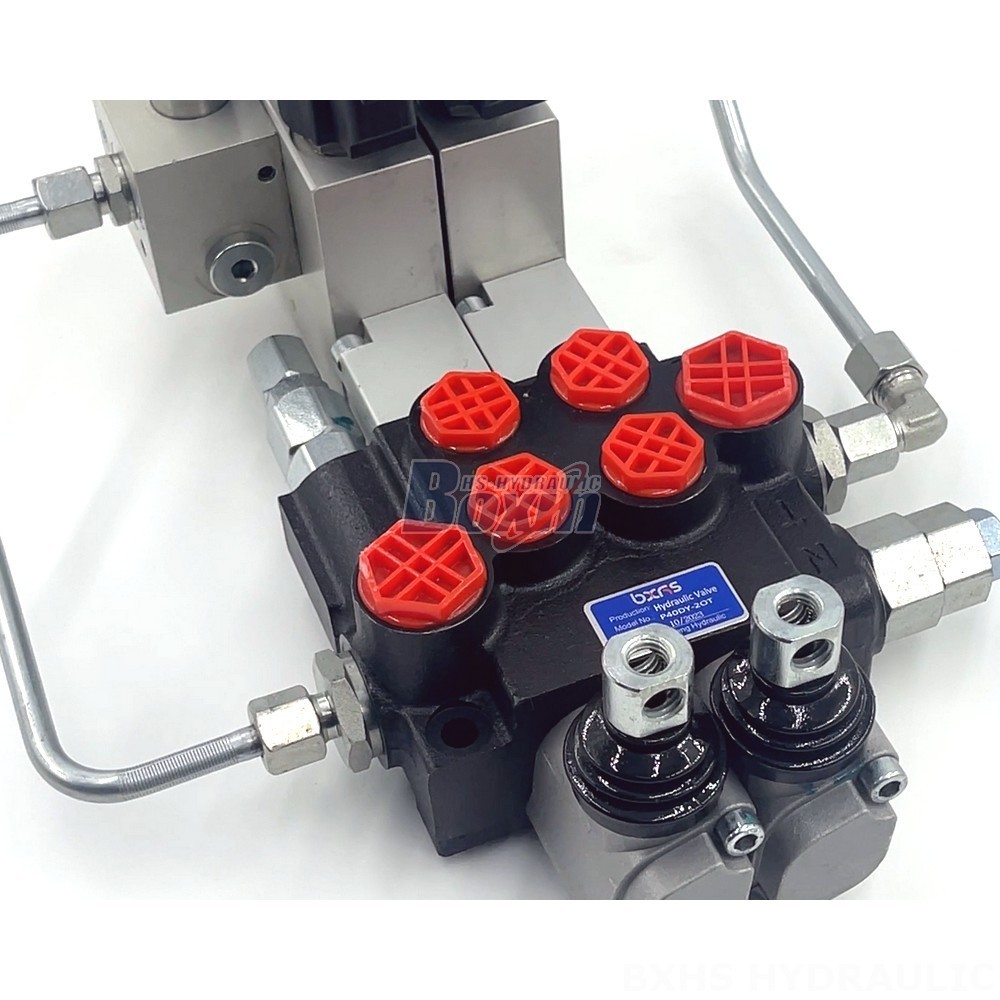

These P40 Valves are electro-hydraulic, 2 section, monoblock valves with a rated flow of 40 L/min and a max pressure of 250 bar. They have an operating viscosity range of 15 - 75 mm²/s and an ambient temperature range of -40°C to +80°C. The valves have 2 spools and are available in a variety of configurations to meet your specific needs.
| Seri P40 Katup Arah Monoblok Parameter | |
|---|---|
| Metode Kontrol | Buku Panduan, Pneumatik, Elektro-pneumatik, Elektro-hidraulik, Selenoid, Hidraulis, Hidraulik dan Manual, Kabel, Stik Kontrol, Selenoid dan Joystick, Manual dan Joystick, Solenoid dan Kabel |
| Spul | 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool |
| Kisaran Suhu Sekitar | -40°C hingga +80°C (-40°F hingga +176°F) |
| Tipe Struktur | Katup monoblok |
| Bagian | 1 Bagian, 2 Bagian, 3 Bagian, 4 Bagian, 5 Bagian, 6 Bagian, 7 Bagian |
| Kisaran Viskositas Operasional | 15 - 75 mm²/dt (15 cSt hingga 75 cSt) |
| Aliran Terukur | 40 L/menit (10,5 US gpm) |
| Tekanan Maksimum | 250 bar (3600 psi) |
| Port Masuk | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Port Keluar | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Ukuran Port | G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
Our P40 Series valves are designed and manufactured to your specifications. We offer OEM and ODM services, so you can be sure that you're getting the perfect valves for your application. Our valves are made with high-quality materials and components, and they're tested to ensure that they meet the highest standards of performance and reliability.
If you're looking for a high-quality, custom-made valve, then our P40 Series valves are the perfect choice. Contact us today to learn more about our products and services.
