Produksi & Pengiriman
Waktu Produksi 15-30 Hari
1303 Pandangan Mencari Produk Ini

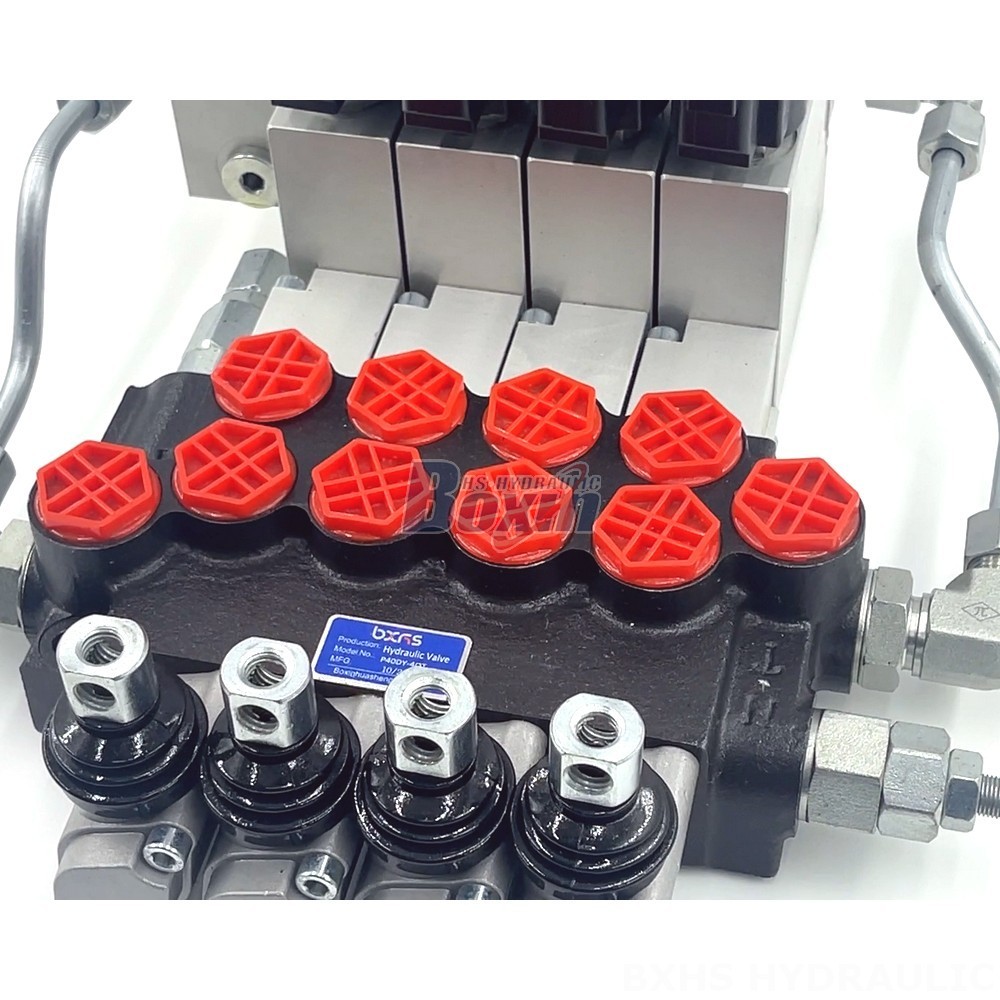

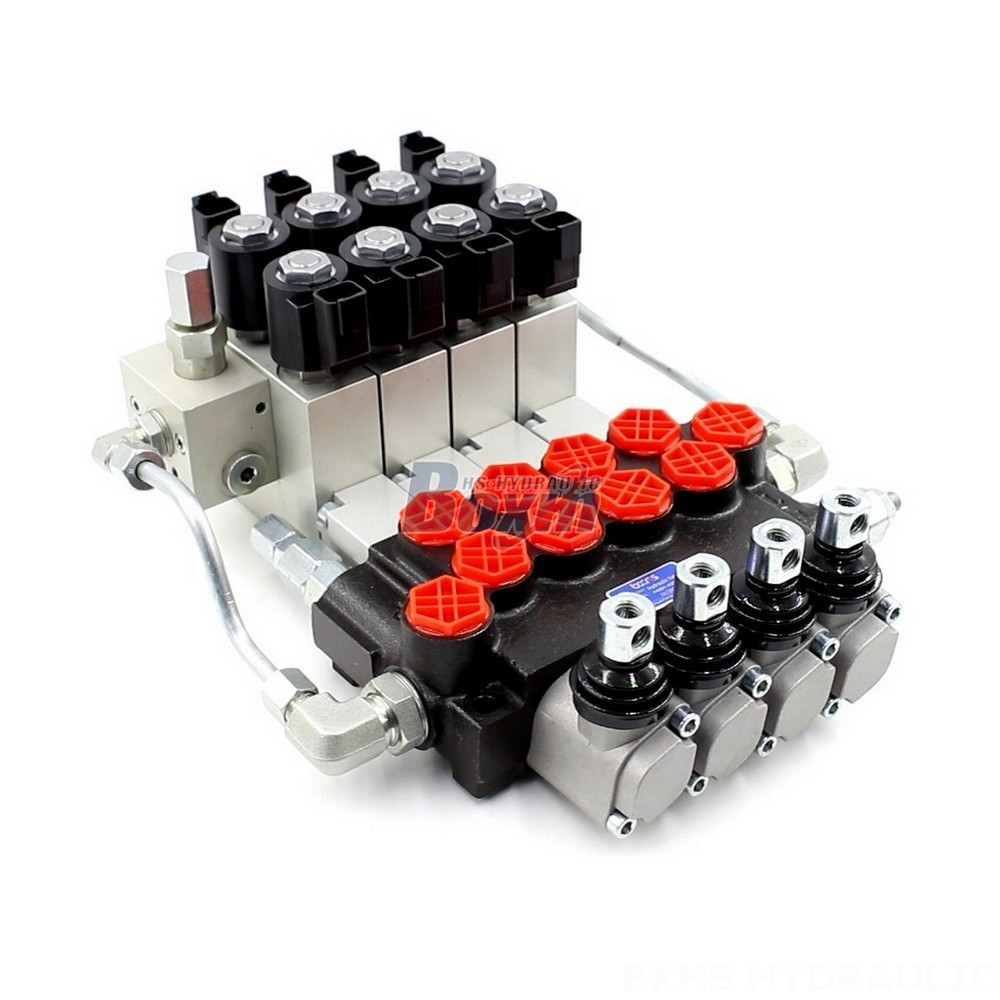

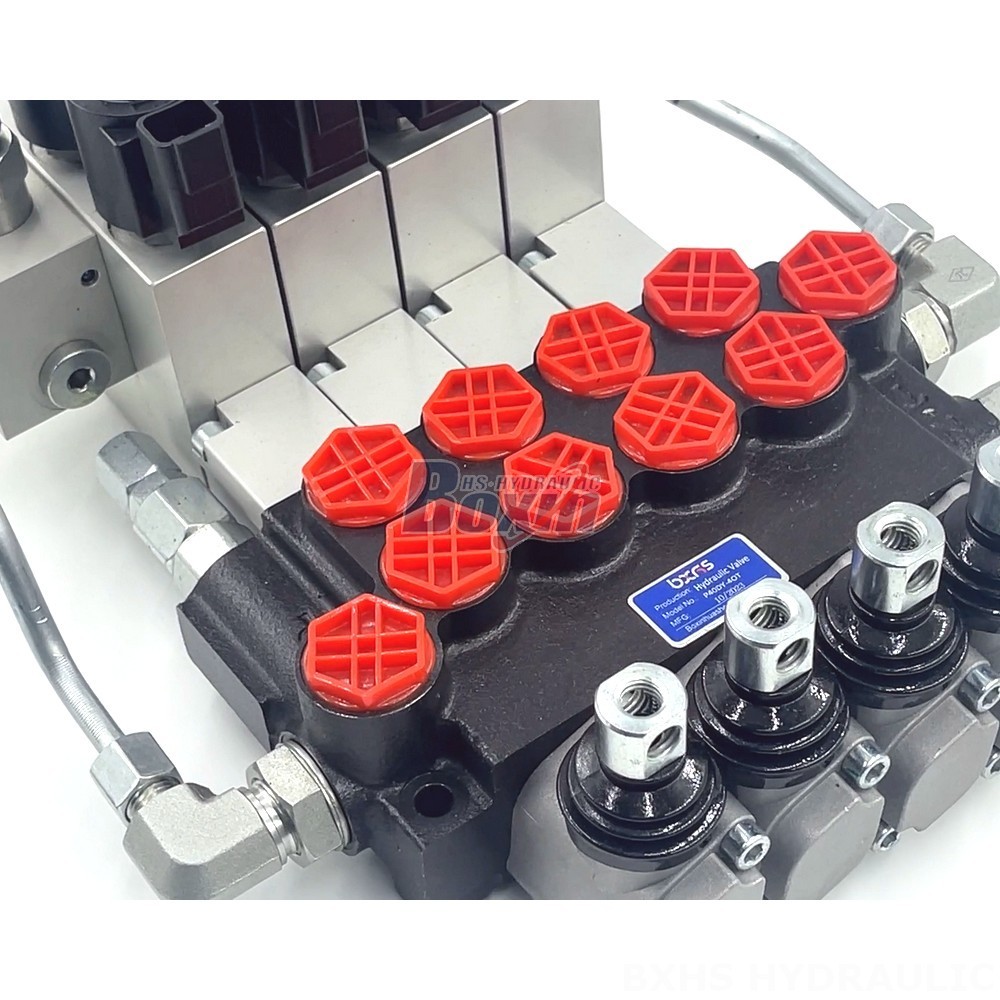

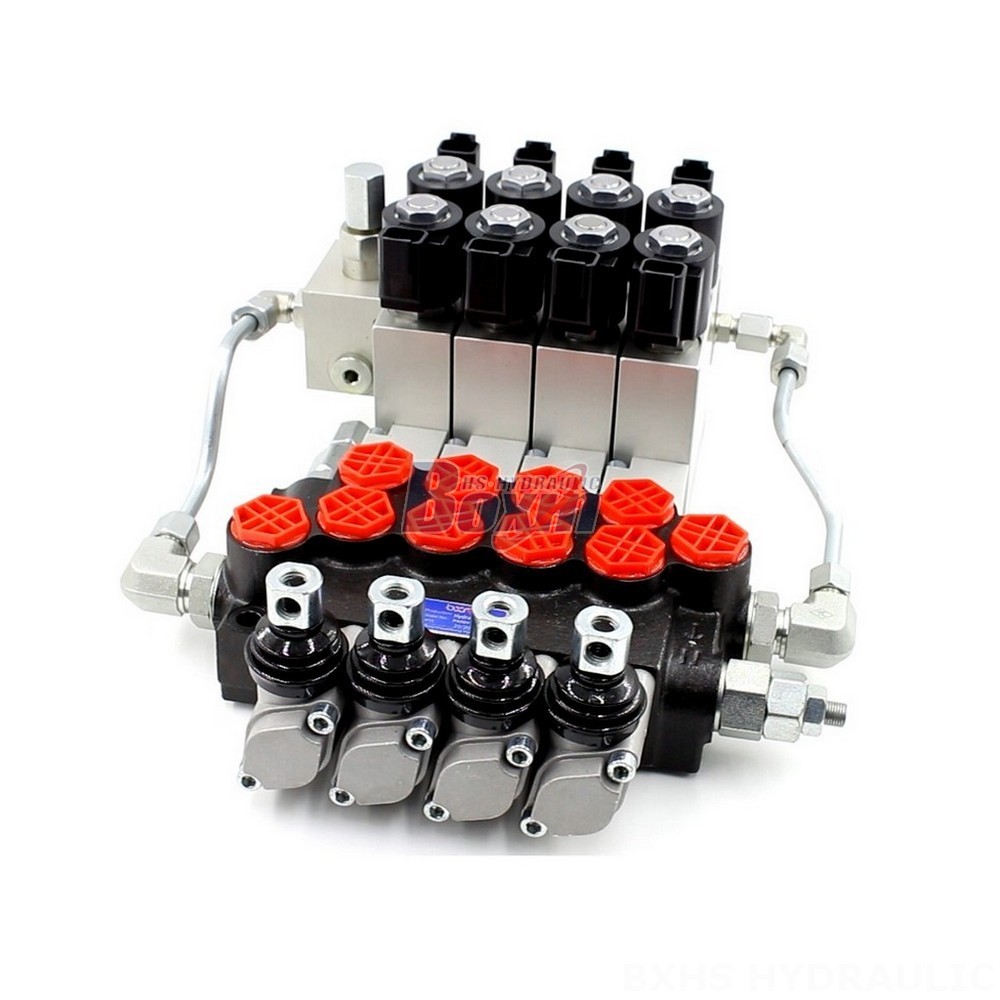

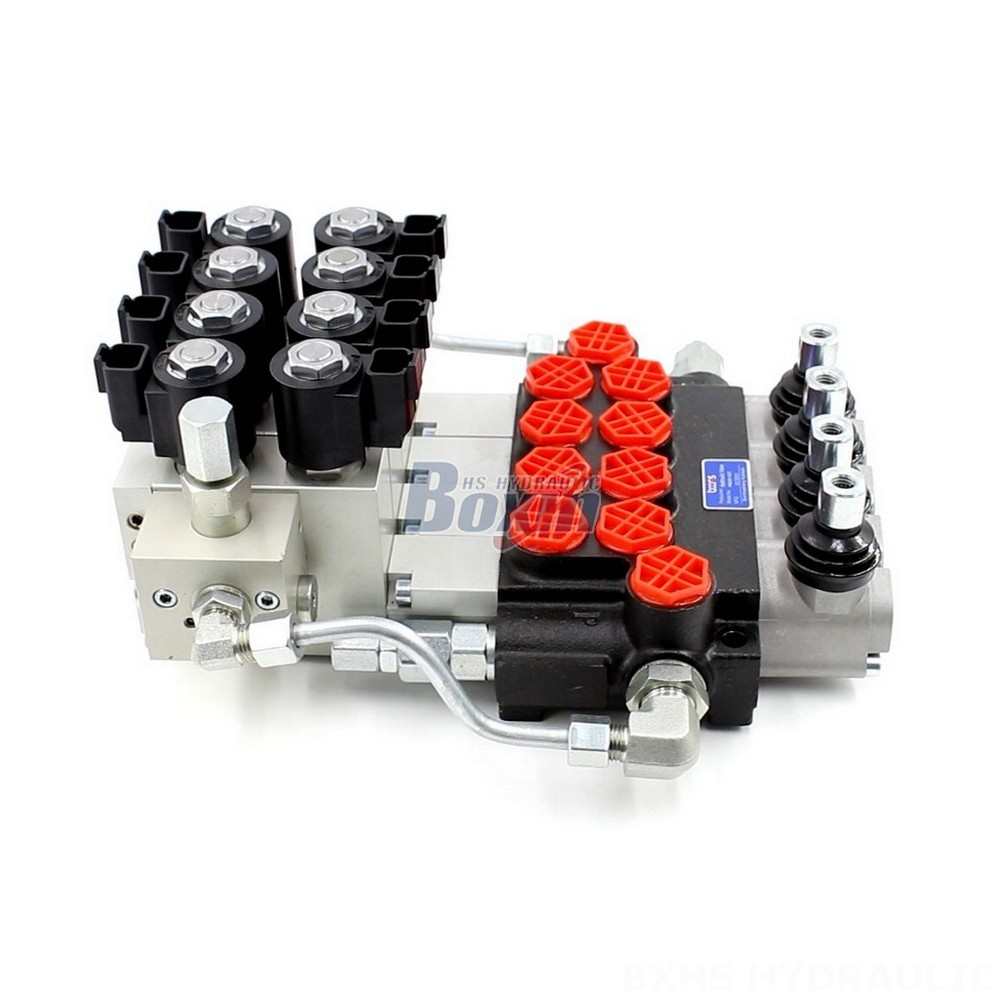

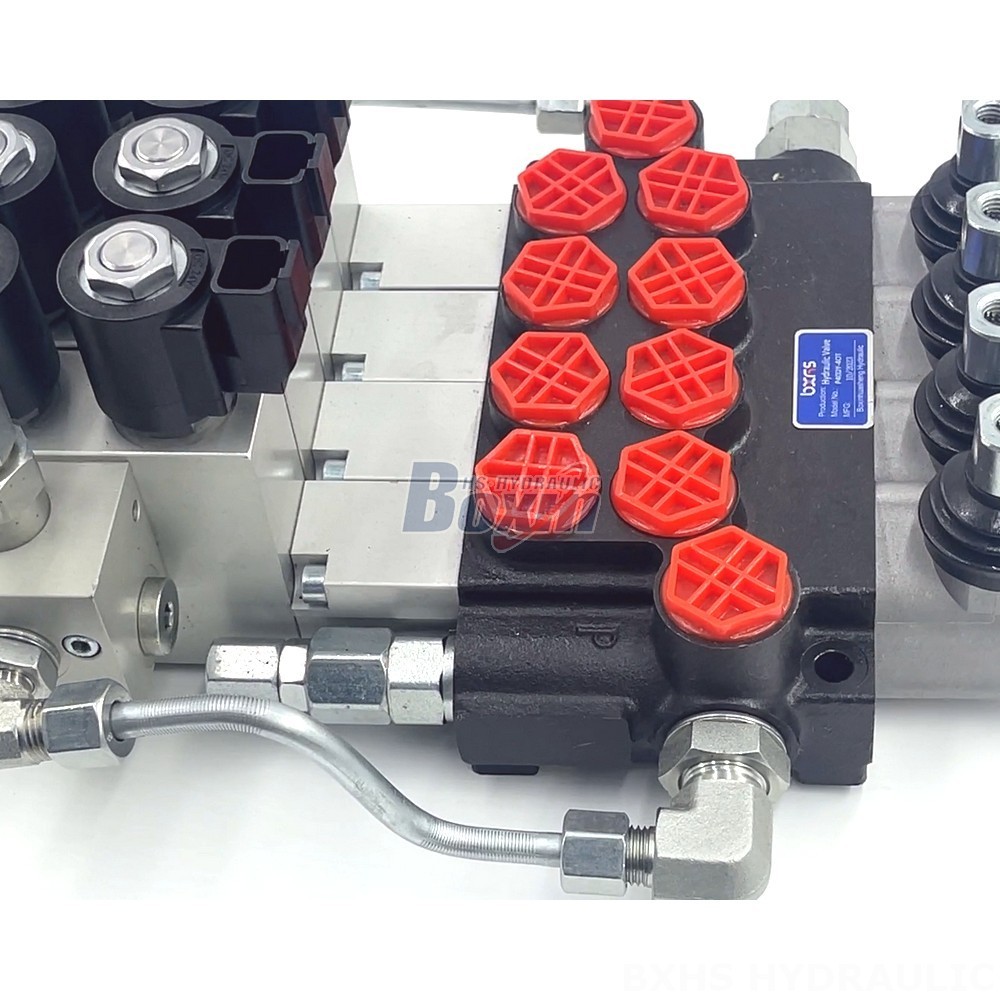

This 12V DC hydraulic valve, P40 Series, is a 4-section, 4-spool monoblock valve with a rated flow of 40 L/min and a maximum pressure of 250 bar. We offer ODM services for this valve, providing custom design and manufacturing to your specific requirements.
| Seri P40 Katup Arah Monoblok Parameter | |
|---|---|
| Metode Kontrol | Buku Panduan, Pneumatik, Elektro-pneumatik, Elektro-hidraulik, Selenoid, Hidraulis, Hidraulik dan Manual, Kabel, Stik Kontrol, Selenoid dan Joystick, Manual dan Joystick, Solenoid dan Kabel |
| Spul | 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool |
| Kisaran Suhu Sekitar | -40°C hingga +80°C (-40°F hingga +176°F) |
| Tipe Struktur | Katup monoblok |
| Bagian | 1 Bagian, 2 Bagian, 3 Bagian, 4 Bagian, 5 Bagian, 6 Bagian, 7 Bagian |
| Kisaran Viskositas Operasional | 15 - 75 mm²/dt (15 cSt hingga 75 cSt) |
| Aliran Terukur | 40 L/menit (10,5 US gpm) |
| Tekanan Maksimum | 250 bar (3600 psi) |
| Port Masuk | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Port Keluar | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Ukuran Port | G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
The P40 Series hydraulic valve is a high-performance electro-hydraulic control valve designed for demanding applications in industries such as construction, material handling, agriculture, and industrial vehicles. It features a robust monoblock construction with 4 sections and 4 spools, providing precise and reliable control of hydraulic systems. The valve operates on 12V DC power and is available with a range of options to meet your specific needs. We offer ODM services for this valve, including custom design, manufacturing, and private labeling. We can also provide wholesale pricing and support for distributors and dealers. Contact us today to discuss your requirements and get a customized quote.
