Direct Factory Source for SD8 Manual 6 Spool Directional Valve

Metode Kontrol:Buku Panduan

Spul:6 Spool

Aliran Terukur:90 L/menit (23,8 US gpm)

Tekanan Maksimum:315 bar (4600 psi)

Port Masuk:G1/2

Port Keluar:G3/4

Ukuran Port:G1/2

Merek:BXHS

Tipe Produk:Kran Arah Bagian

Seri Produk:Seri SD8 Kran Arah Bagian

Ukuran kemasan:40*36*16

Kelas kotor:24.50 kg

Ketersediaan: Tersedia

111 Pandangan Mencari Produk Ini

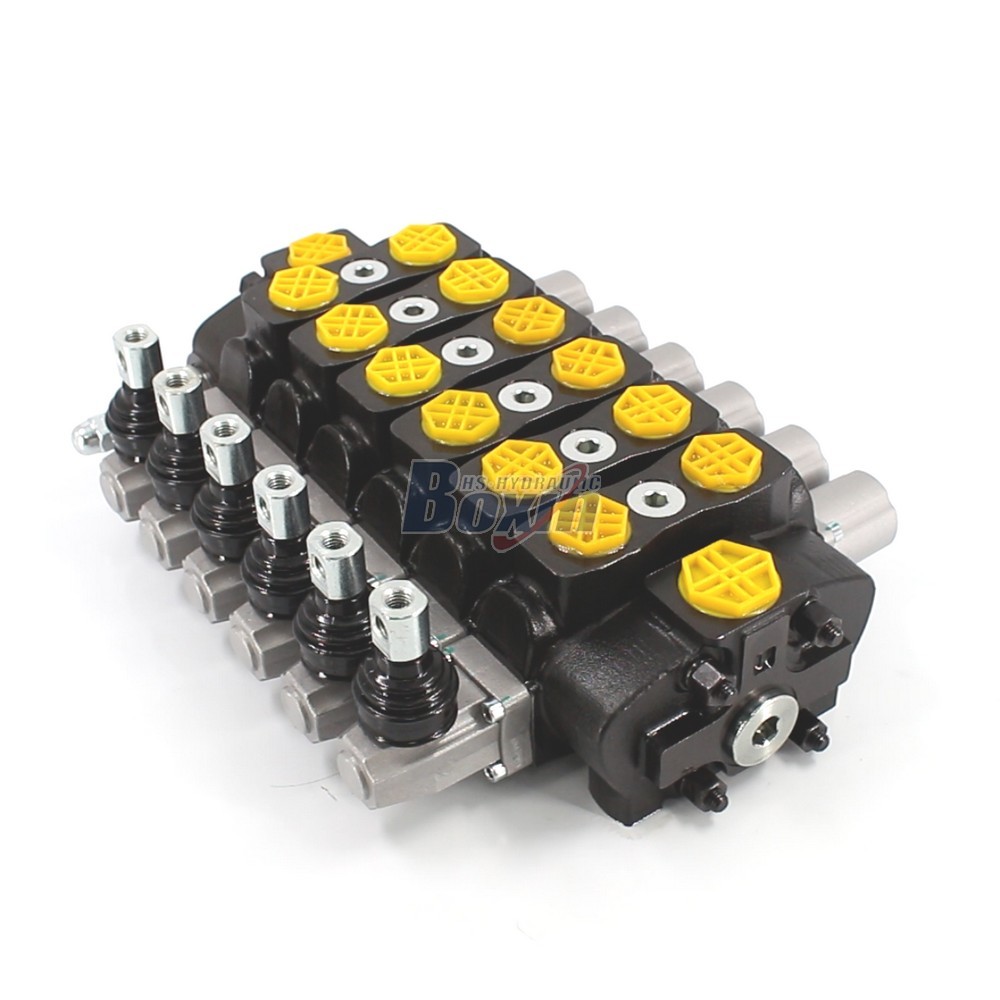

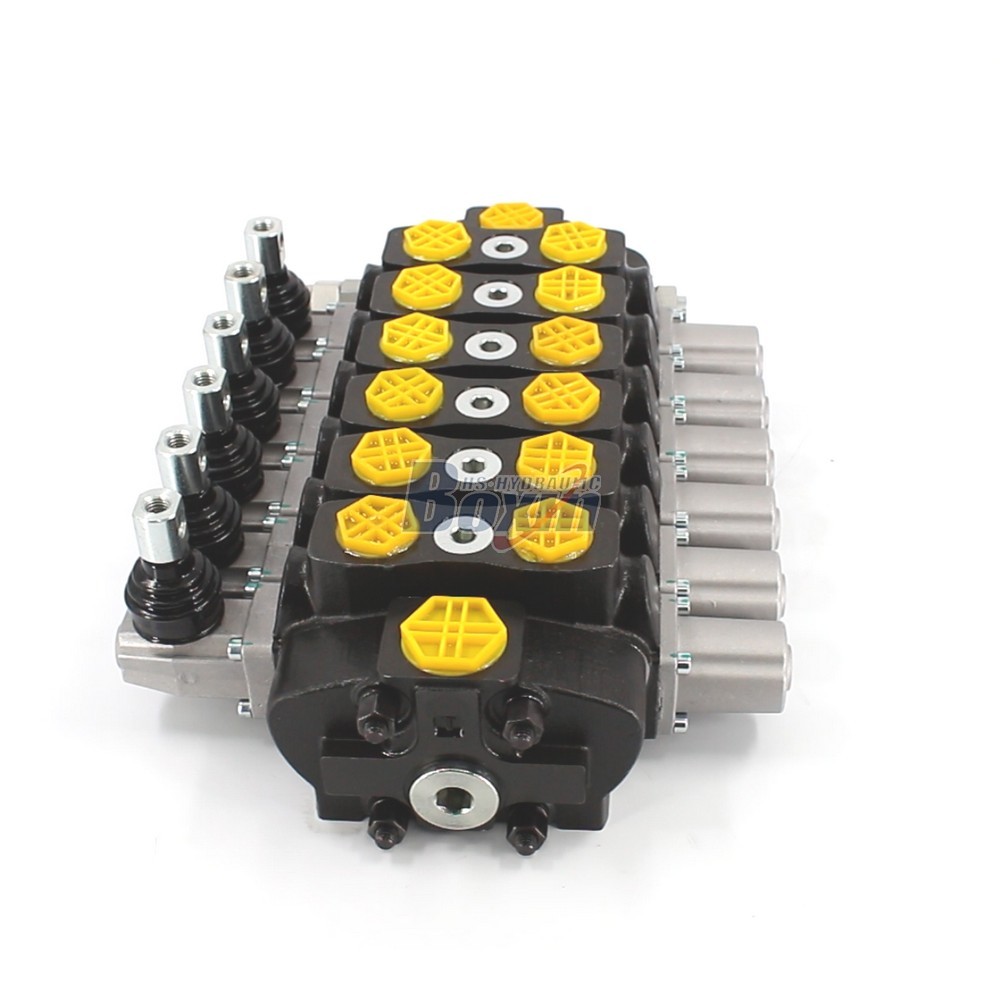

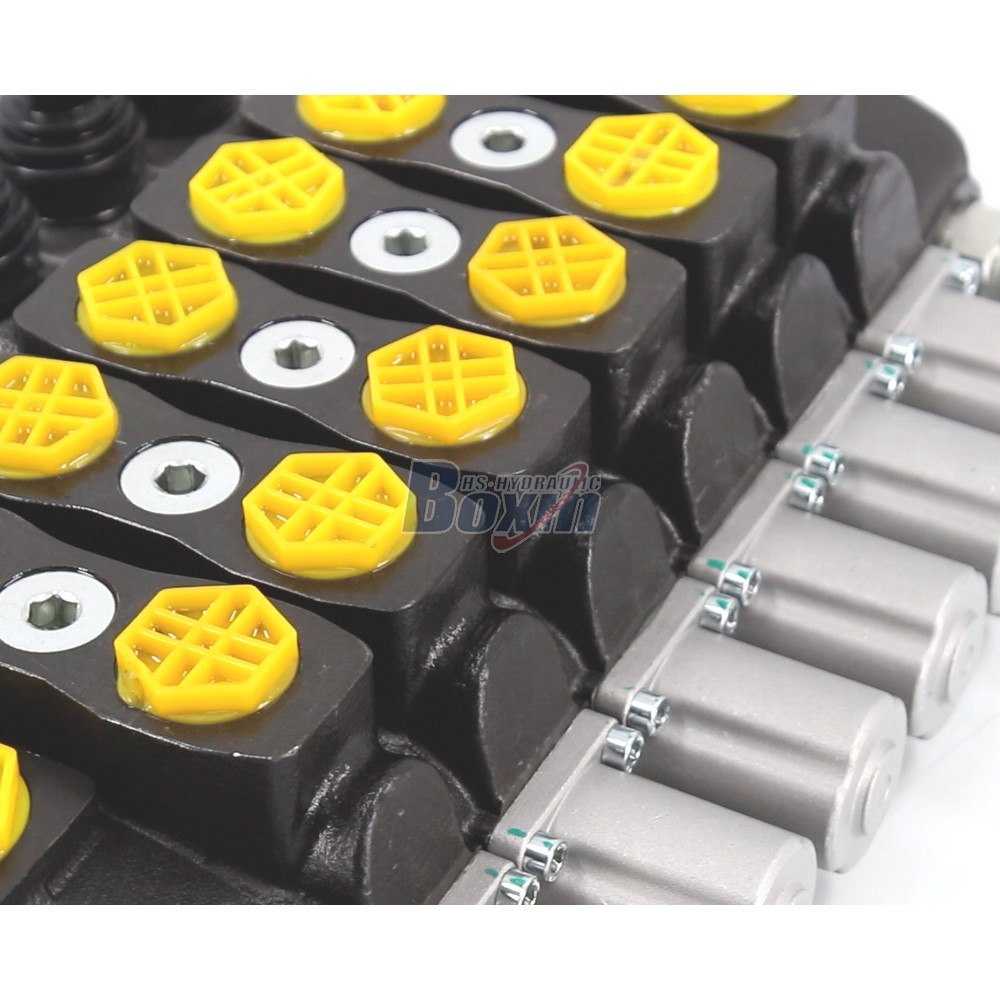

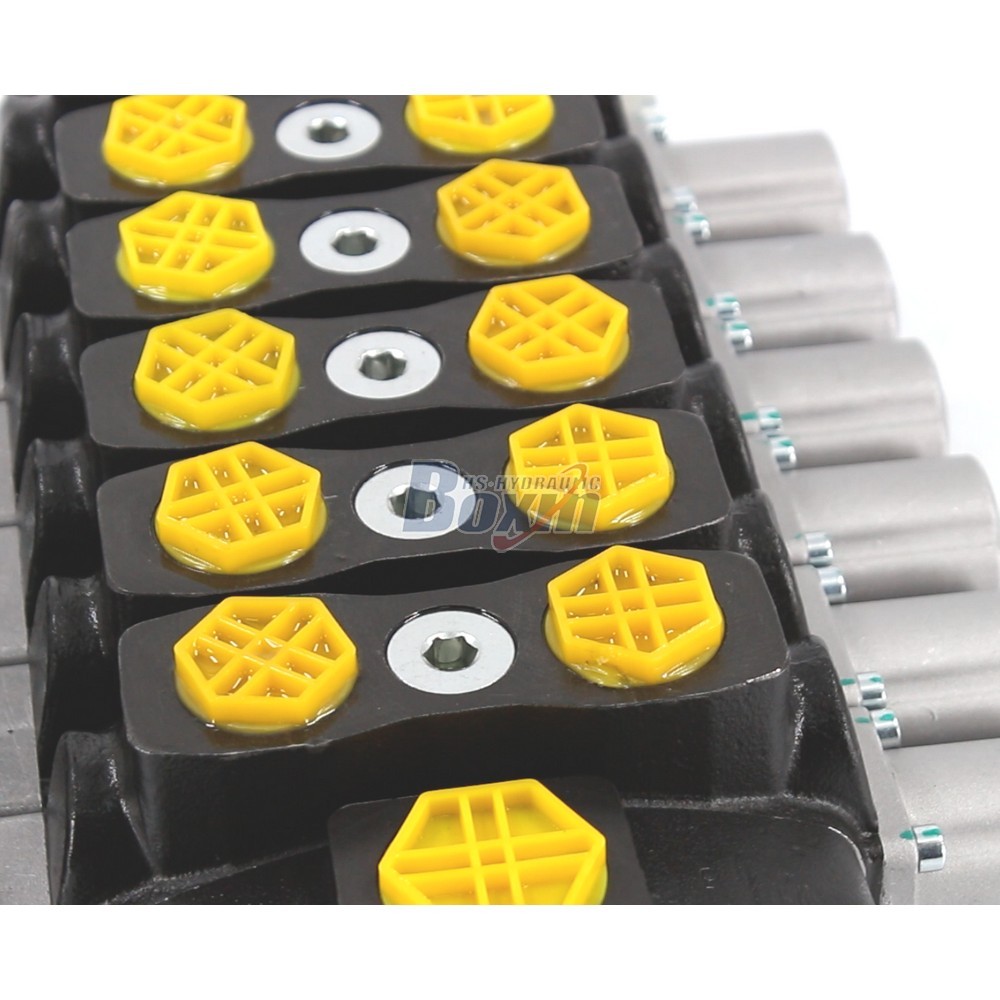

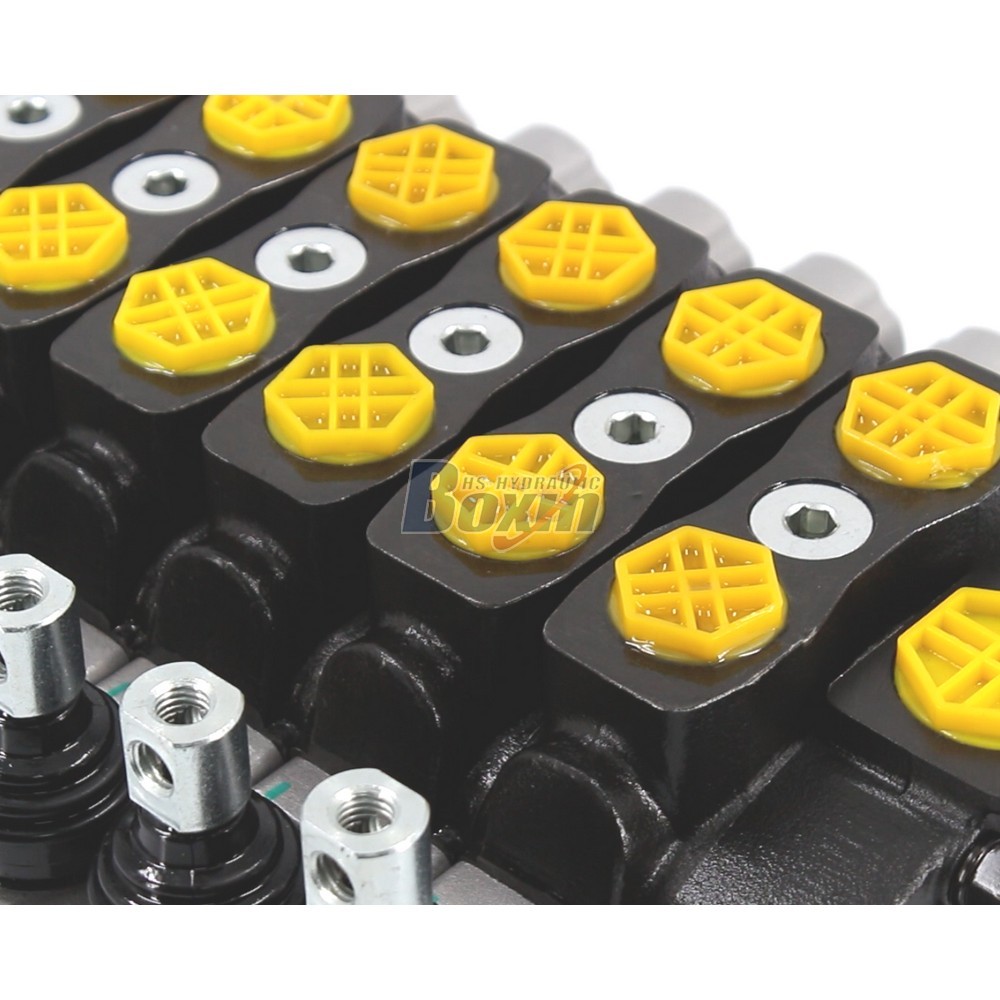

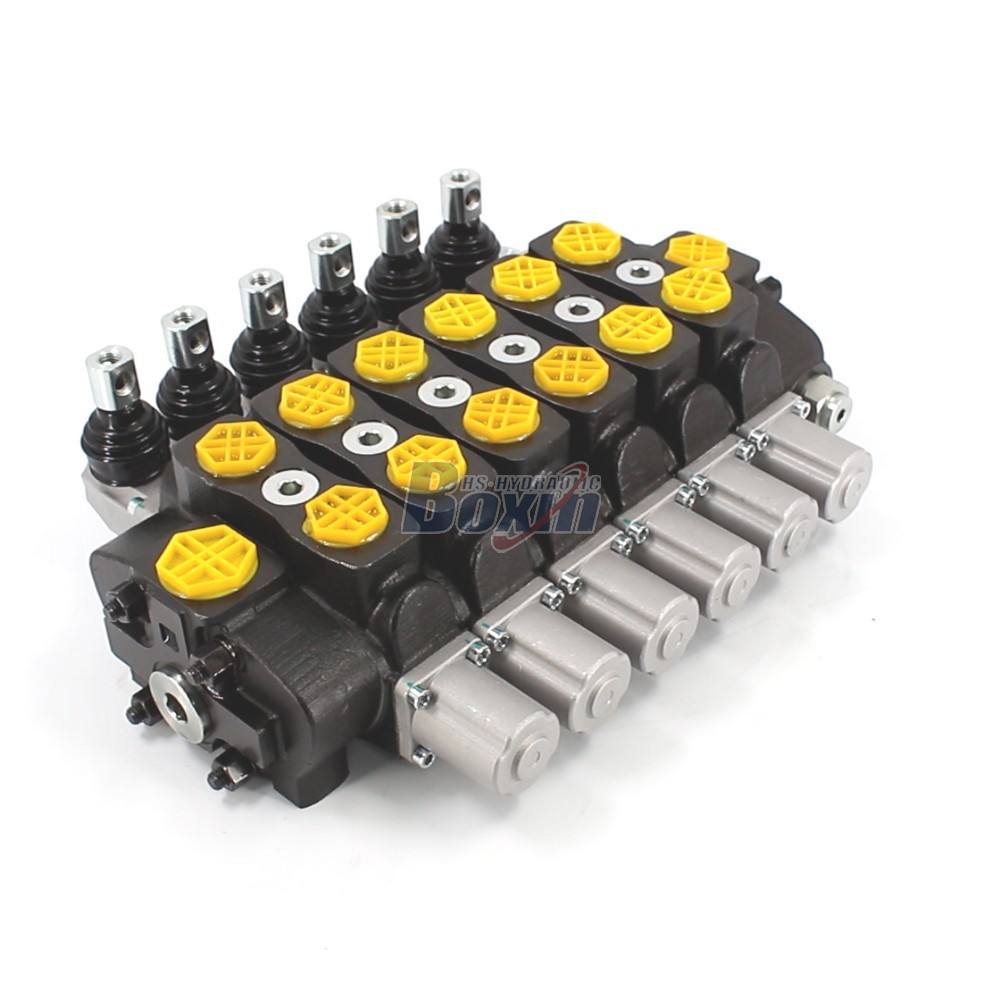

Direct Factory Source for SD8 Manual 6 Spool Directional Valve

Direct Factory Source for SD8 Manual 6 Spool Directional Valve

Direct Factory Source for SD8 Manual 6 Spool Directional Valve drawing image

High-performance SD8 series 6-spool manual directional control valve designed for various mobile and industrial applications. Featuring a rated flow of 80 L/min and high-pressure resistance up to 315 bar, this valve provides precise control for construction, agriculture, and material handling machinery.

Seri SD8 Kran Arah Bagian Parameter
Metode Kontrol Buku Panduan, Pneumatik, Elektro-pneumatik, Elektro-hidraulik, Selenoid, Hidraulis, Hidraulik dan Manual, Kabel, Stik Kontrol, Selenoid dan Joystick, Manual dan Joystick
Spul 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool, 8 Spool, 9 Spool, 10 Spool
Kisaran Suhu Sekitar -40°C hingga +80°C (-40°F hingga +176°F)
Tipe Struktur Katup penampang
Bagian 1 Bagian, 2 Bagian, 3 Bagian, 4 Bagian, 5 Bagian, 6 Bagian, 7 Bagian, 8 Bagian, 9 Bagian, 10 Bagian
Kisaran Viskositas Operasional 12 - 400 mm²/dt (12 cSt hingga 400 cSt)
Aliran Terukur 90 L/menit (23,8 US gpm)
Tekanan Maksimum 315 bar (4600 psi)
Port Masuk G1/2, G3/4, SAE 10
Port Keluar G1/2, G3/4, SAE 10, 3/4 NPT
Ukuran Port G1/2, SAE 10

As a leading large-scale hydraulic manufacturer, we provide direct factory supply for the SD8 Series 6-Spool Manual Directional Valve. Engineered for durability and precision, this valve supports a flow rate of 80 L/min (21.2 US gpm) and handles pressures up to 315 bar (4600 psi), making it ideal for mini-excavators, skid steer loaders, tractors, and forklifts. We offer comprehensive global solutions including OEM, ODM, and custom manufacturing to meet your specific technical requirements. We are actively seeking long-term partnerships with distributors, wholesalers, and trade agents worldwide. Our factory wholesale model ensures competitive pricing for bulk orders of hydraulic system components. With G1/2 inlet and G3/4 outlet ports, this versatile valve is suitable for heavy-duty applications ranging from wood splitters to complex earth-moving equipment. Partner with a professional manufacturer to enhance your supply chain with reliable, factory-sourced hydraulic valves.
