Direct Factory Supply: P40-G12-G38 Directional Valve Wholesale

Metode Kontrol:Buku Panduan

Spul:3 Spool

Aliran Terukur:40 L/menit (10,5 US gpm)

Tekanan Maksimum:250 bar (3600 psi)

Port Masuk:G1/2

Port Keluar:G1/2

Ukuran Port:G3/8

Merek:BXHS

Tipe Produk:Katup Arah Monoblok

Seri Produk:Seri P40 Katup Arah Monoblok

Ukuran kemasan:24*21*13

Kelas kotor:7.00 kg

Ketersediaan: Tersedia

950 Pandangan Mencari Produk Ini

Direct Factory Supply: P40-G12-G38 Directional Valve Wholesale

Direct Factory Supply: P40-G12-G38 Directional Valve Wholesale

Direct Factory Supply: P40-G12-G38 Directional Valve Wholesale drawing image

This high-performance 3-section monoblock directional valve is designed for demanding applications in material handling, construction, agriculture, and industrial vehicles. It offers reliable operation at pressures up to 2500psi (250 bar) and boasts a flow rate of 40 L/min (10.5 US gpm). Available for direct factory supply and wholesale.

Seri P40 Katup Arah Monoblok Parameter
Metode Kontrol Buku Panduan, Pneumatik, Elektro-pneumatik, Elektro-hidraulik, Selenoid, Hidraulis, Hidraulik dan Manual, Kabel, Stik Kontrol, Selenoid dan Joystick, Manual dan Joystick, Solenoid dan Kabel
Spul 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool
Kisaran Suhu Sekitar -40°C hingga +80°C (-40°F hingga +176°F)
Tipe Struktur Katup monoblok
Bagian 1 Bagian, 2 Bagian, 3 Bagian, 4 Bagian, 5 Bagian, 6 Bagian, 7 Bagian
Kisaran Viskositas Operasional 15 - 75 mm²/dt (15 cSt hingga 75 cSt)
Aliran Terukur 40 L/menit (10,5 US gpm)
Tekanan Maksimum 250 bar (3600 psi)
Port Masuk G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT
Port Keluar G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT
Ukuran Port G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT

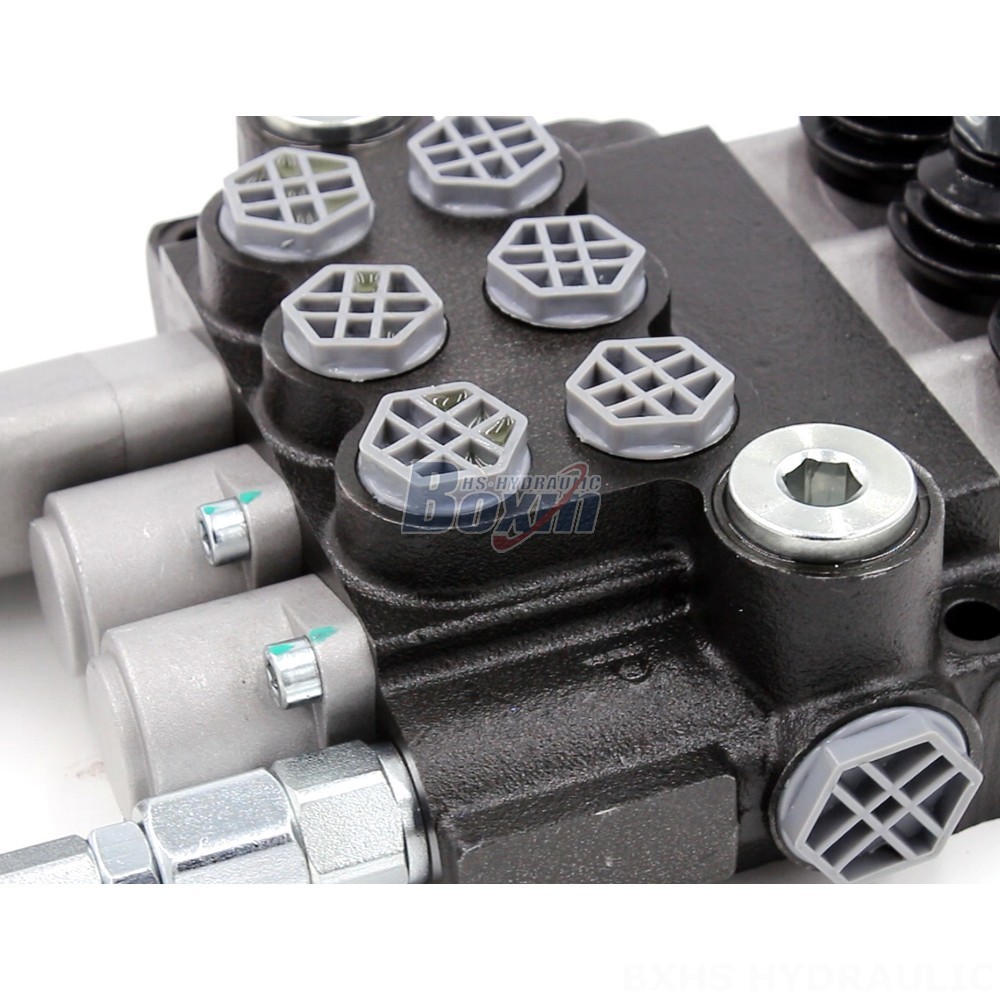

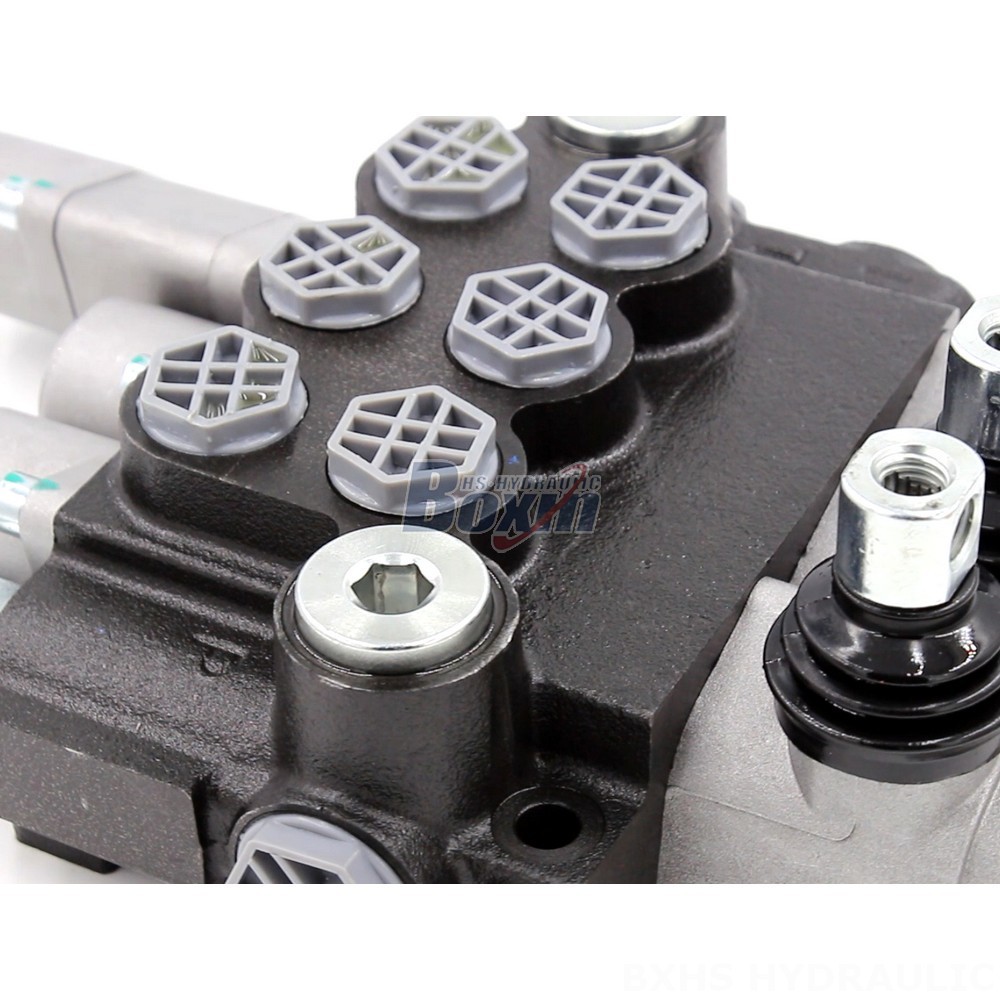

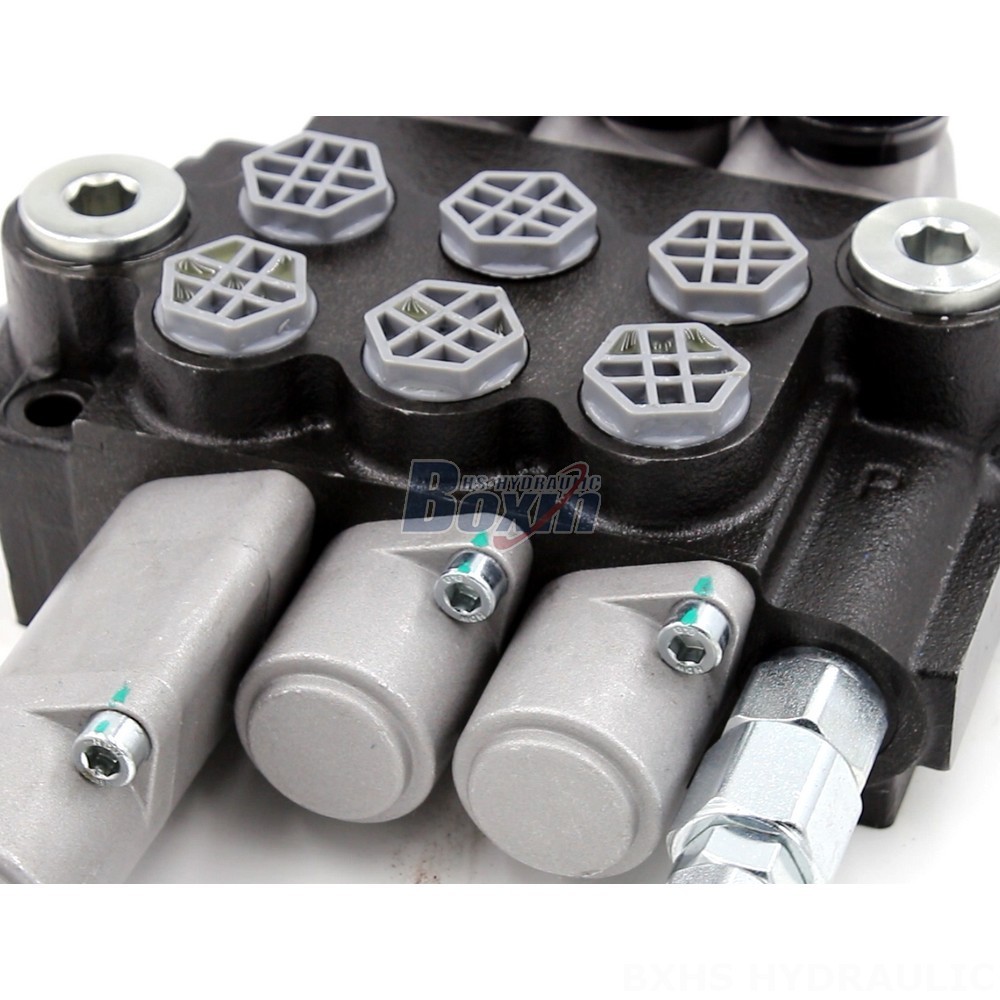

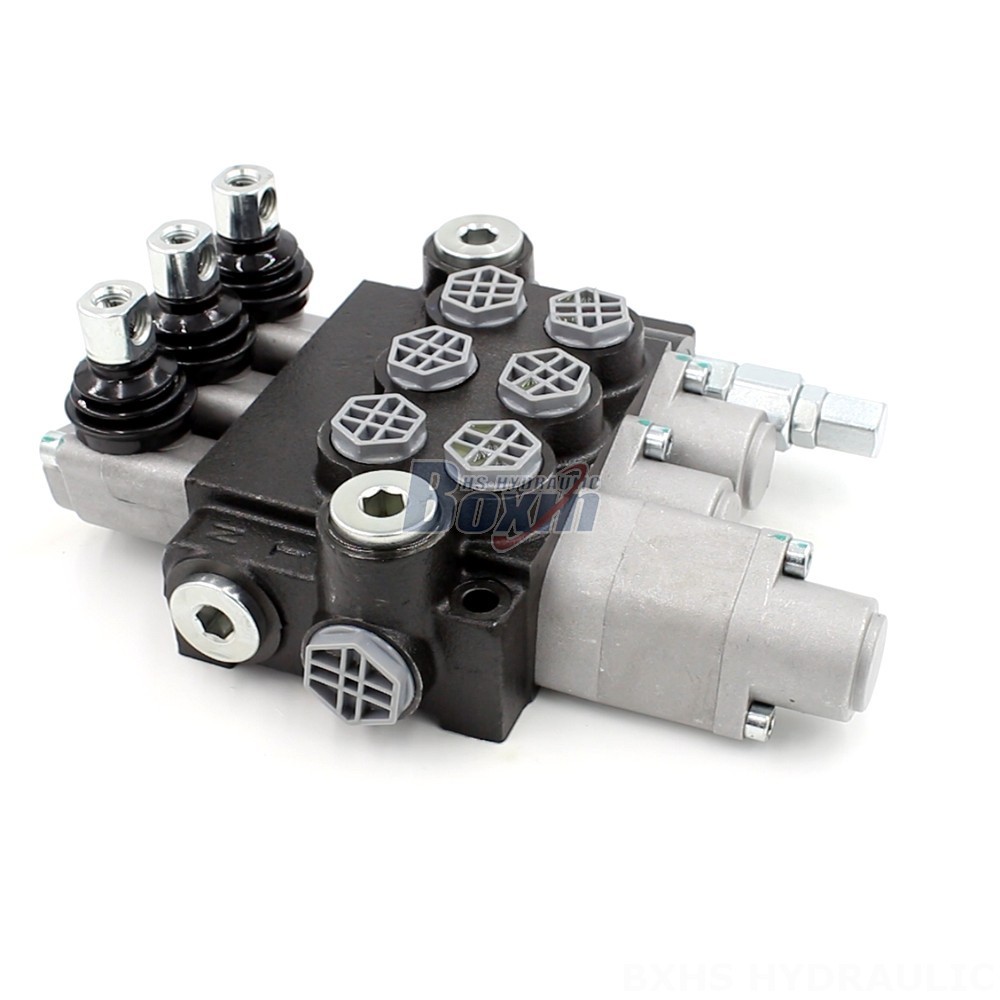

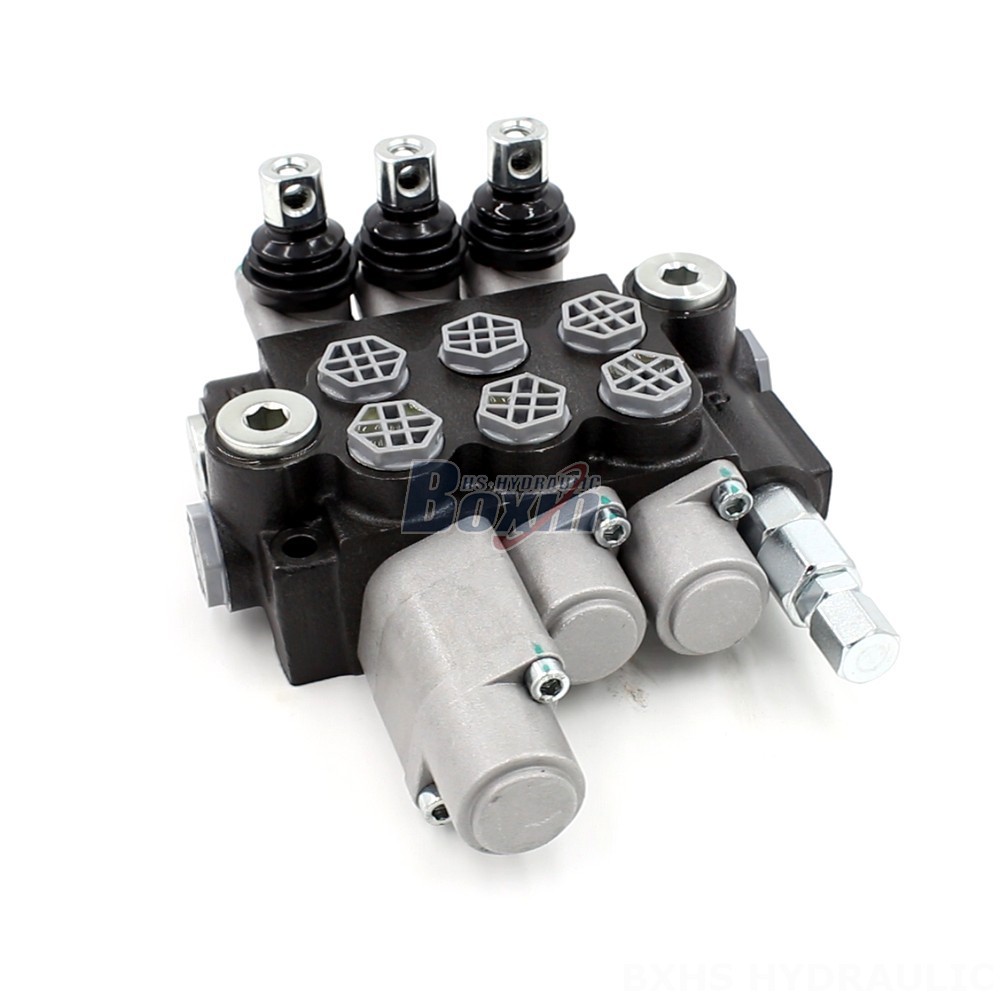

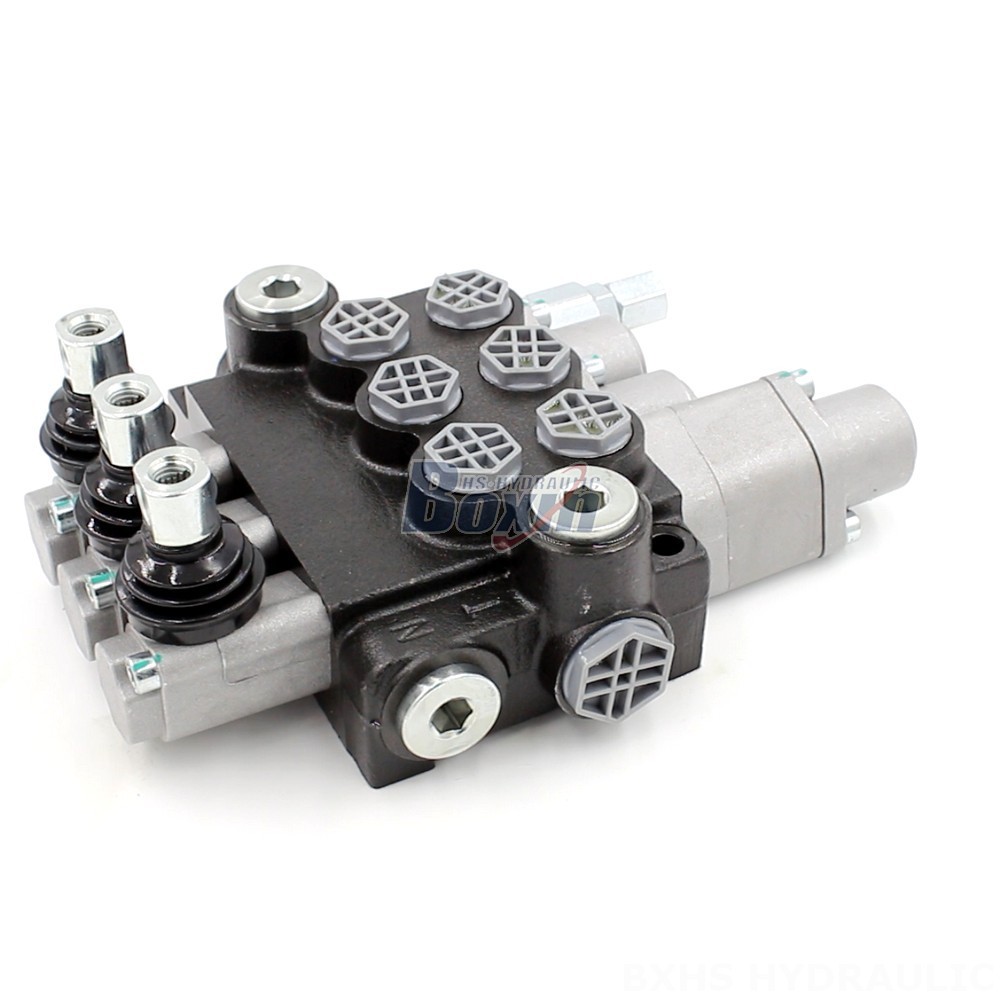

Our P40-G12-G38 directional valve is a robust hydraulic component built for durability and efficiency. It is a 3-section, monoblock valve with a rated flow of 40 L/min (10.5 US gpm) and a maximum pressure rating of 250 bar (3600 psi). The valve features a manual control method, and operates reliably within a wide viscosity range of 15-75 mm²/s (15 cSt to 75 cSt). It is suitable for temperatures ranging from -40°C to +80°C (-40°F to +176°F). With its 3 spools and P40 Series designation, this valve is ideal for various applications in material handling, construction, agriculture, and industrial vehicles, including telehandlers, forklifts, all-terrain cranes, stackers, aerial platforms, motor graders, midi- excavators, mini-excavators, skid steer loaders, and compact wheel loaders. As a direct factory supplier, we offer this valve at competitive prices and in bulk quantities for wholesale purchases. Contact us to discuss your specific requirements and explore the possibilities of partnering with us as your trusted hydraulic valve manufacturer.
