Produksi & Pengiriman
Waktu Produksi 15-30 Hari
416 Pandangan Mencari Produk Ini

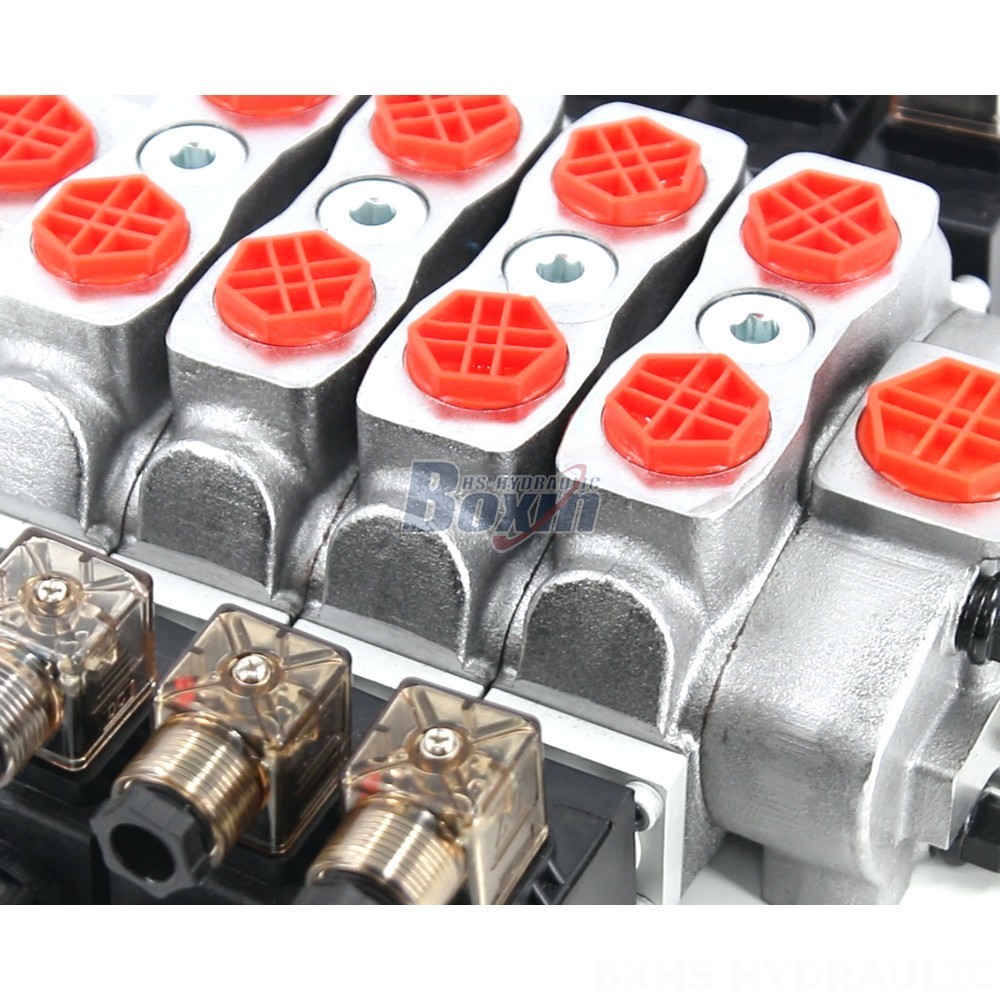

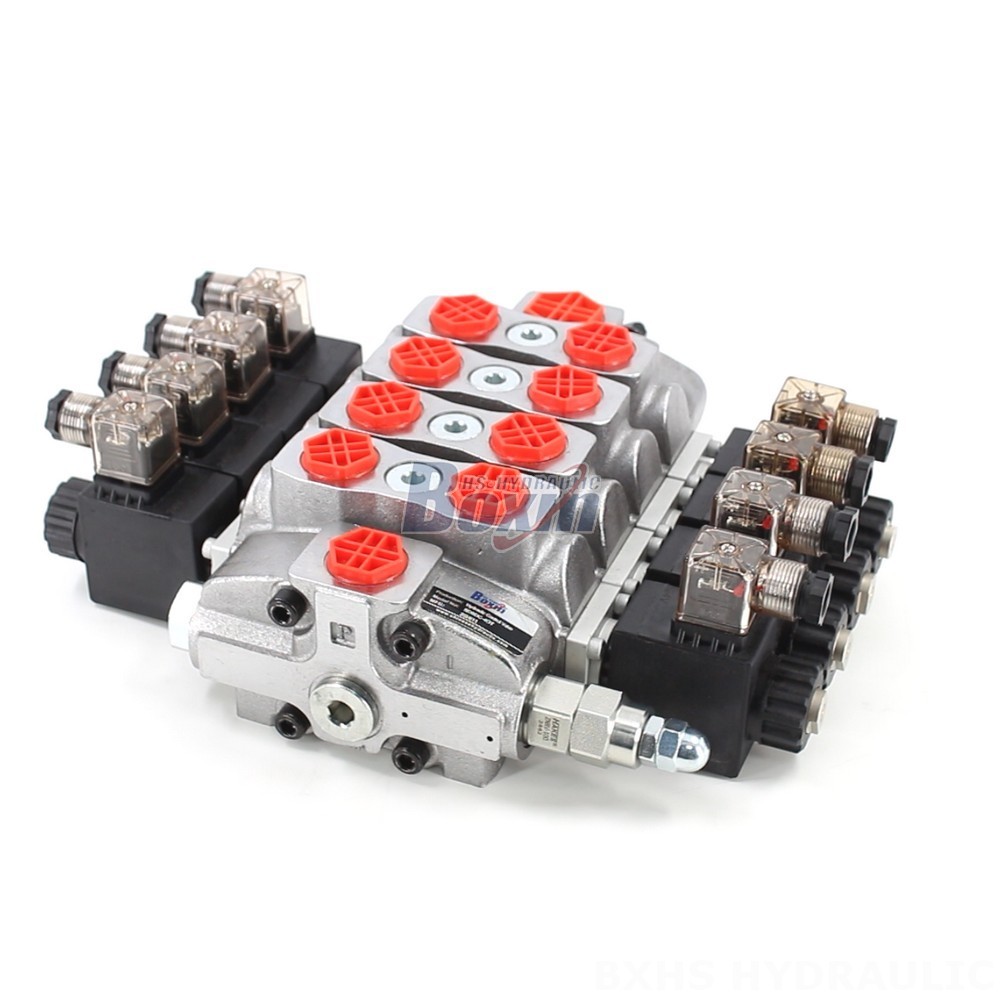

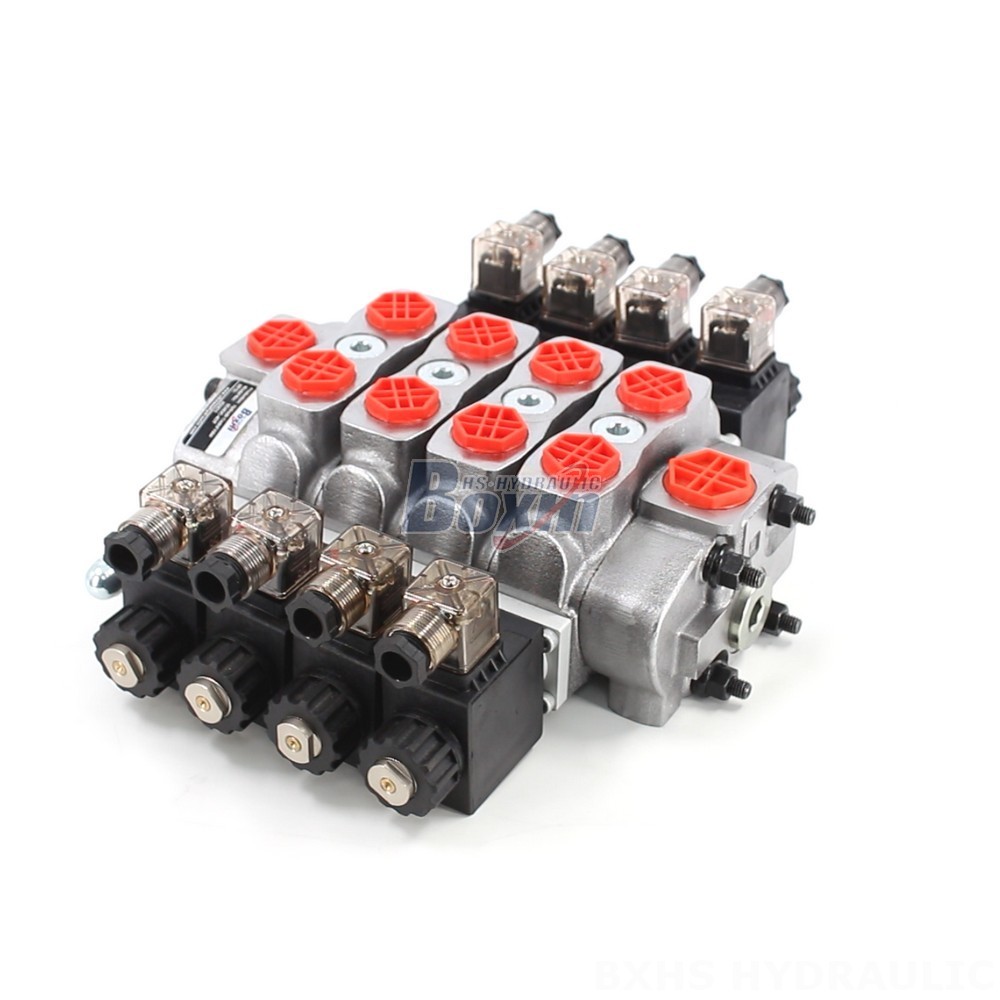

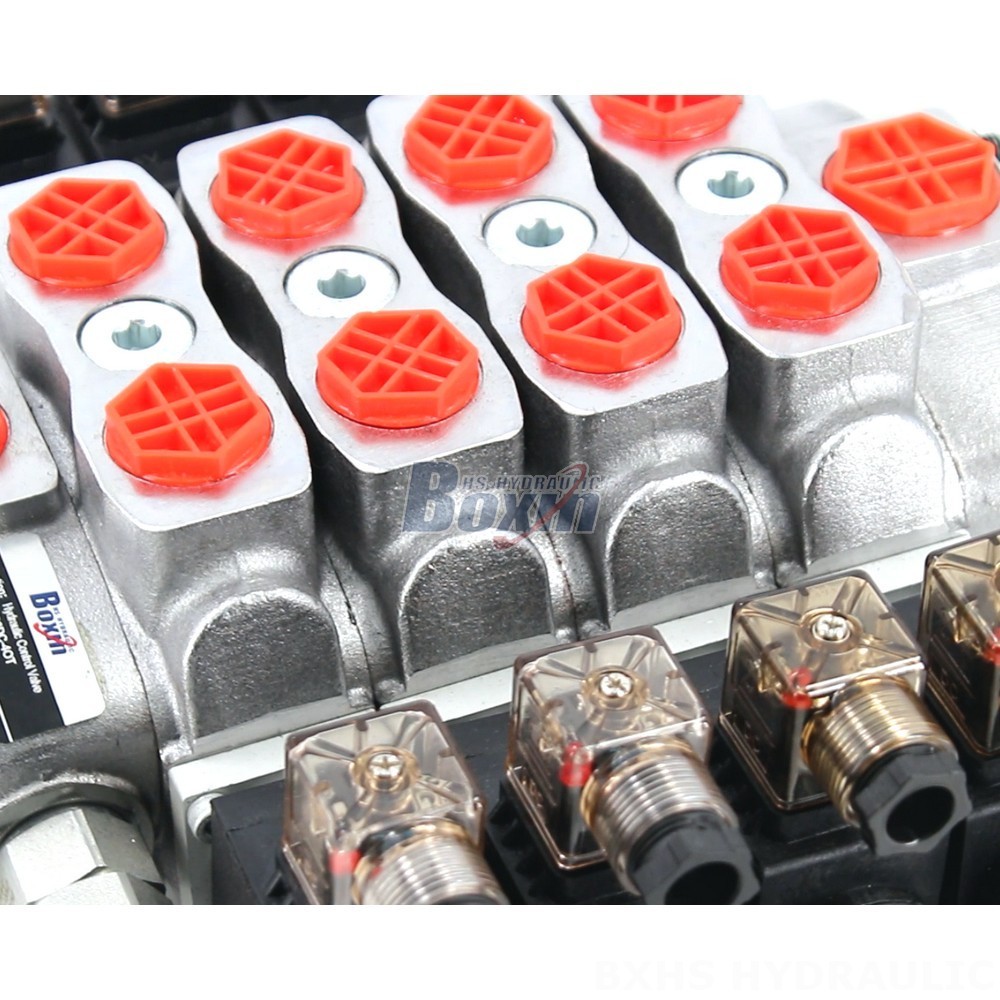

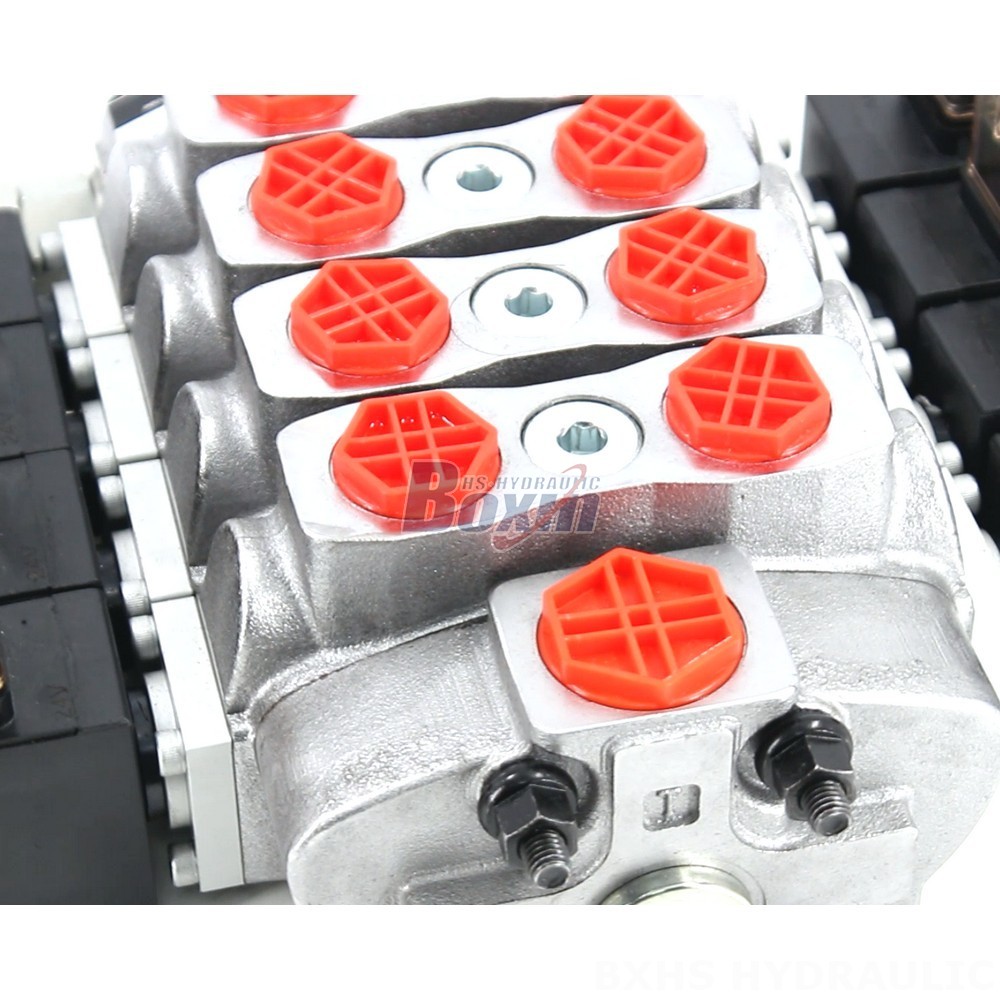

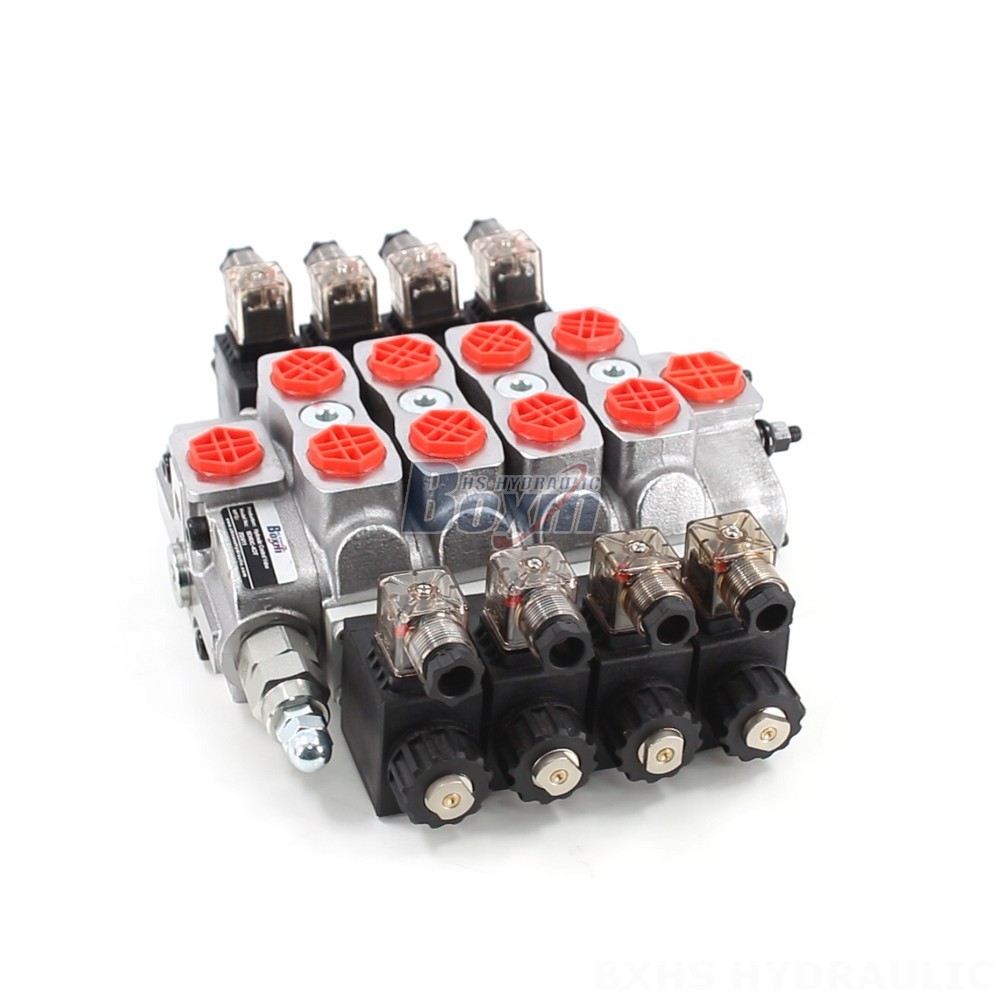

Direct from factory, the SD8 4-spool solenoid hydraulic directional valve offers high performance and reliability for various applications, including construction, agriculture, and material handling. Rated at 90 L/min and 350 bar, it's a robust solution for demanding environments. Available for OEM, private label, and custom orders.
| Seri SD8 Kran Arah Bagian Parameter | |
|---|---|
| Metode Kontrol | Buku Panduan, Pneumatik, Elektro-pneumatik, Elektro-hidraulik, Selenoid, Hidraulis, Hidraulik dan Manual, Kabel, Stik Kontrol, Selenoid dan Joystick, Manual dan Joystick |
| Spul | 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool, 8 Spool, 9 Spool, 10 Spool |
| Kisaran Suhu Sekitar | -40°C hingga +80°C (-40°F hingga +176°F) |
| Tipe Struktur | Katup penampang |
| Bagian | 1 Bagian, 2 Bagian, 3 Bagian, 4 Bagian, 5 Bagian, 6 Bagian, 7 Bagian, 8 Bagian, 9 Bagian, 10 Bagian |
| Kisaran Viskositas Operasional | 12 - 400 mm²/dt (12 cSt hingga 400 cSt) |
| Aliran Terukur | 90 L/menit (23,8 US gpm) |
| Tekanan Maksimum | 315 bar (4600 psi) |
| Port Masuk | G1/2, G3/4, SAE 10 |
| Port Keluar | G1/2, G3/4, SAE 10, 3/4 NPT |
| Ukuran Port | G1/2, SAE 10 |
We are a leading manufacturer of high-quality hydraulic products, offering factory direct pricing and global distribution. Our SD8 4-Spool Solenoid Hydraulic Directional Valve is a robust and reliable solution designed for demanding applications in material handling, construction, agriculture, and industrial vehicles. This sectional valve boasts a rated flow of 90 L/min (23.8 US gpm) and a maximum pressure of 350 bar (5100 psi) / 250 bar (3600 psi), ensuring optimal performance across a wide range of operating conditions. Its versatile design makes it suitable for various machinery, including forklifts, telehandlers, mini-excavators, skid steer loaders, compact wheel loaders, tractors, front-end loaders, harvesters, balers, and backhoes.
**Key Features:**
* **Solenoid Control:** Easy and precise operation.
* **4-Spool Design:** Versatile control capabilities.
* **High Flow Rate:** 90 L/min (23.8 US gpm).
* **High Pressure Rating:** 350 bar (5100 psi) / 250 bar (3600 psi).
* **Wide Operating Temperature Range:** -40°C to +80°C (-40°F to +176°F).
* **Durable Construction:** Ensures long-lasting performance.
**Business Opportunities:**
We are actively seeking distributors, wholesalers, agents, and trading companies worldwide to partner with us. We offer a wide range of business models, including:
* **OEM (Original Equipment Manufacturing):** Customize valves to meet your specific requirements.
* **Private Labeling:** Brand your own hydraulic valves with your company logo and branding.
* **Custom Design and Manufacturing:** Collaborate with our engineering team to develop unique valve solutions.
* **Wholesale:** Benefit from our competitive factory-direct pricing and bulk discounts.
**Contact us today to explore collaboration opportunities and receive a competitive quote. Factory direct supply ensures superior quality and cost-effectiveness. We are committed to providing exceptional service and support to our global partners.**
