What is the primary application of the Direct from the Factory: P80-G12-G34-OT Hydraulic Directional Control Valves?

The Direct from the Factory: P80-G12-G34-OT Hydraulic Directional Control Valves is designed for mobile hydraulic systems, agricultural machinery (such as tractors and harvesters), construction equipment (such as loaders and excavators), and industrial machinery. It ensures precise flow and directional control.

Is Boxinhuasheng a factory-direct manufacturer?

Yes, Boxinhuasheng (Qingzhou Boxinhuasheng Hydraulic Technology Co., Ltd.) is a factory-direct manufacturer established in 2001. We operate a 68,000m虏 facility with 4 modern manufacturing plants and 260+ production machines, supplying certified products directly to global customers.

What quality certifications do Boxinhuasheng products have?

All Boxinhuasheng directional control valves, gear pumps, and hydraulic accessories are CE certified, IATF 16949 compliant, and verified on-site by SGS, meeting international engineering standards.

Can Boxinhuasheng provide OEM/ODM customization services?

Yes, Boxinhuasheng has a team of 35 senior hydraulic engineers providing custom OEM manufacturing, ODM development, private labeling, and customized hydraulic system solutions tailored to specific operating pressures and flows.

What is the warranty and shipping lead time?

We offer a 1-year warranty with free replacement for any quality defects. Standard express delivery is within 30 days, supported by our robust annual capacity of 1.5 million hydraulic units and export experience to 80+ countries.

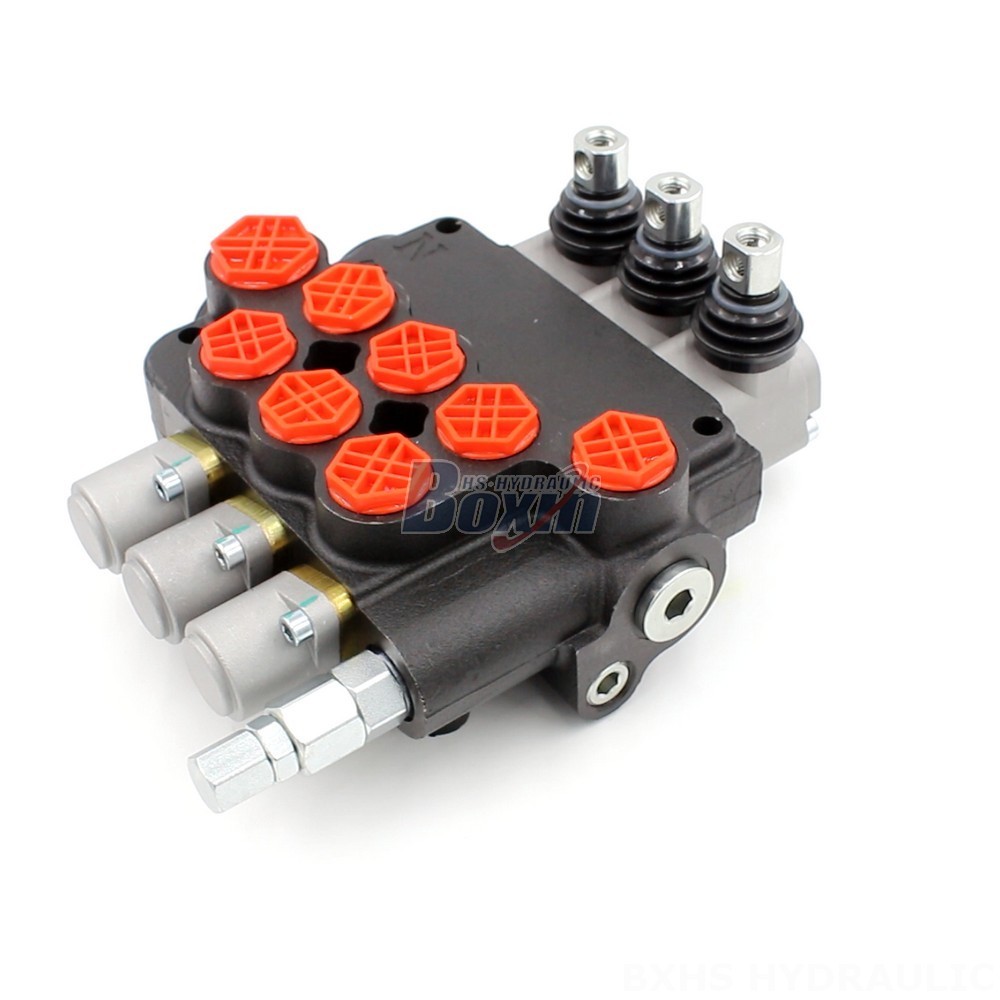

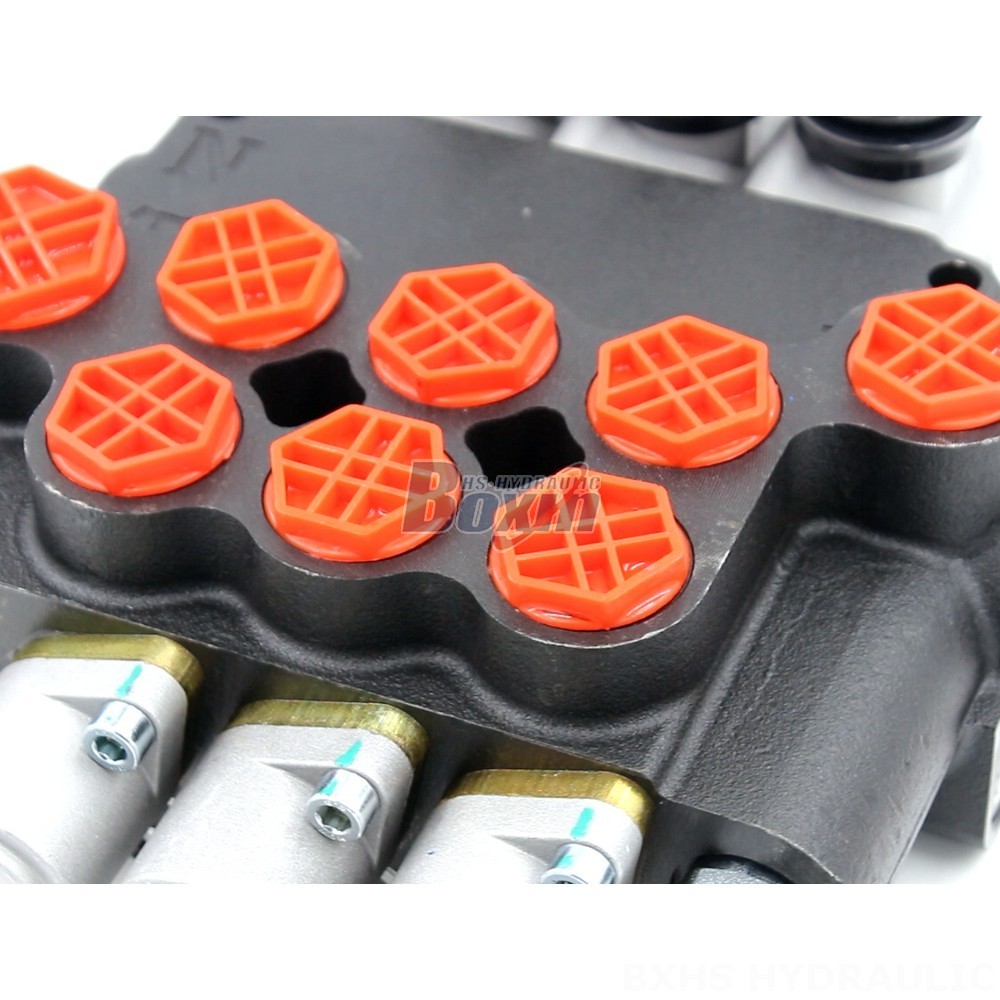

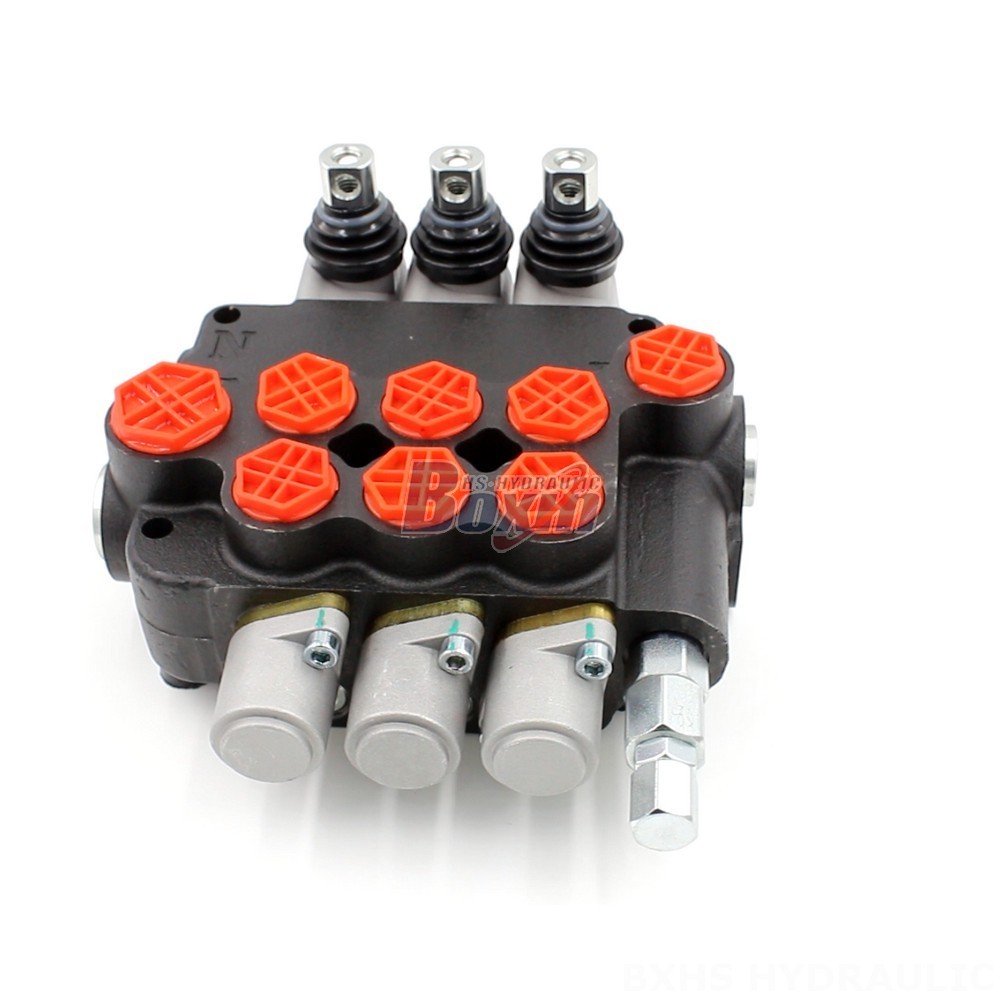

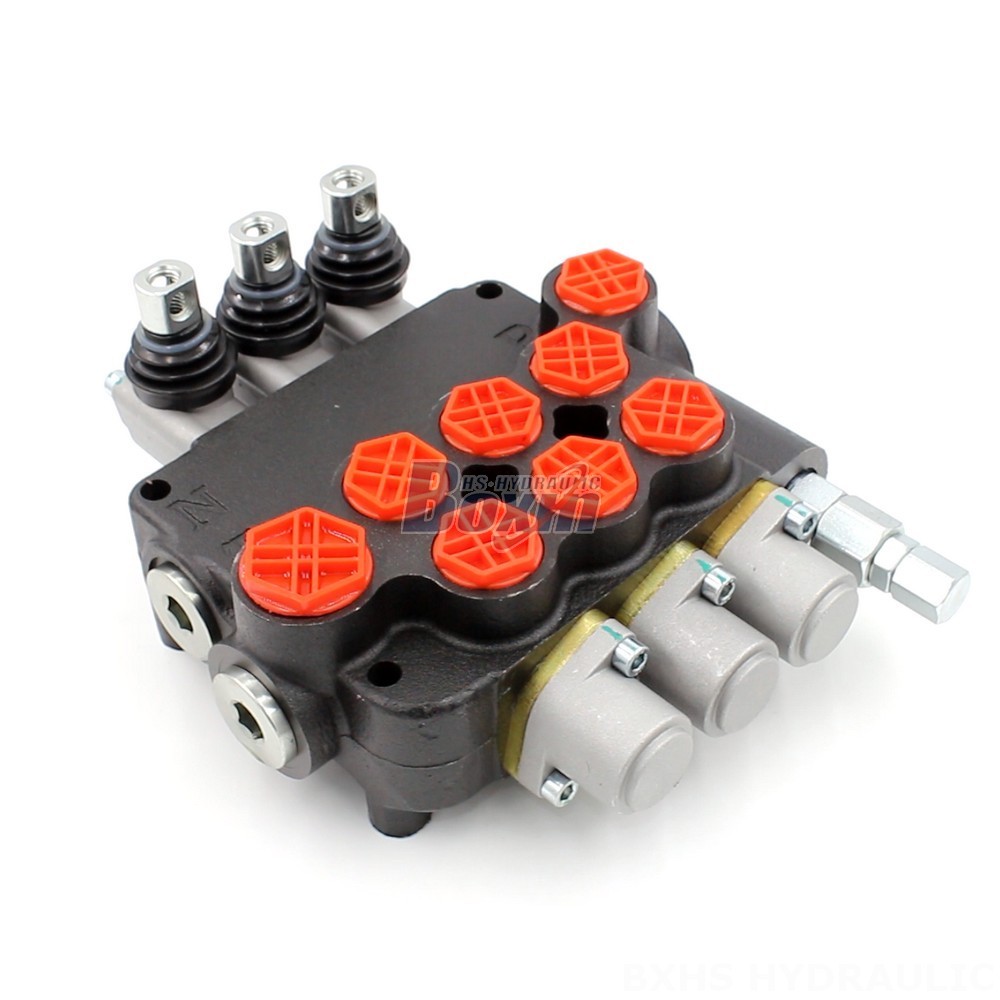

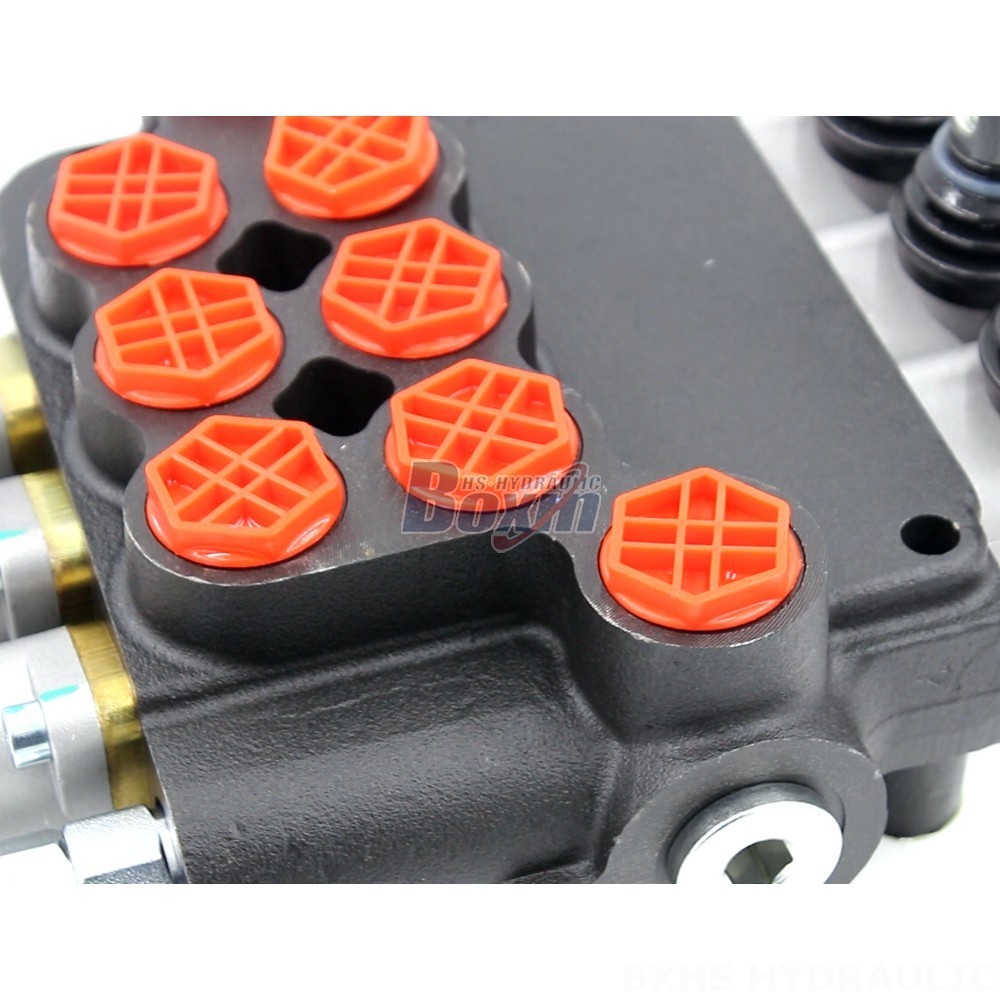

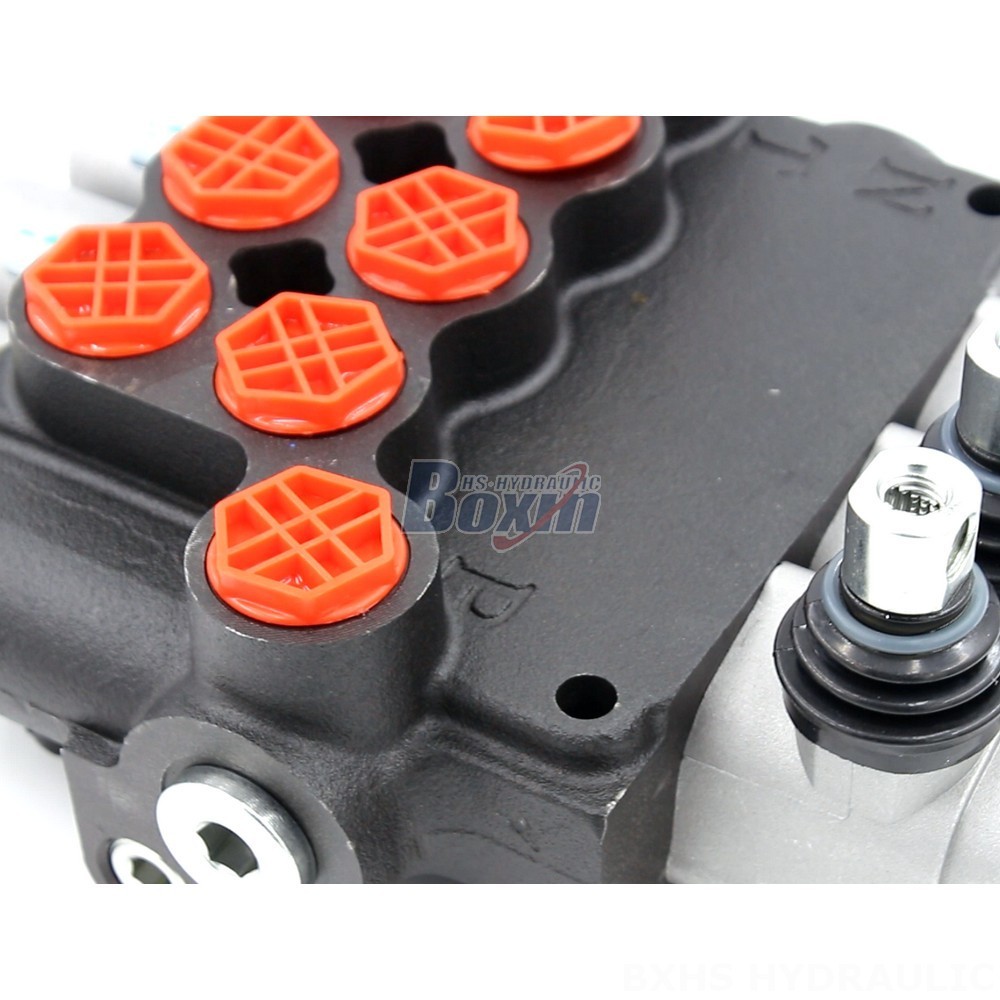

Direct from the Factory: P80-G12-G34-OT Hydraulic Directional Control Valves

Name: Direct from the Factory: P80-G12-G34-OT Hydraulic Directional Control Valves
Brand: Boxinhuasheng
SKU: BXHS-54877
Availability: InStock

Metode Kontrol:Buku Panduan

Spul:3 Spool

Aliran Terukur:80 L/menit (21,2 US gpm)

Tekanan Maksimum:250 bar (3600 psi)

Port Masuk:G1/2

Port Keluar:G3/4

Ukuran Port:G1/2

Merek:BXHS

Tipe Produk:Katup Arah Monoblok

Seri Produk:Seri P80 Katup Arah Monoblok

Ukuran kemasan:26*23*11

Kelas kotor:10.70 kg

Ketersediaan: Tersedia

Deskripsi

Direct from the Factory: P80-G12-G34-OT Hydraulic Directional Control Valves

Direct from the Factory: P80-G12-G34-OT Hydraulic Directional Control Valves drawing image

The P80-G12-G34-OT Hydraulic Directional Control Valve is a high-performance valve designed for mobile hydraulic applications. It is a 3-section, 3-spool, monoblock valve with a rated flow of 80 L/min (21.2 US gpm) and a maximum pressure of 250 bar (3600 psi). The valve has an operating viscosity range of 15 - 75 mm²/s (15 cSt to 75 cSt) and an ambient temperature range of -40°C to +80°C (-40°F to +176°F). The valve is suitable for use in a variety of applications, including material handling, construction and earth moving, agriculture, and industrial vehicles.

Seri P80 Katup Arah Monoblok Parameter
Metode Kontrol	Buku Panduan, Pneumatik, Elektro-pneumatik, Elektro-hidraulik, Selenoid, Hidraulis, Hidraulik dan Manual, Kabel, Stik Kontrol, Manual dan Joystick
Spul	1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool
Kisaran Suhu Sekitar	-40°C hingga +80°C (-40°F hingga +176°F)
Tipe Struktur	Katup monoblok
Bagian	1 Bagian, 2 Bagian, 3 Bagian, 4 Bagian, 5 Bagian, 6 Bagian, 7 Bagian
Kisaran Viskositas Operasional	15 - 75 mm²/dt (15 cSt hingga 75 cSt)
Aliran Terukur	80 L/menit (21,2 US gpm)
Tekanan Maksimum	315 bar (4600 psi)
Port Masuk	G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT
Port Keluar	G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT
Ukuran Port	G1/2, G3/4, M22×1.5, M27×2.0, SAE 10, 1/2 NPT, 3/4 NPT

**P80-G12-G34-OT Hydraulic Directional Control Valve**

The P80-G12-G34-OT Hydraulic Directional Control Valve is a high-quality valve manufactured by our company. We are a leading manufacturer of hydraulic products and have been in the industry for many years. Our valves are known for their quality, durability, and performance.

The P80-G12-G34-OT Hydraulic Directional Control Valve is a 3-section, 3-spool, monoblock valve. It has a rated flow of 80 L/min (21.2 US gpm) and a maximum pressure of 250 bar (3600 psi). The valve has an operating viscosity range of 15 - 75 mm²/s (15 cSt to 75 cSt) and an ambient temperature range of -40°C to +80°C (-40°F to +176°F).

The P80-G12-G34-OT Hydraulic Directional Control Valve is suitable for use in a variety of applications, including:

* Material handling
* Construction and earth moving
* Agriculture
* Industrial vehicles

We offer a variety of customization options for the P80-G12-G34-OT Hydraulic Directional Control Valve, including:

* Porting
* Mounting
* Spools
* Seals

We also offer a variety of testing and inspection services to ensure that our valves meet your specifications.

If you are looking for a high-quality, durable, and reliable hydraulic directional control valve, the P80-G12-G34-OT is the perfect choice. Contact us today for more information.
