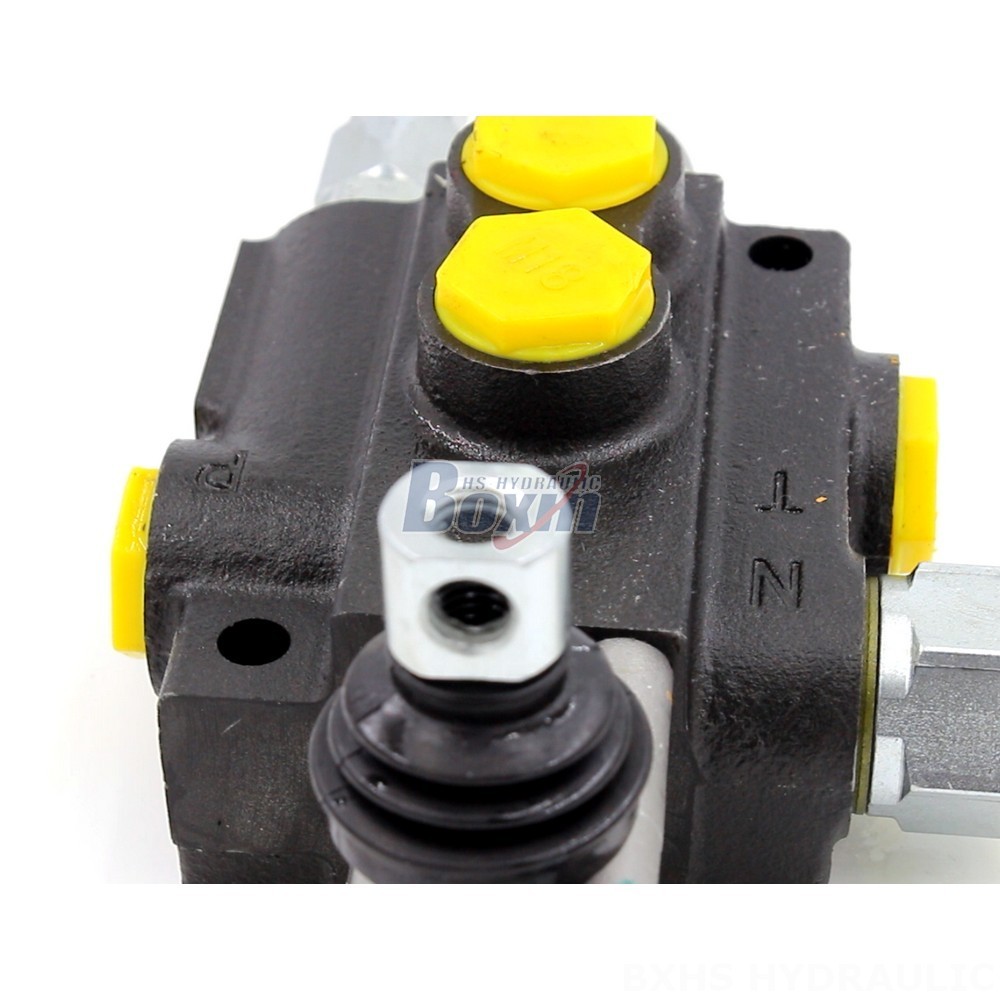

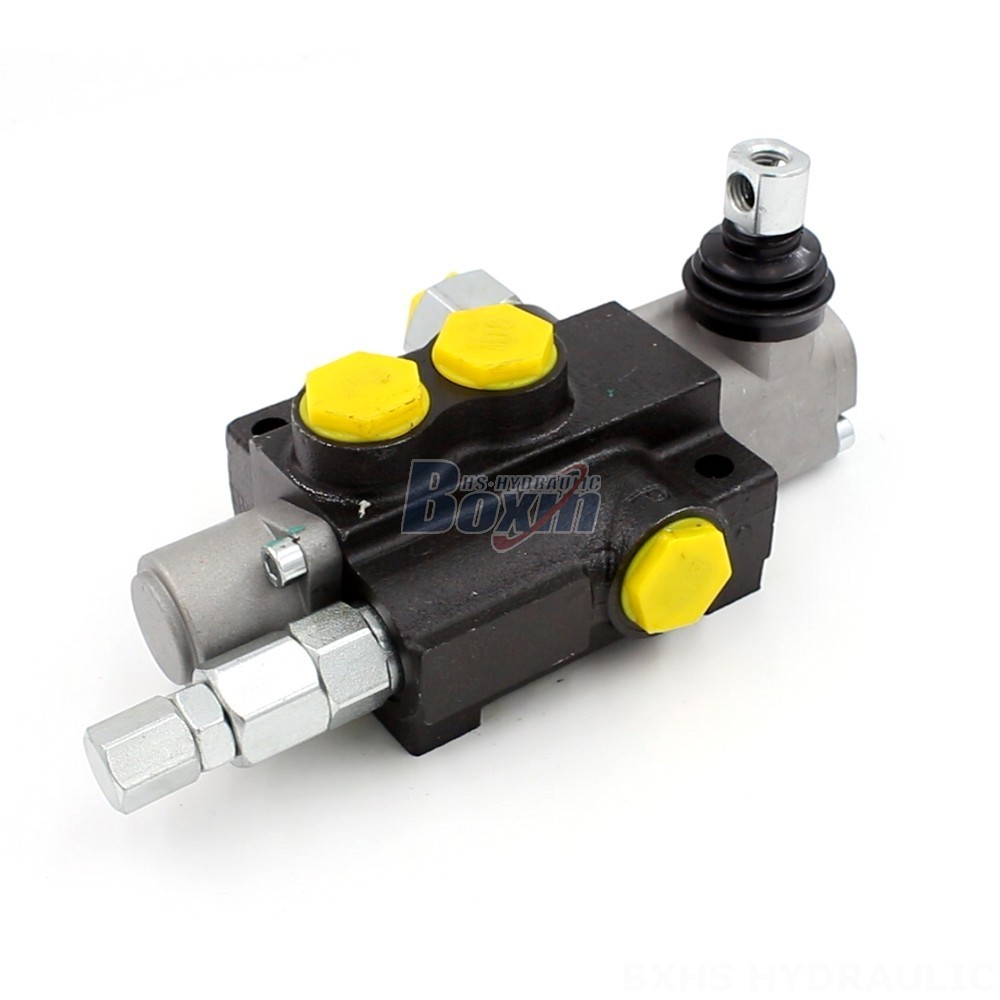

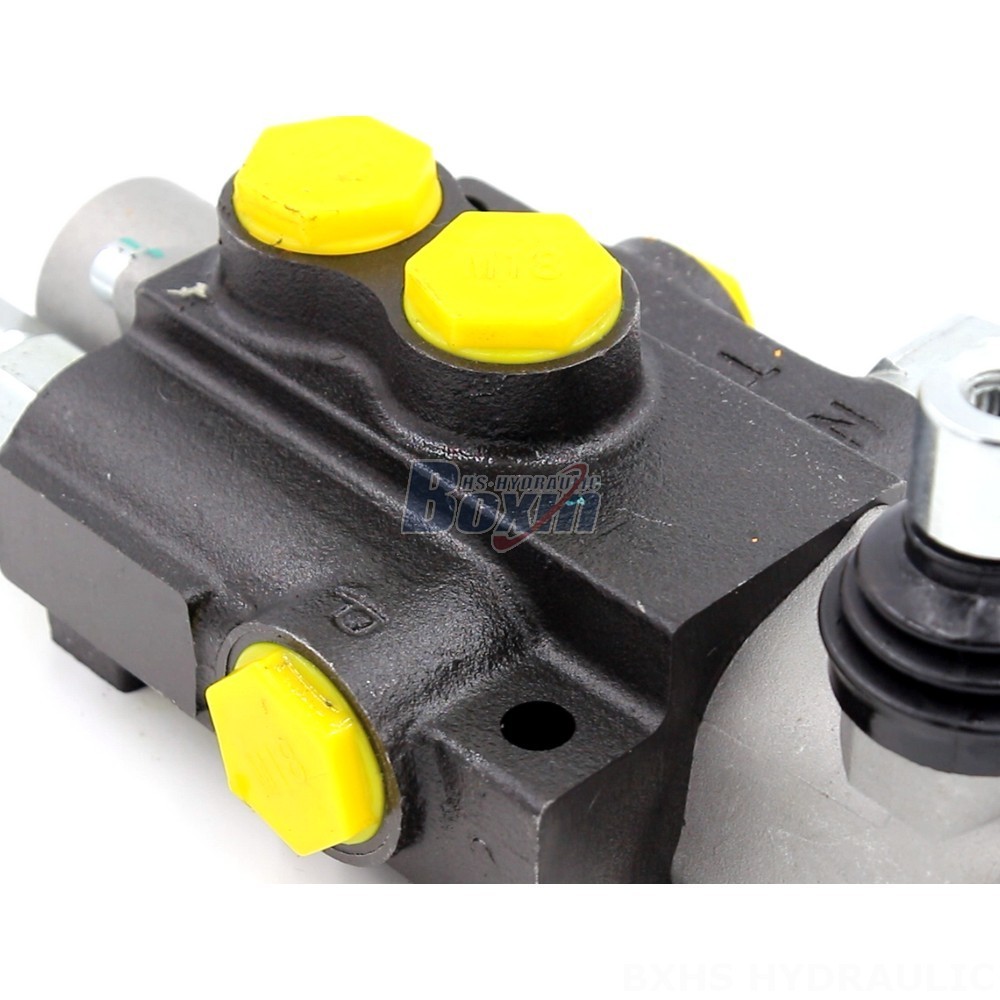

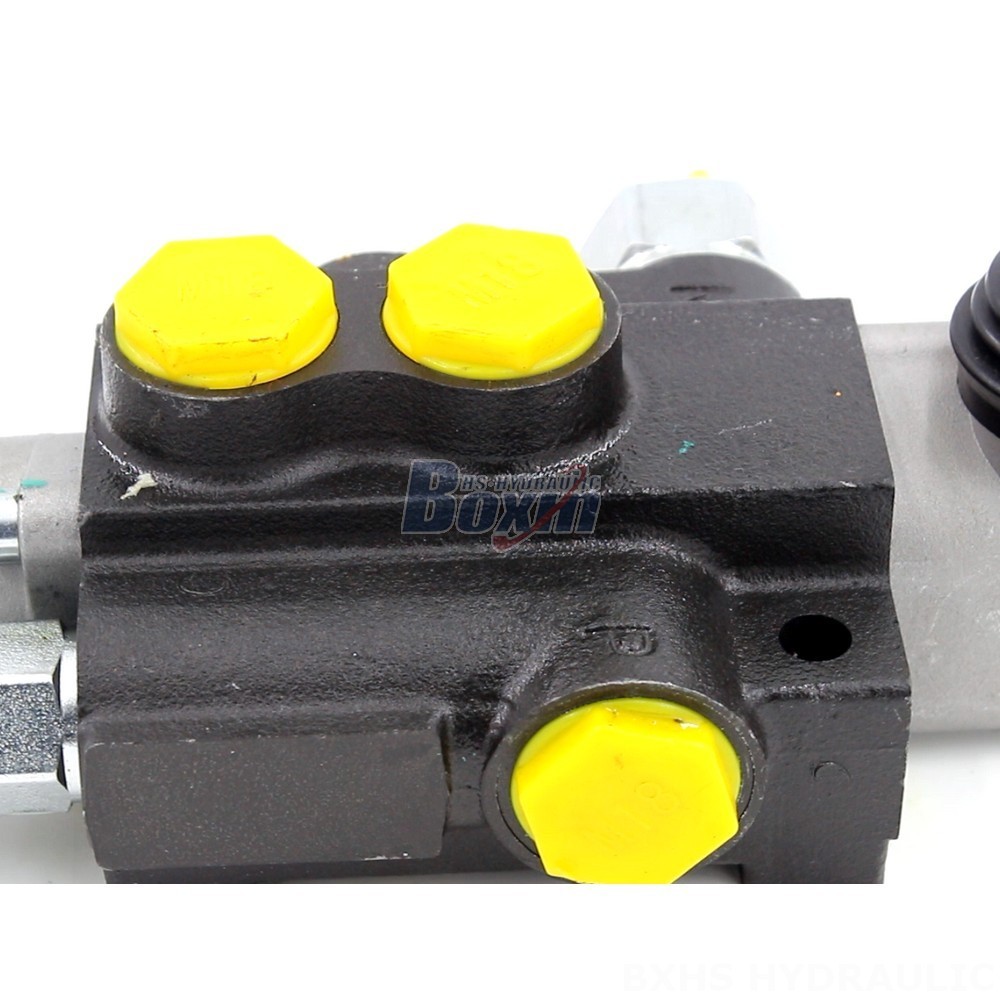

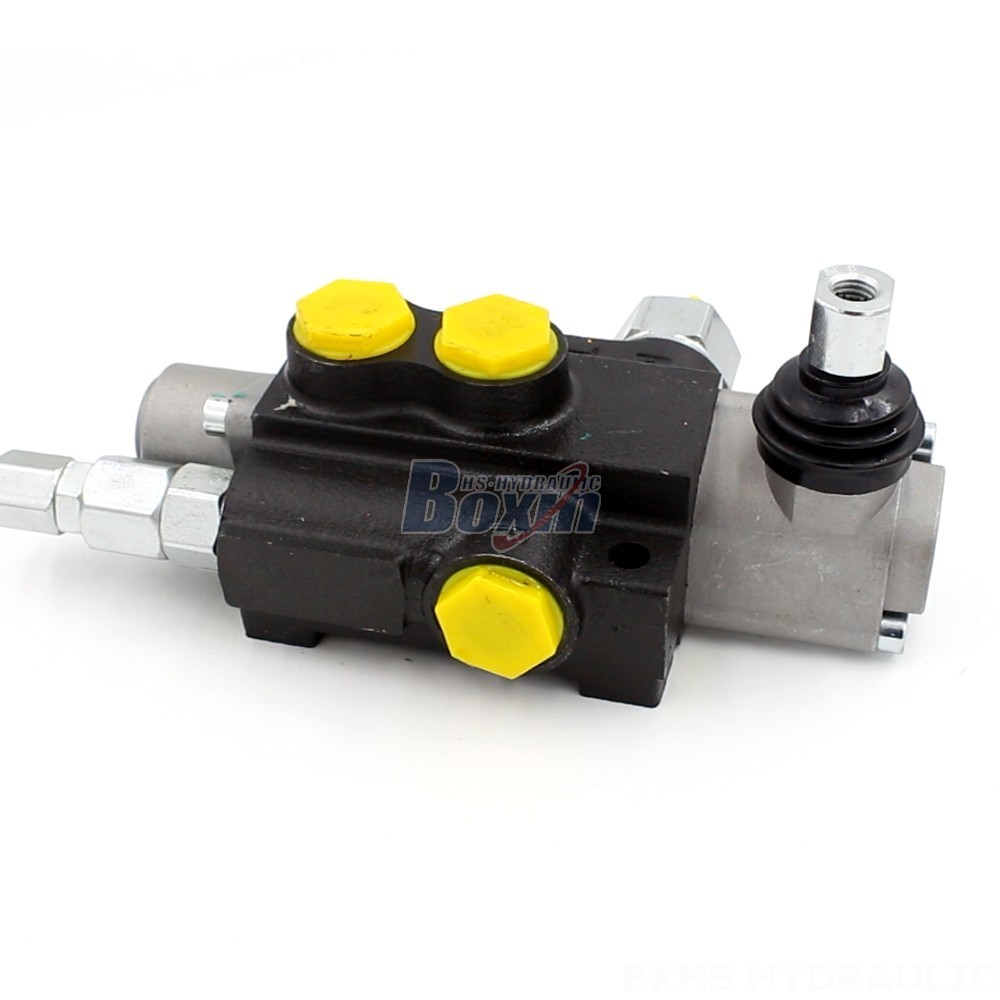

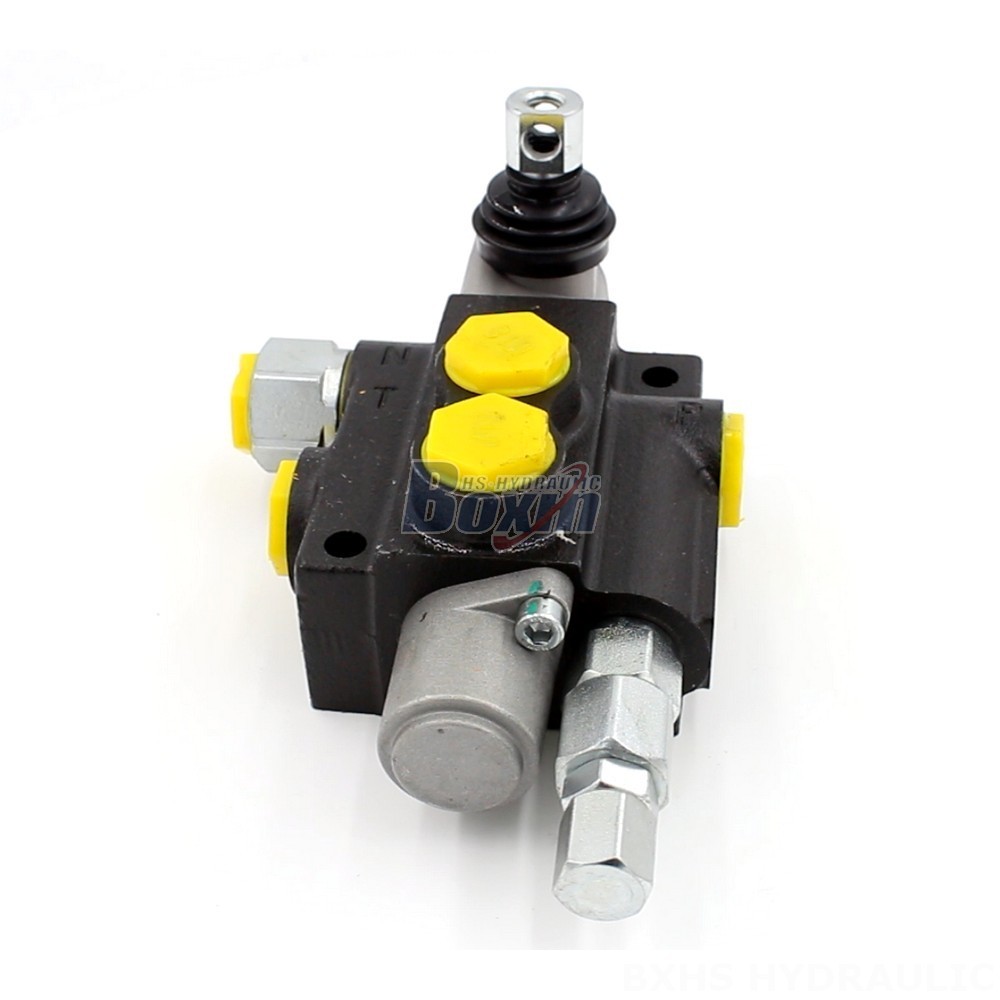

This high-quality hydraulic steering cylinder for tractors is designed for demanding applications in construction, agriculture, and industrial vehicles. We offer direct-from-factory pricing and wholesale options for our P40J series hydraulic valves, ensuring competitive prices for our customers.
| Seri P40 Katup Arah Monoblok Parameter | |
|---|---|
| Metode Kontrol | Buku Panduan, Pneumatik, Elektro-pneumatik, Elektro-hidraulik, Selenoid, Hidraulis, Hidraulik dan Manual, Kabel, Stik Kontrol, Selenoid dan Joystick, Manual dan Joystick, Solenoid dan Kabel |
| Spul | 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool |
| Kisaran Suhu Sekitar | -40°C hingga +80°C (-40°F hingga +176°F) |
| Tipe Struktur | Katup monoblok |
| Bagian | 1 Bagian, 2 Bagian, 3 Bagian, 4 Bagian, 5 Bagian, 6 Bagian, 7 Bagian |
| Kisaran Viskositas Operasional | 15 - 75 mm²/dt (15 cSt hingga 75 cSt) |
| Aliran Terukur | 40 L/menit (10,5 US gpm) |
| Tekanan Maksimum | 250 bar (3600 psi) |
| Port Masuk | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Port Keluar | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Ukuran Port | G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
Our Hydraulic Steering Cylinder for Tractor is a robust and reliable solution for a wide range of applications. This product features a monoblock valve design with a rated flow of 40 L/min and a maximum pressure of 250 bar. It is suitable for various operating conditions, with a temperature range of -40°C to +80°C. We offer this product directly from our factory at wholesale prices, making it an ideal choice for distributors, wholesalers, and dealers worldwide. As a manufacturer, we also offer OEM, ODM, and customization services to meet your specific requirements.
