Direct Source for M45 Series 3 Spool Monoblock Valves

Metode Kontrol:Manual dan Joystick

Spul:3 Spool

Aliran Terukur:45 L/menit (11,8 US gpm)

Tekanan Maksimum:250 bar (3600 psi)

Port Masuk:G3/8

Port Keluar:G3/8

Ukuran Port:G3/8

Merek:BXHS

Tipe Produk:Katup Arah Monoblok

Seri Produk:Seri HS45 Katup Arah Monoblok

Ukuran kemasan:26.5*19*11.5

Kelas kotor:6.70 kg

Ketersediaan: Tersedia

102 Pandangan Mencari Produk Ini

Direct Source for M45 Series 3 Spool Monoblock Valves

Direct Source for M45 Series 3 Spool Monoblock Valves

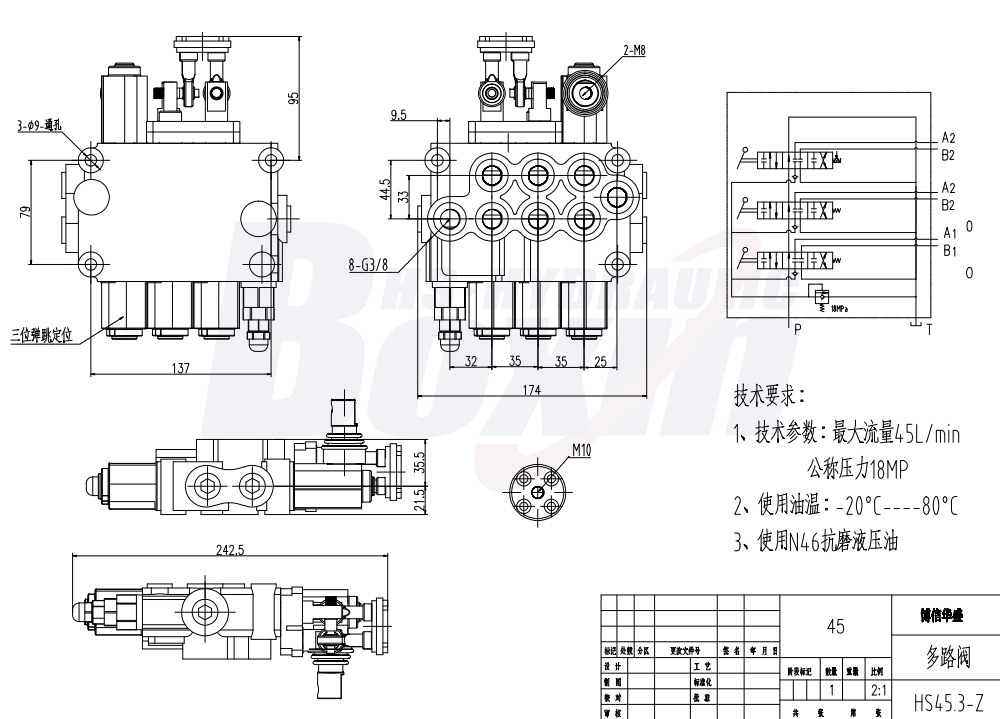

Direct Source for M45 Series 3 Spool Monoblock Valves drawing image

The HS45 series 3-spool monoblock hydraulic valve is a high-performance control solution engineered for versatility under 250 bar pressure. Featuring a 45 L/min flow rate and G3/8 ports, it is ideal for construction, agricultural, and material handling machinery, offering both manual and joystick operation options.

Seri HS45 Katup Arah Monoblok Parameter
Metode Kontrol Buku Panduan, Elektro-pneumatik, Elektro-hidraulik, Hidraulis, Hidraulik dan Manual, Stik Kontrol, Manual dan Joystick, Manual dan Elektro-hidraulik
Spul 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool
Kisaran Suhu Sekitar -20°C hingga +80°C (-4°F hingga +176°F)
Tipe Struktur Katup monoblok
Bagian 1 Bagian, 2 Bagian, 3 Bagian, 4 Bagian, 5 Bagian
Kisaran Viskositas Operasional 15 - 75 mm²/dt (15 cSt hingga 75 cSt)
Aliran Terukur 45 L/menit (11,8 US gpm)
Tekanan Maksimum 250 bar (3600 psi)
Port Masuk G3/8
Port Keluar G3/8
Ukuran Port G3/8

As a professional hydraulic manufacturer, we provide robust M45 series monoblock valves designed for durability in demanding industrial and mobile applications. Our production line supports comprehensive customization, private labeling (OEM), and contract manufacturing to meet specific client requirements. We offer competitive factory-direct wholesale pricing, ensuring efficient supply chain solutions for distributors, wholesalers, and international trading partners. With optimized designs for forklifts, tractors, log splitters, and mini-excavators, our valves deliver consistent performance. We are actively seeking long-term partnerships with global distributors, wholesalers, and trade agents. Benefit from our rigorous manufacturing standards, reliable stock availability, and flexible production capabilities. Contact us today to discuss your technical specifications, volume requirements, and opportunities for corporate collaboration.
