Direct Source for P80 Hydraulic Valves: Save Time & Costs

Metode Kontrol:Selenoid

Spul:3 Spool

Aliran Terukur:80 L/menit (21,2 US gpm)

Tekanan Maksimum:200 bar (2900 psi)

Port Masuk:G3/4

Port Keluar:G3/4

Ukuran Port:G1/2

Merek:BXHS

Tipe Produk:Katup Arah Monoblok

Seri Produk:Seri P80 Katup Arah Monoblok

Ukuran kemasan:33*28*13

Kelas kotor:13.00 kg

Ketersediaan: Tersedia

996 Pandangan Mencari Produk Ini

Direct Source for P80 Hydraulic Valves: Save Time & Costs

Direct Source for P80 Hydraulic Valves: Save Time & Costs

Direct Source for P80 Hydraulic Valves: Save Time & Costs drawing image

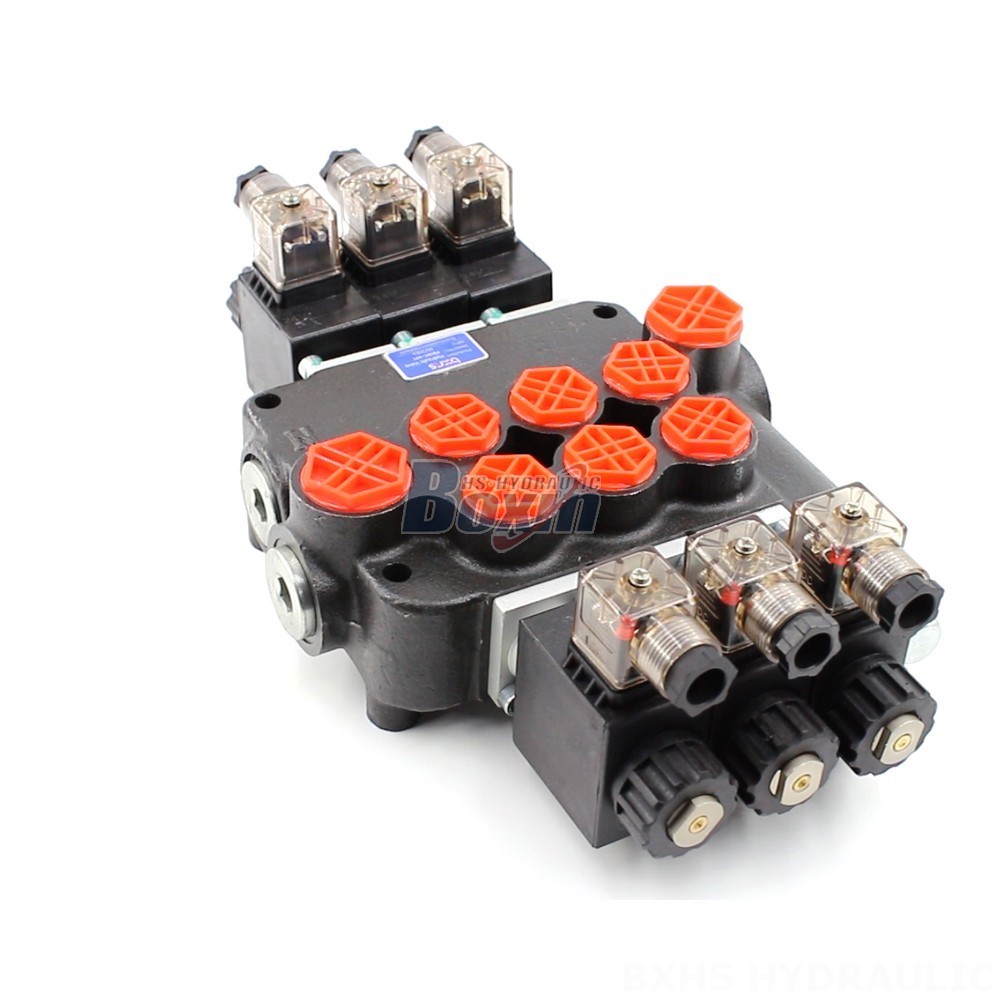

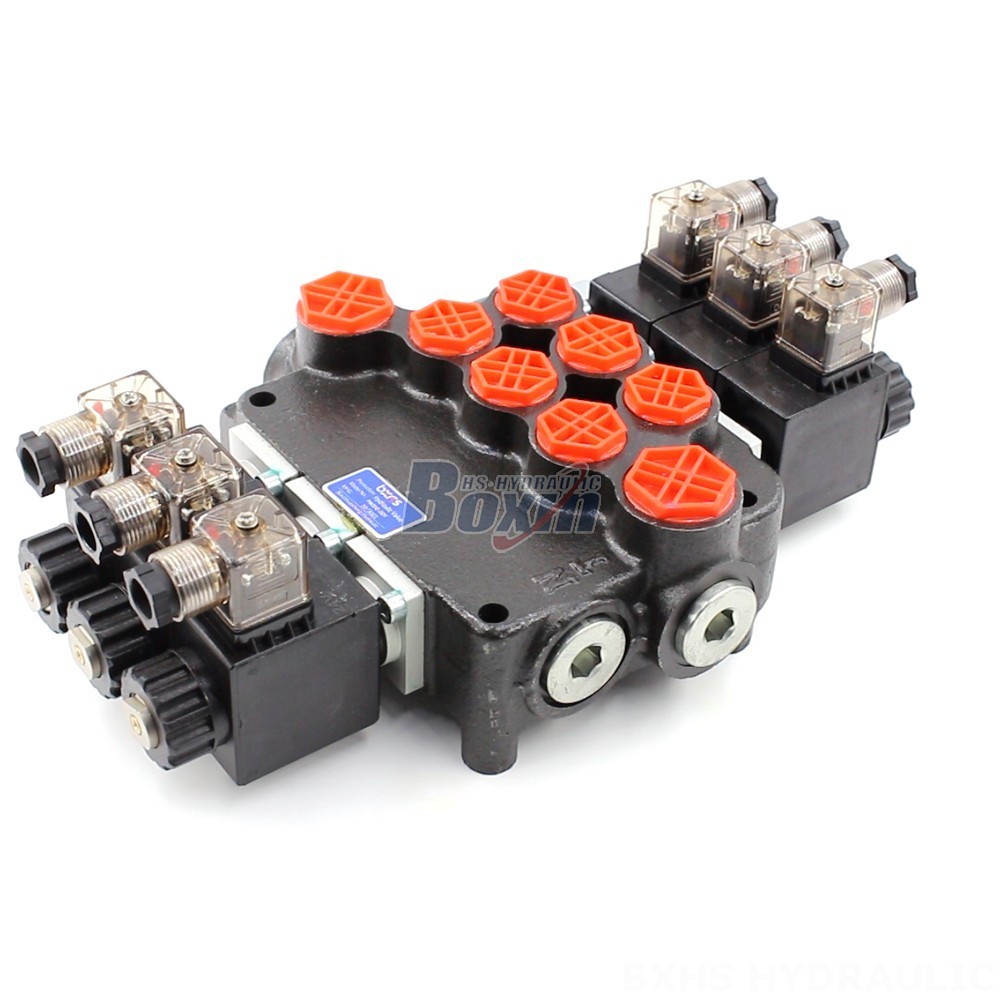

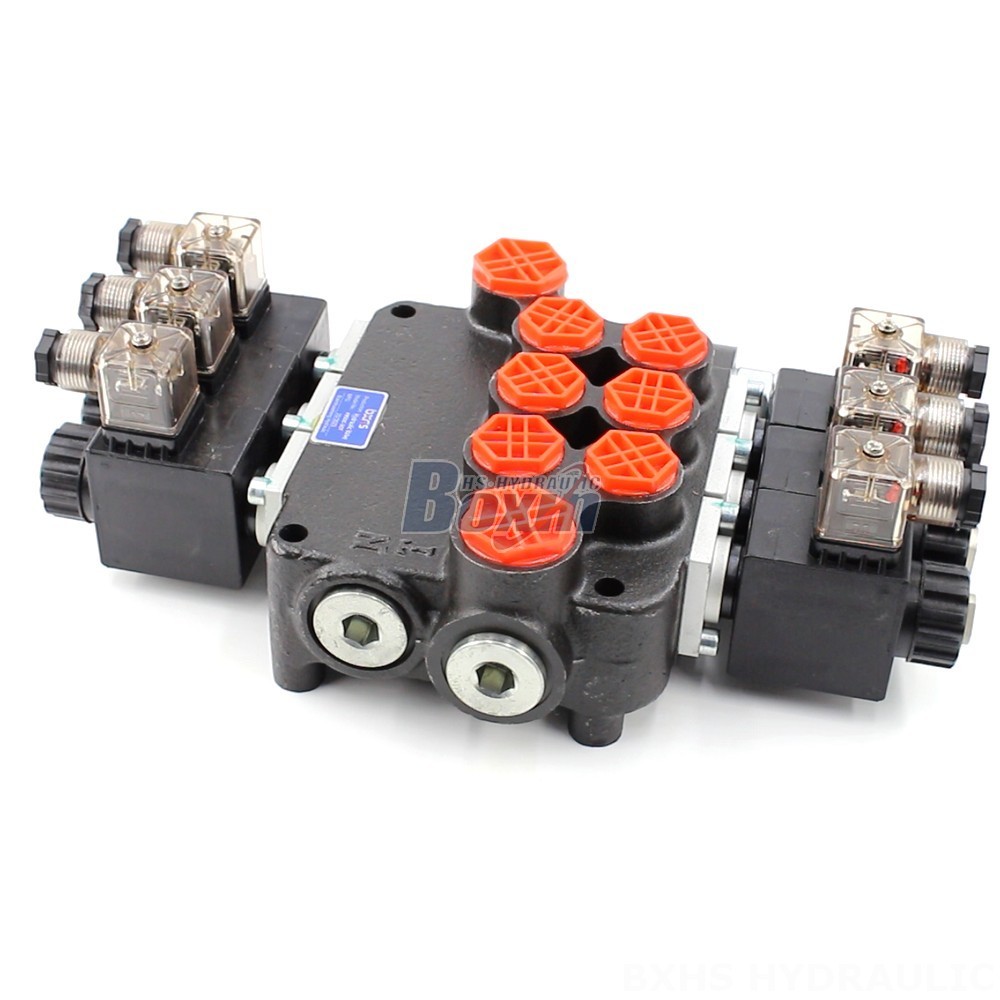

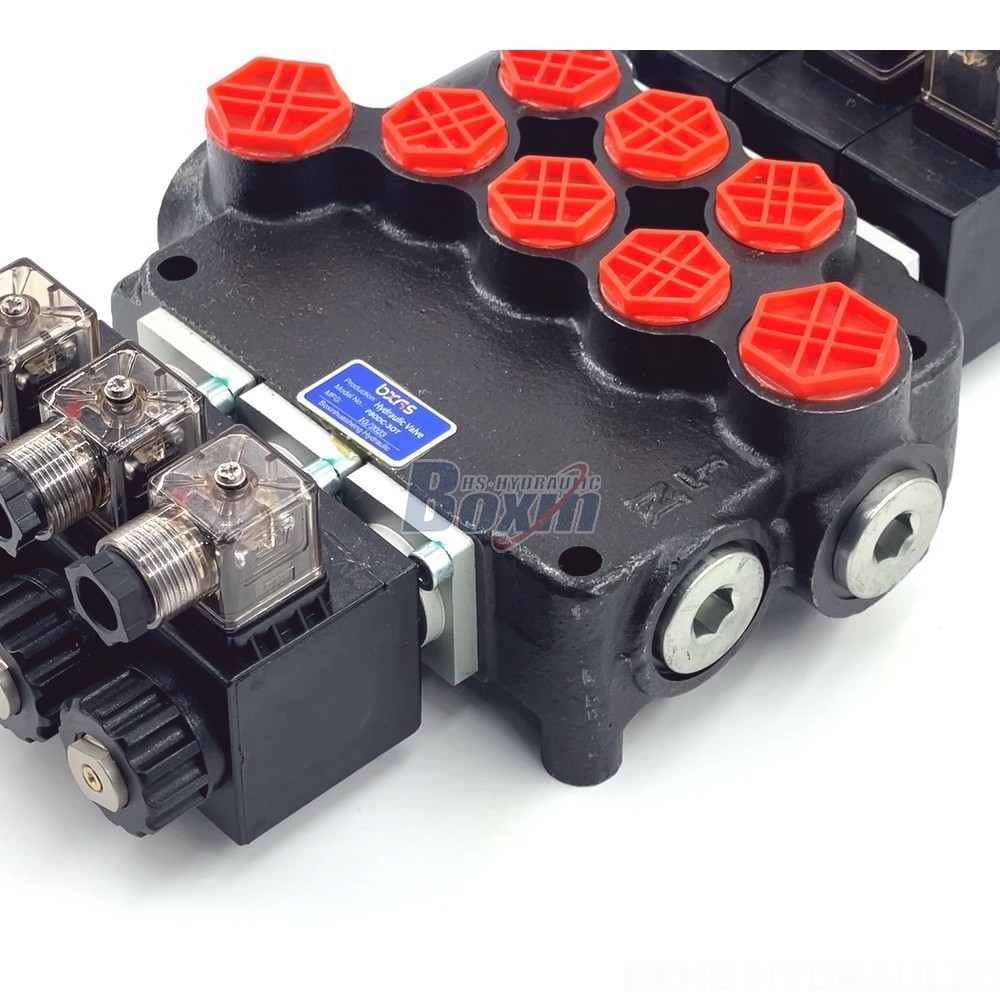

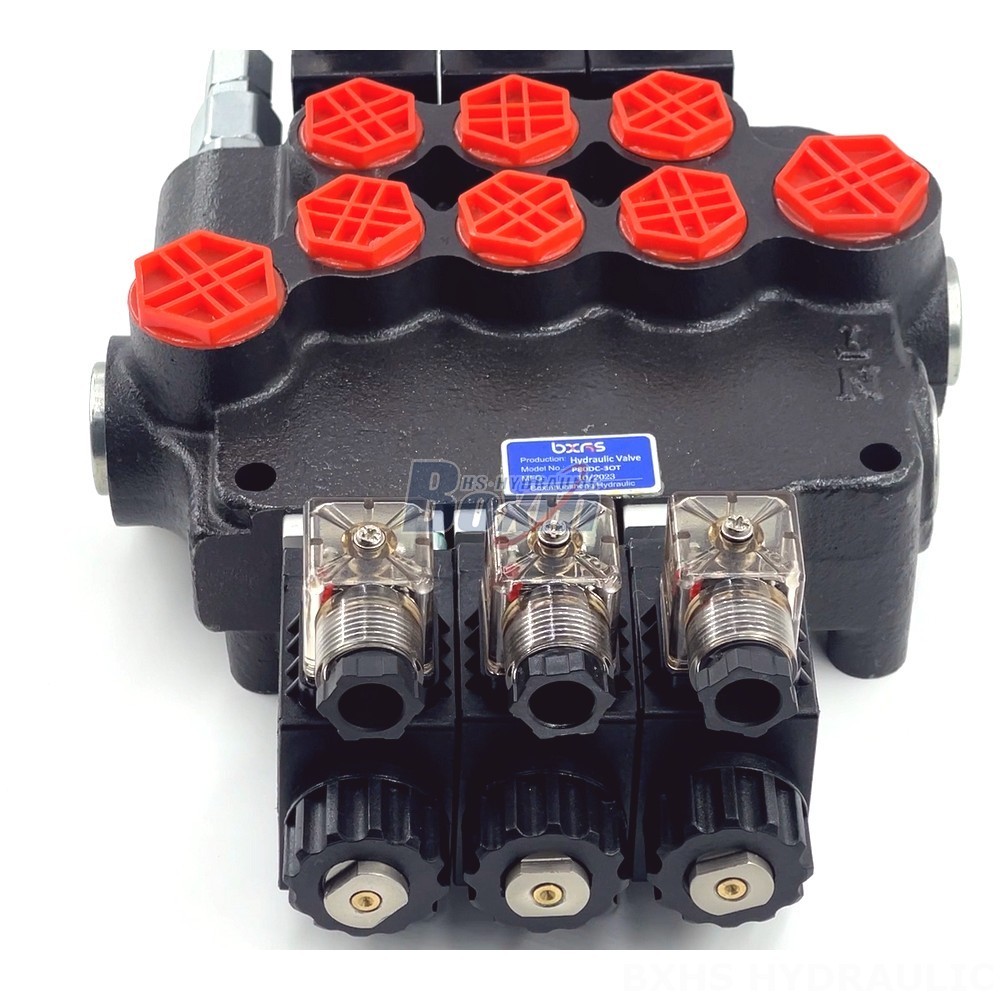

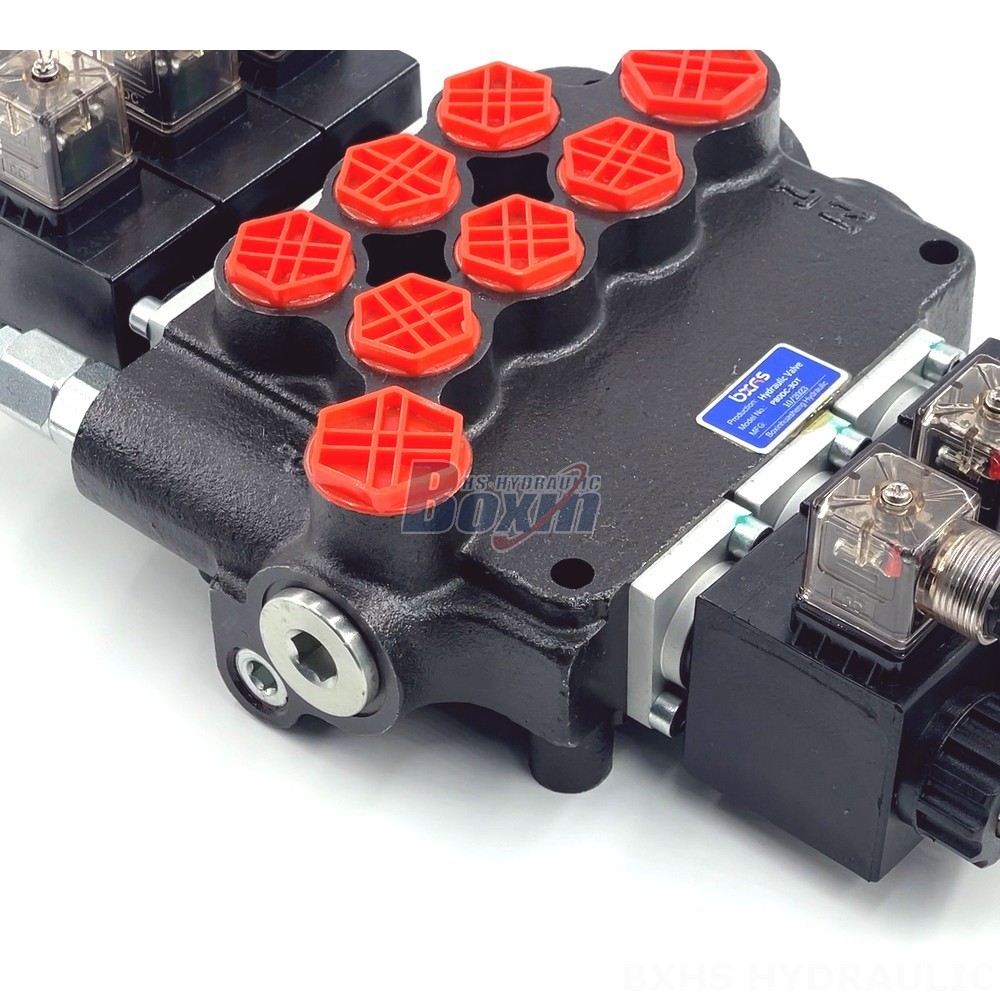

Our factory directly supplies high-quality P80 series directional hydraulic valves for various applications, including material handling, construction, agriculture, and industrial vehicles. These solenoid-controlled, monoblock valves offer a rated flow of 80 L/min and a max pressure of 250 bar, perfect for telehandlers, forklifts, cranes, stackers, and more. Contact us for OEM, ODM, customization, and wholesale inquiries.

Seri P80 Katup Arah Monoblok Parameter
Metode Kontrol Buku Panduan, Pneumatik, Elektro-pneumatik, Elektro-hidraulik, Selenoid, Hidraulis, Hidraulik dan Manual, Kabel, Stik Kontrol, Manual dan Joystick
Spul 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool
Kisaran Suhu Sekitar -40°C hingga +80°C (-40°F hingga +176°F)
Tipe Struktur Katup monoblok
Bagian 1 Bagian, 2 Bagian, 3 Bagian, 4 Bagian, 5 Bagian, 6 Bagian, 7 Bagian
Kisaran Viskositas Operasional 15 - 75 mm²/dt (15 cSt hingga 75 cSt)
Aliran Terukur 80 L/menit (21,2 US gpm)
Tekanan Maksimum 315 bar (4600 psi)
Port Masuk G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT
Port Keluar G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT
Ukuran Port G1/2, G3/4, M22×1.5, M27×2.0, SAE 10, 1/2 NPT, 3/4 NPT

We are a hydraulic product manufacturer specializing in the production of high-quality P80 series directional hydraulic valves. Our factory directly supplies these valves to global markets, offering manufacturing, OEM, ODM, customization, and wholesale options. We also welcome inquiries from distributors, wholesalers, agents, and traders. Our P80 valves are solenoid-controlled, monoblock valves with a 3-section design. They offer a rated flow of 80 L/min (21.2 US gpm) and a max pressure of 250 bar (3600 psi). The operating viscosity range is 15 - 75 mm²/s (15 cSt to 75 cSt) and the ambient temperature range is -40°C to +80°C (-40°F to +176°F). These valves feature a 3-spool design and are ideal for a wide range of applications, including material handling, construction and earth moving, agriculture, and industrial vehicles. They are compatible with various models such as telehandlers, forklifts, all-terrain cranes, stackers, aerial platforms, motor graders, midi-excavators, mini-excavators, skid steer loaders, and compact wheel loaders. By choosing our factory direct supply, you benefit from competitive pricing, superior quality, and fast delivery. Contact us today to discuss your specific requirements and explore our customized solutions.
