Produksi & Pengiriman
Waktu Produksi 15-30 Hari
987 Pandangan Mencari Produk Ini

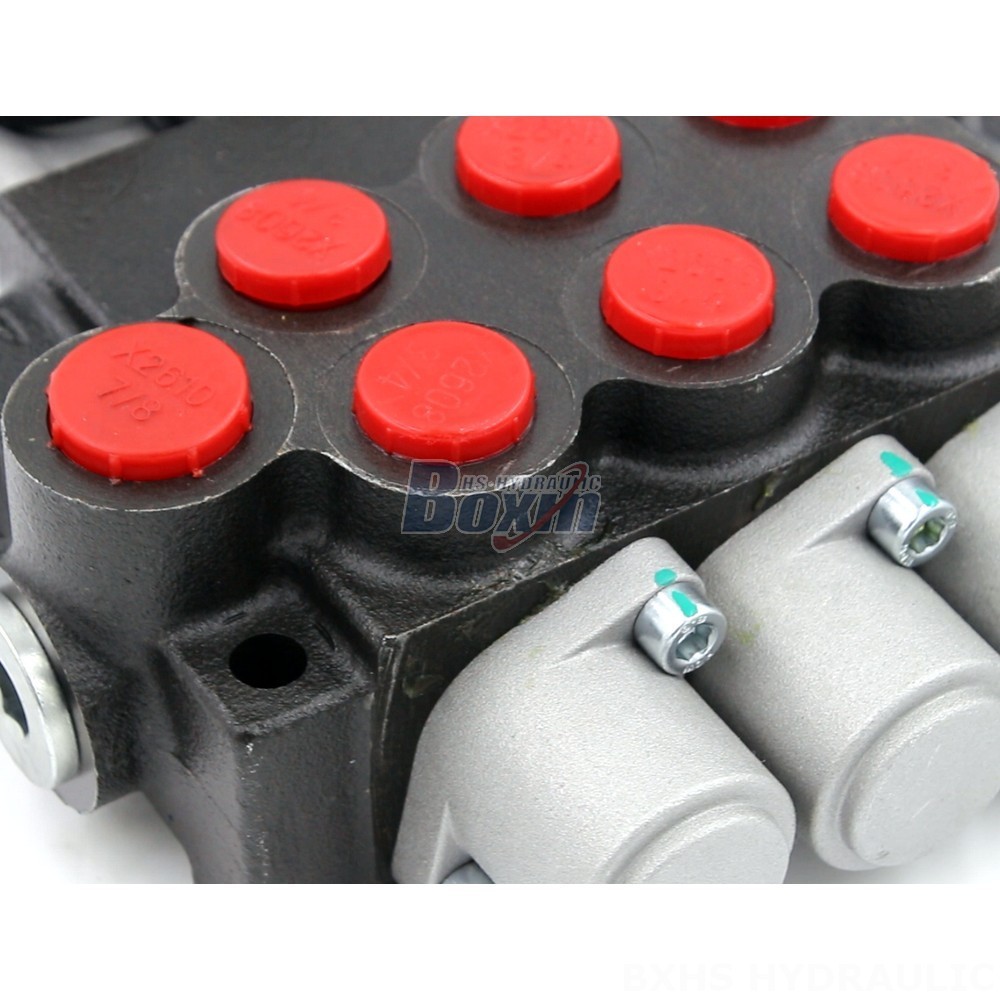

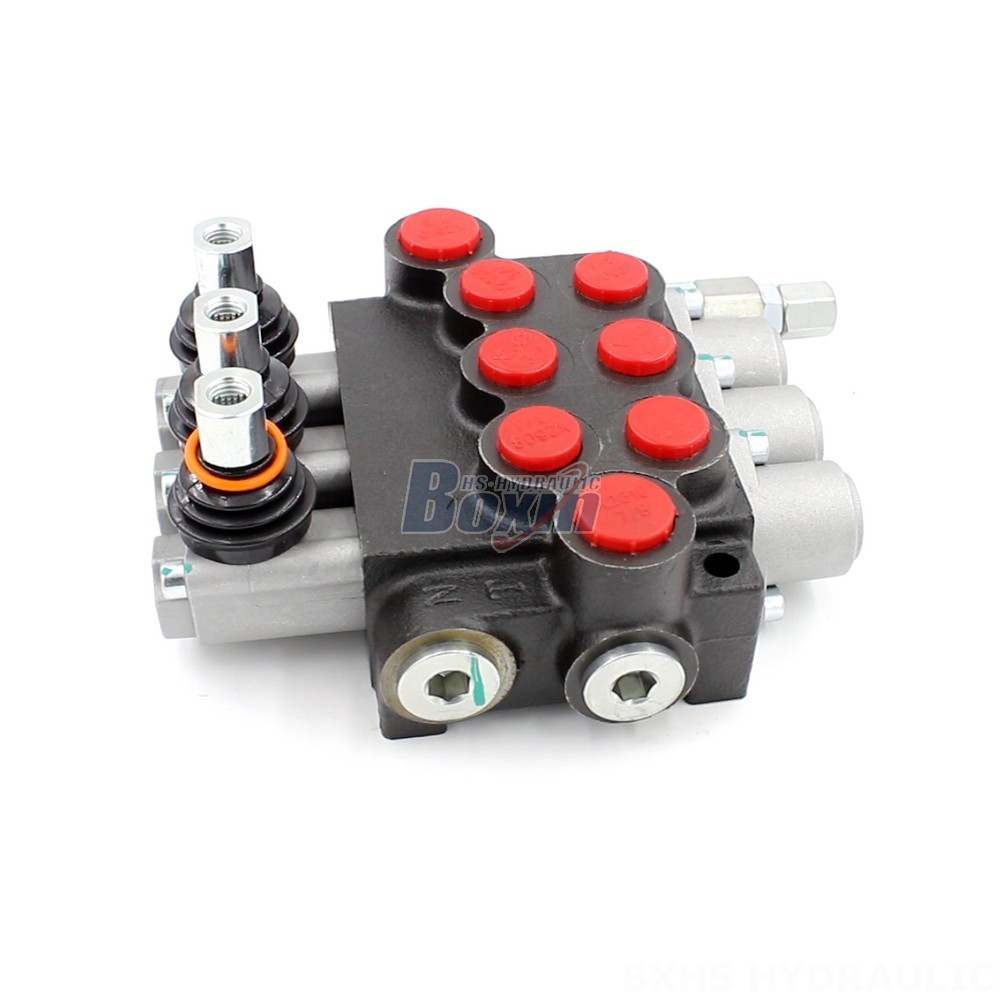

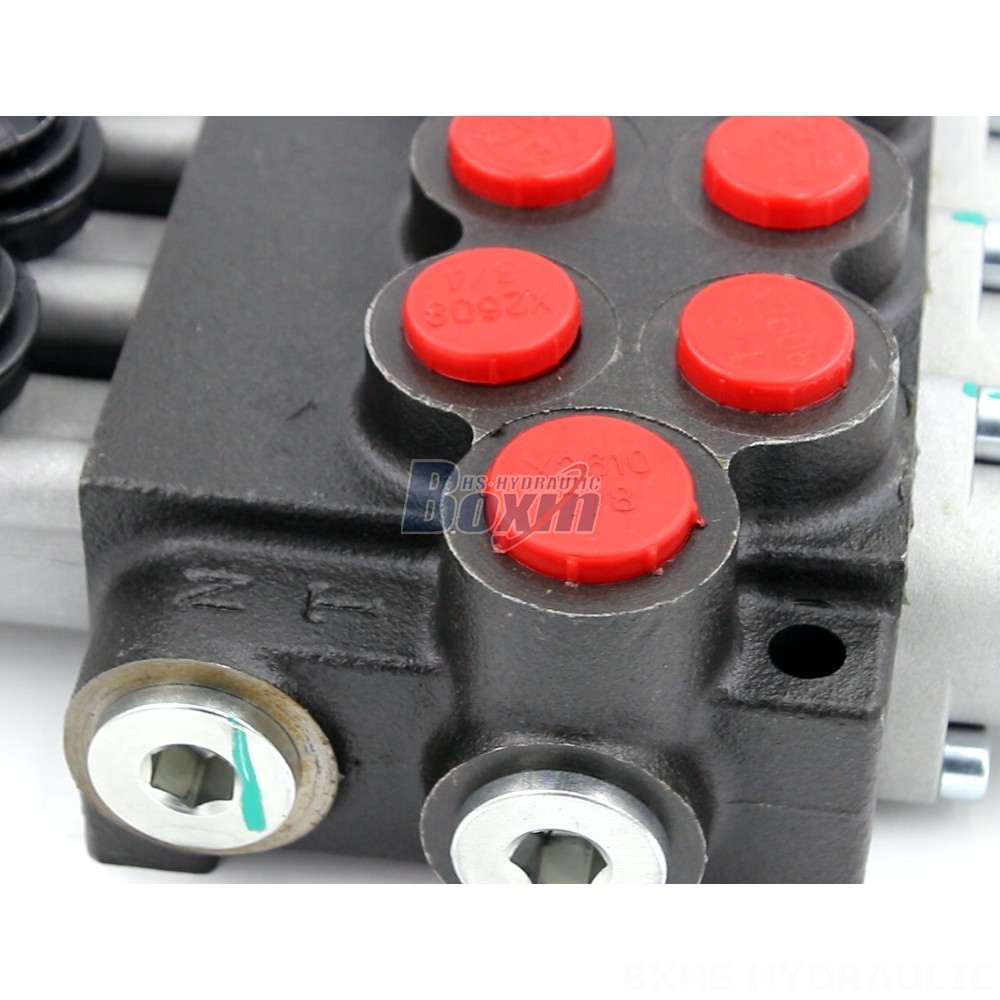

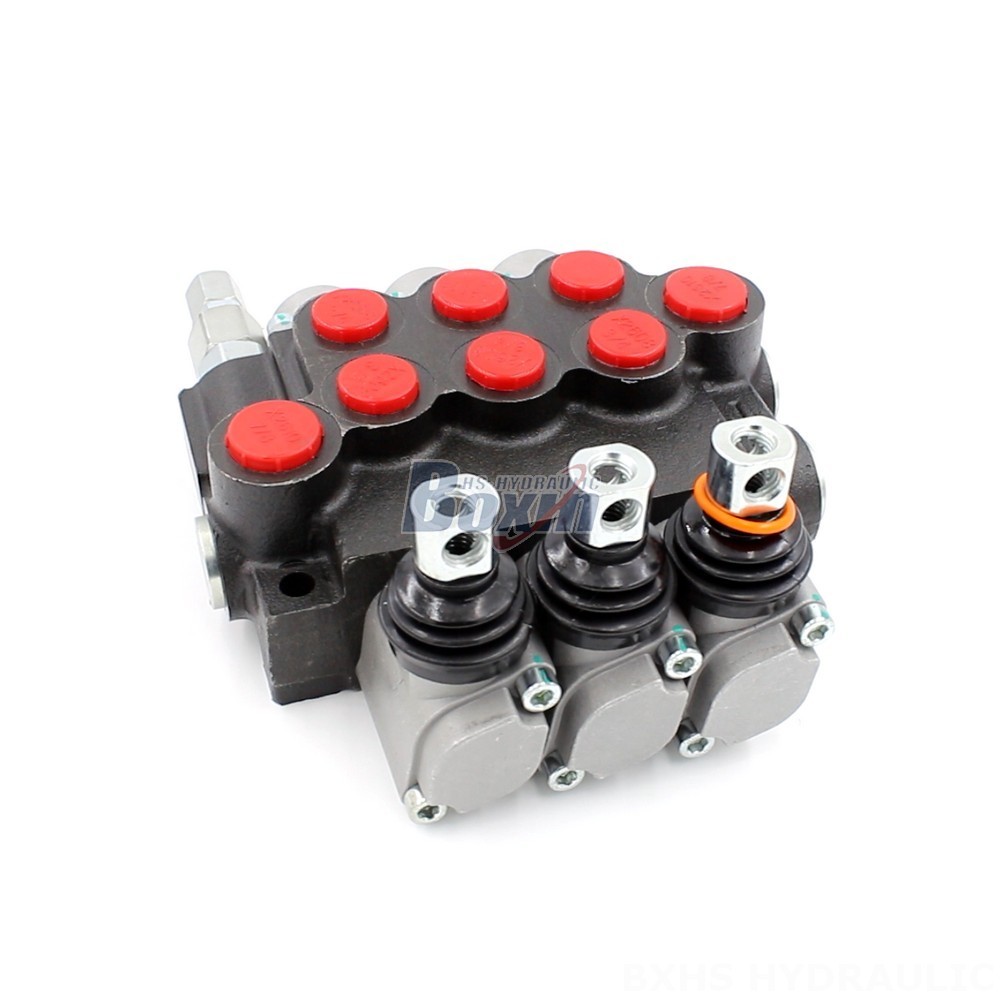

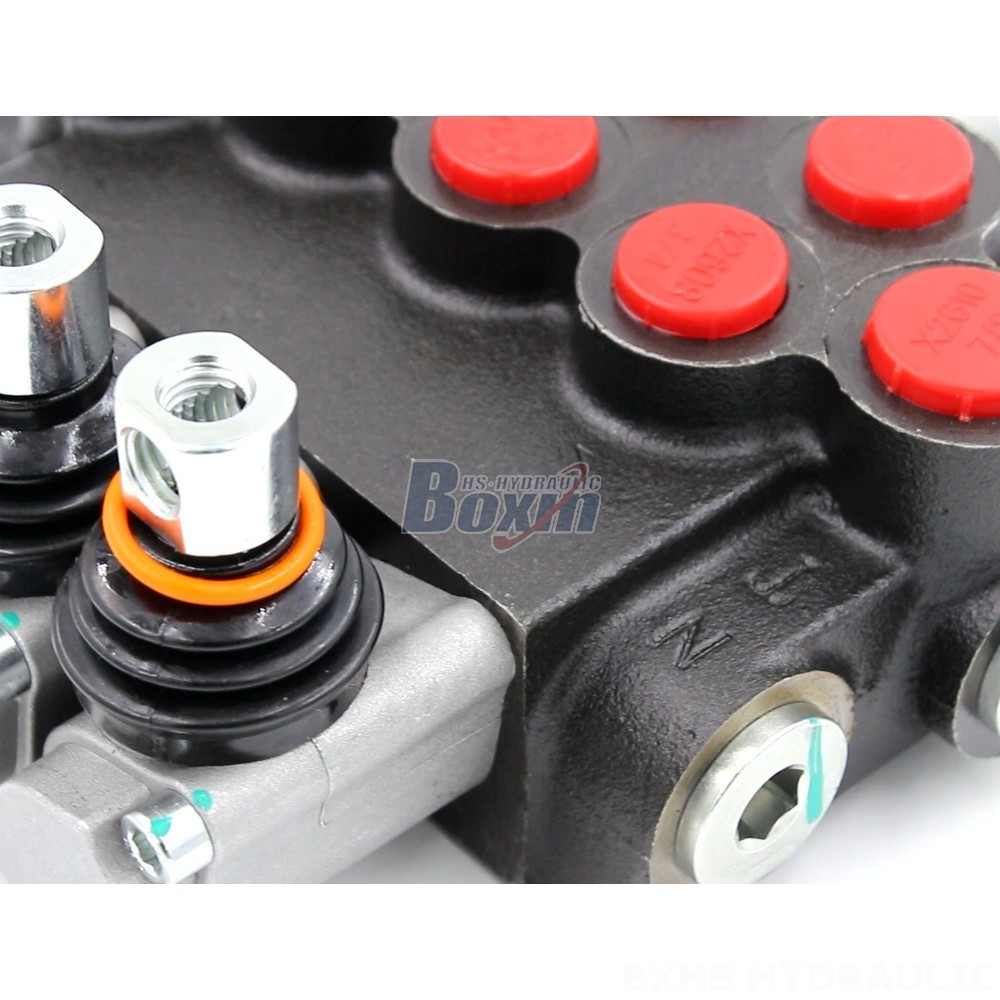

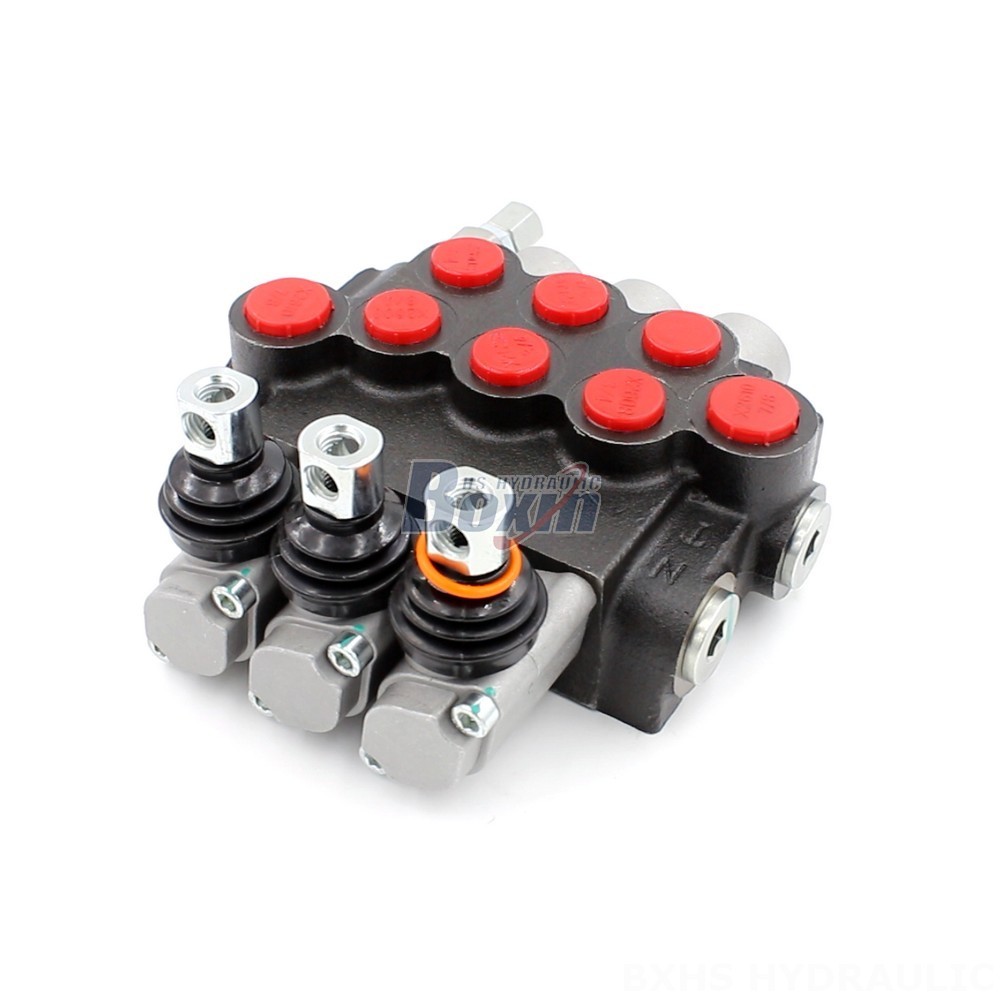

This 12V Mono Block Hydraulic Spool Valve is a high-performance directional control valve designed for a variety of applications, including material handling, construction, and agriculture. It features a 3-section monoblock design, manual control, and a rated flow of 40 L/min. The valve is suitable for use in telehandlers, forklifts, cranes, and other industrial vehicles.
| Seri P40 Katup Arah Monoblok Parameter | |
|---|---|
| Metode Kontrol | Buku Panduan, Pneumatik, Elektro-pneumatik, Elektro-hidraulik, Selenoid, Hidraulis, Hidraulik dan Manual, Kabel, Stik Kontrol, Selenoid dan Joystick, Manual dan Joystick, Solenoid dan Kabel |
| Spul | 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool |
| Kisaran Suhu Sekitar | -40°C hingga +80°C (-40°F hingga +176°F) |
| Tipe Struktur | Katup monoblok |
| Bagian | 1 Bagian, 2 Bagian, 3 Bagian, 4 Bagian, 5 Bagian, 6 Bagian, 7 Bagian |
| Kisaran Viskositas Operasional | 15 - 75 mm²/dt (15 cSt hingga 75 cSt) |
| Aliran Terukur | 40 L/menit (10,5 US gpm) |
| Tekanan Maksimum | 250 bar (3600 psi) |
| Port Masuk | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Port Keluar | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Ukuran Port | G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
This 12V Mono Block Hydraulic Spool Valve is a reliable and durable component for hydraulic systems. It features a compact and robust design with a 3-section monoblock structure. The valve is controlled manually and has a rated flow of 40 L/min, capable of handling high pressure up to 250 bar. It's designed to operate in a wide range of temperatures, making it suitable for various applications in material handling, construction, agriculture, and industrial vehicles. The valve is compatible with a wide range of equipment, including telehandlers, forklifts, cranes, stackers, aerial platforms, motor graders, mini-excavators, skid steer loaders, backhoe loaders, tractors, and front-end loaders.
