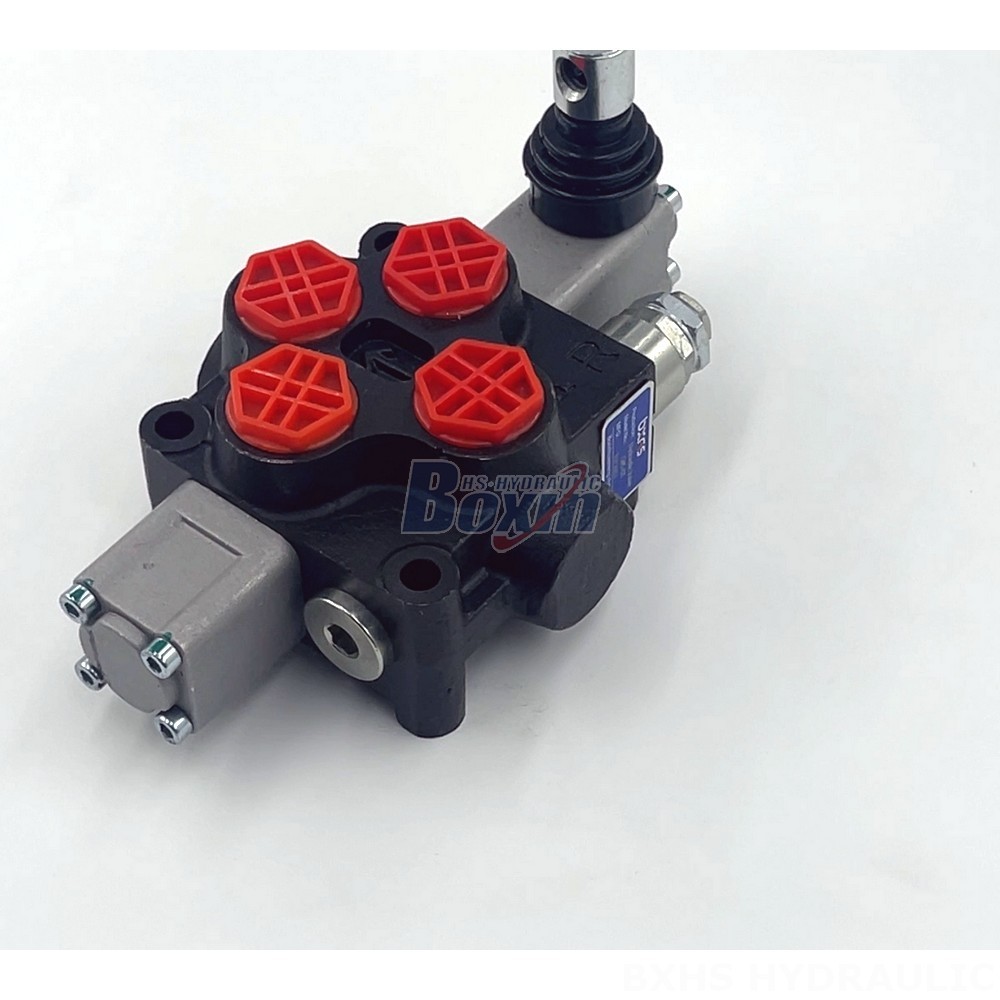

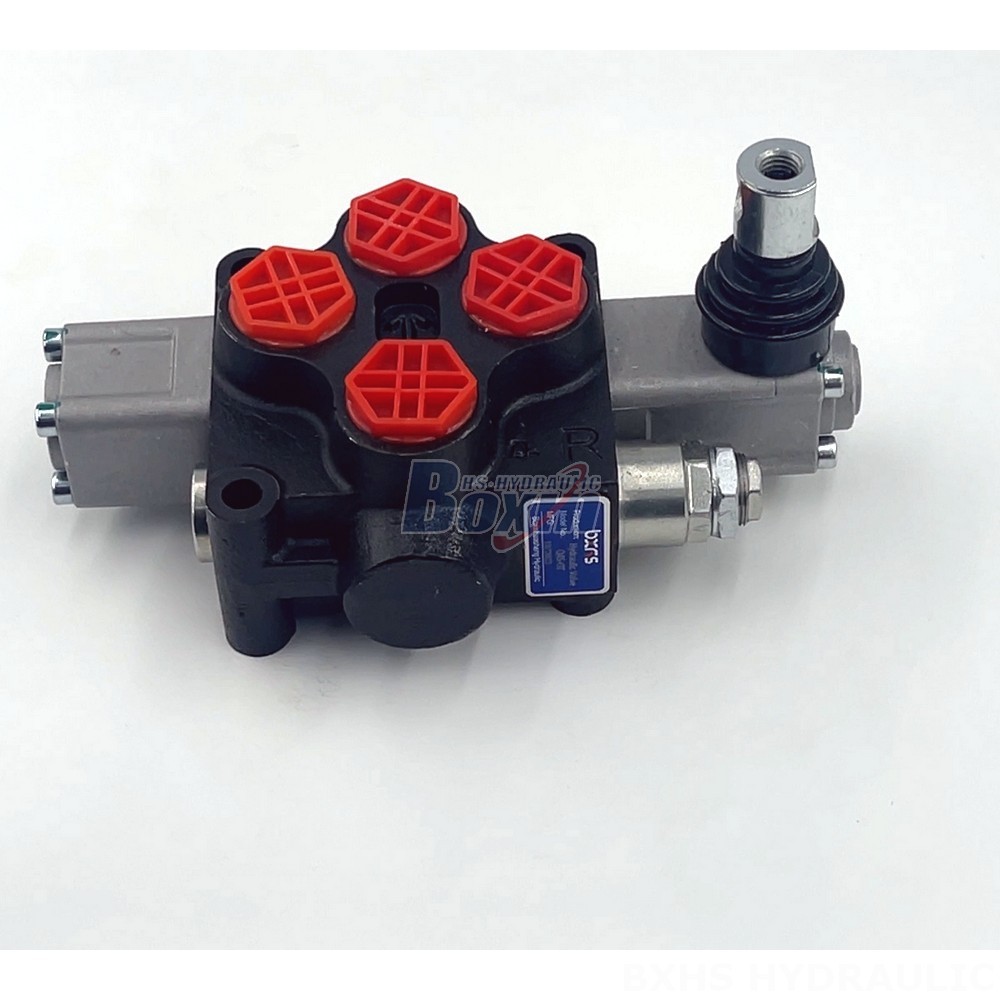

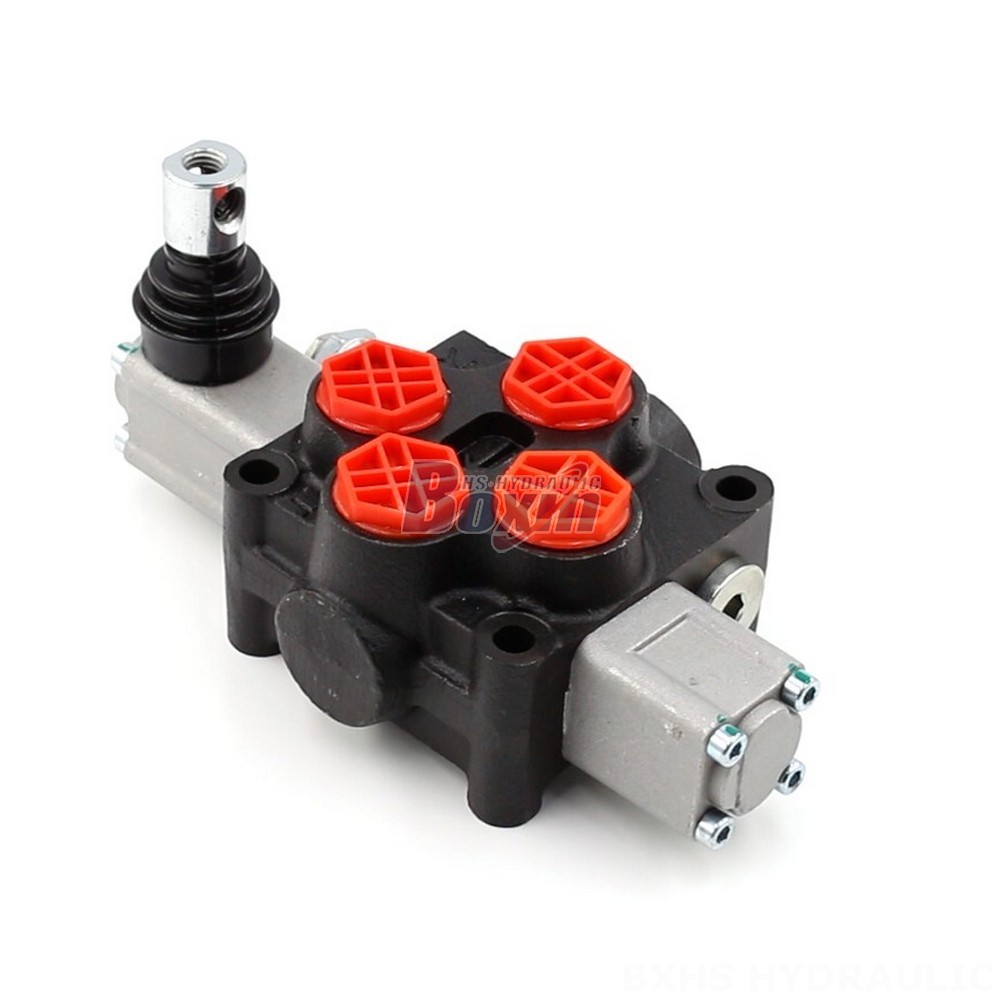

The Q45 Series Hydraulic Shut Off Solenoid Valve is a high-performance, directional control valve designed for use in a wide range of construction, material handling, agricultural, and industrial vehicle applications. This monoblock valve offers a rated flow of 45 L/min and a maximum pressure of 315 bar, making it ideal for heavy-duty applications.
| Seri Q45 Katup Arah Monoblok Parameter | |
|---|---|
| Metode Kontrol | Buku Panduan, Pneumatik, Elektro-pneumatik, Elektro-hidraulik, Selenoid, Stik Kontrol, Solenoid dan Manual, Elektromagnet Manual dan Push-pull, Elektromagnet Push-pull |
| Spul | 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool |
| Kisaran Suhu Sekitar | -20°C hingga +80°C (-4°F hingga +176°F) |
| Tipe Struktur | Katup monoblok |
| Bagian | 1 Bagian, 2 Bagian, 3 Bagian, 4 Bagian, 5 Bagian, 6 Bagian, 7 Bagian |
| Kisaran Viskositas Operasional | 15 - 75 mm²/dt (15 cSt hingga 75 cSt) |
| Aliran Terukur | 45 L/menit (11,8 US gpm) |
| Tekanan Maksimum | 315 bar (4600 psi) |
| Port Masuk | G1/2 |
| Port Keluar | G1/2 |
| Ukuran Port | G1/2 |
This Q45 Series Hydraulic Shut Off Solenoid Valve is a powerful and reliable component for various applications. Featuring a manual control method and a monoblock structure, this 1-section valve offers a rated flow of 45 L/min and can withstand a maximum pressure of 315 bar. Designed with a single spool, this valve is built for durability and performance in demanding environments. Ideal for use in construction equipment like telehandlers, forklifts, cranes, and excavators, as well as material handling equipment, agricultural machinery, and industrial vehicles, this valve is a top choice for manufacturers and operators seeking quality and dependability.
