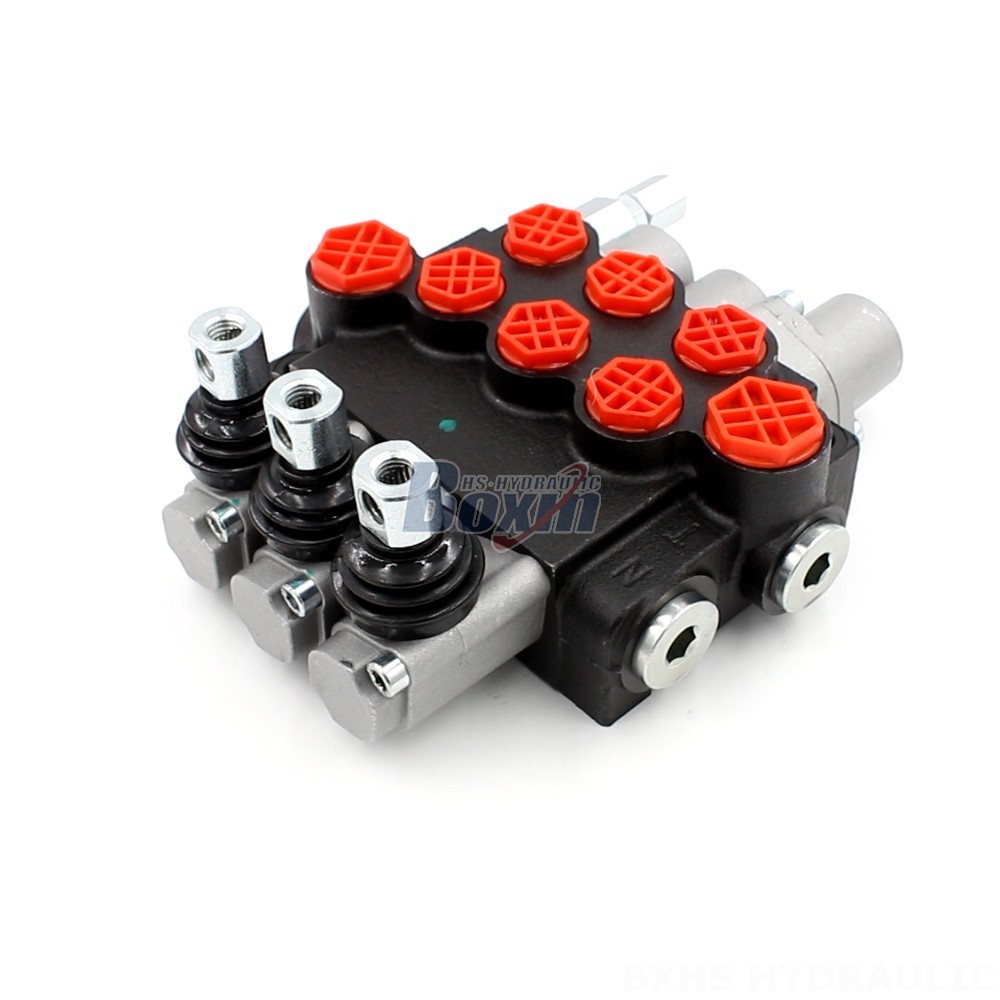

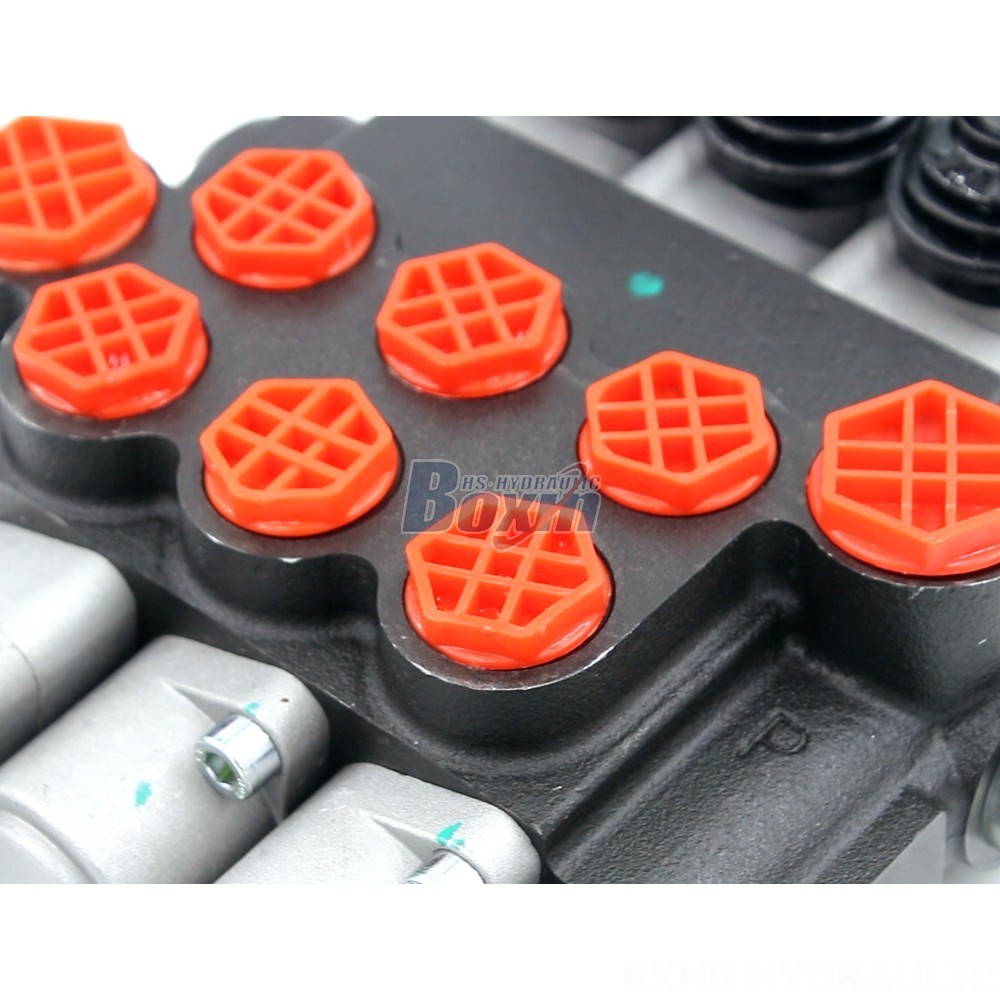

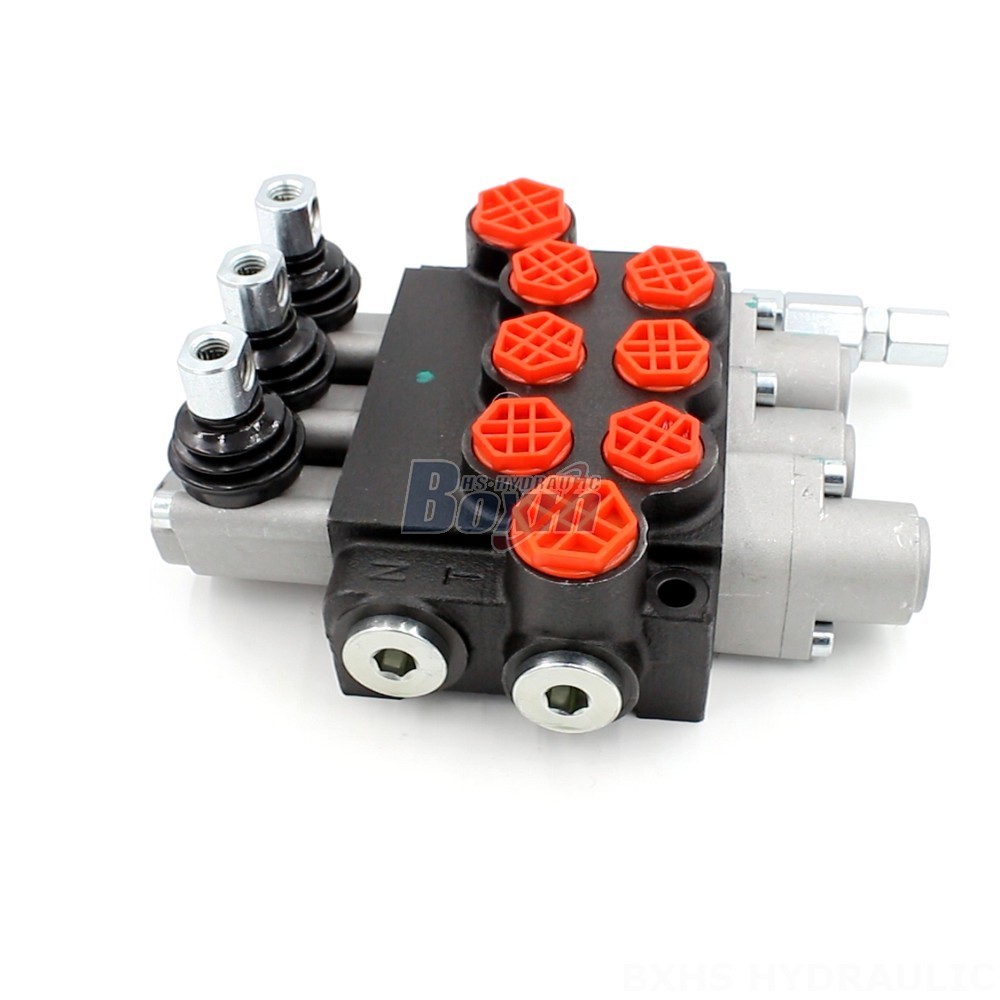

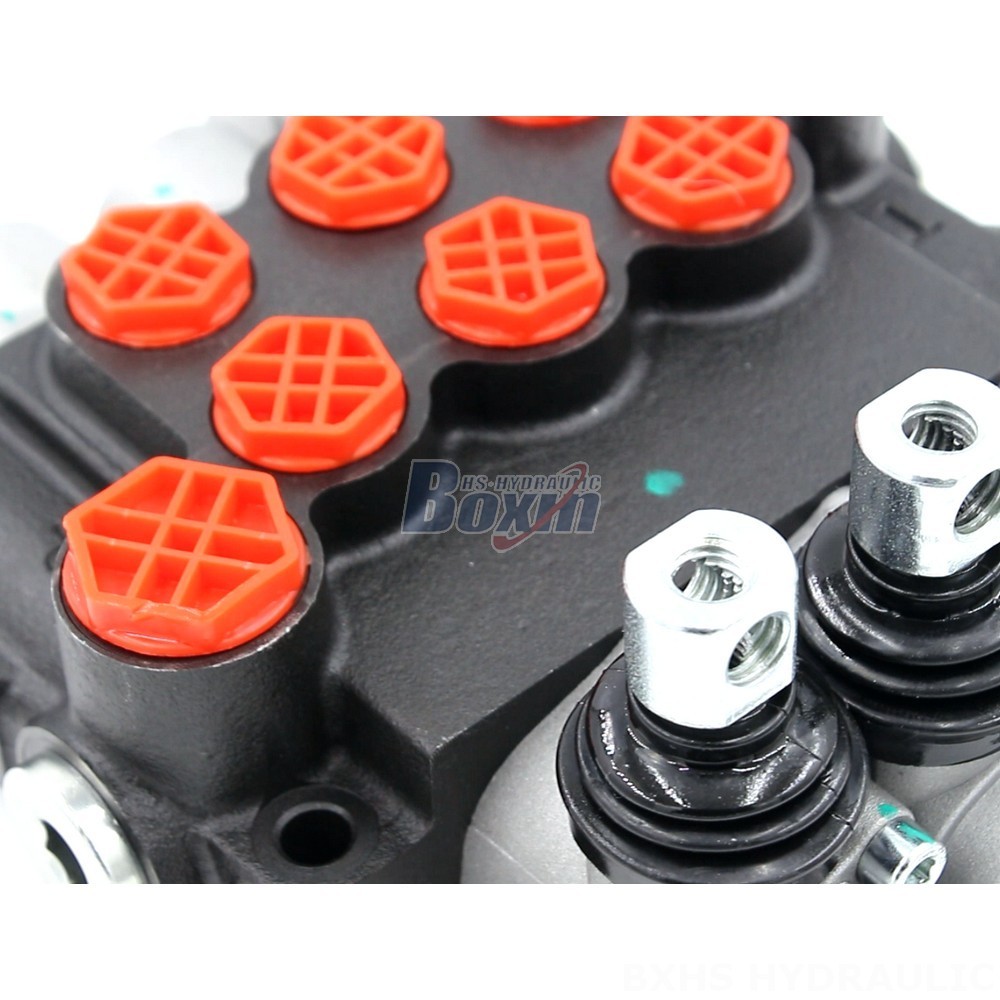

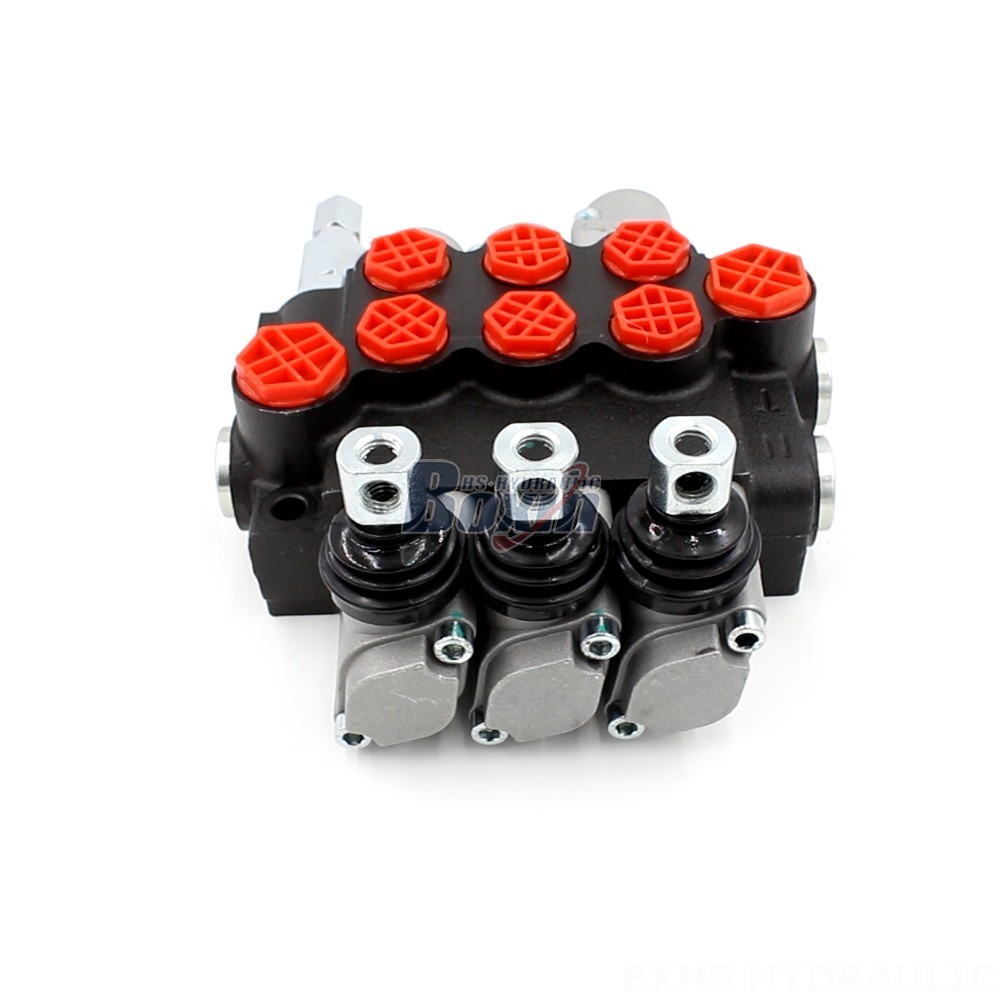

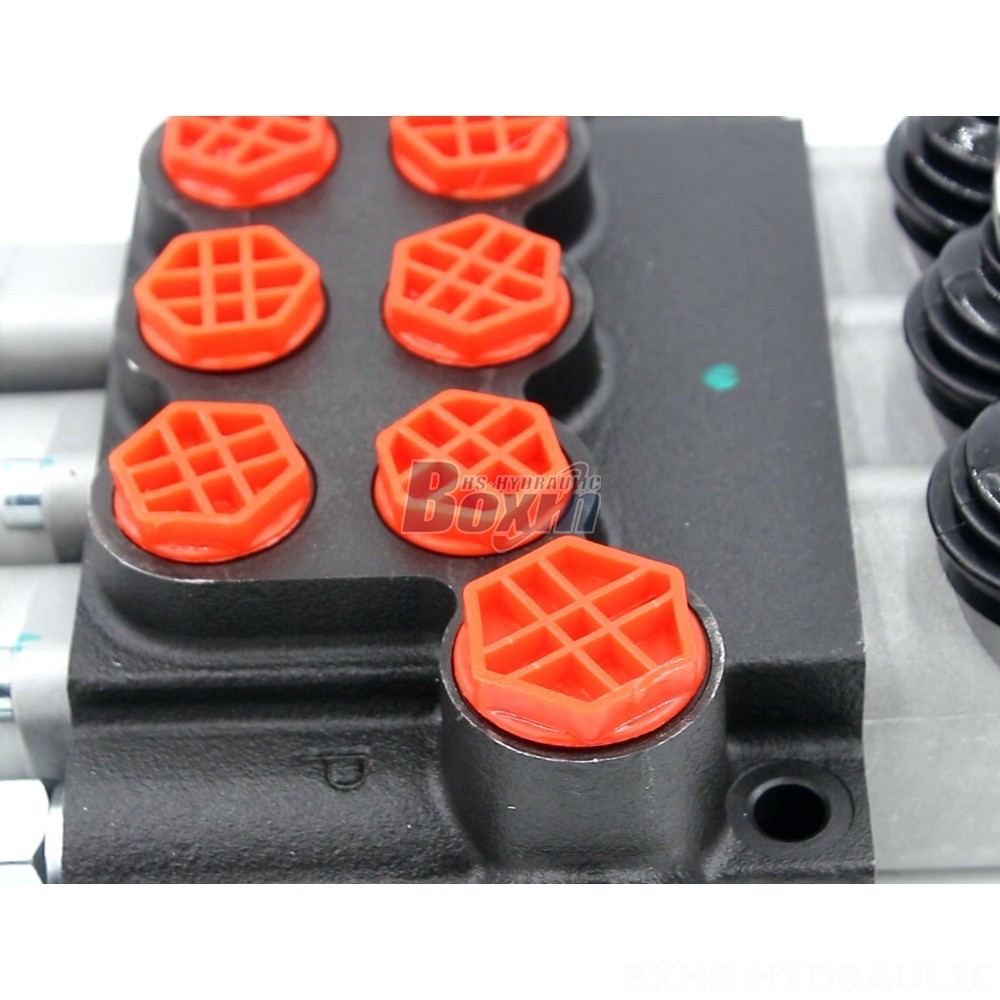

The P40-G12-G38-OT-OT-OT Hydraulic Monoblock Valve is a high-performance directional control valve designed for use in construction, agriculture and material handling applications. This 3-section manual control valve features a rated flow of 40 L/min and a maximum pressure of 250 bar, making it ideal for a variety of mobile equipment.
| Seri P40 Katup Arah Monoblok Parameter | |
|---|---|
| Metode Kontrol | Buku Panduan, Pneumatik, Elektro-pneumatik, Elektro-hidraulik, Selenoid, Hidraulis, Hidraulik dan Manual, Kabel, Stik Kontrol, Selenoid dan Joystick, Manual dan Joystick, Solenoid dan Kabel |
| Spul | 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool |
| Kisaran Suhu Sekitar | -40°C hingga +80°C (-40°F hingga +176°F) |
| Tipe Struktur | Katup monoblok |
| Bagian | 1 Bagian, 2 Bagian, 3 Bagian, 4 Bagian, 5 Bagian, 6 Bagian, 7 Bagian |
| Kisaran Viskositas Operasional | 15 - 75 mm²/dt (15 cSt hingga 75 cSt) |
| Aliran Terukur | 40 L/menit (10,5 US gpm) |
| Tekanan Maksimum | 250 bar (3600 psi) |
| Port Masuk | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Port Keluar | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Ukuran Port | G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
This P40 Series hydraulic monoblock valve is a reliable and durable solution for controlling hydraulic systems in various applications. It features a 3-section design with a manual control method and is rated for a flow of 40 L/min at a maximum pressure of 250 bar. This valve is suitable for use in a wide range of temperatures, from -40°C to +80°C, and can handle operating viscosities from 15 to 75 mm²/s. The P40-G12-G38-OT-OT-OT is commonly used in construction equipment such as telehandlers, forklifts, cranes, stackers, aerial platforms, motor graders, excavators, skid steer loaders, and tractors. It is also widely used in agriculture equipment and material handling applications.
