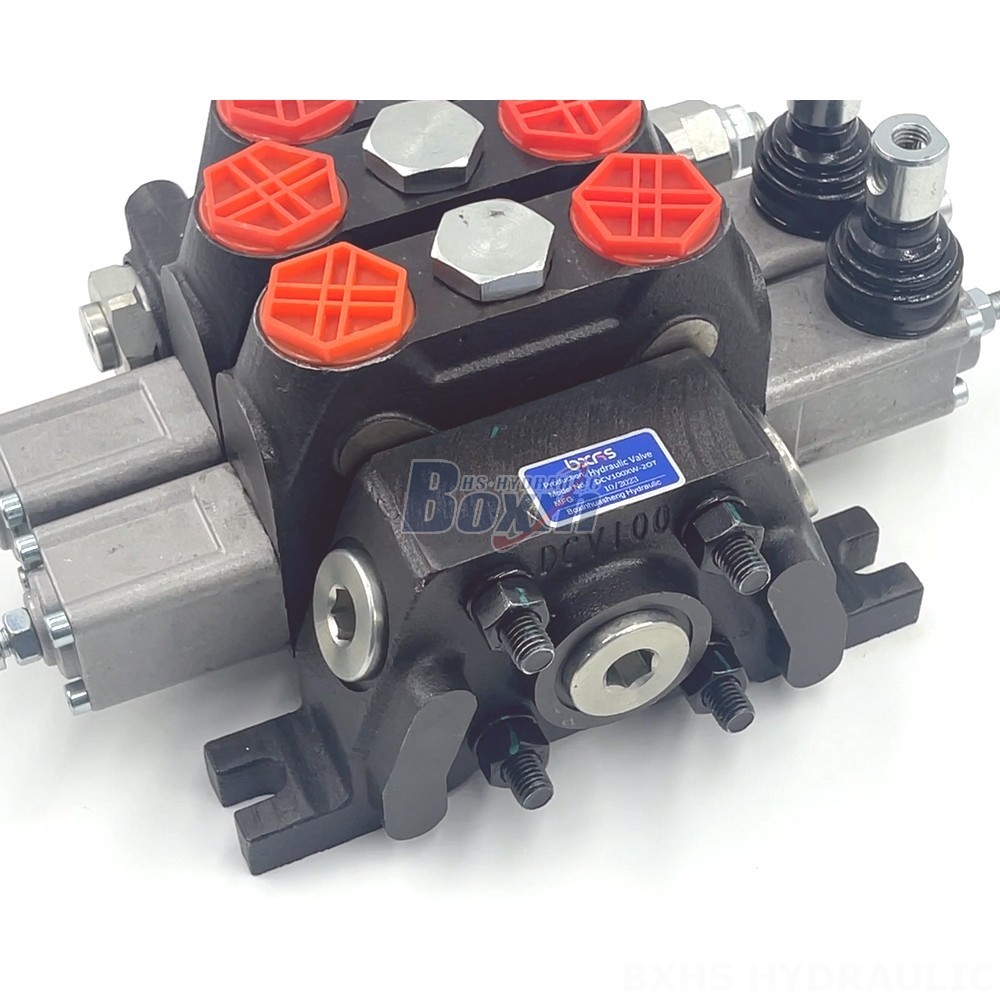

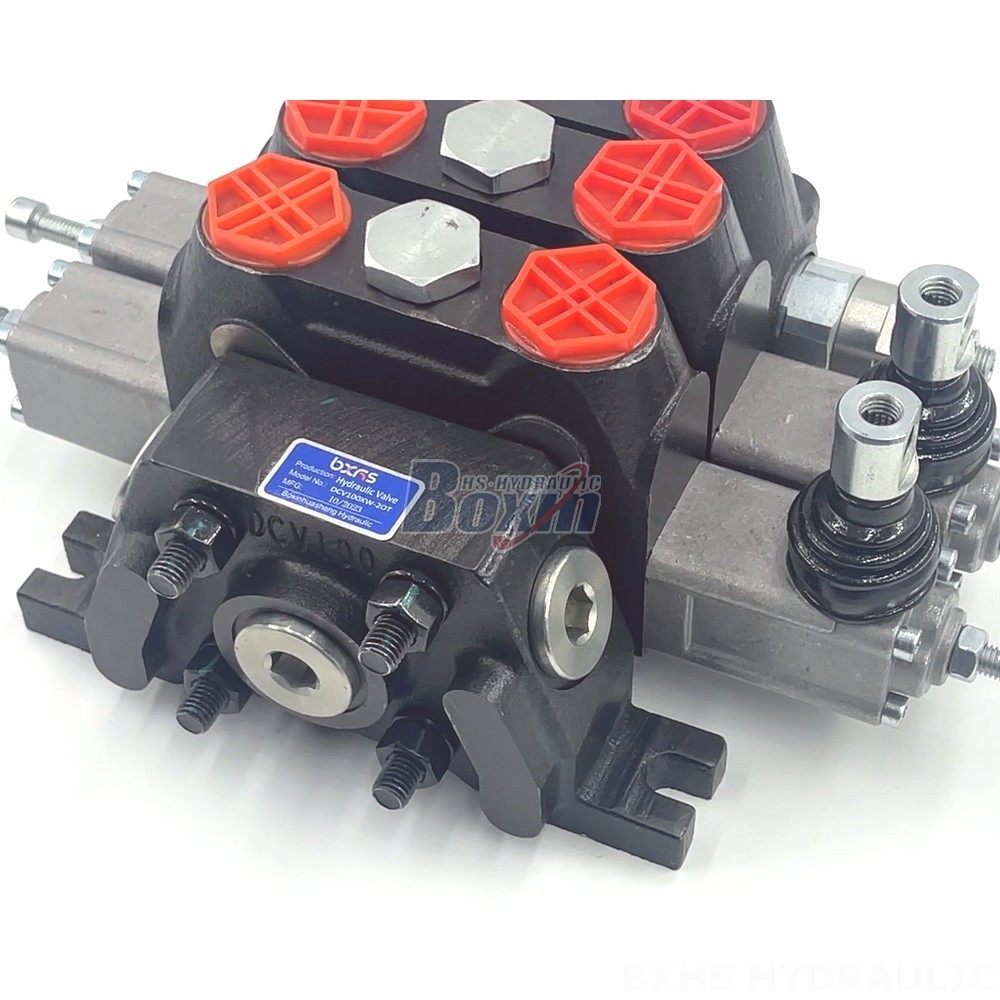

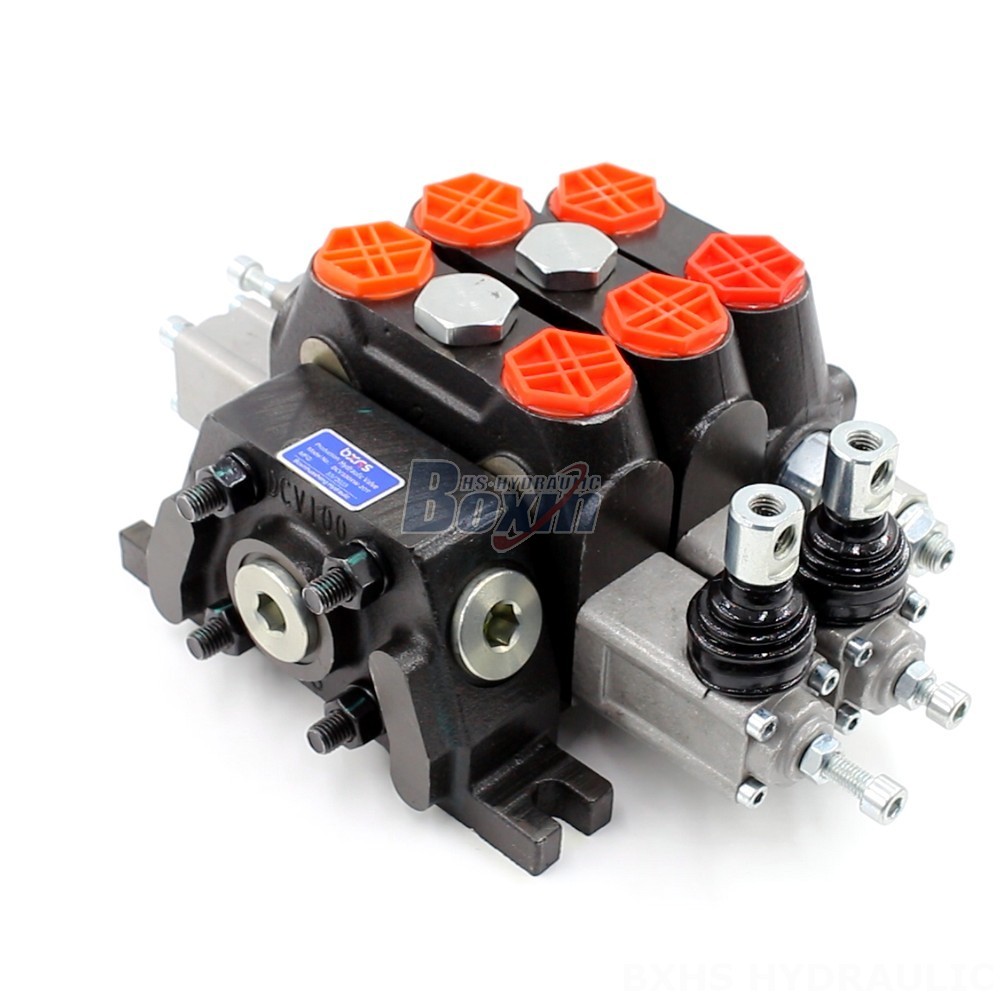

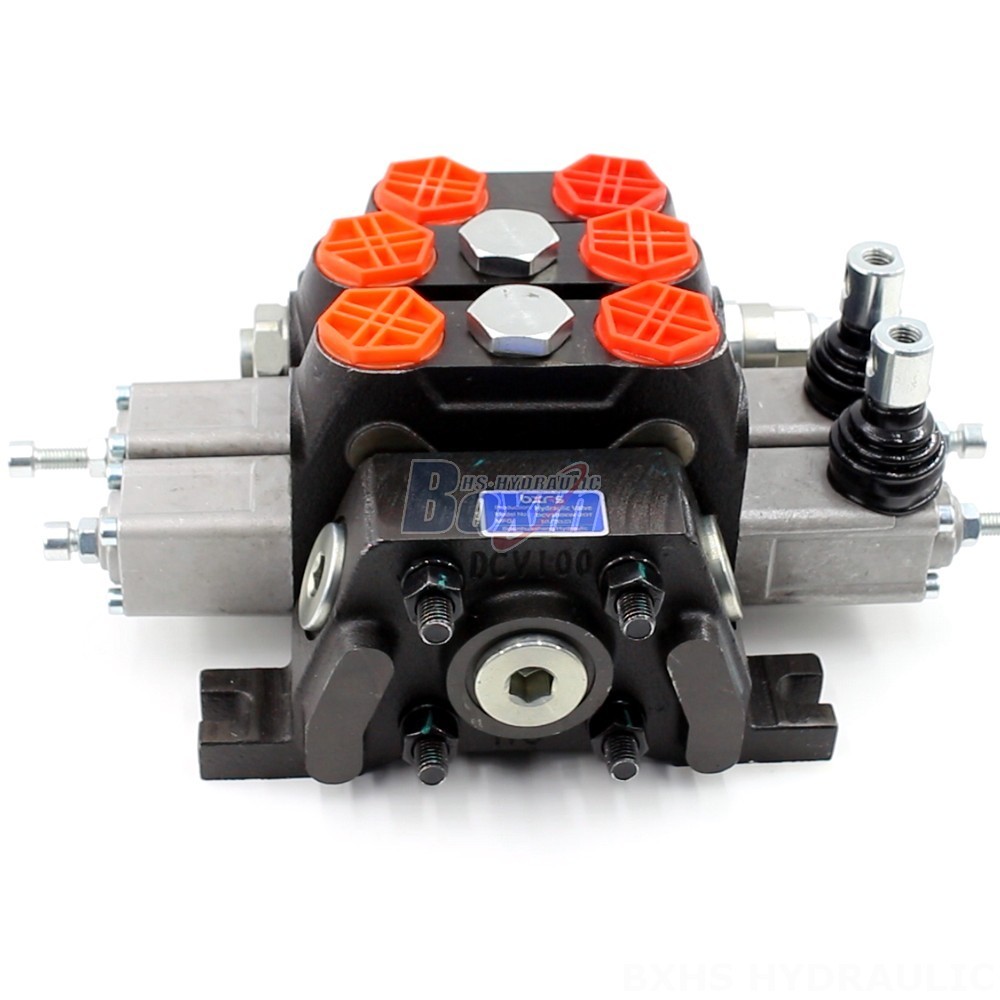

The DCV100 Dual-Spool Hydraulic Valve is a versatile and reliable hydraulic component designed for various applications in material handling, construction, agriculture, and industrial vehicles. Manufactured to the highest standards and available for direct factory purchase, this valve offers customizable options to meet specific requirements.
| Seri DCV100 Kran Arah Bagian Parameter | |
|---|---|
| Metode Kontrol | Buku Panduan, Pneumatik, Elektro-pneumatik, Elektro-hidraulik, Selenoid, Hidraulis, Kabel, Stik Kontrol, Manual dan Joystick, Manual dan Elektro-hidraulik, Motor listrik, Elektro-hidrolik dan Solenoid |
| Spul | 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool, 8 Spool, 9 Spool, 10 Spool, 11 Spool, 12 Spool |
| Kisaran Suhu Sekitar | -40°C hingga +80°C (-40°F hingga +176°F) |
| Tipe Struktur | Katup penampang |
| Bagian | 1 Bagian, 2 Bagian, 3 Bagian, 4 Bagian, 5 Bagian, 6 Bagian, 7 Bagian, 8 Bagian, 9 Bagian, 10 Bagian, 11 Bagian, 12 Bagian |
| Kisaran Viskositas Operasional | 15 - 75 mm²/dt (15 cSt hingga 75 cSt) |
| Aliran Terukur | 100 L/menit (26,5 US gpm) |
| Tekanan Maksimum | 315 bar (4600 psi) |
| Port Masuk | G3/4, M22×1.5, M27×2.0, SAE 10, SAE 12, 3/4 NPT |
| Port Keluar | G3/4, M22×1.5, M27×2.0, SAE 10, SAE 12, 3/4 NPT |
| Ukuran Port | G3/4, M22×1.5, M27×2.0, SAE 10, SAE 12, 3/4 NPT |
**Product Highlights:**
- **Control Method:** Manual
- **Section:** 2 Section
- **Structure Type:** Sectional valve
- **Rated Flow:** 100 L/min (26.5 US gpm)
- **Max Pressure:** 350 bar (5100 psi)
- **Operating Viscosity Range:** 15 - 75 mm²/s (15 cSt to 75 cSt)
- **Ambient Temperature Range:** -40°C to +60°C (-40°F to +140°F)
- **Spool:** 2 Spool
- **Series:** DCV100 Series
**Applications:**
- Telehandlers
- Forklifts
- All Terrain Cranes
- Stackers
- Aerial Platforms
- Motor Graders
**Benefits:**
- Precision control and reliability
- Customizable to meet specific requirements
- Durable construction for extended service life
- Suitable for a wide range of hydraulic systems
The DCV100 Dual-Spool Hydraulic Valve is an ideal choice for demanding applications requiring precise control and durability. Its versatility and customizable options make it a valuable addition to any hydraulic system.
