Produksi & Pengiriman
Waktu Produksi 15-30 Hari
964 Pandangan Mencari Produk Ini

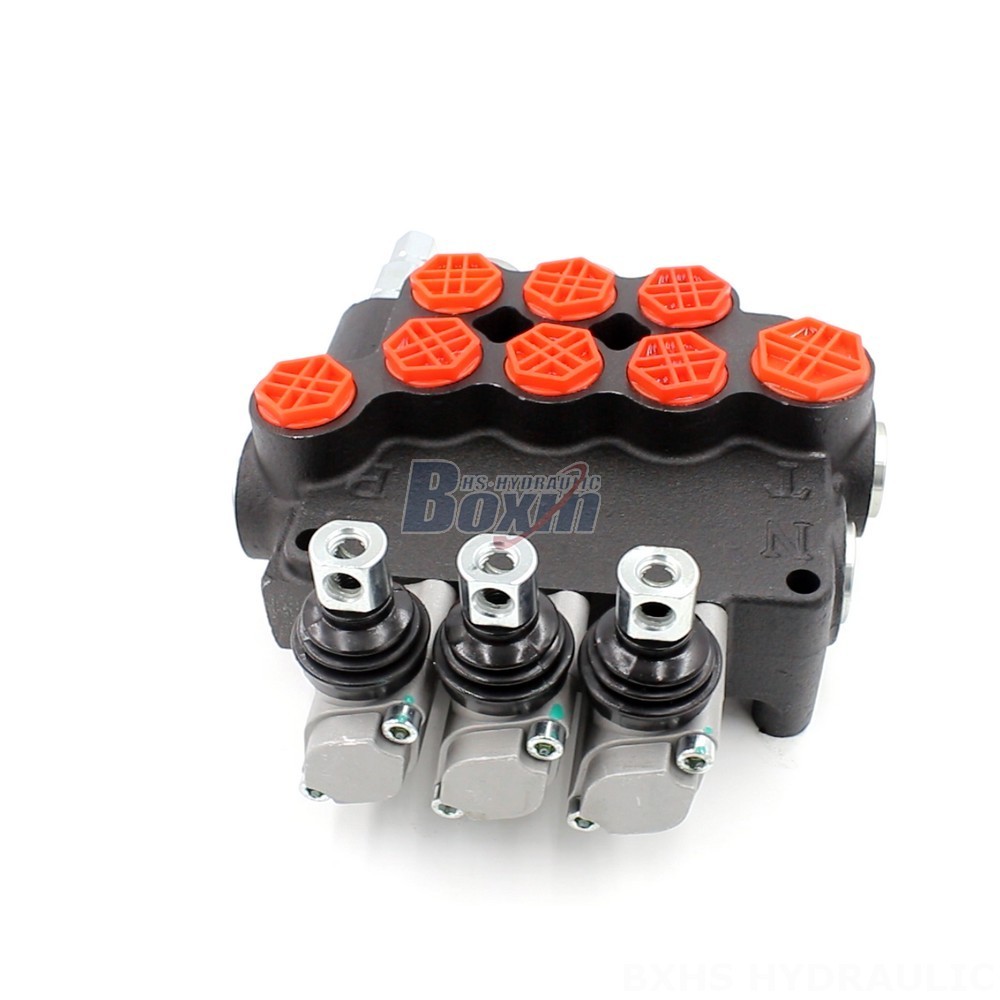

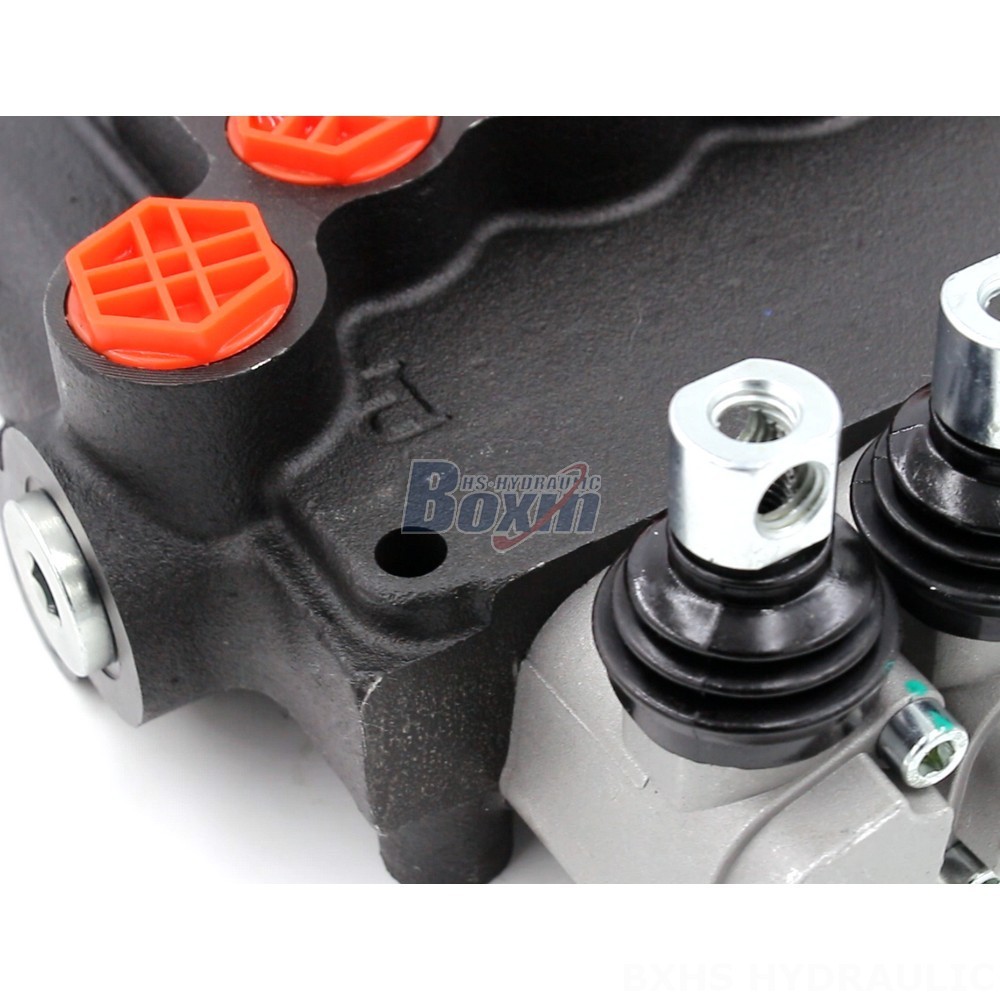

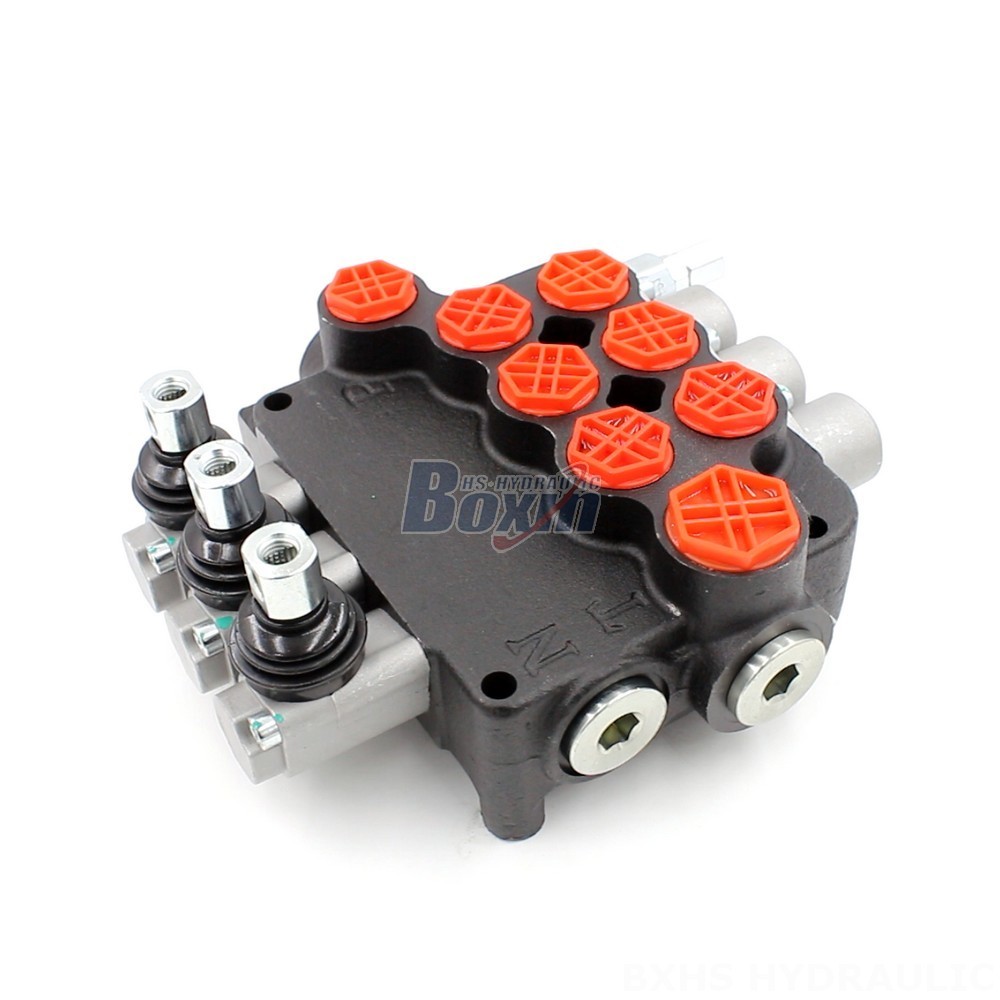

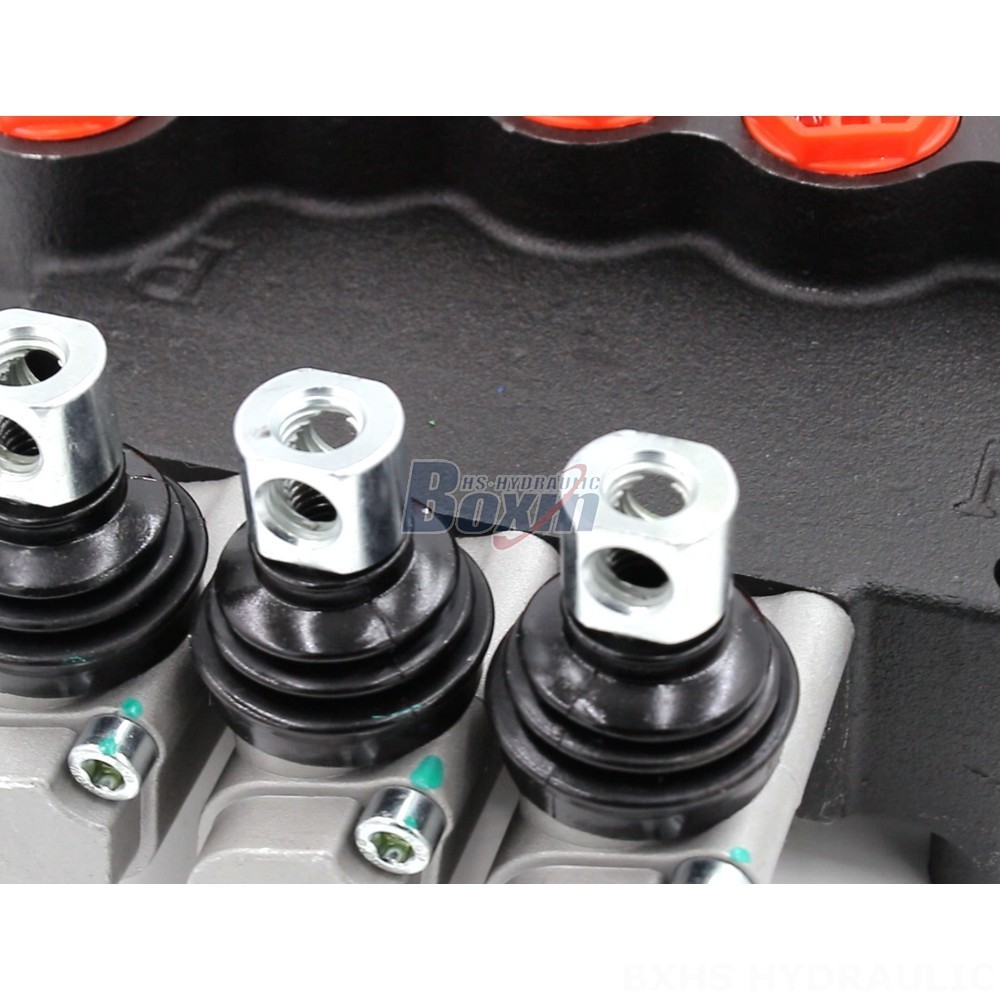

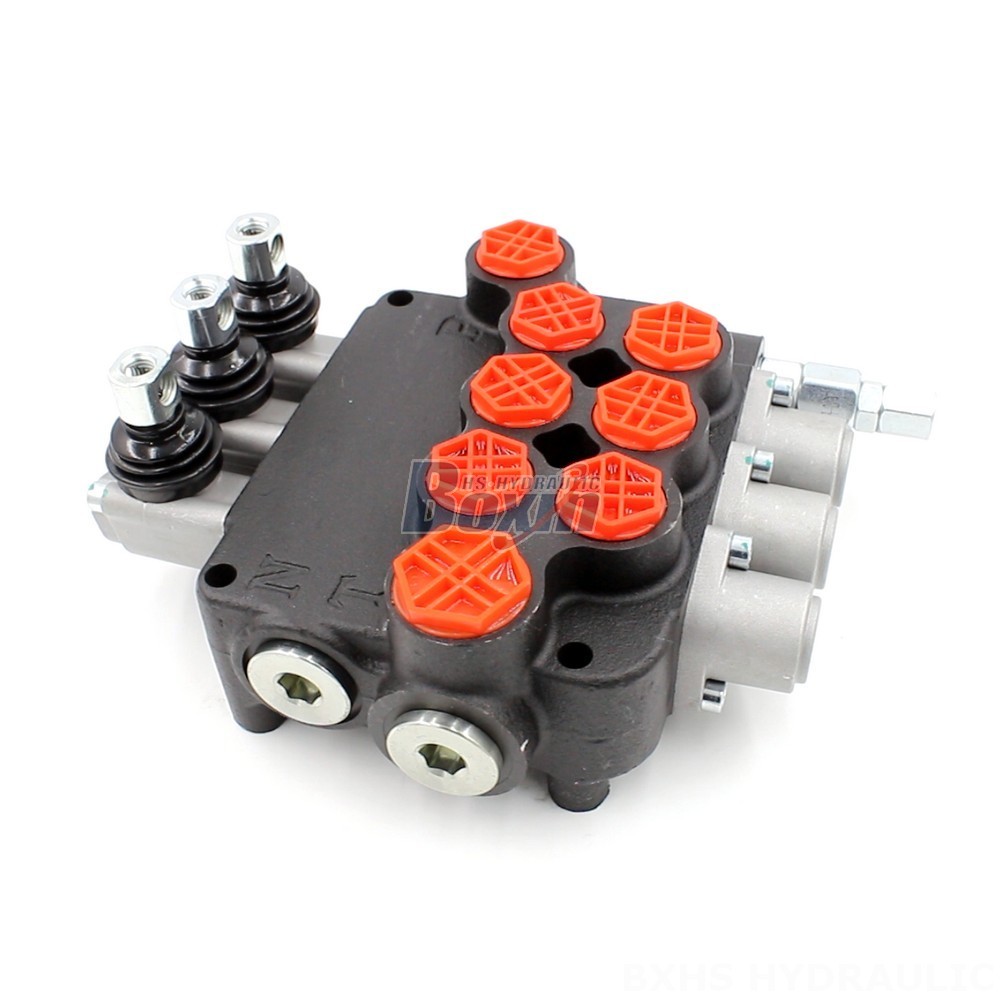

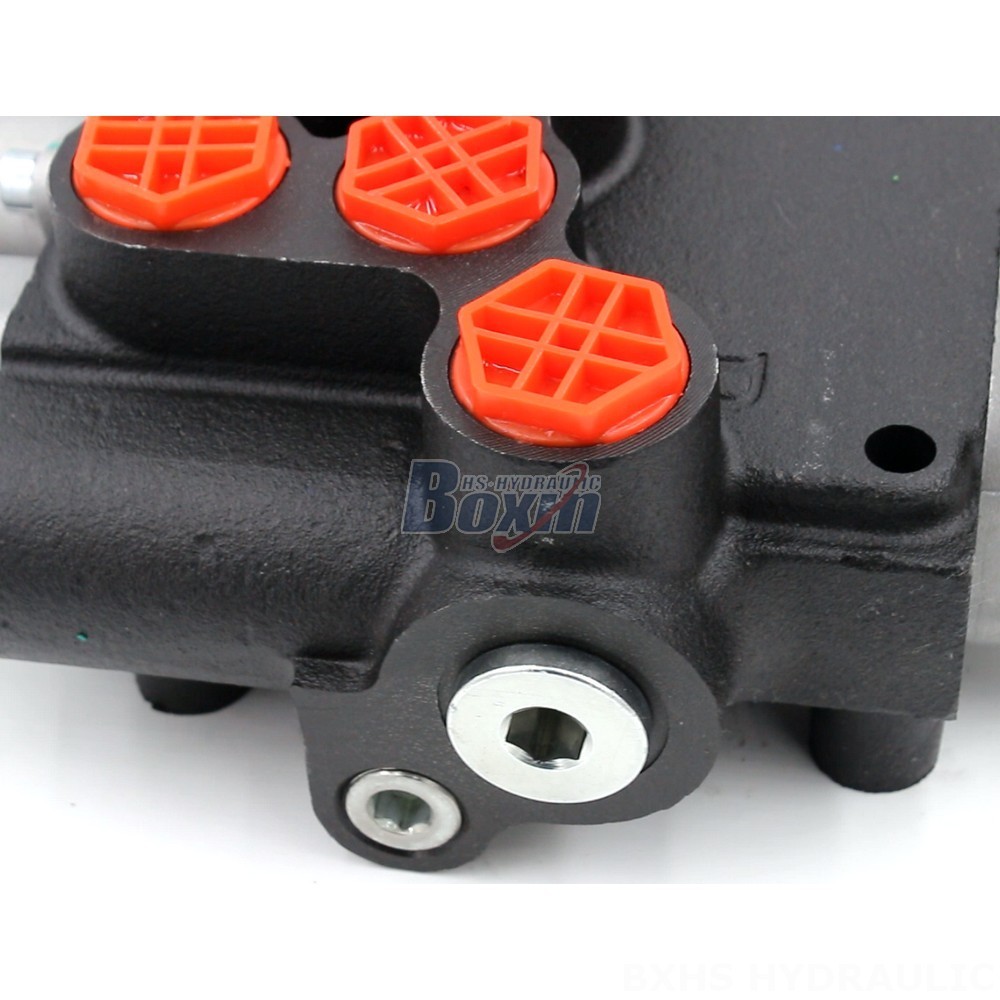

The Durable Construction P80-G34-G12-OT Directional Valve is designed for heavy-duty operations in various industries, including material handling, construction, agriculture, and industrial vehicles. This monoblock valve features manual control, a rated flow of 80 L/min, and a maximum pressure of 250 bar.
| Seri P80 Katup Arah Monoblok Parameter | |
|---|---|
| Metode Kontrol | Buku Panduan, Pneumatik, Elektro-pneumatik, Elektro-hidraulik, Selenoid, Hidraulis, Hidraulik dan Manual, Kabel, Stik Kontrol, Manual dan Joystick |
| Spul | 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool |
| Kisaran Suhu Sekitar | -40°C hingga +80°C (-40°F hingga +176°F) |
| Tipe Struktur | Katup monoblok |
| Bagian | 1 Bagian, 2 Bagian, 3 Bagian, 4 Bagian, 5 Bagian, 6 Bagian, 7 Bagian |
| Kisaran Viskositas Operasional | 15 - 75 mm²/dt (15 cSt hingga 75 cSt) |
| Aliran Terukur | 80 L/menit (21,2 US gpm) |
| Tekanan Maksimum | 315 bar (4600 psi) |
| Port Masuk | G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Port Keluar | G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Ukuran Port | G1/2, G3/4, M22×1.5, M27×2.0, SAE 10, 1/2 NPT, 3/4 NPT |
**Durable Construction P80-G34-G12-OT Directional Valve**
**Product Features:**
- Manual control for precise operation
- 3 section design for versatile applications
- Monoblock valve construction for increased durability and reliability
- Rated flow rate of 80 L/min (21.2 US gpm)
- Maximum working pressure of 250 bar (3600 psi)
- Operating viscosity range of 15 - 75 mm²/s (15 cSt to 75 cSt)
- Wide ambient temperature range of -40°C to +80°C (-40°F to +176°F)
- 3 spool design for efficient flow control
**Applications:**
- Telehandlers
- Forklifts
- All terrain cranes
- Stackers
- Aerial platforms
- Motor graders
- Midi excavators
- Mini excavators
- Skid steer loaders
- Compact wheel loaders
