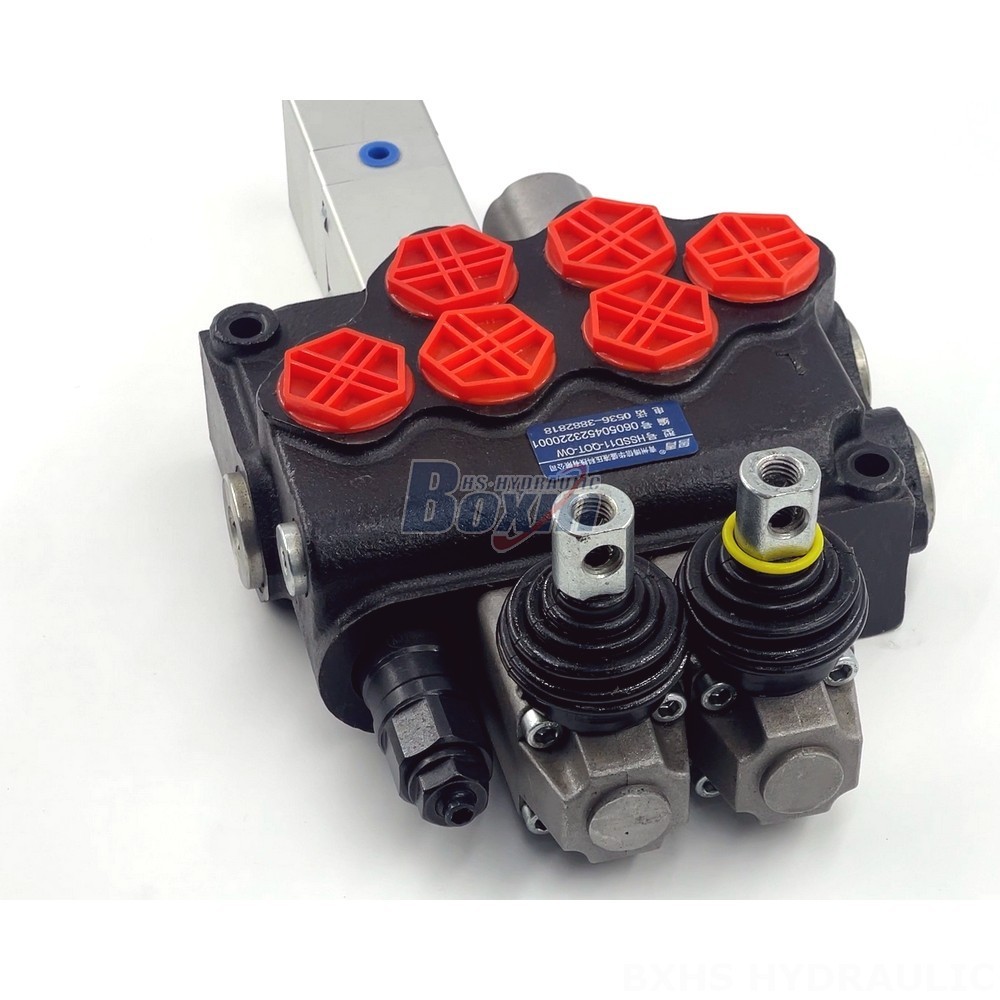

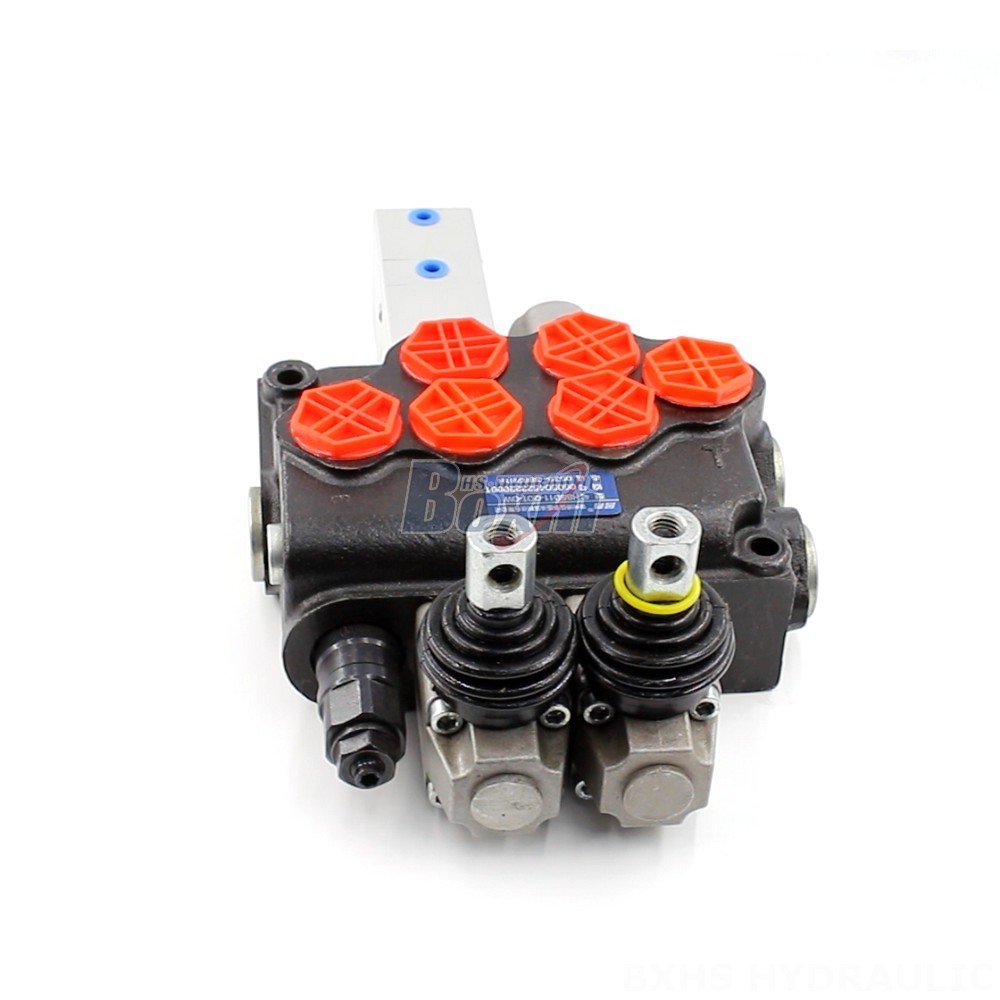

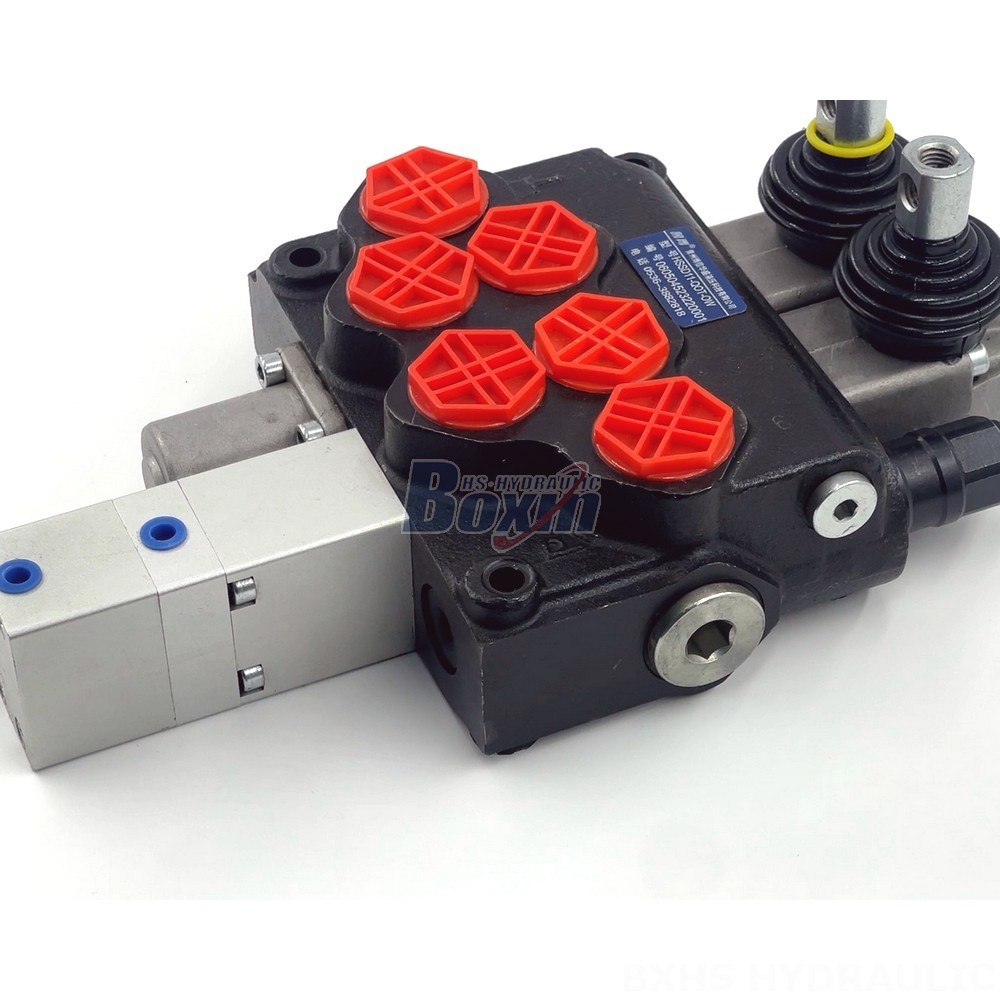

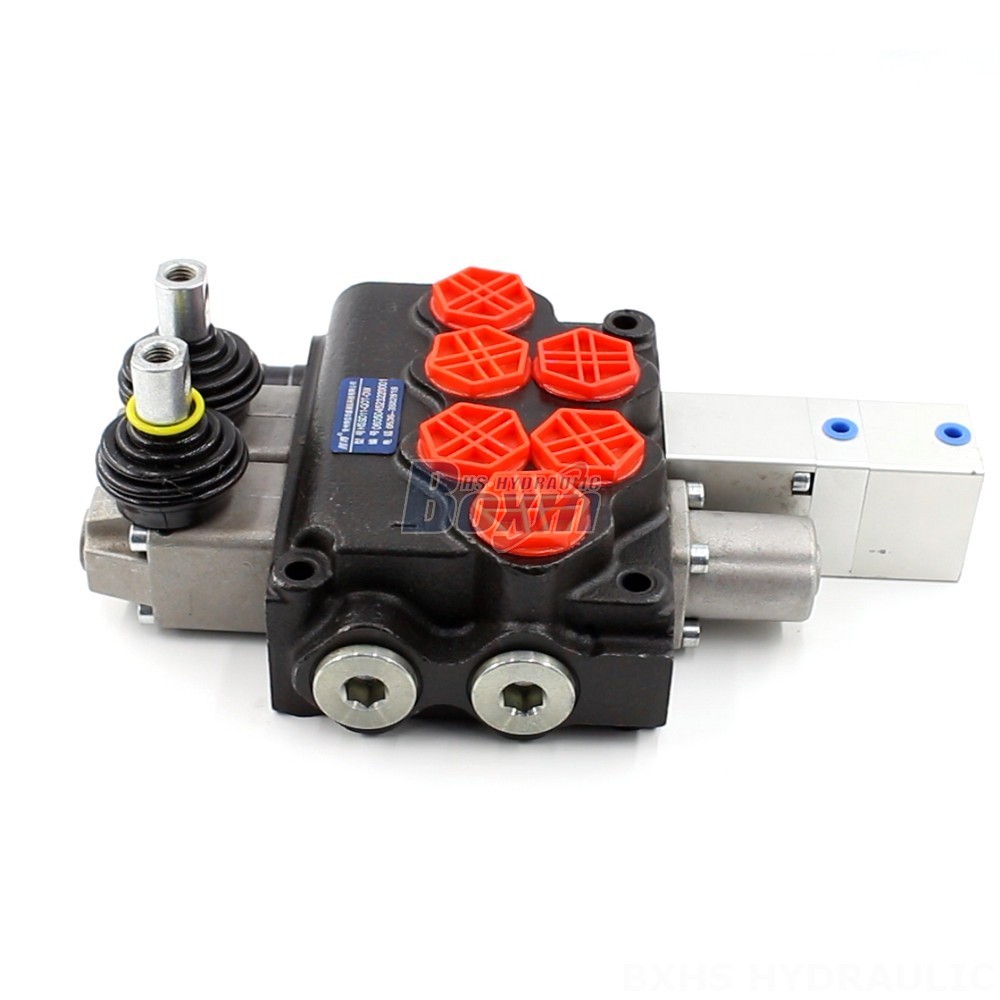

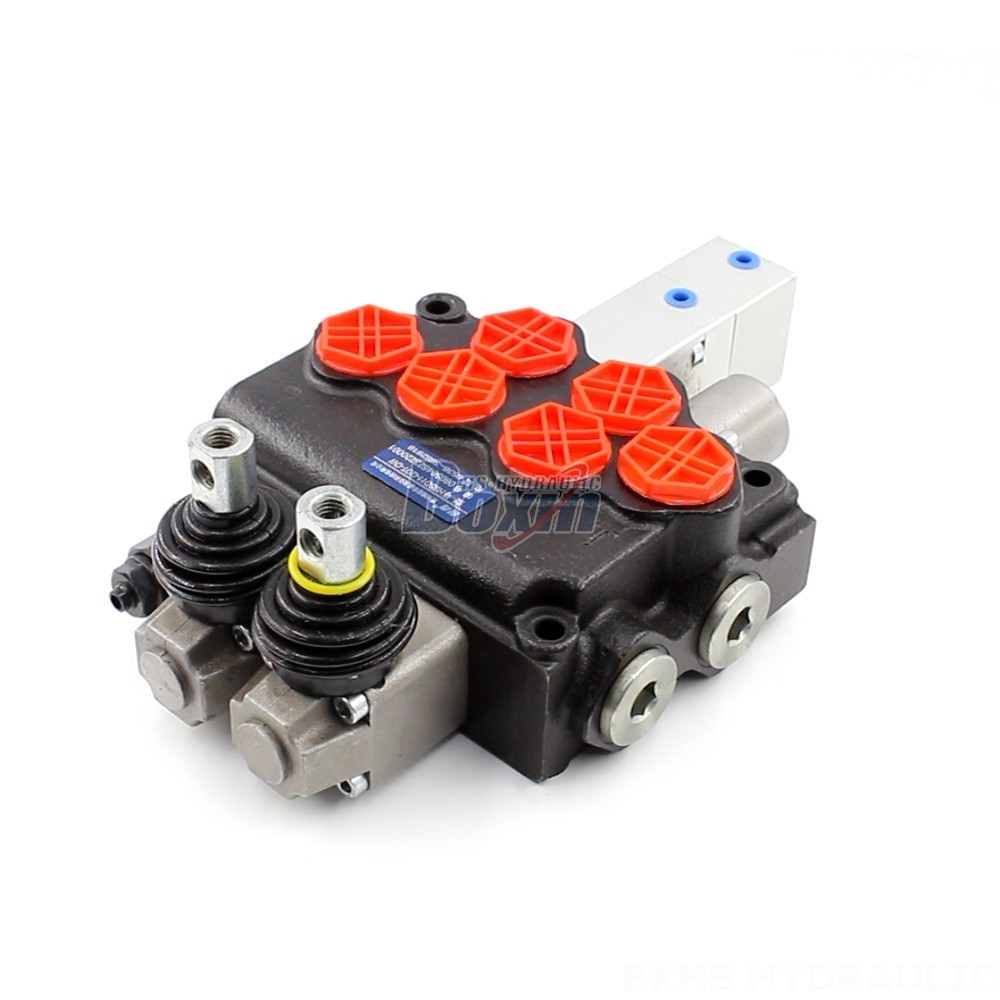

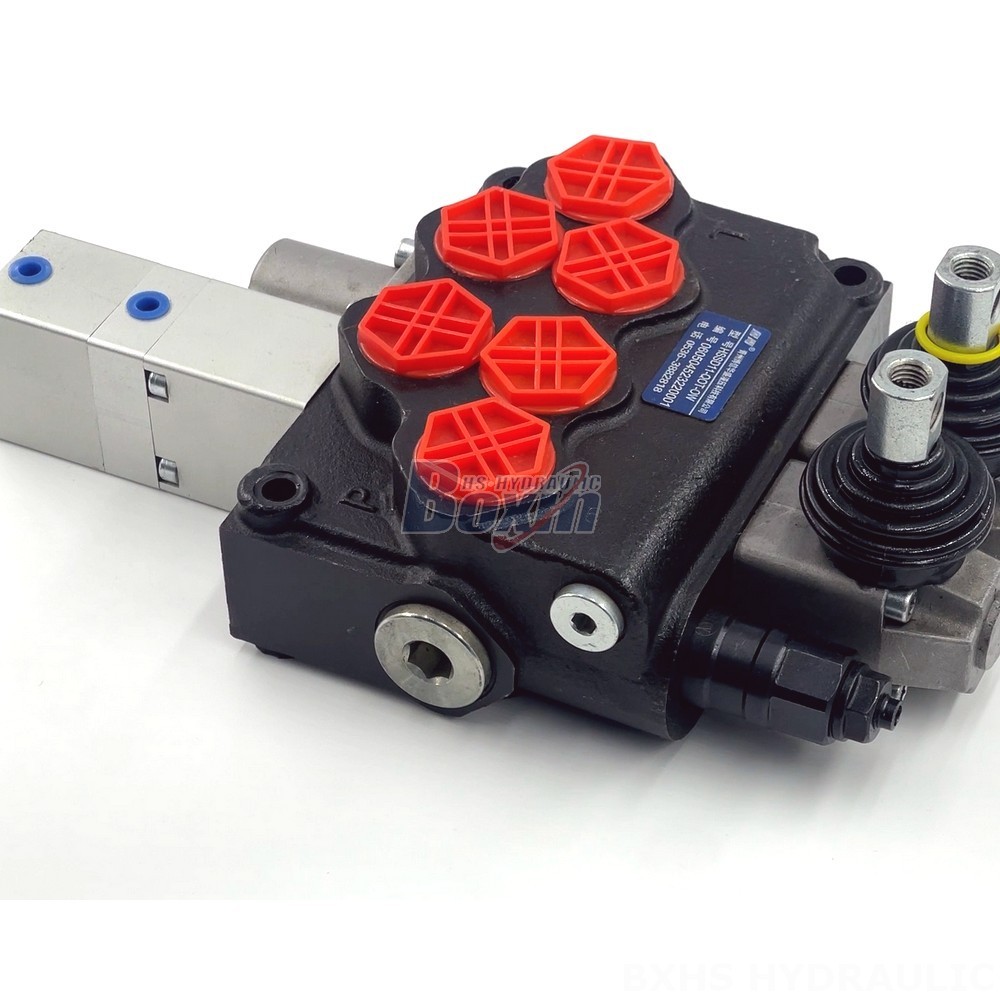

The SD11 Directional Valve is a high-performance hydraulic valve designed for demanding applications in the construction, agriculture, and industrial sectors. With a rated flow of 70 L/min and a maximum pressure of 250 bar, it ensures efficient and reliable fluid control in various hydraulic systems.
| Seri SD11 Katup Arah Monoblok Parameter | |
|---|---|
| Metode Kontrol | Buku Panduan, Pneumatik, Elektro-pneumatik, Elektro-hidraulik, Selenoid, Hidraulis, Hidraulik dan Manual, Kabel, Stik Kontrol, Listrik, Pneumatik dan Manual |
| Spul | 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool |
| Kisaran Suhu Sekitar | -40°C hingga +60°C (-40°F hingga +140°F) |
| Tipe Struktur | Katup monoblok |
| Bagian | 1 Bagian, 2 Bagian, 3 Bagian, 4 Bagian, 5 Bagian, 6 Bagian, 7 Bagian |
| Kisaran Viskositas Operasional | 15 - 75 mm²/dt (15 cSt hingga 75 cSt) |
| Aliran Terukur | 70 L/menit (18,5 US gpm) |
| Tekanan Maksimum | 305 bar (4400 psi), 315 bar (4600 psi) |
| Port Masuk | G3/4, SAE 12 |
| Port Keluar | G3/4, SAE 12 |
| Ukuran Port | G3/4, SAE 12 |
**SD11 Directional Valve: Efficiency and Performance**
**Key Features:**
- Manual control method
- Monoblock valve structure for compact design and durability
- High flow capacity of 70 L/min (18.5 US gpm)
- Maximum pressure rating of 250 bar (3600 psi)
- Wide operating viscosity range from 15 to 75 mm²/s (15 cSt to 75 cSt)
- Versatile 1-spool configuration
- Suitable for a wide range of applications including material handling, construction, agriculture, and industrial vehicles
**Benefits:**
- Enhanced system efficiency and performance
- Precise fluid control for improved machine operation
- Robust construction for demanding applications
- Easy integration into hydraulic systems
