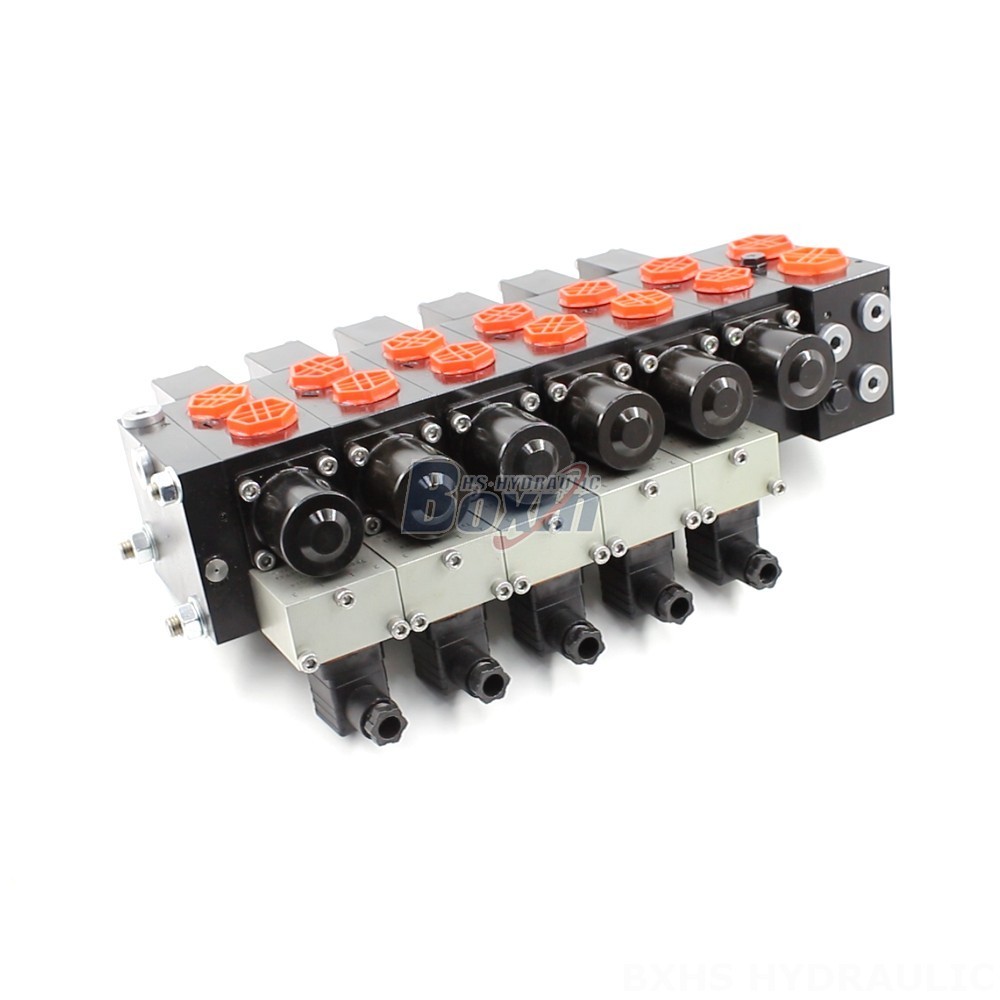

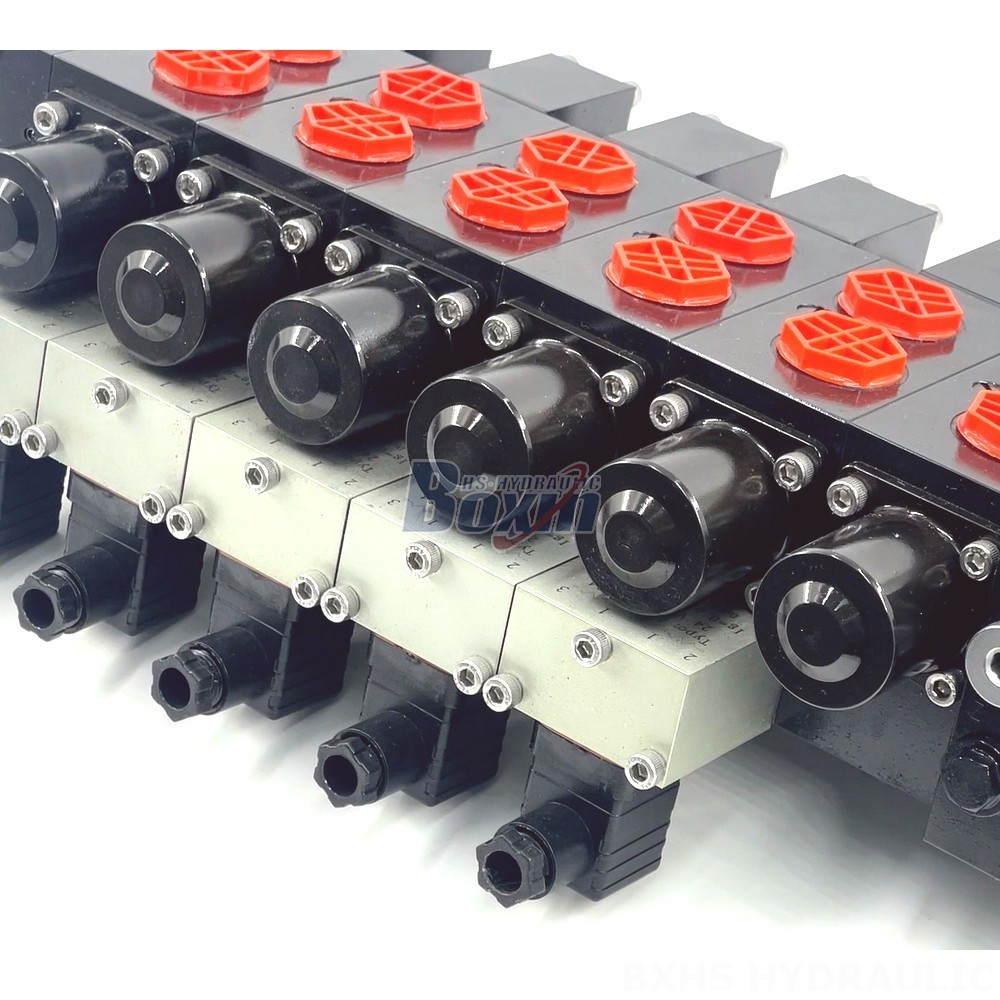

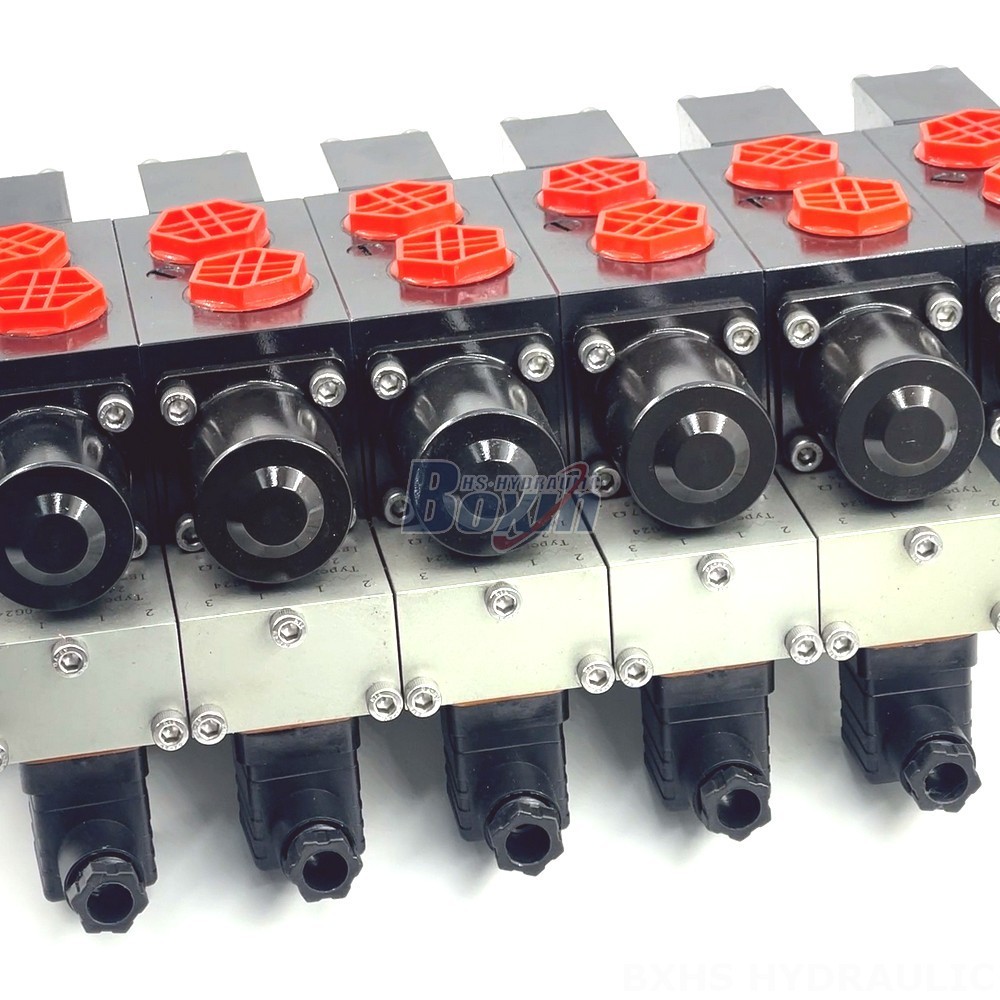

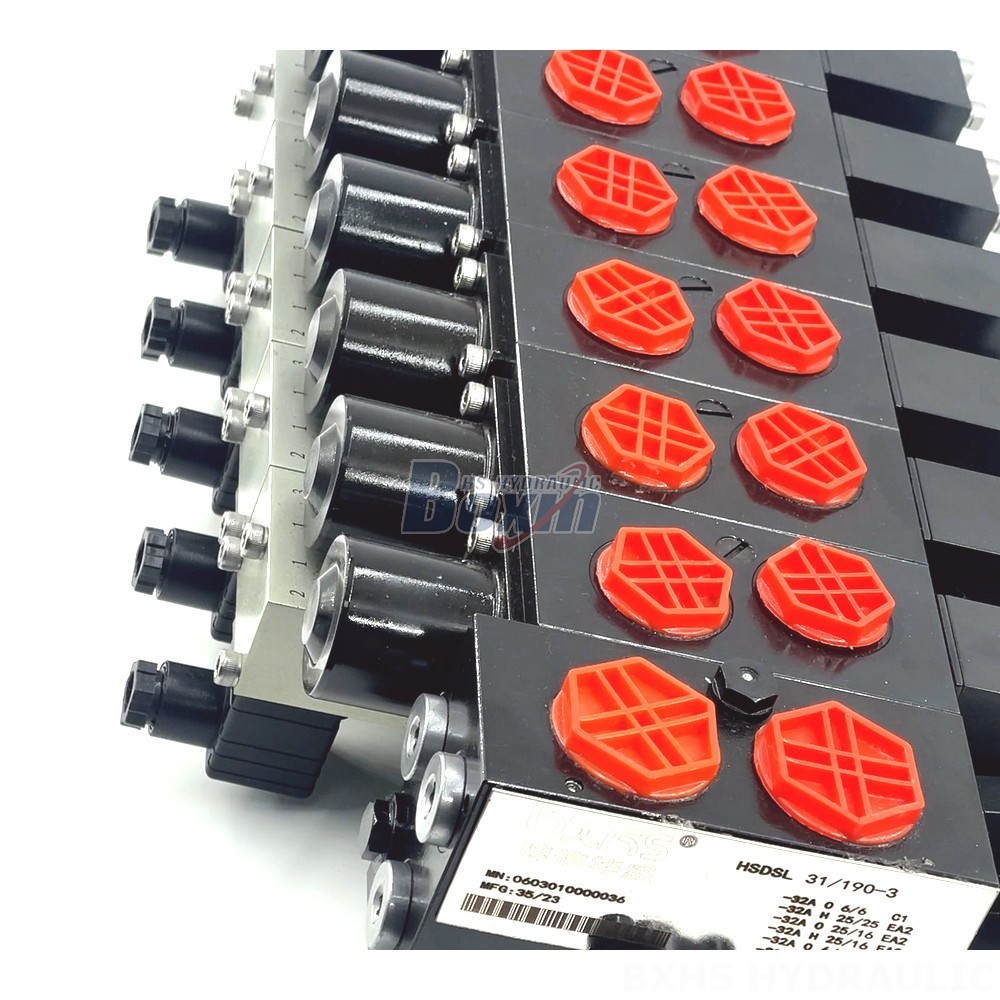

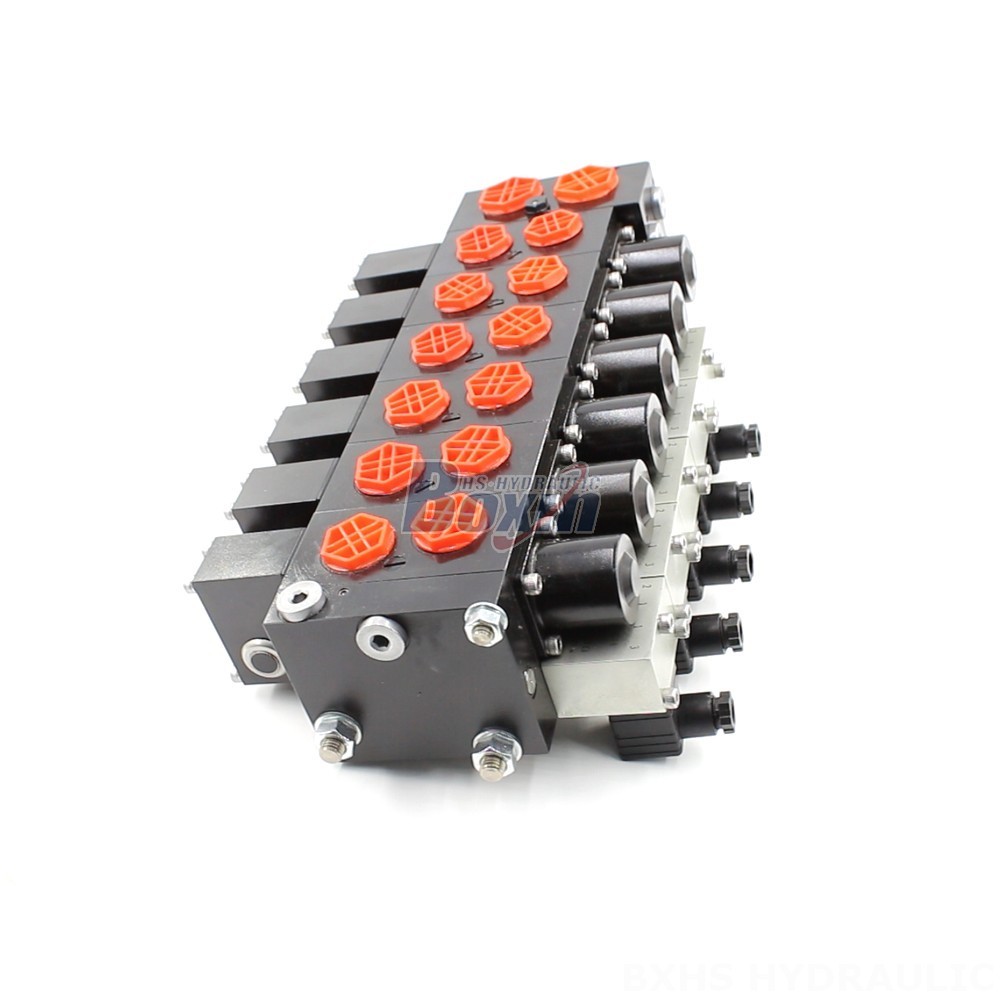

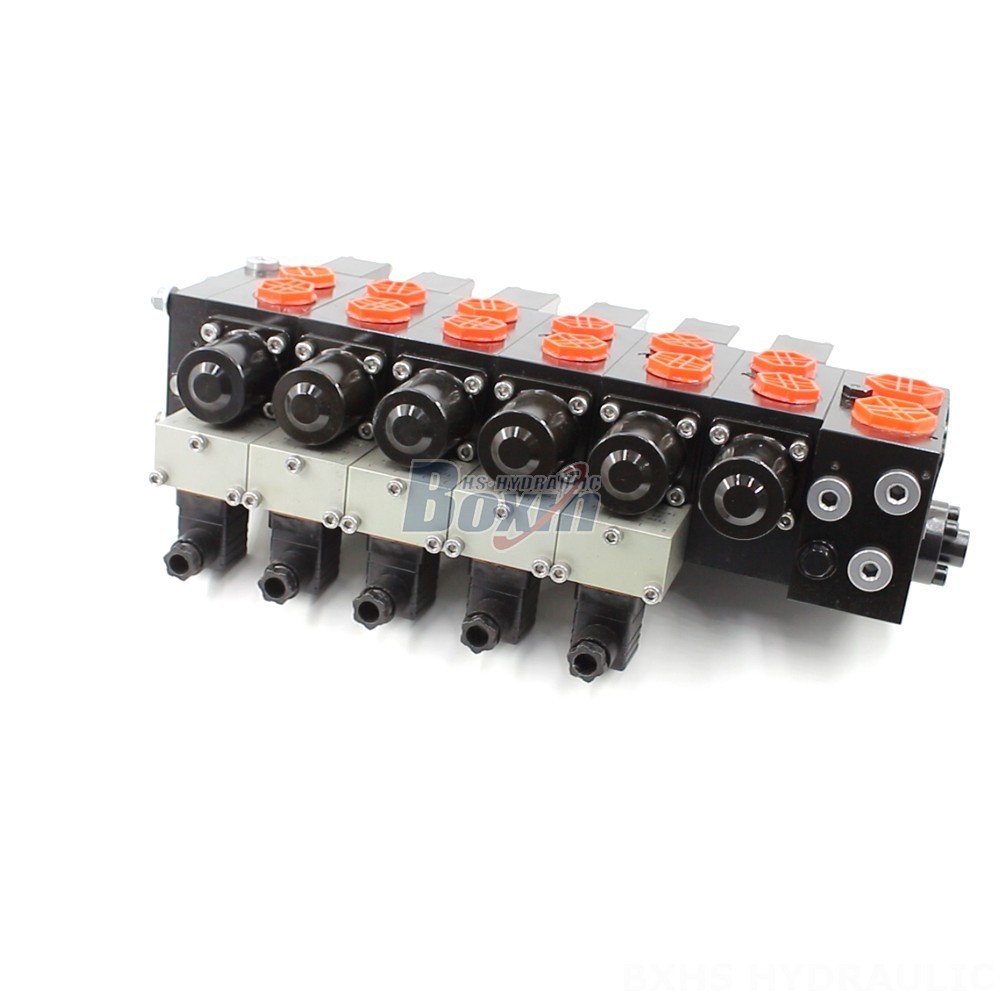

The HSDSL Series Hand Control Valve is a high-performance, reliable hydraulic valve designed for a wide range of construction and material handling applications. It features electric proportional and manual control methods, a 6-section design, and a rated flow of 140 L/min (37 US gpm). This valve is ideal for use in forklifts, excavators, telehandlers, loaders, and other heavy-duty equipment.
| Seri HSDSL Katup Kontrol Proporsional Parameter | |
|---|---|
| Metode Kontrol | Hidraulis, Hidraulik dan Manual, Proporsional listrik, Proporsional listrik dan Manual |
| Spul | 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool, 8 Spool, 9 Spool, 10 Spool, 11 Spool, 12 Spool |
| Aliran Terukur | 140 L/menit (37 US gpm) |
| Tekanan Maksimum | 250 bar (3600 psi) |
| Port Masuk | G3/4 |
| Port Keluar | G3/4 |
| Ukuran Port | G1/2 |
| Bagian | 1 Bagian, 2 Bagian, 3 Bagian, 4 Bagian, 5 Bagian, 6 Bagian, 7 Bagian, 8 Bagian, 9 Bagian, 10 Bagian, 11 Bagian, 12 Bagian |
| Tipe Struktur | Katup penampang |
| Kisaran Suhu Sekitar | -40°C hingga +80°C (-40°F hingga +176°F) |
| Kisaran Viskositas Operasional | 15 - 75 mm²/dt (15 cSt hingga 75 cSt) |
The HSDSL Series Hand Control Valve is a high-performance, reliable hydraulic valve engineered for maximum output. It features a 6-section design and a rated flow of 140 L/min (37 US gpm). This valve is available with both electric proportional and manual control methods, offering flexibility for a wide range of applications. The HSDSL Series is suitable for use in various construction and material handling applications, including forklifts, excavators, telehandlers, loaders, and more. It is designed to withstand harsh operating conditions with an ambient temperature range of -40°C to +80°C (-40°F to +176°F). The HSDSL Series Hand Control Valve is a durable and reliable solution for demanding applications, providing precise control and optimal performance.
