The Electro-hydraulic Monoblock Directional Valve - DCV200 Series is a high-performance valve designed for use in a wide range of industrial applications. It is engineered to provide precise control of fluid flow in hydraulic systems.
| Seri DCV200 Kran Arah Bagian Parameter | |
|---|---|
| Metode Kontrol | Buku Panduan, Pneumatik, Elektro-pneumatik, Elektro-hidraulik, Hidraulis, Hidraulik dan Manual, Kabel, Stik Kontrol, Manual dan Joystick, Manual dan Elektro-hidraulik, Motor listrik |
| Spul | 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool, 8 Spool, 9 Spool, 10 Spool, 11 Spool, 12 Spool |
| Kisaran Suhu Sekitar | -40°C hingga +80°C (-40°F hingga +176°F) |
| Tipe Struktur | Katup penampang |
| Bagian | 1 Bagian, 2 Bagian, 3 Bagian, 4 Bagian, 5 Bagian, 6 Bagian, 7 Bagian, 8 Bagian, 9 Bagian, 10 Bagian, 11 Bagian, 12 Bagian |
| Kisaran Viskositas Operasional | 15 - 75 mm²/dt (15 cSt hingga 75 cSt) |
| Aliran Terukur | 200 L/menit (52 US gpm) |
| Tekanan Maksimum | 315 bar (4600 psi) |
| Port Masuk | G3/4, G1, M33×2.0, SAE 16, 3/4 NPT, 1 NPT |
| Port Keluar | G1, M33×2.0, SAE 16, 1 NPT |
| Ukuran Port | G3/4, G1, M33×2.0, SAE 16, 3/4 NPT, 1 NPT |

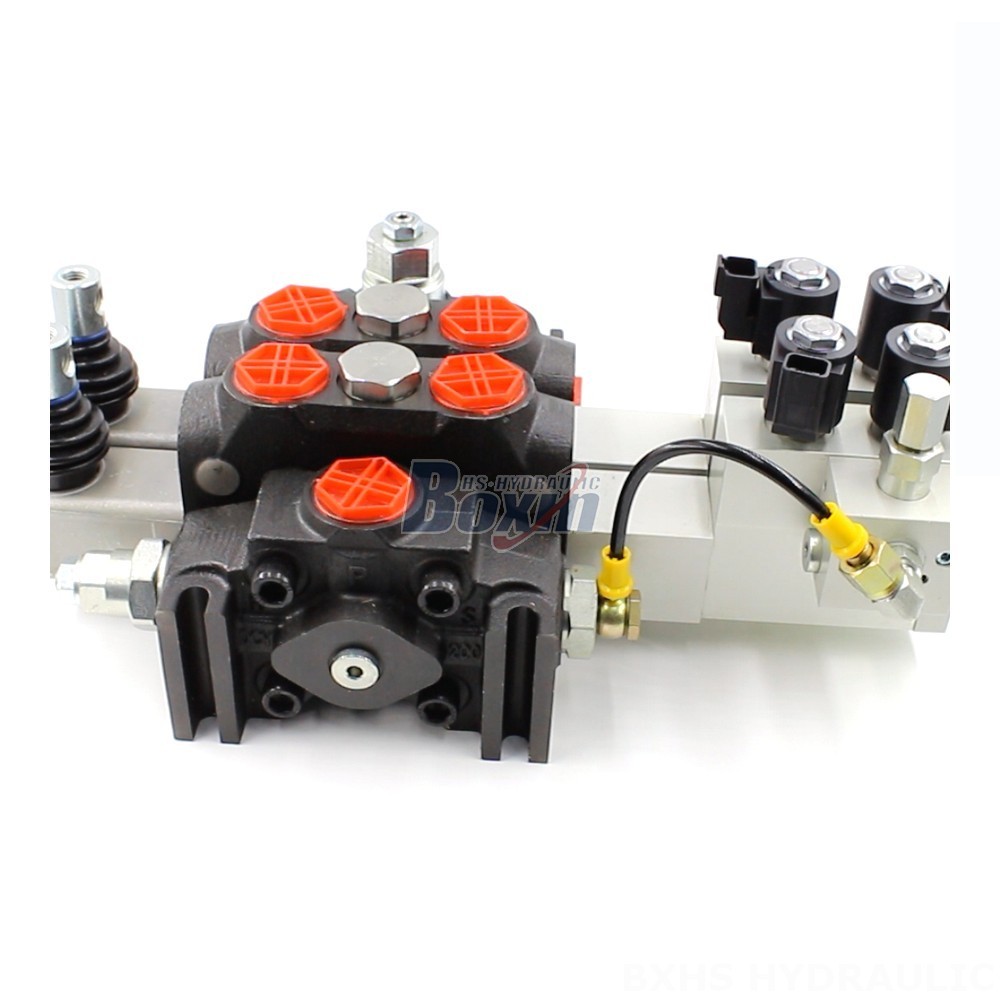

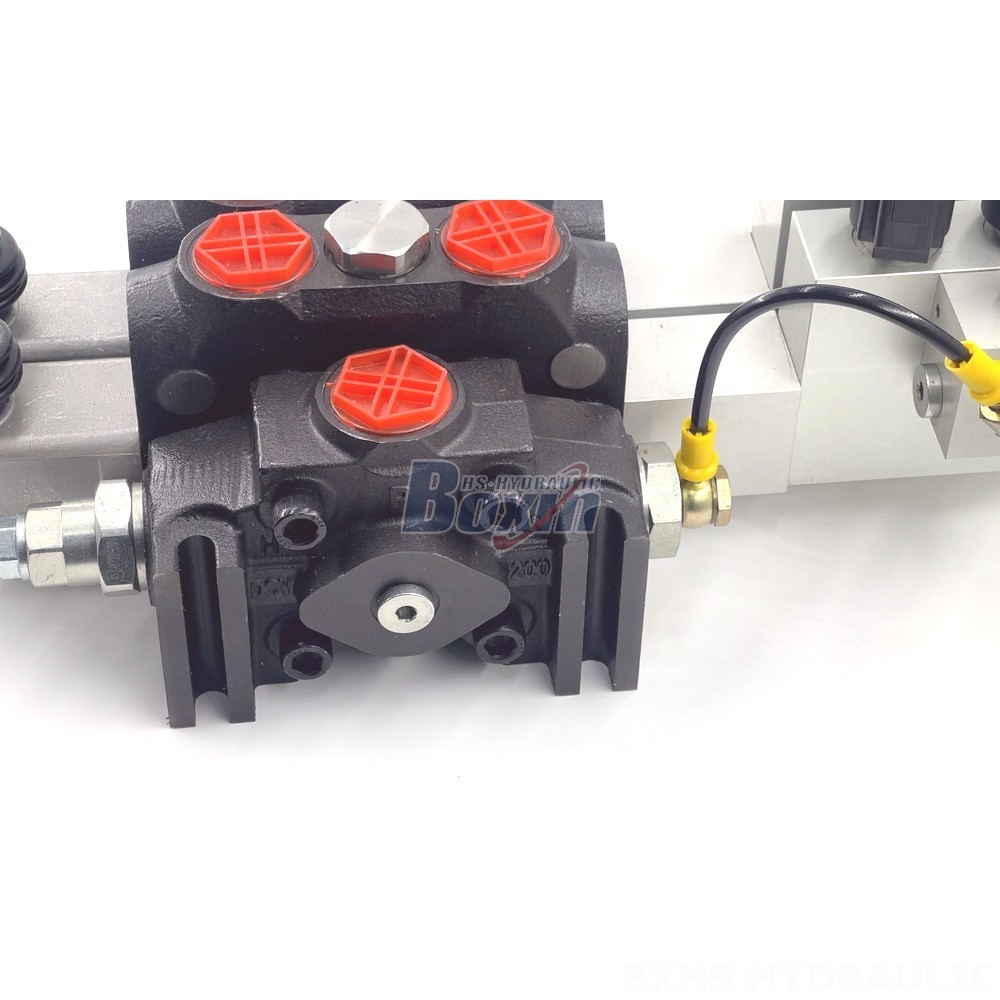

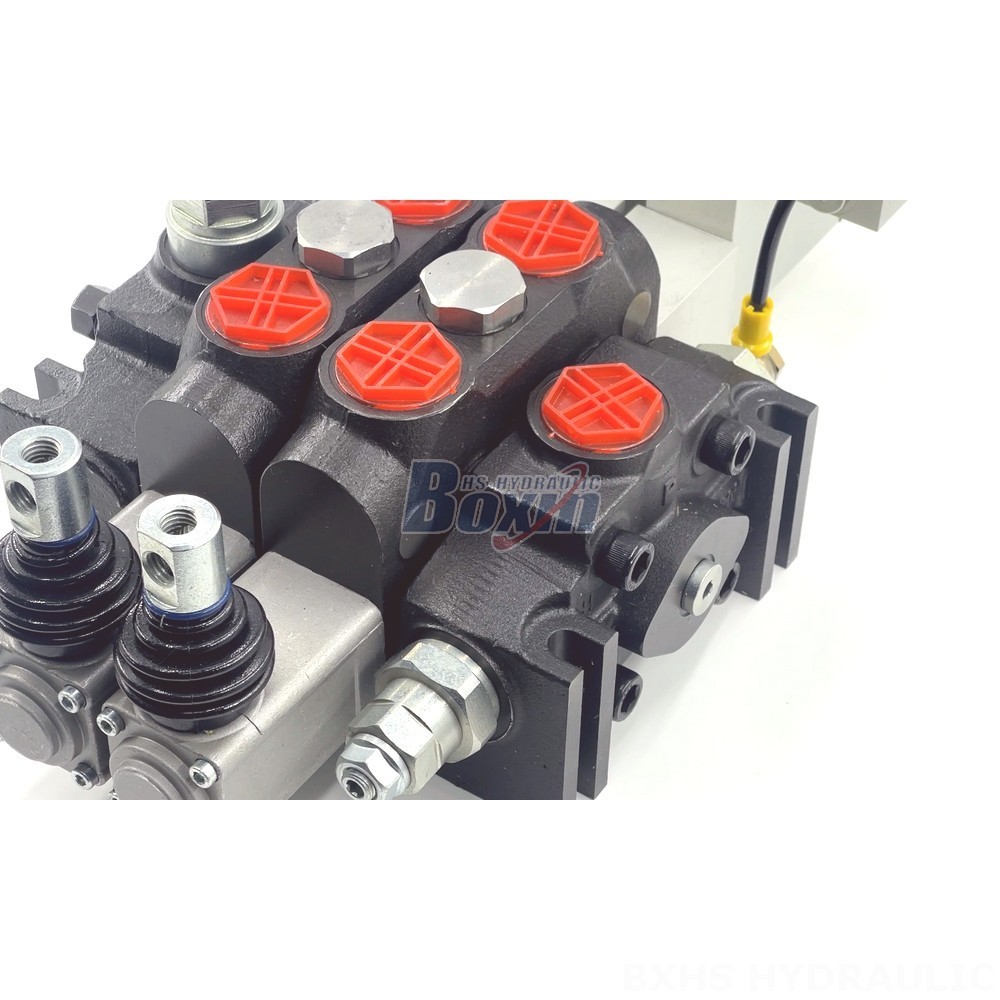

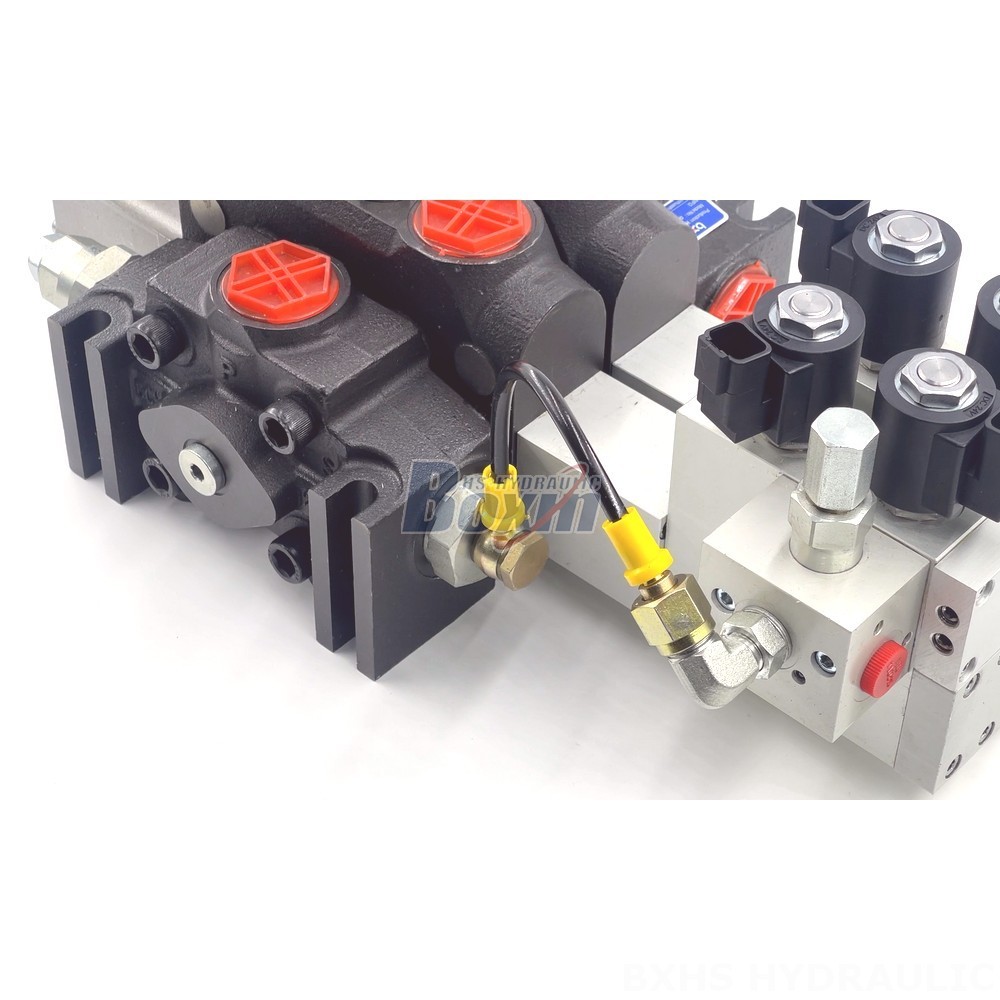

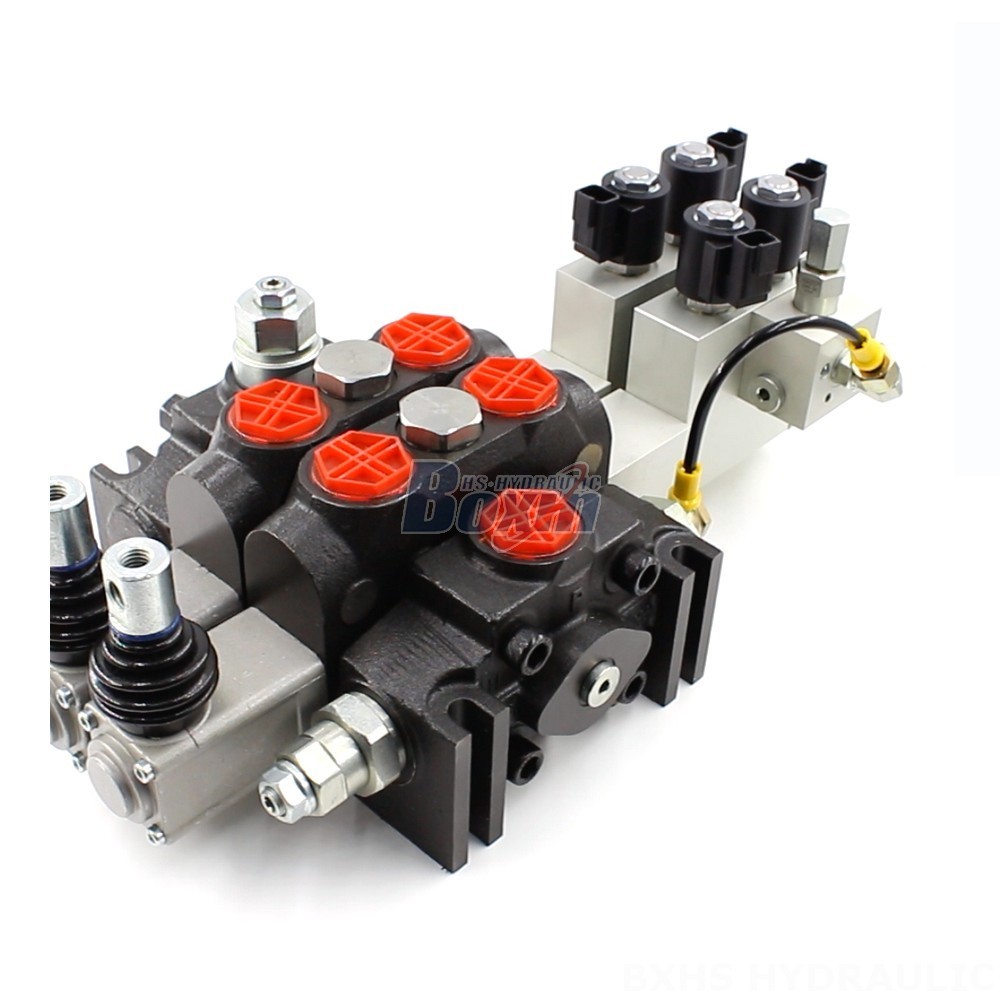

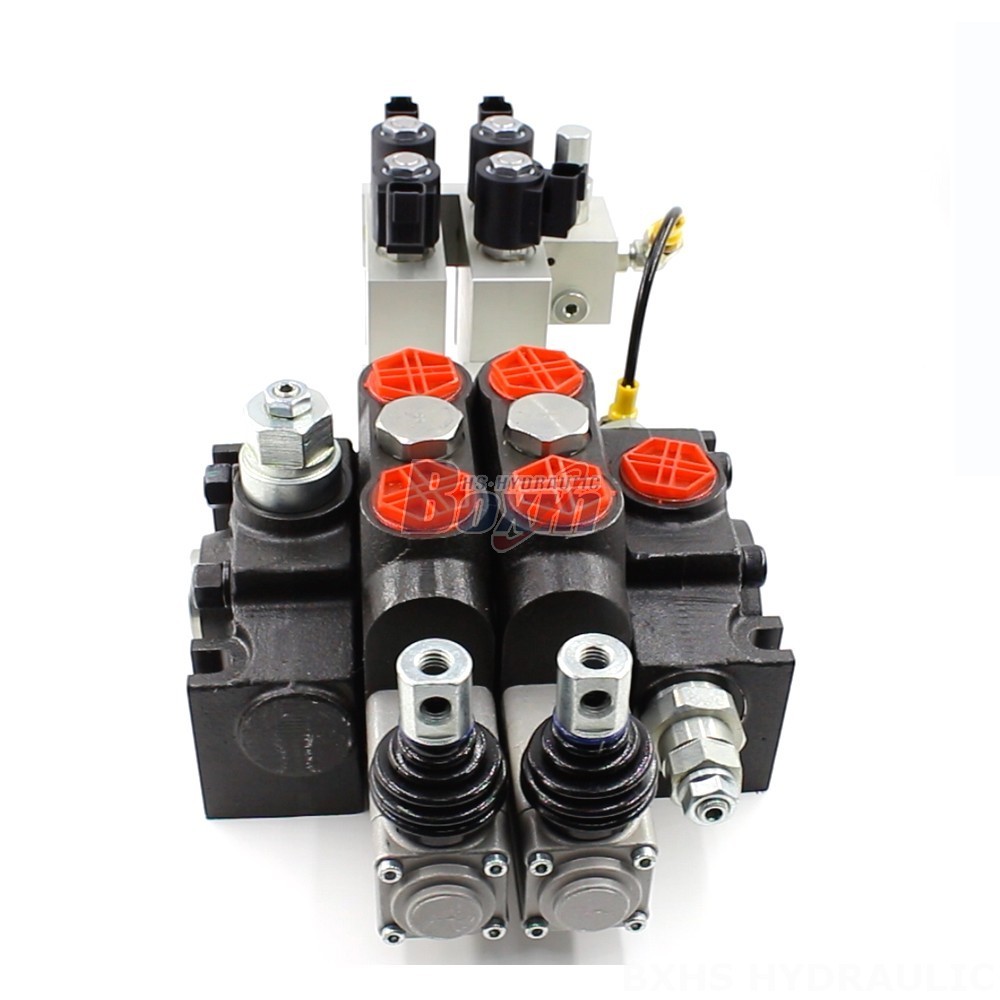

**Electro-hydraulic Monoblock Directional Valve - DCV200 Series**
**Control Method:** Electro-hydraulic
**Section:** 2 Section
**Max Pressure:** 350 bar (5100 psi)
**Operating Viscosity Range:** 15 - 75 mm²/s (15 cSt to 75 cSt)
**Ambient Temperature Range:** -40°C to +80°C (-40°F to +176°F)
**Spool:** 2 Spool
**Series:** DCV200 Series
The DCV200 Series valve is constructed from high-quality materials and is designed to withstand the harsh conditions of industrial environments. It is also backed by our commitment to quality and customer satisfaction.
**Applications:**
The DCV200 Series valve is ideal for use in a variety of industrial applications, including:
* MATERIAL HANDLING
* CONSTRUCTION AND EARTH MOVING
* AGRICULTURE
* INDUSTRIAL VEHICLES
**Specific applications include:**
* TELEHANDLER
* FORKLIFT
* ALL TERRAIN CRANE
* STACKER
* AERIAL PLATFORM
* MOTOR GRADER
* MINI-EXCAVATOR
* SKID STEER LOADER
