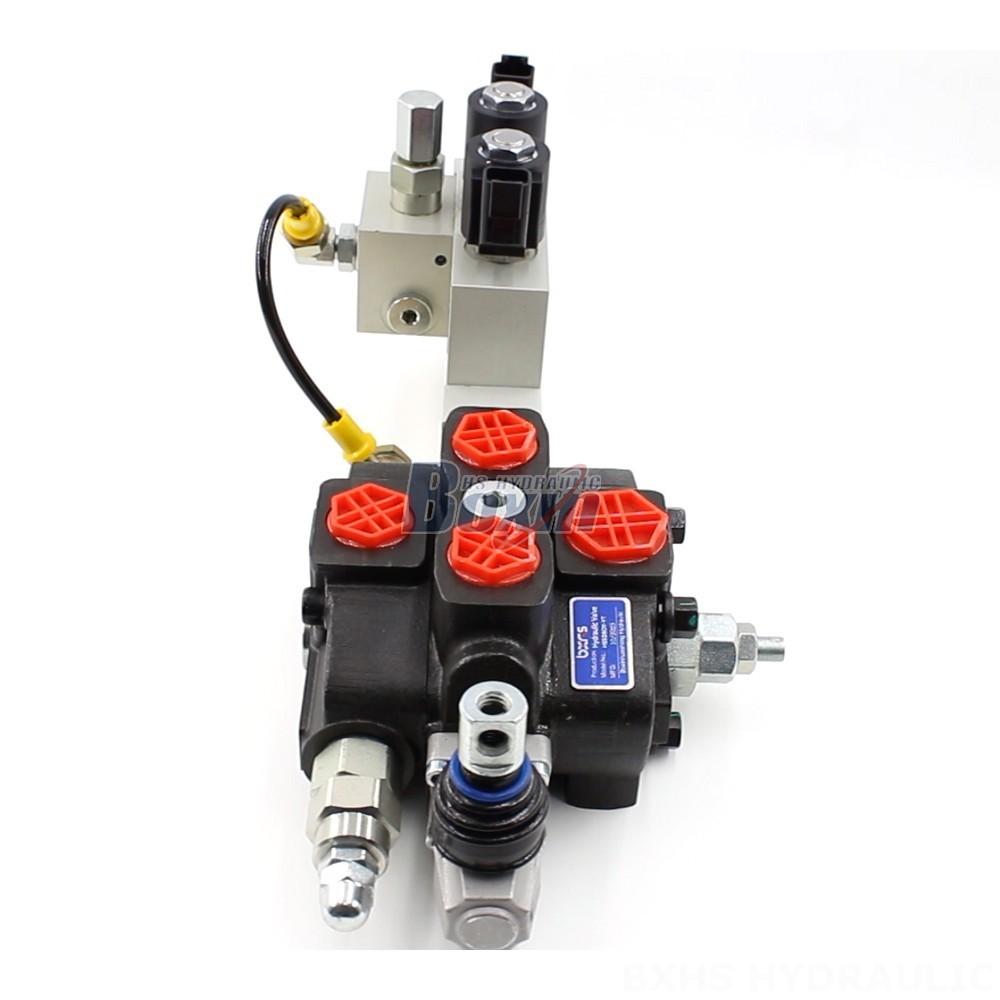

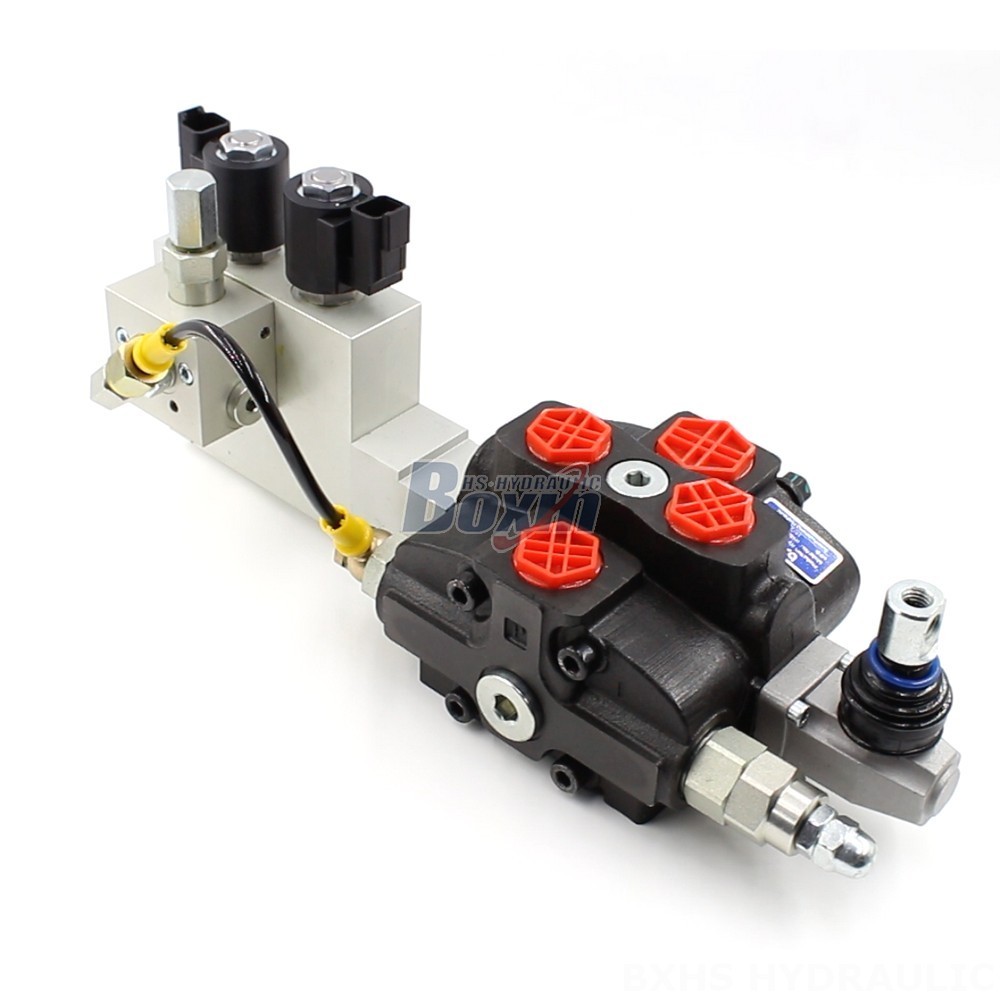

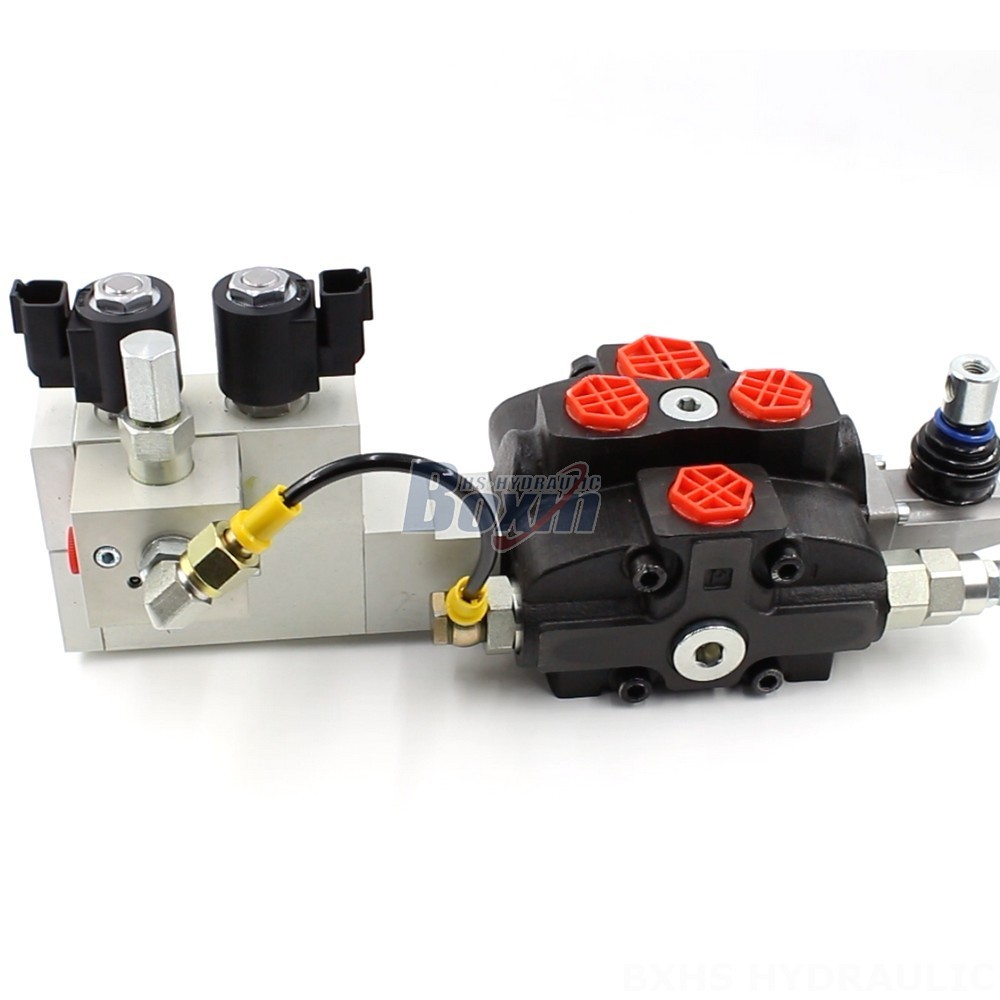

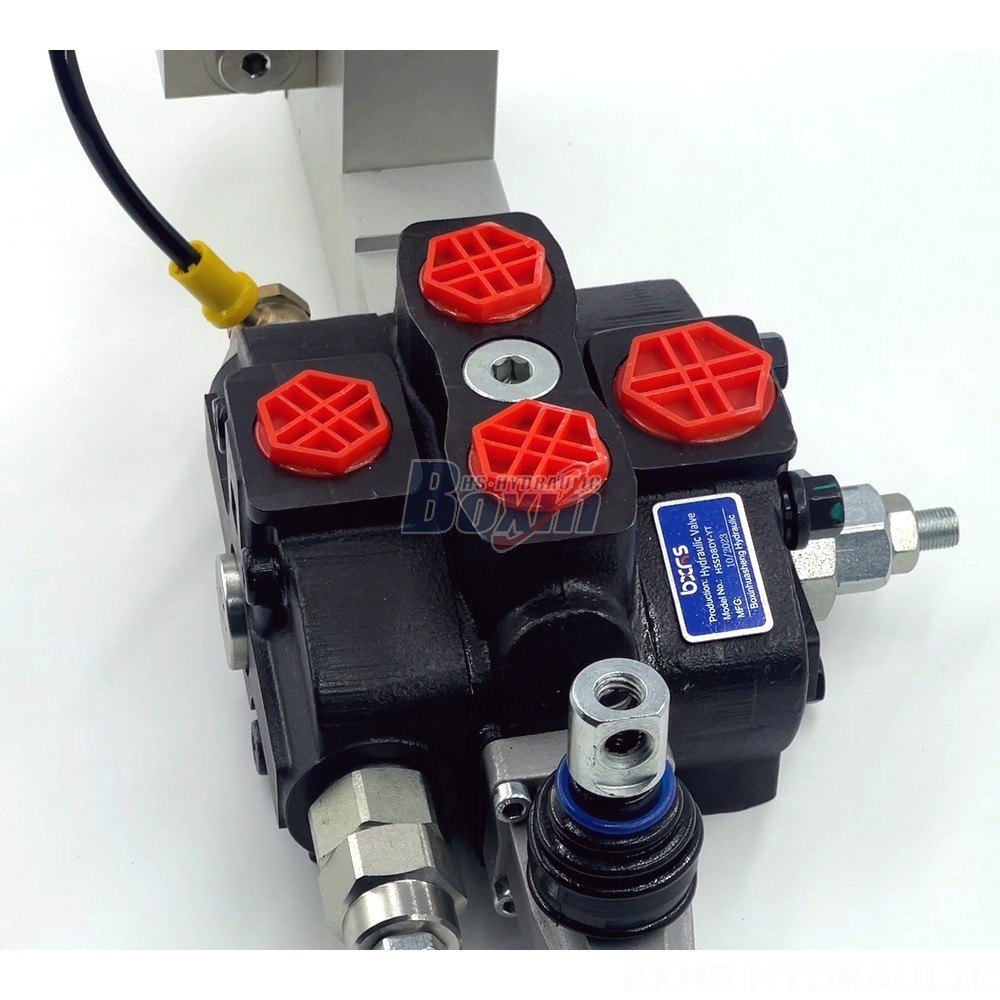

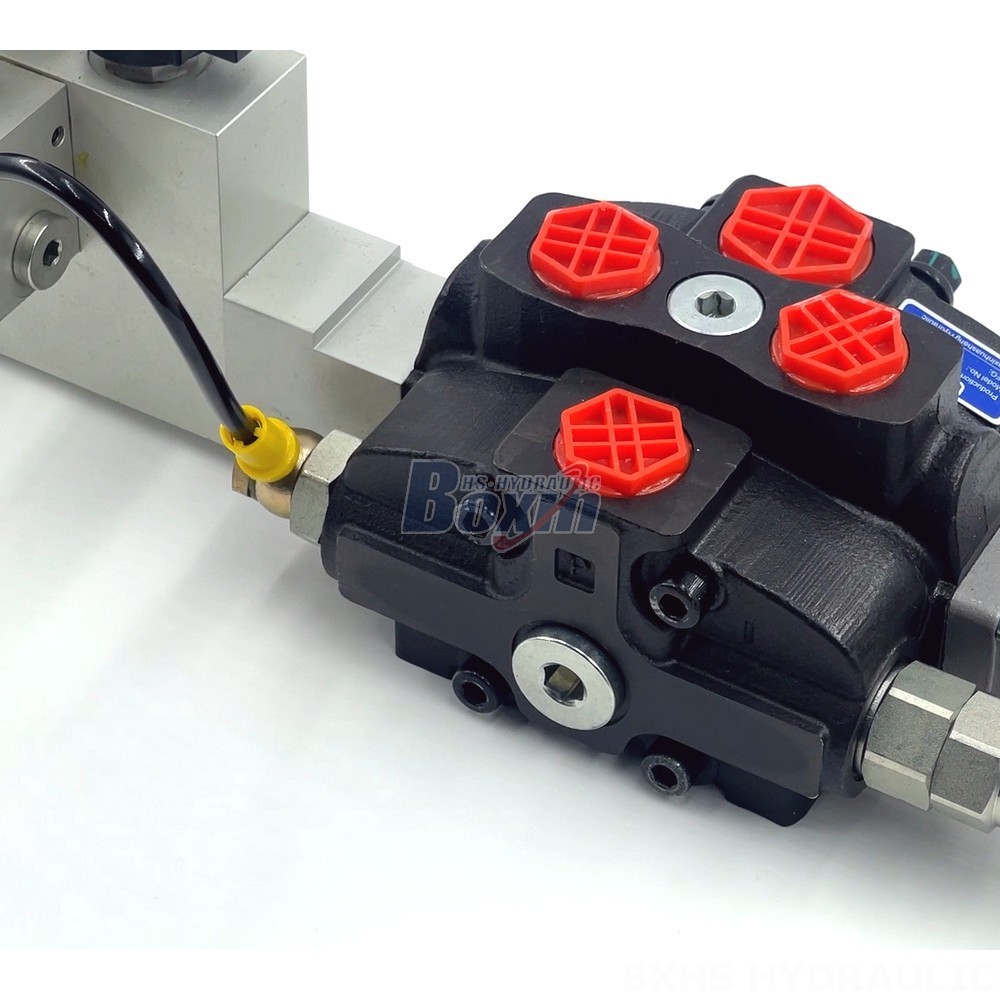

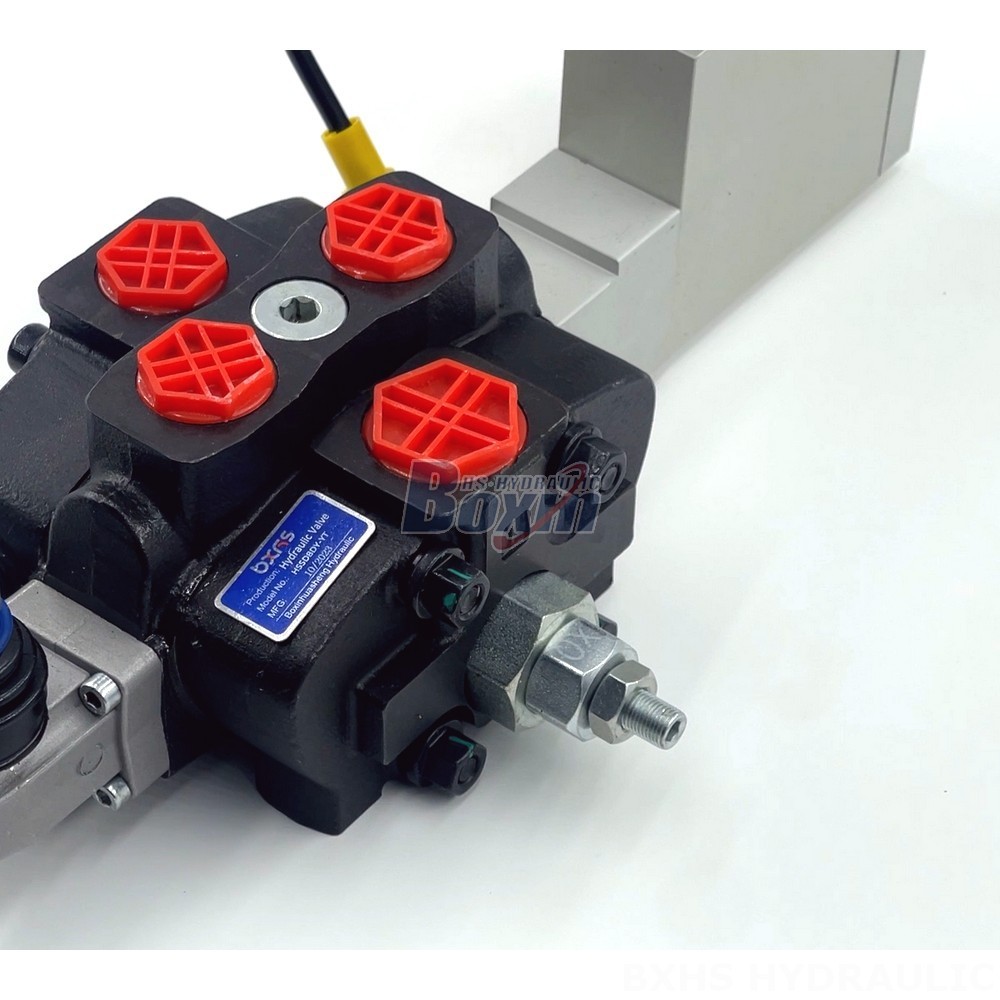

Introducing our Electro-hydraulic Sectional Directional Valve, the ultimate solution for precision control in your hydraulic applications. With its 1 section, sectional valve design, and exceptional performance parameters, this valve delivers unmatched precision and reliability.
| Seri SD8 Kran Arah Bagian Parameter | |
|---|---|
| Metode Kontrol | Buku Panduan, Pneumatik, Elektro-pneumatik, Elektro-hidraulik, Selenoid, Hidraulis, Hidraulik dan Manual, Kabel, Stik Kontrol, Selenoid dan Joystick, Manual dan Joystick |
| Spul | 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool, 8 Spool, 9 Spool, 10 Spool |
| Kisaran Suhu Sekitar | -40°C hingga +80°C (-40°F hingga +176°F) |
| Tipe Struktur | Katup penampang |
| Bagian | 1 Bagian, 2 Bagian, 3 Bagian, 4 Bagian, 5 Bagian, 6 Bagian, 7 Bagian, 8 Bagian, 9 Bagian, 10 Bagian |
| Kisaran Viskositas Operasional | 12 - 400 mm²/dt (12 cSt hingga 400 cSt) |
| Aliran Terukur | 90 L/menit (23,8 US gpm) |
| Tekanan Maksimum | 315 bar (4600 psi) |
| Port Masuk | G1/2, G3/4, SAE 10 |
| Port Keluar | G1/2, G3/4, SAE 10, 3/4 NPT |
| Ukuran Port | G1/2, SAE 10 |
**Key Features and Benefits:**
- **Electro-hydraulic control:** Ensures precise and responsive operation.
- **1 Section:** Allows for independent control of fluid flow in a single circuit.
- **Sectional valve:** Modular design enables easy configuration and customization.
- **High Rated Flow (90 L/min):** Handles demanding flow requirements effortlessly.
- **Max Pressure (350 bar):** Withstands high system pressures.
- **Wide Operating Viscosity Range (12 - 400 mm²/s):** Accommodates various fluid viscosities.
- **1 Spool:** Provides precise flow control with minimal leakage.
- **SD8 Series:** Part of our premium valve range, known for durability and performance.
**Applications:**
- Material Handling: Forklifts, telehandlers, stackers
- Construction and Earth Moving: Motor graders, excavators, skid steer loaders
- Agriculture: Tractors, harvesters
- Industrial Vehicles: Aerial platforms, compact wheel loaders
