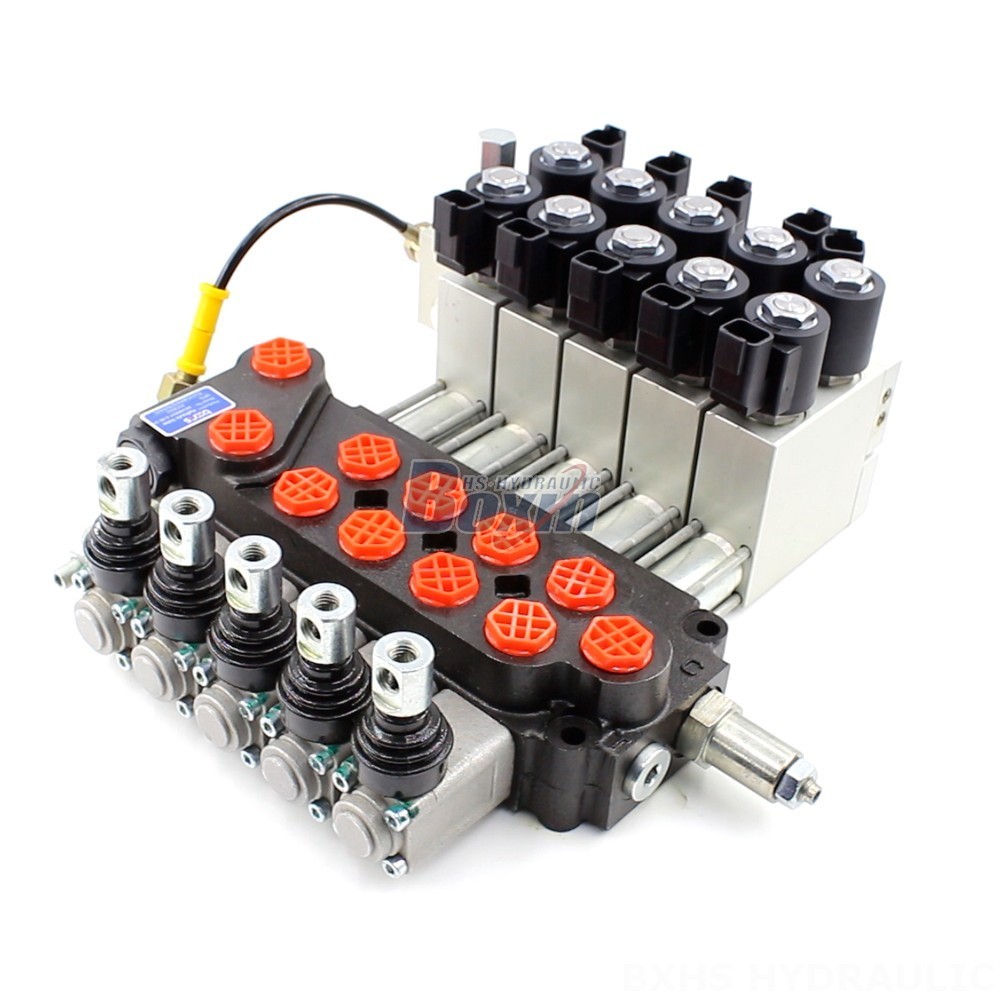

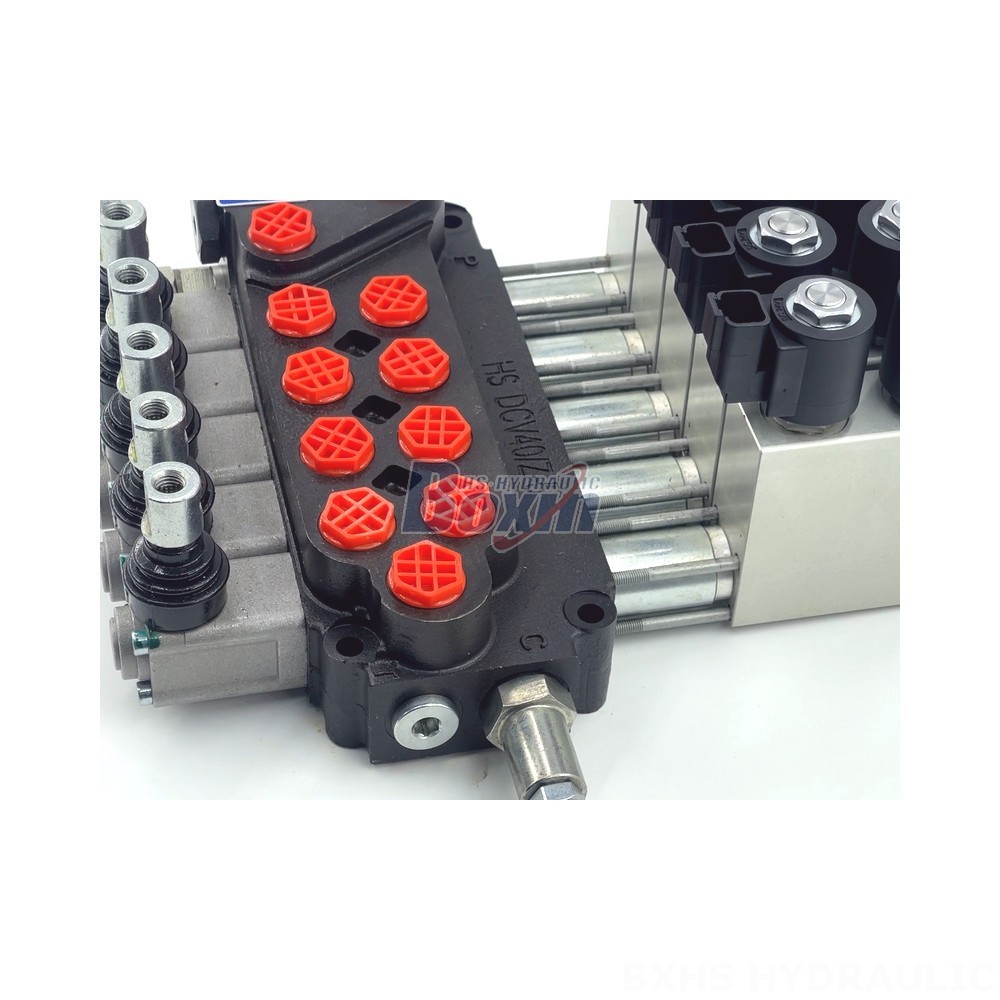

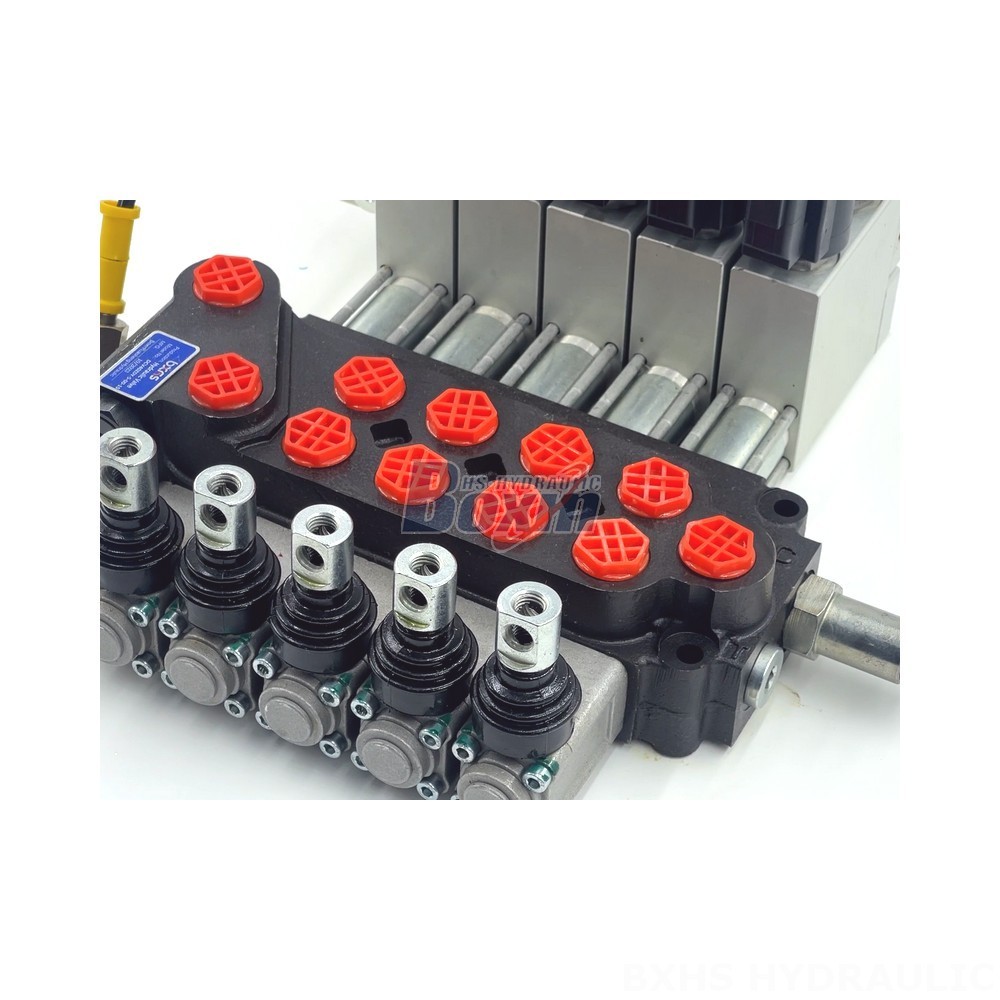

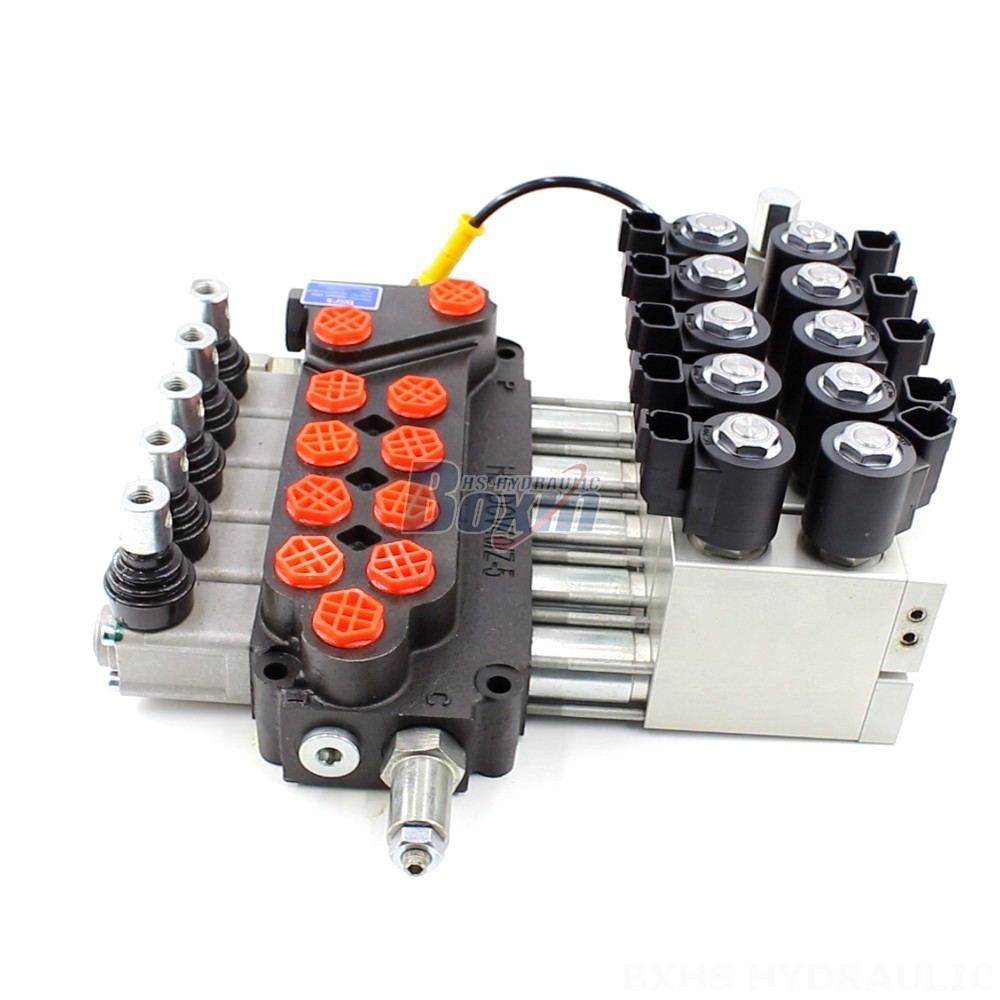

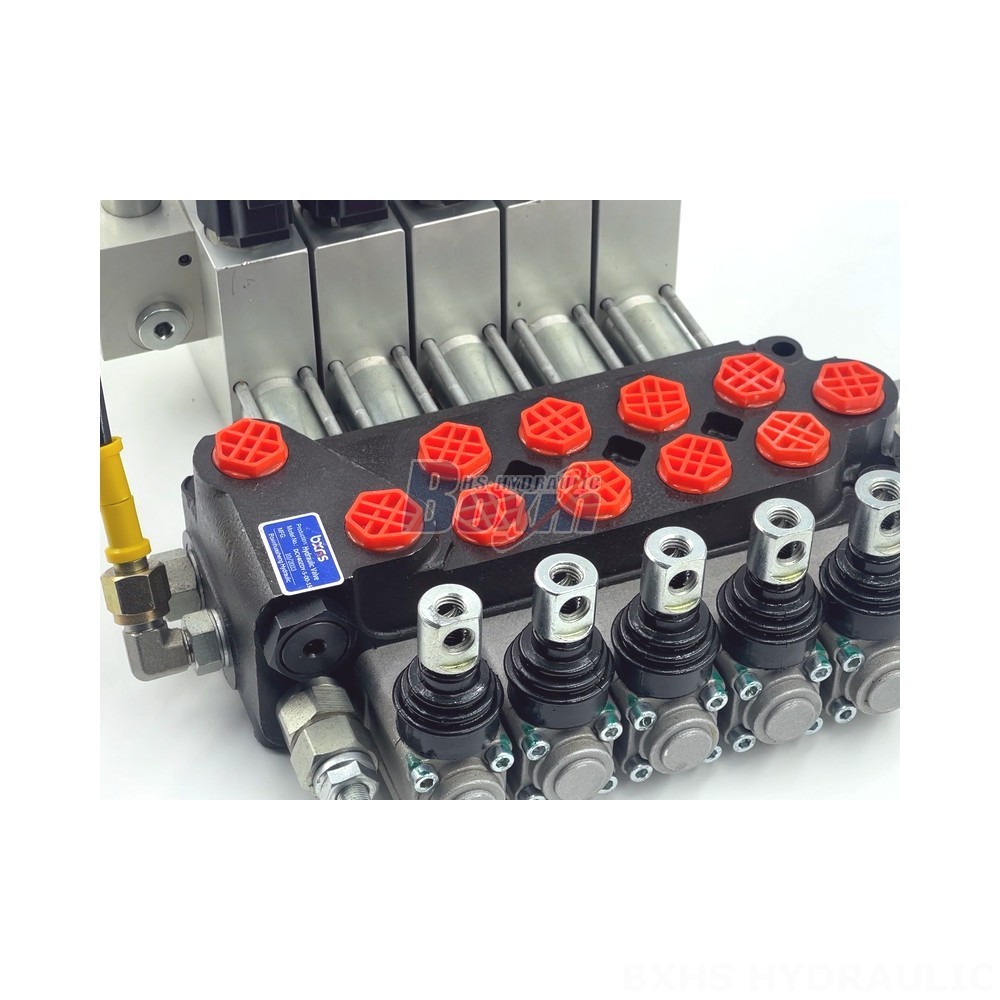

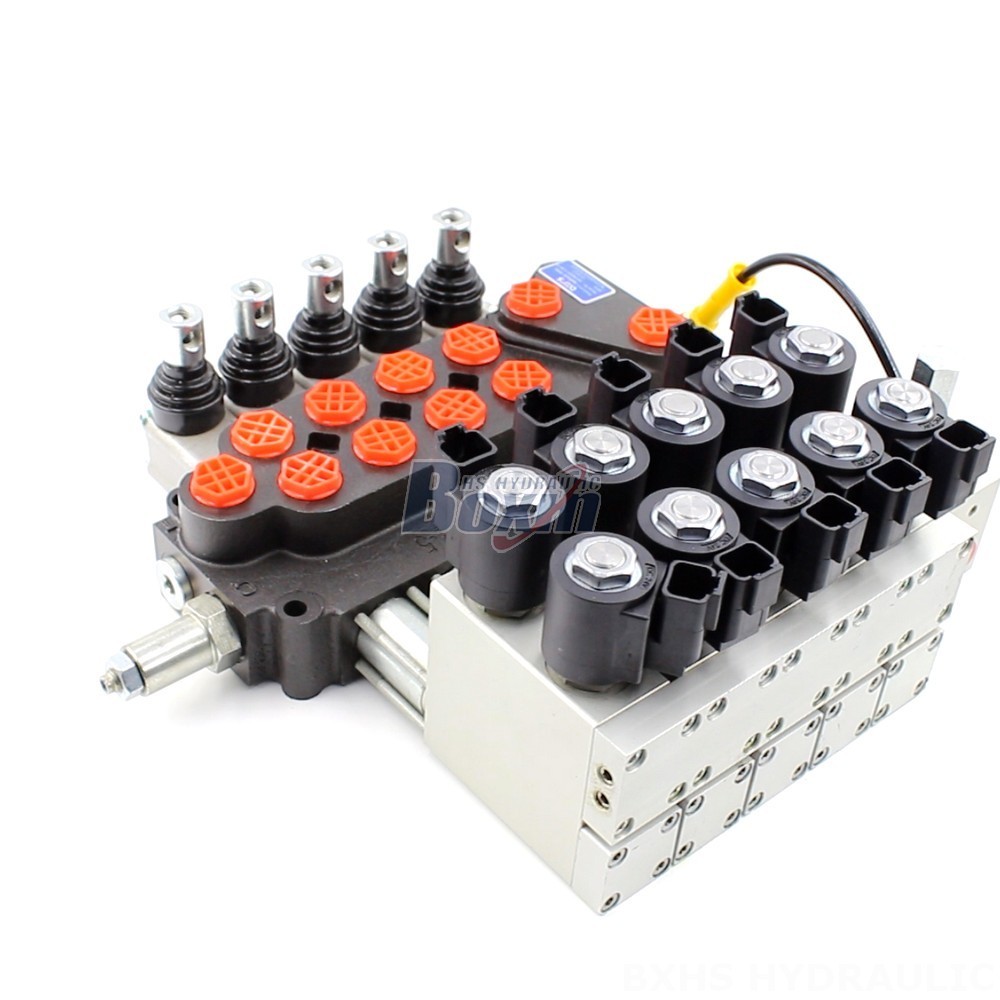

The Zt 12 Hydraulic Valve DCV40Z is a 5-section monoblock electro-hydraulic valve designed for heavy-duty applications in material handling, construction, agriculture, and industrial vehicles.
| Seri DCV40Z 23 Katup Pengendali Outrigger Parameter | |
|---|---|
| Metode Kontrol | Buku Panduan, Elektro-hidraulik, Stik Kontrol, Manual dan Joystick |
| Spul | 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool |
| Kisaran Suhu Sekitar | -40°C hingga +80°C (-40°F hingga +176°F) |
| Tipe Struktur | Katup monoblok |
| Bagian | 1 Bagian, 2 Bagian, 3 Bagian, 4 Bagian, 5 Bagian, 6 Bagian, 7 Bagian |
| Kisaran Viskositas Operasional | 15 - 75 mm²/dt (15 cSt hingga 75 cSt) |
| Aliran Terukur | 40 L/menit (10,5 US gpm) |
| Tekanan Maksimum | 350 bar (5100 psi) |
| Port Masuk | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Port Keluar | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Ukuran Port | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
The Zt 12 Hydraulic Valve DCV40Z is a robust and reliable electro-hydraulic valve designed for demanding applications. This 5-section monoblock valve features a rated flow of 40 L/min (10.5 US gpm) and a maximum pressure of 350 bar (5100 psi). Its operating viscosity range is 15 - 75 mm²/s (15 cSt to 75 cSt), and it can withstand ambient temperatures from -40°C to +80°C (-40°F to +176°F). The DCV40Z series is suitable for a wide range of applications including telehandlers, forklifts, all-terrain cranes, stackers, aerial platforms, motor graders, mini-excavators, skid steer loaders, and compact wheel loaders. It is customizable to meet specific requirements, making it an ideal choice for manufacturers and OEMs.
