The Electro-hydraulic Valve for Industrial Applications (SD25 Model) is a high-performance valve designed for demanding industrial applications. With a rated flow of 240 L/min and a maximum pressure of 315 bar, it delivers exceptional flow and pressure capabilities. Its monoblock construction ensures durability and reliability, while its wide temperature range (-40°C to +80°C) allows for operation in various environments. The SD25 Series valve is ideal for material handling, construction, earth moving, agriculture, and industrial vehicle applications, including telehandlers, forklifts, all-terrain cranes, stackers, aerial platforms, motor graders, and excavators.
| Seri SD25 Kran Arah Bagian Parameter | |
|---|---|
| Metode Kontrol | Buku Panduan, Elektro-hidraulik, Hidraulis |
| Spul | 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool |
| Kisaran Suhu Sekitar | -40°C hingga +80°C (-40°F hingga +176°F) |
| Tipe Struktur | Katup penampang |
| Bagian | 1 Bagian, 2 Bagian, 3 Bagian, 4 Bagian, 5 Bagian, 6 Bagian, 7 Bagian, 8 Bagian, 9 Bagian, 10 Bagian |
| Kisaran Viskositas Operasional | 12 - 400 mm²/dt (12 cSt hingga 400 cSt) |
| Aliran Terukur | 240 L/menit (63,4 US gpm) |
| Tekanan Maksimum | 315 bar (4600 psi) |
| Port Masuk | G1, SAE 16 |
| Port Keluar | G1-1/4, SAE 16 |
| Ukuran Port | G1, G1-1/4, SAE 12 |

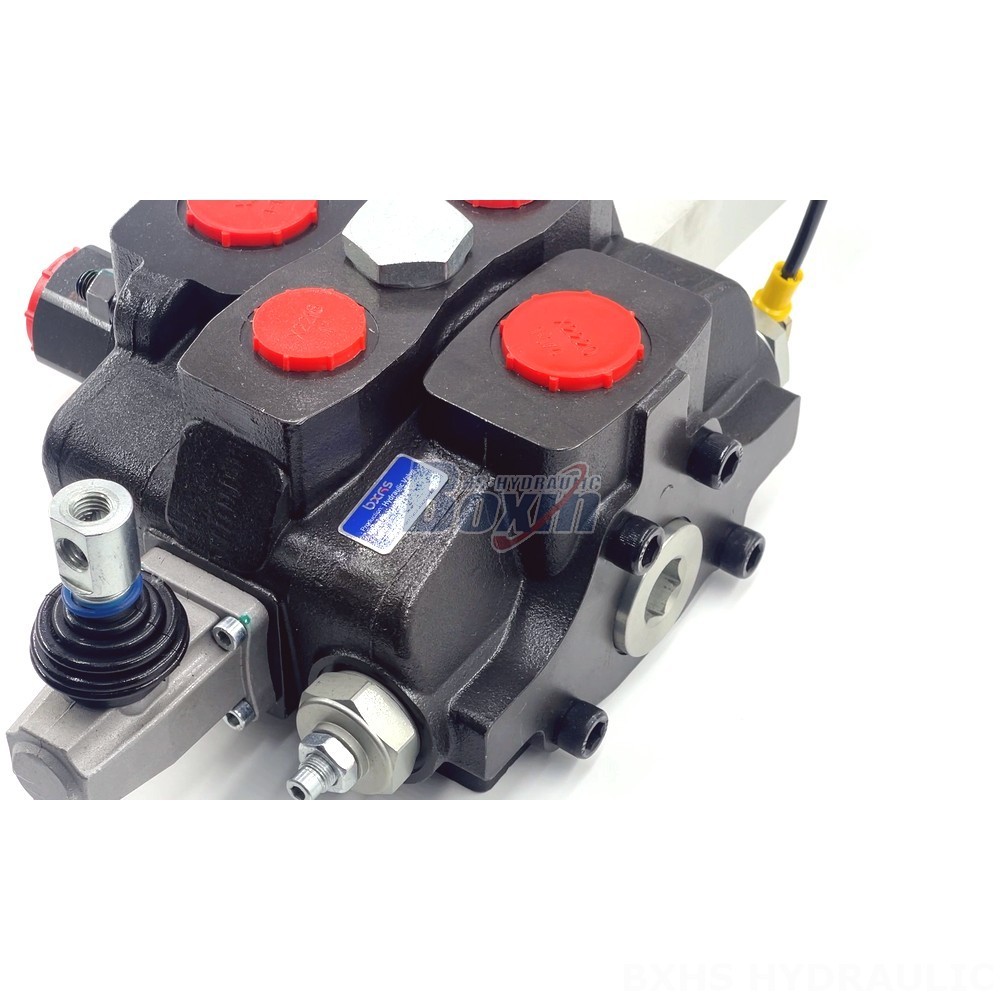

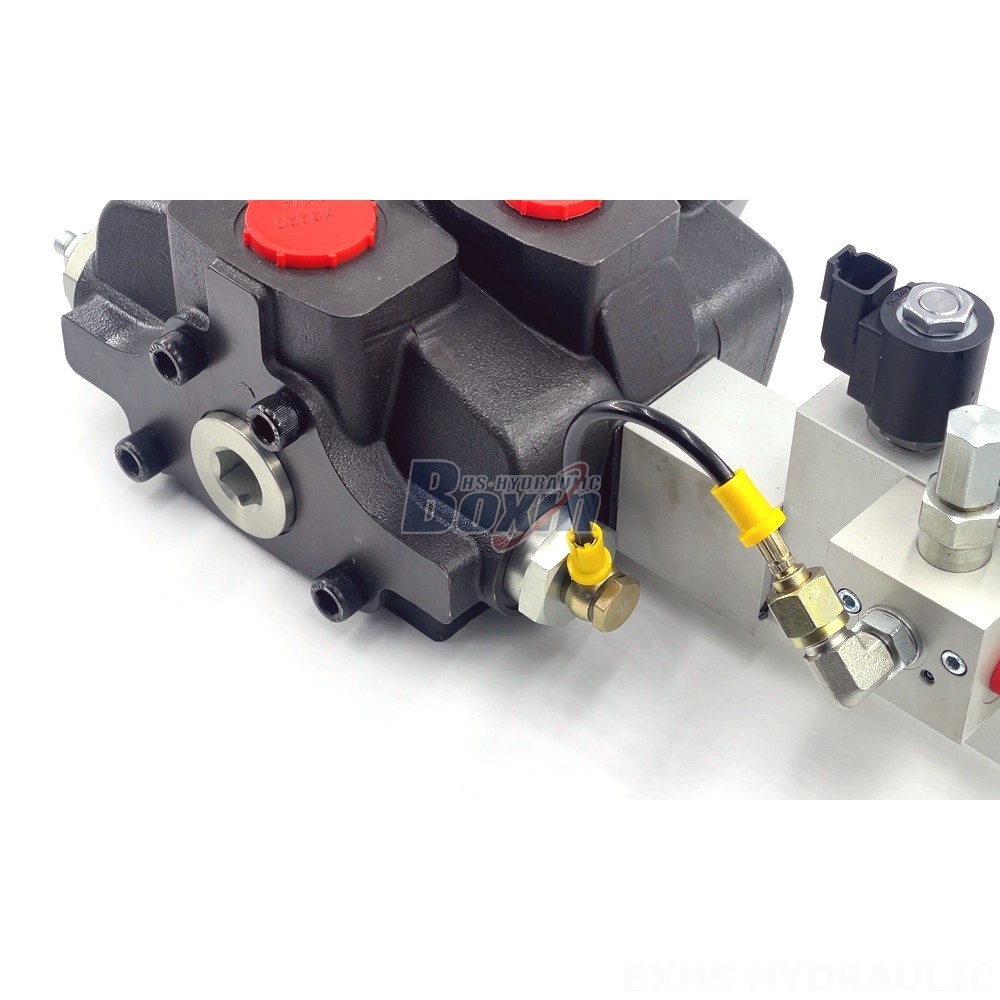

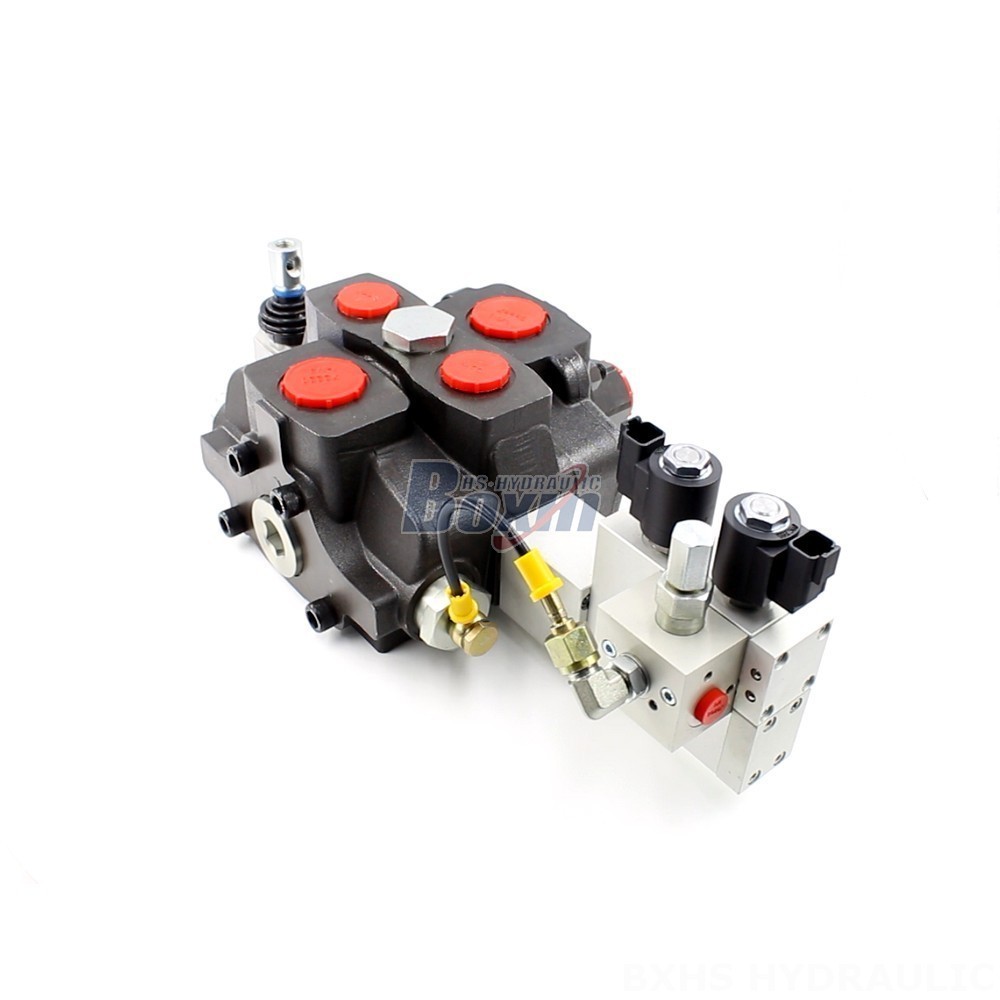

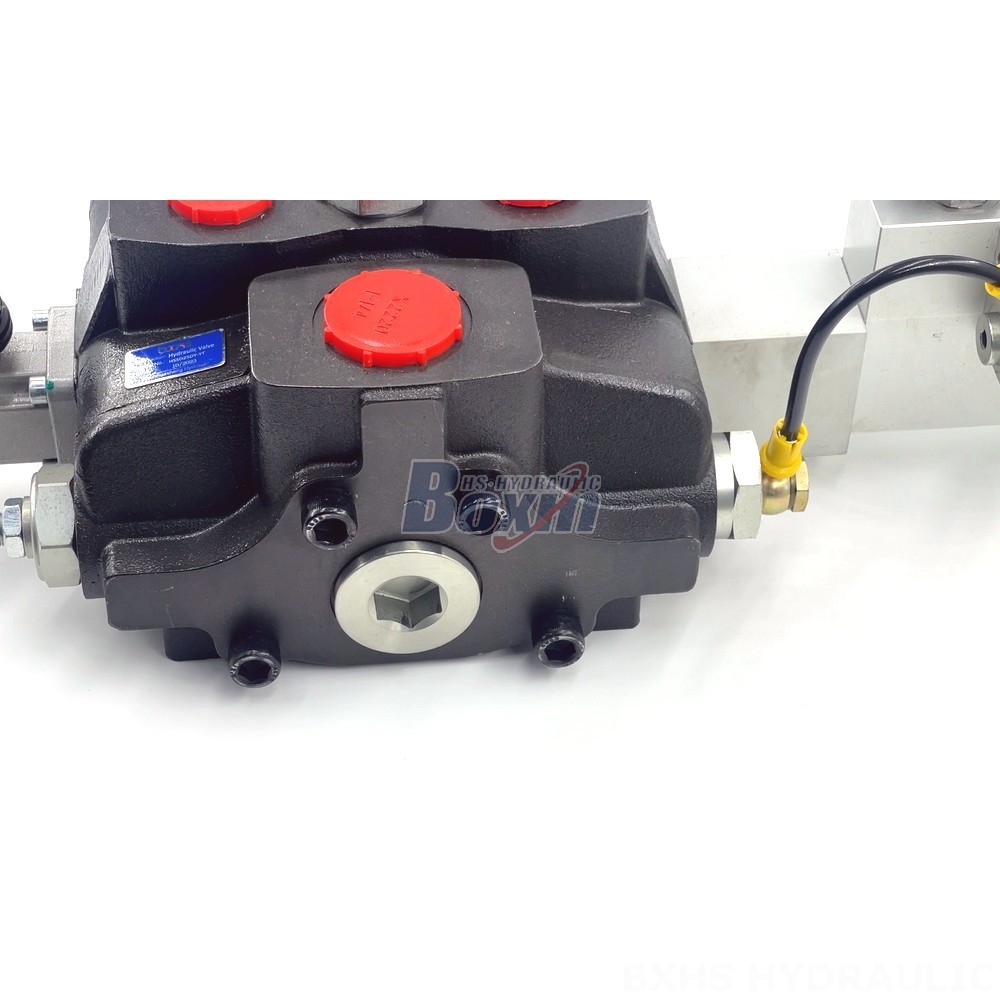

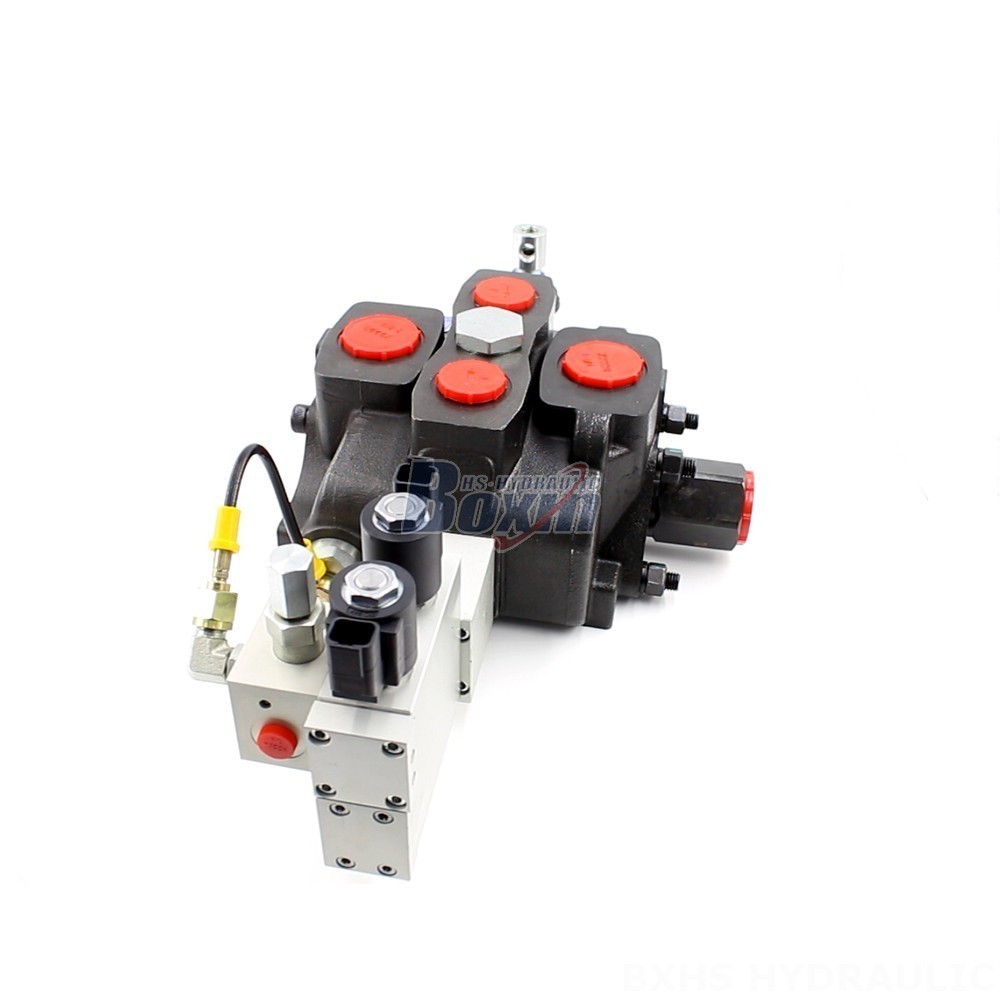

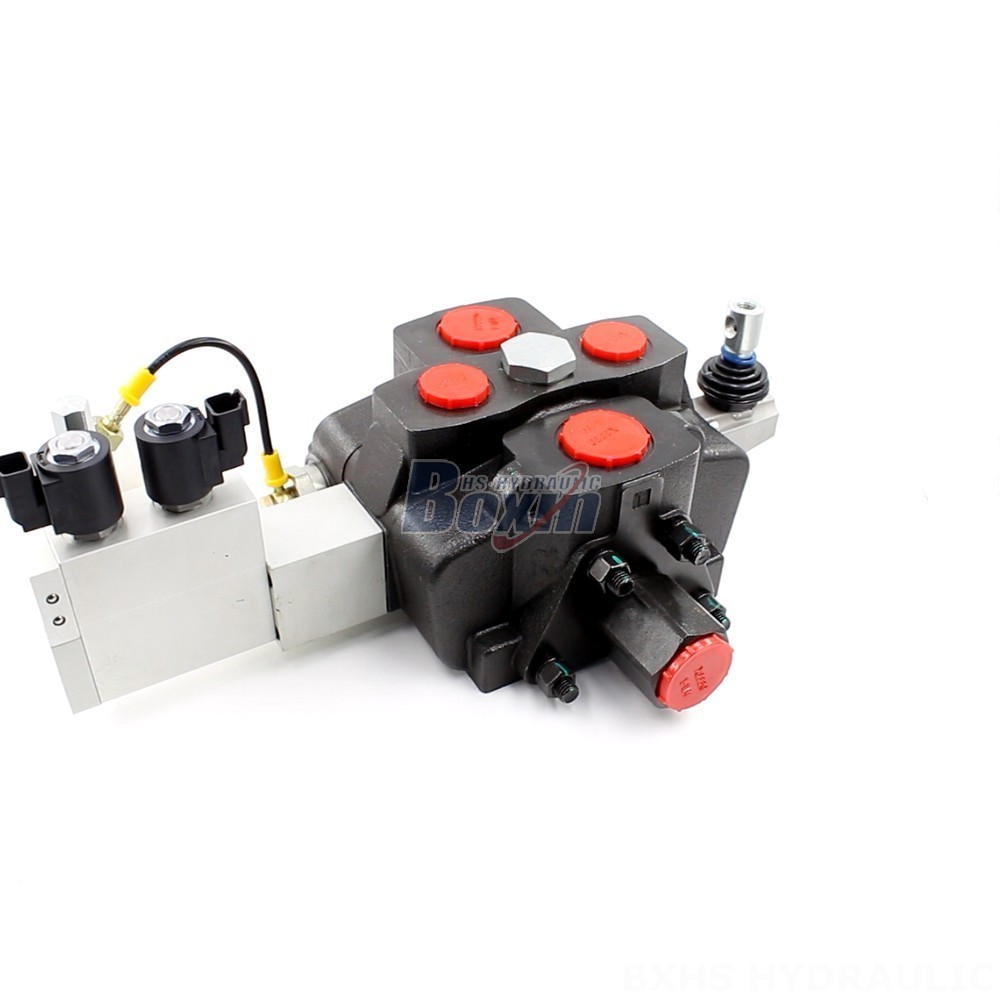

**Electro-hydraulic Valve for Industrial Applications (SD25 Model)**
**Control Method:** Electro-hydraulic
**Section:** 1 Section
**Structure Type:** Monoblock valve
**Rated Flow:** 240 L/min (63.4 US gpm)
**Max Pressure:** 315 bar (4600 psi)
**Ambient Temperature Range:** -40°C to +80°C (-40°F to +176°F)
**Spool:** 1 Spool
**Series:** SD25 Series
**Key Features:**
* High flow capacity (240 L/min)
* High pressure capability (315 bar)
* Wide temperature range (-40°C to +80°C)
* Monoblock construction for durability
* Single spool for simple operation
**Applications:**
* Material handling
* Construction and earth moving
* Agriculture
* Industrial vehicles
* Telehandlers
* Forklifts
* All terrain cranes
* Stackers
* Aerial platforms
* Motor graders
* Excavators
