Produksi & Pengiriman
Waktu Produksi 15-30 Hari
908 Pandangan Mencari Produk Ini

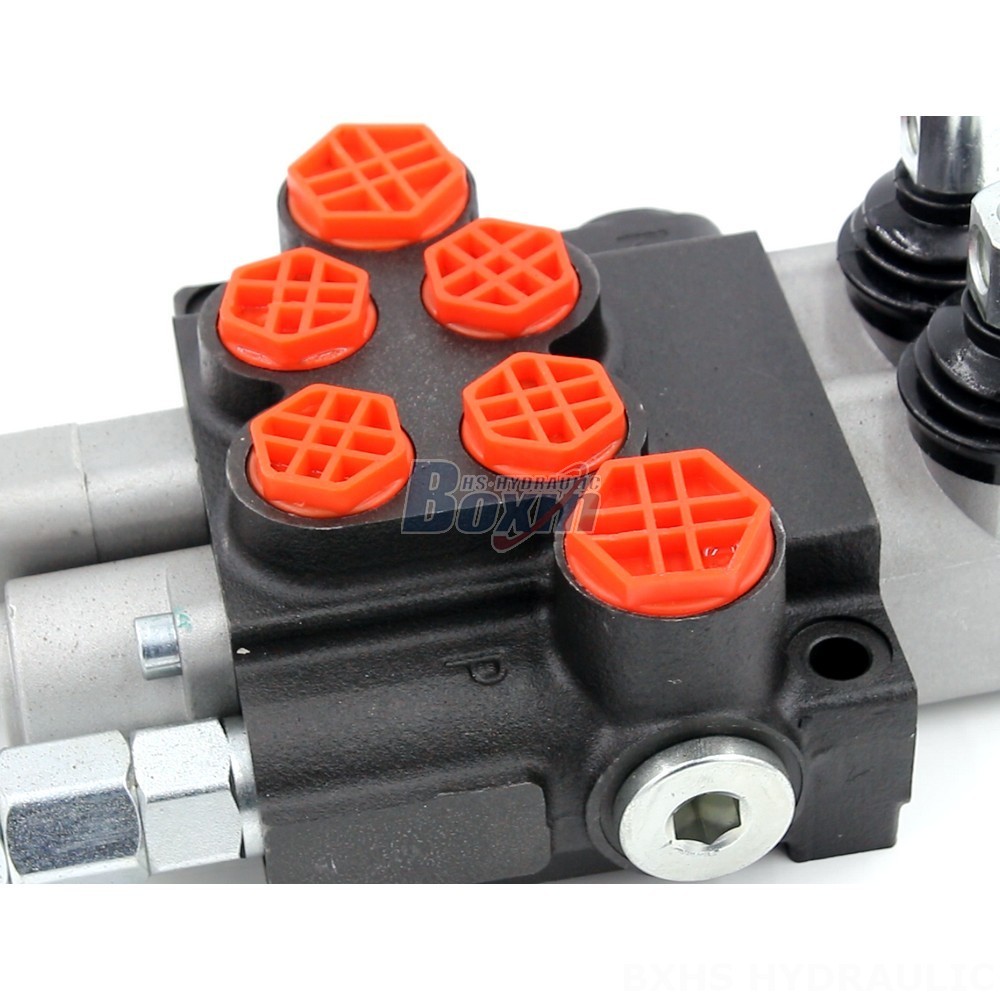

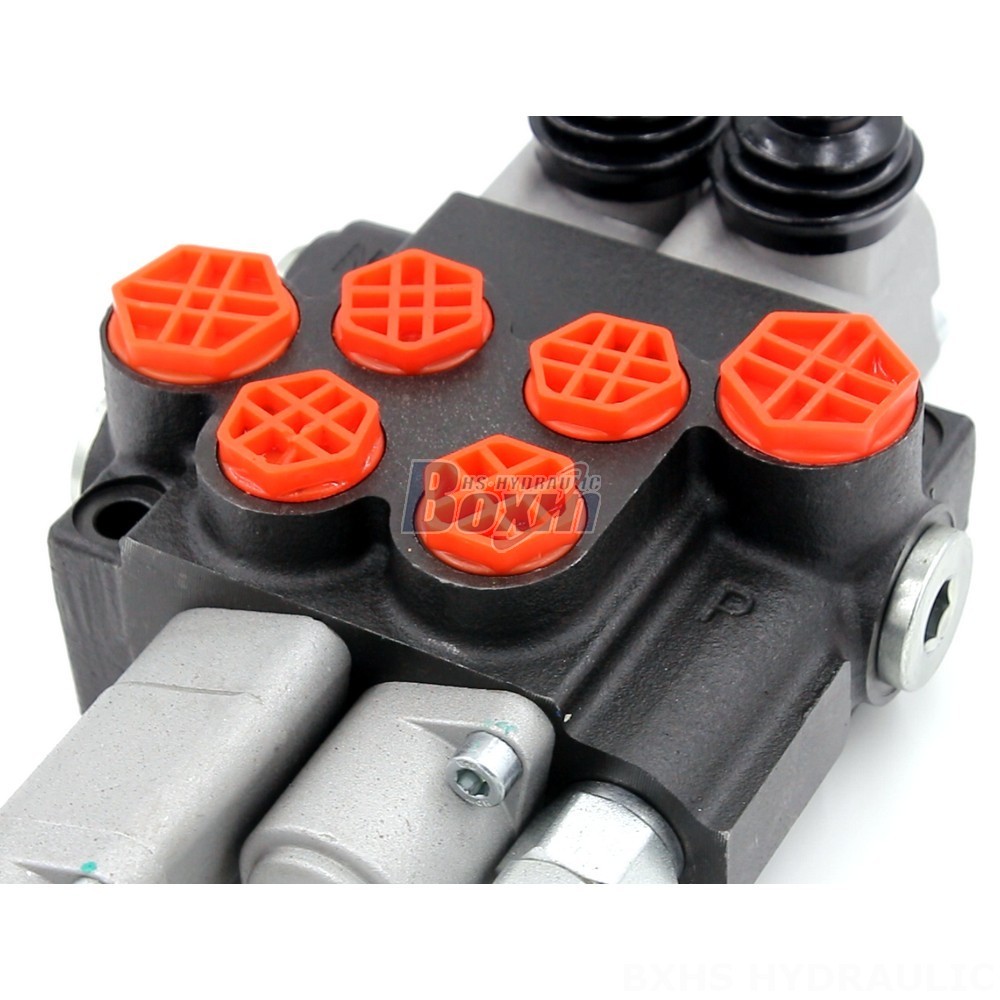

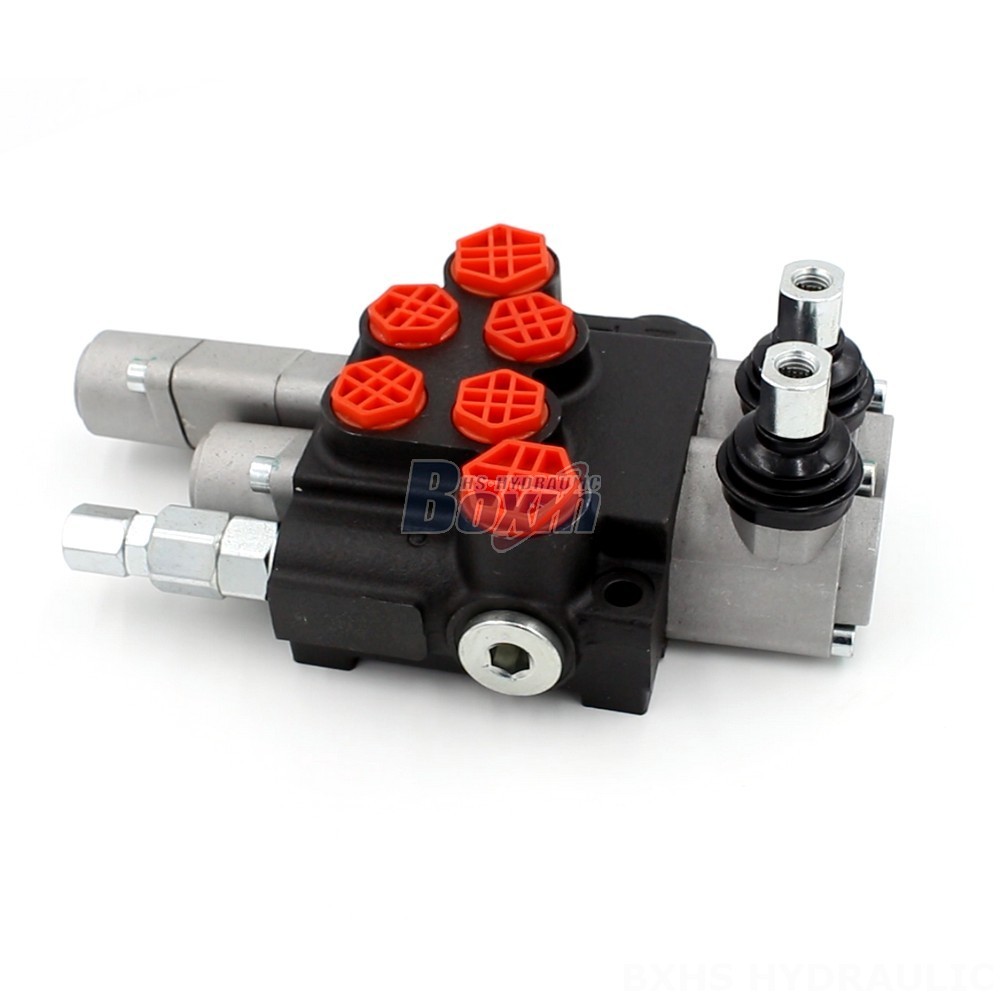

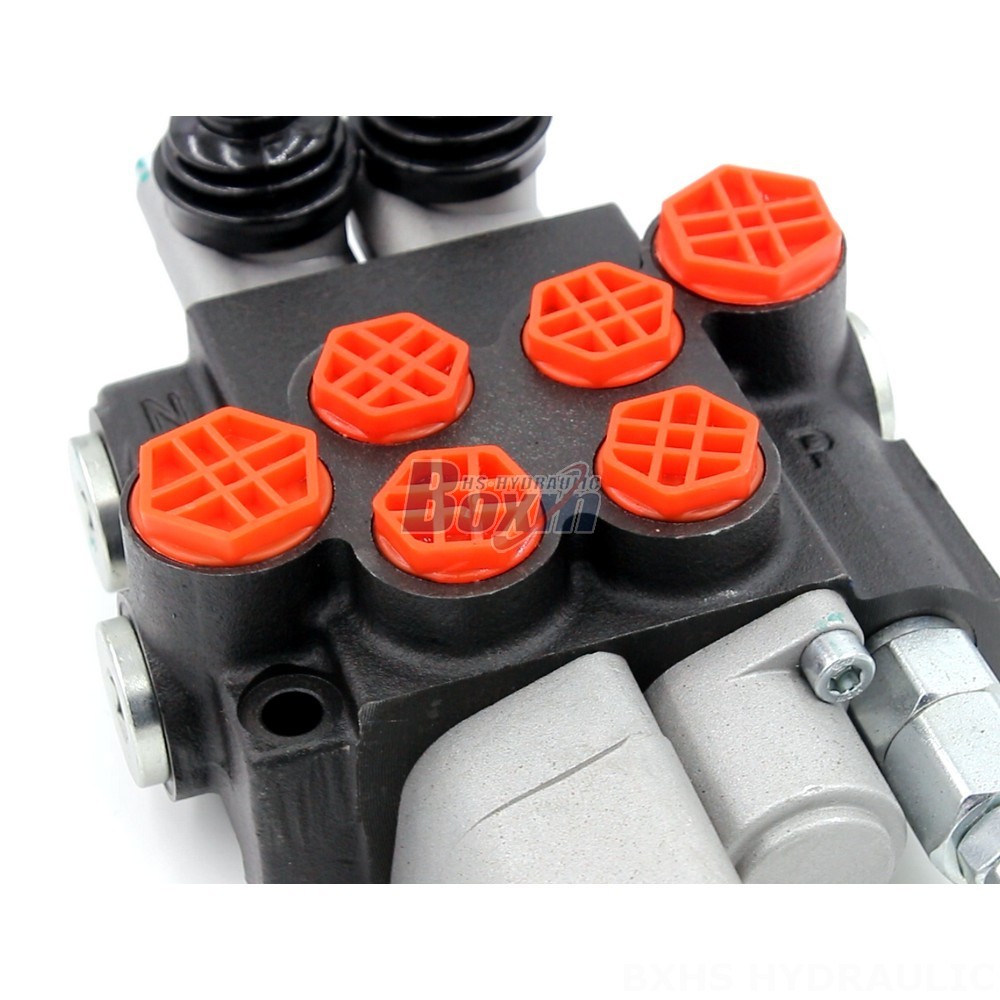

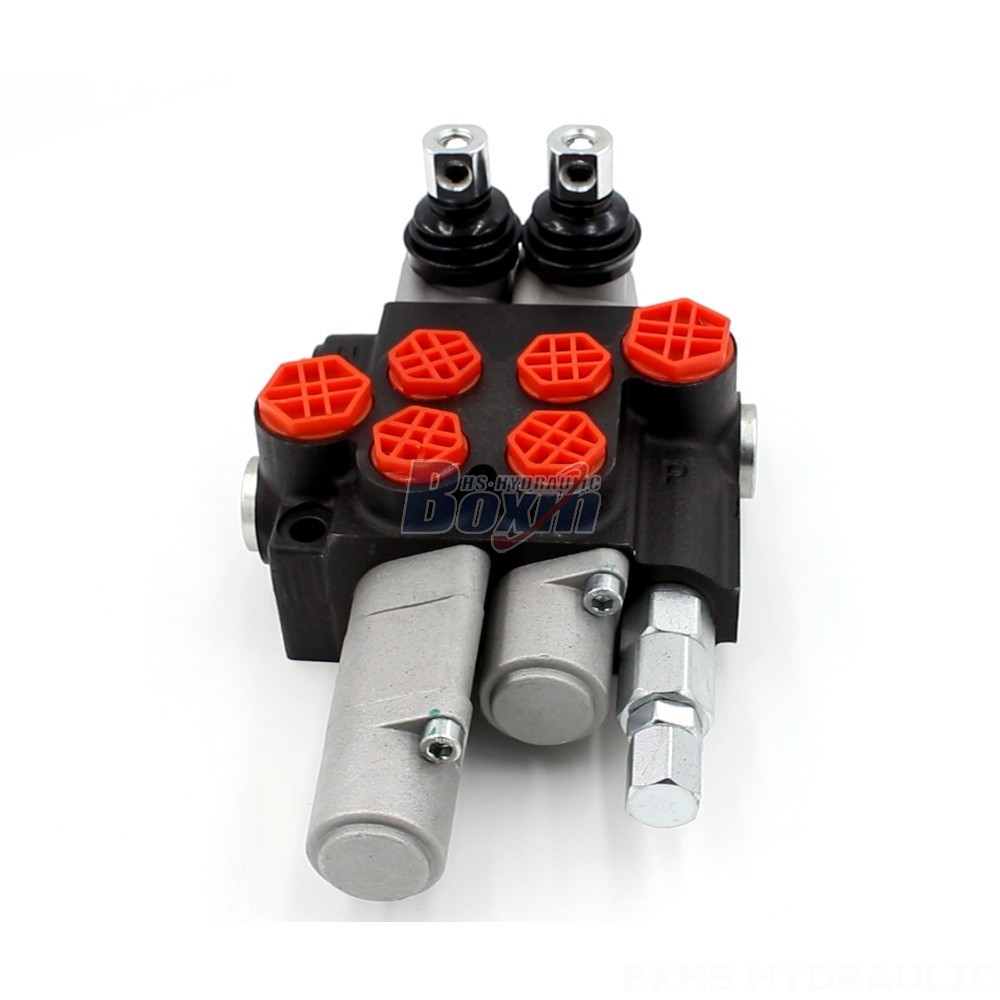

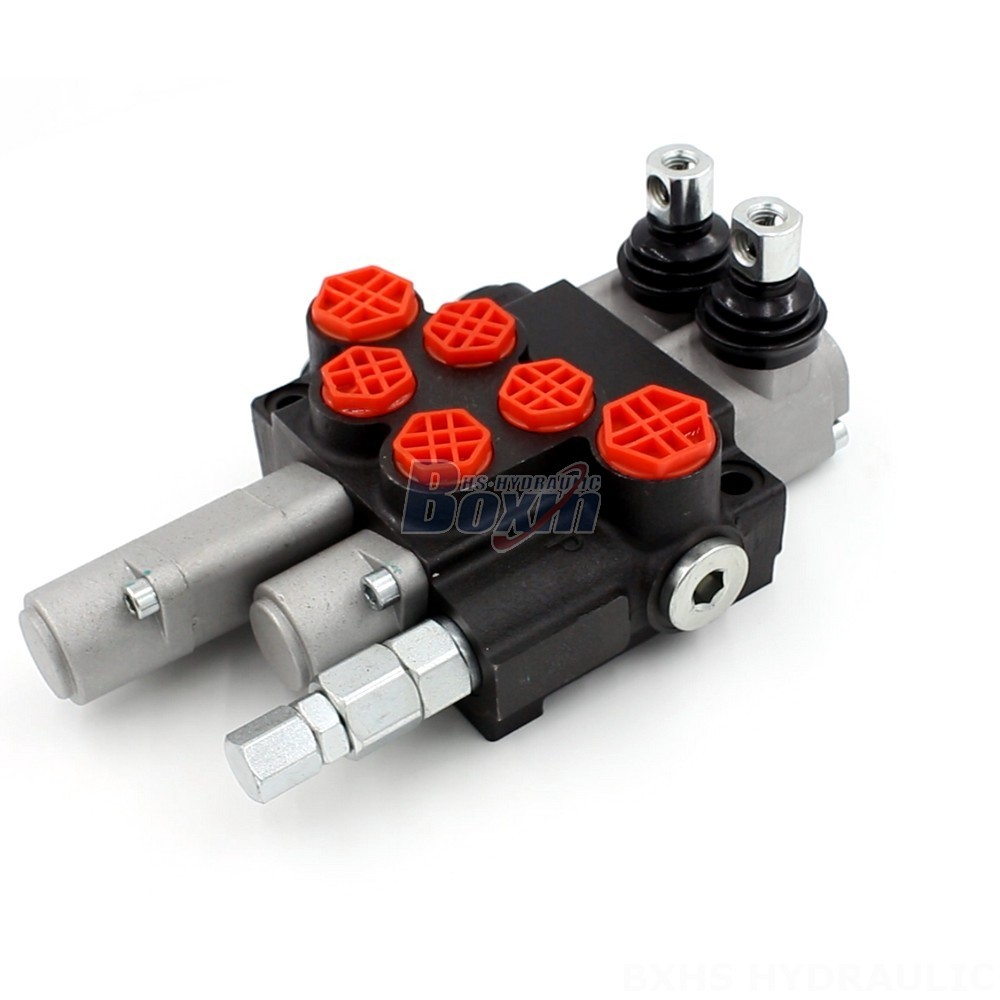

The P40-G12-G38-OT-QTW1 is a 2-section, monoblock valve with manual control. It has a rated flow of 40 L/min and a maximum pressure of 250 bar. The operating viscosity range is 15 - 75 mm²/s and the ambient temperature range is -40°C to +80°C. The valve is suitable for use in material handling, construction, agriculture, and industrial vehicles.
| Seri P40 Katup Arah Monoblok Parameter | |
|---|---|
| Metode Kontrol | Buku Panduan, Pneumatik, Elektro-pneumatik, Elektro-hidraulik, Selenoid, Hidraulis, Hidraulik dan Manual, Kabel, Stik Kontrol, Selenoid dan Joystick, Manual dan Joystick, Solenoid dan Kabel |
| Spul | 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool |
| Kisaran Suhu Sekitar | -40°C hingga +80°C (-40°F hingga +176°F) |
| Tipe Struktur | Katup monoblok |
| Bagian | 1 Bagian, 2 Bagian, 3 Bagian, 4 Bagian, 5 Bagian, 6 Bagian, 7 Bagian |
| Kisaran Viskositas Operasional | 15 - 75 mm²/dt (15 cSt hingga 75 cSt) |
| Aliran Terukur | 40 L/menit (10,5 US gpm) |
| Tekanan Maksimum | 250 bar (3600 psi) |
| Port Masuk | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Port Keluar | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Ukuran Port | G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
The P40-G12-G38-OT-QTW1 is a high-quality valve that is manufactured to the highest standards. It is made from durable materials and is designed to withstand even the most demanding applications. The valve is easy to install and maintain, and it comes with a comprehensive warranty.
As a leading manufacturer of hydraulic products, we offer a wide range of valves to choose from. We can also provide custom solutions to meet your specific needs. Contact us today to learn more about our products and services.
