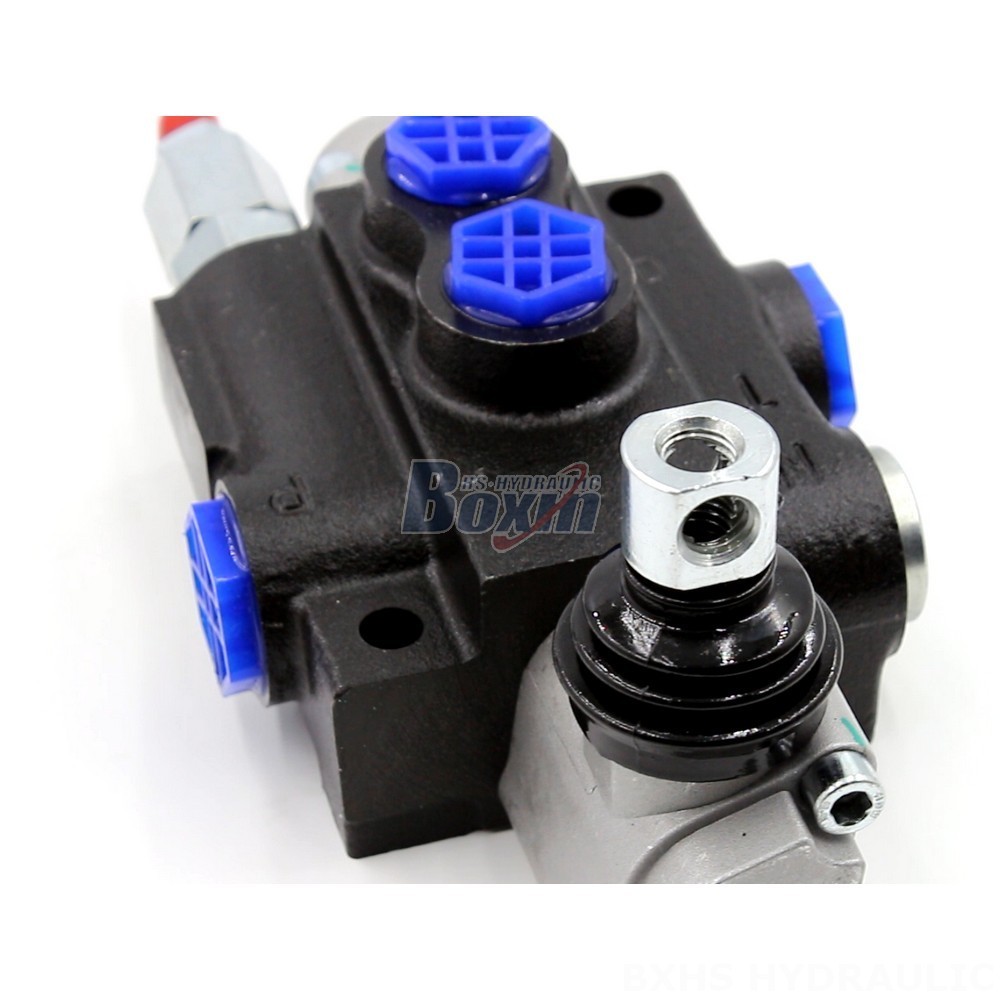

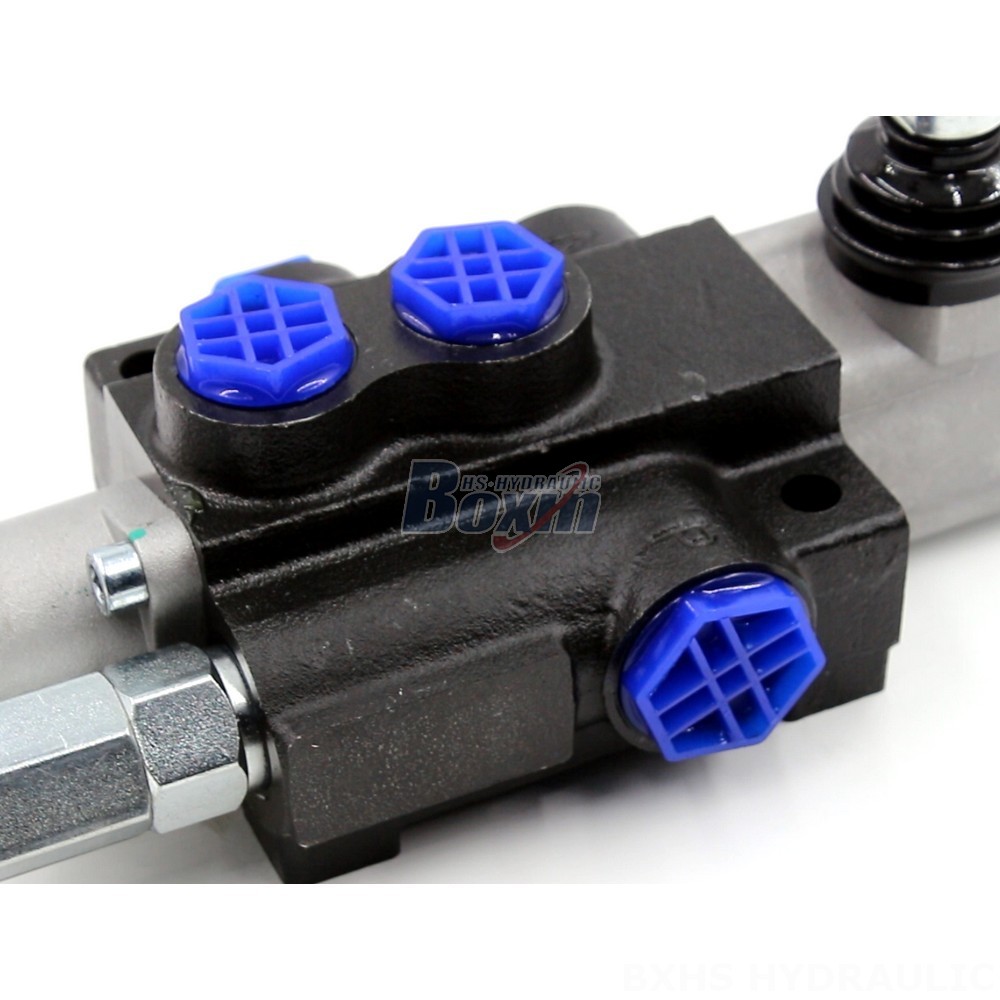

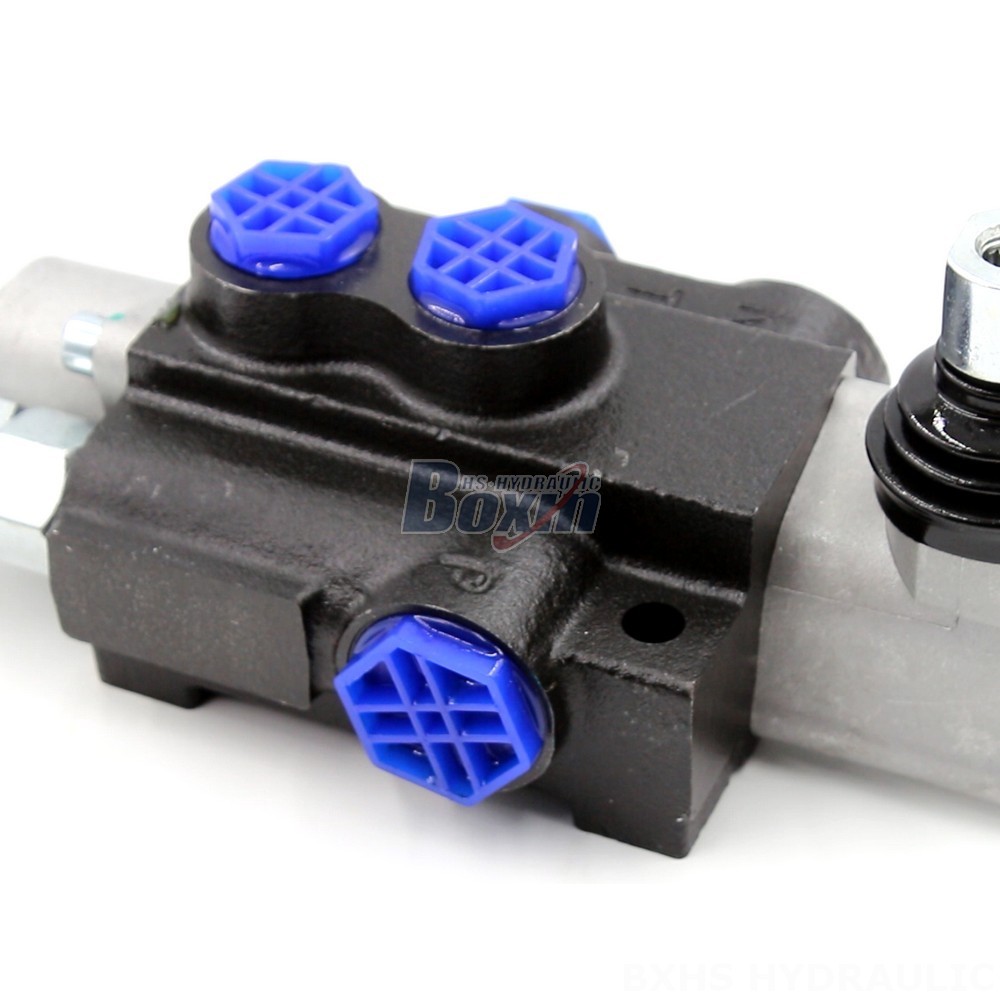

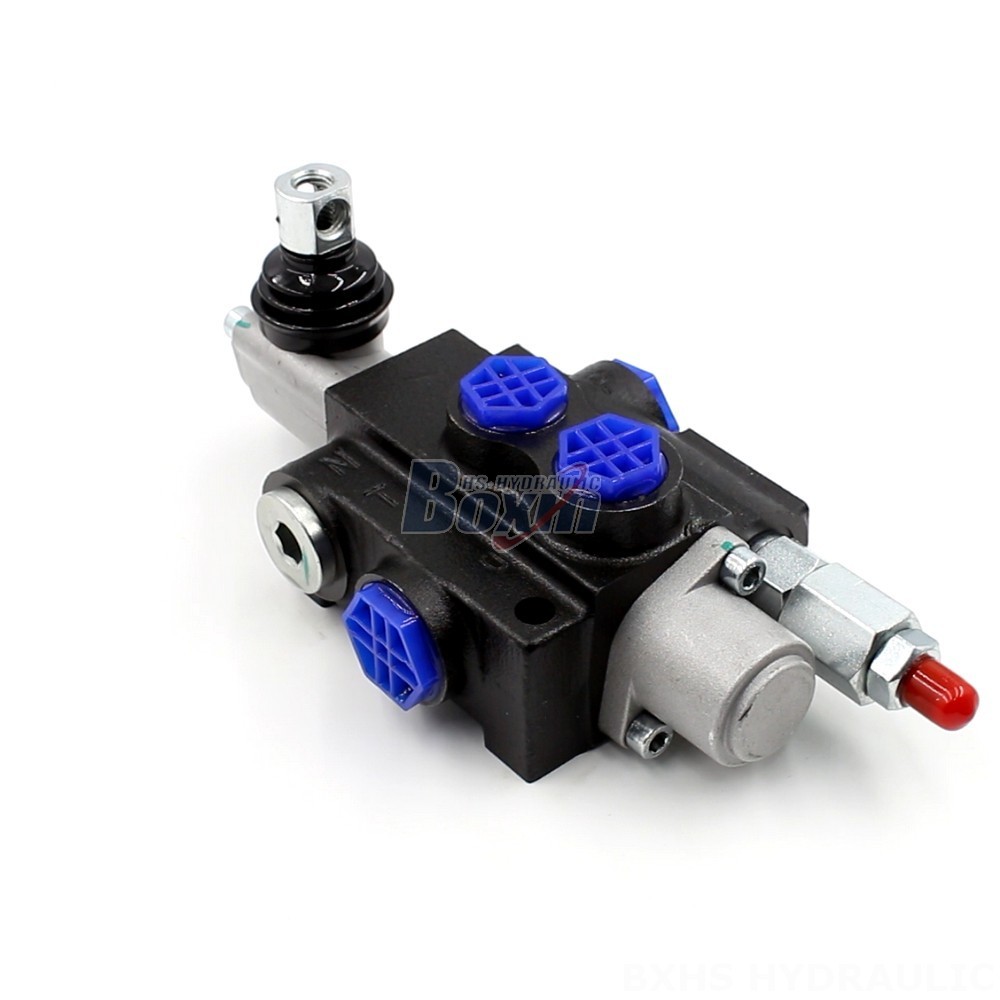

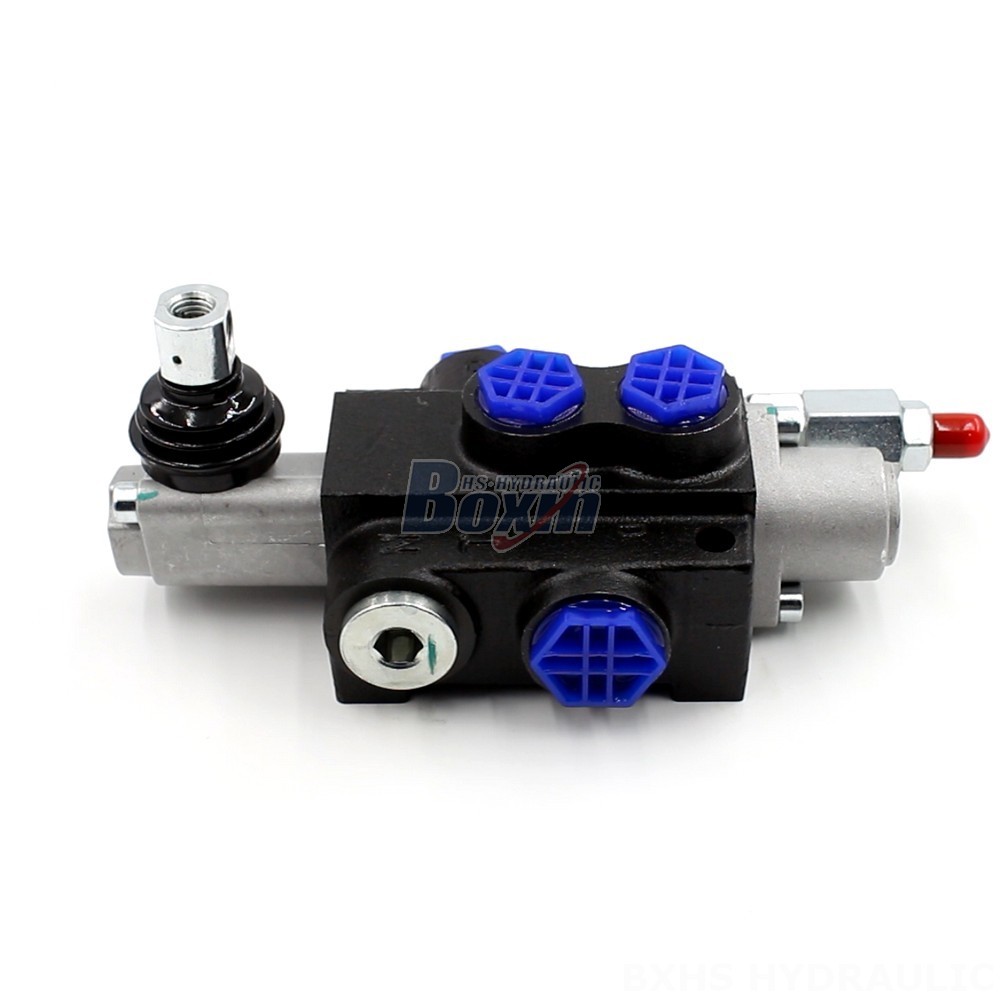

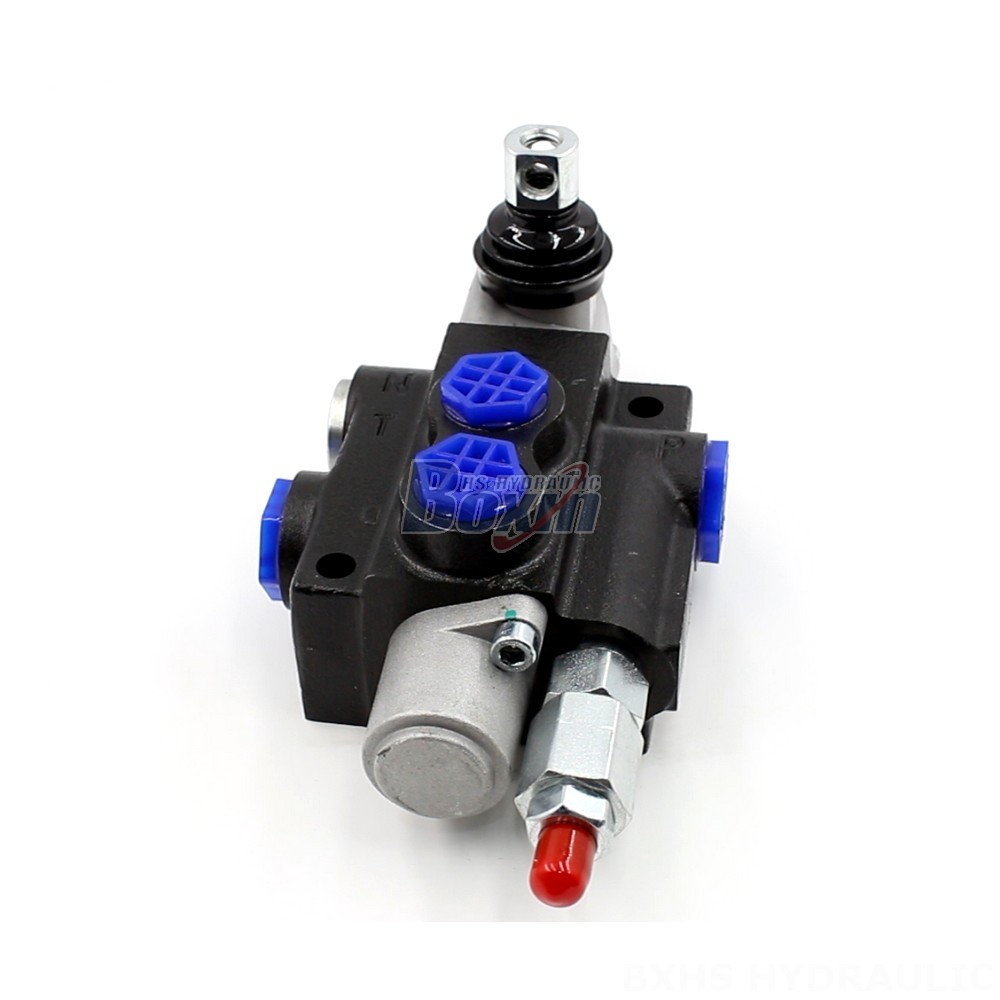

The P40-G12 Diverter Valve is a high-performance hydraulic valve designed for efficient control in construction, material handling, and industrial applications. This manual, monoblock valve boasts a rated flow of 40 L/min and a max pressure of 250 bar, making it ideal for a wide range of machinery.
| Seri P40 Katup Arah Monoblok Parameter | |
|---|---|
| Metode Kontrol | Buku Panduan, Pneumatik, Elektro-pneumatik, Elektro-hidraulik, Selenoid, Hidraulis, Hidraulik dan Manual, Kabel, Stik Kontrol, Selenoid dan Joystick, Manual dan Joystick, Solenoid dan Kabel |
| Spul | 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool |
| Kisaran Suhu Sekitar | -40°C hingga +80°C (-40°F hingga +176°F) |
| Tipe Struktur | Katup monoblok |
| Bagian | 1 Bagian, 2 Bagian, 3 Bagian, 4 Bagian, 5 Bagian, 6 Bagian, 7 Bagian |
| Kisaran Viskositas Operasional | 15 - 75 mm²/dt (15 cSt hingga 75 cSt) |
| Aliran Terukur | 40 L/menit (10,5 US gpm) |
| Tekanan Maksimum | 250 bar (3600 psi) |
| Port Masuk | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Port Keluar | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Ukuran Port | G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
The P40-G12 Diverter Valve is a robust and reliable solution for controlling hydraulic flow in demanding applications. Its monoblock structure ensures durability, while the manual control allows for easy operation. With a rated flow of 40 L/min and a max pressure of 250 bar, this valve is suitable for heavy-duty machinery like telehandlers, forklifts, cranes, and excavators. The valve is engineered to withstand extreme operating conditions with a temperature range of -40°C to +80°C and a viscosity range of 15-75 mm²/s. Its compact design and efficient performance make it a valuable asset for any hydraulic system requiring precise fluid direction and control.
