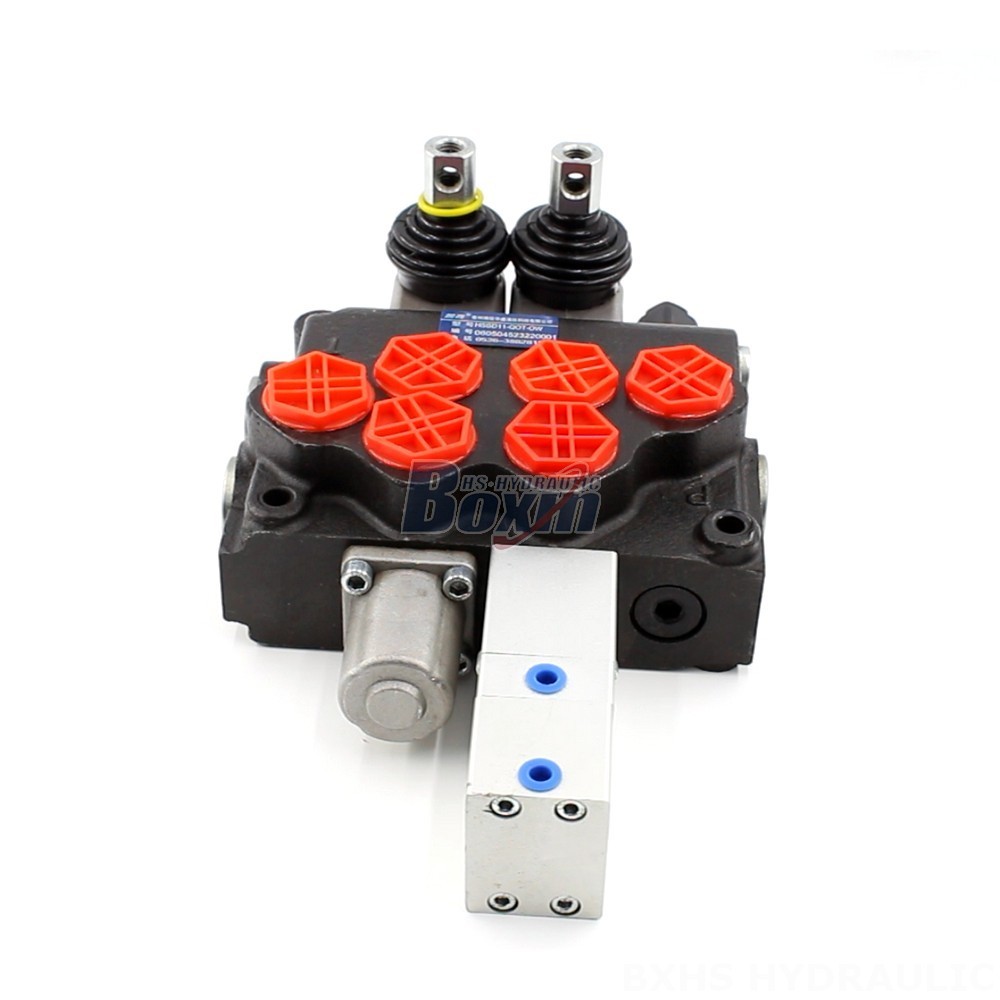

The SD11 Monoblock Valve from our company is a high-performance hydraulic valve designed for industrial applications. With a rated flow of 70 L/min and a maximum pressure of 250 bar, it offers exceptional flow control and pressure handling capabilities. The valve features a compact monoblock design, ensuring durability and reliability in demanding operating conditions.
| Seri SD11 Katup Arah Monoblok Parameter | |
|---|---|
| Metode Kontrol | Buku Panduan, Pneumatik, Elektro-pneumatik, Elektro-hidraulik, Selenoid, Hidraulis, Hidraulik dan Manual, Kabel, Stik Kontrol, Listrik, Pneumatik dan Manual |
| Spul | 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool |
| Kisaran Suhu Sekitar | -40°C hingga +60°C (-40°F hingga +140°F) |
| Tipe Struktur | Katup monoblok |
| Bagian | 1 Bagian, 2 Bagian, 3 Bagian, 4 Bagian, 5 Bagian, 6 Bagian, 7 Bagian |
| Kisaran Viskositas Operasional | 15 - 75 mm²/dt (15 cSt hingga 75 cSt) |
| Aliran Terukur | 70 L/menit (18,5 US gpm) |
| Tekanan Maksimum | 305 bar (4400 psi), 315 bar (4600 psi) |
| Port Masuk | G3/4, SAE 12 |
| Port Keluar | G3/4, SAE 12 |
| Ukuran Port | G3/4, SAE 12 |
**Enhanced Hydraulic Performance:**
- Rated Flow: 70 L/min (18.5 US gpm)
- Max Pressure: 250 bar (3600 psi)
- Operating Viscosity Range: 15 - 75 mm²/s (15 cSt to 75 cSt)
- Ambient Temperature Range: -40°C to +60°C (-40°F to +140°F)
**Structural Features:**
- Control Method: Manual
- Section: 1 Section
- Structure Type: Monoblock valve
- Spool: 1 Spool
**Application Versatility:**
Suitable for a wide range of industrial applications, including:
- MATERIAL HANDLING
- CONSTRUCTION AND EARTH MOVING
- AGRICULTURE
- INDUSTRIAL VEHICLES
**Applicable Models:**
- TELEHANDLER
- FORKLIFT
- ALL TERRAIN CRANE
- STACKER
- AERIAL PLATFORM
- MOTOR GRADER
- EXCAVATOR
- SKID STEER LOADER
- COMPACT WHEEL LOADER
- WHEEL LOADER
- BACKHOE LOADER
- DUMP TRUCK
- FACE DRILL RIG
- CONCRETE BOOM PUMP
- PAVE ROLLER
- ROTARY DRILLING
- CRUSHER - STONE CUTTER
- SCREENER
- TRACTOR AND FRONT-END LOADER
