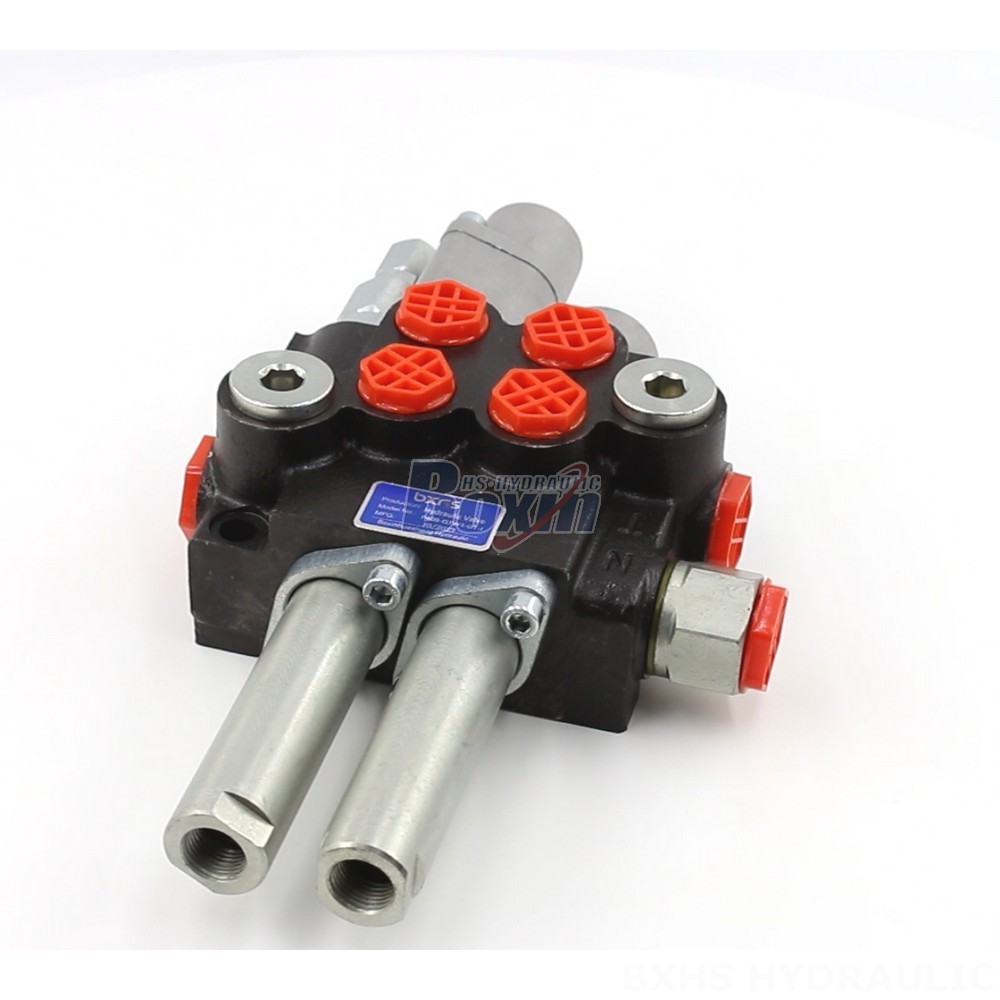

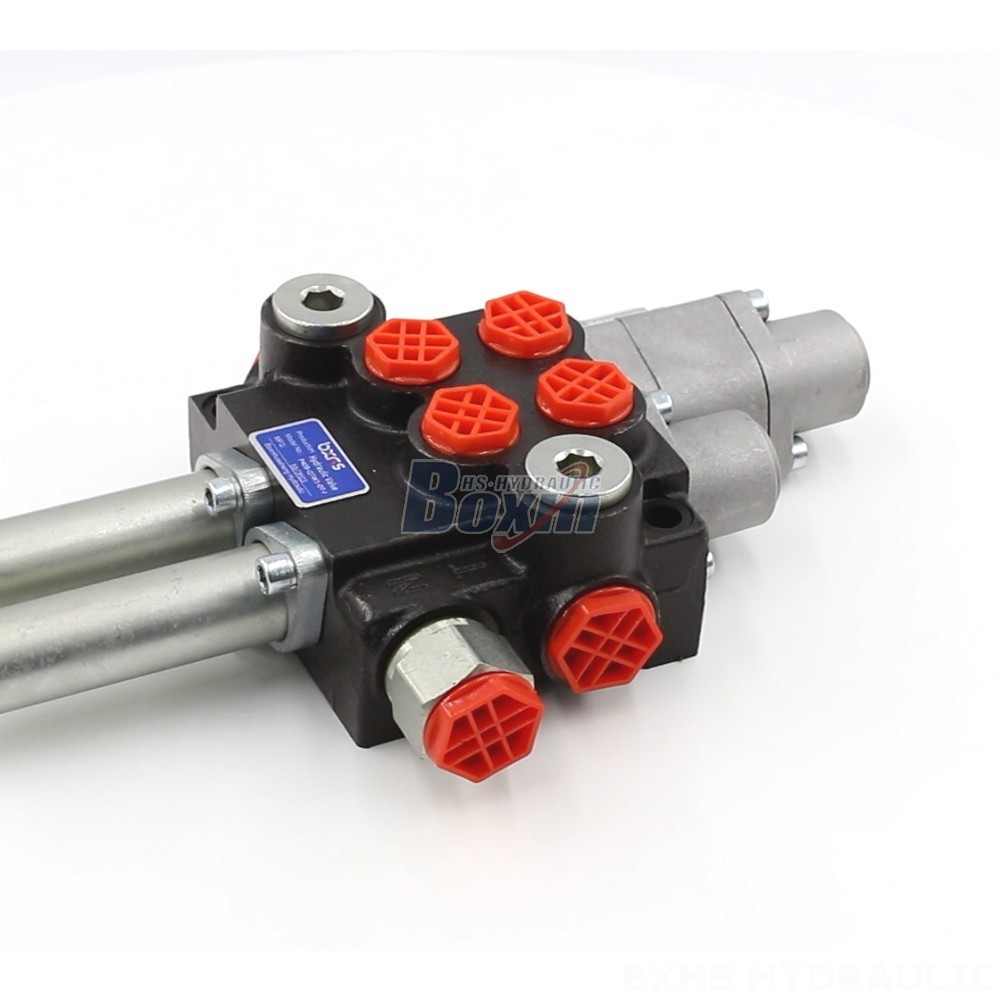

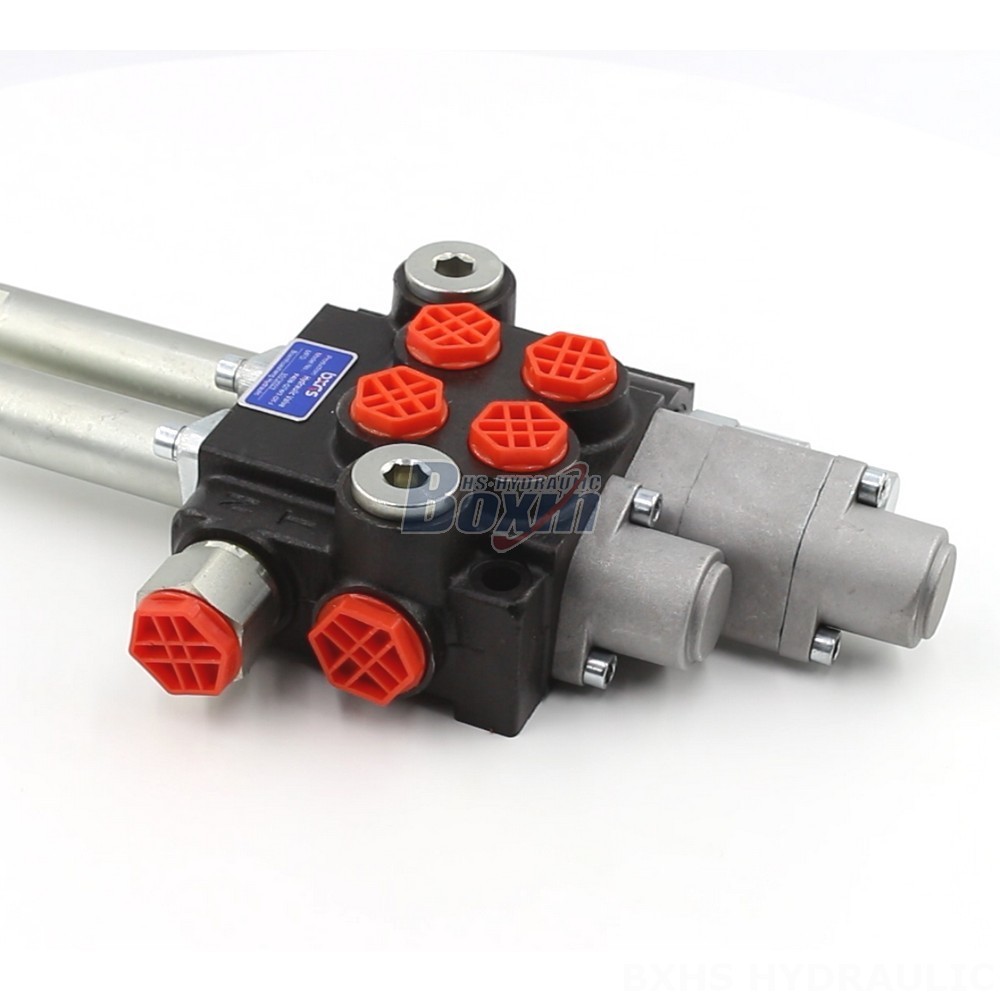

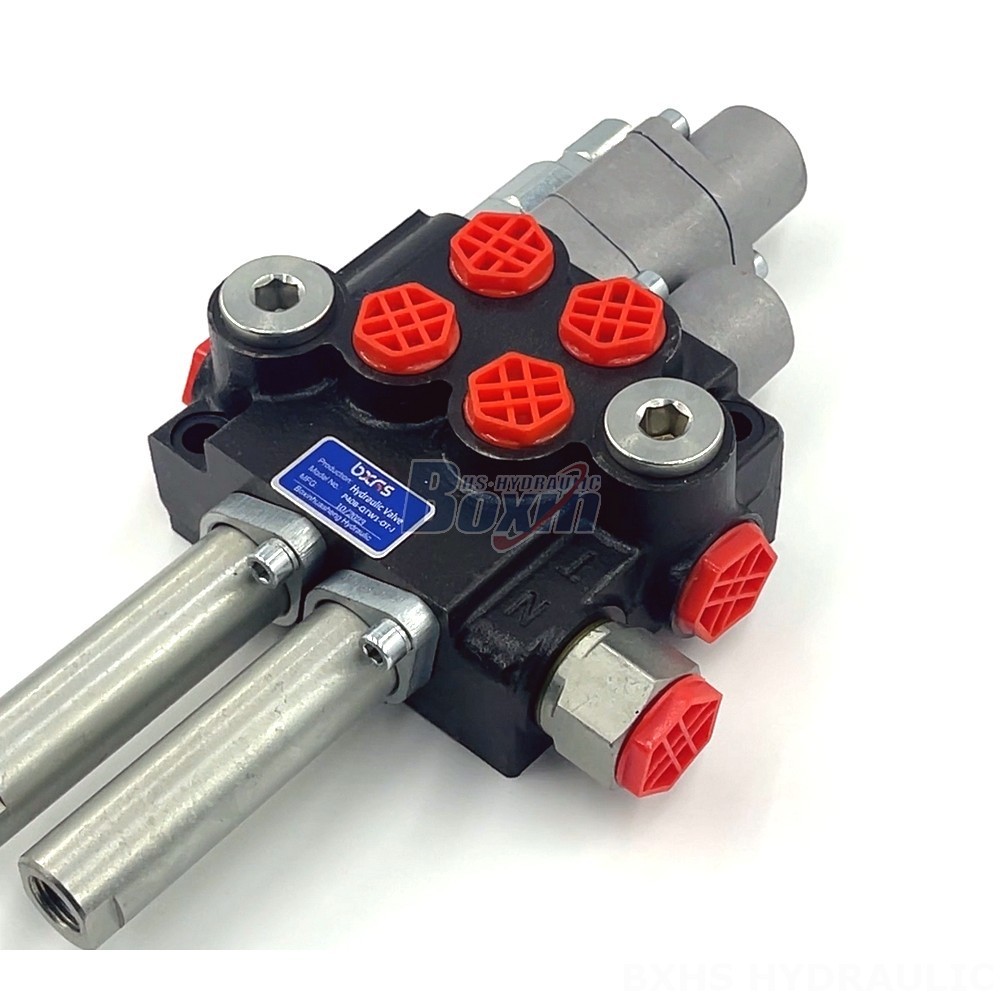

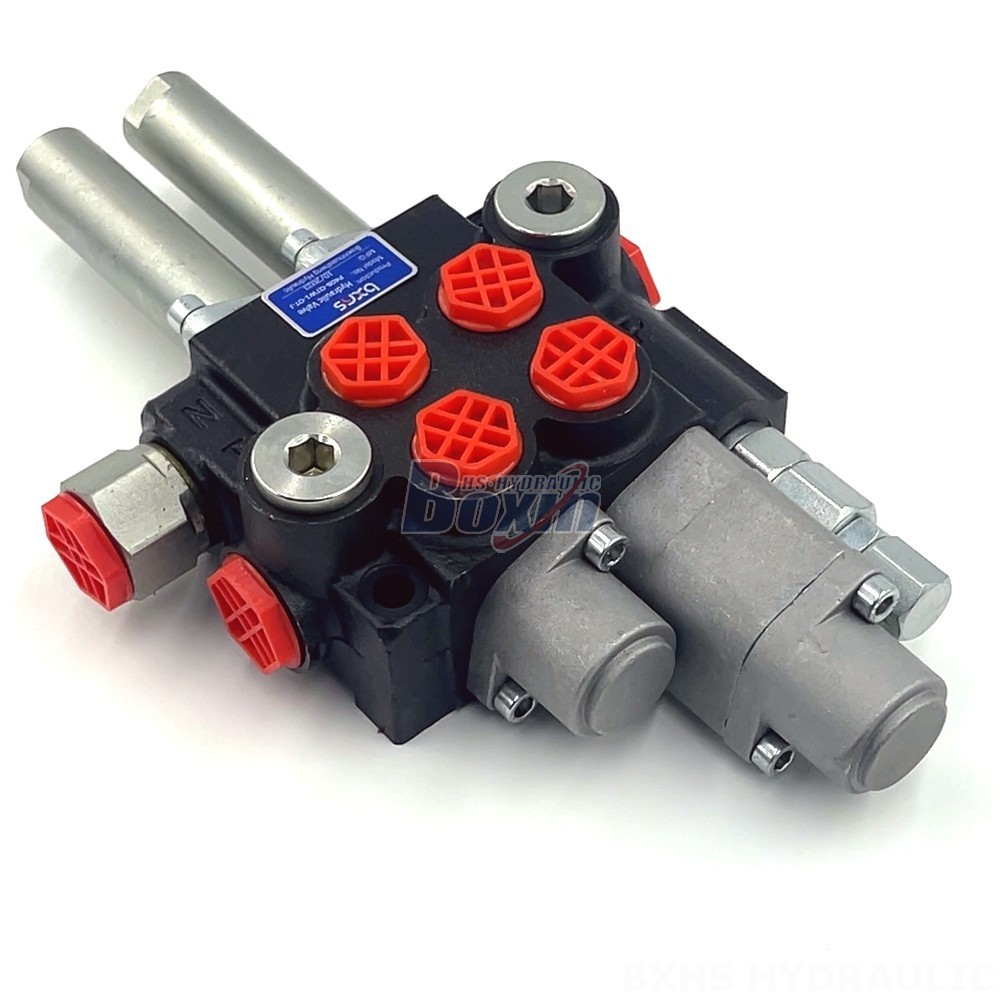

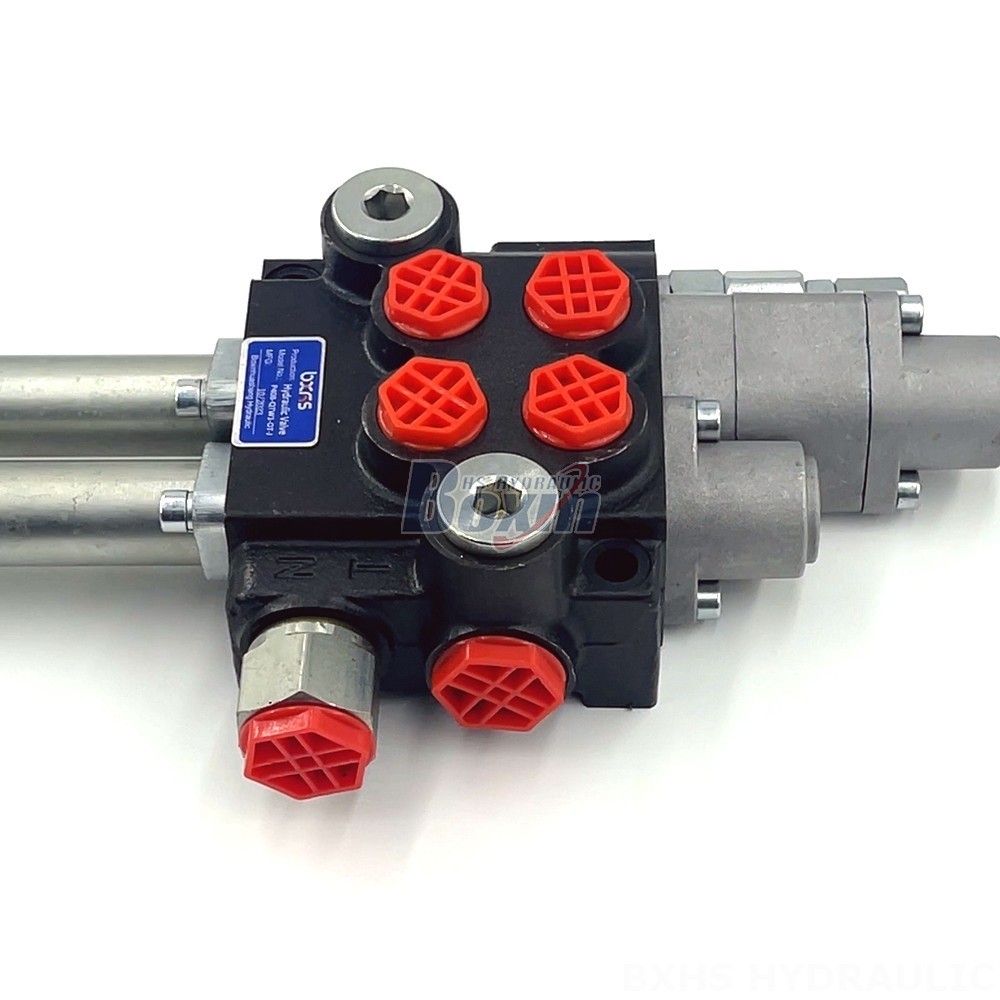

Introducing our exclusive factory deals on high-performance P40 Floating Cable 2 Spool Monoblock Directional Valves. These valves are meticulously engineered for seamless operation, providing precise flow control in demanding hydraulic applications. With a rated flow of 40 L/min and a maximum pressure of 250 bar, our valves excel in diverse industries, including material handling, construction, agriculture, and industrial vehicles. Their flexible 2-spool design and compatibility with various applications make them a versatile choice for your hydraulic system requirements.
| Seri P40 Katup Arah Monoblok Parameter | |
|---|---|
| Metode Kontrol | Buku Panduan, Pneumatik, Elektro-pneumatik, Elektro-hidraulik, Selenoid, Hidraulis, Hidraulik dan Manual, Kabel, Stik Kontrol, Selenoid dan Joystick, Manual dan Joystick, Solenoid dan Kabel |
| Spul | 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool |
| Kisaran Suhu Sekitar | -40°C hingga +80°C (-40°F hingga +176°F) |
| Tipe Struktur | Katup monoblok |
| Bagian | 1 Bagian, 2 Bagian, 3 Bagian, 4 Bagian, 5 Bagian, 6 Bagian, 7 Bagian |
| Kisaran Viskositas Operasional | 15 - 75 mm²/dt (15 cSt hingga 75 cSt) |
| Aliran Terukur | 40 L/menit (10,5 US gpm) |
| Tekanan Maksimum | 250 bar (3600 psi) |
| Port Masuk | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Port Keluar | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Ukuran Port | G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
Our P40 series valves feature a rugged monoblock construction, ensuring durability and leak-free performance. The floating cable control mechanism offers precise spool actuation, while the 2-spool design allows for independent control of two separate hydraulic circuits. These valves operate within a wide viscosity range of 15 - 75 mm²/s and ambient temperature range of -40°C to +80°C, ensuring reliable operation in challenging conditions. As a leading manufacturer, we offer these valves at competitive factory deals, enabling you to optimize your hydraulic system performance without breaking the bank. Whether you're a distributor, wholesaler, or end-user, we invite you to explore our exclusive factory deals on P40 Floating Cable Directional Valves.
